Obdmate om520 User manual

www . autophix . com
OBDMATE OM520
User’s Manual
www.AllOBD2.com

Table of Contents
1. Safety Precautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 On-Board Diagnostics (OBD) II. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Diagnostic Trouble Codes (DTCs) .. . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.3 Location of the Data Link Connector (DLC) . . . . . . . . . . . . . . . . . . . 4
2.4 OBD II Readiness Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.5 OBD II Monitor Readiness Status. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 OBD II Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3. Using the Scan Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Tool Description OM520. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Accessories Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Code Lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.5 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.6 Tool Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.7 Tool Self - Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. OBD II Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Read Fault Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Eras Fault Codes .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 View Data Stream. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.4 View Freeze Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.5 I/M Readiness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.6 Current Trip Info.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.7 O2 Sensor Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.8 On-Board Monitor Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.9 EVAP System Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.1 Limited One Year Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.2 Service Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.10 Vehicle Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.11 Modules Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.12 Unit Of Measure .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1
www.AllOBD2.com

1. Safety Precautions and Warnings
To prevent personal injury or dama ge to vehicles and/or the scan tool, read this
instruction manual first and observe the following safety precautions at a
minimum whenever working on a vehicle:
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep cl othi ng, hai r, hands , tool s, test equi pment , etc. away from all movi ng or
hot engine parts.
Operate the vehicle in a well ventilated work area: Exhaust gases are
Poisonous.
Put bl oc ks in front of the drive wheel s and nev er leav e the vehicl e una ttend ed
while running tests.
Use extreme caution when working around the ignition coil, distributor cap,
igni tion wires and sp ark pl ugs . Thes e co mpon ent s cr eat e haz ardou s voltage s
when the engine is running.
Put the transmission in PARK (for automat ic transmi ssion) or NEU TRAL (for
manual transmission) and make sure the parking brake is engaged.
Keep a fire extingu isher su itabl e for gas oline/ chemi ca l/electrica l fires nea rby.
Don 't connect or di sconnect an y test equipme nt whi le the ignition is on or the
engine is running.
Keep the scan tool dry, clean, free from oil/water or grease. Use a mild
detergent on a clean cloth to clean the outside of the scan tool, when
Necessary.
Do not attempt to operate or observe the tool while driving a vehicle.
Operating or observing the tool will cause driver distraction and could
cause a fatal accident.
2
www.AllOBD2.com

2. General Information
2.1 On-Board Diagnostics (OBD) II
The first generation of On-Board Diagnostics (called OBD I) was
developed by the California Air Resources Board (CARB) and
implemented in 1988 to monitor some of the emission control components
on vehicles. As technology evolved and the desire to improve the On-
Board Diagnostic system increased, a new generation of On-Board
Diagnostic system was developed. This second generation of On-Board
Diagnostic regulations is called "OBD II".
The OBD II system is designed to monitor emission control systems and
key engine components by performing either continuous or periodic tests
of specific components and vehicle conditions. When a problem is
detected, the OBD II system turns on a warning lamp (MIL) on the vehicle
instrument panel to alert the driver typically by the phrase “Check Engine”
or “Service Engine Soon”. The system will also store important information
about the detected malfunction so that a technician can accurately find and
fix the problem. Here below follow three pieces of such valuable
Information:
1) Whether the Malfunction Indicator Light (MIL) is commanded 'on' or
'Off';
2) Which, if any, Diagnostic Trouble Codes (DTCs) are stored;
3) Readiness Monitor status.
2.2 Diagnostic Trouble Codes (DTCs)
OBD II Diagnostic Trouble Codes are codes that are stored by the on-
board computer diagnostic system in response to a problem found in the
vehicle. These codes identify a particular problem area and are intended to
provide you with a guide as to where a fault might be occurring within a
vehicle. OBD II Diagnostic Trouble Codes consist of a five-digit
alphanumeric code. The first character, a letter, identifies which control
system sets the code. The other four characters, all numbers, provide
additional information on where the DTC originated and the operating
conditions that caused it to be set. Below is an example to illustrate the
structure of the digits:
3
www.AllOBD2.com

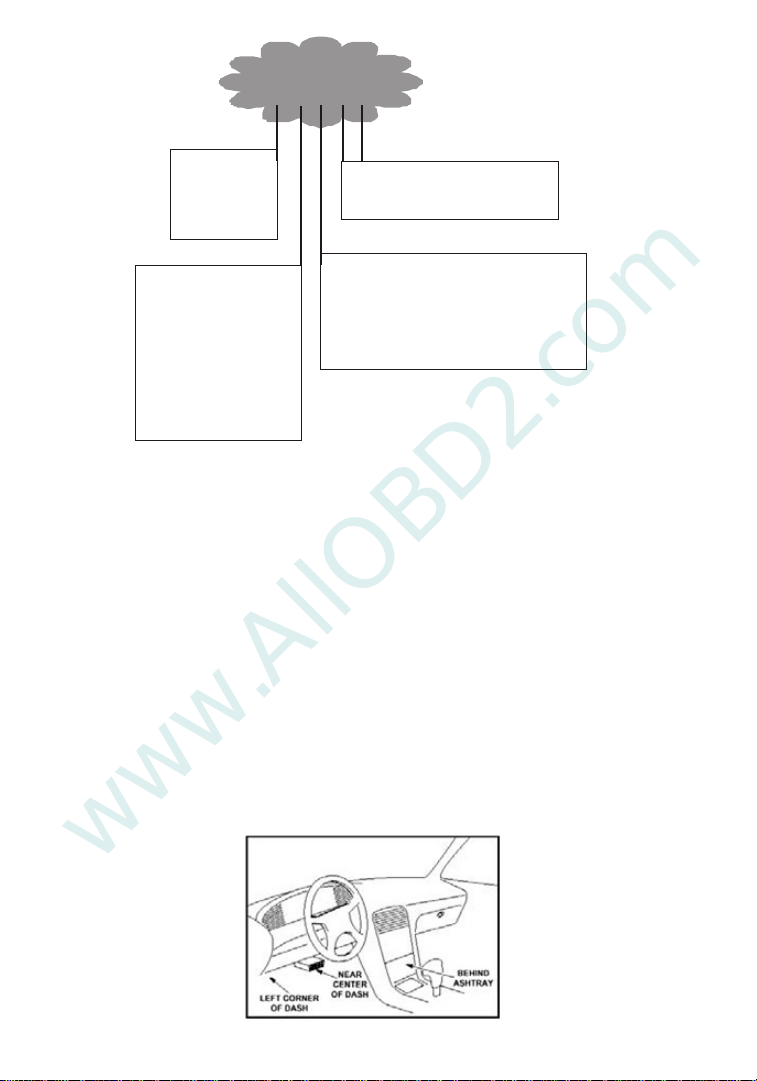

DTC Example
P 0 5 2 0
Systems
B = Body
C = Chassis
P = Powertrain
U = Network
Last two digits identify individual
component within the system
Code Type
Generic (SAE):
P0
B0
C0
U0
Manufacturer Specific:
P1, P2
B1, B2
C1, C2
U1, U2
Sub-systems
1 = Fuel and air metering
2 = Fuel and air metering
3 = Ignition system or engine misfire
4 = Auxiliary emissions controls
5 = Vehicle speed control and idle controls
6 = Computer output circuits
7 = Transmission controls
Figure 1-2: Explanation of a diagnostic trouble code.
2.3 Location of the Data Link Connector (DLC)
The DLC (Data Link Connector or Diagnostic Link Connector) is the
standardized 16-cavity connector where diagnostic scan tools interface
with the vehicle's on-board computer. The DLC is usually located 12
inches from the center of the instrument panel (dash), under or around the
driver's side for most vehicles. If the Data Link Connector is not located
under the dashboard, a label should be there revealing its location. For
some Asian and European vehicles, the DLC is located behind the ashtray
and the ashtray must be removed to access the connector. If the DLC
cannot be found, refer to the vehicle's service manual for the location.
Figure 1-3: The DLC connector (left) can be found in the area of
the car interior seen at right (black arrow).
4
www.AllOBD2.com

2.4 OBD II Readiness Monitors
Readiness Monitors are indicators used to find out if all of the emissions
components have been evaluated by the OBD II system. They are running
periodic tests on specific systems and components to ensure that they are
performing within allowable limits.
currently, there are eleven OBD Readiness Monitors (or l/M Monitors)II
defined by the U.S. Environmental Protection Agency (EPA). Not all
monitors are supported by all vehicles and the exact number of monitors in
any vehicle depends on the motor vehicle manufacturer’s emissions
control strategy.
Comtinuous Monitors – Some of the vehicle components or systems are
continuously tested by the vehicle’s OBD system, while others are testedII
only under specific vehicle operating conditions. The continuously
monitored components listed below are always ready:
1. Misfire
2. Fuel System
3. Comprehensive Components (CCM)
Once the vehicle is running, the OBD system is continuously checkingII
the above components, monitoring key engine sensors, watching for
engine misfire, and monitoring fuel demands.
Non-Continuous Monitors – Unlike the continuous monitors, many
emissions and engine system components require the vehicle to be
operated under specific conditions before the monitor is ready. These
monitors are termed non-continuous monitors and are listed below:
1. EGR Syst em - exha ust Gas Reci rcul at ion for reduci ng greenhouse gase s.
2. O2 Sensors - monitor and adjust air/fuel mixture.
3. Catalyst - reduces exhaust emissions.
4. Evaporative System - monitors the integrity of the fuel tank system.
5. O2 Sensor Heater - brings O2 sensor to correct operating temperature.
6. Secondary air - reduces exhaust emissions.
7. Heated Catalyst - brings catalyst to correct operating temperature.
8. A/C system - monitors system for freon leaks.
5
www.AllOBD2.com

Components that have been OBD II tested will be reported as “OK”. The
purpose of recording readiness status is to allow inspectors to determine if
the vehicle’s OBDII system has tested all the emissions systems. This is
handy to know before bringing vehicle to a state emissions testing facility.
The powertrain control module (PCM) sets a monitor to “OK” after an
appropriate drive cycle has been performed. The drive cycle that enables a
Monitor and sets readiness codes to “OK” varies for each individual
monitor. Oncce a monitor is set as “OK”, it will remain in this state. A
number of factors, including erasing of diagnostic trouble codes (DTCs)
with a code reader or a disconnected battery, can result in Readiness
Monitors being set to “INC” (incomplete). Since the three continuous
monitors are constantly evaluating, they will be reported as “OK” all of the
time. As long as there are no DTCs stored in memory, the vehicle is
running in accordance with the OBD II guidelines. If testing of a particular
supportes non-continuous monitor has not been completed or not tested,
the monitor status will be reported as “INC” (incomplete).
In order for the OBD monitor system to become ready, the vehicle should
be driven under a variety of normal operating conditions. These operating
conditions may include a mix of highway driving and stop and go, city type
driving, and at least one overnight-off period. For specific information on
getting your vehicle’s OBD monitor system ready, please consult your
vehicle owner’s manual.
2.6 OBD II Definitions
Powertrain Control Module (PCM) – the OBD II terminology for the on-
board computer that controls the engine and the drive train.
Malfunction Indicator Light (MIL) – Malfunction Indicator Light (Service
Engine Soon, Check Engine) is a term used for the light on the instrument
panel. It is to alert the driver and/or the repair technician that there is a
problem with one or more of vehicle’s systems and may cause emissions
to exceed federal standards. If the MIL illuminates with a steady light, it
indicates that a problem has been detected and the vehicle should be
serviced as soon as possible. Under certain conditions, the dashboard
light will blink or flash. This indicates a severe problem and flashing is
2.5 OBD II Monitor Readiness Status
OBD II systems must indicate whether or not the vehicle’s PCM’s
monitoring has completed testing on each emission component.
6
www.AllOBD2.com

Enabling Criteria – Also termed Enabling Conditions. They are the
vehicle-specific events of conditions that must occur within the engine
before the various monitors will set, or run. Some monitors require the
vehicle to follow a prescribed “drive cycle” routine as part of the enabling
criteria. Drive cycles vary among vehicles and for each monitor in any
particular vehicle.
OBD II Drive Cycle – A specific mode of vehicle operation that provides
conditions required to set all the readiness monitors applicable to the
vehicle to the “ready” condition. The purpose of completing an OBD II drive
cycle is to force the vehicle to run its onboard diagnostics. Some form of a
drive cycle needs to be performed after DTCs have been erased from the
PCM’s memory or after the battery has been disconnected. Running
through a vehicle’s complete drive cycle will “set” the readiness monitors
so that future faults can be detected. Drive cycles vary depending on the
vehicle and the monitor that needs to be reset. For vehicle specific drive
cycle, consult the vehicle’s Owner’s Manual.
Freeze Frame Data – When an emissions related fault occurs, the OBD II
system not only sets a code, but also records a snapshot of the vehicle
operating parameters to help in identifying the problem. This set of values
is referred to as Freeze Frame Date and may include important engine
parameters such as engine RPM, vehicle speed, air flow, engine load, fuel
pressure, fuel trim value, engine coolant temperature, ignition timing
advance, or closed loop status.
intended to discourage vehicle operation. The vehicle onboard diagnostic
system can not turn the MIL off until necessary repairs are completed or
the condition no longer exists.
DTC – Diagnostic Trouble Codes (DTC) these identify which section of the
emission control system has malfunctioned.
7
www.AllOBD2.com

3. Using the Scan Tool
3.1 Tool Description - AutoPhix OM 520
1
23
6
4
5
8
7
9
1. LCD DISPLAY – Indicates test results. Backlit, 128 x 64 pixel display
with contrast adjustment.
2. ENTER BUTTON – Confirms a selection (or action) from a menu.
3. EXIT BUTTON – Cancels a selection (or action) from a menu or returns
to the menu. It is also used to setup system, exit DTC Lookup screen.
8
www.AllOBD2.com

4. LEFT SCROLL BUTTON – When looking up DTC definitions, moves
to previous character and views additional information on previous screens
if DTC definition covers more than one screen; deselect all marked
PID data . Updates DTC library when pressed.
5. RIGHT SCROLL BUTTON – When looking up DTC definitions,
moves to next character and views additional information on next screens
if DTC definition covers more than one screen; selects/deselects PID data.
6. UP SCROLL BUTTON – Moves up through menu and submenu
items in menu mode. When more than one screen of data is retrieved,
moves up through the current screen to the previous screens for additional
data.
7. DOWN SCROLL BUTTON – Moves down through menu and
submenu items in menu mode. When more than one screen of data is
retrieved, moves down through the current screen to next screens for
additional data.
8. HELP BUTTON – Provides help information when pressed.
9. OBD II CONNECTOR – Connects the scan tool to the vehicle’s Data
Link Connector (DLC).
3.2 Specifications
1) Display: Backlit, 128 × 64 pixel display with contrast adjustment
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle battery
5) Dimensions:
Length Width Height
166 mm (6.48”) 88 mm (3.45”) 30 mm (1.16”)
6) NW: 0.48kg (1.06lb), GW: 0.62kg (1.36lb)
3.3 Accessories Included
1) OBD II cable – Provides power to tool and commu nicates betwe en tool and
vehicle.
9
www.AllOBD2.com

2) USB cable – Used to upgrade the scan tool, and to print retrieved data.
Updating the AutoPhix OM 520
a. Attach the USB cable.
b. Go to and click on Downloads.www.autophix.com
USB update cable attached to the tool.
c. Click on Software Update for AutoPhix OM520 and follow on-screen
instructions.
3.4 Code Lookup
The Code Lookup function is used to search for definitions of Code stored
in the built-in Code library.
1) From the Main Menu, use the UP/DOWN scroll button to select the Code
Lookup and press the ENTER button.
10
www.AllOBD2.com

2) From the Code Lookup menu, use the LEFT/RIGHT button to move to the
desired character, use the UP/DOWN button to change the selected digit/
character and press the ENTER button to confirm.
3) View the DTC definition on screen. When the DTC definition covers mo re than
one screen, use the LEFT/RIGHT button to view additional information on
previous/next screen(s).
For manufacturer specific codes, you'll need to select a vehicle make
on an additional screen to look for DTC definitions.
If definition could not be found (SAE or Manufacturer Specific), the scan
tool displays "DTC definition not found! Please refer to vehicle service"
manual!"
4) To exit to the Main Menu, press the EXIT button.
3.5 System Setup
The scan tool allows you to make the following adjustments and settings:
1) Select Language: Selects the desired language.
2) Adjust Contrast: Adjusts the contrast of the LCD display.
3) Unit of Measure: Sets the unit of measure to English or Metric.
4) Fuel Type: Select vehicle Fuel Type.
5) Engine Liter: Setup up vehicle engine liter.
6) Beep Set: Turns ON/OFF beep.
To enter the setup menu mode
From the keyboard: Press the EXIT button to enter the System Setup
menu. Follow the instructions to make adjustments and program settings
as described in the following setup options.
11
www.AllOBD2.com

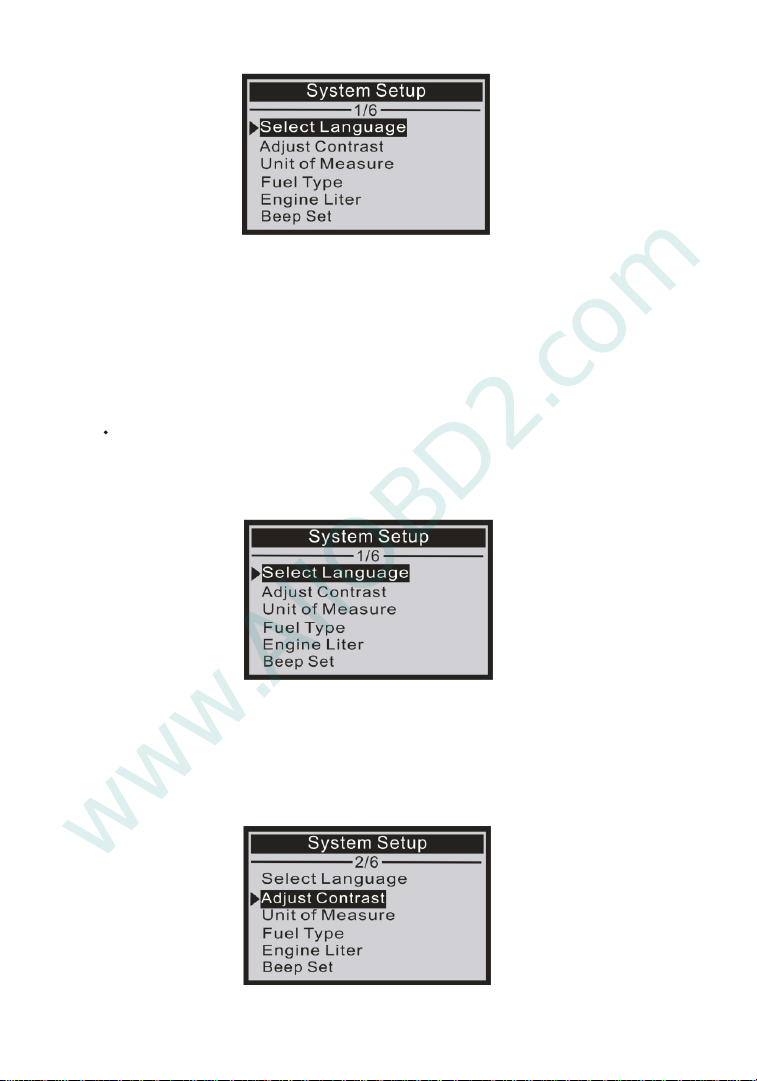

From the Main Menu: Use the UP/DOWN scroll button to select System
Setup, and press the ENTER button. Follow the instructions to make
adjustments and program settings as described in the following setup
options.
Language Setup
English is the default language.
From the System Setup menu, use the UP/DOWN scroll button to select
Language, and press ENTER.
Adjust Contrast
1) From the System Setup menu, use the UP/DOWN scroll button to select
Contrast, and press ENTER.
12
www.AllOBD2.com

2) From the Contrast menu, use the UP/DOWN scroll button to increase or
decrease contrast.
3) Press ENTER to save your settings and return to the previous menu.
Unit of Measure
Metric is the default measurement unit.
1) From the System Setup menu, use the UP/DOWN scroll button to select Unit
of Measure and press ENTER.
2) From the Unit of Measure me nu, use the UP/DOWN scroll button to select the
desired Unit of Measure.
3) Press the ENTER button to save your selection and return to the previous
menu.
3) Press the ENTER button to save your selection and return to the previous
menu.
13
www.AllOBD2.com

Fuel Type
1) From the System Setup menu, use the UP/DOWN scroll button to select Fuel
Type and press ENTER.
2) From the Fuel Type menu, use the UP/ DOWN scr ol l but ton to sel ect the Fuel Type .
● NOTICE
DIESEL1 and DIESEL2 do not refer to different types of diesel fuel. They only
affect the way fuel consumption is computed and are selected based on the
way the vehicle computer reports its sensor information. Most diesel vehicles
use DIESEL1. Do the following to determine which your diesel vehicle uses.
3) Press the ENTER button to save your selection and return to the previous
menu.
Engine Liter
1) From the Sy stem Se tup men u, use the UP/ DOWN scroll button to select En gine
Liter and press ENTER.
14
www.AllOBD2.com

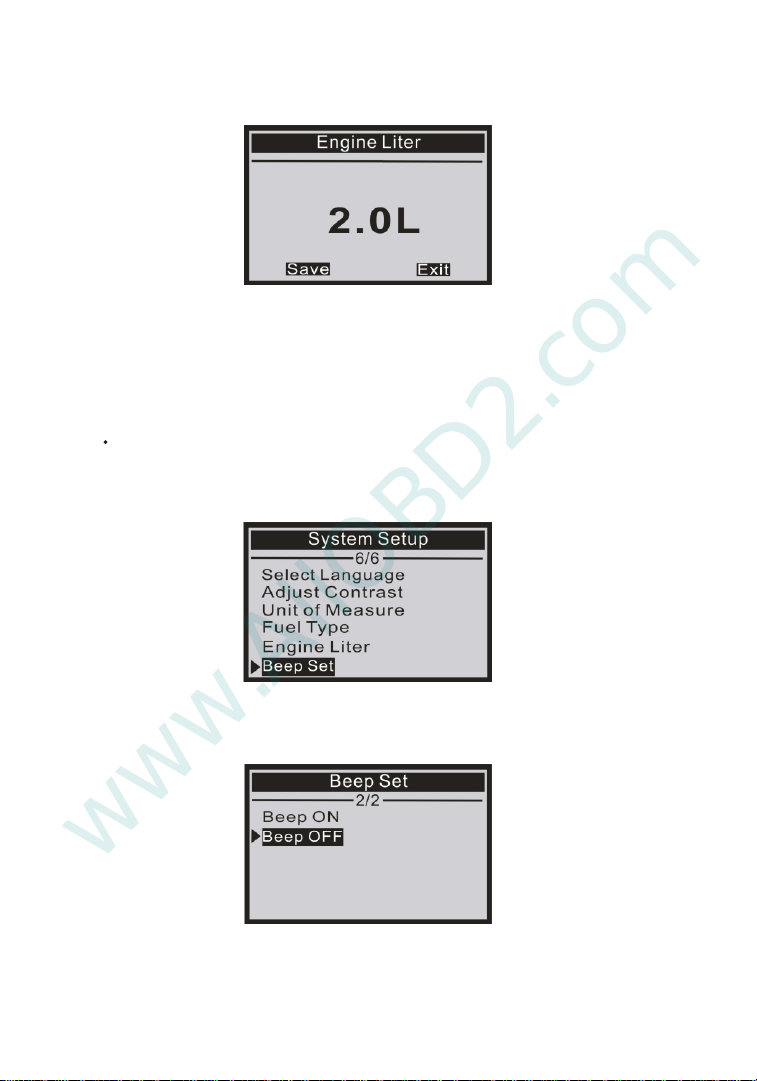

The default setting is Beep On.
1) Form the System Setup me nu, use the UP/DOWN scroll button to select Beep
Set and press ENTER.
2) From the 'Beep Set' menu, use the UP/ DOWN scroll button to select Beep ON
or Beep OFF.
Beep Set
2) From the Engine Liter menu, use the UP/DOWN scroll button to select the
vechile engine liter .
3) Press the ENTER button to save your selection and return to the previous
menu.
3) Press ENTER to save your selection and return to the previous menu.
15
www.AllOBD2.com

3.6 Tool Info.
Tool Information allows viewing of some important information such as
serial number and software version number of the scanner.
1) From the Main Menu, scroll to select Tool Info. and press ENTER.
2) View tool information on screen.
3.7 Tool Self-test
Tool Self-test
The Self-test checks if the display and keyboard are working properly.
A. Display test
The Display Test function checks if the LCD display is working properly.
1) From the System Setup menu, use the UP/DOWN scroll button to select
Tool Self-test, and press ENTER.
16
www.AllOBD2.com

3) Press ENTER again to start test. Look for missing spots in the solid black
characters.
4) When completed, press EXIT to return.
B. Keyboard Test
The Keyboard Test function verifies if the keys are functioning properly.
1) Use the UP/DOWN scroll button to select the Keyboard Test from the Tool
Self-test menu, and then press ENTER.
2) Press any key to start the test. When you press a key, the key name is
observed on the display. If not, then key is not functioning properly.
2) Select Display Test from the Tool Self-test menu and press ENTER.
3) Double press the EXIT to return to the previous menu.
17
www.AllOBD2.com

4. OBD II Diagnostics
CAUTION: Don't connect or disconnect any test equipment with ignition on
or engine running.
1) Turn the ignition off.
2) Locate the vehicle's 16-pin Data Link Connector (DLC).
3) Plug the scan tool cable connector into the vehicle's DLC.
4) Turn the ignition on. Engine can be off or running.
5) Press ENTER to enter Main Menu. Use the UP/DOWN scroll button to
select Diagnostics from the menu.
6) Press ENTER to confirm. A sequence of messages displaying the OBD II
protocols will be observed on the display until the vehicle protocol is detected.
If the scan tool fails to communicate with the vehicle's ECU (Engine
Control Unit), a "LINKING ERROR!" message shows up on the display.
- Verify that the ignition is ON;
- Check if the scan tool's OBD II connector is securely connected to the
vehicle's DLC;
- Verify that the vehicle is OBD II compliant;
- Turn the ignition 'off' and wait for about 10 seconds. Turn the ignition
back to 'on' and repeat the procedure from step 5.
4.1 Read Fault codes
Stored codes are also known as "hard codes" or "permanent codes".
These codes cause the control module to illuminate the malfunction
indicator lamp (MIL) when an emission-related fault occurs.
Pending Co des are also referred to as "maturing codes" or "continuous
monitor codes". They indicate problems that the control module has
detected during the current or last driving cycle, but are not considered
18
www.AllOBD2.com

serious, yet. Pending Codes will not turn on the malfunction indicator
lamp (MIL). If the fault does not occur within a certain number of warm-
up cycles, the code clears from memory.

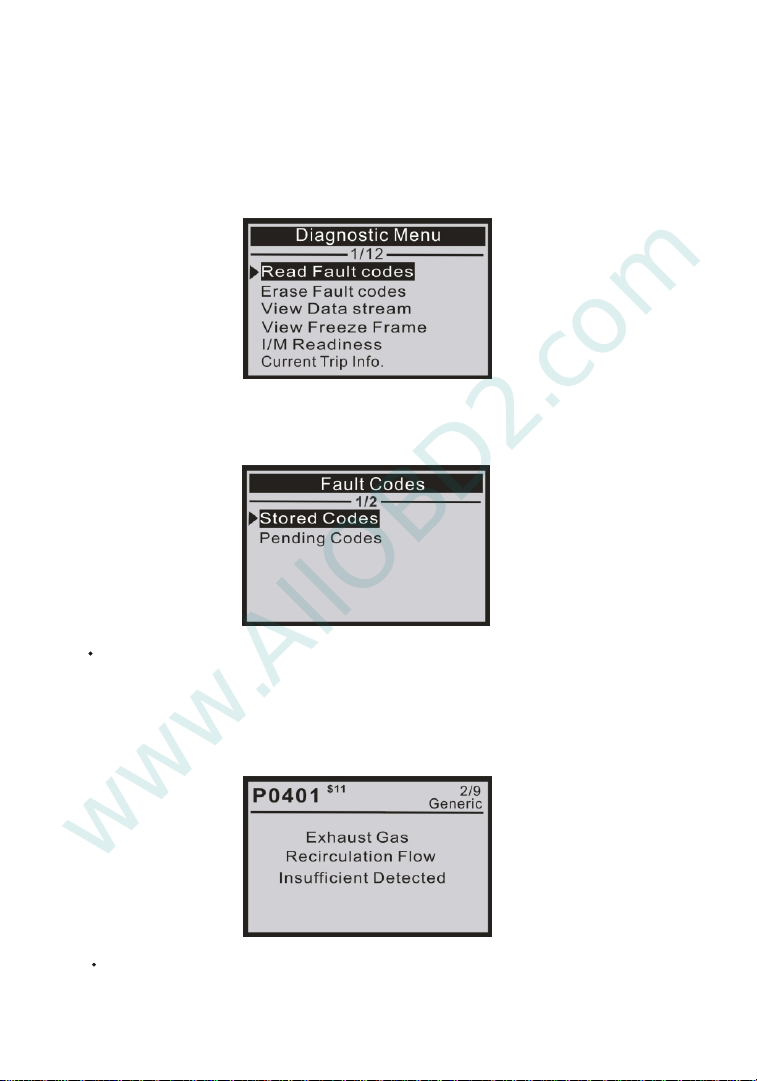

1) Use the UP/DOWN scroll button to select Read Codes from the Diagnostic
Menu and press ENTER.
2) Use the UP/DOWN scroll button to select Stored Codes or Pending Codes
from the Fault Codes menu and press ENTER.
If there are no Diagnostic Tr ouble Codes present, the display indicates
"No (pending) codes are stored in the module!" Wait a few seconds or
press any key to return to the Diagnostic Menu.
3) View DTCs and their definitions on screen.
The control module number, sequence of the DTCs, total number of
codes detected and type of codes (Generic of Manufacturer specific)
will be observed on the upper right hand corner of the display.
19
www.AllOBD2.com
