Mindray M7Vet Quick start guide

M7Vet Diagnostic Ultrasound System
Operation Note

i
Table of Contents
Table of Contents.............................................................................................i
1System Introduction ................................................................................1
2Control Panel ...........................................................................................2
3Icons on the Screens...............................................................................6
4Power ON/ OFF ........................................................................................7
5Enter or Search Animal Information ......................................................8
6Select Probe and Exam Mode.................................................................9
7Image Adjustment..................................................................................10
8Image Adjustment..................................................................................11
9Image Optimization: B...........................................................................12
10 Image Optimization: M ..........................................................................14
11 Image Optimization: Color ....................................................................15
12 Image Optimization: Power...................................................................16
13 Image Optimization: PW/CW.................................................................17
14 TDI (Tissue Doppler imaging)...............................................................20
15 Special Imaging Mode: Free Xros M ....................................................22
16 Color M Mode .........................................................................................24
17 Special Imaging Mode: 3D/ 4D..............................................................25
18 Special Imaging Mode: iScape .............................................................29
19 Image Display.........................................................................................30
20 Cine Review............................................................................................31
21 Save, Review and Analyze Images.......................................................32
22 Comments and Body Marks .................................................................33
23 Measurements........................................................................................35
24 Report & Print ........................................................................................36
25 Setup.......................................................................................................37

1
1 System Introduction
No. Name Function
1 Monitor Displays the images and parameters during
scanning.
2 Control Panel Operator-system interface or control.
3 Probe port Connects the pencil probe
4 Handle Used for carrying the system.
5 Probe port Connects a probe to the main unit; or connects a
probe extend module.
6 Transducer locking lever
Locks or unlocks the probe connected with the
main unit.
：locked symbol
: unlocked symbol
7 I/O extend port Connects the I/O extend module.
8
Power input port
Connects the power adapter.
9 USB port Connects USB devices.
10 Network port Connects the network.
11 S-Video separate video
output Connects DVR recorder or video printer.

2
2 Control Panel
<1> <2> <3> <4> <5> <6> <7>
<8> <9> <10> <11> <12> <13> <14> <15> <16>
<17>
<18>
<19>
<20> <21> <22> <23>
<24>
<25>
<26>
<27>
<28>
<29>
<30>
<31>
<32>
<33>
<34>
<35> <36>
<37>
<38>
<39>
<40>
<41> <42>
<43> <44>
<45> <46>
<47>
<48>
<49>
<50>
<51><52>
No. Name Description Function

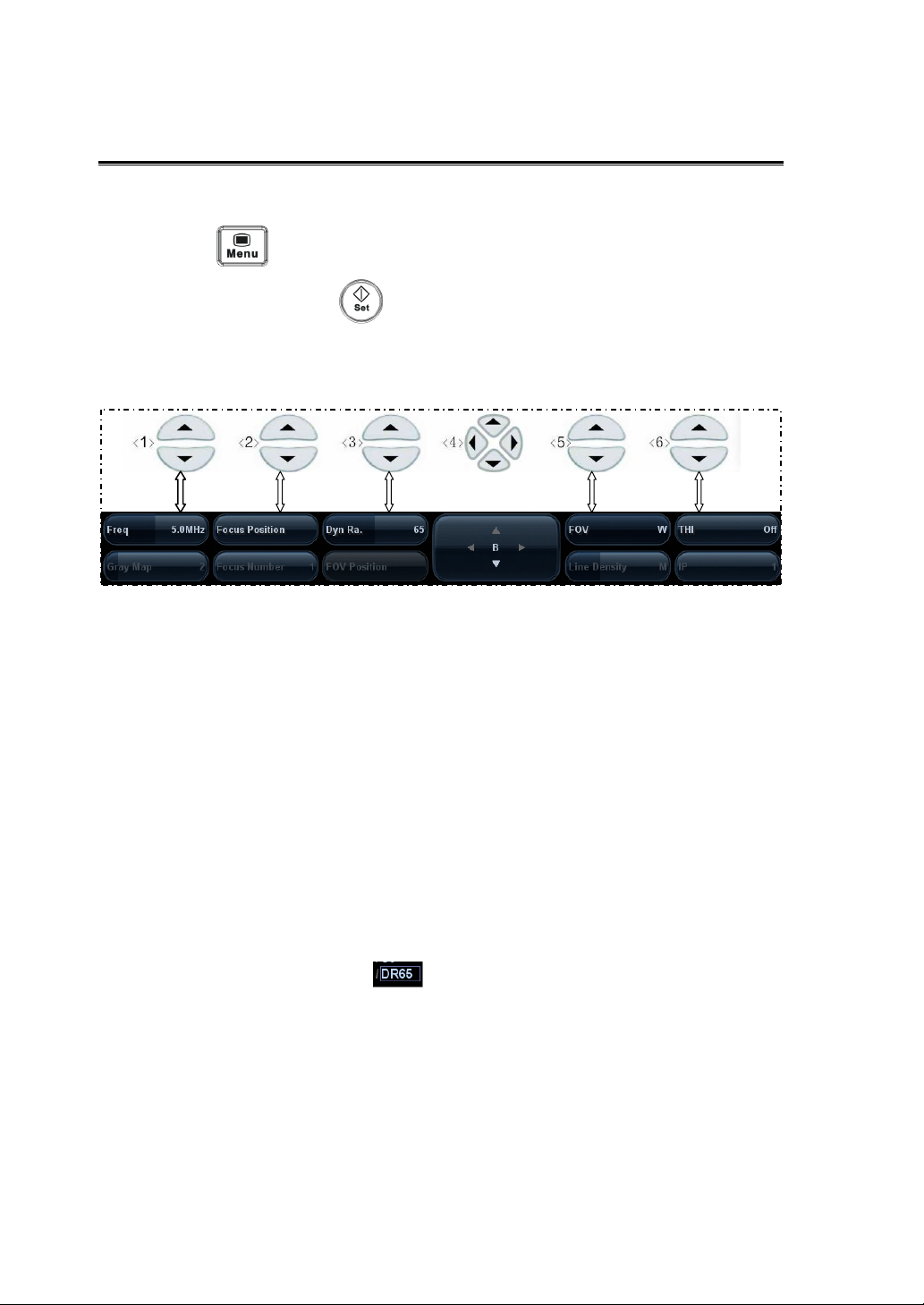

<1> / Soft menu
controls 1
Press to select the soft menu items displayed
on the bottom of the screen.
Refer to the subsequent contents for specific
functions.
<2> / Soft menu
controls 2
Press to select the soft menu items displayed
on the bottom of the screen.
Refer to the subsequent contents for specific
functions.
<3> / Soft menu
controls 3
Press to select the soft menu items displayed
on the bottom of the screen.
Refer to the subsequent contents for specific
functions.
<4> / Soft menu
controls 4
Up/ down controls are used to turn pages
up/down when there are more than one pages
for the soft menu.
Left/ right keys are used to switch among the

3
different modes.
<5> / Soft menu
controls 5
Press to select the soft menu items displayed
on the bottom of the screen.
Refer to the subsequent contents for specific
functions.
<6> / Soft menu
controls 6
Press to select the soft menu items displayed
on the bottom of the screen.
Refer to the subsequent contents for specific
functions.
<7> / Power button It does not illuminate when the system is
turned off.
Press the button to turn on the system, the
system enters work status and the indicator
lights on and becomes green.
When the system enters the standby status,
the indicator turns orange.
<8> Esc Exit Press to exit the current status to the previous
status.
<9> Help Help Press to open or close the accompanying
help documents.
<10> Report Report Press to open or close the diagnosis reports.
<11> iStation / Press to enter or exit the animal information
management system.
<12> F1-F4 User-defined
key
You can assign a function to the key.
<13> Quad Quad-split
screen
Press to enter or the quad-split screen display
in other modes than quad-split mode.
Press to switch among the windows in quad-
split screen display mode.
<14> Biopsy Biopsy Press to show or hide the biopsy guide line.
<15> Setup Setup Press to show the Setup menu.
<16> Del / Press to delete the comment, etc.
<17> TGC / Move to adjust time gain compensation.
<18> / Alphanumeric
keys
Same as those of PC.
<19> Menu Main menu Press to display or hide a mode-specific
parameter menu.
<20> Comment ABC
(Comments)
Press to enter or exit the character comment
status.
<21> Arrow Arrow Press to enter or exit the arrow comment

4
status.
<22> Clear Clear Press to clear the comments, measurement
calipers or body marks on the screen.
<23> Direction
keys
Press “Fn+/” to adjust volume or monitor
brightness
<24> iTouch / Rotate to increase or decrease the image
gain.
Press to optimize the image, serving as a
one-key optimization.
<25> Patient Patient
Information
Press to enter the [Patient Info] screen.

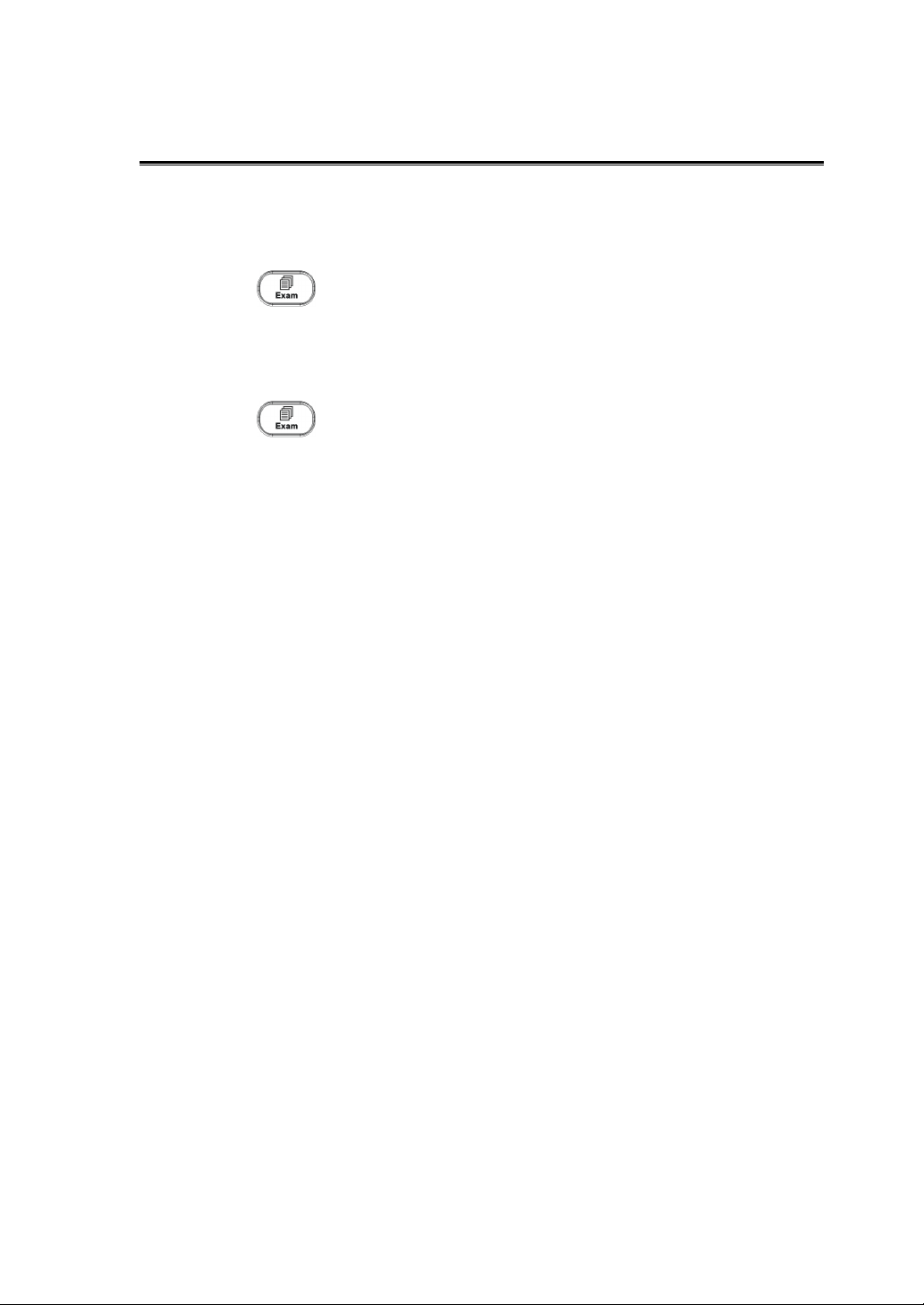

<26> Exam Exam Type Press to select an exam mode and a probe.
<27> Review Review To review the stored images.

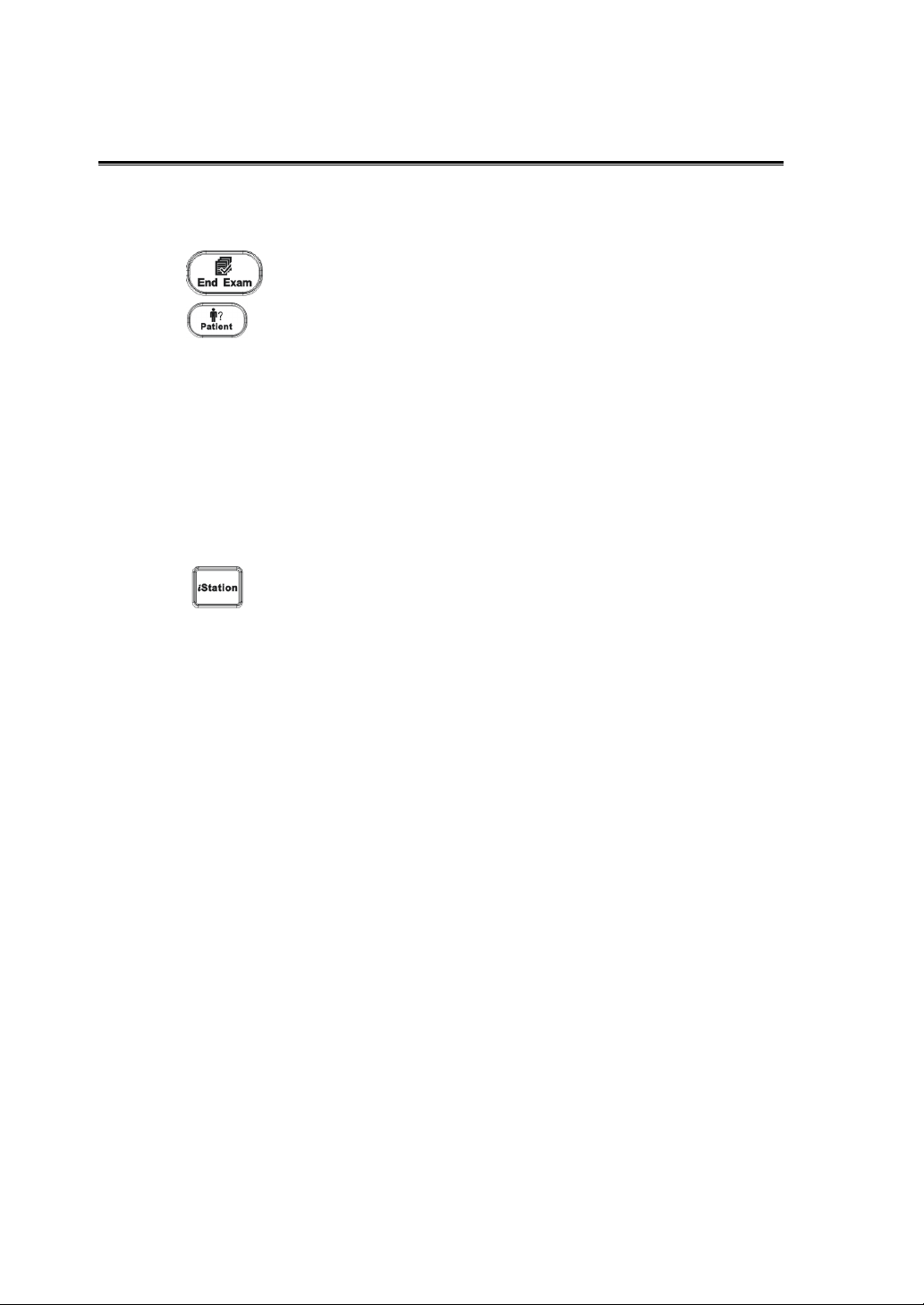

<28> End Exam End Exam Press to end an exam.
<29> Body Mark Body Marks Press to enter or exit the Body Mark status.
<30> Cine Cine Review Press to enter or exit the Cine Review status.
<31> Zoom Zoom Press to enter or exit the Zoom status.
<32> Cursor Cursor Press to show the cursor.
<33> F5 User-defined
key
You can assign a function to the key.
<34> Measure Measurement Press to enter or exit the measurement state.
<35> Update / Press to change the currently active window.
Or start/stop image acquisition in iScape or
3D/4D.
<36> Set Set Press to confirm an operation, same as the
left-button of the mouse.
<37> B / Press to enter B mode
<38> Dual / Press to enter Dual mode from another
modes.
Press to switch between the two windows in
Dual mode.
<39> Color / Press to enter Color mode.
<40> Power / Press to enter Power mode.
<41> CW / Press to enter CW mode.

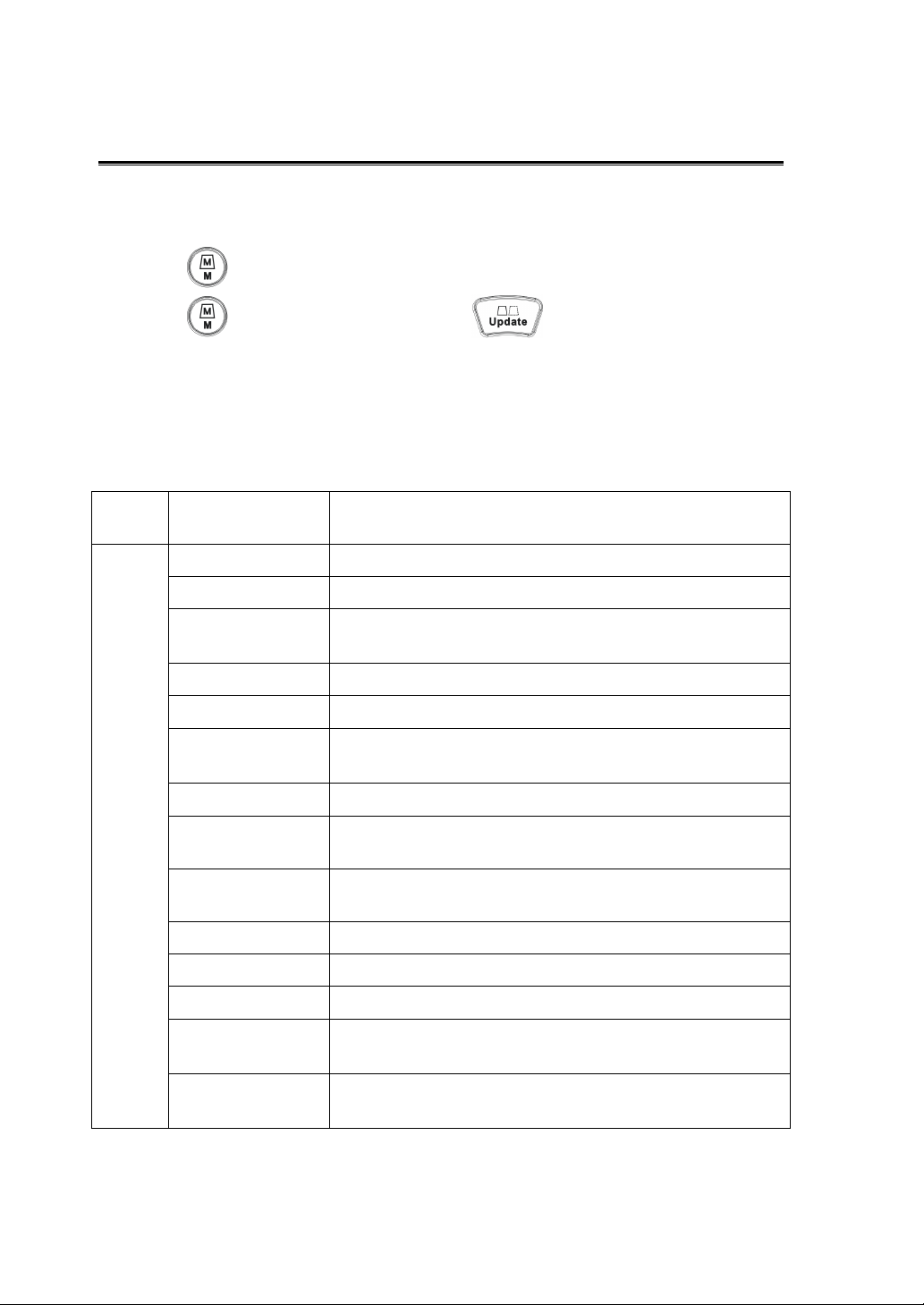

<42> M / Press to enter M mode.
<43> PW / Press to enter PW mode.
<44> F6 User-defined You can assign a function to the key.

5
key
<45> Print Print Press to print; user-defined key.
<46> Save Save Press to save; user-defined key.
<47> Depth Depth Press to increase or decrease the imaging
depth in scanning mode.
<48> Freeze Freeze Press to freeze or unfreeze the image.
<49> / Trackball Roll the trackball to change the cursor
position.
<50> / Multifunctional
knob
Rotate to adjust image parameters or
direction of comment arrows.
Press to show the menu, rotate to select the
item.
<51> / Indicator 1 Indicates if the main unit is connected to the
power supply.
If not connected, the indicator does not
illuminate.
If connected, the indicator illuminates in green
color.
<52> / Indicator 2 Indicates the current status of the batteries.
When the system is supplied with power by
the batteries and the power capacity is lower
than 30%, the indicator is yellow and flashes.
When the batteries are being charged, the
indicator light is on and in yellow color.
When the battery capacity is charged to the
full capacity, the indicator color turns green.
In other statuses, the indicator light is off.

6
3 Icons on the Screens
System status icons：
Icons Information
Free cursor
Or Region of Interest (ROI) size or position adjustment
Sample volume(SV) or M sampling line adjustment
, or M-mark line adjustment in free Xros mode
Cine Review status
Measurement Status
Comment status
Body Mark Status
Zoom status
Sphere-center rotation in 3D/4D imaging mode
3D/ 4D cutting status
, or ROI adjustment in 3D/ 4D mode
Move the sphere center of 3D/4D image
Sectional image viewing in 3D/4D mode
Icons in status bar(in the lower right corner of the screen)
Icon Information
Session manager
Click to show the hided icons
To show the animal task management
Recycle bin
This icon appears when a USB device is connected
Network connection
Wireless LAN connection
Optical disk operation
Printer management
Battery capacity indication
