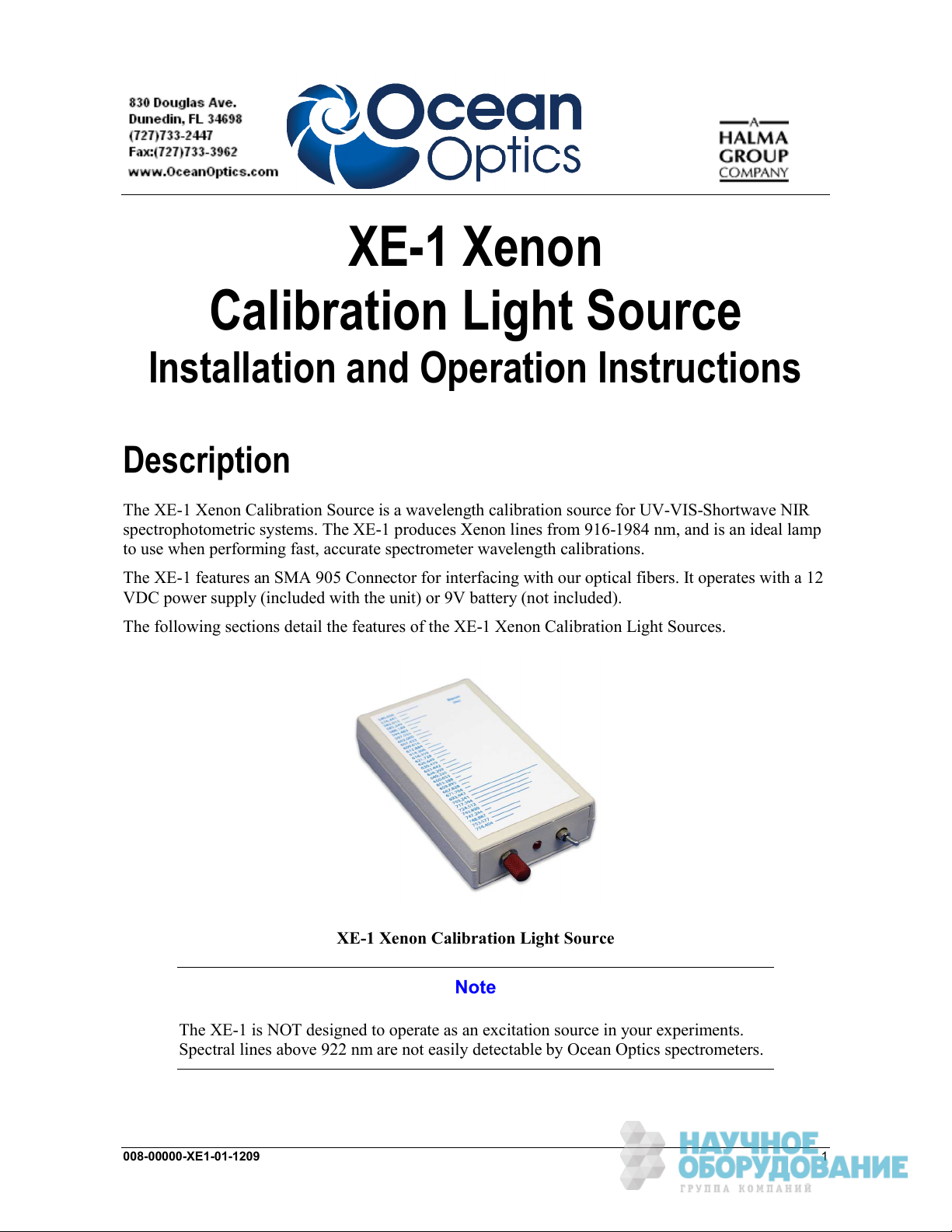

Ocean Optics XE-1 Xenon User manual

008-00000-XE1-01-1209 1
XE-1 Xenon
Calibration Light Source
Installation and Operation Instructions
Description
The XE-1 Xenon Calibration Source is a wavelength calibration source for UV-VIS-Shortwave NIR
spectrophotometric systems. The XE-1 produces Xenon lines from 916-1984 nm, and is an ideal lamp
to use when performing fast, accurate spectrometer wavelength calibrations.
The XE-1 features an SMA 905 Connector for interfacing with our optical fibers. It operates with a 12
VDC power supply (included with the unit) or 9V battery (not included).
The following sections detail the features of the XE-1 Xenon Calibration Light Sources.
XE-1 Xenon Calibration Light Source
Note
The XE-1 is NOT designed to operate as an excitation source in your experiments.
Spectral lines above 922 nm are not easily detectable by Ocean Optics spectrometers.

XE-1-CAL Installation and Operation Instructions
2 008-00000-XE1-01-1209
Parts Included
The XE-1 package includes the following items:
XE-1 Xenon Calibration Light Source
12 VDC power supply
WARNING
The beam emerging from the light source contains UV radiation that can cause
serious eye injury upon direct contact with the eye. Never look directly into the
light source.
The SMA 905 Connector may get extremely hot during operation. After lamp
use, allow sufficient time to cool before handling.
Dangerous voltages are present, and there are no user-serviceable parts inside.
Never open the XE-1.
Additional Accessories
The following are additional accessories available from Ocean Optics that you may need, depending
on your system set-up:
Spectrometer
SMA-terminated optical fiber
Ocean Optics software
Connecting the XE-1
Follow the steps below to set up your XE-1 for use.
►Procedure
1. Plug the 12 VDC power supply into a power outlet, then connect the barrel connector of the
power supply to the power input on the rear of the XE-1.
or
Alternately, you can use a 9-volt battery (not included) to power the XE-1. Open the battery
hatch of the XE-1 and install the 9-volt battery, and then proceed to Step 2.
2. Connect a fiber to the SMA 905 Connector on the XE-1. If your spectrometer does not have
an entrance slit, use a 50 m diameter (or smaller) fiber. Larger fibers and slits result in
reduced optical resolution.

XE-1-CAL Installation and Operation Instructions
008-00000-XE1-01-1209 3

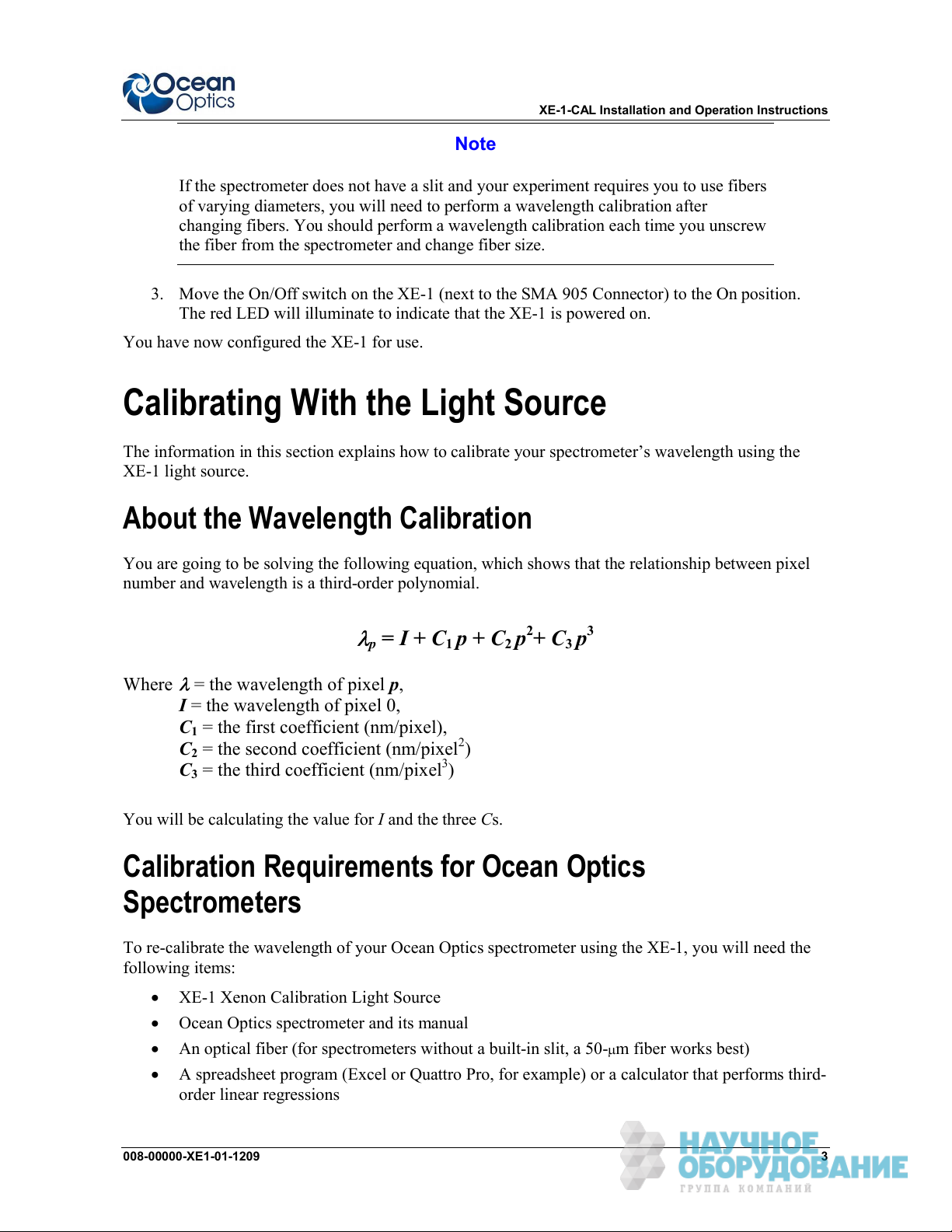

Note
If the spectrometer does not have a slit and your experiment requires you to use fibers
of varying diameters, you will need to perform a wavelength calibration after
changing fibers. You should perform a wavelength calibration each time you unscrew
the fiber from the spectrometer and change fiber size.
3. Move the On/Off switch on the XE-1 (next to the SMA 905 Connector) to the On position.
The red LED will illuminate to indicate that the XE-1 is powered on.
You have now configured the XE-1 for use.
Calibrating With the Light Source
The information in this section explains how to calibrate your spectrometer’s wavelength using the
XE-1 light source.
About the Wavelength Calibration
You are going to be solving the following equation, which shows that the relationship between pixel
number and wavelength is a third-order polynomial.

p= I+ C1 p+ C2 p2+ C3p3
Where
 = the wavelength of pixel p,
I= the wavelength of pixel 0,
C1= the first coefficient (nm/pixel),
C2= the second coefficient (nm/pixel2)
C3= the third coefficient (nm/pixel3)
You will be calculating the value for Iand the three Cs.
Calibration Requirements for Ocean Optics
Spectrometers
To re-calibrate the wavelength of your Ocean Optics spectrometer using the XE-1, you will need the
following items:
XE-1 Xenon Calibration Light Source
Ocean Optics spectrometer and its manual
An optical fiber (for spectrometers without a built-in slit, a 50-m fiber works best)
A spreadsheet program (Excel or Quattro Pro, for example) or a calculator that performs third-
order linear regressions

XE-1-CAL Installation and Operation Instructions
4 008-00000-XE1-01-1209
Note
If you are using Microsoft Excel, choose Tools | Add-Ins and check
AnalysisToolPak and AnalysisTookPak-VBA.
Calibration Procedure
Please see the appropriate manual for your model Ocean Optics spectrometer for instructions
on how to calibrate it. Ocean Optics manuals are located at
http://www.oceanoptics.com/technical/operatinginstructions.asp.
XE-1 Specifications
The following sections detail the specifications of the XE-1.
Spectral Output

XE-1-CAL Installation and Operation Instructions
008-00000-XE1-01-1209 5

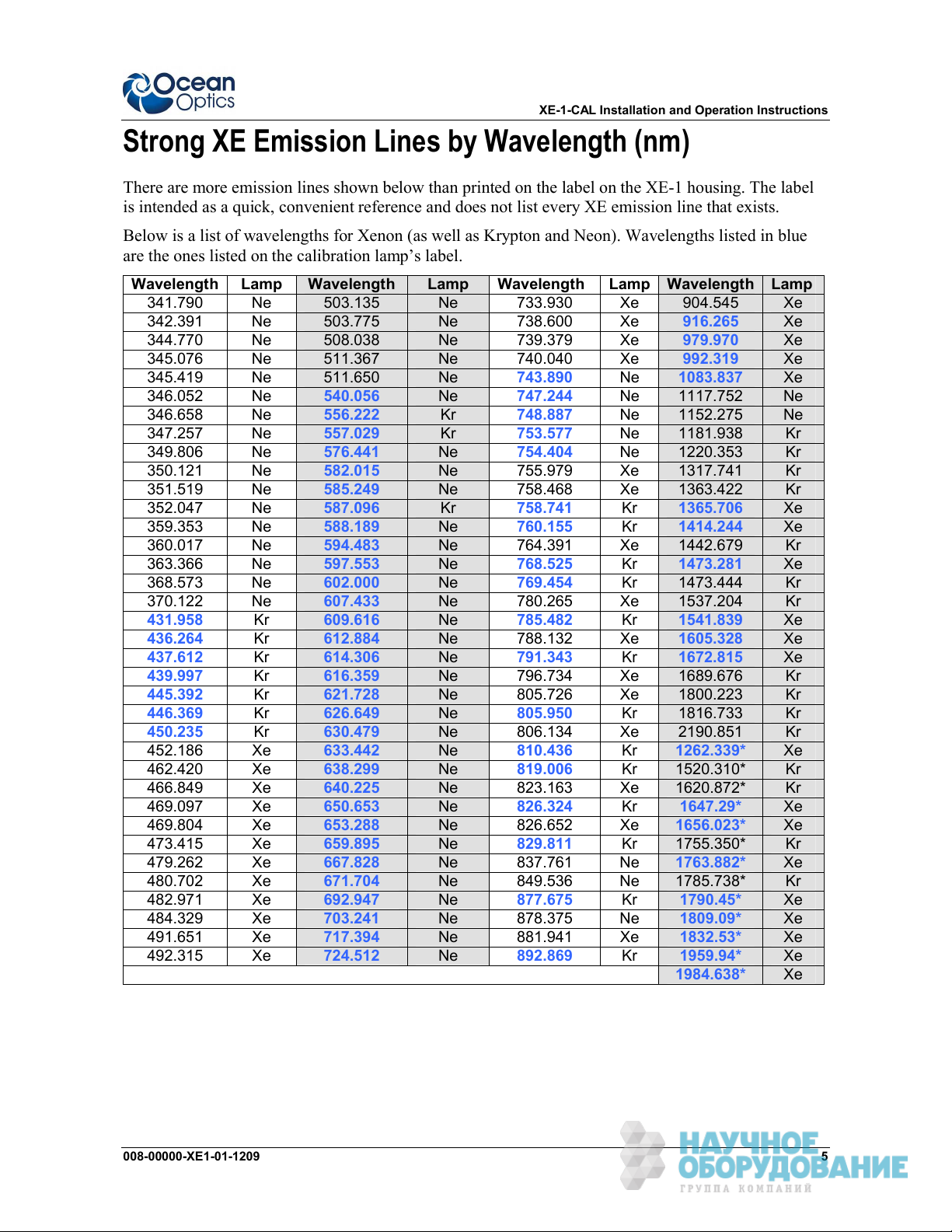

Strong XE Emission Lines by Wavelength (nm)
There are more emission lines shown below than printed on the label on the XE-1 housing. The label
is intended as a quick, convenient reference and does not list every XE emission line that exists.
Below is a list of wavelengths for Xenon (as well as Krypton and Neon). Wavelengths listed in blue
are the ones listed on the calibration lamp’s label.
Wavelength Lamp Wavelength Lamp Wavelength Lamp Wavelength Lamp
341.790 Ne 503.135 Ne 733.930 Xe 904.545 Xe
342.391 Ne 503.775 Ne 738.600 Xe 916.265 Xe
344.770 Ne 508.038 Ne 739.379 Xe 979.970 Xe
345.076 Ne 511.367 Ne 740.040 Xe 992.319 Xe
345.419 Ne 511.650 Ne 743.890 Ne 1083.837 Xe
346.052 Ne 540.056 Ne 747.244 Ne 1117.752 Ne
346.658 Ne 556.222 Kr 748.887 Ne 1152.275 Ne
347.257 Ne 557.029 Kr 753.577 Ne 1181.938 Kr
349.806 Ne 576.441 Ne 754.404 Ne 1220.353 Kr
350.121 Ne 582.015 Ne 755.979 Xe 1317.741 Kr
351.519 Ne 585.249 Ne 758.468 Xe 1363.422 Kr
352.047 Ne 587.096 Kr 758.741 Kr 1365.706 Xe
359.353 Ne 588.189 Ne 760.155 Kr 1414.244 Xe
360.017 Ne 594.483 Ne 764.391 Xe 1442.679 Kr
363.366 Ne 597.553 Ne 768.525 Kr 1473.281 Xe
368.573 Ne 602.000 Ne 769.454 Kr 1473.444 Kr
370.122 Ne 607.433 Ne 780.265 Xe 1537.204 Kr
431.958 Kr 609.616 Ne 785.482 Kr 1541.839 Xe
436.264 Kr 612.884 Ne 788.132 Xe 1605.328 Xe
437.612 Kr 614.306 Ne 791.343 Kr 1672.815 Xe
439.997 Kr 616.359 Ne 796.734 Xe 1689.676 Kr
445.392 Kr 621.728 Ne 805.726 Xe 1800.223 Kr
446.369 Kr 626.649 Ne 805.950 Kr 1816.733 Kr
450.235 Kr 630.479 Ne 806.134 Xe 2190.851 Kr
452.186 Xe 633.442 Ne 810.436 Kr 1262.339* Xe
462.420 Xe 638.299 Ne 819.006 Kr 1520.310* Kr
466.849 Xe 640.225 Ne 823.163 Xe 1620.872* Kr
469.097 Xe 650.653 Ne 826.324 Kr 1647.29* Xe
469.804 Xe 653.288 Ne 826.652 Xe 1656.023* Xe
473.415 Xe 659.895 Ne 829.811 Kr 1755.350* Kr
479.262 Xe 667.828 Ne 837.761 Ne 1763.882* Xe
480.702 Xe 671.704 Ne 849.536 Ne 1785.738* Kr
482.971 Xe 692.947 Ne 877.675 Kr 1790.45* Xe
484.329 Xe 703.241 Ne 878.375 Ne 1809.09* Xe
491.651 Xe 717.394 Ne 881.941 Xe 1832.53* Xe
492.315 Xe 724.512 Ne 892.869 Kr 1959.94* Xe
1984.638* Xe

XE-1-CAL Installation and Operation Instructions
6 008-00000-XE1-01-1209
Specifications Table
Output Low-pressure gas discharge lines of Xenon
Dimensions (in mm): 125.7 x 70 x 25.8
Power consumption: 250 mA at 12 VDC
Power requirements: 12 VDC wall transformer (included) or 9 VDC battery (optional)
Bulb life: Approx. 3500 hours (at 20 mA)
Internal voltage: 600 volts at 30 kHz
Aperture: 3 mm
Amplitude stabilization: ~ 1 minute
Connector: SMA 905
