UNPACKING
After unpacking unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. If any damage is observed,
a shipping damage claim must be filed with carrier.
Do not use Infrared Thermometer if broken, bent,
cracked or damaged parts (including labels) are noted.
Infrared Thermometer damaged in any way, operates
abnormally or is missing parts should be removed from
service immediately. If you suspect that the Infrared
Thermometer was subjected to a shock load (a load that
was dropped suddenly, unexpectedly, etc.) immediately
discontinue use until it has been checked by a factory
authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions
could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Operating Instructions and Parts Manual 25245
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
NO CONTACT INFRARED
THERMOMETER
The following safety information is provided as a guideline to help you operate your Infrared Thermometer under the
safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe
handling instructions are not known or not followed. The following safety instructions are to provide the user with the
information necessary for safe use and operation. Please read and retain these instructions for the continued safe use
of your service system. Failure to follow instructions listed below may result in serious injury. In addition, make certain
that anyone that uses the equipment understands and follows these safety instructions as well.
Explanation of Safety Signal Words
CAUTION
Notes
CAUTION
WARNING
WARNING
WARNING
: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
: Used without the safety alert symbol indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
: Provide clarity and helpful information.
10/18
2018 OEMTOOLS™
: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.
2
Operating Instructions and Parts Manual 25245
NO CONTACT INFRARED
THERMOMETER
10/18
2018 OEMTOOLS™
Thank you very much for choosing an OEMTOOLS
Product!
For future reference, please complete the owner’s
record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is
important that you read the entire manual to become
familiar with this product before you begin using it.
This machine is designed for certain applications
only. OEMTOOLS cannot be responsible for issues
arising from modification. We strongly recommend
this machine is not modified and/or used for
any application other than that for which it was
designed. If you have any questions relative to a
particular application, DO NOT use the machine until
you have first contacted OEMTOOLS to determine if
it can or should be performed on the product.
For technical questions please call 1-866-458-2472.
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn
the tool’s applications and limitations, as well as,
potential hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept
away from the work area. Never let a child handle
a tool without strict adult supervision.
4. Do not operate this tool if under the influence
of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is
any doubt, do not attempt to operate.
5. Use safety equipment. Eye protection should
be worn at all times when operating this tool.
Use ANSI approved safety glasses. Everyday
eyeglasses are NOT safety glasses. Dust mask,
non-skid safety shoes, hard hat or hearing
protection should be used in appropriate
conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-
ties, rings, bracelets or other jewelry may present a
potential hazard when operating this tool. Keep all
apparel clear of the tool.
7. Don’t overreach. Keep proper footing and balance
at all times when operating this tool.
8. Check for damage. Check your tool regularly. If
part of the tool is damaged it should be carefully
inspected to make sure that it can perform its
intended function correctly. If in doubt, the part
should be repaired. Refer all servicing to a qualified
technician. Consult your dealer for advice.
9. Keep away from flammables. Do not attempt
to operate this tool near flammable materials
or combustibles. Failure to comply may cause
serious injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Properly maintained tools are less likely to bind
and are easier to control. Do not use a damaged
tool. Tag damaged tools “Do not use” until
repaired.
14. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that may affect the tool’s operation.
15. If damaged, have the tool serviced before using.
Many accidents are caused by poorly maintained
tools.
16. Use only accessories that are recommended by
the manufacturer for your model. Accessories
that may be suitable for one tool may become
hazardous when used on another tool.
17. Tool service must be performed only by qualified
repair personnel. Service or maintenance
performed by unqualified personnel could result in
a risk of injury.
18. When servicing a tool, use only identical
replacement parts. Use of unauthorized parts or
failure to follow maintenance instructions may
create a risk of injury.
19. Maintain a safe working environment. Keep the
work area well lit. Make sure there is adequate
surrounding workspace. Keep the work area free
of obstructions, grease, oil, trash, and other debris.
Do not use this product in a damp or wet location.
20. Maintain labels and nameplates on this product.
These carry important information. If unreadable
or missing, contact OEM for a replacement.
3
Operating Instructions and Parts Manual 25245
NO CONTACT INFRARED
THERMOMETER
10/18
2018 OEMTOOLS™
21. Keep the handle dry, clean, and free from brake
fluid, oil, and grease.
22. Before use, read and understand all warnings,
safety precautions, and instructions as outlined
in the vehicle manufacturer’s service manual. It
is beyond the scope of this manual to properly
describe the correct procedure and test data for
each vehicle.
23. Always perform vehicle service in a properly
ventilated area. Never run an engine without
proper ventilation for its exhaust. Stop work and
take necessary steps to improve ventilation in the
work area if you develop momentary eye, nose,
or throat irritation as this indicates inadequate
ventilation.
24. Engine parts that are in motion and unexpected
movement of a vehicle can injure or kill. When
working near moving engine parts, wear snug fit
clothing and keep hands and fingers away from
moving parts. Keep hoses and tools clear of
moving parts. Always stay clear of moving engine
parts. Hoses and tools can be thrown through
the air if not kept clear of moving engine parts.
The unexpected movement of a vehicle can injure
or kill. When working on vehicles always set the
parking brake or block the wheels.
25. Avoid accidental fire and/or explosion. Do not
smoke near engine fuel and battery components.
26. The warnings, precautions, and instructions
discussed in this manual cannot cover all possible
conditions and situations that may occur. The
operator must understand that common sense and
caution are factors which cannot be built into this
product, but must be supplied by the operator.
27. For safety purposes and the prevention of damage
to expensive components it is advised that the
user have an understanding of basic automotive
repair and a working knowledge of automotive
systems.
28. We believe the information contained herein to be
reliable. However, general technical information
is given by us without charge and the user shall
employ such information at his own discretion and
risk. We assume no responsibility for results or
damages incurred from the use of such information
in whole or in part. Always refer to specific
instructions and technical information supplied by
vehicle manufacturer.
29. The manufacturer declines any and all
responsibility for damage to vehicles or
components if said damage is the result of
unskillful handling by the operator or of failure
to observe the basic safety rules set forth in the
instruction manual.
DISPOSAL
At the end of the useful life of the Infrared
Thermometer, dispose of the components according
to all state, federal, and local regulations.
PURPOSE
This Infrared Thermometer is used for measuring the
temperature of an object’s surface without contact.
Use for various hot, hazardous or hard-to-reach
objects.
This unit consists of optics, temperature sensor signal
amplifier, processing circuit and LCD display. The
optics collect the infrared energy emitted by the object
and focus onto the sensor. Then the sensor translates
the energy into an electricity signal. This signal will
show as a digital image on the LCD after the signal
amplifier and processing circuit.
4
Operating Instructions and Parts Manual 25245
NO CONTACT INFRARED
THERMOMETER
10/18
2018 OEMTOOLS™
OPERATIONS:
1. View in Celsius or Fahrenheit
2. Equipped with a laser for aiming
3. Temperature hold
4. LCD backlight
5. 7 seconds delay auto power off
6. Light weight and easy operation
WARNING
This manual contains information that relates to
PROTECTING PERSONAL SAFETY and PREVENTING
ACCIDENT AND INJURY:
1. Before you use this unit, check on the plastic
housing carefully. If there is any damage, do not
use it.
2. Do not point laser directly at eye or indirectly off
reflective surfaces. Uses Laser Radiation; do not
stare into the beam. Class II Laser product.
3. Do not use this unit near explosive gas, steam
or dust.
CAUTION
To avoid the damage of the unit or the target, please
protect from the following situations:
1. EMF (electro-magnetic fields) from arc welders,
induction heaters, etc..
2. Thermal shock (caused by large or abrupt ambient
temperature changes) allows 30 minutes for unit to
stabilize before use.
3. Do not leave the unit on or near objects of high
temperature.
Distance to spot size:
When taking a measurement, pay attention to the
distance to spot size. As the distance (D) from the
target surface increases, the spot size (S) of the area
measured by the unit gets larger.
The distance to spot size of the unit is 12:1. This unit is
equipped with a laser, which is used for aiming.
Field of view:
Make sure the target is larger than the unit’s spot size.
The smaller the target is the closer the measurement of
the distance. When accuracy is critical, make sure the
target is at least twice as large as the spot size.
Temperature
range
(-58ºF to 716ºF)
(-50ºC to 380ºC)
Accuracy:
Whichever is
greater
-50ºC (-58ºF) ~0ºC (32ºF):
±3ºC (±5ºF)
0ºC (-32ºF) ~716ºC (1321ºF):
±1.5ºC (±2.7ºF) or ±1.5%
Resolution 0.1ºC or 0.1ºF
Repeatability 1% of Reading or 1ºC
Response time 500mS, 95% Response
Spectral
response 8-14um
Emissivity 0.95 Preset
Distance to
spot size 12:1
Operating
temperature 0~40ºC (32~104ºF)
Operating
humidity
10~95% RH Non-Condensing,
Up to 30ºC (86ºF)
Storage
temperature -20~60ºC (-4-140ºF)
Power (1) 9V Battery
Typical
battery lift
(Alkaline)
Non-Laser Mode: 22 Hours
Laser Mode: 12 Hours
Weight 5.2 oz (147.5 g)
Resolution 6” x 4” x 1.7” (153 x 101 x 43 mm)
PRODUCT SPECIFICATIONS
5
Operating Instructions and Parts Manual 25245
NO CONTACT INFRARED
THERMOMETER
10/18
2018 OEMTOOLS™
Emissive:
Most organic materials and painted or oxidized
surfaces have an emissive of 0.95 (pre-set in the unit).
Inaccurate readings will result from measuring shiny
or polished metal surfaces. To compensate, cover the
target surface with masking tape or flat black paint.
Measure the tape or painted surface when the tape
or painted surface reach the same temperature as the
material underneath.

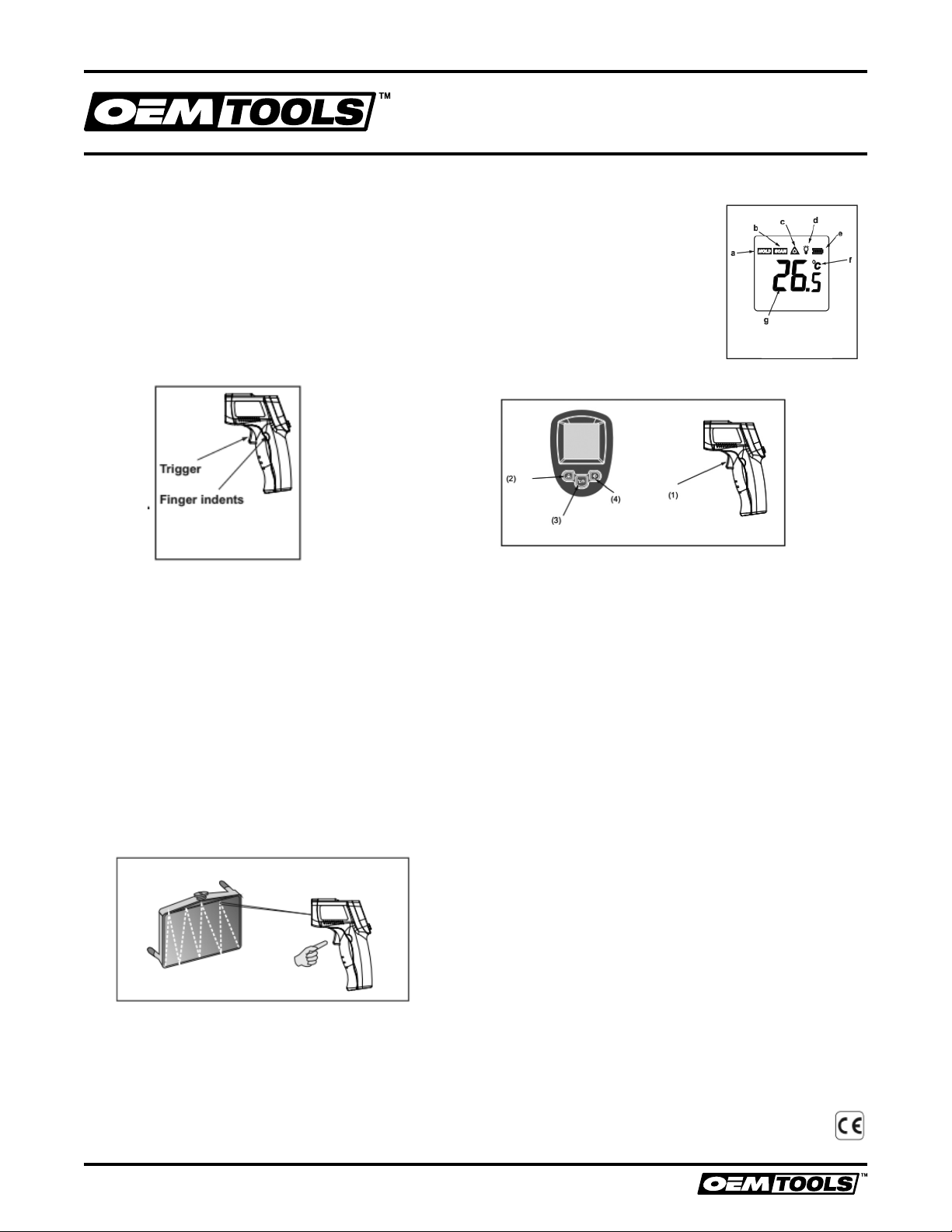

Operating:
1. Operating the unit:
1) Make sure the 9 volt battery is inserted correctly.
2) Press the trigger to turn on the unit.
3) Aim at the target surface and pull the trigger,
then temperature will be shown on the LCD.
This unit is equipped with a laser, which is only
used for aiming.
2. Locating a Hot Spot:
To find a hot spot, aim the thermometer outside
of interest, and then scan across with an up and
down motion until you locate the hot spot.
(Figure Below)
LCD display & buttons:
1. LCD display:
a. Data hold icon
b. Scanning icon
c. Laser on icon
d. Backlight on icon
e. Battery power icon
f. Temperature unit
g. Temperature reading
2. Buttons:
1) Trigger: When pressing the trigger, LCD display
reading with SCAN icon. Release the trigger,
display reading with HOLD icon for 7 seconds
(approx). Built-in 7 seconds auto power off
function.
2) Laser on/off button
3) Celsius/Fahrenheit switch button
4) Back light on/off button: When backlight is
on, any operations will activate the backlight for
7 seconds.
Maintenance
1. Lens Cleaning
Blow off loose particles using clean compressed
air. Gently brush remaining debris away with a
moist cotton swab. The swab may be moistened
with water.
2. Case cleaning:
Clean the case with a damp sponge/cloth and
mild soap.
NOTE:
1) Do not use solvent to clean plastic lens.
2) Do not submerge the unit in water.
Made In China
6
Operating Instructions and Parts Manual 25245
NO CONTACT INFRARED
THERMOMETER
10/18
2018 OEMTOOLS™
OEMTOOLS™ LIMITED LIFETIME WARRANTY
If you find any defect in material or workmanship, through normal usage, return it to the place of purchase or
to OEMTOOLS for repair or replacement at our discretion. In order to obtain this service send your tool and
proof of purchase, transportation pre-paid, to OEMTOOLS Q.A. Dept., 3850 E. Raines Road #3, Memphis TN
38118. We will not be responsible for lost or damaged goods during transportation, please insure your package.
If our inspection verifies the defect, we will either repair or replace the product at our election, or we may elect
to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes
not within the scope of our warranty, then you must bear the cost of returning the product.
OEMTOOLS does not provide warranty for products labeled other than OEM or OEMTOOLS. OEMTOOLS will
not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to,
abuse, accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not
cover bits, blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or
replace blades, bits, files, and batteries as necessary. OEMTOOLS reserves the right to makes any changes in
construction or design at any time without any obligation in incorporating such changes to tools or equipment
previously sold.
OEMTOOLS makes every effort to assure that its products meet high quality and durability standards, and
warrants to the original purchaser that this product is free from defects in materials and workmanship. This
warranty does not apply to damage due directly or indirectly to misuse, abuse, negligence or accidents, repairs
or alterations outside our facilities, criminal activity, improper installation, normal wear and tear or to lack of
maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may
also have other rights, which vary from state to state.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: 1-866-458-2472
www.oem-tools.com
Table of contents
