OFM Stimulus 521-LX User manual

A
Chair Back
1 Unit
B
Chair Seat
1 Unit
Assembly Notes:
During assembly, hand tighten screw only when all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.

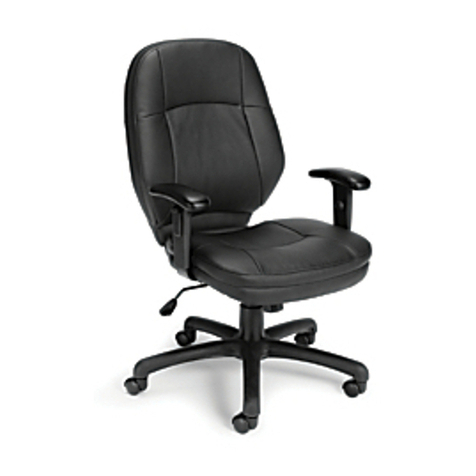

Model 521-LX / 521-LX-AA Stimulus Leatherette Mid-Back Chair
WEIGHT CAPACITY: 250 lbs.
Parts Listing
919-362-4765 (fax)
www.ofminc.com
161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919- 303-6389 (voice)
[email protected]
06.10.2010
4
C
Chair Base
1 Unit
D
Seat Mechanism
1 Unit
E
Gas Lift
1 Unit
G
Casters
5 Units
F
Telescopic Bellows
1 Unit
H
8x25mm Screws
7 Units
I
Allen Wrench
1 Unit
3
H
D
B
A
I
2
I
H
B
D
1
F
E
C
G
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
Please read all instructions before assembly.
Step 1: Insert Casters (G) into Base (C). Insert Gas Lift (E) into Base (C),
and cover with Telescopic Bellows (F).
Step 2: Place Chair Seat (B) upside-down on a level, non-abrasive
surface and align pre-drilled holes in Seat Mechanism (D),
with holes in Chair Seat (B). Insert four 8x25mm Screws (H)
through the holes in the Seat Mechanism (D) and into the
Chair Seat (B). Tighten with Allen Wrench (I) provided.
If you are assembling a model with optional Adjustable Arms please
proceed to subsequent pages for armrest assembly instructions.
Step 3: Connect Chair Back (A) to Chair Seat (B) by inserting the J-bar on
the Chair back into the back of the Seat Mechanism (D), Then attach
with three 8x25mm Screws (H) using the Allen Wrench (I) provided.
Step 4: Carefully place Chair Seat (B) with attached Seat Mechanism (D)
onto the Gas Lift (E) by aligning the hole in the Seat Mechanism (D)
with the top of the Gas Lift (E). Carefully sit on chair to make sure
the Gas Lift (E) is properly inserted into the Base (C). Operate the
Gas Lift Lever on the Seat Mechanism (D) to be sure unit is working.
STOP
STOP

Assembly Notes:
During assembly, hand tighten screw only when all screws
are in place, you may then tighten all screws completely.
CAUTION:
1. Do not use this chair as a step ladder.
2. Check for loose screws and tighten them every 6 months.
919-362-4765 (fax)
www.ofminc.com
161 Tradition Trail Holly Springs, NC, 27540
800-520-7471 (voice)
919- 303-6389 (voice)
[email protected]
04.06.2010
A
AA-1 Adjustable Armrest
2 Units
B
M6x25mm Hex Screw
6 Units
C
Washer
6 Units
D
Wrench
1 Unit
Parts Listing
Model AA-1 Adjustable Arms
STOP
Assembly Instructions
Tools Needed: Phillips Head Screwdriver
Please read all instructions before assembly.
Step 1: Turn Chair Seat upside down and place on a
clean, non-abrasive surface.
Step 2: Align the pre-drilled holes in the Adjustable Armrest (A)
with the holes in the bottom of the Chair Seat,
making sure that the arms face the correct direction.
Step 3: Place three Washers (C) onto three M6x25mm
Hex Screws (B) and insert through the Armrest (C)
holes and into the Chair Seat.
Step 4: Tighten Screws (B) using supplied Wrench (D)
or screwdriver. It is recommended that to assure
screws are secure, a screwdriver is used to tighten.
To Adjust Arms:
Pull up on the Height Adjustment Button
and slide to desired height.
B
D
A
Chair Seat
Forward
Height Adjustment
Button
C
