OHDIOLAB Titan User manual

Titan
User Manual

WHAT’S IN THE BOX
Ear Tips (S, M, L)
USB-C
Charging Cable Carry Pouch
1
Titan
Charging Case Titan Earbuds

OVERVIEW
2
Charging port
Microphone
Status
light
Ear tip
Touch zone
Left earphone
charging slot
Right earphone
charging slot
Charging indicator
Upper cover

FIRST TIME USE
•Activate the earphones by placing both earbuds into the charging case.
•Before using for the first time, charge the battery to full for optimum battery capacity and
lifetime.
•Use only the original USB-C charging cable provided to avoid any damage.
3

•Insert each earbud into your ear and adjust them so that they fit comfortably.
•Choose the most suitable ear tip size (S/M/L) for your ears for a comfortable fit and better
sound experience.

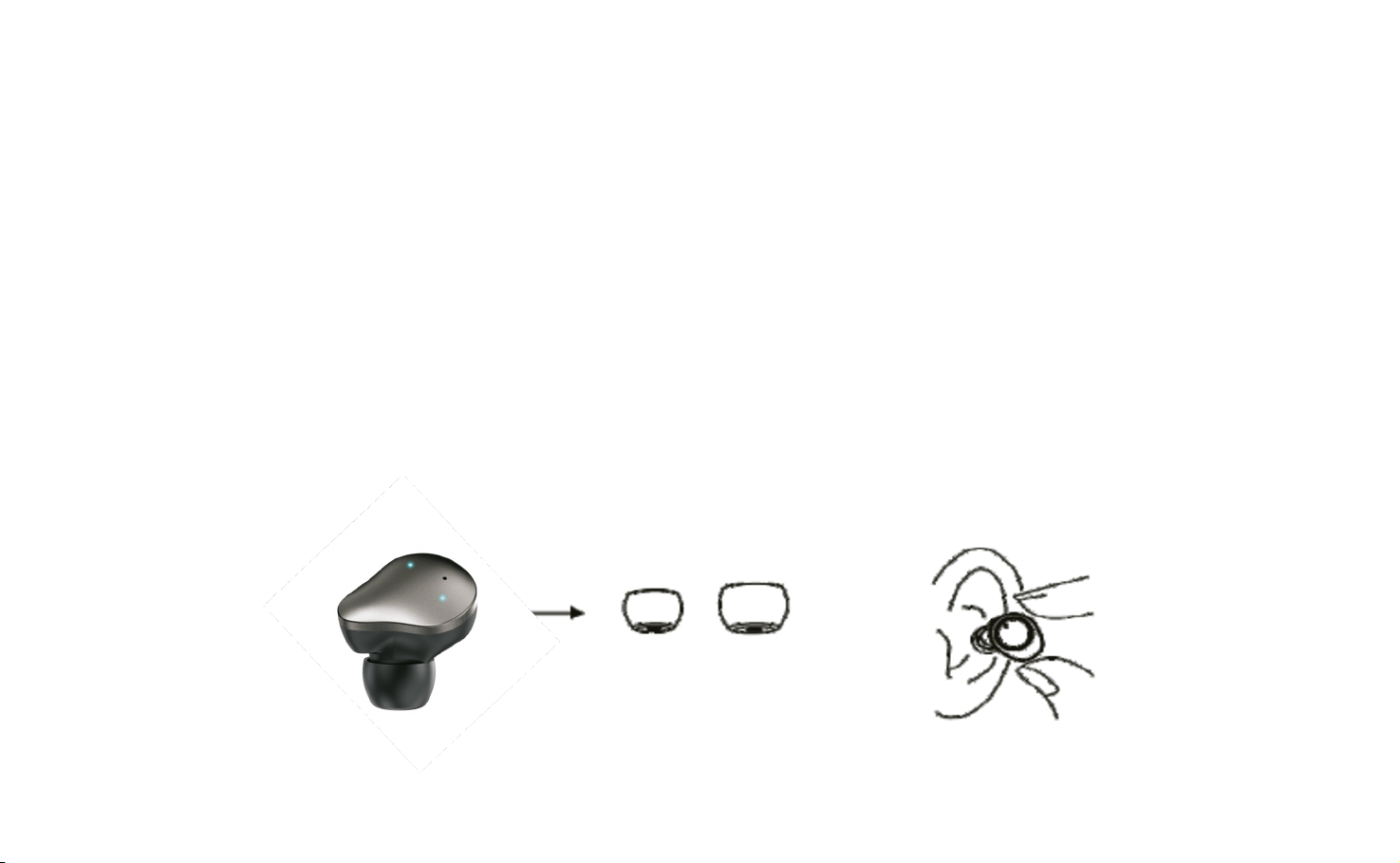

Note: Your left ear and right ear may be suitable for different sizes of ear tips (shown in
Figure-A). Insert earbuds with the ear tips into your ear canal, then adjust the earbuds to
position them in a secure and comfortable position (shown in as Figure-B).
WEARING
4
(Figure A) (Figure B)

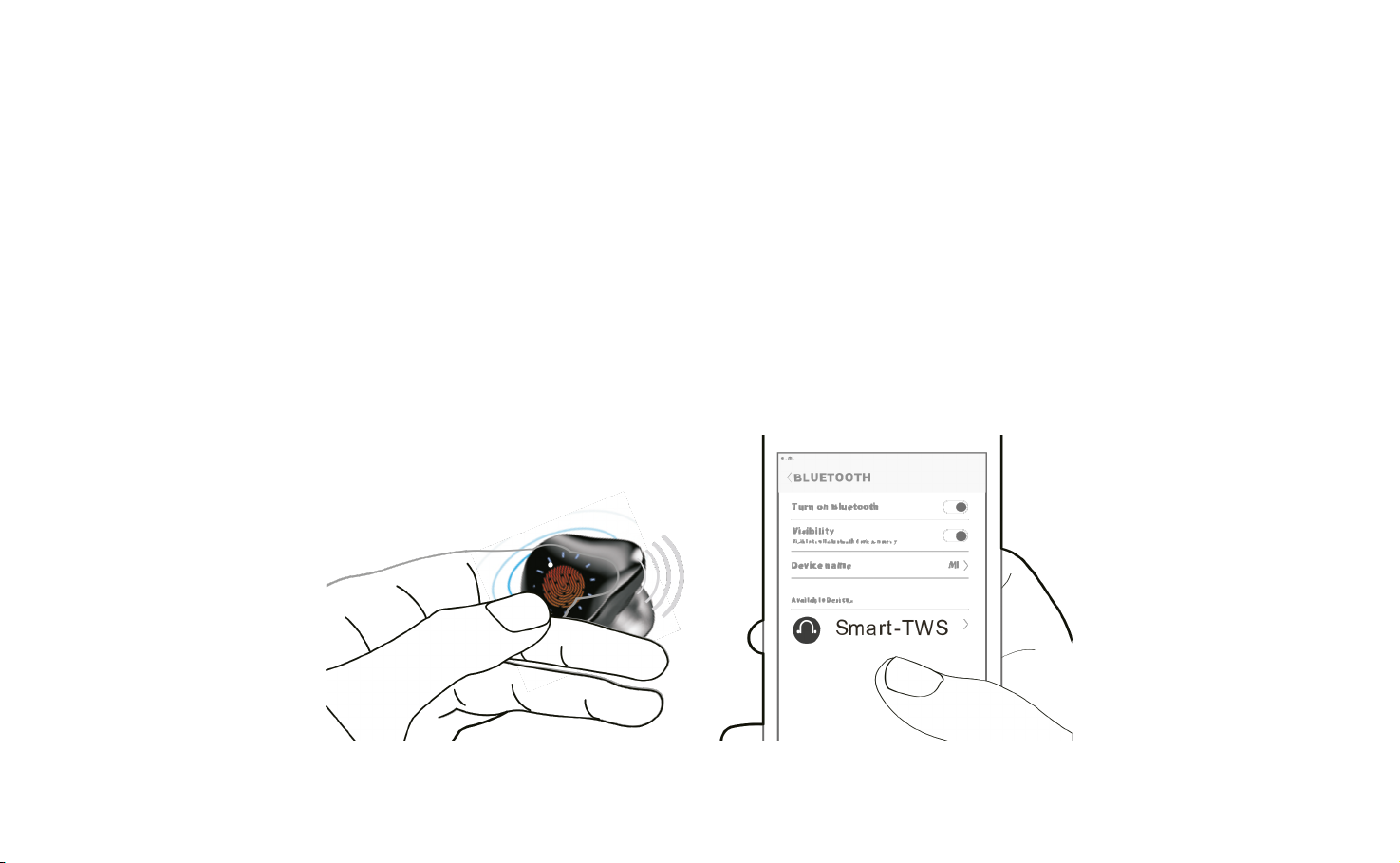

PAIRING NEW DEVICE
1. Power on the earphones by opening the charging case or taking them out from the
charging case.
•Earphones start flashing green light means both earphones are pairing each other.
•Main earphone flashes green light quickly and the auxiliary earphone light is off
meaning both earphones are successfully paired.
2. Search for ‘
Smart-TWS
’ in the Bluetooth menu on your mobile device and tap to pair.
3. Once pairing is successful, both earphones will make a beep tone and status light will
goes off. 5

SUBSEQUENT USE OF EARBUDS
Take both earbuds out of the charging case, they will automatically turn on and connect to
the last connected device within range.
6
RE-PAIRING LEFT & RIGHT EARBUDS
In some circumstances where left and right earbuds failed to pair correctly,
1. Take both earbuds out of the charging case.
2. Double tap the left and right earbuds simultaneously to enter auto pairing mode.
When pairing is completed, the main earbud flashes quickly while the other earbud indicator
will turn to breathing effect.
After the earbuds are successfully connected to the mobile device, both earbud indicators
will turn off.

CHARGING
Charging the Earbuds
•Place both earbuds into their corresponding slots in the charging case and close the
upper cover to start charging.
•Upper cover must be closed in order to charge the earbuds in the charging case.
•Once the upper cover is closed, the charging case LED indicator will light up, and light off
when fully charged.
•When charging case battery is low, the case indicator will flash quickly to remind charging
in time.
7

CHARGING
Charging the Charging Case
•Connect the supplied USB-C cable into the charging
port and plug it into a USB power supply or certified
wall charger to charge the case.
•It takes up to 1.5 hours to fully charge the earbuds and
the charging case.
•Charging case LED indicator will flash while charging.
Once fully charged, the charging indicator will stop
flashing and stay on.
8
Type-C
charging
port

POWER CONTROL
Power On
Remove both earbuds from the charging case.
Alternatively, press and hold the button for 3s.
Power Off
Place both earbuds back into the charging case.
Alternatively, press and hold the button for 5s.
VOICE CONTROL
Activate Voice Assistant
Triple tap the touch zone on the Left or Right earbud.
9
Touch zone

PHONE CONTROL
Answer/Hang Up Call
Tap the touch zone once to answer, tap again to hang up.
Reject a Call
Tap and hold the touch zone for about 1.5s till a beep is heard.
Volume Adjustment (+/-)
•Decrease volume (-): Long tap the Left earphone touch zone to gradually reduce the
sound volume.
•Increase volume (+): Long tap the Right earphone touch zone to gradually increase the
sound volume.
Turn On/Off Gaming Mode
Tap the touch zone on either Left or Right earbud 4 times continuously.
10
Touch zone

MUSIC CONTROL
Play/Pause Music
Open the music player on your mobile device, tap the touch
zone once on either Left or Right earbud.
Play Previous Song
Double tap the touch zone of the Left earbud.
Play Next Song
Double tap the touch zone of the Right earbud.
11
Touch zone

SPECIFICATIONS
•Model: Titan
•Bluetooth Version: 5.0
•Bluetooth Profile: HSP, HFP, A2DP, AVRCP
•Connection Range: Up to 10 meters
•Waterproof Level: IPX5
•Playtime
•Music Time: Up to 6 hours*
•Talk Time: Up to 4.5 hours*
•Standby Time: Up to 200 hours
•Charging Time: Approx. 1 hours
•Connector Type: USB-C
•Battery Capacity
•Charging Case: 500mAh
•Earbud: 50mAh
•Dimensions
•Earbud: L25 x W19 x H24 mm
•Charging Case: L65 x W40 x H27 mm
•Net Weight: 85.5g
12
*Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength,
operating temperature, frequency band, and other methods of use.

PRECAUTIONS & USAGE
•Do not disassemble, adjust, or repair the product arbitrarily.
•Do not use the product while driving or when your hearing is needed to perceive dangers
from your surroundings.
•Do not blast music at an uncomfortable high volume as it may result in hearing loss.
•Do not use the product in strong electromagnetic interference and radiation
environments.
•Charge the product again if not used for over 1 month.
WARNING
•Do not expose the product to extreme temperatures (under 0°C or over 45°C).
•Do not store the product in a wet or dusty environment.
•Do not place heavy objects on the product.
•Do not drop the product from a high place.
•Do not submerge the product in the water.
•Do not disassemble, adjust, or repair the product arbitrarily.
•Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.
13

Designed in Germany
Made in China
Complies with
IMDA Standards
DA108378
