Operation Manual
・ Read these instructions for the proper use of this machine.
・ After having read these instructions, keep them in a convenient
place so you or the operator can refer to them whenever necessary.
自動ネジ供給機
SS Series
Automatic Screw Feeder
NSN1MA01
Mb
(Maintenance)

- 1 -
Contents
1. OVERVIEW OF THIS MACHINE -------------------- 1
2. BEFORE USE -------------------------------------------- 1
3. OPERATING PRECAUTIONS ----------------------- 2
4. NAMES OF MACHINE PARTS ---------------------- 5
5. ADJUSTMENTS AND CHECKS BEFORE USE-------- 7
6. OPERATING INSTRUCTIONS---------------------- 17
7. MISCELLANEOUS----------------------------------------- 19
8. PARTS ADJUSTMENTS AND REPLACEMENTS---20
9. TROUBLESHOOTING------------------------------------- 23
10. SPECIFICATIONS ----------------------------------------- 28
11. EXTERNAL DIMENTIONS-------------------------------- 29
12. WARRANTY ------------------------------------------------- 30
２．BEFORE USE
Please check for the following accessories before operating the machine.
＊ Instruction Manual 1 copy ＊ AC Adapter 1 unit
＊ Hexagonal Wrench 1 piece ＊ Screwdriver 1 piece
＊ Ground wire 1 piece
＊The design, performance and specications are subject to change without prior notice for the
sake of improvement.
１．OVERVIEW OF THIS MACHINE
Thank you very much for selecting our Automatic Screw Feeder "SS series ".
This machine can line up screws (Type M1 - M3) and supplies them one by one to help
the efciency of screw fastening work.
Different sizes of screws can be used by changing the rail and passage plate.
It can be used wherever there is a power source for an AC adapter.

- 2 -
３．OPERATING PRECAUTIONS
This manual contains safety alert symbols and signal words to help prevent injuries
to the user or damage to property.
◎Indications
This indicates there is a chance of death, serious injury or re if the instructions
are not followed.
This indicates there is a chance of personal injury or damage to property
if the instructions are not followed.
◎Symbols indicating type of danger and preventative measures
This indicates to stop operations.
Unplug power supply from wall outlet.
General caution.
Prohibited operation. Never do this!
Do not disassemble, modify or repair.
Do not touch with wet hands.
WARNING
CAUTION
Attach the ground wire by loosening the screw near the mark of the equipment.
the bottom of the main body

- 3 -
Do not disassemble the AC adapter as there is a risk of electric shock, re or malfunction.
Do not damage, alter or change the power cord. Do not place heavy objects on the cord.
Do not pull hard on the cord or twist the cord as it could be damaged, thereby causing a risk
of re or electric shock.
Do not handle the AC adapter with wet hands as it could cause an electric shock.
When using an outlet with AC100 ～240V, don't overload the electrical circuit.
Do not modify or remodel this machine as this may cause a re or electric shock.
Do not operate this machine near ammable liquids, gasses or materials as there could
be a risk of re or explosion.
Stop operating the machine and unplug the AC adapter from the wall outlet when you detect overheating,
smoke, a pungent odor or any other unusual condition, as there may be a risk of re or electric shock. Contact
the dealer, from which you purchased the machine, and have
it examined and repaired.
In the case of a thunderstorm, stop operating the machine, turn off the power and unplug
the AC adapter from the wall outlet. If there is lightning and thunder nearby, move away from the machine and
do not touch it or the AC adapter.
After the thunder stops, and when it is safe to do do so, check the machine. If there is any abnormality, contact
your dealer.
When performing maintenance, changing parts or when you sense an abnormality in the machine, turn the
power off and pull the AC adapter from the wall outlet.
In addition, there are parts that become hot in the circuit board. When performing maintenance around the circuit
board, turn off the power for at least 5 minutes before performing work. There is a risk of burns.
WARNING

- 4 -
Do not bend, alter or damage the rail. Do not apply any oil. It is recommended that the user
clean the rail periodically.
Do not use any screw that is out of the specied range nor any screw that is oily or dirty.
Do not allow any foreign material to enter the machine while in operation.
Do not put your ngers into the machine while in operation, otherwise an injury will result.
Use only the AC adpater supplied with this machine otherwise it may result in a re
or electric shock.
Do not install this machine in an unstable location otherwise it may fall causing damage or injury.
When moving the machine, always disconnect the AC adapter from the wall outlet or it may result in damage to
the cord, or cause a re or electric shock.
Turn off the machine and unplug the AC adapter from the wall outlet during closing hours
or if the machine will be unused for any extended period of time.
Do not operate this machine in overly humid or dusty conditions.
Keep the socket plug clean at all times otherwise it may cause a re or electric shock.
Do not operate the machine with tension on the AC adapter cord.
Keep the cord loose and untangled.
Always operate the machine with the upper cover in place, otherwise it may result in injury.
CAUTION
When moving the machine, be sure to hold it with both hands and be careful not to drop it.
Dropping the machine at your feet may cause injury.

- 5 -

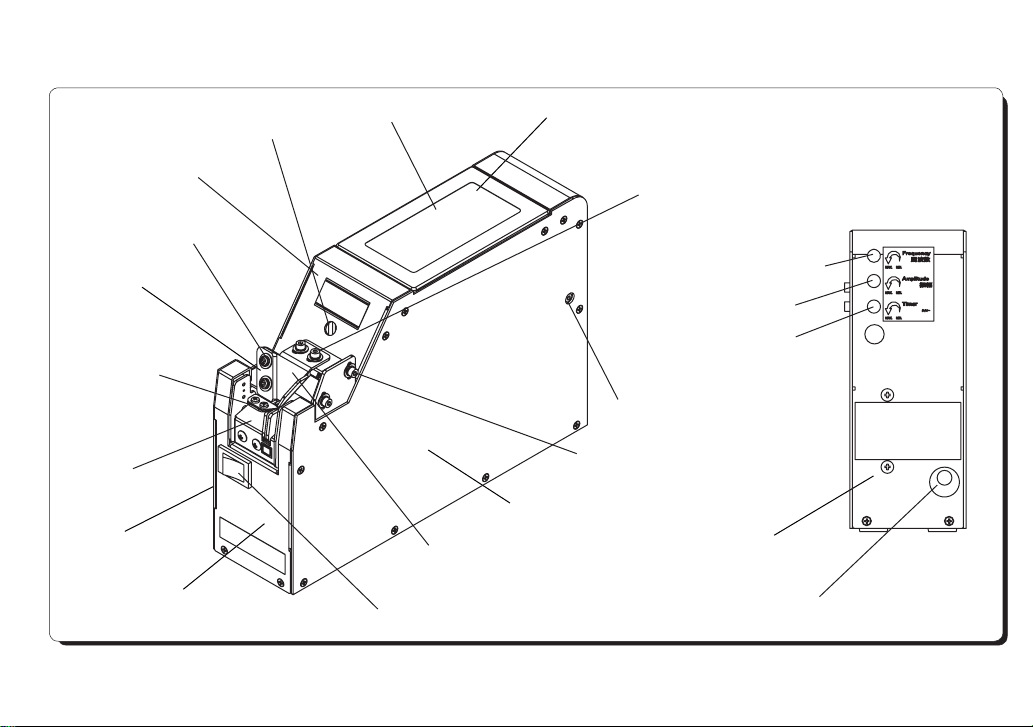

3. Part Names and Descriptions
7: Power switch
8: Rail
Bit guide Assembly
2: Front Rail xing screw
3: Rear: Rail xing screw
6: Bit guide height adjustment screw
5: Bit guide depth adjustment screw
4: Bit guide width
adjustment screw
13: DC jack
Back View
12: Timer control dial
11: Amplitude control dial
10: Vibrational frequen-
cy control dial
1: Scooping chamber
9: Stopper
Bit guide plate
Scooping chamber cover
Front cover
Center cover
Left cover
Right cover
Rear cover

- 6 -
Part Names Descriptions
Place screws in this chamber.
Loosen this to change the rail.
Loosen this to change the rail.
Loosen this to adjust the bit guide width according to the bit diameter.
Loosen this to adjust the bit guide depth according to the screw diameter.
Loosen this to adjust the bit guide height according to the screw position.
* Lift the bit guide before removing or attaching the rail.
Turns the power to the machine on and off.
Set the rail according to the diameter of the screws you are using.
Stops screws at the tip of the rail.
Controls the vibrational frequency using a precision screw driver.
Controls the amplitude using a precision screw driver.
Controls the screw feeding (stop) time using a precision screw driver.
*The machine will stop feeding screws when they ll up the rail.
Connect the AC adapter included in the package.
1. Scooping chamber
2. Front Rail xing screw
3. Rear Rail xing screw
4. Bit guide width adjustment screw
5. Bit guide depth adjustment screw
6. Bit guide height adjustment screw
7. Power switch
8. Rail
9. Stopper
10. Vibrational frequency control dial
11. Amplitude control dial
12. Timer control dial
13. DC jack

- 7 -

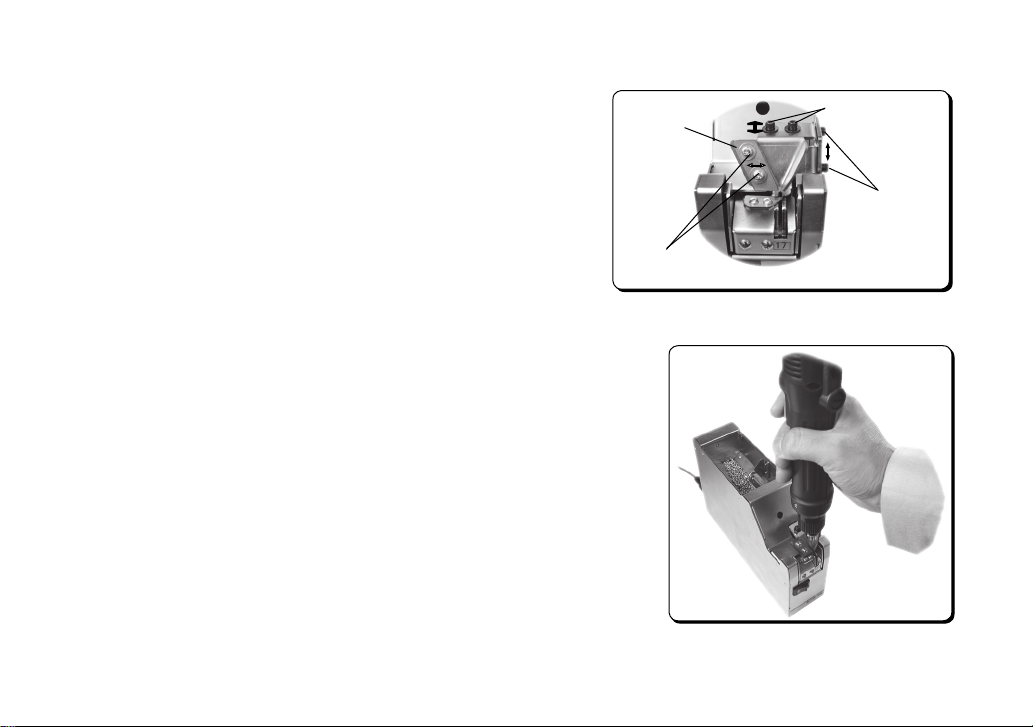

● Select the screwdriver bit according to the nominal diameter of screws you
are using. Refer to the label number on the rail. (See Picture 1)
● The machine is adjusted in accordance with model No. (screw
size:φ1.0 - 1.7 [cylinder head screw] /φ2.0 - 3.0 [pan head screw]) be-
fore shipment.
● Screws can generally be used without further adjustment after the initial
adjustment. However, if you are using screws outside the specications in
this manual, the machine may not work properly. In this case check and
readjust the following:
○ Screw amount ○ Brush
○ Passing plate and slide plate ○ Vibrational frequency
○ Bit guide ○ Timer
○ Sensor voltage level
● The machine can handle several screw diameters simply by changing rails.
After changing the rail, ne-tune each part. Adjustment procedures are
explained on the following pages. Please read these thoroughly before
adjustment.
5. Set Up and Adjustment
5 - 1. Model Type
Label Number
Picture 1
Be sure to turn off the machine before adjustment.
１０
１２
１４
１７
２０
２３
２６
３０
ＳＳ－１２
Label
No.
φ１.０
φ１.２
φ１.４
φ１.７
φ２.０
φ２.３
φ２.６
φ３.０
φ１.５
φ２.０
φ３．０
φ３.２
№ ０
№ ０or １
№ １
№ １or ２
Nominal
Screw
Diameter
Bit Tip
Diameter
Cross
Slot No.
ＳＳ－２３
Screwdriver Bit Size
Model No.

- 8 -
No adjustment is necessary if the tip of the brush touches the screw head in the rail groove and rotates when the ma-
chine is turned on.
● Turn the machine off before adjusting the brush height.
● Loosen the brush height adjustment screws to adjust the brush height. (See Picture 4-1)
● Move the brush manually to check that the brush touches heads of the screws in the rail groove. (See Picture 4-2) If
the brush position is too high, screws in incorrect positions cannot be caught. If the brush position is too low, it may
sweep even correctly positioned screws from the rail or it may stop rotating.
5 - 2. Brush Height Adjustment
Brush
ScrewsBrush height adjustment screws
Picture 4 ４-２
４-１
Just touching

- 9 -
5 - 3. Height Adjustment of Passing and Holding Plates (How to Remove the Rail)
● If screws stop before reaching the stopper, adjust both the passing and holding plates.
Note:
Be sure to eject all screws from the before replacing the rail.
● Loosen the bit guide height adjustment screws. (See Picture 5)
● Slightly loosen the front and rear rail xing screws. (See Picture 6)
● Lift the bit guide “Assembly” and pull the rail out in a horizontal direction. (See Picture 7)
Bit guide height
adjustment screws
Picture 5
Rail
Bit guide “Assembly”
Picture 7
(Front) rail
xing screw
(Right under）
(Rear) rail
xing screw
Picture 6

- 10 -
5 - 4. Height Adjustment of Passing and Holding Plates
● Both the passing and holding plates are xed to the rail. (See Picture 8)
● Place a screw between the passing plate and the rail grove and adjust the height of the passing plate by loosening the
passing plate xing screw. (See Picture 9) If the gap between the passing plate and the rail groove is too wide, the
screw ow may stop. If the gap is too small, the screw ow may also stop. (Screws cannot pass through the gap.) Ad-
just the height to the exact height of the screw head.
● Optional passing plates for various screw types, including thin head screws, are available. Contact the dealer from
which you purchased the machine with details of the screw size you are planning to use.
Holding plate
Passing
plate
Holding plate
xing screw
Passing plate
xing screw
Picture 8
Passing
plate
Screw
Picture 9

- 11 -
● After adjustment, place a screw into the end of the rail groove. Tilt the
rail and check that the screw moves smoothly to the stopper position.
(See Picture 12)
● After checking, reverse the procedure for removing the rail to reattach it.
(Fix the screws when the rail makes contact with the machine.)
Note: If the front and rear rail xing screws are not loosened, the rail can-
not be attached to the correct position.
● Put a screw into the rail groove, just beneath the holding plate, and adjust the holding plate height so that there is an
adequate gap between the holding plate and the rail groove for the screw head. Loosen the holding plate xing screw
and adjust the gap between the holding plate and rail groove. (See Picture 10) Removing the holding plate before ad-
justment will allow you to easily place screws into the rail groove easily. (See Picture 11) If the gap between the hold-
ing plate and the rail grove is too wide, screws may fall out. If the gap is too small, the screws may not be able to pass
through. Set the gap to between 0.2 to 0.5mm above screw heads. If you are using long screws, adjust the gap so that
it is a little higher.
Note: When using washer head screws, make the gap wider. If the gap between the holding plate and the rail groove is
not wide enough, washers may become stuck between the holding plate and the rail causing the screw ow to stop.
Holding plate
Picture 11
使用ネジ 写真 -１０
押え板
Screw Picture 10
Holding plate
Screw
Stopper
Picture 12

- 12 -
● Adjustment is necessary if the screw ow is not smooth or if there is too much rail vibration.
○ Adjust the Amplitude control dial on the back of the machine using the precision screwdriver.
○ Adjust the Vibration frequency control dial on the back of the machine using the precision screwdriver and nd the
resonance point.
Adjust these dials to locate the optimum conditions for smooth movement of screws.
● Maximize the amplitude and adjust the vibration frequency to locate the resonance point (frequency when the rail vi-
bration is at a maximum.) Then turn down the amplitude to locate the optimum conditions for smooth movement of
screws.
● Although it is not recommended, the rail vibration can be adjusted while the machine is operating.
● During control dial adjustment, do not force the screwdriver beyond its rotation limits.
● The rail vibration has been adjusted before shipment using screws that correspond to the rail size.
(Refer to the label number on the rail for the nominal screw diameter: e.g. 17 is φ1.7)
● Put 2 or 3 screws into the rail groove and turn the machine on.
● No adjustment is necessary if the screws move to the stopper position smoothly. (See Picture 13)
●When the number of screws is low and no screw is picked up in a given period of time, vibration will become the
maximum and it will stop operation after that. (Refer to 4-2 “Basic Operation.”)Adjustment of volume is not effective
at the time of a forced oscillation.
● After it stops, turn on the machine again and repeat the above procedure.
5 - 5. Rail Vibration Adjustment
Stopper
Adjust the rail vibration so that the screw moves
smoothly in the direction of the arrow.
Screw
Picture 13

- 13 -
5 - 6. Bit Guide Adjustment
● Bit guide position adjustment is explained below.
● Pick up several screws to adjust the bit guide.
● Adjust the bit guide position after loosening the adjustment screws.
(See Picture 14)
How to Adjust the Bit Guide Position
● Use the bit guide height adjustment screws to adjust the bit guide height
so that it doesn’t touch the holding plate.
● Use the plate adjustment screws and bit guide width adjustment screws to
adjust the bit guide groove width and position so that the bit guide width
matches the holding plate groove width.
● Fit the screwdriver bit into the bit guide and adjust the bit guide groove
width so that the screwdriver bit moves smoothly. (See Picture 15)
Plate adjustment
screws
Bit guide plate
Bit guide height
adjustment screws
Bit guide depth
adjustment screws
Picture 14
Picture 15

- 14 -
5 - 7. Timer Adjustment
The machine is equipped with a screw sensor that detects the number of screws on the rail.
If a screw accumulates to some extent on a rail, operation of a scooping block will stop and vibration will stop after
timer set time.
The timer should normally be set to “Min.”
However if screws are moving slowly, it may be necessary to set the timer to “Max.”
● Adjust the Timer control dial on the back of the machine using a precision screwdriver. (See Picture 16)
● Turn the dial clockwise to reduce the vibration time. Turn it counterclockwise to increase the vibration time.
● During control dial adjustment, do not force the screwdriver beyond its rotation limits.
● Set the timer after checking that the rail is lled and that the screws are properly aligned.
● Use the provided screwdriver for adjusting the timer.
Picture 16

- 15 -
Sensor bracket
xing screws
Picture 18
5 - 8. Sensor Voltage Level Adjustment
Screws can generally be used without further adjustment after the initial adjust-
ment. However, if you are using screws outside the specications in this manual,
the machine may not work properly. In this case check and readjust the following:
Adjust the sensor levels for when screws are on the rail and for when no screws
are on the rail.
Remove the rear cover of the machine to check the IC on the printed circuit board.
(See Picture 17)
Measure the voltage level using Pins 3, 5, and 7 on the IC4050. Ground the metal
part of the body. (Use testing clips for the voltage measurement. Recommended
item: Testing clip <FP-7> manufactured by Sunhayato Corp.)
*** Screw Sensor Adjustment (Pin 3) ***
The screw sensor detects whether or not there are any screws re-
maining on the rail.
Loosen the light receiving sensor bracket xing screws (2 pcs.) and
adjust the sensor level by rotating the bracket. (See Picture 18)
0.25 – 1.5V: There are no screws remaining on the rail.
3.5V or more: There are screws on the rail.
If the voltage is 2.5V or over, the sensor judges that there are
screws on the rail.
Picture 17
The rear cover is removed.
３
5
7
Closeup

- 16 -
*** Stopper Sensor Adjustment (Pin 5) ***
The stopper sensor detects stopper movement.
Loosen the stopper sensor bracket xing screws (2 pcs) and adjust the light receiving
sensor position horizontally. (See Picture 19)
4.0V or more: Stopper ON
0.2V or less: Stopper OFF
If the voltage is 2.5V or over, the sensor judges that there are screws on the rail.
*** Front Sensor Adjustment (Pin 7) ***
The front sensor detects whether or not there are any screws remaining on the
stopper.
Loosen the front sensor bracket xing screws (2 pcs) and adjust the light receiving
sensor position vertically. (See Picture 20)
0.25 – 1.5V: There are no screws on the stopper.
3.5V or more: There are screws on the stopper.
If the voltage is 2.5V or over, the sensor judges that there are screws remaining on
the stopper.
After checking and adjusting each part, test run the machine using the screws you
actually intend to use.
If the machine does not run properly, repeat the above adjustment as well as rail
position and
vibration adjustments. After the test run, return the sensor wiring to its original
condition.
Do not pinch the wiring and ensure it is clear of the machine’s moving parts.
ＯＮ
ＯＦＦ
Stopper
Picture 19
Fixing screws
Bracket xing
screws Picture 20
Stopper sensor
bracket
Front sensor

- 17 -
Adjust the number of screws to ensure the proper alignment and smooth ow of screws. (See Picture 2)
● Adjust the scooping chamber to its lowest position by turning the power to the machine on and off.
● Fill the scooping chamber with screws up to 2mm below the rail groove.
● Be sure not to cover the front of the sliding plate with screws.
● Always ensure there are adequate screws for the operation.
6 - 1. Number of Screws
6. Basic Operation
The driving motor repeats normal rotation and an inversion for about 2 seconds at a time, and the scooper carries screws
to the rail. The vibrator (solenoid) continuously sends screws to the front stopper to be picked up using the screwdriver.
Note:
If no screws are sent for approximately 10 seconds, vibration of a rail becomes stlonger. (The vibration sound, also, in-
creases; however, this is not a problem.)
If no screw is not detected for about 20 more seconds, then the machine stops operating. When you want to start opera-
tion again, turn the power switch OFF and ON again or a stopper is operated (extraction sensor perception),
View from the Above
Do not cover the front of the sliding plate with screws. Picture 2

- 18 -
6 - 2. Operation Check
● If each part is adjusted appropriately, screws are sent to the stopper.
● Pick up screws from the stopper using the electric screwdriver. Using the bit guide as a guide, pull the screwdriver
downward. Fit the screwdriver bit into the cross slot of the screw and then pull the screwdriver toward you in a hori-
zontal direction to pick up the screw. (See Picture 3)
● Do not use force when tting the screwdriver bit to the screw head. This may bend the rail or lead to malfunction of the
machine.
● To t the bit securely into the cross slot of the screw, slightly rotate the screwdriver bit.
● Select the screwdriver bit according to the nominal diameter of the screws you are using. (Refer to “4-1. Model Type.”)
● If screw alignment or ow is abnormal, check and adjust each part. (Refer to “4-1. Model Type”)
● Pull the screwdriver downward and fit the
screwdriver bit into the cross slot of the screw.
● Pull the screwdriver toward you in a horizontal
direction to pick up the screw.
Picture 3

- 19 -
7 - 2. Maintenance
Dust, dirt, or grease in the rail groove may reduce the screw feeding speed.
If dust, dirt, or grease is evident in the rail groove, wipe it with a soft, clean alcohol-soaked cloth. Remove the rail if it is
hard to wipe.
Be sure to turn off the machine and remove all screws from the scooping chamber before removing the rail. (Refer to
Page 9 “4-5-1. Height Adjustment of Passing and Holding Plates (How to Remove the Rail)”)
Please replace the rail if there is noticeable grease, dirt or scratch on it.
7. Miscellaneous
7 - 1. Overload Protection Circuit
The machine is equipped with an overload protection circuit.
Normally, the driving motor rotates and sends screws to the rail.
However, if an overload is applied to the machine’s moving parts, the driving motor rotates in the counter
direction for a given length of time and then rotates normally again.
If this action recties the overload, the machine resumes screw feeding; however, if there is still an overload,
the motor continues to rotate in normal and opposite directions and then the power to the motor is cut off.
If the power to the motor is cut off, turn off the machine and remove the cause of overload.
For example, if there are too many screws in the scooping chamber, remove some of them. Remove any
screws stuck in the machine’s moving parts.
After eliminating the cause of overload, turn the machine on and restart operation. (Power reset)
