Olide DSW-120N User manual

AUTOMATIC DOOR SPECIALISTS
Please note：Programming of the open and close stop points will occur after
installation. An uninstalled unit will result in constant motor rotation.
For any questions,feel free to contact us.
INSTALLATION MANUAL
Olide DSW-120N

Contents
1. Technical Parameters..........................................................................................................................1
2. Components...................................................................................................................................2
3. Installations................................................................................................................................... 3
3.1 Installation example....................................................................................................................... 3
3.2 Installation of base plate..................................................................................................................4
3.3 Installation of pull arm.................................................................................................................... 5
3.4 Installation of push arm................................................................................................................... 6
3.5 Installation of operation system...................................................................................................... 8
3.6 Installation of cover................................................................................................................... ......8
3.7 Connection the operation system with the pull arm...................................................................... 9
3.8 Connection the operation system with the push arm...................................................................... 9
4.
Electrical Connections...................................................................................................................10
Control panel details......................................................................................................................10
4.1 Connections with a keypad ....................................................................................................10
4.2 Connections with a microwave sensor ....................................................................................... 11
4.3 Connections with PIR sensors ..............................................................................................
11
4.4 Connections for a safety motion top scan ..................................................................................11
4.5 Connections for push buttons....................................................................................................... 12
4.8 Connections for magnetic locks ....................................................................................................13
4.9 Connections for electric locks.................................................................................................13
4.10 Connection with the touchless hand sensor switches ................................................................... 13
4. 11 Double door synchronous settings..........................................................................................14
4.12 Wireless push buttons settings.................................................................................................15
4.13 Remote control settings.......................................................................................................16
5.
Parameters Adjustment...................................................................................................................17
5.1
hand programmer instruction.............................................................................................................17
5.2 adjustment steps................................................................................................................................18
6.
Trouble Shooting..............................................................................................................................19
4.6 Connections for wiring disabled push buttons............................................................................12
4.7 Connections for wireless handicapped push buttons .....................................................................12

1 Technical Parameters
1
Voltage: 110-220 VAC +/-10%
Power Consumption: 50W
Opening Time: 3-7 sec. @ 90 degrees
Hold Open Time: 1-30 sec. Adjustable
Max. Door Frame Depth:
Door Width:
Max. 1200mm / 47.2"
Max. Opening Angle:
450mm / 17.7"
Min. 660mm / 26"
120 degrees
Environment Temperature: -20C to 50C -4F to 122F
Protection Class: IP12D
Product Weight: 6.5Kg 14.3lbs
Dimensions: L515 x H95 x W50mm
20.3"L x 2"W x 3.75"H

2 Component
Power cable hole
Pull Arm(Option for interior opening)
Push Arm(Option for exterior opening)
2
Base Plate:
Sensor cable hole
Motor Assembly:
Off/On Switch
Motor
Gear box
Control block
Motor output
Cover Plate:

3
Installation
3.1 Installation example
Pull Arm
The door opens to the inside toward the unit using the pull arm assembly.
Push Arm
The door opens to the outside away from the unit using the push arm assembly.
3

3
Installation
3.2 Installation of base plate
0.88"(22.5mm)
5.90"(150mm)
5.90"(150mm) 6.49"(165mm)
1.2"(30.5mm)
hole
2.0"(52mm)
1.18"(30mm)
Right side hinge
0.88"(22.5mm)
6.49"(165mm)
1.2"(30.5mm)
2.0"(52mm)
Left side hinge
4
18.2"（464.5mm)
As the picture shows, the base plate should
be mounted to the frame with eight wood
screws or eight M6-15 countersunk screws.
Please note that 20mm sensor cable hole is
always to the right side and that the power
cable access is always to the left. The sensor
cable access hole is very near the edge of the
plate.
0.59"(15mm)
1.5"(38.5mm)
18.2"(464.5mm)
0.59"(15mm)
1.5"(38.5mm)
As the picture shows, the base plate should
be mounted to the frame with eight wood
screws or eight M6-15 countersunk screws.
1.18"(30mm)
5.90"(150mm) 5.90"(150mm)

3
Installation
3.3 Installation of Pull arm
5
Adjust the opening angle by
moving the stopper
(The stopper is at the left side
when left hand installation).
At door right
240（9.44")
（
240(9.44")
20
160(6.3")
Fix the slide rail of pull arm on the
door panel as shown using three
round head wood
Screws
(if the door panel is steel, please
use M6*15 cross recessed head
screws.)
Attach the slide rail of the pull
arm on the door panel as shown
using 3 screws
0.78"
29(1.44")

3
Installation
12.40"(315mm)
3.4 Installation of Push arm
Loosen this 3 bolts and adjust the push arm length
according to the door depth(L) until the angle between
the push arm and the door panel is 90° . At door right
6
50(1.96") 290(11.42")
Fix the support holder of push arm on the door panel as shown
using two round head wood screws
(if the door panel is steel, please use M6*15 cross
recessed head screws.)
35(1.29")

3
Installation
7
3.4 Installation of Push arm
Stop screw
Adjust the stop screw position slotted
hole to allow full opening of the door. Do
not exceed 90°.

3
Installation
8
3.5 operation system
Hook the component assembly onto the base plate as shown.
Attach it with 8 allen head screws
3.6 Cover
Opening the cover

3
Installation
9
3.7 Connect pull arm to the operation system
3.8 Connect the push arm to the operation system.
M
M
Motor output shaft

4Electrical Connections
4.
10
Control panel details
Power input located on the left side of the component assembly.
4.1 Connections with a keypad

4Electrical Connections
4.
11
4.2 connections with a microwave sensor
4.3 connections with PIR sensors
4.4 Connections for a safety motion top scan

4Electrical Connections
4.
12

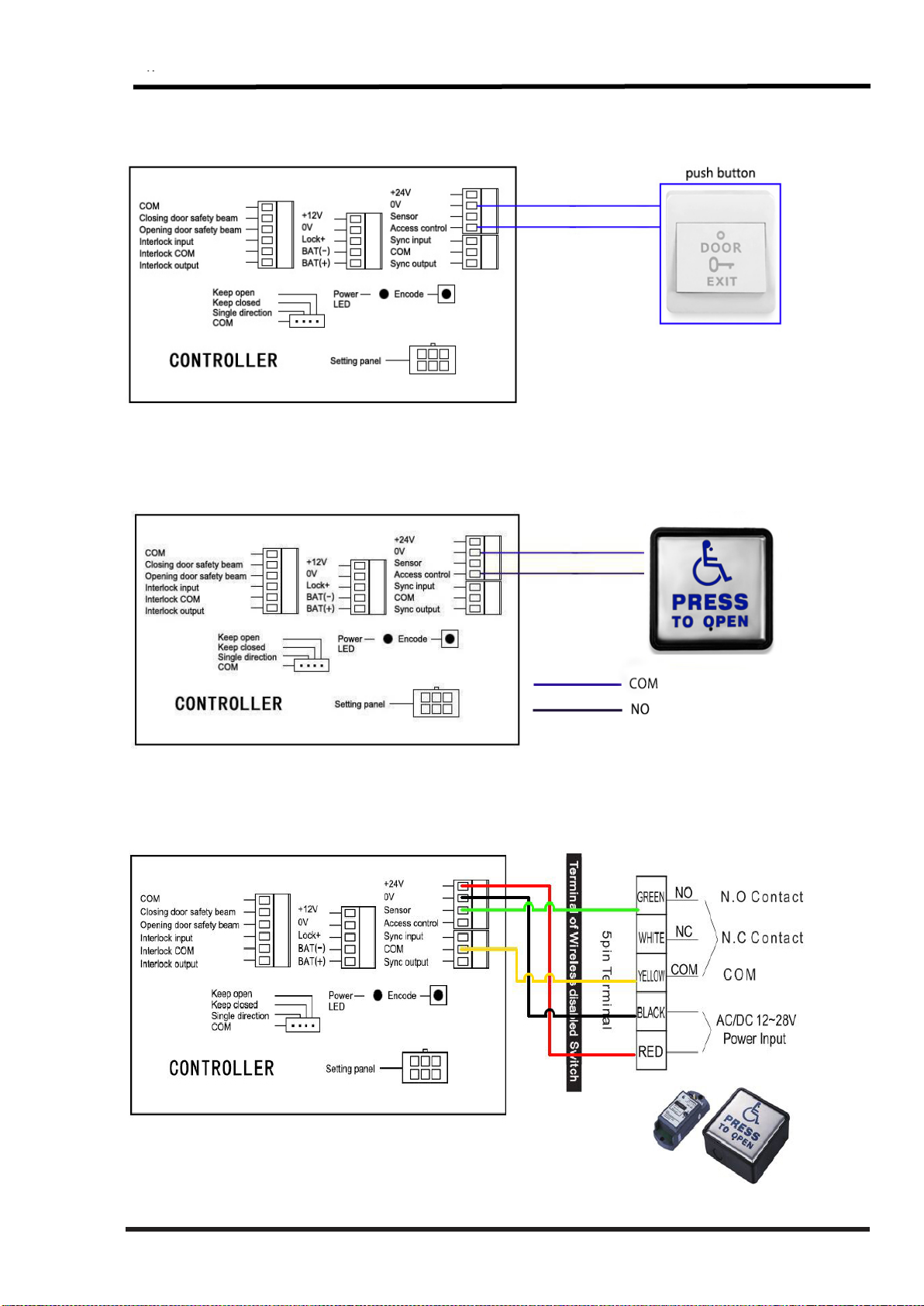

4.5 Connections for plastic push buttons
4.6 Connections for wiring disabled push buttons
4.7 Connections for wireless handicapped push buttons

4Electrical Connections
4.
13
4.8 Connections for magnetic locks
（Need to press the lock button on remote control for the first close, then it will auto lock when close）
4.9 Connections for electric locks
4.10 Connections for hand sensor touchless switch

4.
4Electrical Connections
14
Controller “A” Controller “B”
3 pin connector.
sync in sync in
COM COM
sync out sync out
Controller”A” Controller “B”
Interlock:
6 Pin Connector
COM COM
safety sesnsor close safety sensor close
safety sensor open safety sensor open
interlock input interlock input
COM COM
interlock output
Please use the hand programmer for setting the double door synchronous . The detailed steps and
written on the Page 17and 18.
interlock output
4.11 Double door synchronous
connections double door synchronous :

4.
4Electrical Connections
15
4.12 Wireless push buttons settings
The wireless push buttons are encoded with the opener component assembly.
1. Delete:Long press "encode"button,until you can not hear the buzzer sound,release
the "encode"button.
2. Code:Press "encode"button once,buzzer is sounding ,now press the PRESS
button ,the buzzer stops sounding,that indicate the code is successfully
learned.When using the remote control,the buzzer will sound for 2 seconds.
3. Note:When you use the PRESS buttons,the buzzer "beep" two times,indicate
that the PRESS button learning is failed,please do once more step 2.
Code Learning Description:

4.
4Electrical Connections
Hold-open
16
4.13 Remote control settings
Encoding the remote with the component assembly:
1. Delete all: Hold the “Encode” button on the component assembly until the buzzer is silent.
2. Encoding: Hold the “Encode” button until the buzzer sounds.
Then press any button on the remote control.
The buzzer should silence which means that encoding is complete.
3. Now when the remote control is used the buzzer will sound for 2 seconds.
If the buzzer beeps twice the encoding has failed. Repeat step 2.
4. When pressing the automatic button “D” one time, the door will open and close one time.
Note:No more than 10 remotes can be used on any system.
Lock
Automatic
Reset

5Parameters Adjustment
17
5.1 Hand programmer instruction
Display screen
MOD
Increase Decrease
Function Selection Test
Display Screen guide and function display
F – 1 work parameters F – 2 door parameters
os = opening speed n1 single/double door
od = opening low speed angle n2 master/slave
cs = closing speed n3 synchronize settings
cd = closing low speed angle o manual open door settings
jb = closing force L lock mode selection
ok = opening hold time F open direction settings
P door closer settings
increase operation = increase data
decrease operation = decrease data
function select / confirm parameter data
next parameter
parameters saved
parameters send
TEST = check settings and test the door
ERR3:Time out→Need to Replug
ERR4: Date Error→Need to Repair

5Parameters Adjustment
18
5.2 adjustment steps
