Oliver 7155 User manual

7155/7165 Cyclone Dust Collector
Owner’s Manual
Oliver Machinery M-7155/7165 09/2011
Seattle, WA  Copyright 2003
[email protected] www.olivermachinery.net

IMPORTANT SAFETY RULES
Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for .nur u een e es uar wn’ ae u
for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop. If a
reure eels anerus n’ r  Figure out an alternative procedure that feels safer. REMEMBER: Your personal
safety is your responsibility.
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY
1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL
BEFORE OPERATING THE TOOL. Learn the l’s alan
and limitations as well as the specific hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order
3. ALWAYS WEAR EYE PROTECTION
4. GROUND ALL TOOLS. If tool is equipped with three-prong
plug, it should be plugged into a three-hole electrical receptacle.
If an adapter is used to accommodate a two-prong receptacle,
the adapter plug must be attached to a known ground. Never
remove the third prong.
5. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit
of checking to see that keys and adjusting wrenches are
ree r l bere urnn  'ON"
6. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
7. DON'T USE IN DANGEROUS ENVIRONMENT Dn’ use
power tools in damp or wet locations, or expose them to rain.
Keep work area well lighted.
8. KEEP CHILDREN AND VISITORS AWAY. All children and
visitors should be kept a safe distance from work area.
9. MAKE WORKSHOP CHILDPROOF  with padlocks, master
switches, or by removing starter keys.
10DON’TFORE TOOL I wll  e jb beer an be saer
at the rate for which it was designed.
11. USE RIGHT TOOL. Don’ re l r aaen   a
job for which it was not designed.
12. W EAR PROPER APPAREL. No loose clothing, gloves,
neck-ties, rings, bracelets, or other jewelry to get caught in
moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
13. ALWAYS USE SAFETY GLASSES. Wear safety glasses.
Everyday eyeglasses only have impact resistant lenses; they
are not safety glasses. Also use face or dust mask if cutting
operation is dusty.
14. SECURE WORK. Use clamps or a vise to hold work when
raal ’s saer an usn ur an an rees  ans 
operate tool.
15 DON’T OVERREACH. Keep proper footing and balance
at all times.
16. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
17. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.
18. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by us may
cause hazards or risk of injury to persons.
19. REDUCE THE RISK OF UNINTENTIONAL STARTING.
MaKe sure sw s n "OFF" sn bere lun n
power cord.
20. NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is accidentally
contacted.
21. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checkedto ensure that it will operate properly and
perform its intended function  check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should be
properly repaired or replaced.
22. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of rotation of the blade or cutter only.
23. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURNPOER OFF Dn’ leae l unl  es  a
complete stop.
24. DRUGS, ALCOHOL, MEDICATION. Do not operate tool
while under the influence of drugs, alcohol or any
medication.
25. MAKES SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted, connected
or reconnected.
26. WARNING: The dust generated by certain
woods and wood products can be injurious to your
health. Always operate machinery in well ventilated
areas and provide for proper dust removal. Use
wood dust collection systems whenever possible.
2

IMPORTANT SAFETY RULES FOR DUST COLLECTORS
WARNING: Basic precautions should always be followed when using your dust collector. To reduce the
risk of injury, electrical shock or fire, comply with the safety rules listed below:
1. READ and understand the instruction manual before operating the dust collector.
2. DO NOT leave the dust collector plugged into the electrical outlet. Unplug dust collector from outlet
when not in use and before servicing, changing bags, unclogging and cleaning.
 LWAYS urn e wer sw "OFF" bere unplugging the dust collector.
4. WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK do not use outdoors or on wet
surfaces. Use for dry pickup only!
5. FOLLOW all electrical and safety codes, including the National Electric Code (NEC) and the
Occupational Safety and Health Regulations (OSHA). All electrical connections and wiring should be
made by qualified personnel only.
6. DO NOT use the dust collector to pick up flammable or combustible liquids, such as gasoline. NEVER
use the dust collector near any flammable or combustible liquids.
7. USE the dust collector to pick up wood materials only. DO NOT use the dust collector to pick up metal
shavings, dust, water, or parts.
8. NEVER use the dust collector to dissipate fumes or smoke. NEVER pick-up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
9. USE only as described in this manual.
10. DO NOT pull the dust collector by the power cord. NEVER allow the power cord to come in contact
with sharp edges, hot surfaces, oil or grease.
11. DO NOT unplug the dust collector by pulling on the power cord. ALWAYS grasp the plug, not the
cord.
12. DO NOT handle the plug or dust collector with wet hands.
13. REPLACE a damaged cord immediately. DO NOT use a damaged cord or plug. If the dust collector is
not operating properly, or has been damaged, left outdoors or has been in contact with water, return it to
an Authorized Service Center for service.
14. DO NOT use the dust collector as a toy. DO NOT use near or around children.
15. DO NOT insert fingers or foreign objects into the dust intake ports. Keep hair, loose clothing, fingers,
and all body parts away from openings and moving parts of the dust collector.
16. DO NOT use the dust collector without a filter bag and dust collection bag in place and properly
secured.
17. DO NOT operate the dust collector with unused dust intake ports uncapped. ALWAYS cover exposed
dust intake ports.
18. PERIODICALLY INSPECT dust and filter bags for any cuts, rips or tears. NEVER operate the dust
collector with a damaged bag or vacuum hose.
19. The dust collector is designed for home use or light commercial duty ONLY!
20. CONNECT dust collector to a properly grounded outlet only. See Grounding Instructions.
3

GROUNDING INSTRUCTIONS
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a
cord having equipment-ground conductor and grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the appliance  if it will not fit the outlet; have a proper
outlet installed by a qualified electrician.
For grounded, cord-connected appliances:
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-equipped
with a specific electric cord and plug to permit connection to a proper electric circuit. Make sure that the
appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used
with this appliance. If the appliance must be reconnected for use on a different type of electric circuit,
qualified service personnel should make the reconnection.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system; or an equipment-
grounding conductor must be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the appliance.
4

Table of Contents Page Number
Safety Rules ............................................................................................................................................... 2-3
Grounding Rules ........................................................................................................................................... 4
Table of Contents .......................................................................................................................................... 5
Specifications ................................................................................................................................................ 5
Unpacking Contents ...................................................................................................................................... 6
Hardware Package ........................................................................................................................................ 7
Assembly .................................................................................................................................................. 8-10

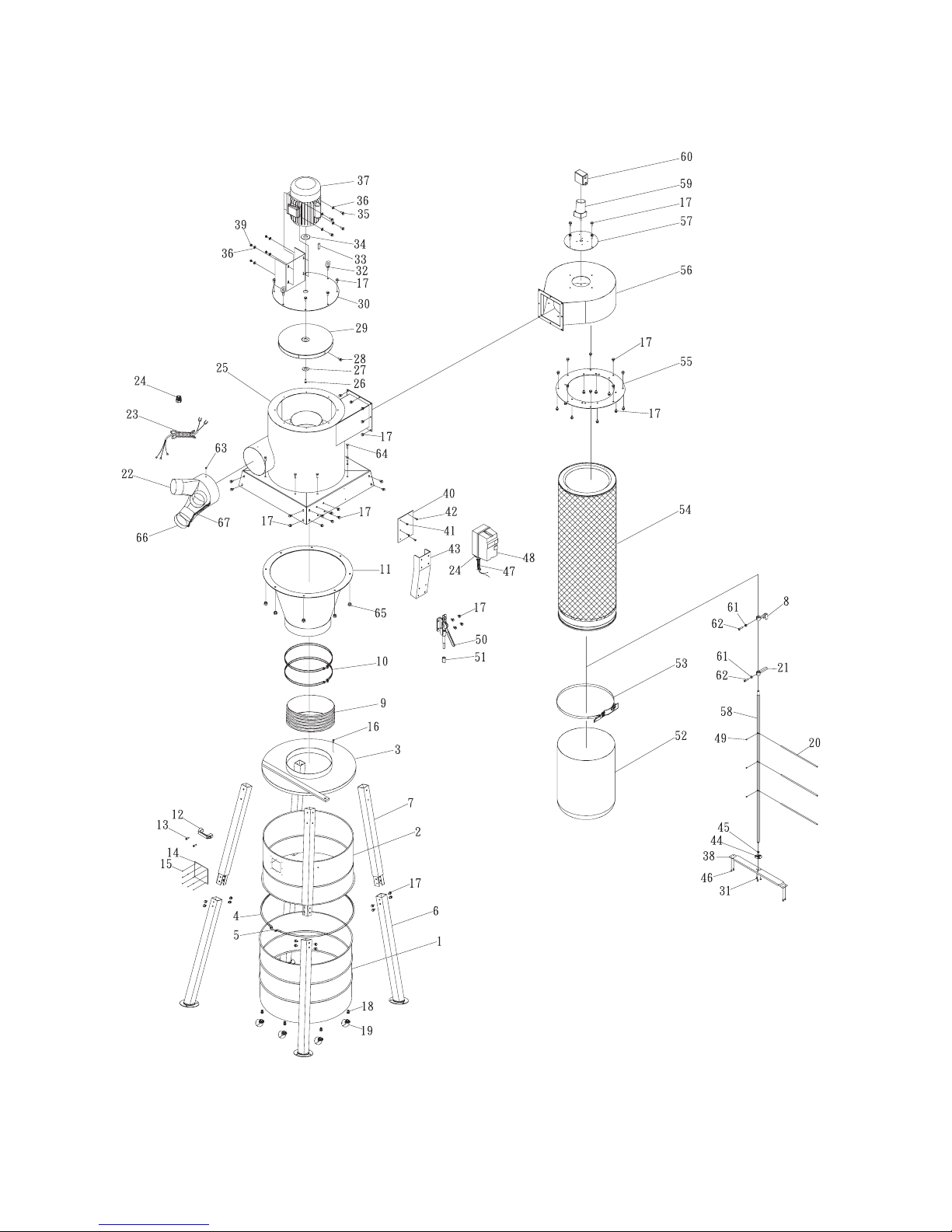

Exploded Parts Diagram ............................................................................................................................. 11
Parts List ................................................................................................................................................ 12-13
Warranty ...................................................................................................................................................... 14
Specifications
7155
7165
Motor
3HP, 1 Phase
5HP, 1 Phase or 3 Phase
Amps
18
28 or 18
Air Flow Volume CFM
2100
3600
Static Pressure (max.)
13 InH20
16 InH20
Impellor Diameter (in.)
14
16
Cannister (dia. X h) (in.)
14-1/2 x 39-3/8
19-5/8 x 39-3/8
Inlet Diameter (in.)
8
10
Bag Diameter
19-5/8”
23-5/8”
Drum Size
60 gallon
60 gallon
Sound Rating @ 10 feet
75-85 db
75-85 db
Overall size (lxwxh) (in.)
67 x 45 x 90
71 x 51 x 118
Net weight (lbs)
270
427
Gross weight (lbs)
319
537
Do Not Operate
This Unit Without
Dust Collection
Hose or Pipe is
installed onto the
dust collection
inlet port!
5

6
UNPACKING & CHECKING CONTENTS:
A: Main Housing H: Upper Stand O: Hardware Pack
B: Cannister Housing I: Lower Stand P: Handle
C: Reducing Connector J: Inlet Q: Wheel
D: Hose K: PolyesterBag R: Quick Lever
E: Drum Lid L: Bag Clamp S: Cannister
F: Upper Drum M: Bag Clamp
G: Lower Drum N: Hose Clamp
PQ
KL
FG
RS
N
M
H
O
IJ
A CB E D

7
Hardware package:
NO. Description Specification Q’TY Part List No.
A Flange Bolt 5/16”*1/2” 36 NO.17
B Flange Bolt 5/16”*3/4” 16 NO.64
C Phillip Head Screw 3/16”*3/8” 1 NO.63
D Nut 5/16” 16 NO.65
E Open Wrench 10*12 1 NO.68
F Flat Head Screw 1/4”*5/8” 2 NO.13

8
ASSEMBLY INSTRUCTION:
(Fig.A)(Fig.B)(Fig.C)

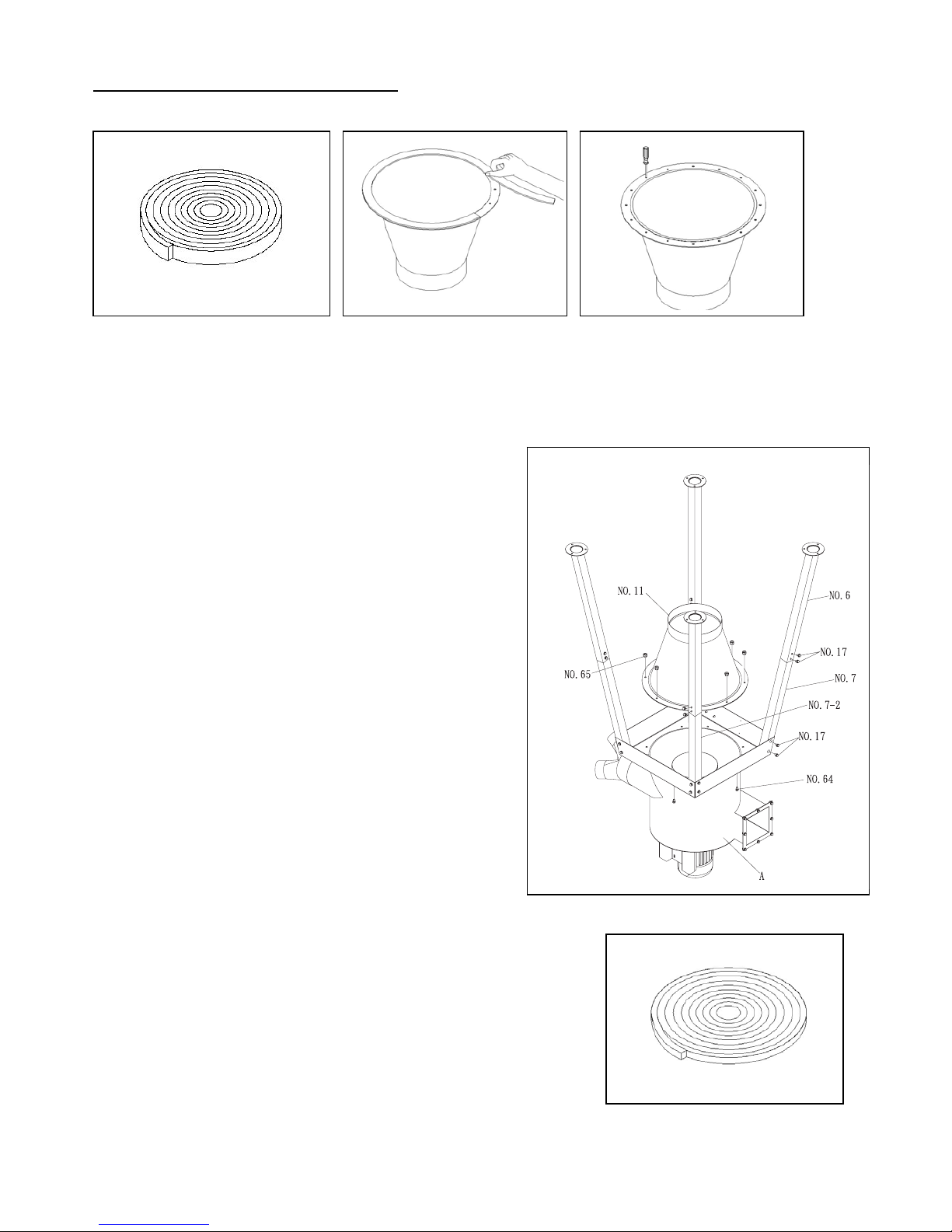

Step 1-1.1 Open the package and take out the foam. (See Fig.A)
Step 1-1.2 Stick the foam around the reducing collector flange. (See Fig.B)
Step 1-1.3 Use a screwdriver to make a hole through the foam to allow the Hex. Head bolts through.
(SeeFig.C)
STEP 1-2.
Place the main housing (A) upside down.
Assemble the reducing connector (11) together with the
main housing and tighten with flange bolts (64) and nuts.
(65)
STEP 1-3.
Assemble the upper supports (7) and lower supports (6)
together with flange bolts (17) then tighten the stands to
the housing (A) with flange bolts (17).
See (Fig.1)
(Fig.1)
Step 1-4.
Open the package and take out the foam.
See (Fig.D)
(Fig.D)

9
Step 1-5.
Tape the foam on the bottom of the upper collecting drum.
See (Fig.E)
(Fig.E)
STEP 2-1.
Lift the machine up.
CAUTION!!!
The main housing set is heavy, please have
at least 4 people working together to lift it up!!!

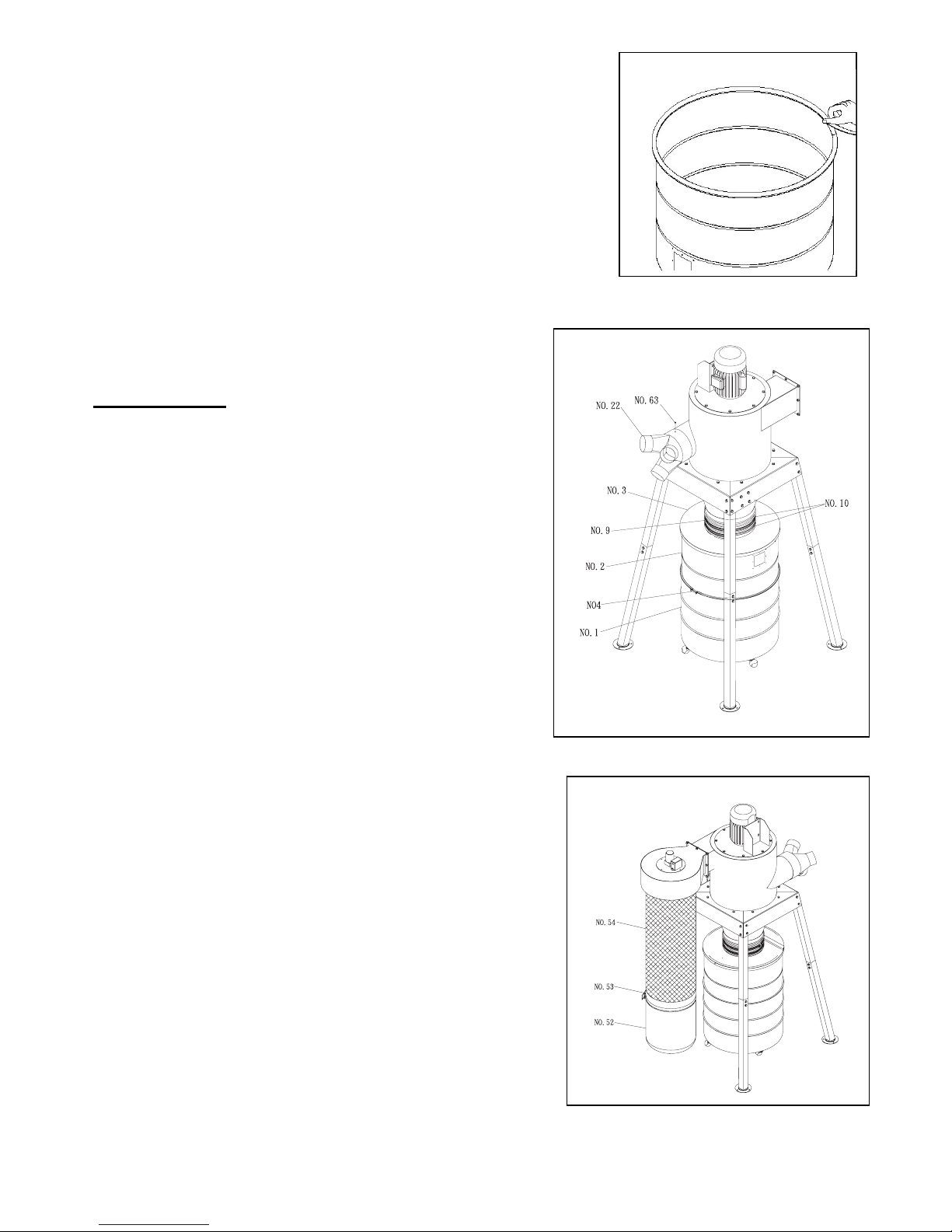

Place the inlet (22) on the main housing inlet and secure
with the Phillip head screw. (63)
STEP 2-2.
Assemble the upper drum (2) and lower drum (1) together
drum clamp (4).Place the drum lid (3) on the drum then
connect the hose (9) to the top of the drum lid and the bottom
of the reducing connector and tighten with hose clamps (10).
See (Fig.2)
(Fig.2)
STEP 3-1.
Assemble the canister set (54) onto the main housing with
flange bolts (17). Place the polyester bag (52) on the bottom
bottom of the canister and tighten with the bag clamp (53).
See (Fig.3)
(Fig.3)

10
STEP 4-1
Attach the switch (48) with plate to the main housing with flat head screw(42).
Attach the quick lever set (50) to the main housing with flange bolts and to the drum lid with nut (51).
See (Fig.4)
(FIG.4)
All the assembly steps are completed.

11
EXPLODED DIAGRAM----

12
Part List
NO. Description Specification Q’TY
1 Lower Collecting Drum 1
2 Upper Collecting Drum 1
3 Drum Lid 1
4 Drum Clamp 1
5 Phillip Head Screw 1/4”X2” 1
6 Lower Stand 4
7 Upper Stand 4
8 Rod Kit 1
9 Hose ψ12＂X120 1
10 Clamp 12-1/2” 2
11 Reducing Connector 1
12 Handle 1
13 Flat Head screw 1/4”X5/8” 2
14 PC Board 1
15 Rivet 4-2 8
16 Copper Screw 3/16”X3/8” 1
17 Flange Bolt 5/16”X1/2” 60
18 Rivet 5/16” 4
19 Wheel 48 4
20 Bar 3
21 Rod 1
22 Inlet 8”X4” 1
23 Motor Cord 1
24 pushing PG-16 2
25 Housing 1
26 Cap Screw M6X20 1
27 Impeller Washer 1
28 Set Screw 3/8”X3/4” 1
29 impeller ψ14” 1
30 Motor Plate 1
31 Bottom Head Screw M5XM6 6
32 Hook 5/16” 2
33 Key 7X7X25 2
34 Motor Packing 101 1
35 Hex Head Bolt 5/16”X1 12

13
36 Washer 5/16”X23X1.5T 16
37 Motor 3HP 1
38 Lower Fixing Plate 2
39 Nut 5/16” 12
40 Switch Plate 1
41 Phillip Head Screw 1/4”X1/2” 2
42 Phillip Head Screw 3/16”X1/2” 2
43 Support Set 1
44 Ball Bear Fixing Plate 2
45 Ball Bearing 1206 2
46 Phillip Head Screw M5X10 8
47 Power Cord 1
48 Switch 1
49 Set Screw M5X5 3
50 Quick Lever 1
51 Nut 1
52 Polyester Bag 1
53 Bag Clamp CK500 1
54 Canister 1
55 Canister Fixing Plate 1
56 Canister Housing 1
57 Cover 1
58 Spindle 1
59 Reducing Motor 6W 1
60 Box 1
61 Nut M5 2
62 Cap Screw M5X12 2
63 Phillip Head Screw 3/16”X3/8” 1
64 Flange Bolt 5/16”X3/4” 16
65 Nut 5/16” 16
66 Cap 4” 2
67 Chain 1
68 Open Wrench 10*12

Warranty
Oliver makes every effort possible to assure that its equipment meets the highest possible standards of
quality and durability. All products sold by Oliver are warranted to the original customer to be free from
defects for a period of 2 (two) years on all parts, excluding electronics and motors, which are warranted
r  ear Oler’s lan uner s warran sall e elusel le  rearn r relan a
Oler’s n rus w are eerne  Oler  e eee upon delivery F.O.B. (return
freight paid by customer) to Oliver, and on inspection by Oliver. This warranty does not apply to defects
due, directly or indirectly, to misuse, abuse, negligence, accidents, unauthorized repairs, alterations, lack
of maintenance, acts of nature, or items that would normally be consumed or require replacement due to
normal wear. In no event shall Oliver be liable for death, personal or property injury, or damages arising
from the use of its products.
Warning
Read this manual thoroughly before operating the machine. Oliver Machinery disclaims any liability for
machines that have been altered or abused. Oliver Machinery reserves the right to effect at any time,
without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem
necessary for any reason whatsoever.
For More Information
Oliver Machinery is always adding new Industrial Woodworking products to the line. For complete, up-to-
date product information, check with your local Oliver Machinery distributor, or visit
www.olivermachinery.net
14
