Olmar GENESIS Quick start guide

GENESIS
Installation and use instructions
for other countries

KEY TO SIMBOLS
WARNING!
OBLIGATORY QUALIFIED PERSONNEL
WARNING! HOT GLASS TEMPERATURE
INDEX
1. Health and safety information ........................................................................ 03
2. Technical characteristics of the appliance ..................................................... 04
3. Assembly instructions ..................................................................................... 06
4. Remote Control ............................................................................................... 09
5. Technology and functions ............................................................................... 11
6. Environment .................................................................................................... 13
2

1. IMPORTANT HEALTH AND SAFETY INFORMATION
1.1 Read all the instructions carefully before using the appliance.
DO NOT INSTALL AND USE THE APPLIANCE IF DAMAGED
1.2 Remove all packaging. In case of disposal, place them in an appropriate recycling facility.
1.3 Do not immediately connect the appliance to a power socket. Install the appliance before
checking its operation.
1.4 The glass panel of this appliance is considered by the manufacturer as a work surface
that heats up when the product is in operation.
1.5 WARNING ! NEVER COVER THE SURFACE OF THE PANEL.
1.6 FOR INTERNAL USE ONLY. This appliance is not suitable for use in outdoor areas of the house.
Keep the power cord away from hot surfaces and heat pipes. Do not place the cable in front of
the appliance.
1.7 Theproductmustbermlyxedtoaatwall
1.8 Once the appliance has been installed, the connection plug must be accessible.
1.9 If the power cable must pass through a masonry, glass or other material that forms an internal
partition, make sure that rubber protectors are installed in the possible wear points.
If the power cord is damaged, do not use the appliance until it has been replaced.
1.10 Do not use this appliance with any type of timer, programmer, thermal control or other device
other than those supplied or intended by the manufacturer.
1.11 Switch the appliance o and on with the ON / OFF button located in the lower part of the frame
1.12 This appliance has NOT been designed to be used by minors under the age of 12 or by
people with reduced physical, sensory or mental capabilities or by people who do not
 havetheknowledgeorexperiencenecessarytooperateandusetheappliance.safely.
This appliance can be used by people over the age of 12 as long as they have been educated
about safe use and understand the possible risks.
Children under the age of 12 can use the device as long as they are supervised by a responsible
adult
1.13 Some components of this appliance become hot aer use and under no circumstances should
children under 12 be le alone with the product running.
3

2. TECHNICAL CHARACTERISTICS OF THE APPLIANCE
THIS APPLIANCE MUST BE CONNECTED WITH A
SOCKET PROVIDED WITH EARTHING
VOLTAGE ............................................................ 220 volts 50/60 Hz
POWER .............................................................. 1200 wattS
ENERGY CONSUMPTION ................................... 900 Watts/ h at MAX
900 Watts/ h constant operation
EMISSION .......................................................... FAR INFRARED RAYS
SPECTRUM ........................................................ 4 – 14 μ micron
CONTROL .......................................................... REMOTE CONTROL
POWER LEVELS ................................................. 2: MAX / CONSTANT FUNCTION
SIGNALING FUNCTIONS ................................... LED 1 RED / 1 BLUE
TEMPERATURE SAFETY .................................... THERMAL SWITCH
GLASS ................................................................ TEMPERED ANTI SHOCK
ELECTRICAL SAFETY ......................................... GLASS SENSE
ENERGY EFFICIENCY ......................................... 99%
TECHNOLOGY .................................................... DUAL Ag+
PROTECTION CLASS ......................................... IPx44
AIR TREATMENT ................................................ OZONIZER + IONIZER
OZONIZER ......................................................... 50mg / h two programs
IONIZER ............................................................ 8,000,000 negative ions cm3
REMOTE CONTROLLER
FUNCTIONS ....................................................... ON / OFF
POWER SELECTORS .......................................... 100% - 50%
AIR PURIFICATION SELECTOR ........................... MANUAL - AUTOMATIC ( 8 h )
CHILD LOOK ....................................................... BLOCCO TASTIERA SICUREZZA
POWER SUPPLY ................................................ BATTERIES
4

2.1 DUAL Ag + TECHNOLOGY: exclusive technological process that allows the generation of
infrared FIR rays with a wavelength between 4 and 14 microns combined with the antibacte-
rial and antimicrobial properties of SILVER IONS.
2.2 PROTECTION AND SAFETY: the tempered glass emitter is set up with a system that guarantees
its safety in any condition of malfunction or accidental breakage. It constantly monitors the
operating temperature and intervenes to prevent any risk caused by external accidental
elements that modify its function.
2.3 TEMPERATURE OF USE: using the supplied remote control you can select
2 POWER levels:
A - 100% of the panel power
B – 70% of the panel power
2.4 ENVIRONMENTAL SANITIZATION: through an exclusive air treatment system and the
sanitization of the environment inserted in the appliance, it is possible by simply touching
the remote control to activate the generation of negative ions and ozone.
Thanks to the antibacterial, antimicrobial and antifungal properties of ozone O 3 the
oxygenation of the air in the room is increased, removing animal odors, cigarettes, fumes,
food, dust. It reduces the risk of viral diseases and the development of allergies.
Many allergens and pollution factors present in the room air are removed.
Particularly suitable for environments frequented by people with allergies.
The combined production of negative ions and ozone makes the air cleaner and ner.
THE USE OF OTHER CONTROL OR SELECTION INSTRUMENTS OTHER THAN THE SUPPLIED
REMOTE CONTROL IS FORBIDDEN.
IN CASE OF MALFUNCTION OR ACCIDENTAL BREAKAGE, CONTACT THE DEALER IN CASE OF
BREAKAGE OR LOSS OF THE REMOTE CONTROL, PLEASE CONTACT THE DEALER TO PURCHASE
A NEW REMOTE CONTROL ORIGINAL.
THE MANUFACTURER DECLINES ANY LIABILITY FOR DAMAGES TO PEOPLE, THINGS AND
ANIMALS CAUSED BY IMPROPER USE VOF THE APPLIANCE OR WITH INSTRUMENTS OTHER
THAN THOSE ORIGINAL.
5

3. ASSEMBLY INSTRUCTIONS
3.1 Before proceeding with the assembly of the panel, make sure that you have carefully read the
specications and characteristics of the product and that you have clearly understood the
following assembly instructions.
3.2 This appliance has been certied for use in Italy, precisely to install the appliance in dierent
countries, instructions in the language of the country of installation are required and in some
cases make changes to the appliance itself. For any needs, contact HEATALO directly via email
[e-mail]
3.3 Unpack the panel. The operation must be performed by two adults. Open the cardboard
packaging, remove the polystyrene and the plastic bag that wraps the panel. keep the plastic
wrap out of the reach of children. pay attention during handling to avoid damaging the
wooden and glass parts.
3.4 Before throwing away the packaging, check that all parts and accessories have been removed.
It is necessary to keep the packaging for possible transport, future storage or to return the
product.
3.5 Check that the panel is intact and free of defects caused by transport or handling.
WARNING: DO NOT USE the panel on any part that is tampered with or defective
3.6 Equipment required for panel assembly:
3.7 SUPPLIED KIT CONTENTS
2 screws and 2 washers
6

• REMOVE THE APPLIANCE FROM THE PACKAGING AS DESCRIBED IN POINT pag. 0.6

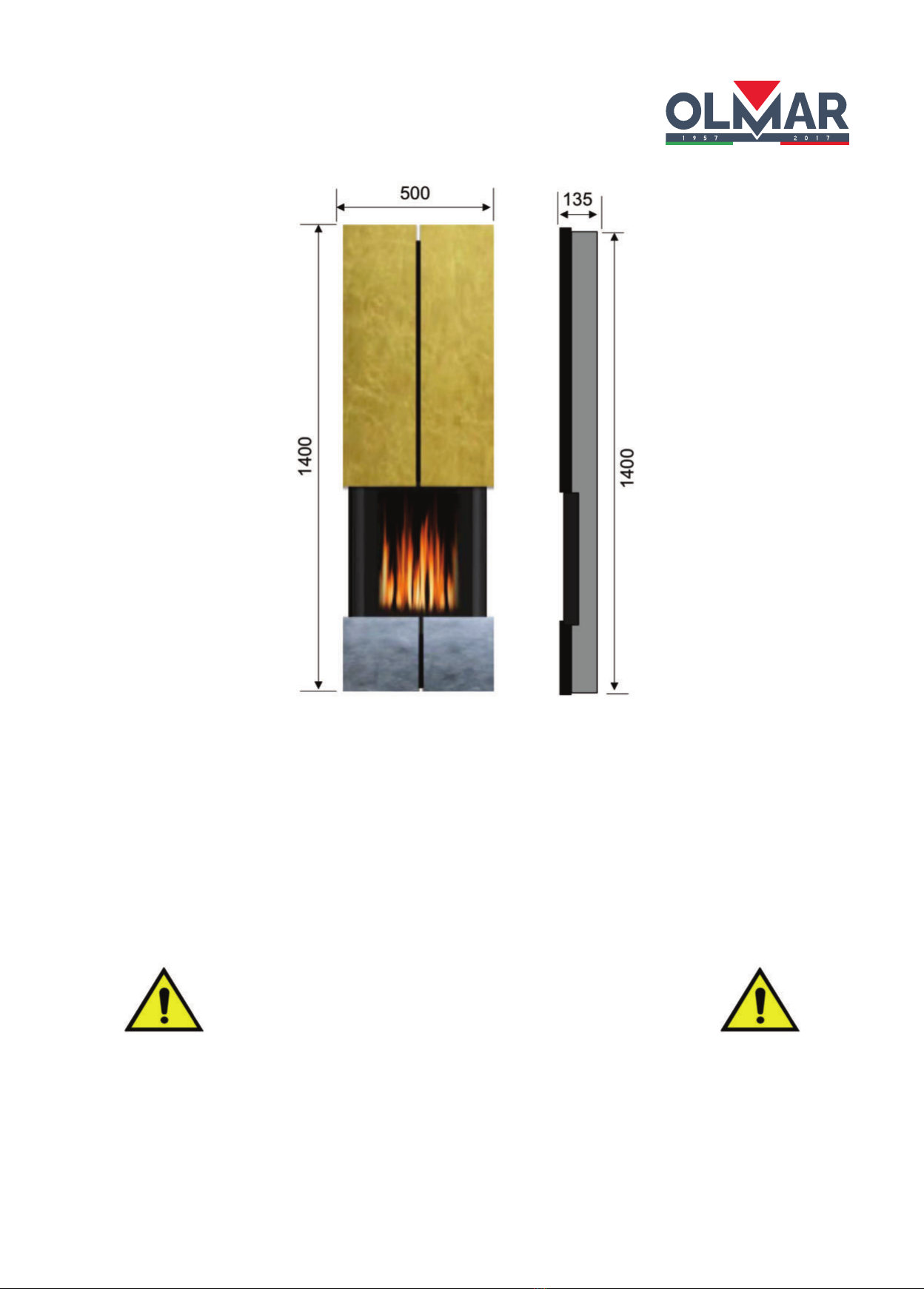

• DEFINE THE INSTALLATION AREA FOLLOWING THE INDICATION Fig. X pag 07
• VERIFY THAT THE MAINS AND THE ELECTRICAL SYSTEM COMPLY WITH CEI 64-08

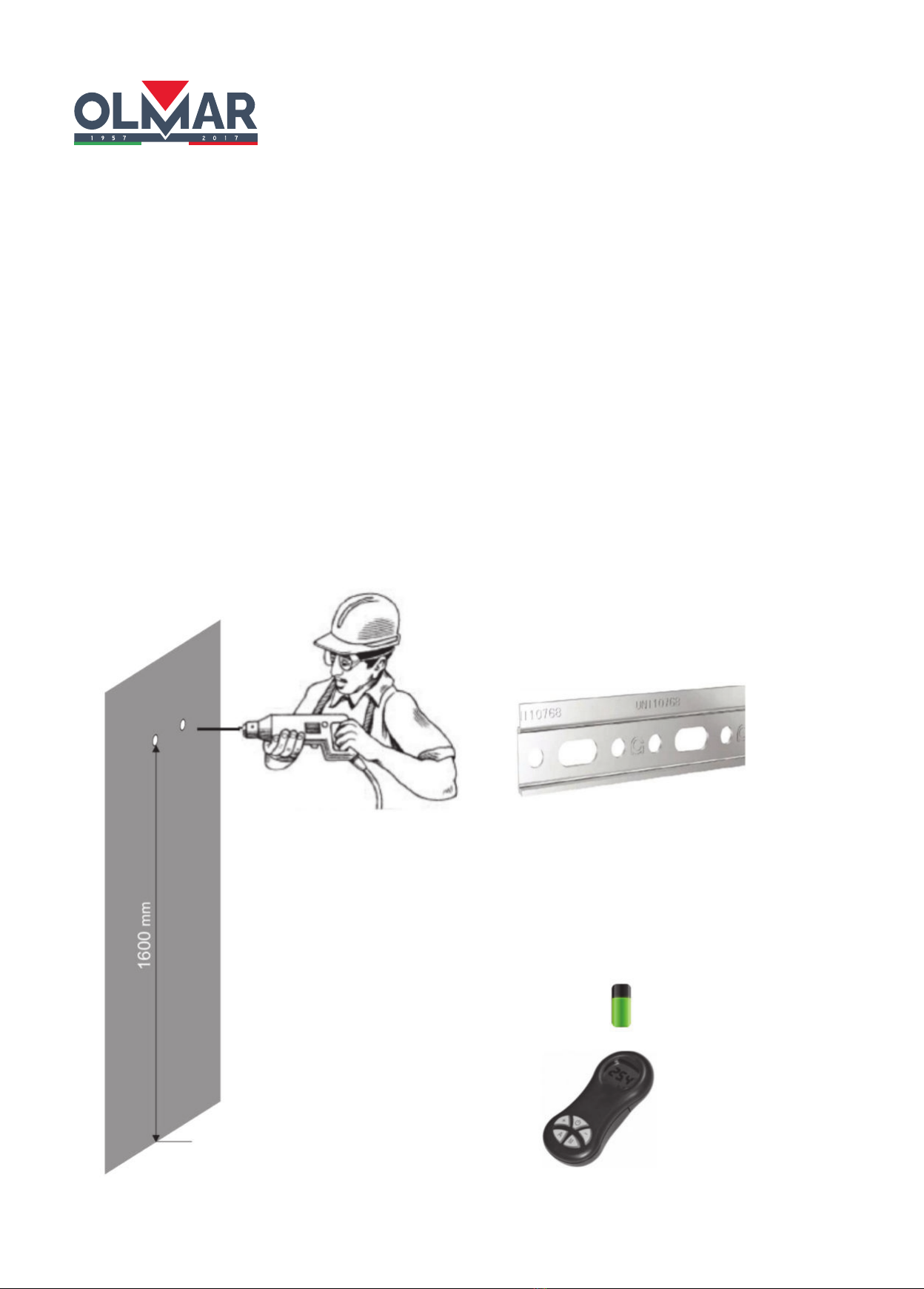

3.8 WALL MEASUREMENT AND DRILLING: Dene the area dedicated to the installation of the
chimney panel, pay attention to the instructions below. The chosen area and methodology
installation must ensure compliance with the supplier’s instructions.
THE PANEL MUST BE FIXED ONLY IN VERTICAL POSITION
7

Establish the xing point of the brackets considering
the their penetration into the cracks placed in the back
of the panel
Drill the wall. Apply the xing brackets with the supplied
screws.
Once the replace panel is installed as from the
above instructions, proceed with testing and power
on via the remote control in equipment. Make sure
they have been entered the batteries. The display
should not appear remote control no signal
battery charge check
8
3.9 VERIFY that the air ow in the lower part of the panel is guaranteed. Install the panel at least
25 cm from the oor. The wall must not have elements that could obstruct the correct ow of
air in the lower and upper part of the appliance.
3.10 The panel must be installed so that switches or other controls are accessible. Check that the
electrical system is up to standard. Consult an installer.
3.11 The panel is operated and functions exclusively with the supplied remote control. There are
no manual or manually accessible components in the control panel.
3.12 Do not install the panel in front of electrical sockets.
3.13 Aer assembling, make sure that the electrical outlet is easy to access and is equipped with a
single-pole interruption device with a separation distance between the contacts of at least
3mm.
3.14 The power cable supplied with the panel is tted with a die-cast SCHUKO plug. Do not use for
any reason other connections than the plug-cable supplied. Do not use the panel if the cable
is damaged.

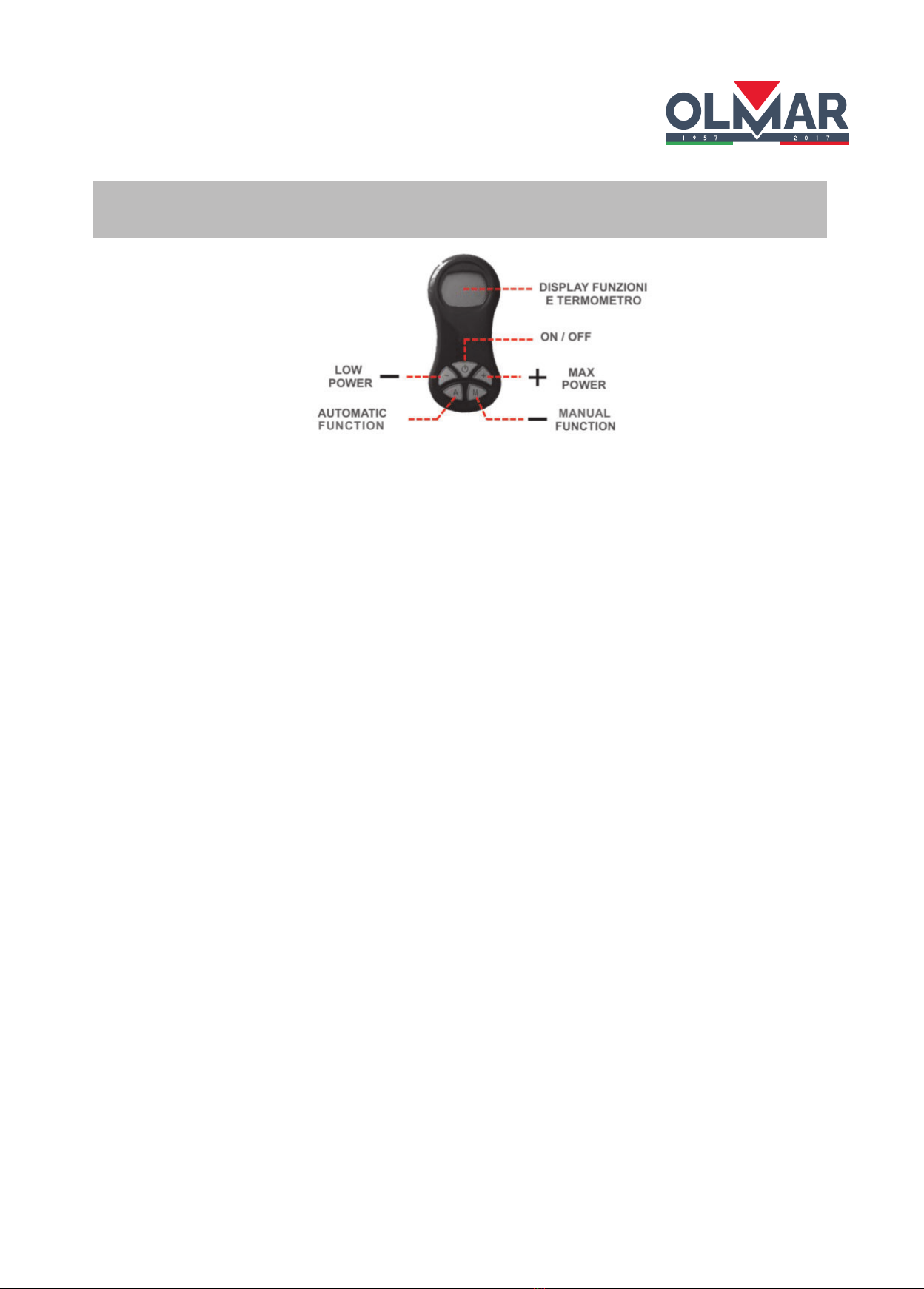

4. REMOTE CONTROL USE AND FUNCTIONS
4.1 The far infrared replace panel is controlled by a remote control that activates it and regulates the functions of
both heating and sanitizing the environment. HEATING FUNCTIONS: To activate the replace panel, press the ON
/ OFF button The panel will activate immediately by lighting the image of the replace ame.
The power of the panel is at maximum and it sends biogenic waves into the room which, at the speed of light, they
increase the temperature of the solid bodies present without heating the air until their room temperature is
reached (see heating paragraph).
4.2 The chimney panel will work at maximum power for about 90 minutes until it is saturated room and reach the
optimum temperature. Aer this time, the panel will shrink automatically absorbed power by 50% ensuring the
maintenance of comfort thermal with the minimum of energy required. If the perceived temperature is not
suicient, pressing the + button on the remote control will restore the panel power to maximum and a immediate
temperature rise.
4.3 PANEL ACTIVITY SIGNAL: Pressing the ON key activates the ame function with heating In the upper le part
the panel will show a red beam of light projected on the ceiling.
PANEL POSITION AT MAX: The red light will always remain on and the ame at max.
PANEL POSITION AT MIN: The red light ashes and the ame goes down.
It is therefore possible to check the heating activity of the replace at any time.
4.4 ELECTRONIC THERMOMETER: It is possible to check the ambient temperature of the room via the remote control
display. This function allows you to check the temperature of the air in the room and that perceived.
4.5 FLAME ONLY FUNCTION: Pressing the - key on the remote control twice turns o the heating operation. Only the
ame remains alight. The red light beam disappears. Emotional function.
4.6 TOTAL SWITCHING OFF THE FIREPLACE: press the - key on the remote control twice and then press the OFF key.
The heating operation stops and the ame turns o.
TO OBTAIN THE MAXIMUM HEATING RESULT OF THE ROOM, WE RECOMMEND DO NOT TURN OFF THE PRODUCT BUT MAKE
IT WORK AUTOMATICALLY. THE PRODUCT IT HAS BEEN DESIGNED TO GUARANTEE OPTIMAL ENERGY EFFICIENCY WITH THE
MINIMUM CONSUMPTION OF ELECTRICITY.
9

10
SANITIZATION FUNCTION: unique and exclusive, the PINOTTO replace panel is of great help to avoid and eliminate
the proliferation of spores, bacterial and fungal ora. Avoid and eliminate smells. Particularly useful for public and
domestic environmental disinfection and deodorization. It helps to keep the premises SANITIZED in order to always
guarantee hygienic and sanitary conditions optimal. Equipped with unique ozone and negative ion producer system,
it can be operated, via the remote control, either in combination with the heating function, or separately, in mode
it can be used to sanitize the environment even in the summer period in presence of air conditioning. It can be used
together with the ame eect with the emotional function
4.7 HEATING + SANITIZATION FUNCTION:
A - PRESS THE KEY : heating activation
B - PRESS THE BUTTON A: activation of sanitation + heating in automatic mode

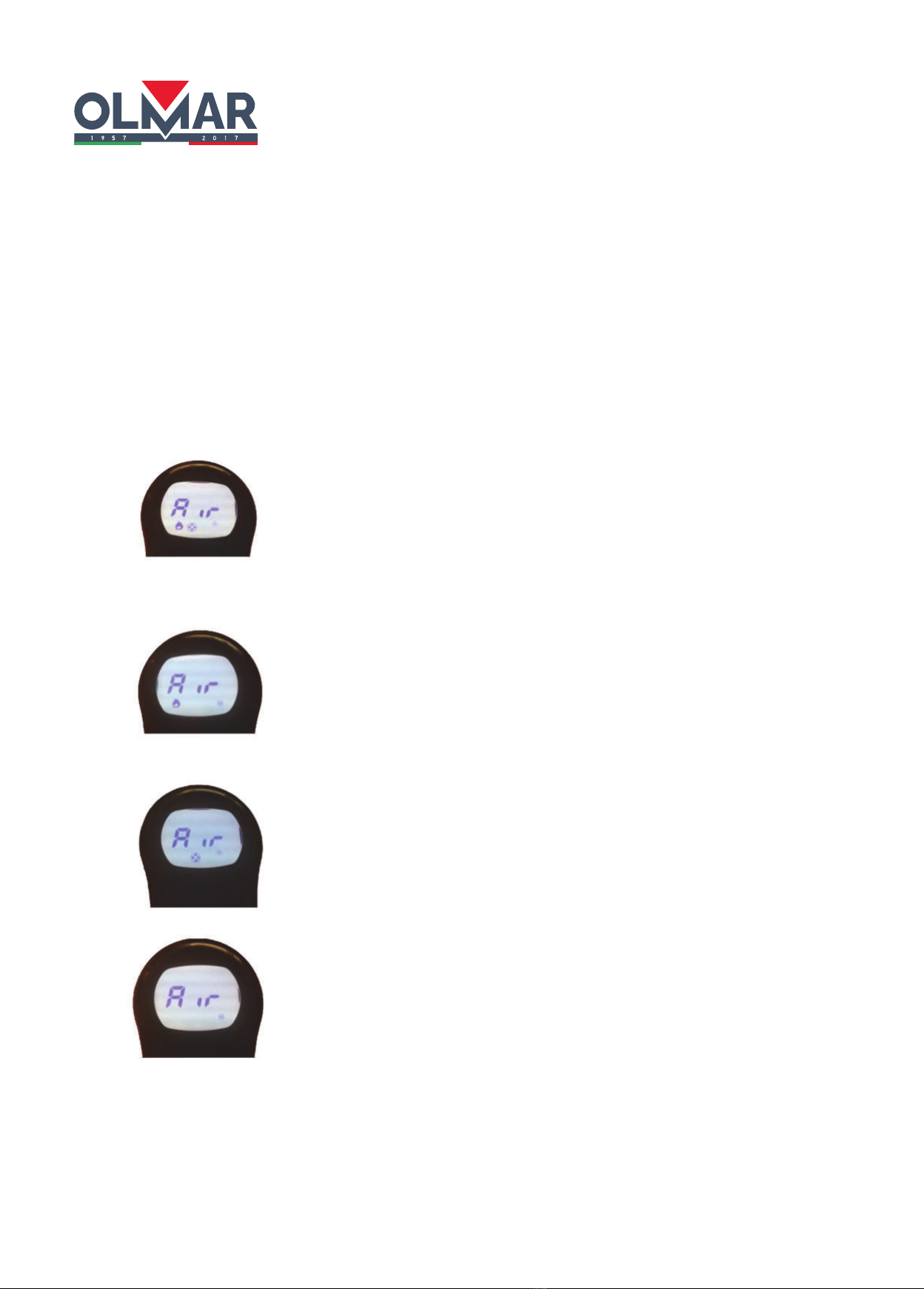

AIR + icon of the image will appear on the display
ame + ozonation image + the letter A.
In this function it is possible to sanitize the environment in the presence of
people The amount of ozone produced does not exceed the 0.20mg limit
C - PRESS THE BUTTON M: activation of sanitation + heating in manual mode
AIR + icon of the image will appear on the display
ame + the letter M
This function is intended for a more intense sanitation of the environment
In this function it is recommended not to remain present for more than 4
hours in the room. The smell of ozone can be annoying.
4.7 SANITIZATION ONLY FUNCTION:
PRESS THE BUTTON A: sanitization activation in automatic mode
AIR + icon of the image will appear on the display fan + the letter A
PRESS THE MBUTTON: sanitization activation in manual mode
the display will show AIR + the letter M
TO TURN OFF THE SANITIZATION SYSTEM, PRESS THE OFF BUTTON on the remote control

11
5 . USE AND FUNCTIONS FIREPLACE’S PANEL
BIOGENIC WAVE HEATING- How do they heat the BIOGENIC waves?
Infrared waves do not need a medium, such as air or water, to “travel”. They move easily both in air and in
space, producing heat only when they hit an object, such as the surface of the earth or the wall of a house.
When the radiation emitted by an infrared panel hits an object (walls, ceilings, oors, internal objects), the
rays generate the movement of the aected molecules, which begin to oscillate. The energy continues to be
absorbed by the molecules of that object until the oscillation of the same reaches the frequency of the radia-
tion itself. At this point the radiation is reected. In other words, all objects in a room become radiators. The
IR radiation continues until all the energy is absorbed and all objects are heated and begin to reect the heat
in turn. The person perceives these uctuations as a condition of warmth. The rst reaction that occurs upon
entering a room heated with infrared radiation is a surprise: the heat is felt, but its origin is not understood.
The fundamental elements of radiation heating systems are related to their use and are the temperature and
wavelength of the radiation emitted. This translates into unitary power over time and, consequently, into en-
ergy consumed and operating cost.
HEATALO TECHNOLOGY ENERGY GENERATORS
Making use of the latest discoveries in nanotechnology, HEATALO
research laboratories have created energy generators of biogenic
waves by applying pure SILVER to a glass plate. This patented pro-
cess allows you to combine the benecial and healthy eects of
FIR with the antibacterial and antifungal properties of SILVER.
GUARANTEES 99.98% energy eiciency
ELIMINATES the formation of condensation, mold and humidity in
the walls SANITIZES the environment
ENERGY SAVINGS of at least 40% compared to heating costs with
the traditional system (gas, biomass, diesel).
ENERGY POWER Considering that the biogenic wave heating sys-
tem creates thermal comfort by heating the surfaces of the envi-
ronment and not the air, it is necessary to consider a main factor
in the evaluation of the energy power / m2 which is based on the
energy class of the house in which they are installed.
The higher the energy class + Mq are heated

ENVIRONMENTAL SANITIZATION
Ozone is a natural gas that is a very po-
werful disinfectant. Active to disinfect
water and air, it is extraordinary eecti-
ve against bacteria, virus, molds, fungus,
and it has also a deodorant function.
Ozone has been known for a long time:
the rst patent on ozone production da-
tes back to 1895.
At room temperature it is a gas and it is
heavier then air; as a consequence, in
absence of movement in the air, it descen-
ds downward. In nature, ozone it is made
by the ultraviolet Rays of the sun and buy
lightnings during storms. It’s survival du-
ration in nature it’s very short, therefore in
needs to be generated and utilized at the
same time .
Ozone (O3) has the eect power elimina-
ting microorganism and smells through
oxidation, which takes place when an
Atom of oxygen is lost and it goes back
to be oxygen (O2) within 20 minutes. The
generators that we use produce ozone ta-
king the oxygen from the air.
Ways to activate ozone
When ozone enters in contact with any
organic material, it triggers a reaction of
oxidation. Bacteria, virus, molds are the-
refore eliminated, but also the chemical
molecules which are perceived as orders
get oxidated, and as a consequence the
potential hazard is ‘deactivated.’
Hence, the living microorganism are kil-
led, while the odor’s molecules are tran-
sformed in dierent molecules not percei-
ved by smell.
Ozone is a gas heavier than air, for these
reasons it penetrates very deep between
the bers of fabrics, especially where mi-
croorganism and smelling molecules hide
themselves, exercising their disinfecting
action in a very eective way.
IT NEUTRALIZES BACTERIA &
DEACTIVATES VIRUS thanks to its proper-
ties, ozone disinfects, oxygens and rege-
nerate the air that we breathe and disin-
fects the water we use. It eliminates more
than 99% of bacteria, molds, fungus, ye-
asts, pollution and mites and deactivates
viruses. It is a powerful ally In ghting
allergies, asthma any infections, because
beats down the macro biotic charge in the
air an on surfaces.
IT ELIMINATES BAD OTHERS
It puries air eliminating unpleasant
odors of smoke, kitchen, transpiration ,
decomposition, mold, urine, paint and
animal hairs. The ozone molecules do not
simply cover, but attack and neutralize
completely the particles that cause bad
odors, Substituting them with a pleasant
sensation of cleanliness and are regenera-
ted and fresh ambient.
IT KEEPS OUT INFESTANT INSECTS it
is an excellent natural repellent against
ies, mosquitoes, eas, cockroaches,
ants, mites, termites and small rodents.
These unwanted ‘guests’, Besides being
annoying and unpleasant, they are also
dangerous vehicle for transmitting disea-
ses to men as well as to animals. Dieren-
tly from traditional chemical remedies,
ozone interacts without jeopardizing he-
alth. Moreover, it prevents their prolifera-
tion, eliminating bacteria who cause their
multiplication.
NATURAL
Ozone is a natural gas made of three mo-
lecules of oxygen (O3) that are generated
in the stratosphere by the action of the UV
rays and the electrical charges of light-
nings.
SUSTAINABLE
It is a perfect disinfectant that doesn’t
need additions or chemical detergents,
using exclusively it’s natural oxidant ac-
tion. once the treatment is terminated,
ozone transforms itself into oxygen without
releasing any chemical or toxic waste.
EFFECTIVE it is notorious for being the
most eective disinfectant against aller-
gens and pathogens present in the air and
in the water, even compared with tradi-
tional chemical detergents. Being a gas
heavier than air, it spreads itself in envi-
ronments in a very eective way , pene-
trates in fabrics at great debt and reaches
the toughest spots, where bacteria and
allergens hide themselves.
SAFE
Even if it is a gas, ozone is not ammable,
abrasive or explosive. It doesn’t dama-
ge fabrics , walls , furniture, gears and
objects. He doesn’t harm people, animals
or the environment .
12

6. ENVIRONMENT
The product is subject to separate collection for electrical appliances.
At the end of its life the appliance cannot be disposed of with common solid
urban waste, it must be conveyed to a specic collection center in your area
I returned it to the dealer when purchasing a new appliance of the same type
and used for the same use. The separate collection of electrical and electronic
equipment is part of the policy of safeguarding, protecting and improving the
quality of the environment and to avoid potential harmful eects on human
health due to the presence of hazardous substances as classied by European
directives.
ATTENTION: incorrect disposal of the appliance implies sanctions
Tool Number
800 974 074
[e-mail]
[email protected]
HEATALO Srl
Via Sacro Cuore, 15/b
35121 Padova
C.F. - P.IVA ITA 05070570287
REA Padova numero PD-440872
Capitale Sociale 100.000 euro i.v.
13
