OLT GC42-FJ-CEDAR User manual

Important Information:
- It is the sole responsibility of the customer to check with your local municipal or county by-laws before
ordering this product to confirm it complies with building codes in your area.
- If the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep
snow off roof frequently.
- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.
- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in
manufacturing and workmanship. Costs incurred for customer installations are not included.
- Failure to use supplied parts included in this kit could result in poor product performance and may void your
warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our
written instructions.
Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing a
4x2 Garden Chalet.
Please take the time to
identify all the parts prior to
assembly.
4x2 GARDEN CHALET
WITH CEDAR ROOF
ASSEMBLY MANUAL
Version #1.0
November 20, 2023
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line
@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier
replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Stock Code:
GC42-FJ-CEDAR
Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper
installation, maintenance and repair.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 2
What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construction area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local utilities company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundation you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly
Manual.
If doing the assembly yourself, have all the necessary tools ready to go•
and in working condition. A list of required tools can be found after the
parts list.
One helper is recommended to assist in constructing your chalet.•
It generally takes two people less than a day to assemble a chalet. If you’re
hiring a contractor, their rate should be in line with that duration of work.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 3
Foundation Types for 4x2 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (19 1/2” x 42”) or larger.
- 2” Deep foundation.
- 0.4 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
42”
2” Deep
Concrete Foundation
Gravel with Patio Paver Foundation
Medium
2” Deep
19 1/2”
Gravel with Pressure or Treated Wood Perimeter:
- Excavate at least 2” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows. (51” x 28 1/2” x 2” deep)
- 4 - 2x4 Cedar or Pressure Treated Framing Lumber (Approx 2 - 54” and 2 - 28 1/2” pieces).
* Note - you can also use Patio Paver Stones inside the wooden perimeter.
Perimeter lumber prevents gravel from scattering.
Gravel Foundation with Perimeter
54”
48”
25 1/2”
Gravel with Patio Paver Stones:
- Excavate at least 2” deep, and 3” wider than floor frame on each side.
- .05 Cubic Yards of gravel required, approximately 6 - 7 wheelbarrows.
- 4 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath Corners. (19 1/2” x 42”)
Patio paver stones are widely available from most landscape stores.
31 1/2”

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 4
Thank you for purchasing our 4x2 Garden Chalet.
Please take the time to identify all the parts prior to assembly.
Note: Trim and Skirting pieces are graded with the best face being rough sawn.
Rough sawn cedar is much easier to paint and stain.
Parts List
A. - Floor Section
Floor
1 - Floor Panel - 19 1/2 x 42”
Steps
1
B. - Wall Section
Main Wall Panels
2- Rear Walls - 19 1/2” x 61 3/8”
2 - Side Walls - 19 1/2” x 67” - Angled
4 - Bottom Wall Plates - 1 1/2” x 1 1/2” x 19 1/2”
Header/Jambs/Wall Extenders
2 - Door Jambs - 1 1/2” x 1 1/2” x 58 7/8”
1 - Door Header - 1 1/2” x 2 1/2” x 39”
1 - Wall Extender - 6 5/8” x 39”
1 - Low End Top Plate - 1 1/2” x 1 1/2” x 39”
Shelves
2 - Support Cleats - 1 1/2” x 1 1/2” x 22 1/2”
4 - Shelf Support - 1 1/2” x 1 1/2” x 20 1/2” - Angled
2 - Storage Shelves - 16 3/8” x 22 1/2”
2 - 8
9 - 15
16 - 19
C. - Roof Section
Cedar Roof
1 - Cedar Roof Panel - 23” x 46”
20 - 21
D. - Trim / Misc. Section
Skirting Trim
2 - Front/Rear Skirting - 1/2” x 2 1/2” x 43”
2 - Side Skirting - 1/2” x 2 1/2” x 19 1/2”
Filler Trims
2 - Horizontal Filler Trim - 5/8” x 1 1/2” x 39”
6 - Filler Trim - 5/8” x 1 1/2” x 31 3/8”
2 - High Side Filler Trim - 5/8” x 1 1/2” x 35 3/8”
23
24 - 27
D. - Trim / Misc. Section Cont.
Outer Wall Trim and Facia
1 - Metal Drip Edge - 38”
1 - Front Horizontal Trim - 1/2” x 2 1/2” x 44 1/4”
2 - Side Fascia - 1/2” x 2 1/2” x 22 1/8” - Angle Cut Ends
1 - Rear Horizontal Trim - 1/2” x 2 1/2” x 43 1/4”
2 - Low Wide Trims - 1/2” x 3” x 62 7/8”
2 - Low Side Trims - 1/2” x 2 1/2” x 63 3/8” - Angle Cut End
2 - High Wide Trims - 1/2” x 3” x 67 1/4”
2 - High Side Trims - 1/2” x 2 1/2” x 67 1/4” - Angle Cut End
1 - High Middle Trim - 1/2” x 2 1/2” x 67 1/4”
Door System
2 - Left/Right Doors - 18 3/4” x 59 3/8”
1 - Door Flange - 1/2” x 2 1/2” x 59 3/8”
Miscellaneous
1 - Roof Ridge Cap - 1/2” x 3 1/2” x 46”
Used in Garden Chalet with High Front
1 - Above Door Trim - 1/2” x 2 1/2” x 38 1/4”
1 - Low Middle Trim - 1/2” x 2 1/2” x 62 7/8”
** Plus 2 Cedar Shingle Shims - discard after shimming
doors
Steps
28 - 34
35 - 44
45
Note: We recommend you drill a 1/8” pilot hole for each
screw to avoid splitting wood. The hole depth should be
equal to 3/4 the length of screw.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 5
4x2 GARDEN CHALET - CEDAR ROOF
Tools Required (Not Provided)
Safety Equipment Required (Not Provided)
Hardware Kit (Provided)
3/4”
1 1/2”
T Hinge
x 4 pcs
Door
Handle
x 2 pcs
Black Headed Screw
Finishing
Square Drive Bit
Safety Glasses
Work Gloves
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Silver
Barrel Bolt
Drop Latch
1/8” & 3/8” Drill Bits
1 1/2”
Black Headed Bolt with Silver Nut and Washer
24 pcs
150 pcs
4 pcs
1 pc
1/2” x 2 1/2” x 2 1/2”
Plywood Spacer
3/8” Wrench
2 1/2”
3/4”
2”
Black Headed Screw
Silver
1 1/4”
54 pcs
14 pcs
4 pcs
14 pcs
1”
8 pcs
3” 3 pcs
2” 26 pcs
90° Metal
Brackets
x 2 pcs

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 6

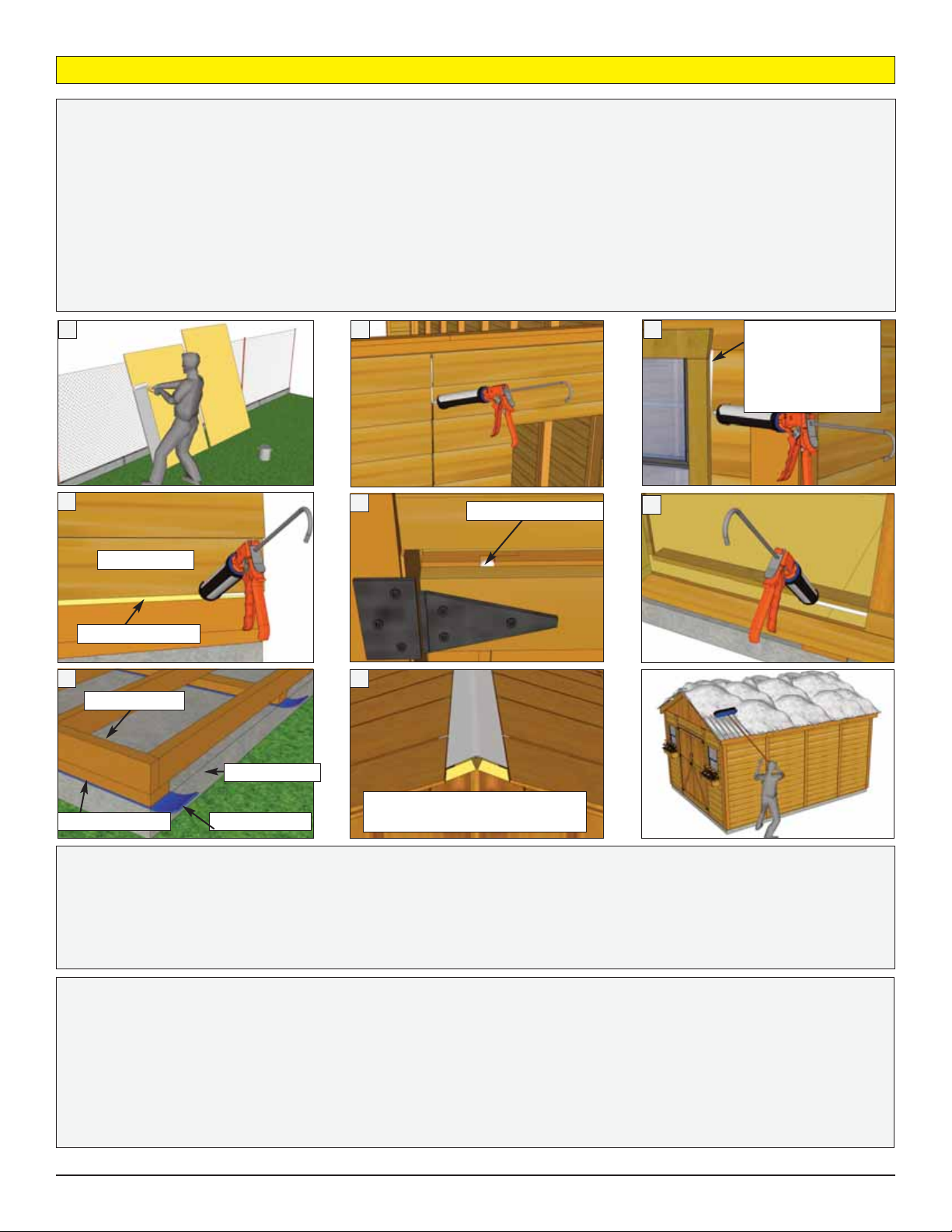

Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularily.
- Routinely remove needles and leaves from cedar roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can
be stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Foundation
8.
Floor Plywood
Wall Panel
Dab of caulking
Strip of roofing paper over
apex of roof panels
Floor Runner
Small gap
between bevel
siding and
window trim

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 7
For assembly instructions of your Garden Chalet with a low
front, start at page 8.
For assembly instructions of your Garden Chalet with a high
front, start at page 31.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 8
1. Locate Floor Section and flip over and lay on a level
foundation only. Patio Stones or a Concrete Slab both make
excellent foundations. (See Page 3 for more information on
foundations). Use a level to confirm and shim Floor frame as
required.
A. Floor Section
Parts
Floor Section
(19 1/2” x 42”) x 1

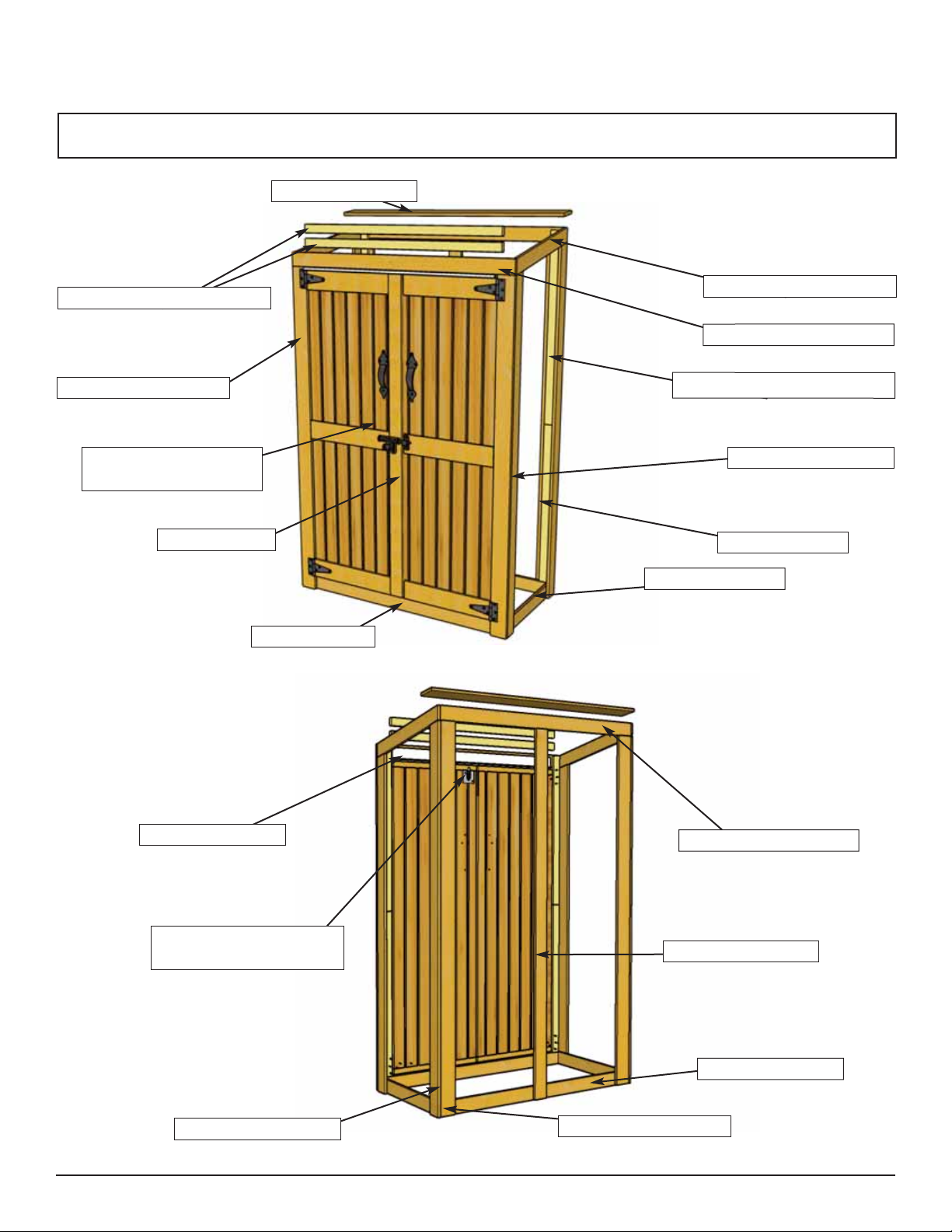

Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Floor Section

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 9
Due to packaging constraints, bottom wall plates must be attached prior to erecting walls.
2. For each Wall Panel, carefully lay panel face down. Position and attach a Bottom Wall Plate to
bottom of wall studs of each Wall Panel with 2 - 2 1/2” Brown Screws. Position so Plates are flush
with framing.
Parts
Side Wall Panels - Angled
(19 1/2” x 67”) x 2
Rear Wall Panels
(19 1/2” x 61 3/8”) x 2
Bottom Wall Plates
(1 1/2” x 1 1/2” x 19 1/2”) x 4
Hardware
2 1/2” Brown Screws
x 8 total
Important:
Pilot hole ALL 2x2 Wall
Studs with 1/8” drill bit
prior to screwing. This will
make it much easier to
attach together.
B. Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Shelf Supports - Angled
(2)
Side Wall
Panels -
Angled (2)
Rear Wall Panels (2)
Shelf Support
Cleats (2)
Storage Shelves (2)
Wall Extender
Bottom Wall Plates (4)
Low End Top Plate Door Header
Door Jambs (2)

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 10

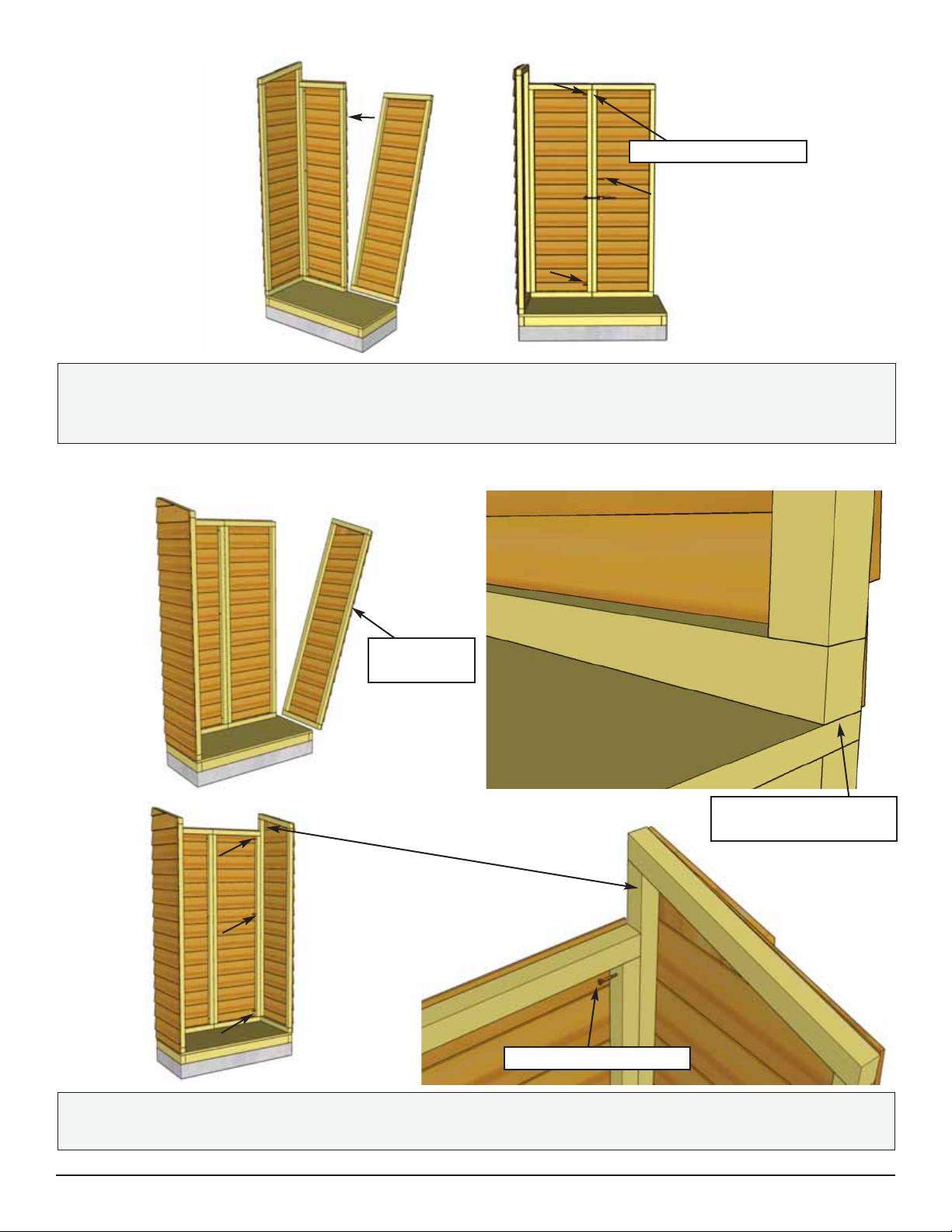

3. With Wall Plates properly attached, orientate completed Walls around the Floor. Be sure to leave
room to work.
Front
Wall Panels
(Rear)
Left Side Wall Panel
Wall frame flush with outside
of Floor on the side. Wall
siding will overhang Floor.
Left Side Wall
4. Starting with Left Side Wall, lift up and position so framing is flush
with Floor at both front and rear of shed. Make sure Wall frame is flush
with outside of Floor on the side. When Wall is positioned correctly,
secure Bottom Wall Plate to Floor with 4 - 2 1/2” Brown Screws.
Rear
Bottom Wall Plate

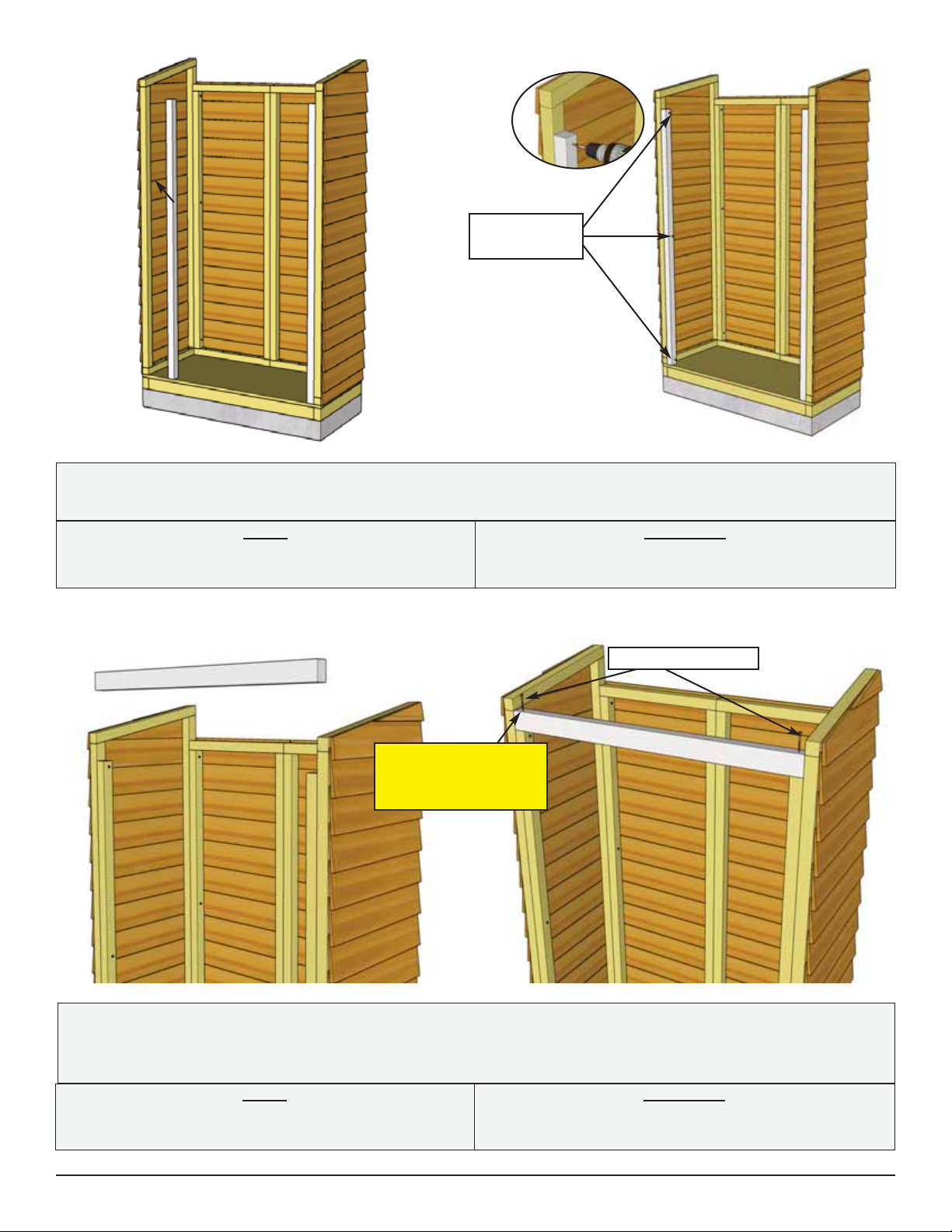

Before completely
attaching walls to floor,
check to make sure door
opening is 36” wide. See
Step 11 for illustration.
Hardware (Steps 4 - 8)
2 1/2” Brown Screws
x 13 total
4 - 2 1/2” Brown Screws
Wall frame flush
with outside of
Floor at the front.
Wall frame flush with
outside of Floor at
the rear.
Wall Panel
(Side)
Floor
Wall Panel
(Side)

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 11
Rear Corner
Rear Wall
5. With your helper holding the Side Wall Panel, position a Rear Wall Panel in rear corner.
Important: Align Wall Framing Flush with Floor Framing.
Left Side Wall
Rear Wall Panel
Wall frame flush
with outside Floor.
Wall siding will
overhang Floor.
6. When Side and Rear Walls are aligned in corner correctly, Wall framings will be flush. Attach
Wall framings together with 3 - 2 1/2” Brown Screws.
Left Side Wall
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 12
7. Position second Rear Wall Panel on Floor as per Step 6. Attach Wall frames together at top,
middle and bottom with 3 - 2 1/2” Brown Screws. A wood clamp will be helpful in holding pieces
together while fastening. Important: Confirm Siding on Rear Wall Panels are aligned.
Right Side
Wall Panel
8. In the corner, align and attach Right Side Wall framing to Rear Wall framing with 3 - 2 1/2”
Brown Screws as per Step 6.
Wall frame flush with
outside of Floor.
2 1/2” Brown Screws
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 13
9. Locate both Door Jambs. Position each Door Jamb tight to Side Wall framing and flush with the
floor. Screw each Door Jamb into wall framing with 3 - 2 1/2” Brown Screws per piece.
2 1/2” Brown
Screws
10. Locate Door Header and position on top of previously installed Door Jambs. Pilot hole into the
Door Jamb with a 1/8” bit to prevent splitting. Secure Door Header to Door Jambs with 2 - 3” Brown
Screws.
3” Brown Screws
Important: Pre-drill
into Door Jamb to
prevent splitting
Parts
Door Jambs
(1 1/2” x 1 1/2” x 58 7/8”) x 2
Hardware
2 1/2” Brown Screws
x 6 total
Parts
Door Header
(1 1/2” x 2 1/2” x 39”)
Hardware
3” Brown Screws
x 2 total

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 14
11. With Door Header installed, confirm Door
width at both the top and bottom of the doorway.
Doorway opening should be 36” wide. If required,
loosen screws in Side Walls, adjust Door width
and re-secure. There can be a 1/8” tolerance in
the width but both top and bottom should match.
36”
36”
12. Position Wall Extender on top of Rear Walls and in between Angled Side Wall Panels.
Parts (Step 12 - 13)
Wall Extender
(6 5/8” x 39”)
Hardware (Steps 12 - 13)
2 1/2” Brown Screws
x 4 total
13. Fasten a 2 1/2” Brown Screw through the side into the Angled Side Walls. Angle a second
2 1/2” Brown Screw through the bottom Rear Top Plate into the Wall Extender. Repeat for both
sides of shed, fastening to both Rear Wall Top Plates and both Angled Side Walls. A wood clamp will
be helpful in holding pieces together while fastening.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 15
14. With Walls secured, confirm again that the doorway opening is 36”.
Check interior corner to corner measurements are 42 3/8” across diagonally.
With doorway measurement confirmed, begin to fasten Wall Panels down to
Floor with 2 1/2” Brown Screws. Use 4 - 2 1/2” Brown Screws per Wall
Panel. Screw through Bottom Wall Plate into Floor. Note: Left Side Wall has
already been fastened down in Step 4.
Hardware
2 1/2” Brown Screws
x 12 total
42 3/8”
36”

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 16
16. Locate Shelf Support Cleats. Each Shelf requires one Support Cleat and these will set the
height of your Shelves. We recommend 25 1/4” from the Floor for the first one and 45 1/2” from the
Floor for the second. These can be adjusted as you wish but leave 18 3/4” of space between the
Cleats. Attach Shelf Support Cleats to Rear Wall with 2 - 2 1/2” Brown Screws per Cleat.
Parts
Shelf Support Cleats
(1 1/2” x 1 1/2” x 22 1/2”) x 2
Hardware
2 1/2” Brown Screws
x 4 total
17. Place one Shelf on top of Shelf Support Cleat. Have a helper hold the shelf in place while you
attach it. Drill 2 - 2” Brown Screws through Shelf ito Shelf Support Cleat.
Parts
Shelf
(16 3/8” x 22 1/2”)
Hardware
2” Brown Screws
x 2 total
15. Locate Low End Top Plate and position on top of Door Header. Secure Low End Top Plate to
Door Header with 4 - 2 1/2” Brown Screws.
Parts
Low End Top Plate
(1 1/2” x 1 1/2” x 39”)
Hardware
2 1/2” Brown Screws
x 4 total

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 17
18. Place two Shelf Supports underneath Shelf. Drill 2 - 2” Brown Screws through Shelf Support
into underside of Shelf at the top and through Shelf Support into Rear Wall Framing at the bottom.
Parts
Shelf Supports - Angled
(1 1/2’ x 1 1/2” x 20 1/2”) x 2
Hardware
2” Brown Screws
x 4 total
19. Attach second Shelf as per Steps 17-18. Have a helper hold the shelf in place while you attach
it.
Parts
Shelf
(16 3/8” x 22 1/2”)
Shelf Supports - Angled
(1 1/2’ x 1 1/2” x 20 1/2”) x 2
Hardware
2” Brown Screws
x 6 total
Before Roof Section, once again take a diagonal measurement in both directions and square up the
shed. If diagonal measurement is more than 1/8” different between sides, try pushing corner of shed
in or out.
42 3/8”

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 18
C. Roof Section
Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to
starting.
Cedar Shingle Roof Panel
20. Lift up Cedar Shingle Roof Panel and place on upper wall framing. At the rear, align plywood
roofing flush with Side Wall framing at the side and at the rear. At the front, align plywood roofing
flush with Side Wall framing.
Rear
Front
Plywood roofing flush with
Side Wall framing.
Plywood roofing flush with
Side Wall framing at the side
and at rear.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 19
21. From inside the shed, start securing the Roof by screwing through Low End Top Plate into Roof
Panel on an angle with 4 - 2” Brown Screws. Make sure screw tips do not go completely through
Roof Panel. At the sides, screw from upper framing into Roof Panel. Use 2 - 2” Brown Screws per
Side Angled Wall. Screw on an angle and make sure screw tips do not go completely through Roof
Panel. At the rear, secure the Roof by attaching the Wall Extender to Roof Panel on an angle with
4 - 2 1/2” Brown Screws. Further secure Roof Panel to Walls at sides by positioning
2 - 90° Metal Brackets onto Roof Plywood and Side Angled Walls where Side Angled Wall meets
front Wall. Secure with 4 - 3/4” Silver Screws per bracket.
Parts
Cedar Shingle Roof Panel
(23” x 46”)
Hardware
2” Brown Screws x 12 total
90° Metal Brackets x 2 total
3/4” Silver Screws x 8 total
2” Brown Screws
2” Brown Screws
22.Check the Wall seams for visible gaps prior
to attaching Filler Trim and apply caulk where
needed. Caulking gaps will help prevent moisture
from entering and will help the longevity of your
shed. Caulking not included in kit.
90° Metal Bracket
90° Metal Bracket

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 20
D. Miscellaneous Section
Exploded view of all parts necessary to complete the Skirting, Trim, Fascia and Miscellaneous
Pieces. Identify all parts prior to starting.
Filler Trims (6)
Left and Right Doors
with Hardware
Door Flange
Low Wide Trims (2)
Low Side Trims (2)
Side Fascia Trims (2)
Roof Ridge Cap
High Middle Trim
High Wide Trims (2)
Metal Drip Edge
Interior Barrel Bolt with
Plywood Spacer
High Side Trims (2)
Rear Skirting (2)
Side Skirting (2)
Horizontal Filler Trims (2)
Front Skirting
Front Horizontal Trim
High Side Filler Trims (2)
Rear Horizontal Trim
