OLT 12x8 Cabana Garden Shed User manual

12x8 Cabana Garden
Shed Interior Wall Kit
Assembly Manual
Version #1.0
Nov 26th, 2021
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a 12x8 Cabana
Garden Shed Interior Wall Kit. Please take the
time to identify all the parts prior to assembly.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1

Thank you for purchasing our 12x8 Cabana Garden Shed Interior Wall.
Please take the time to identify all the parts prior to assembly.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2
A. Wall Components
1A: 1 - 42 3/4”w x 75 1/4”h - Rear Solid Wall Panel Left
2A: 1 - 42 3/4”w x 75 1/4”h - Rear Solid Wall Panel Right
3A: 1 - 45 1/2”w x 75 1/4”h - Rear Solid Wall Panel Center
4A: 4 - 45 1/4”w x 75 1/4”h - Side Solid Wall Panel L/R
5A: 2 - 42 3/4”w x 75 1/4”h - Front Window Wall Panel L/R
6A: 1 - 11 3/4”w x 75 1/4”h - Front Narrow Wall Panel
7A: 4 - 45”w x 18”h - Triangular Gable Panel L/R
B. Plywood Components
1B: 2 - 3/8” x 45 1/2” x 48” - Ceiling Plywood Center
2B: 4 - 3/8” x 42 3/4” x 48” - Ceiling Plywood L/R
3B: 1 - 3/8” x 31 3/8” x 29 3/16” - Top Door Plywood
4B: 1 - 3/8” x 31 3/8” 41 3/16” - Bottom Door Plywood
C. Trim Components
1C: 4 - 3/4” x 2 1/2” x 46” - Ceiling Gable Cleats
2C: 4 - 1 1/2” x 2 1/2” x 12” - Interior Wall Cleats
3C: 1 - 3/4” x 3 1/2” x 31 1/2” - Top Plate for Bottom Dutch Door
4C: 4 - 1/4” x 2” x 73 1/4” - Vertical Wall Trim
5C: 4 - 1/4” x 2” x 46 7/8” - Vertical Wall Trim (45° cut one end)
6C: 4 - 1/4” x 2” x 64 7/8” - Horizontal Wall Trim
7C: 4 - 1/4” x 2” x 58” - Gable Trims (22.5° cut one end, reverse opposite end)
8C: 4 - 1/4” x 2 1/2” x 48” - Ceiling Trims
9C: 2 - 2 1/2” x 5” x 52” - Ceiling Gussets
10C: 1 - 7/8” x 2” x 73” - Vertical Door Trim (Jamb side)
11C: 1 - 7/8” x 1 1/2” x 33 1/2” - Horizontal Door Trim
12A: 1 - 1/2” x 7/8” x 73” - Vertical Door Trim (Narrow Wall Side)
13C: 2 - 21 7/8” x 26 1/2” - Large Window Inserts
14C: 2 - 3/4” x 5” x 67 3/8” - Ridge Cap Trims
Steps
Steps
10
11
12
17-18
14-15
16
19-20
3
2
23
24
1
9
21-22
17
31
28
30
7
8
25
27
26
32
6
Steps

2 1/2”
1 1/4”
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
2 Ladders
Screw Gun/Drill Tape Measure
Hammer Level
Tools Required (Not Provided)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
1/8” Drill Bit
12X8 Cabana Interior Wall Kit HARDWARE PACKAGE
Optional Materials and Tools - Not Included in Kit
Materials to Insulate Shed prior to installing Interior Wall Kit
2” thick Foam Board Insulation
550 sq ft. (covers walls and ceiling)
180 sq ft additional for floor
6 mm Poly - Air Vapor Barrier -
Tools -
Staple Gun
Utility Knife
Caulking Gun and Caulking
Med. Barrel Bolt
-12 pcs
S1 - 2 1/2” Screws - 25 pcs
S2 - 1 1/4” Screws - 150 pcs
N1 - 1 1/2” Finishing Nails - 190 pcs
BR1 - Square Drive Bit
Y3 - Black Handle
SB1 - 3/4” Screws
Black Headed
Wood Clamp
4”
BT2 - Torx Drive Bit
ST 2 - Torx Screws - 8 Pcs
3/4”

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
Exploded view of all parts necessary to complete Interior Ceiling Section. Please Identify all parts
prior to starting your project.
Ceiling Trim - 4 pcs
Ceiling Section Exploded
1. Locate Ceiling Gable Cleats. Position cleat on top
of gable framing tight against rafter. Clamp and screw
to gable frame with 3 - 2 1/2” screws.
A. Ceiling Section
Parts
1C - Ceiling Gable Cleats
(3/4” x 2 1/2” x 46”) x 4
Hardware
S1 - 2 1/2” Screws
x 12 total
Ceiling Gable
Cleats - 4 pcs
Ceiling Plywood
Center - 2 pcs
Ceiling Plywood-
L/R - 4 pcs
Ceiling Gusset - 2 pcs

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
2. Locate Ceiling Plywood L/R and position up
against rafter and ceiling gable cleat. Position
squarely and attach with 9 - 1 1/4” screws.
Fasten to rafters and gable cleat.
Parts
2B - Ceiling Plywood L/R
(3/8” x 42 3/4” x 48”) x 1
Hardware
S2 - 1 1/4” Screws
x 9 total
3. Locate Ceiling Plywood Center and position
up against rafters. Position squarely and attach
with 9 - 1 1/4” screws.
Parts
2B - Ceiling Plywood
Center
(3/8” x 45 1/2” x 48”) x 1
Hardware
S2 - 1 1/4” Screws
x 9 total
4. Locate Ceiling Plywood L/R and position up
against rafter and ceiling gable cleat. Position
squarely and attach with 9 - 1 1/4” screws.
Fasten to rafters and gable cleat as per Step 2.
Parts
2B - Ceiling Plywood L/R
(3/8” x 42 3/4” x 48”) x 1
Hardware
S2 - 1 1/4” Screws
x 9 total

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6
5. Repeat Steps 2 - 4 to attach ceiling plywood to remaining side
of roof.
Parts
2B - Ceiling Plywood L/R
(3/8” x 42 3/4” x 48”) x 2
2B - Ceiling Plywood Center
(3/8” x 45 1/2” x 48”) x 1
Hardware
S2 - 1 1/4” Screws
x 27 total
7. Locate Ceiling Trims and position evenly over
seams in Ceiling Plywood. Fasten Ceiling Trims
with 6 - 1 1/2” Finishing Nails each.
Parts
8C - Ceiling Trims
(1/4” x 2 1/2” x 48”) x 4
Hardware
N1 - 1 1/2” Finishing
x 24 total
6. Locate Ridge Cap Trims and position evenly
underneath ridge board. Fasten Ridge Trims with
6 - 1 1/2” Finishing Nails each.
Parts
14C - Ridge Cap Trim
(1/4” x 2 1/2” x 48”) x 4
Hardware
N1 - 1 1/2” Finishing
x 12 total

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
B. Wall Section
9. Position Interior Wall Cleats against rear wall
in corner. Attach each Cleat with
2 - 2 1/2” screws. Attach cleats to each corner of
your shed. Cleat provides an edge to screw
Interior Wall Panel to in Step 10 & 14.
Hardware
S1 - 2 1/2” Screws
x 8 total
Parts
2C - Interior Wall Cleats
(1 1/2” x 2 1/2” x 12”) x 4
10. Locate Left Solid Wall Panel (42 3/4” wide).
The left panel will have wall siding recessed on
the left side as illustrated above. Position on wall
studs and secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
1A - Solid Wall Panel Left
(42 3/4”w x 75 1/4”) x 1
Siding recessed on
left side of panel.
8. Locate both Ceiling Gussets. On a ladder,
position 1st Gusset evenly against ceiling trim.
Drill pilot holes with appropriate angles before
fastening. Secure with 2 - 4” Torx screws per
side. Complete both gussets. Torx drive bit
required.
Parts
8C - Ceiling Gusset
(2 1/2 x 5” x 52”) x 2
Hardware
ST2 - 4” Torx Screw
x 8 total
Pre-drill siding
with 1/8” drill bit

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

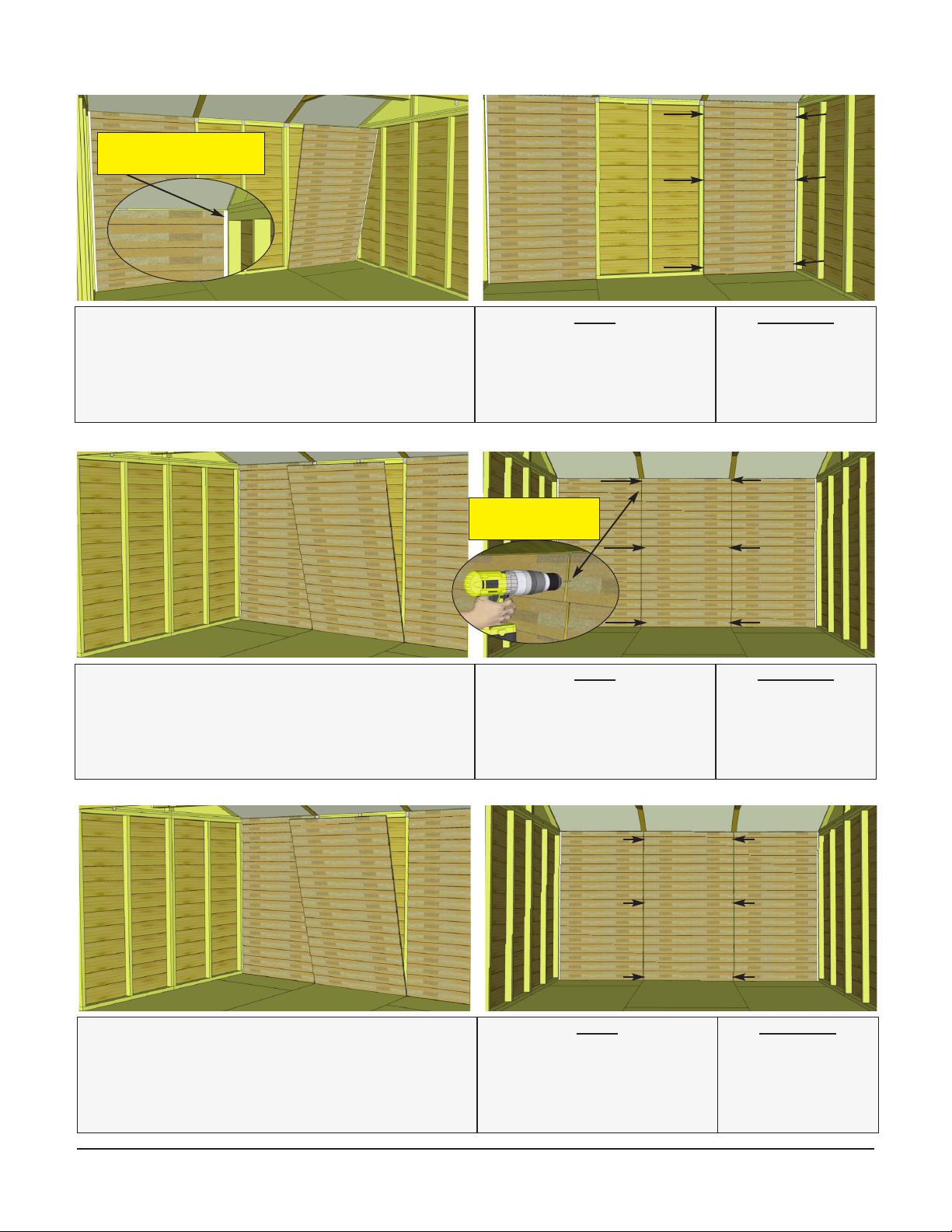

12. Locate Rear Solid Wall Panel
(45 1/2” wide). Center Wall Panel has siding flush
with plywood backing. Position between
previously installed panels and secure with
6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
3A - Solid Wall Panel
Center
(45 1/2”w x 75 1/4”) x 2
Pre-drill siding
with 1/8” drill bit
13. Locate Rear Solid Wall Panel
(45 1/2” wide). Center Wall Panel has siding flush
with plywood backing. Position between
previously installed panels and secure with
6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
3A - Solid Wall Panel
Center
(45 1/2”w x 75 1/4”) x 2
11. Locate Right Solid Wall Panel
(42 3/4” wide). The right panel will have wall
siding recessed on the right side as illustrated
above. Position on wall studs and secure with
6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
2A - Solid Wall Panel Right
(42 3/4”w x 75 1/4”) x 1
Siding recessed on
right side of panel.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
14. Locate Front Window Wall Panel
(42 3/4” wide). Window Wall Panel has siding
recessed from plywood backing. Position in front
of interior wall cleats as per Step 10 and secure
with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
5A - Front Window Wall
Panel
(42 3/4”w x 75 1/4”) x 1
15. Locate second Front Window Wall Panel
(42 3/4” wide). Window Wall Panel has siding
recessed from plywood backing. Position in front
of interior wall cleats as per Step 14 and secure
with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
5A - Front Window Wall
Panel
(42 3/4”w x 75 1/4”) x 1
16. Locate Narrow Wall Panel
(11 3/4” wide). Position in front of narrow wall and
secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
6A - Narrow Wall Panel
(11 3/4”w x 75 1/4”) x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

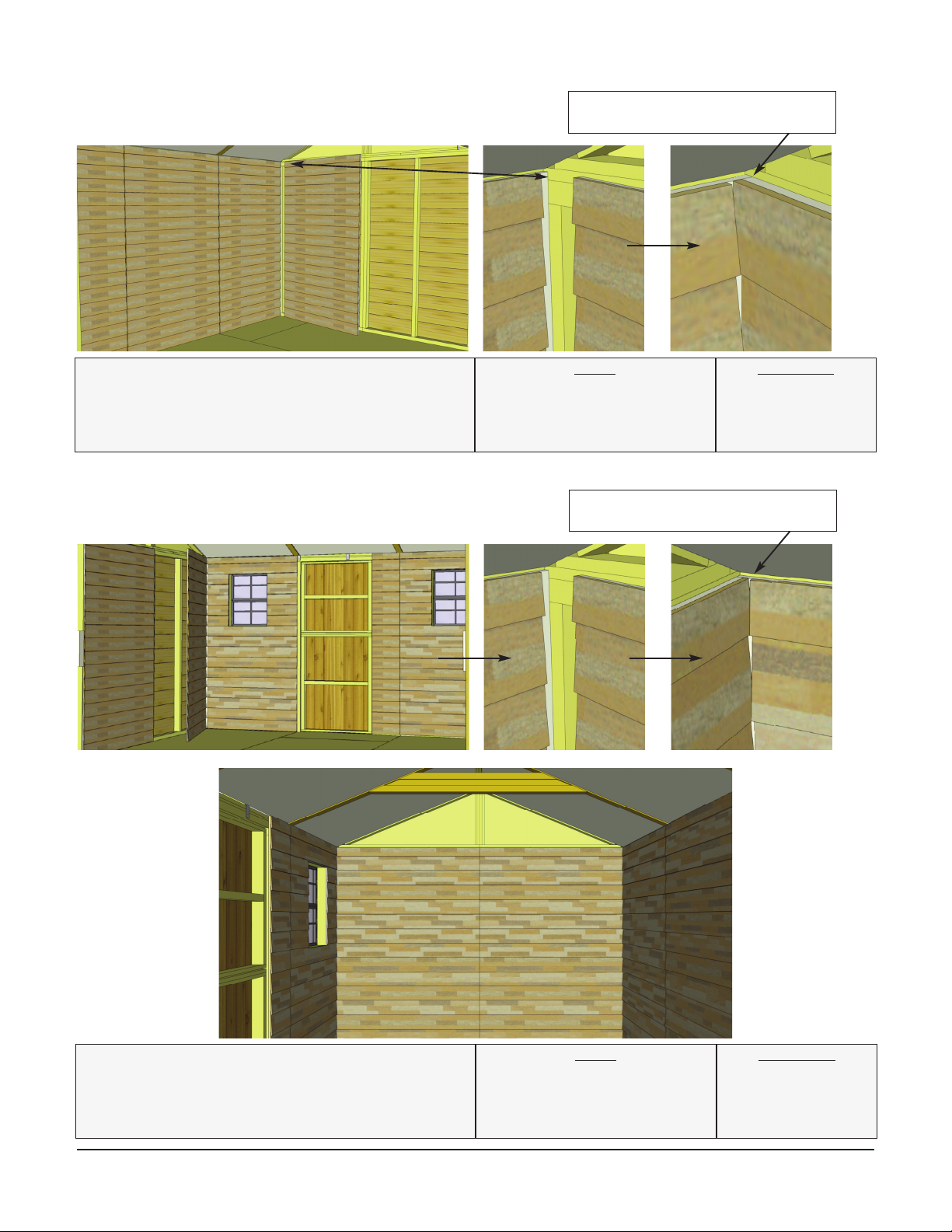

18. Repeat Step 17 to place a Side Wall Panel
(45 1/4” wide) in each corner of the shed. Slide
edge tight in corner against rear/front wall ply-
wood backing. and secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 18 total
Parts
4A - Side Wall Panel
(45 1/4”w x 75 1/4”) x 3
Side Panel flush with plywood of
Rear Wall Panel in Corner
17. Locate Side Wall Panel (45 1/4” wide).
Position in rear corner. Slide edge tight in corner
against rear wall plywood backing. Secure with
6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 6 total
Parts
4A - Side Wall Panel
(45 1/4”w x 75 1/4”) x 1
Side Panel flush with plywood of
Rear Wall Panel in Corner

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11
19. Locate Triangular Gable Panel. Position
over Gables. Siding on bottom of Gable Panel will
overhang Side Wall Panel as shown above.
Secure with 6 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 4 total
Parts
7A - Triangular Gable Panel
L/R
(45”w x 18”) x 1
Pre-drill siding
with 1/8” drill bit
20. Locate remaining Triangular Gable Panels.
Position over Gables. Secure panels with
6 - 1 1/4” screws. as per Step 19 on both sides.
Hardware
S2 - 1 1/4” Screws
x 12 total
Parts
7A - Triangular Gable Panel
L/R
(45”w x 18”) x 3

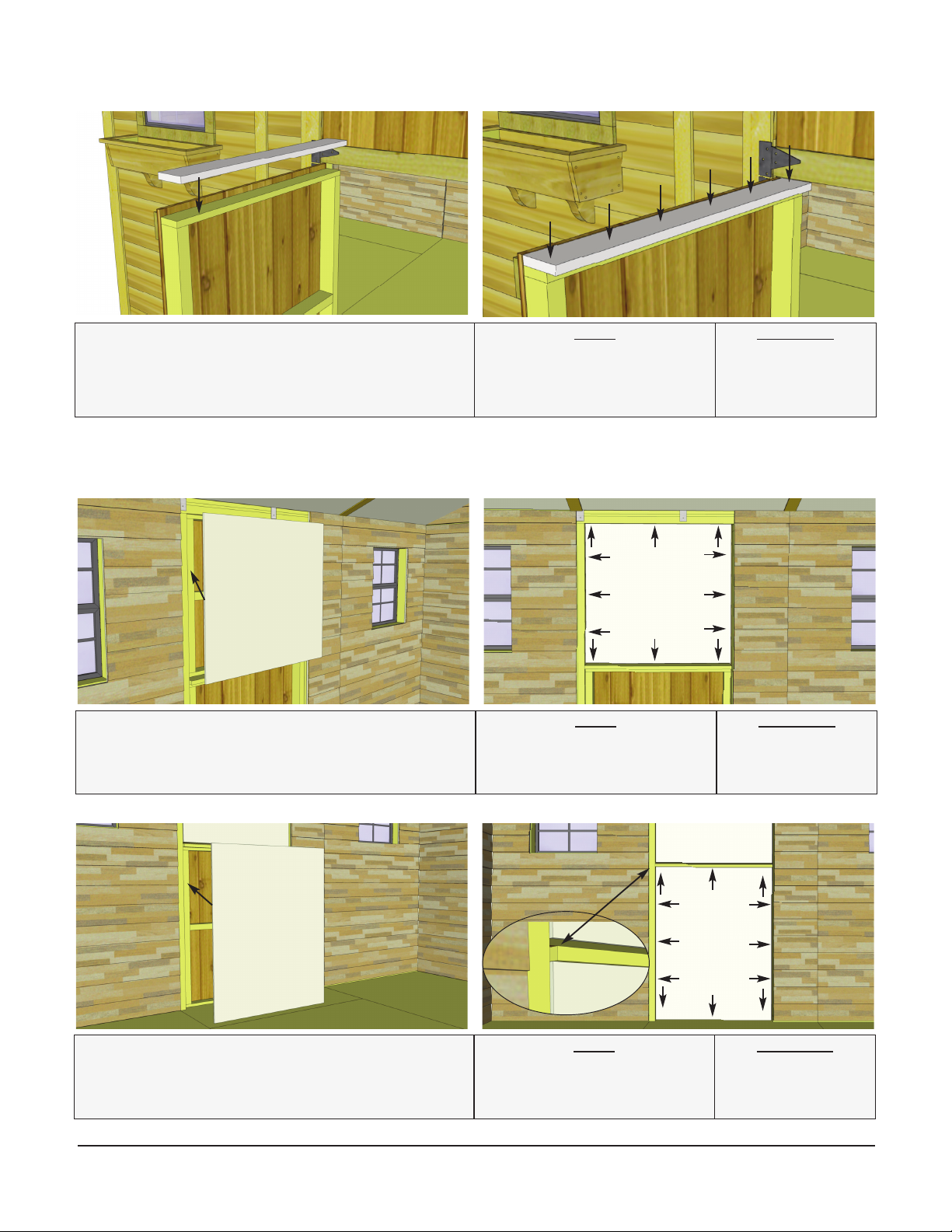

21. To accomodate Interior Door Plywood, the existing top plate on bottom door must be removed
first. Using a hammer, carefully pry off the top plate and remove any hardware.
Pre-drill siding
with 1/8” drill bit

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12

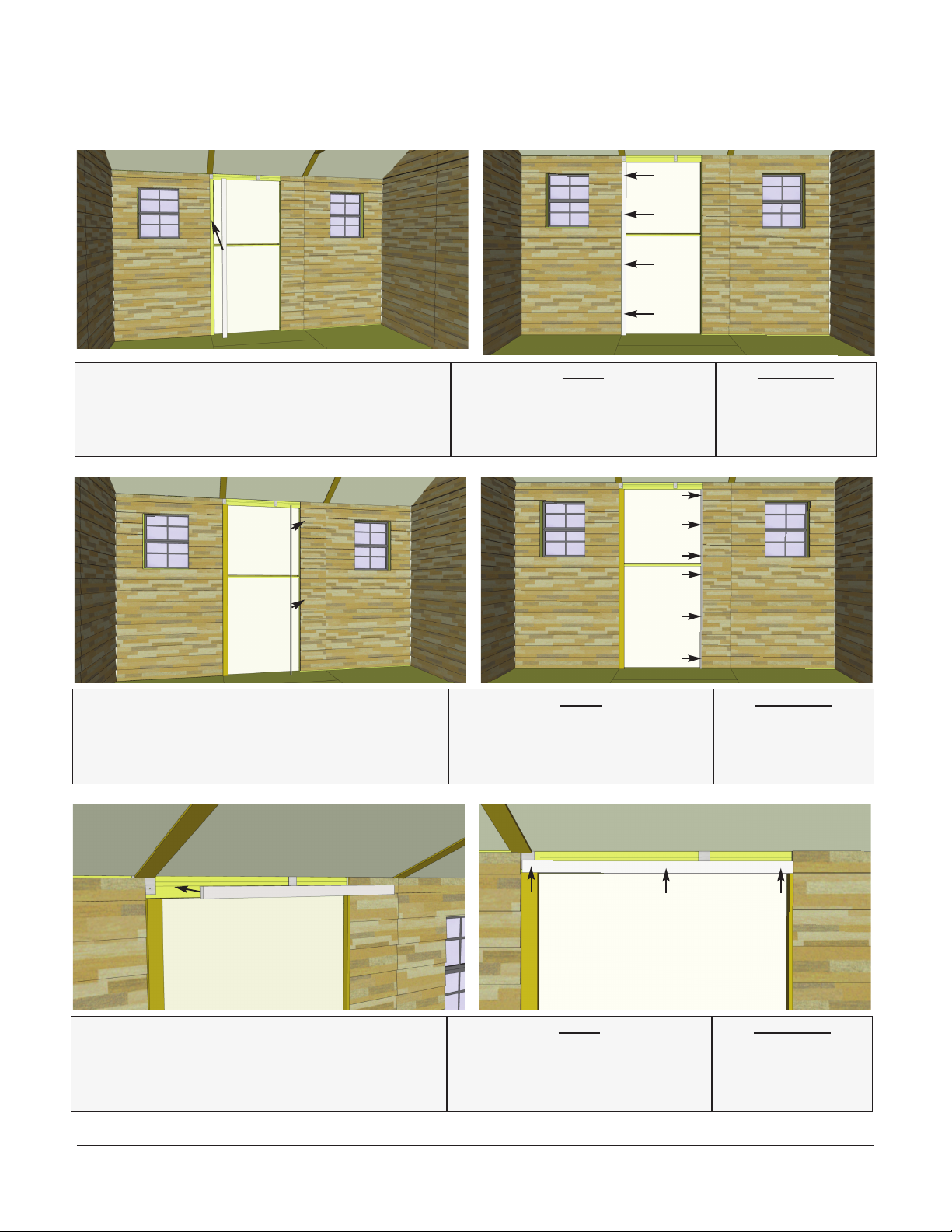

23. Position top door plywood over door fram-
ing. Confirm it is evenly spaced on door framing
and attach with 12 - 1 1/2” finishing nails.
Hardware
N1 - 1 1/2”
Finishing Nails
x 12 total
Parts
3B - Top Door Plywood
(3/8” x 31 3/8” x 29 3/16”) x 1
24. Position bottom door plywood on door.
Position tight under new top cap and attach with
12 - 1 1/2” finishing nails.
Hardware
N1 - 1 1/2”
Finishing Nails
x 12 total
Parts
4B - Bottom Door Plywood
(3/8” x 31 3/8” x 41 3/16”) x 1
22. Position replacement top plate on bottom
door and attach with 6 - 1 1/2” Finishing Nails.
Replacement Top Plate will cap door siding.
Hardware
N1 - 1 1/2”
Finishing Nails
x 6 total
Parts
3C - Top Plate for Bottom
Dutch Door
(3/4” x 3 1/2” x 31 1/2”) x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13
C. Trim Section
25. Locate all 3 door stops. Start on the door
jamb side, position 2” wide stop against door
jamb and the edge of wall siding. Attach with
4 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 4 total
Parts
1C - Vertical Door Stop - Jamb
(7/8” x 2” x 73”) x 1
26. Position and attach the narrow wall door
stop on framing with 6 - 1 1/2” finishing nails.
Hardware
N1 - 1 1/2”
Finishing Nails
x 6 total
Parts
2C - Vertical Door Stop -
Narrow Wall
(7/8” x 1/2” x 73”) x 1
27. To complete the door stops, attach the
Horizontal Door Stop against Door Header and
attach with 3 - 1 1/4” screws.
Hardware
S2 - 1 1/4” Screws
x 3 total
Parts
3C - Top Horizontal Door Stop
(7/8” x 1 1/2” x 33 1/2”) x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14
28. Locate Horizontal Wall Trims. Position up
against wall siding and below ceiling plywood.
Attach with 8 - 1 1/2” Finishing Nails
each.Complete front and rear with all 4 pieces.
Hardware
N1 - 1 1/2”
Finishing Nails
x 32 total
Parts
6C - Horizontal Wall Trims
(1/4” x 2” x 64 7/8”) x 4
29. Locate Vertical Wall Trims. Position over seams
in side walls on both sides of shed. Attach each piece
with 6 - 1 1/2” Finishing Nails. Complete both front
and rear.
Hardware
N1 - 1 1/2”
Finishing Nails
x 12 total
Parts
4C - Vertical Wall Trims
(1/4” x 2” x 73 1/4”) x 4
30. Locate Gable Trims. Position against Gable Wall
siding and bottom of ceiling plywood. Trims will but up
against Rodge Trim and Horizontal Wall Trims. Attach
each piece with 6 - 1 1/2” Finishing Nails. Complete
both sides of shed.
Hardware
N1 - 1 1/2”
Finishing Nails
x 24 total
Parts
7C - Gable Trims
(1/4” x 2” x 49 1/4”) x 4

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
31. Locate remaining Vertical Wall Trims. Vertical
Wall have a straight cut end and a bevel cut end.
The bottom trim may need to be chopped at the
bottom to fit your ceiling position. Both pieces have
a bevel cut where they meet in the middle. Attach
each piece with 3 - 1 1/2” Finishing Nails. Cover
remaining seams on side walls.
Hardware
N1 - 1 1/2”
Finishing Nails
x 12 total
Parts
4C - Vertical Wall Trims
(1/4” x 2” x 46 7/8”) x 4
32. Locate the 2 large Window Inserts and
position in window cavity. Nail to window wall
framing with 9 - 1 1/2” Finishing Nails from the
bottom and sides. Complete both Windows.
Hardware
N1 - 1 1/2”
Finishing Nails
x 18 total
Parts
13C - Large Window Inserts
(21 7/8” x 26 1/2”) x 2
33. Attach barrel bolt to door
plywood. Male bolt attached to top while female
to bottom door. Attach door handle to top door.
Use 3/4” black headed screws for both pieces.
Hardware
SB1 - 3/4” Black
Head Screws
x 12 total
Parts
Barrel Bolt &
Door Handle
Pre-drill siding
with 1/8” drill bit.

Congratulations on assembling your 12x8 Cabana
Garden Shed Interior Wall Kit!
We value your feedback and
would like to hear back from you
on how well we are doing in the
following areas:
1. Customer Service
2. On Time Shipping
3. Motor Freight Delivery
4. Quality of Materials
5. Assembly Manual
6. Overall Satisfaction.
The materials contained in this
Assembly Manual may be downloaded
or copied provided that ALL copies
retain the copyright and any other
proprietary notices contained on the
materials. No material may be
modified, edited or taken out of context
such that its use creates a false or
misleading statement or impression as
to the positions, statements or actions.
Canadian Address
9393 287th Street
Maple Ridge, British Columbia
Canada V2W 1L1
United States Address
P.O. Box 96
Sumas, Washington
USA 98295
Outdoor Living Today
Please call, write or email us at:
Toll Line: 1.888.658.1658 | Fax: [phone] | [e-mail]
Page 21
