OLT STU128 User manual

12x8 Studio Garden
Shed Interior Wall Kit
Assembly Manual
Version #1.2
Sept 19th, 2019
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a 12x8
Studio Garden Shed Interior Wall
Kit. Please take the time to identify
all the parts prior to assembly.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.

Thank you for purchasing our 12x8 Studio Garden Shed Interior Wall.
Please take the time to identify all the parts prior to assembly.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2
1. Ceiling Plywood
Ceiling
1A: 1 - 3/8” thick x 47 3/4” x 92 1/2” Center Ceiling Panel
1B: 2 - 3/8” thick x 41 1/2” x 92 1/2” - Left/Right Ceiling Panel
2. Interior Wall Section
Main Wall Panels
2A: 4 pcs - 1 1/2” x 2 1/2” x 30”l - Rear Wall Nailing Cleats
2B: 2 pcs - 42 3/4”w x 44 1/2”h - Bottom Rear Wall Panels- Left/Right Side
2C: 2 pcs - 42 3/4”w x 40 1/4”h - Top Rear Wall Panels- Left/Right Side
2D: 1 - 45 1/4”w x 44 1/2”h - Bottom Center Wall Panel
2E: 1 - 45 1/4”w x 40 1/4”h - Top Center Wall Panel
2F: 2 pcs - 46 1/2”w x 78”h - Large Window Wall Panels - Left/Right Sides
2G: 2 pcs - 46 1/2”w x 23 1/4”h - Transom Window Wall Panels - Left/Right Sides
2H: 1 - 39 1/4”w x 22 1/4”h - Transom Window Wall Panel - Center
2I: 2 pcs - 45 1/4”w x 44 1/2”h - Bottom Side Wall Panels- Left/Right Side- (front)
2J: 2 pcs - 45 1/4”w x 57 5/8”h -Top Side Wall Panel- Left/Right - Angled (front)
2K: 2 pcs - 44 7/8”w x 44 1/2”h - Bottom Side Wall Panels- Left/Right Side- (rear)
2L: 2 pcs - 44 7/8”w x 49”h -Top Side Wall Panel- Left/Right - Angled (rear)
3. Trim Section

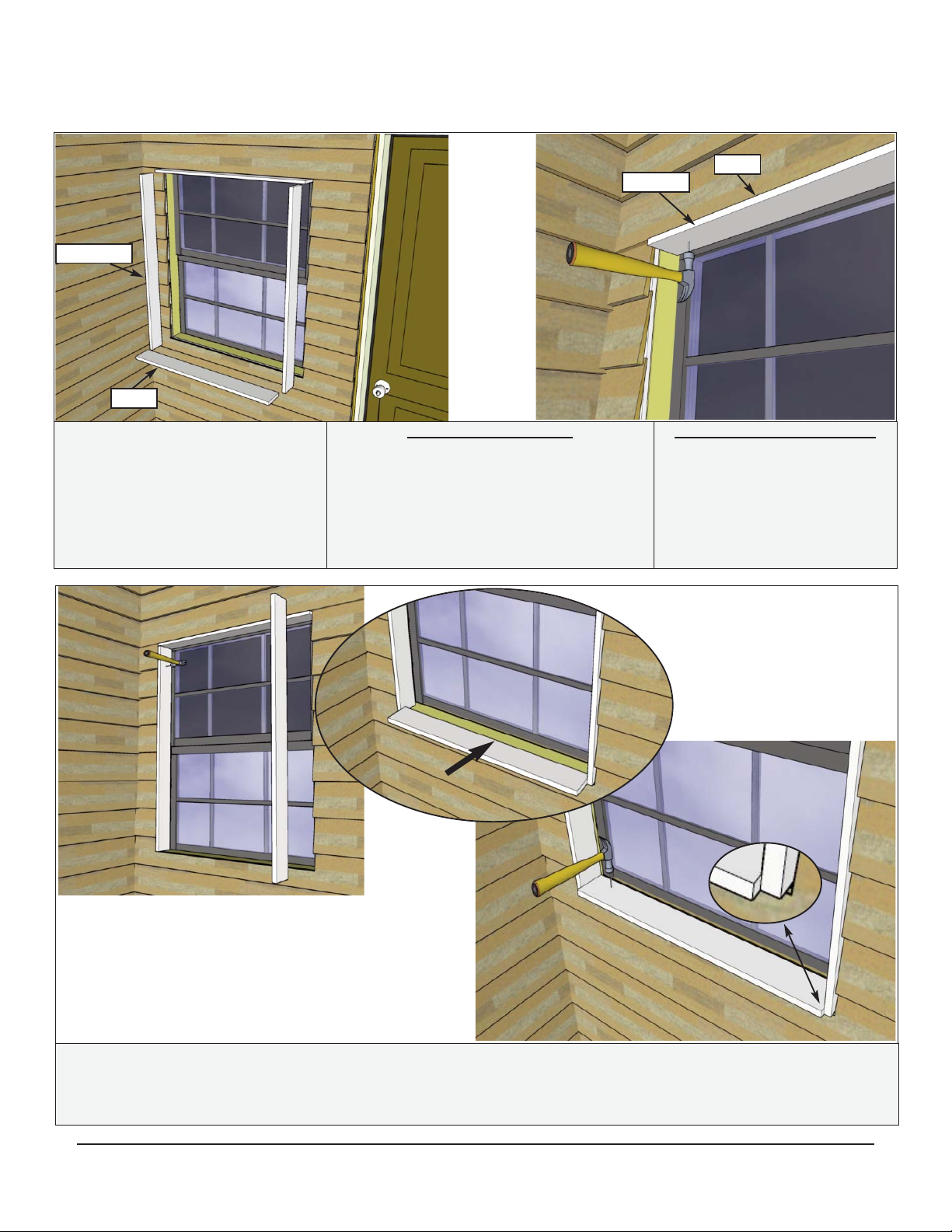

Large Window Sash
3A: 2 - 1/2” x 2 7/8” x 35 7/8” Straight Cut Top Sash (1/ window)
3B: 4 - 5/8” x 2 7/8” x 35 3/8” Straight Cut Vertical Sash (2/ window)
3C: 2 - 5/8” x 3 3/8” x 29 1/8” Straight Cut Ledge (1/ window)

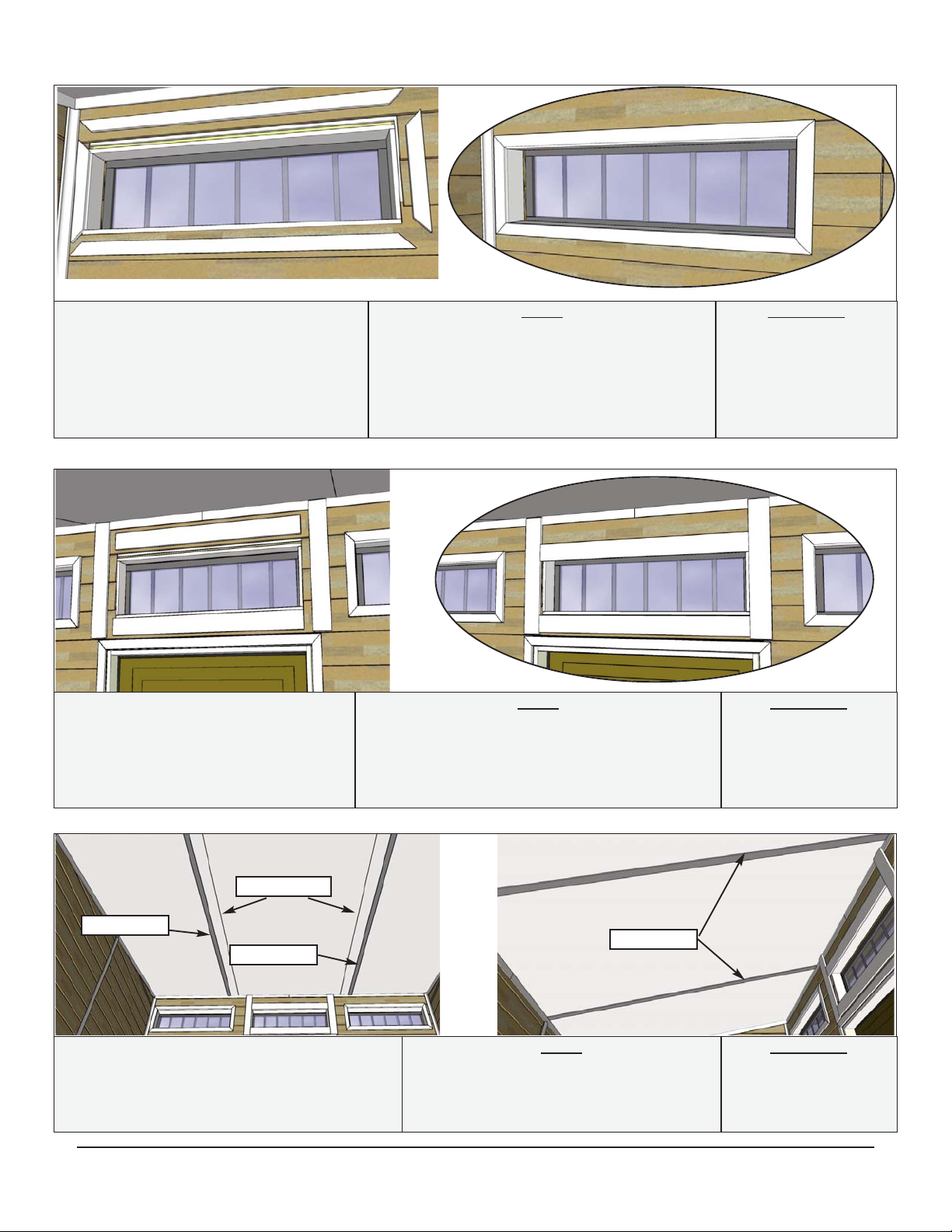

Transom Window Sash
3D: 6 - 1/2” x 2 7/8” x 35 1/4” Straight Cut Top/Bottom Sash (2/ window)
3E: 6 - 1/2” x 2 7/8” x 9 1/4” Straight Cut Side Sash (2/ window)

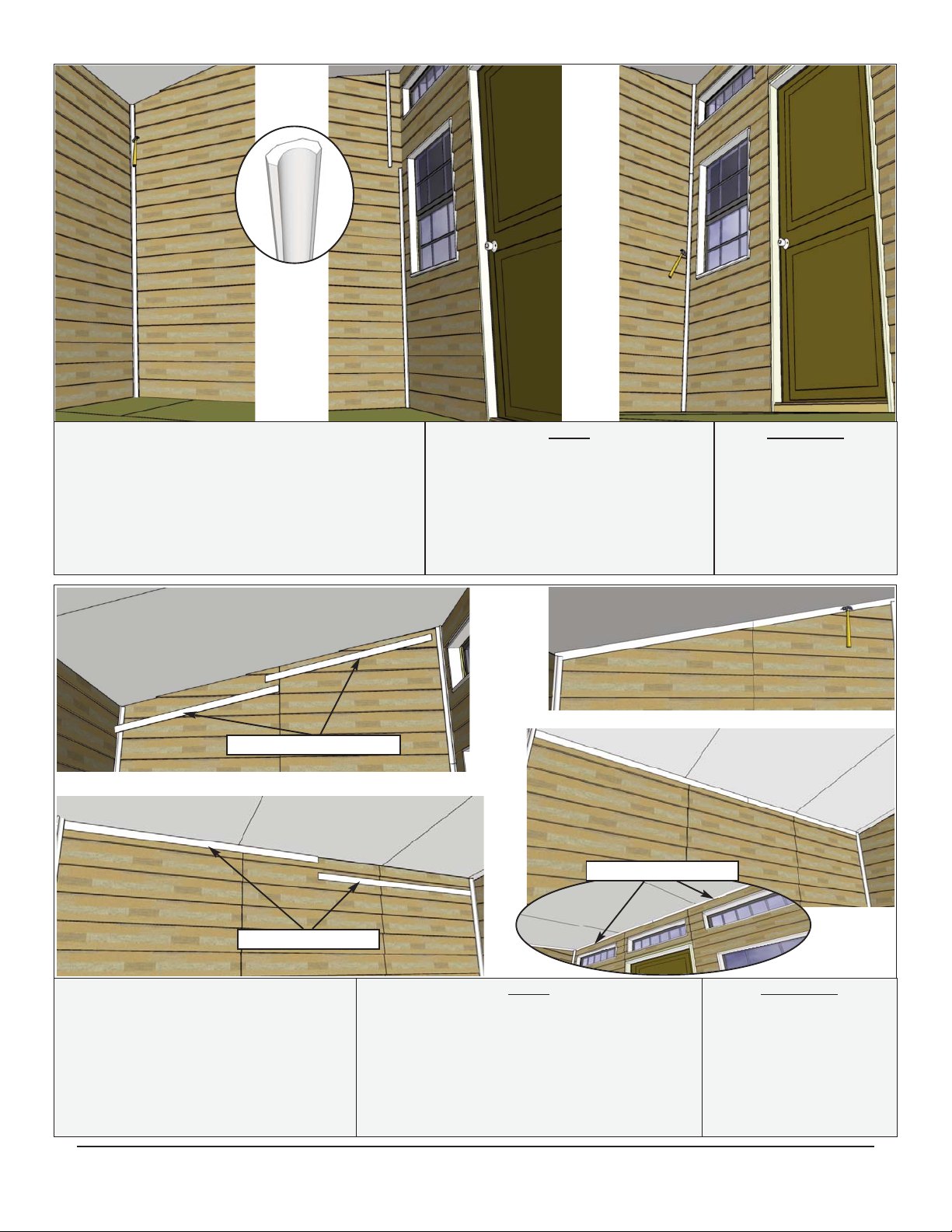

Corner Trim - Moulded
3F: 2 - Rounded - 85 3/8” with 11 deg. one end - Rear Corner
3G: 2 - Rounded - 70” Straight Cut- Front Corner
3H: 2 - Rounded - 32” with 11 deg. one end - Front Corner
Horizontal Rear/Front/Side Trims -
3I: 2 - 1/4” x 1 1/2” x 45 1/2” -11 deg both end - Side Walls
3J: 2 - 1/4” x 1 1/2” x 44 3/8” -11 deg both end - Side Walls
3K: 4 - 1/4” x 1 1/2” x 64” - Straight Cut - Rear and Front Walls

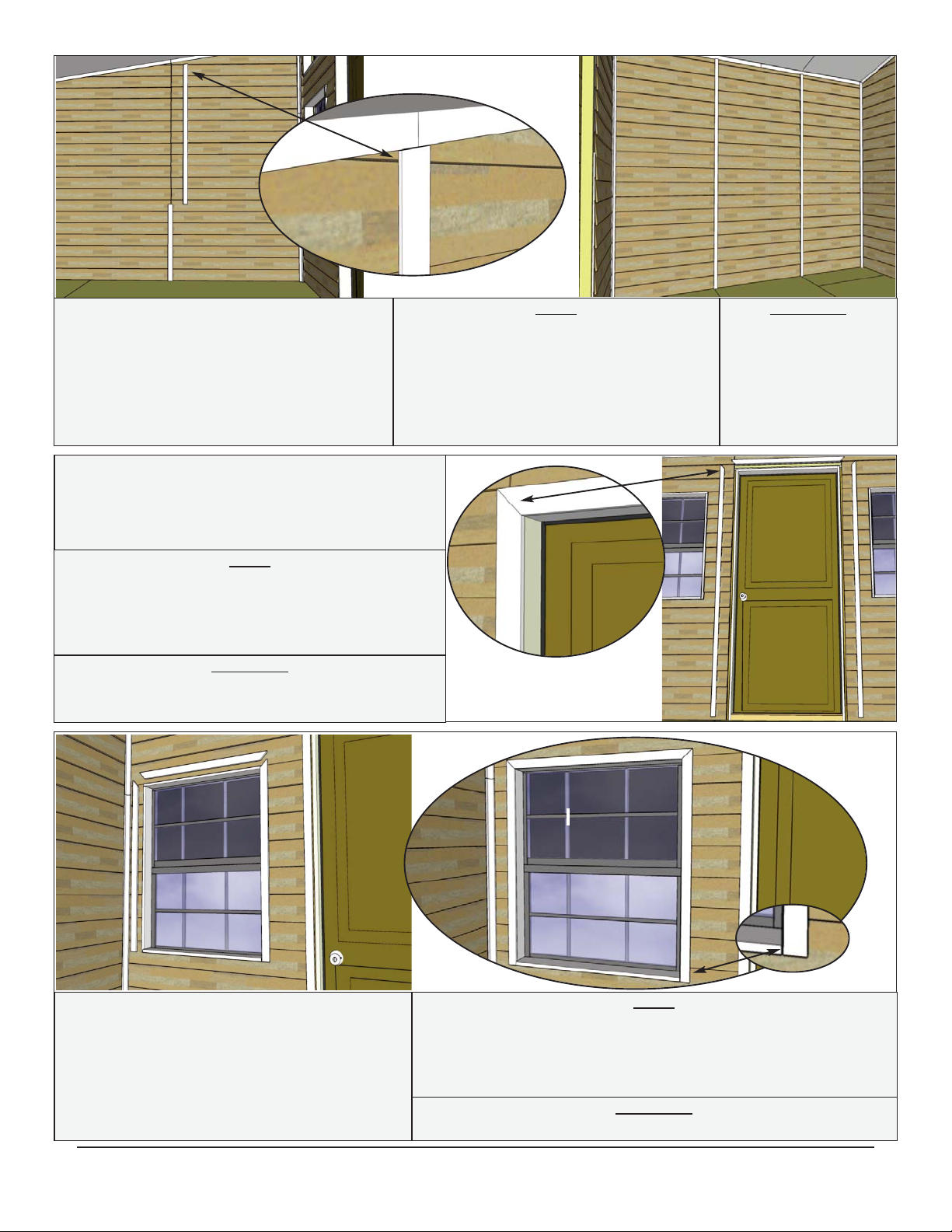

Side/Rear Wall Vertical Trims -
3L: 2 - 1/4” x 1 1/2” x 60” -11 deg. one end Side Walls
3M: 2 - 1/4” x 1 1/2” x 32” -Straight cut- Side Walls
3N: 2 - 1/4” x 1 1/2” x 83 1/2” -Straight cut- Rear Walls
Door and Window Trims -
3O: 2 - 1/2” x 2 1/2” x 80 3/4” -45 deg. one end. Vertical Door Trims
3P: 1 - 1/2” x 2 1/2” x 41” -45 deg. both ends. Horizontal Door Trim
3Q: 4 - 1/2” x 1 1/2” x 36 7/8” 45 deg.1 end Vertical Large Window Trim (2/window)
3R: 2 - 1/2” x 1 1/2” x 32 1/4” 45 deg both ends Top Hor. Large Window Trim (1/window)
3S: 4 - 1/2” x 1 1/2” x 37 1/2” -45 deg. both ends Top/Bottom Transom L/R (2/ window)
3T: 4 - 1/2” x 1 1/2” x 12 1/2” -45 deg. both ends Side Transom L/R (2/ window)
3U: 2 - 1/2” x 1 1/2” x 34 1/2” -Straight cut ends Top/Bottom Transom-Center (2/ window)
3V: 2 - 1/2” x 3” x 20” -Straight cut ends Sides Transom-Center(2/ window)
Ceiling Trim
3W: 2 - 1/4” x 1 1/2” x 92 1/4” -Straight cut- Ceiling
Floor Base Trims -
3X: 9 - 1/4” x 1 1/2” x 48” -Straight cut- (customer to cut to length)
Steps
Steps
Steps
1&2
3
4 & 6
8
9
10 & 11
12 & 13
14
18 &19
17
16
15
5 & 7
20-21
22-23
24
25
27
26
28
30
29
32
31

2 1/2”

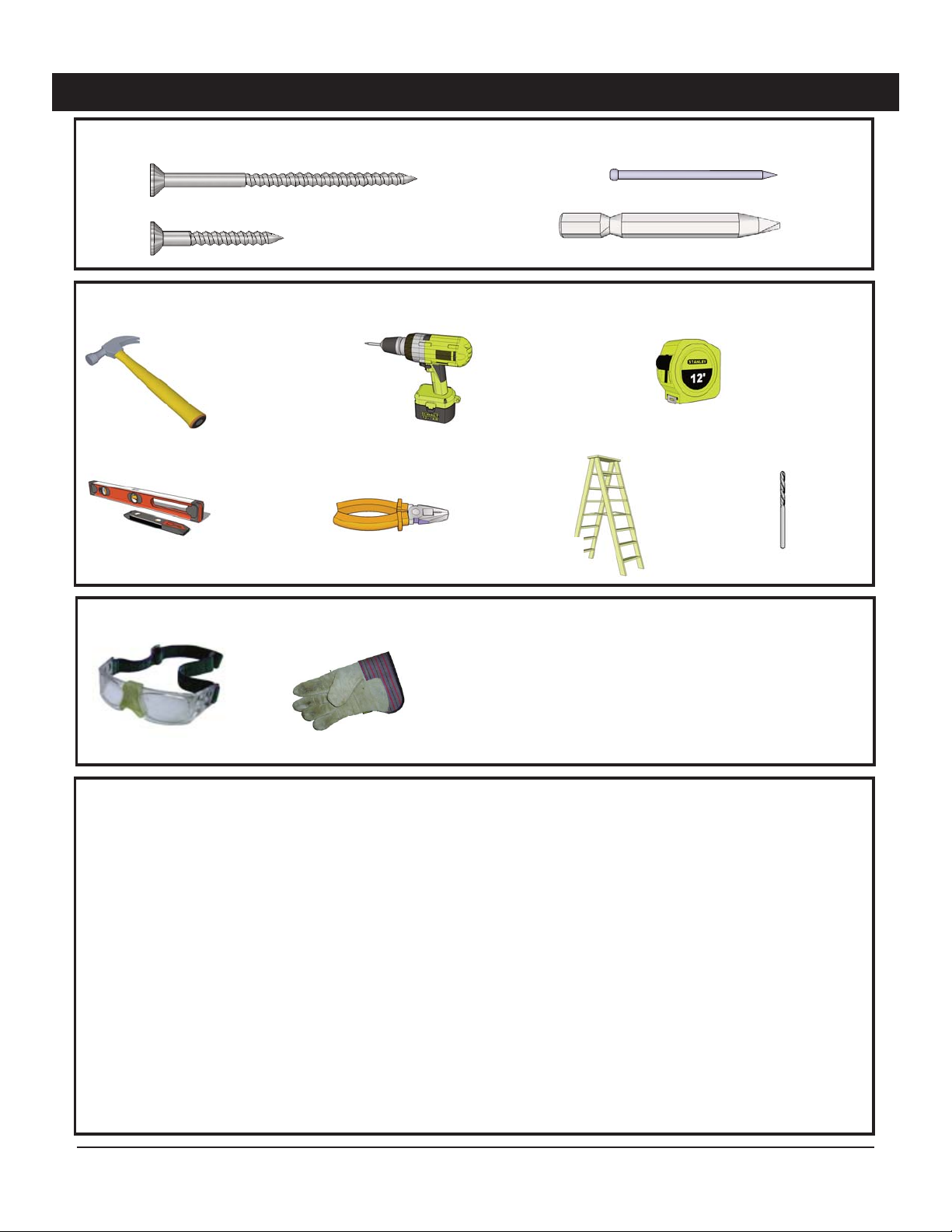

1 1/4” Square Drive Bit
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
2
Ladders
Screw Gun/Drill Tape Measure
Hammer
Level Pliers
Tools Required (Not Provided)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3
1/8” Drill Bit
1 1/2” Finishing
12X8 Studio Interior Wall Kit HARDWARE PACKAGE
Optional Materials and Tools - Not Included in Kit
Materials to Insulate Shed prior to installing Interior Wall Kit
2” thick Foam Board Insulation
364 sq ft. (covers walls and ceiling)
96 sq ft additional for floor
6 mm Poly - Air Vapor Barrier -
Tools -
Staple Gun
Utility Knife
Caulking Gun and Caulking
x 15
x 126
x 430
x 1

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
Ceiling Plywood
Part 1
Bottom Rear Wall Panel-
Left Side-1 pc. (Part 2B)

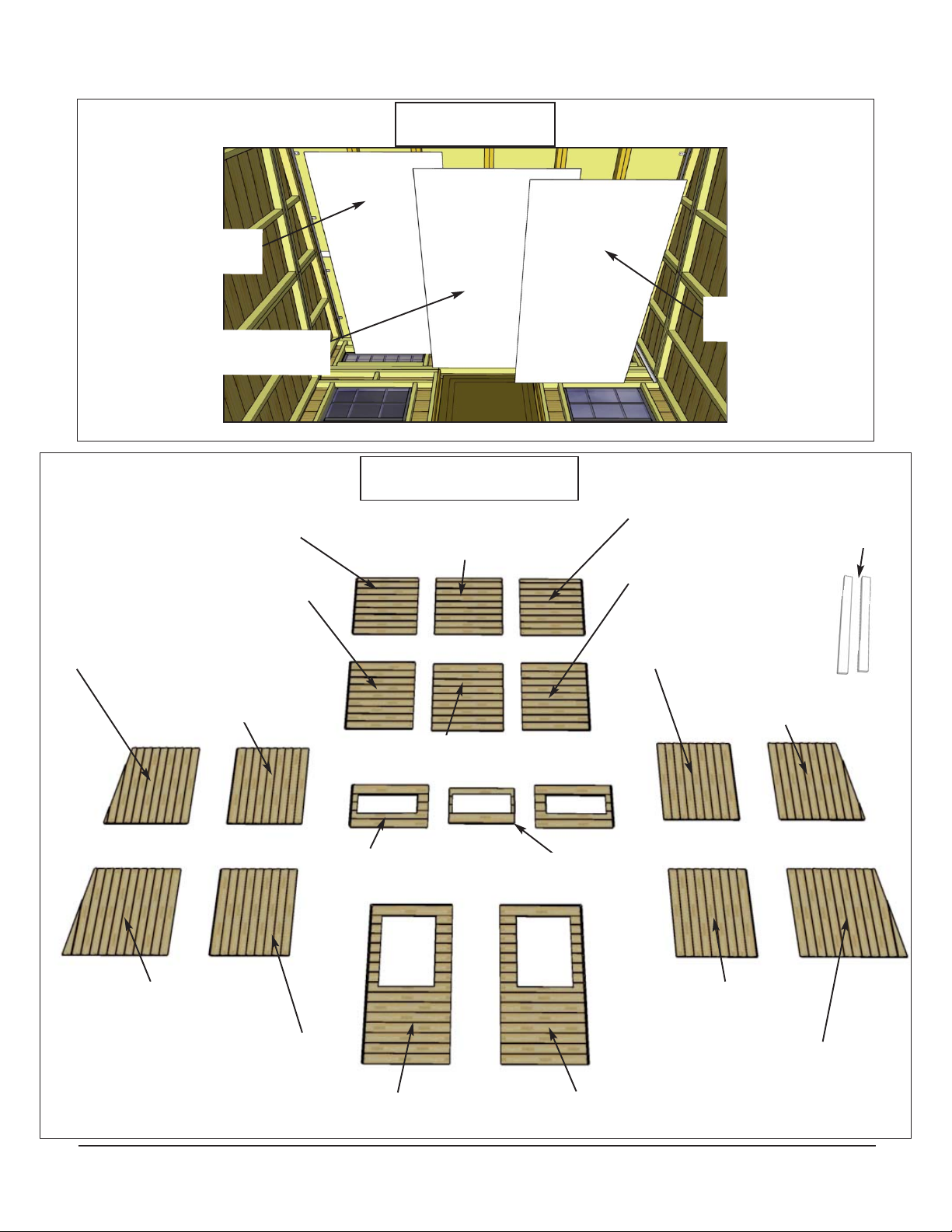

Exploded view of all parts necessary to complete Interior Wall Section Ceiling and Panelized Walls.
Identify all parts prior to starting.
Bottom Rear Wall Panel-
Right Side-1 pc. (Part 2B)
Bottom Rear Wall Panel-
Center -1 pc. (Part 2D)
Top Rear Wall Panel-
Left Side-1 pc. (Part 2C)
Top Rear Wall Panel-
Right Side-1 pc. (Part 2C)
Top Rear Wall Panel-
Center -1 pc. (Part 2E)
Top Side Wall Panel- Rear
Right Side- Angled - 1 pc. (Part 2L)
Bottom Side Wall Panel- Rear
Right Side-1 pc. (Part 2K)
Bottom Side Wall Panel- Rear
Left Side-1 pc. (Part 2K)
Top Side Wall Panel- Rear
Left Side- Angled - 1 pc. (Part 2L)
Top Side Wall Panel- Front
Right Side-1 pc. (Part 2J)
Bottom Side Wall Panel- Front
Right Side-1 pc. (Part 2I)
Bottom Side Wall Panel- Front
Left Side-1 pc. (Part 2I)
Top Side Wall Panel- Front
Right Side-1 pc. (Part 2J)
Transom Window Walls-
Left/Right -2 pc. (Part 2G)
Large Window Wall Panel-
Left -1 pc. (Part 2F)
Large Window Wall Panel-
Right -1 pc. (Part 2F)
Left Ceiling Panel
1 pc. (Part 1B)
Center Ceiling Pane
-1 pc. (Part 1A)
Panelized Wall Sections
Part 2
Right Ceiling Panel
1 pc. (Part 1B)
Rear Wall
Nailing
Cleats
4 pcs
(Part 2 A)
Transom Window Wall
Center -1 pc. (Part 2H)

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
1. Lift Center Ceiling Panel up
positioning evenly on center rafters.
Attach with 10 - 1 1/4” Screws.
You can find the Square Drive
Screw Bit in the Hardware Kit Bag.
Parts
1A - Center Ceiling Panel
(3/8” x 47 3/4” x 92 1/2”) x 1
Hardware
S2 - 1 1/4” Screws x 10 total
2. Lift Left/Right Ceiling Panels up positioning evenly
on rafters and tight against center ceiling panel.
Attach with 10 - 1 1/4” Screws per panel.
Parts
1B - Left/Right Ceiling Panels
(3/8” x 41 1/2” x 92 1/2”) x 2
Hardware
S2 - 1 1/4” Screws x 20 total
1. Ceiling Plywood Section

2. Wall Section
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6
3. Position and attach Rear Wall Nailing Cleats in
rear wall corners only. There are 2 cleats per corner.
Evenly space. Attach with 3 - 2 1/2” Screws per piece.
Parts
2A - Rear Wall Nailing Cleats
(1 1/2” x 2 1/2” x 30”) x 4
Rear Walls
Cleats
Hardware
S1 - 2 1/2” Screws
x 12 total
4. Position and attach Bottom
Rear Wall Panel against cleat.
Plywood extends past siding
on left side. Attach with
4 - 1 1/4” Screws per piece.
1 screw per corner.
Parts
2B - Bottom Rear Wall Panel
(42 3/4”w x 44 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Siding gap
on left side.
5. Position and attach Top Rear
Wall Panel against cleat. Plywood
extends past siding on left side.
Attach with 4 - 1 1/4” Screws per
piece. 1 screw per corner.
Parts
2C - Top Rear Wall Panel
(42 3/4”w x 40 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Pre-drill siding
with 1/8” drill bit.
Pre-drill siding
with 1/8” drill bit.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
6. Position and attach Bottom Rear
Wall Panel against cleat. Plywood
extends past siding on right side.
Attach with 4 - 1 1/4” Screws per
piece. 1 screw per corner.
Parts
2B - Bottom Rear Wall Panel
(42 3/4”w x 44 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
7. Position and attach Top Rear Wall Panel
against cleat. Plywood extends past siding on
right side. Attach with 4 - 1 1/4” Screws per
piece. 1 screw per corner.
Parts
2C - Top Rear Wall Panel
(42 3/4”w x 40 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
8. Position and attach Bottom Center Wall
Panel against middle wall studs. Attach with
4 - 1 1/4” Screws per piece. 1 screw per corner.
Parts
2D - Bottom Center Wall Panel
(45 1/4”w x 44 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Pre-drill siding
with 1/8” drill bit.

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

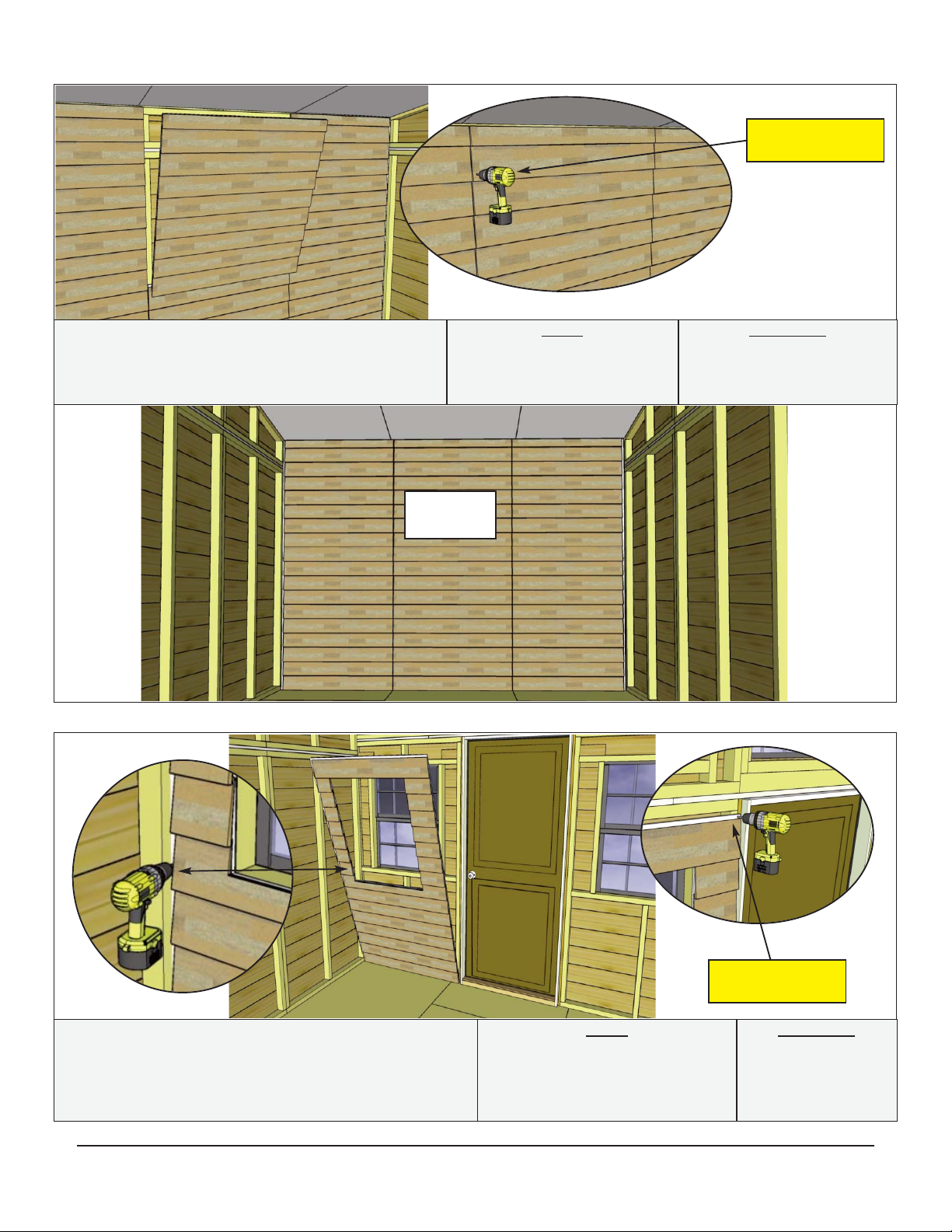

9. Position and attach Top Center Wall Panel
against middle wall studs. Attach with
4 - 1 1/4” Screws per piece. 1 screw per corner.
Parts
2E - Top Center Wall Panel
(45 1/4”w x 40 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Pre-drill siding
with 1/8” drill bit.
Completed
rear walls.
10. Position and attach Large Window Wall Panel
against wall studs in left corner. Plywood extends
past siding on left side. Attach with
6 - 1 1/4” Screws per piece.
Parts
2F - Large Window Wall Panel
(46 1/2”w x 78”h) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
Pre-drill siding
with 1/8” drill bit.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
11. Position and attach Large Window Wall Panel
against wall studs in right corner. Plywood extends
past siding on right side. Attach with
6 - 1 1/4” Screws per piece.
Parts
2F - Large Window Wall Panel
(46 1/2”w x 78”h) x 1
Hardware
S2 - 1 1/4” Screws
x 6 total
12. Position and attach Transom Window Wall Panel in left top
corner. Plywood extends past siding on left side. Siding will
overhange window wall siding on bottom. Attach with
4 - 1 1/4” Screws per piece.
Parts
2G - Transom Window Wall Panel
(46 1/2”w x 23 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws x 4 total
Pre-drill siding
with 1/8” drill bit.
13. Position and attach Transom Window Wall Panel in right top
corner. Plywood extends past siding on right side. Siding will
overhang window wall siding on bottom. Attach with
4 - 1 1/4” Screws per piece.
Parts
2G - Transom Window Wall Panel
(46 1/2”w x 23 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws x 4 total

1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
14. Position and attach Transom
Window Wall Panel in center betweem
left/right transom windows. Attach with
4 - 1 1/4” Screws per piece.
Parts
2H - Transom Window Wall Panel - Center
(39 1/4”w x 22 1/4”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Pre-drill siding
with 1/8” drill bit.
15. Position and attach Bottom Right Side
Wall Panel in front corner. Panel will slide in
between window panel in corner. Attach with
4 - 1 1/4” Screws per piece.
Parts
2I - Bottom Right Side Wall Panel
- Front
(45 1/4”w x 44 1/2”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
Pre-drill siding
with 1/8” drill bit.
16. Position and attach Top Right Side Wall
Panel Angled in front corner. Panel will slide
in between window panel in front corner.
Attach with 4 - 1 1/4” Screws per piece.
Parts
2J - Top Right Side Wall Panel
- Angle Front
(45 1/4”w x 57 5/8”h) x 1
Hardware
S2 - 1 1/4” Screws
x 4 total
