OLT SM812-FJ-Ply User manual

8x12 SpaceMaker Shed
FJ Bevel Model with Plywood Roof
Assembly Manual
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.
Thank you for purchasing a
8x12 SpaceMaker. Please take
the time to identify all the parts
prior to assembly.
Stock Code #
SM812-FJ-Ply
Roof Area: 112 sqft
Version #2.2
July 16, 2021

What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construcon area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local ulies company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundaon you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly Manual.
If doing the assembly yourself, have all the necessary tools ready to go and in•
working condion. A list of required tools can be found aer the parts list.
One helper is recommended to assist in construcng your shed.•
It generally takes two people over two days to assemble a shed. If you’re
hiring a contractor, their rate should be in line with that duraon of work.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

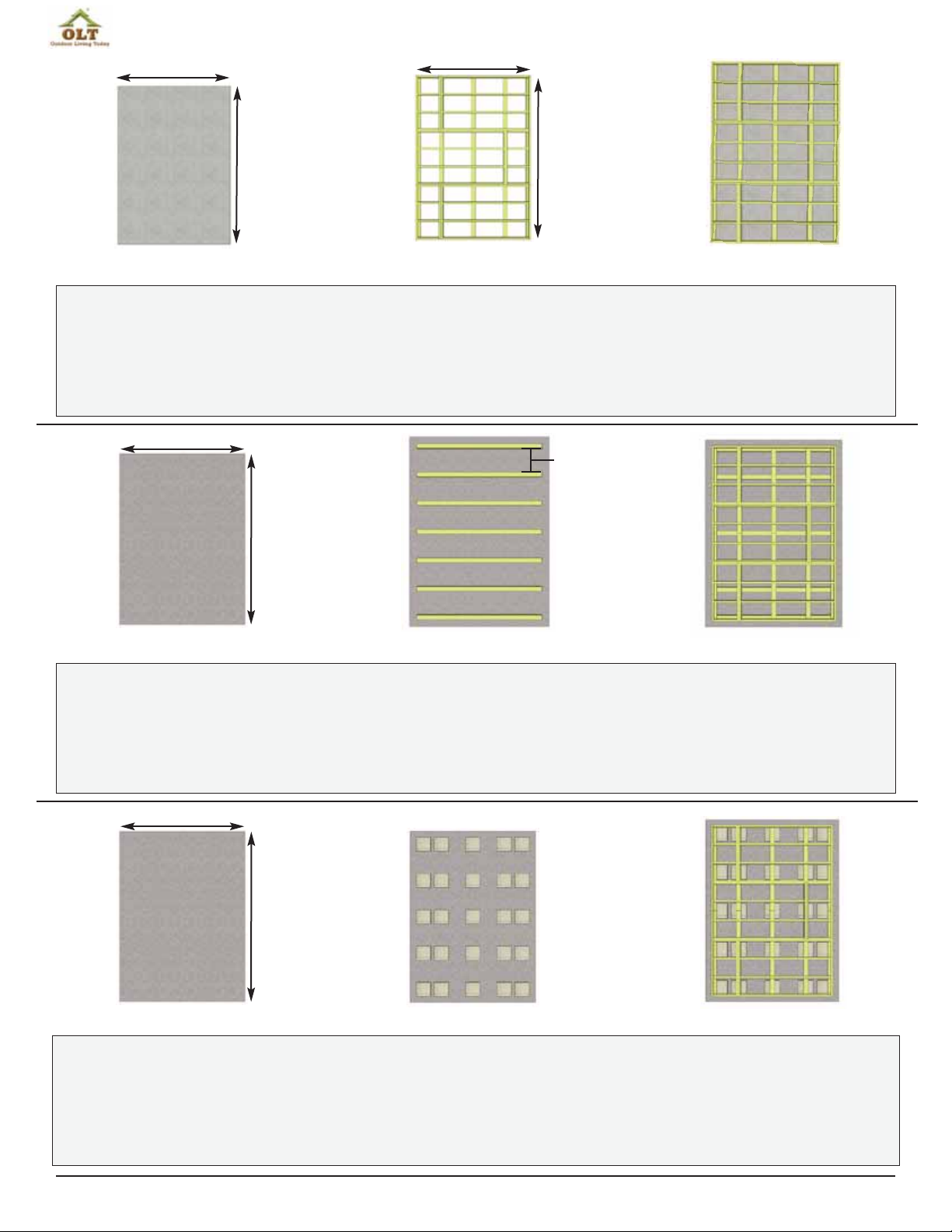

Foundation Types for 8x12 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (136 1/2” x 96”) or larger.
- 6” Deep foundation.
- 1.7 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.
- 7 - 4x4 Pressure Treated Stringers 8’ long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.
- 25 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
96”
136 1/2”
6” Deep
108”
148 1/2”
7 - 4”x4”x96”
25 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
18 5/8”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
96”
136 1/2”
108”
148 1/2”
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3

Thank you for purchasing our 8x12 SpaceMaker Garden Shed. Please take the time to identify all the parts prior to assembly.
Note: All Trim, Facia and Bottom Skirting pieces will be positioned rough face out when installed.
A. Floor Section
Floors
3 - 45 1/2” x 75” - Floor Joist Frames - Large
3 - 45 1/2” x 21” - Floor Joist Frames - Small
6 - 1 1/2” x 3 1/2” x 71 7/8” - Center Floor Joists - Unattached
10 - 1 1/2” x 3 1/2” x 68 3/16” - Floor Runners
3 - 45 3/8” x 74 7/8” - Plywood Floor - Large
3 - 45 3/8” x 20 7/8” - Plywood Floor - Small
B. Wall Section
Main Wall Panels
7 - 45 1/2” x 75” - Solid Wall Panels
7 - 1 1/2” x 2 1/2” x 45 1/2” - Bottom Wall Plates
1 - 45 1/2” x 75” - Window Wall Panels
2 - 12” x 73” - Narrow Wall Panels
Door Header & Jamb
2 - 1 1/2” x 3 3/8” x 73” - Vertical Door Jamb
1 - 2” x 3 3/8” x 78” - Door Header - Long (Dado on edge)
2 - 2” x 3 3/8” x 6 1/2” - Door Headers - Short (Dado on edge)
Top Wall Plates & Gables
6 - 3/4” x 2 1/2” x 32” - Front & Rear Top Plates
(4 pieces angle cut on end, 2 piece straight cut both ends)
4 - 3/4” x 2 1/2” x 65 3/4” - Side Top Plates (angle cut edge)
4 - Gable Half Walls - Triangular Shaped
C. Rafter and Roof Section
Rafter Assembly
2 - 3/4” x 4 1/2” x 84” - Roof Ridge Boards
2 - 3/4” x 4 1/2” x 52 1/2” - Roof Ridge Boards
18 - 1 1/2” x 3 1/2” x 56 1/2” - Roof Rafters
4 - 1/2” x 4 1/2” x 68 1/4” - Soffits
3 - 3/4” x 3 1/2” x 72” - Roof Gussets (angle cut on ends)
4 - 3/4” x 1 1/2” x 48” - Rafter Nailing Cleats
Roof
4 - 5/8” x 48” x 72” - Large Plywood Roof Panels
4 - 5/8” x 8 5/8” x 72” - Small Plywood Roof Panels
D. Trim & Miscellaneous Section
Outer Wall Trim
10 - 1/2” x 4 1/2” x 45 1/4” - Bottom Skirting (Bevel)
4 - 3/4” x 2 1/2” x 75” - Filler Trim
6 - 1/2” x 1 1/2” x 45 1/4” - Top Wall Trim (Bevel)
2 - Metal Drip Caps
2 - 1/2” x 4 1/2” x 43 1/4” - Rear Horizontal Gable Trim (Bevel)
2 - 1/2” x 4 1/2” x 43 1/4” - Front Horizontal Gable Trim
4 - 1/2” x 3 1/2” x 79” - Corner Trim
4 - 1/2” x 5 1/2” x 82” - Wide Corner Trim
4 - 1/2” x 2 1/2” x 79” - Side Wall Narrow Trim
1 - 1/2” x 2 1/2” x 77 1/2” - Rear Wall Narrow Trim
2 - 1/2” x 2 1/2” x 79” - Vertical Door Trim
1 - 1/2” x 1 1/2” x 64” - Horizontal Door Trim
2 - 7/8” x 3” x 9” - Horizontal Narrow Wall Trim (Dado on Edge)
Facia Trim
4 - 3/4” x 2 1/2” x 51” - Facia Nailing Strips
4 - 3/4” x 3 1/2” x 58” - Front & Rear Facia (Angle cut ends - 2R/2L)
4 - 3/4” x 3 1/2” x 71 3/4” - Side Facia
2 - Pentagon Facia Plates - For Front & Rear Facia Peaks
2 - Horizontal Gable Trim Detail Plates - 4 1/2” high
2 - Side Facia Detail Plates - 3 1/2” high
20-22
Steps
Steps
24-27
Steps
42-48
49-61
62-65
Steps
13-19
1-12
28-41
Parts List - Pages 2 and 3
Continued on next page
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4

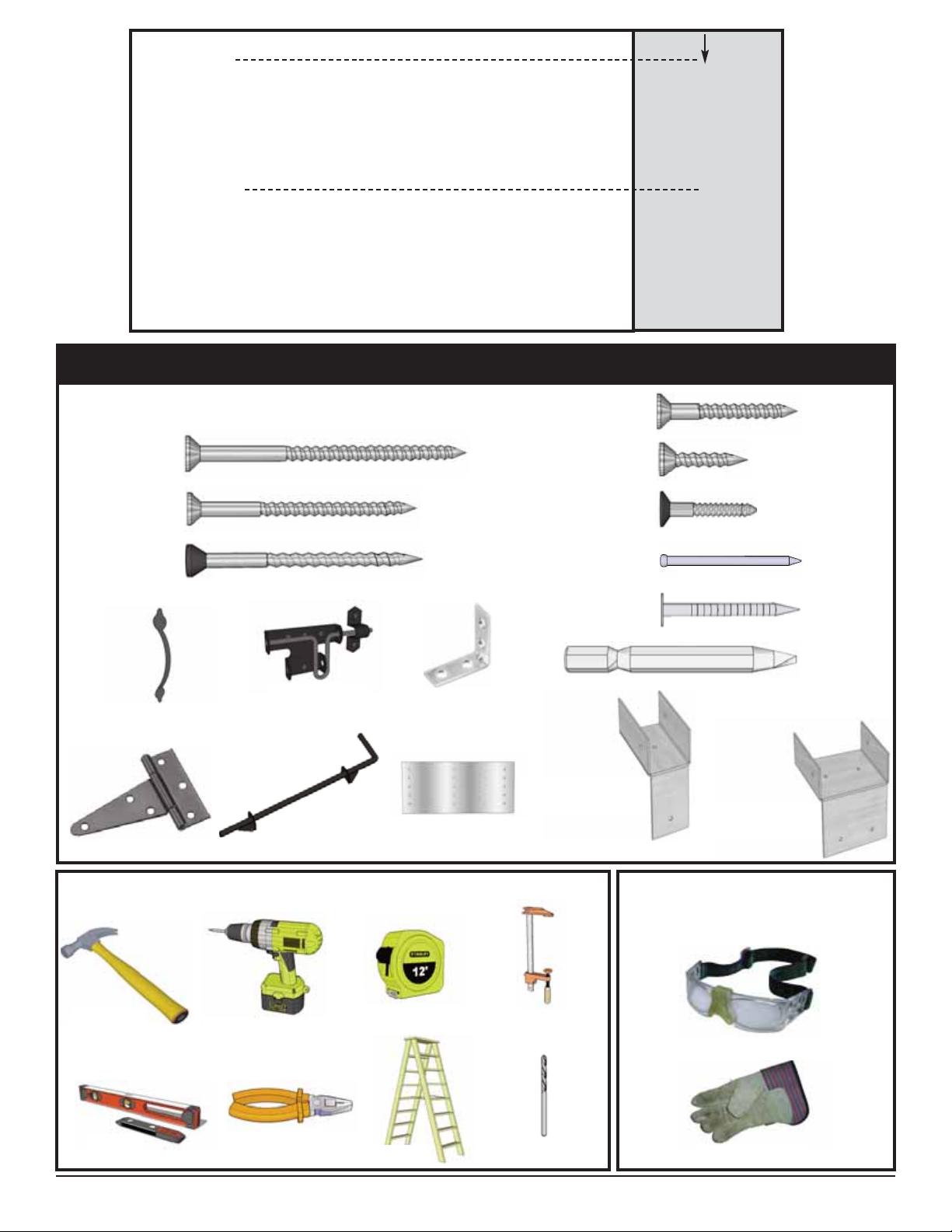

8 x 12 SPACEMAKER PLYWOOD ROOF HARDWARE SHEET
S1 - 2 1/2”
S3 - 2”
S2 - 1 1/4”
SS2 - 3/4”
SB2 - 2” N1 - 1 1/2”
N2 - 1 1/2”
Y1 - Tee Hinge x 6
Silver
Finishing
Shingle
Square Drive Bit
Hardware Kit (Provided)
Safety Glasses
Work Gloves
Safety Equipment
Required (Not Provided)
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
Drill Bits
Y4 - Black
Barrel Bolt Y2 - 90° Metal
Bracket x 8
310 Pcs
175 Pcs
39 Pcs
205 Pcs
60 Pcs
2 Pcs
370 Pcs
23 Pcs
20 Pcs
Black Headed
Black Headed
Y30 - Single
Rafter Bracket x 6 Y31 - Double
Rafter Bracket x 4
Door Section
1 - 31 1/2” x 72” - Left Side Door
1 - 31 1/2” x 72” - Right Side Door
2 - 1/2” x 2 1/2” x 72” - Interior Vertical Door Stops
1 - 1/2” x 2 1/2” x 68” - Interior Top Horizontal Door Stop
1 - 3/4” x 2 1/2” x 62 1/2” - Door Threshold
1 - 1/2” x 2 1/2” x 71” - Interior Door Flange
Miscellaneous
1 - Metal Window Insert
1 - Window Trim Pkg - (1 - 24 1/16” angle cut / 3 - 23” square cut)
1 - Flower Box Kit
1 - Spare Wall Siding
2 - Spare Shingles - use to shim door, etc
Steps
74-77
66-73
Parts List - Pages 2 and 3
Ladder
SB1 - 3/4”
BR1
Y3 - Black Handle x 2
Y9 - Ridge Board
Connector x 2
Y6 - Cane Bolt
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularly.
- Routinely remove needles and leaves from roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be
—stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Floor Runner
Foundation
8.
Floor Plywood
Wall Panel
Small gap between
bevel siding and
window trim
Dab of caulking
Strip of roofing paper over
apex of roof panels
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

You can find the
Square Drive Bit for
the screws in with
the Hardware Kit Bag.

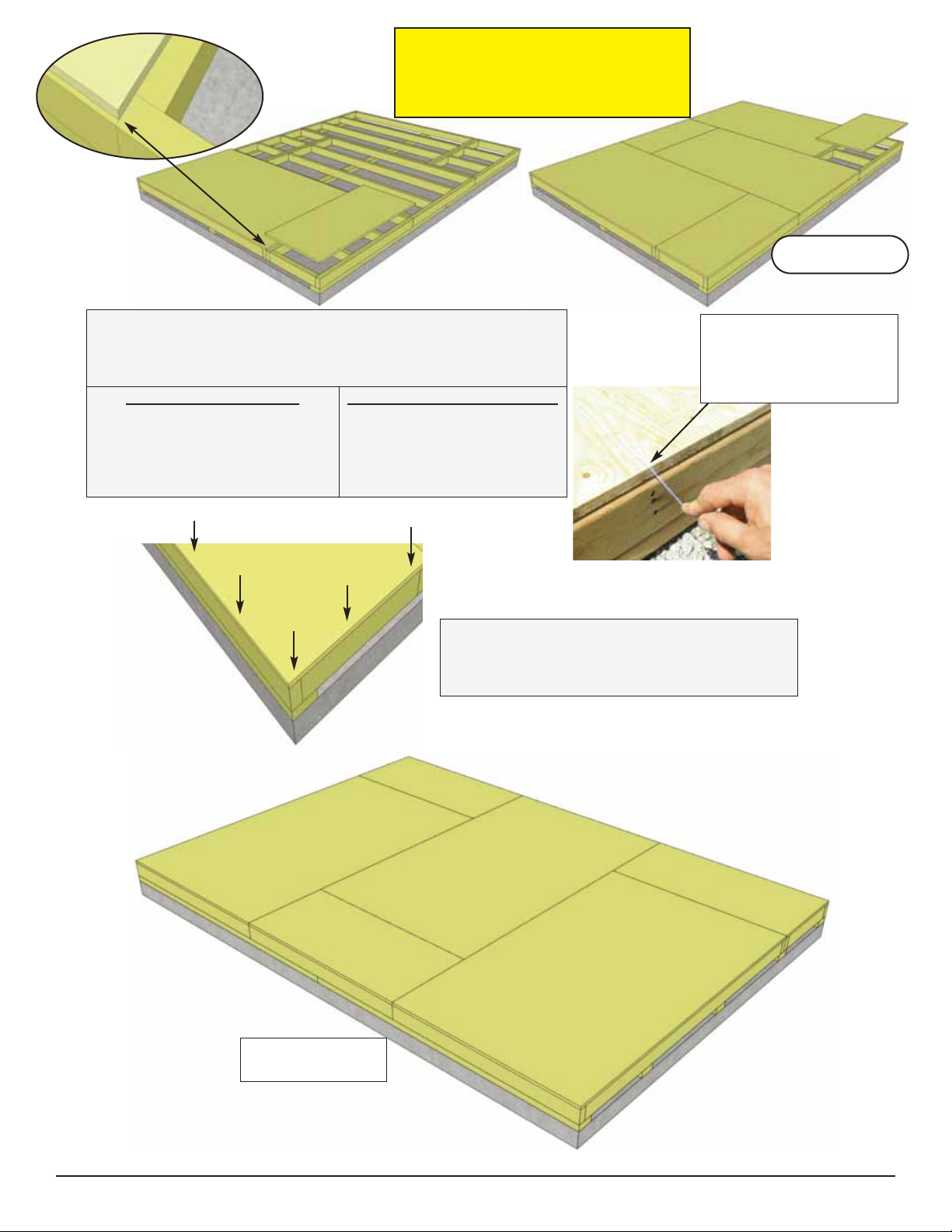

1. Lay out Large Floor Joist Frame and 2 Floor Joists as
illustrated above. Position Joists equally in Floor Joist Frame.
Use Small Floor Joist Frame as a template to determine
joist position. Position Joist so flush with framing.
Parts (Steps 1 - 6)
Floor Joists
(1 1/2” x 3 1/2” x 71 7/8”) x 6
Floor Joist Frames - Large
(45 1/2” x 75”) x 3
Floor Joist Frames - Small
(45 1/2” x 21”) x 3
Hardware (Steps 1 - 6)
S1 - 2 1/2” Screws
x 58 total
A. Floor Section
Plywood Floor
Large (3)
Floor Joist
Frames
Large (3)
Floor Runners (10)
Plywood Floor
Small (3)
Concrete Pad
(optional foundation method)
Floor Joist
Frames
Small (3)

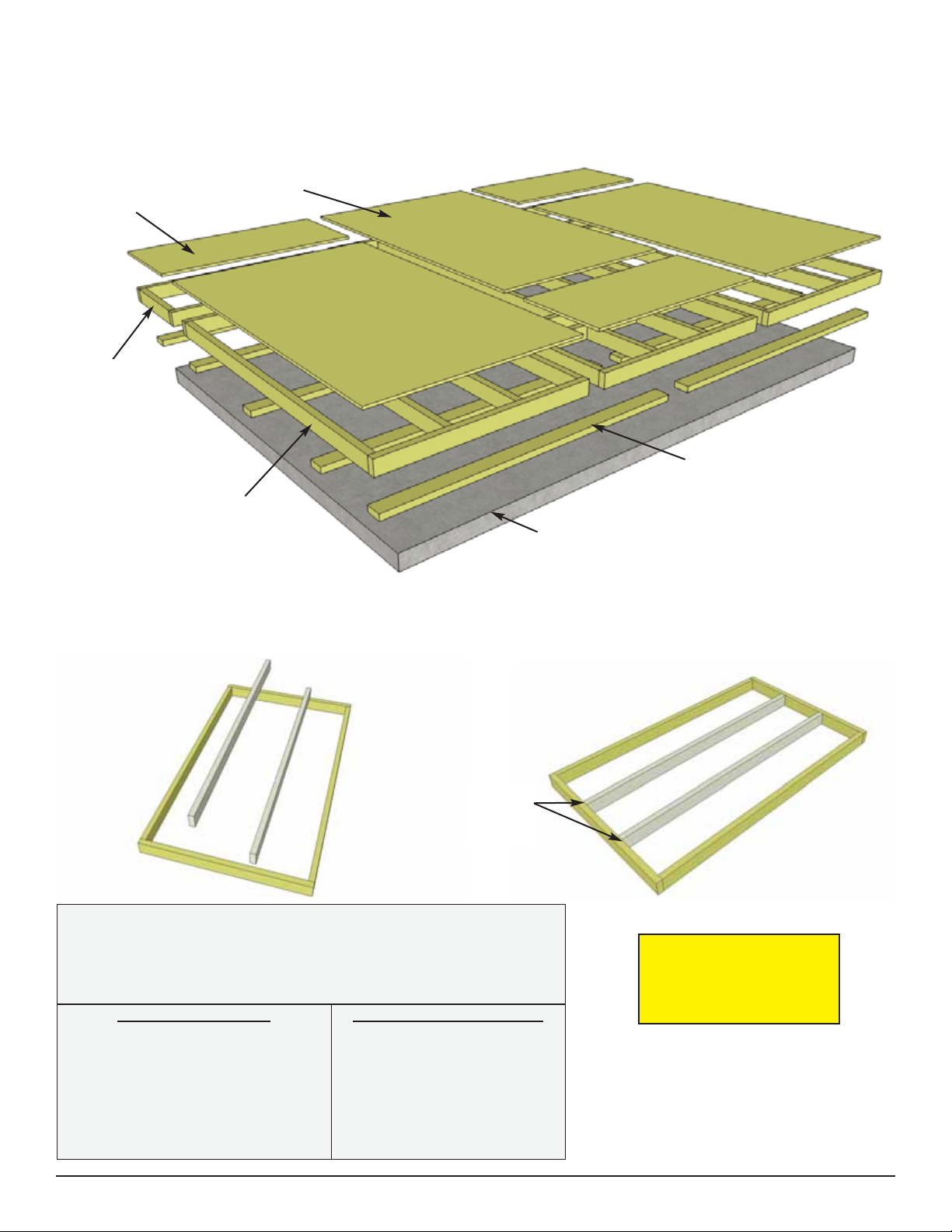

Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 136 1/2” wide x 96” deep.
Flush
with
framing
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7

2. When correctly positioned, attach each Joist with 4 - 2 1/2” Screws (2 per end). You can find
the Square Drive Screw Bit in the Hardware Kit Bag.
3. Lay out Floor Joist Frames as illustrated.
There are 3 larger and 3 smaller Frame Sections.
The Footprint for the floor when attached together
will be 136 1/2” wide x 96” deep.
5. Complete all large and small frame
attachments. Screw each completed section
together with 8 - 2 1/2” Screws.
Front of Shed
You can find the
Square Drive Bit for
the screws in with the
Hardware Kit Bag.
4. Attach each large and small floor joist
frame together with 6 - 2 1/2” Screws per
section.
96”
136 1/2”
6. When completed, your floor footprint
should be 136 1/2” wide x 96” deep.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

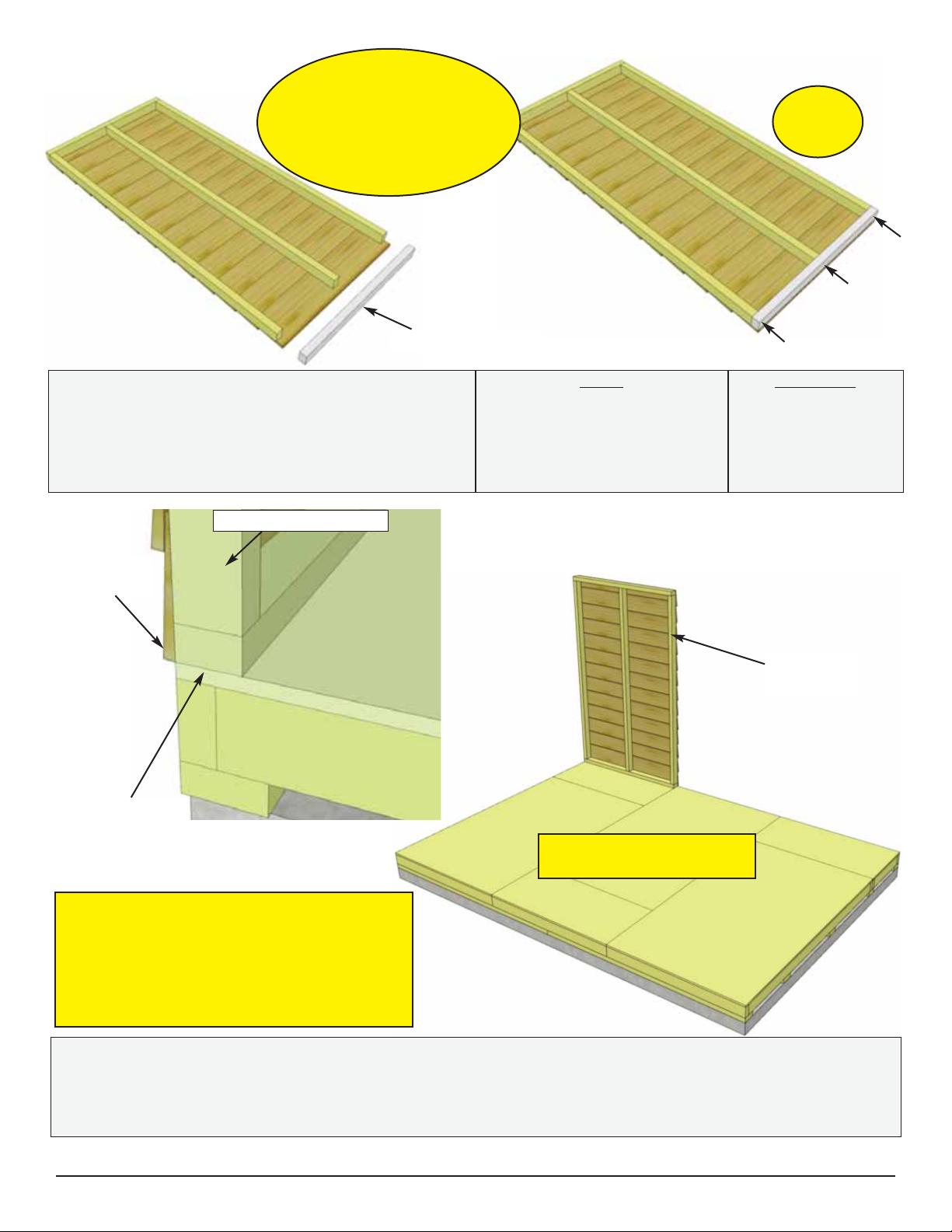

7. Attach Floor Runners to completed floor frame.
There are 2 Floor Runners per 136 1/2” side and
5 completed Runners in total. Use 6 - 2 1/2” Screws
per Runner.
Parts (Steps 7 - 9)
Floor Runners
(1 1/2” x 3 1/2” x 68 3/16”) x 10
Hardware (Steps 7 - 9)
S1 - 2 1/2” Screws
x 60 total
8. Make sure Runners are flush with
outside and front and rear floor framing
but not overhanging.
9. Complete remaining Floor Runners.
10. With Floor Runners attached, carefully flip the floor over
and place on your foundation.
Caution: you will need 2 people to assist you. Be careful when
laying floor down not to bend or twist floor. When in place, level
floor completely.
Note: The floor will be flipped over
and the floor runners will sit on your
foundation. It is important to note, that
having a level foundation is critical.
Choosing a foundation will vary between
regions. Typical foundations can be
concrete pads or patio stones positioned
underneath the floor runners.
Foundations
Concrete Slab
Foundation
Centered on
Floor frame.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9

Hint: Use a chalk line
to mark location of floor
joists to determine
screw placement.
Front
Important - Make sure floor is
level before moving on to wall
section. Use a level to confirm,
and shim floor joists as required.
12. With Plywood positioned correctly on
floor framing, attach with 1 1/4” Screws.
Use screws every 16”.
push plywood
together at seams.
Front
Completed Floor
configuration
11. Position all Large & Small Plywood Floor pieces on
top of completed floor joists. The Plywood is cut slightly
smaller than Floor framing. Keep Plywood seams tight.
Parts (Steps 11 - 12)
Plywood Floor - Large
(45 3/8” x 74 7/8”) x 3
Plywood Floor - Small
(45 3/8” x 20 7/8”) x 3
Hardware (Steps 11 - 12)
S2 - 1 1/4” Screws
x 70 total (approx.)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

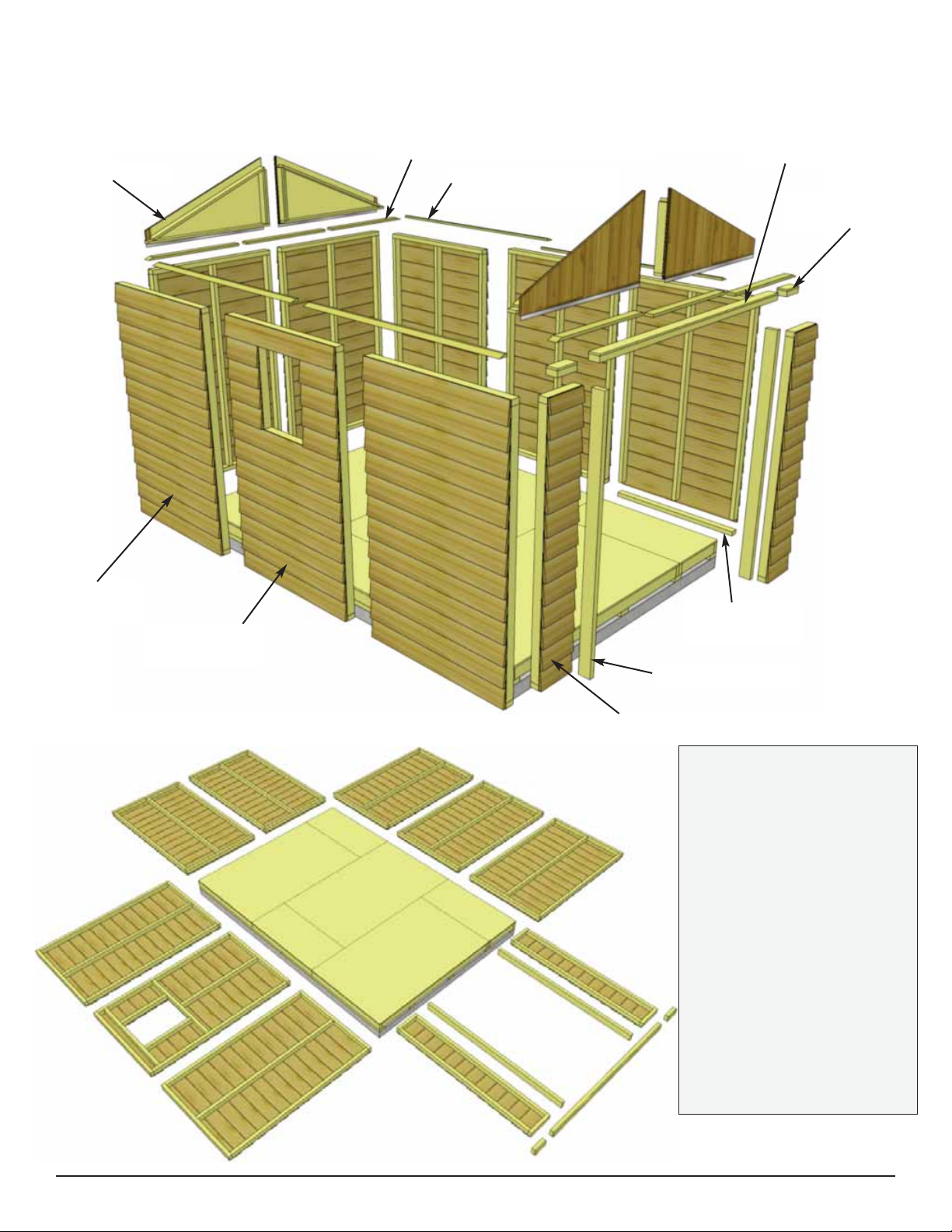

B. Wall Section
Exploded view of all parts necessary to complete the Wall Section.
Identify all parts prior to starting.
Window Wall
Panel (1)
Side Top Plates (4)
(Angle cut on edge)
Front and Rear Top Plates (6)
(4 Angle cut on one end and 2 square cut.)
Gable Walls (4)
Door Jambs (2)
Narrow Wall Panels (2)
Solid Wall
Panels (7)
Door Header
- Long (1)
Bottom Wall
Plates (7)
Door Headers
- Short (2)
13. Lay out all the wall
panels and become familiar
with their location.
On Standard Kits, there are
7 Solid Wall Panels and
2Narrow Wall Panels, and
1 Window Wall Panel.
Make sure to position panels
right side up so water is
directed away from and not
into shed. Look at window
wall panel to compare and
determine proper wall posi-
tion.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11

14. For each Solid Wall Panel, carefully lay panel
face down. Position and attach a Bottom Wall
Plate to bottom of wall studs of each wall panel with
3 - 2 1/2” Screws. Position so plates are flush with
framing.
Parts
Solid Wall Panels
(45 1/2” x 75”) x 7
Bottom Wall Plates
(1 1/2” x 2 1/2” x 45 1/2”) x 7
Hardware
S1 - 2 1/2” Screws
x 21 total
Important:
Pilot hole ALL 2x3 Wall
Studs with 1/8” drill bit prior
to screwing. This will make it
much easier to attach
together.
Pilot Hole
first.
Bottom Wall Plate
Side of Shed
1st Side
Wall Panel
Front of Shed
1st Side Wall Panel
Rear of shed
2x3 wall frame
Flush with
Floor Framing
1/2”
overhang
Important - Make sure all walls are aligned
in their upright position. If not, water may
leak into your shed. Unsure if panel is
facing up or down? Compare solid wall
siding to window wall siding and match
orientation.
15. Starting at Rear Corner, position a Solid Side Wall panel on top of Plywood Floor. The Wall Panel
bottom framing will sit flush with Floor framing. Wall siding will overhang the floor. The Side Wall panels
will sit flush at the end of the Plywood Floor with the Rear Wall panels sandwiched between them.
Note: Siding will overhang the Floor by approximately 1/2”.
Do Not Attach Walls To
Floor Until Step 23
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12

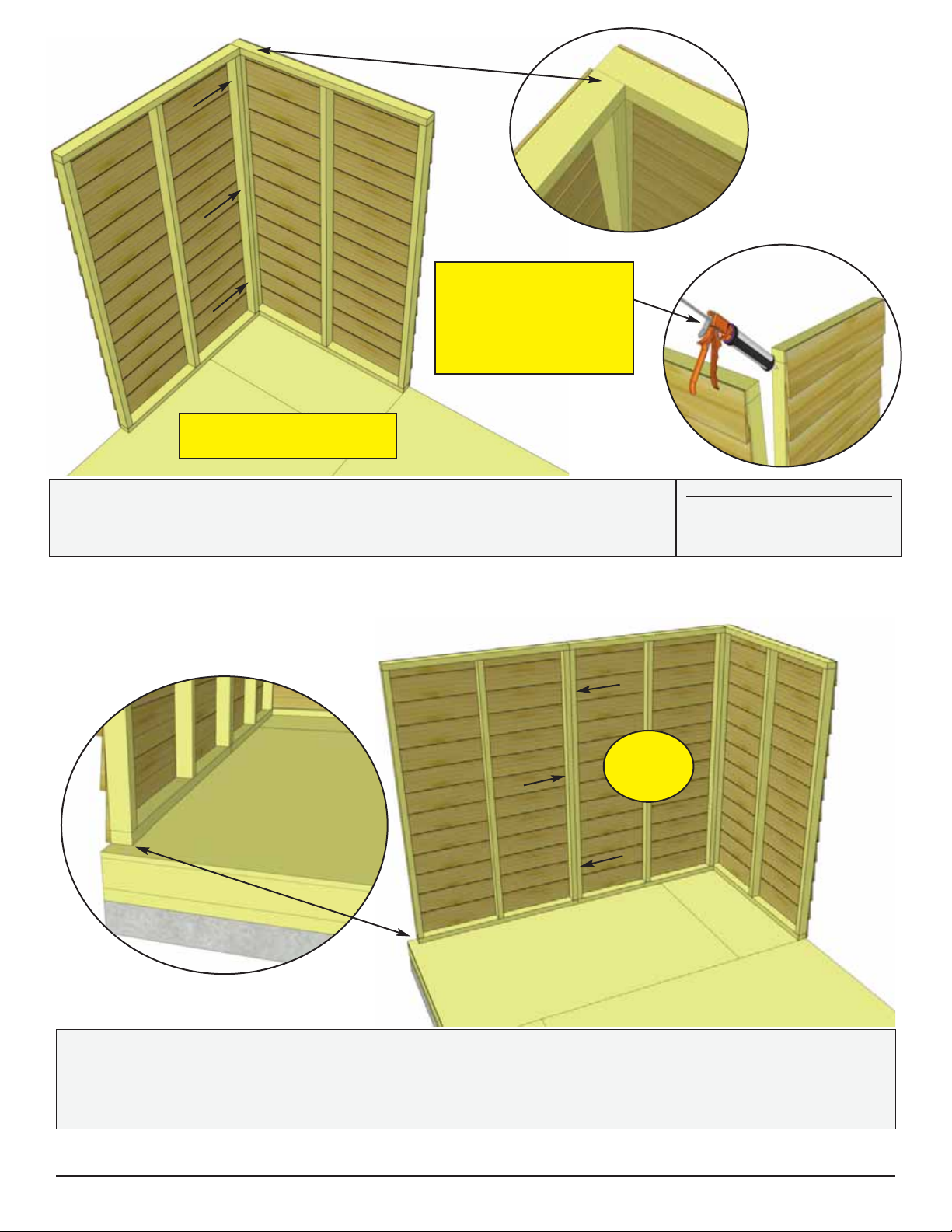

16. Position a Rear Wall into place on plywood floor. Butt both vertical wall
studs of Side and Rear Walls together and attach with 3 - 2 1/2” Screws.
Screw at the bottom, middle and top of stud to secure properly.
Hardware (Steps 16 -18)
S1 - 2 1/2” Screws
x 18 total
17. With the corner wall attachment complete, position a second Rear Wall panel in place so bottom
2x3 wall framing is sitting flush with outside floor joists and plywood floor. Wall siding should overhang
floor by approximately 1/2”. When positioned correctly, attach both Rear Wall panel studs together as
shown.
Do Not Attach Walls To
Floor Until Step 23.
Side Wall
Rear Wall
Optional - Caulking
seams will help prevent
moisture from entering
your shed. Caulking
not included in kit.
Rear Wall
Side Wall
Pilot Hole
first.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13

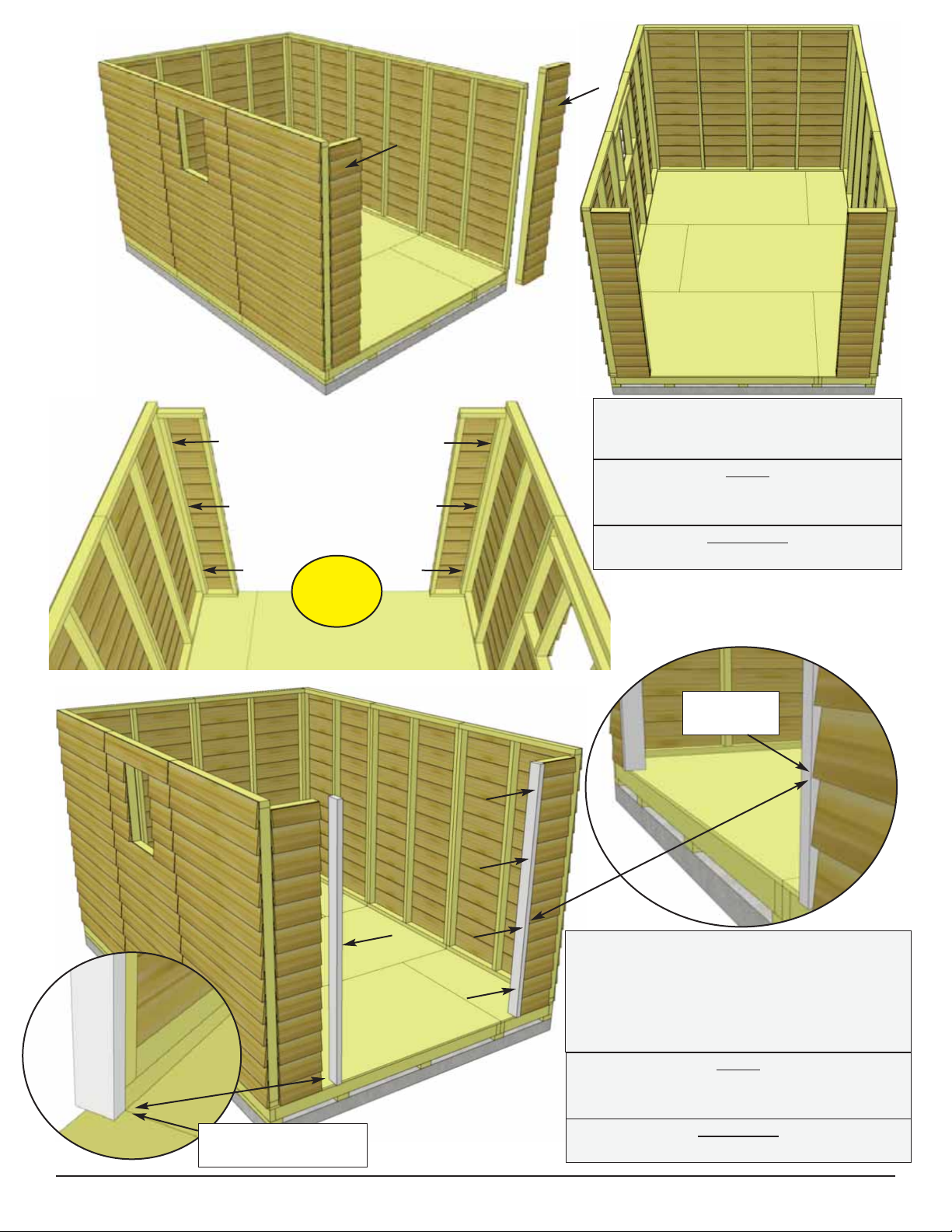

18. Complete all Side and Rear Solid Wall and Window Wall attachments as per Steps 15 - 17.
Pilot Hole
first.
Pilot Hole
first.
Pilot Hole
first.
Front of Shed
Side Wall Panel will sit flush with
Floor framing at Front of Shed.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14

Pilot Hole
first.
20. Attach Vertical Door Jambs to
Narrow Wall studs in door opening with
4 - 2 1/2” Screws each. Position so Jamb
is flush with tip of bevel siding on front
Narrow Walls. Complete both sides.
Parts
Vertical Door Jambs
(1 1/2” x 3 3/8” x 73”) x 2
Hardware
S1 - 2 1/2” Screws x 8 total
Flush to tip
of Bevel.
Flush with Narrow
Wall stud on inside.
19. Position and attach both
Narrow Walls as per Steps 15 - 18.
Parts
Narrow Walls
(12” x 73”) x 2
Hardware
S1 - 2 1/2” Screws x 6 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15

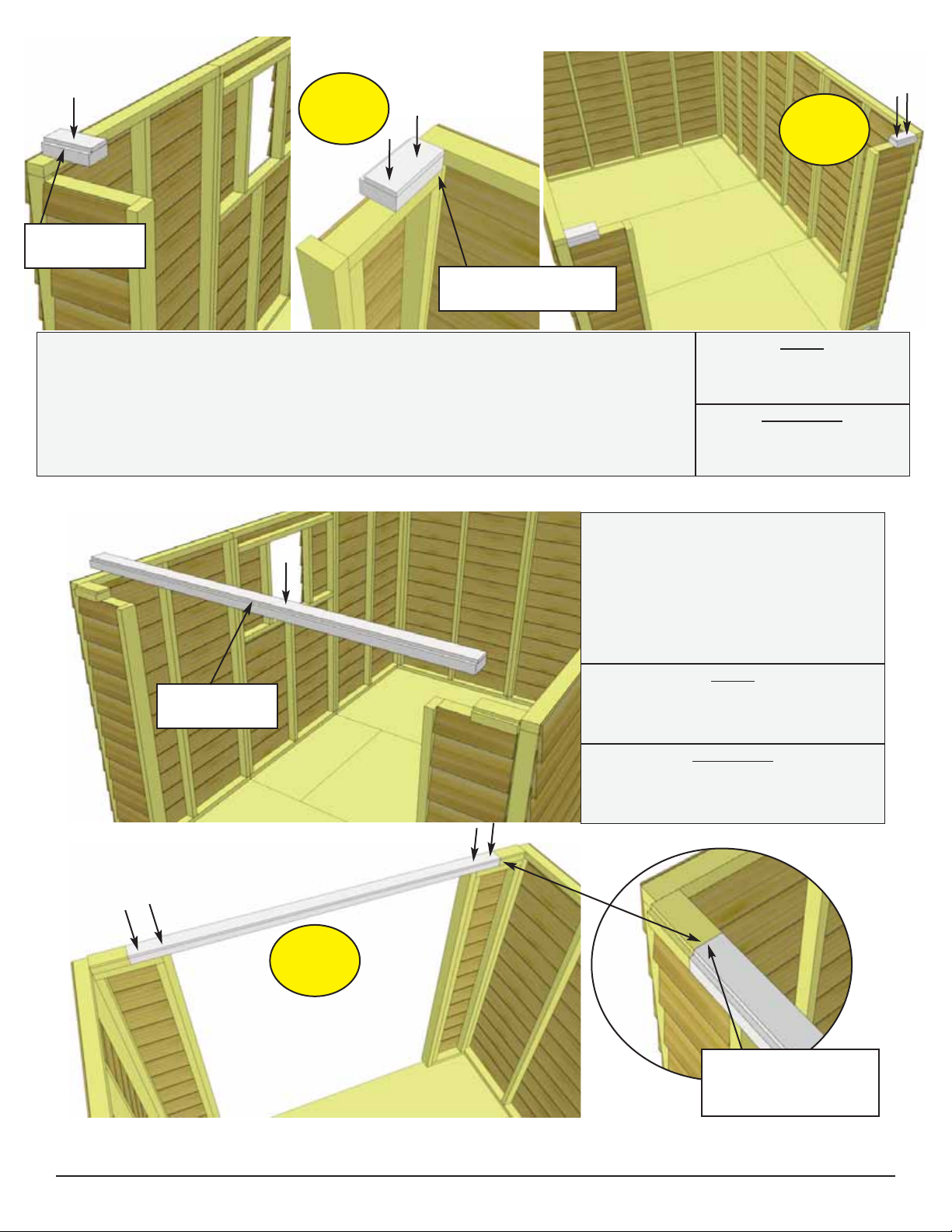

21. Attach Short Door Headers to Narrow Walls with 2 - 2 1/2” Screws per
piece. Header is 3 1/2” wide at bottom and has a 1/2” thick x 3” wide strip of
wood stapled to the top creating a notch or dado effect. This notch needs to be
positioned on the top facing the front. The notch is necessary to hold the drip
cap that will be installed above the door in Step 56.
Pre-drill to prevent splitting!
Parts
Door Headers - Short
(2” x 3 3/8” x 6 1/2”) x 2
Hardware
S1 - 2 1/2” Screws
x 4 total
Notch to front
and on top.
Pilot Hole
first.
Pilot Hole
first.
Notch to front
and on top.
Pilot Hole
first.
Sits flush with inside
of Wall framing.
22. Attach Long Door Header to
Vertical Door Jambs and Narrow
Walls with 2 - 2 1/2” Screws per
side. Position the notch on the top
facing the front as per Step 21.
Pre-drill to prevent splitting!
Parts
Door Header - Long
(2” x 3 3/8” x 78”) x 1
Hardware
S1 - 2 1/2” Screws
x 4 total
Make sure joints are
tight. Push Walls in
if required.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16

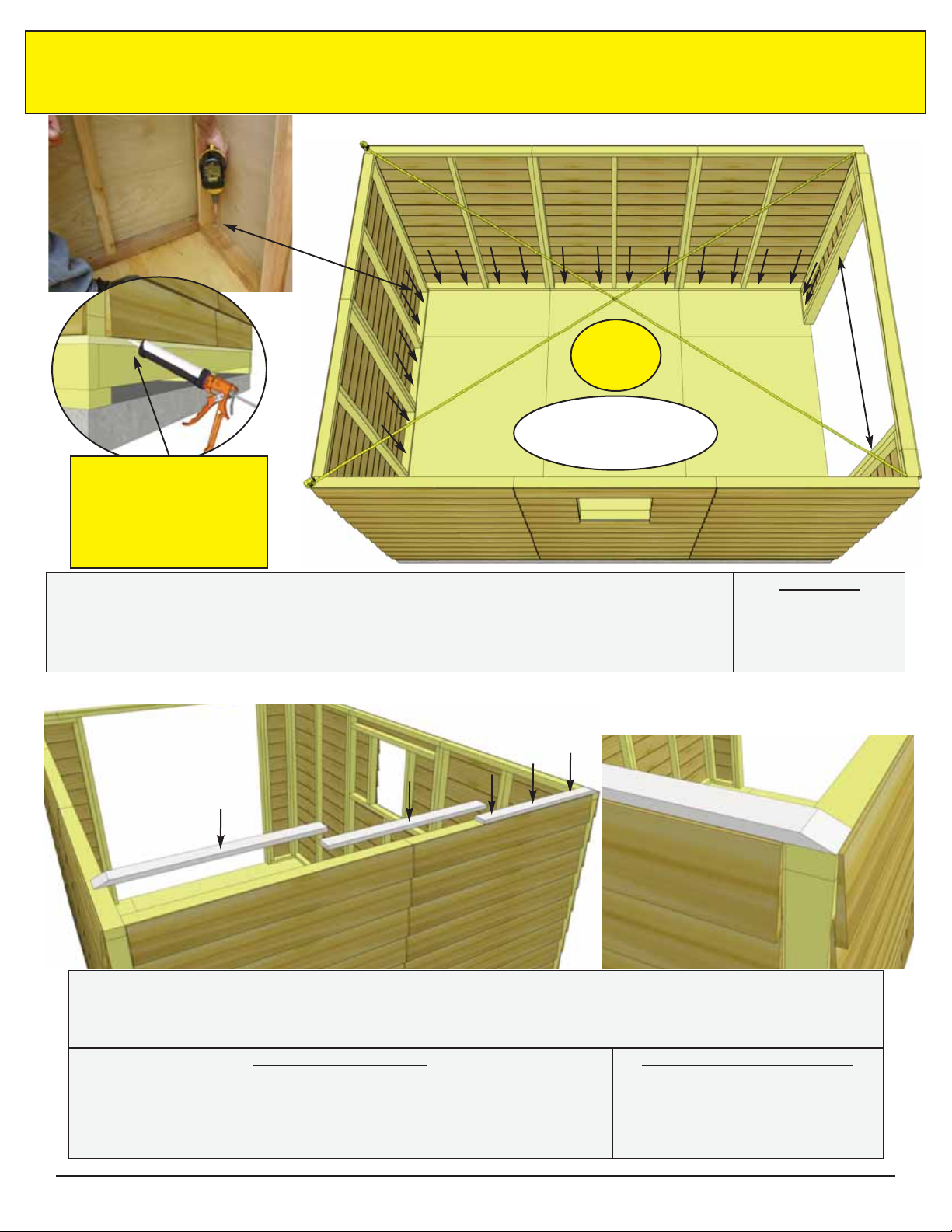

23. When all walls are attached together, check alignment with the floor. Bottom
of wall frames should sit flush with outside of floor framing, with siding overhanging
by approximately 1/2”. Confirm 64” wide door opening at bottom. When positioned
correctly, fasten Bottom Wall Plates to floor using 4 - 2 1/2” Screws per wall panel.
Hardware
S1 - 2 1/2” Screws
x 36 total
Advice: Prior to fastening walls and installing rafters, take time to confirm your walls are level, square and plumb.
Measure diagonal at top and bottom of walls corner-to-corner. This should be approximately 159 7/8”. More importantly,
if measurements are not within 1/4”, your walls are not square. Adjusting now will make it easier to install roof section.
Optional - Caulking
seams will help prevent
moisture from entering
your shed. Caulking
not included in kit.
159 7/8”
159 7/8”
Angle
screws into perimeter
Floor Joists.
Pilot Hole
first.
64”
24. Position Rear Top Plates on top of wall studs so they are flush on the inside. Together, the
plates should be centered evenly on the wall left to right. Attach by screwing down into top wall
framing with 3 - 2” Screws per plate.
Parts (Steps 24 - 25)
Front & Rear Wall Top Plates - 4 Angle Cut End, 2 Straight Cut
(3/4” x 2 1/2” x 32”) x 6
Side Wall Top Plates - Angle Cut Edge
(3/4” x 2 1/2” x 65 3/4”) x 4
Hardware (Steps 24 - 25)
S3 - 2” Screws
x 34 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17

Male / Female Gable
Siding Overlap.

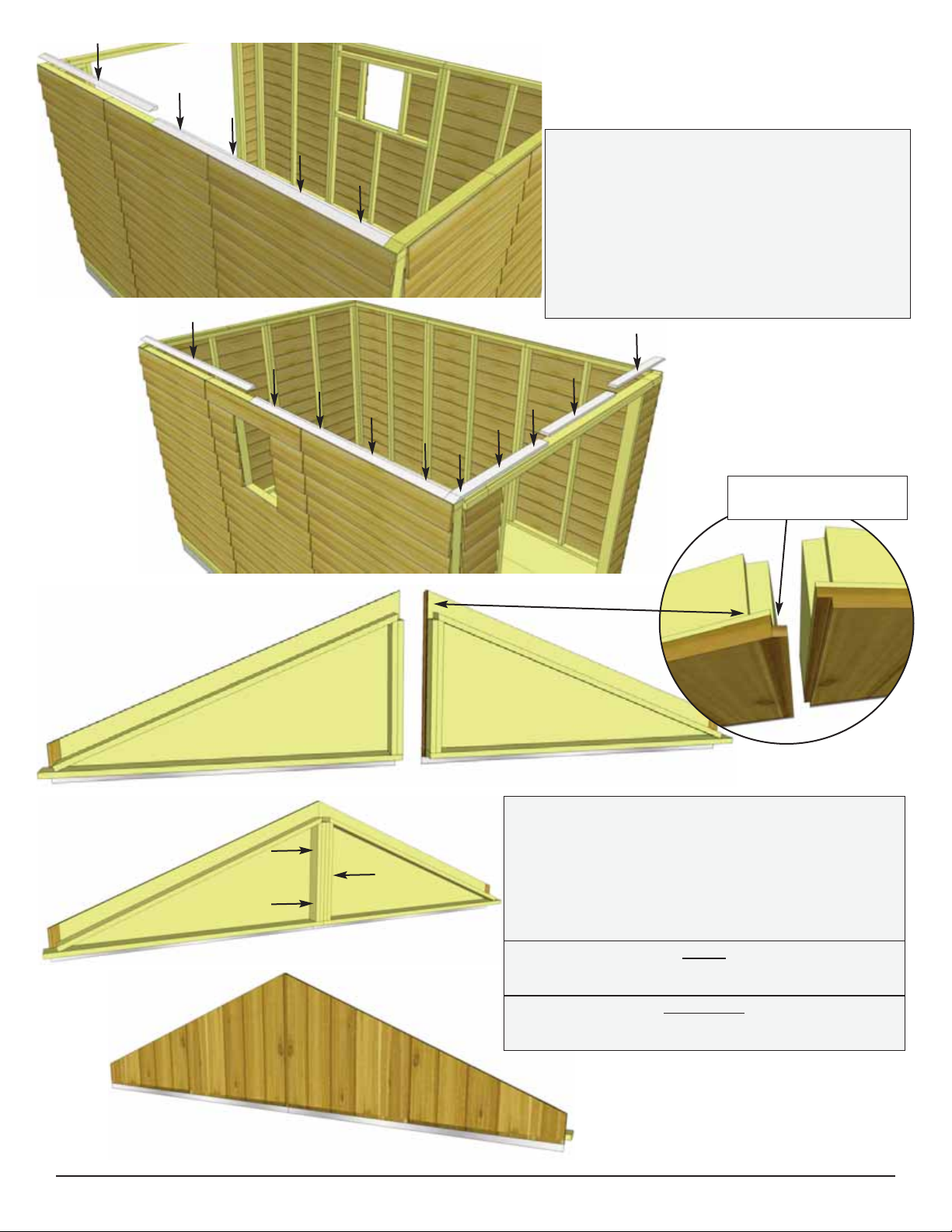

26. Locate Triangular Gable Half Walls for
both ends of the shed. Align framing and wall
siding lap together. Screw center wall framing of
each piece together with 3 - 2 1/2” Screws.
Note: Prior to attaching, try each combination of
Gables for best fit.
Parts
Triangular Gable Half Walls x 4
Hardware
S1 - 2 1/2” Screws x 6 total
25. Next, attach the Side Wall Top Plates.
The Side Wall Top Plates are angle cut
down the length. Once again, position Top
Plates on wall frame so they are flush. Side
Wall Top Plates will fit between Front & Rear
Plates. Attach with 4 - 2” Screws per plate.
Complete all other Side &Front Top Plate
attachments the same.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18

27. Place completed Gable section so framing sits flush with the inside of the Top Wall Plate. It
should also be centered side-to-side on the Top Wall Plate. Gable Flashing overhangs wall on the
outside. Temporarily attach to Gables and Top Wall Plate with 2 - 2” Screws. Gables may need slight
adjustment in Step 37 when attachment will be completed with an additional 6 Screws. Screw from
the bottom of Gable framing down into Top Wall Plate and Wall Framing. Complete Gable positioning
and attachment on the other side.
Hint: Use a straight edge to check the angle of the Gable framing and Top Plate. Both angles should
line up (see diagram above).
Hardware
S3 - 2” Screws x 4 total
Flashing overhangs
on outside.
Use a straight edge to check that
angle of Gable lines up with Top Wall
Plate angle. Adjust Gable for best fit.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19

C. Rafter and Roof Section
Exploded view of all parts necessary to complete the Roof Section.
Identify all parts prior to starting.
Ridge Board
Ridge Board
Metal Ridge Board Connector
8 - 3/4” screws
28. Locate (1 each) Long &Short Ridge Boards
and attach together with a metal Ridge Board
Connector using 8 - 3/4” Screws. Total Length when
connected is 136 1/2”. Connect other set of Ridge
Boards the same. Position metal Ridge Board
Connector evenly on Ridge Boards.
Parts
Ridge Boards - Long
(3/4” x 4 1/2” x 84”) x 2
Ridge Boards - Short
(3/4” x 4 1/2” x 52 1/2”) x 2
Hardware
SS2 - 3/4” Screws
x 16 total
Y9 - Ridge Board
Connector
x 2 total
Metal Ridge Board
Connectors (2)
Rafter
Brackets
Double (4)
Single (6)
Soffits (4)
Roof Gussets (3)
Large Ridge Boards (2)
84” long
Roof Rafters
(9 per side)
18 total Large Plywood
Roof Panels (4)
Small Ridge Boards (2)
52 1/2” long Small Plywood
Roof Panels (4)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
