Olympia L-7240 Instruction Manual

MAINTENANCE AND CARE INSTRUCTIONS
Olympia products are designed and engineered under strict quality standards. Regular and proper care of our
products will ensure years of trouble free service. To clean, simply wipe with a damp, soft cloth. Do not use
abrasive or harsh cleaners as they may result in nish damage. Regularly remove the aerator and clean any
debris inside it.

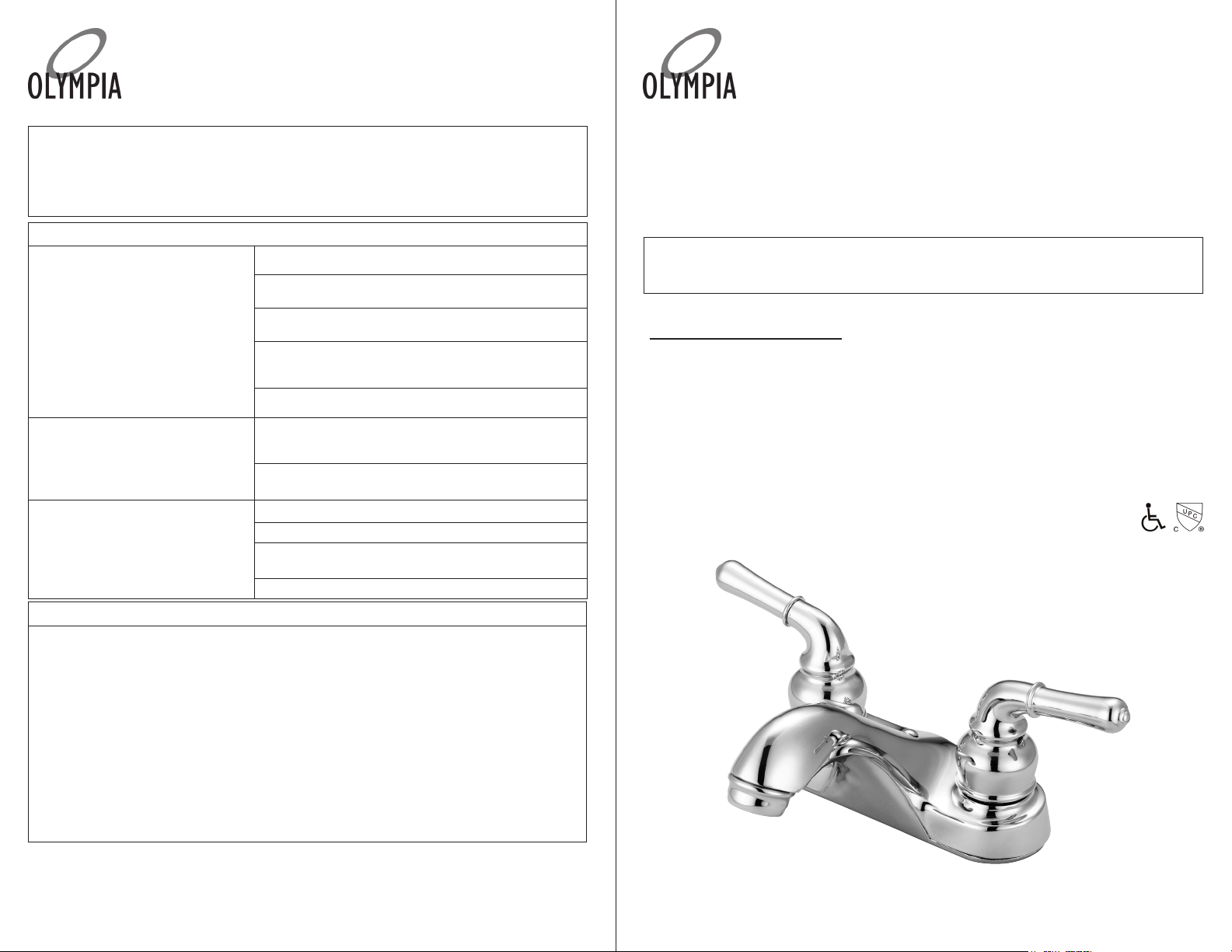

INSTALLATION AND MAINTENANCE
INSTRUCTIONS FOR OLYMPIA TWO HANDLE
LAVATORY FAUCET
THIS PRODUCT MEETS THE FOLLOWING STANDARDS: ASME A112.18.1 ~ ANSI
A117.1 ~ ANSI / NSF 61, SECTION 9 ~ UPC / IAPMO LISTED / ADA COMPLIANT ~
COMPLIES WITH CALIFORNIA LEAD PLUMBING LAW
PRODUCT NUMBERS
#L-7240 Lever Handles ~ With 50/50 Pop-Up
#L-7241 Lever Handles ~ Less Pop-Up
#L-7242 Lever Handles ~ With Brass Pop-Up
#L-7270 Lever Handles ~ With 50/50 Pop-Up
#L-7271 Lever Handles ~ Less Pop-Up
#L-7272 Lever Handles ~ With Brass Pop-Up
ADA
Olympia Faucets, Inc. © 2013
TROUBLE SHOOTING
If water leaks from the spoutA.
outlet:
Shut off both hot and cold water supplies.1.
Use 3/32” hex wrench to loosen handle set screw and2.
remove handles (A1,A2), bonnet nuts (B), and cartridges(C).
Check and replace springs and seats (D). If they are3.
damaged.
Reassemble handles (A1,A2), bonnet nuts (B), and4.
cartridges (C). NOTE: Make sure cartridge stops face
towards spout.
If seepage still occurs, replace cartridges (C).5.
If faucet has low ow:B. Remove aerator, clean all internal debris, and make sure the1.
rubber washer is not damaged before tightening the aerator
back.
Repeat Trouble Shooting “A” and clean any debris trapped2.
in the seats and springs (D).
If handles do not stop turning:C. Shut off both hot and cold water supplies.1.
Remove handles (A1,A2) and bonnet nuts (B).2.
Check stops on cartridges (C) or inside handles (A) for3.
damages.
Replace necessary parts.4.
OLYMPIA FAUCETS, INC. LIMITED LIFETIME WARRANTY *
Olympia Faucets, Inc. warrants its products to the original consumer purchaser to be free from defects in material
and workmanship as long as the consumer purchaser owns it. Dated proof of purchase must accompany all war-
ranty claims. PVD nishes carry a lifetime warranty in residential service.
Olympia Faucets, Inc. will replace, free of charge, to the original consumer purchaser, any and all parts that
prove defective under normal installation, use, and service. Damage as a result of misuse, abuse, accident, or
improper installation, will consequentially void this warranty. Replacement parts can be obtained from your local
dealer or directly from Olympia Faucets. Olympia Faucets, Inc. recommends using a certied plumber for all
faucet installation and repair.
This warranty is limited to replacement of defective parts only. Incidental and consequential damages, labor
charges, repair, or replacement costs are expressly excluded. Some states do not allow the exclusion or limita-
tion of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives
you specic legal rights, as you may have other rights of which vary from state to state.
Installation or maintenance and cleaning must be in compliance with instructions furnished with every Olympia
product. If you nd a problem with your product, please immediately contact your nearest Olympia Faucets, Inc.
dealer or sales representative.
* 2 year limited warranty on commercial and multi-family projects.

Thank you for purchasing this quality product. Olympia products are rigorously tested to provide long service
under normal conditions. Prior to installation, familiarize yourself with this parts diagram. Make sure that you have
all of the illustrated parts for your Olympia product before installation.
ITEM # DESCRIPTION
A1 OP-190010C,H Lever Handle Cold, Hot (For
L-724X)
A2 OP-190015C,H Lever Handle Cold, Hot (For
L-727X)
B OP-490040 Bonnet Nut
C OP-390004 Cartridge–Brass Post
D OP-490041 Springs & Seat
E OP-590003 Mounting Locknut & Washer
F OP-590001 Supply Nut
G OP-430007 1.5 GPM Aerator
H OP-630004
OP-630002
50/50 Pop-Up Drain Assembly
Brass Pop-Up Drain Assembly
I OP-430005 Hole Cover ( For L-7241,
L-7271)
1 OP-490029 Allen Screw
INSTALLATION INSTRUCTIONS
Tools you will need:
Plumbers Putty• Teon Tape•
Screwdriver• Flexible Supply Lines•
Pipe Wrench• Adjustable Wrench•
Basin Wrench• Soft Cloth•
FAUCET INSTALLATION:
Carefully shut off both hot and cold water supplies from under the sink. Plug the sink drain with1.
a soft cloth to prevent intrusion of debris or the loss of any faucet parts. If this installation is for a
replacement, carefully remove the existing faucet and clean the entire surface of the sink mounting
holes.
Apply adequate plumbers putty along the boundary of the bottom of the Faucet.2.
Gently align the faucet with the sink mounting holes and place the faucet on the sink. Use caution to3.
lead brass waterways through the sink mounting holes.
Thread friction washers and mounting locknuts (E) along the brass waterways. Carefully hand4.
tighten the locknuts. CAUTION: Do not overtighten.
Connect both hot (LEFT INLET) and cold (RIGHT INLET) waterways to water supply lines. NOTE:5.
If additional adapters or supply lines are required, they may be purchased from the same location
where this faucet was purchased. Use with teon tape when attaching supply lines to waterways.
POP-UP DRAIN ASSEMBLY INSTALLATION:
Thread mounting nut and bottom gasket of the pop-up drain assembly (H) onto the drain body.1.
Wrap bottom threaded end of the ange with teon tape. Apply adequate amount of plumbers putty
to the underside of the ange.
Gently slip the drain body up through the drain opening. Thread ange onto drain body, holding the 2.
drain body in position with the pivot rod opening facing the back of the sink. Tighten the mounting
nut securely with a wrench.
Place pivot rod in pivot rod opening. Slide pivot nut over pivot rod and thread it onto the drain body.3.
Hand tighten until it is snug. CAUTION: Be careful not to overtighten.
With the lift rod in position on the faucet lift rod hole, insert the rod through the lift rod strap and4.
secure with the set screw.
Guide the pivot rod through one of the holes on the lift rod strap and secure it with the spring clip,5.
then adjust the height of the lift rod by resetting the set screw.
FINAL PRODUCT INSTALLATION:
Turn on the hot and cold water supplies. Check all around for any minor joint leaks. NOTE: Inspect1.
for any leaks around the connections to the supply lines.
Remove aerator (G) from end of spout. Turn on both side of handles to ush water lines by allowing 2.
water to run through for one minute. Replace aerator (G).
CAUTION: MAKE SURE TO TIGHTEN THE AERATOR SECURELY AFTER FLUSHING THE WATER
LINES TO PREVENT FROM FUTURE WATER SEEPAGE UNDER THE BASE PLATE AND SINK.
