DIRECTREC
DR-2000
Executive Kit
INSTRUCTIONS
Thank you for purchasing an Olympus
DIRECTREC.
Please read these instructions for information
about using the product correctly and safely.
Keep the instructions handy for future reference.
EN

2
Main Features
●New and improved microphone system reduces extraneous sounds such as
wind or machine noise created while recording and thus enabling a higher
quality of sound recording than ever before.
●New design and location of buttons enable single-handed control without
ever having to visually check the placement of function buttons. Directrec
fits easily into your hand providing effortless control coupled with superb
dictation experience (☞P.4).
●The Directrec has 3 programmable (A,B,C) buttons (☞P.30,31).
●All button functions are easily customized to suit a particular preference or any
recording environment (☞P.30-34).
●USB Audio Device Directrec, can be used as a USB microphone or USB speaker
when connected to a PC. In addition, a powerful built-in speaker provides hi-
fidelity acoustic playback.
●Directrec can be used as a remote-control for the DSS Player Pro (referred to as
DSS Player from now on) not only for direct recording, but also when editing
recorded files on a PC.
●Directrec can save a recording as a file on a PC in DSS (Digital Speech Standard)
format.
●Two recording modes, SP (Standard Playback) mode or LP (Long Playback)
mode (☞P.20).
●Microphone sensitivity can be adjusted to better suit recording conditions and
environment (☞P.20).
●Multi-level priority setting (☞P.24).
This product is equipped with the following features.
OLYMPUS IMAGING CORPORATION holds the copyrights for DSS Player Pro software
and the instructions (this manual).
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Intel and Pentium are registered trademarks of Intel Corporation.
Other product and brand names mentioned herein may be the trademarks or registered
trademarks of their respective owners.

3
Table of Contents
Identification of Parts ............................ 4
Minimum Requirement ......................... 5
Installing DSS Player Software ............ 6
Uninstalling DSS Player Software ........ 7
Using Online Help................................. 8
Connection to Your PC ......................... 9
Running DSS Player........................... 10
Window Names................................... 11
Using the Remote Edit Window ........ 12
Direct Recording ................................. 14

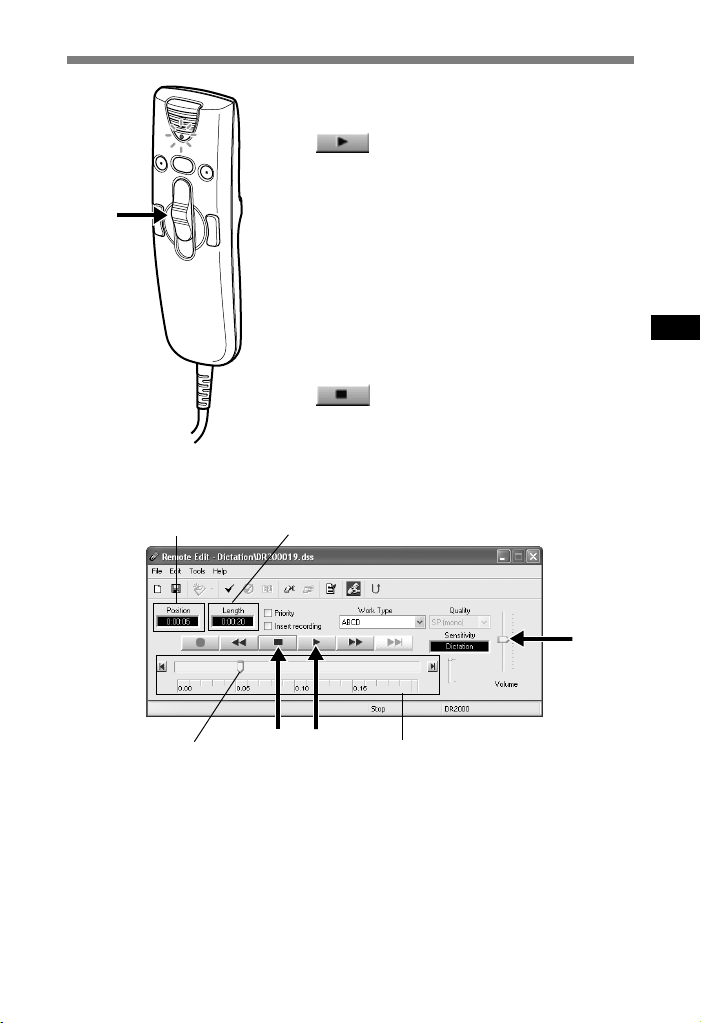

Playback (Playing a Dictation File) .... 17
Save Recording .................................. 19

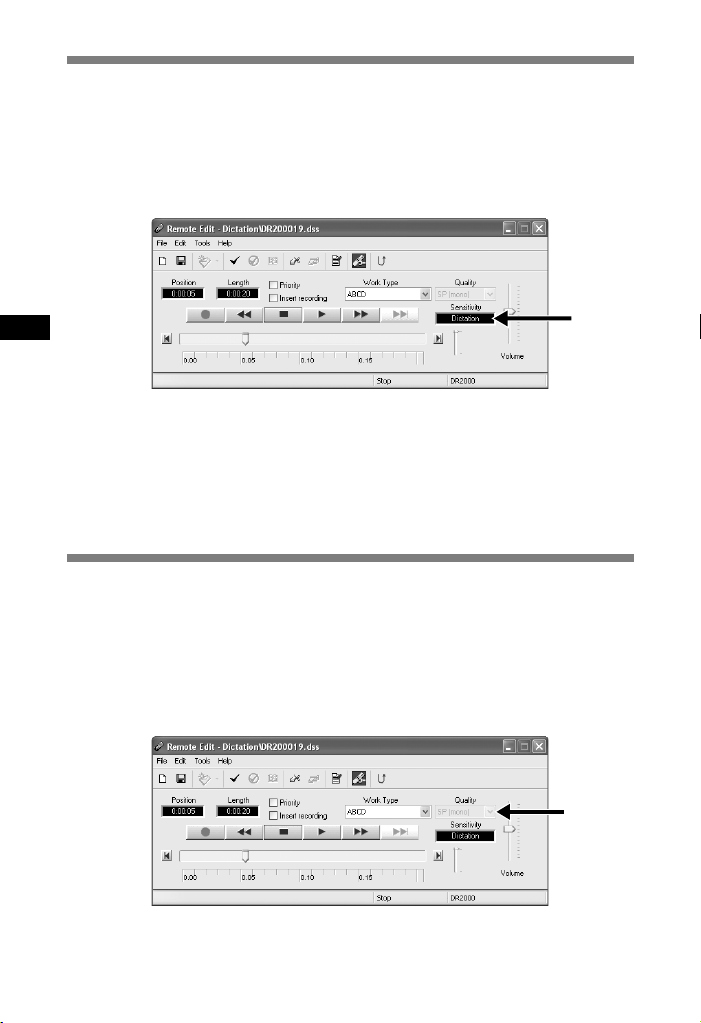

Microphone Sensitivity ....................... 20
Recording Modes ............................... 20
Index Marks ........................................ 21
Setting Priority Levels......................... 24
System Sounds .................................. 25
Setting Job Data ................................. 26
Directrec Button Function
Customization ..................................... 30
Troubleshooting .................................. 35
Specifications ..................................... 36
Technical Assistance And Support ..... 36
Introduction
Getting Ready
Let’s Get Started
User Support

4
1Built-in microphone
2Record/Play indicator light
3B(Programmable) button
4Slide REC (Record)/
STOP/
PLAY/
REV (Review) switch
5FF (Fast Forward) button
6NEW button
7A(Programmable) button
8REW (Rewind) button
9Built-in speaker
0C(Programmable) button
!USB Cable
Identification of Parts
1
2
3
4
5
6
7
8
9
0
!

5
Minimum Requirement
IBM PC/AT compatible PC
Microsoft Windows Me/ 2000 Professional/
XP Professional,Home Edition
Intel Pentium II class 333 MHz processor or faster
(Processor 500 MHz or faster is recommended)
128 MB or more (256 MB or more is recommended)
50 MB or more
2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive
Creative Labs Sound Blaster 16 or 100% compatible
sound card
Microsoft Internet Explorer 4.01 SP2 or later
800 x 600 pixels or more, 256 colors or more
One or more free ports
PC:
Operating System:
CPU:
RAM:
Hard drive space:
Drive:
Sound card:
Browser:
Display:
USB port:
Make sure that your computer meets the Minimum requirements listed below.
Please check with your system administrator or your Olympus Professional
Dealer.

6
Installing DSS Player Software
1
Insert Olympus DSS Player CD into the CD-ROM drive.
The installation program will start automatically.
If the installation program does not start automatically, browse your CD-ROM
drive and execute “setup.exe”.
2
The installation Language Selection dialog box appears.
Select the desired language.
3
Register user information.
Enter your name, company name, and license ID number (serial number).
The license ID number is printed on the license ID card included inside the
recorder package.
Click the [Next] button. When a confirmation dialog box appears, click the [Yes]
button.
4
Proceed with the installation according to the instructions on the
screen.
Before you connect your Directrec to your PC, you must first install the DSS
Player software.
Make sure to exit all running applications, eject the floppy disk if you are using
one, and logon as administrator if you are running Windows 2000/XP (Profes-
sional only) on the network.

7
Uninstalling DSS Player Software
1
Exit DSS Player program.
2
Click the [start] button on the taskbar.
3
Select [Add/Remove programs] from the [Control Panel].
A list of installed applications is displayed.
4
Select [Olympus DSS Player Pro], then click the [Change/Remove]
button.
5
Proceed with the uninstallation according to the instructions
on the screen.
To uninstall any of the software components of the DSS player software installed
on your PC, follow the steps below.
..............................................................................................................................
Note
•Uninstallation does not erase the stored dictation files.

8

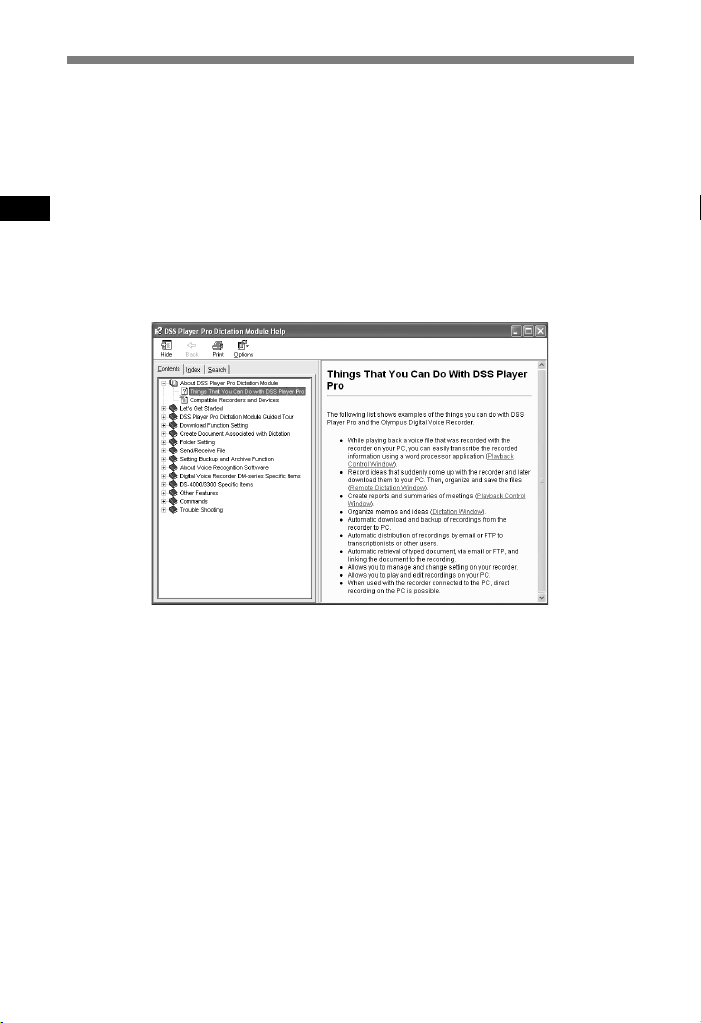

For information on the DSS Player usage and features, refer to the online Help.
To start online Help:
Using Online Help
•Click the [start] button, then select [All Programs], [Olympus DSS
Player Pro], [Dictation Help].
•While DSS Player is running, select the [Help] menu, [Contents].
•While DSS Player is running, press F1 on the keyboard.
......................................................................................................................................
Note
•For more information on menus and operations, refer to Online Help. Online Help is
available after the DSS Player is installed.

9
Connection to Your PC
Be sure to install the DSS Player software before connecting the Directrec to the
PC. However, if you do connect the Directrec before or during the software instal-
lation, the “Add New Hardware Wizard”will appear. In this case, cancel the wizard
by pressing the [Cancel] button in the wizard screen and then install or continue
the installation of DSS Player software.
1
Connect the Directrec USB cable
directly into the USB port or USB hub
of your PC.
When the DSS Player is activated, the
icon will appear in Device Tree View (☞P.11 )
in the Dictation Module.
Connecting to Your PC Using the USB Cable
Disconnecting from Your PC
1
Disconnect the Directrec USB cable from your PC USB port or
USB hub.
......................................................................................................................................
Notes
•Some PCs and USB hubs may not supply sufficient power and the Directrec fails to
connect. Refer to your PC User’s Manual regarding the USB port or USB hub on your PC.
•When using a USB hub to connect the Directrec, always use a self-powered (AC adapter)
USB hub.
•Never disconnect the USB cable while the record/play indicator light is flashing. If you do,
the data will be destroyed.

10
Running DSS Player
Disabling automatic start
1
Right-click the Device Detector icon in the System Tray in
the lower right hand corner of the screen, then select “Settings
startup application”.
2
Click [DSS Player Pro].
The check mark on [DSS Player Pro] disappears.
By default, connecting the Directrec to your PC will start the application auto-
matically.
1
Start Windows.
2
Click the [start] button, then select [All Programs].
All program menus will be displayed.
3
Select [Olympus DSS Player Pro], then click [Dictation Module].
Manual start
......................................................................................................................................
Note
•If you connect the Directrec before installing DSS Player, the “Add New Hardware Wizard”
dialog box will open. If this happens, click [Cancel] to exit the wizard, then install the DSS
Player software.
23

11
1
4
2
3
1Playback Control Bar
Provides the control buttons to play and stop dictation files.
2Dictation Tree View
Displays the directory structure of the DSS, WAVE-format files stored on your
PC’s hard disk.
Recordings made using Directrec will be saved as a file in the Message Tray
() in the Dictation Folder ( ).
3Device Tree View
Displays the directory structure of the Directrec.
4Dictation List View
Displays the dictation files in the folder selected in 2and 3.
Window Names
Massage Tray
Main Window(Windows XP)
* Main screen is displayed when DSS Player is started

12
Using the Remote Edit Window
1
Ensure Directrec is properly connected to your PC and then start
the DSS Player.
DSS Player main window appears.
2
From the DSS Player main window, click the [File] menu, then
select [New File...], or click the icon.
[Remote Edit] window appears.
3
Directrec button functions are completely supported when the
[Remote Edit] window is open.
Starting the [Remote Edit] window for the DSS Player main window
......................................................................................................................................
Notes
•Ensure that the [Remote Edit] window is open when you use Directrec, or the remote
control will not function.
•The [Remote Edit] window can also be displayed without opening the main menu when
starting the DSS Player (☞P.13).
For enjoyable recording experience, use Directrec with the DSS Player software
to record to your PC. The DSS Player can be configured to provide you with
complete remote control over your recording session from the Directrec without
the use of the PC mouse.

13
ndow
Starting the [Remote Edit] window without opening the DSS Player main window
With a push of a button on the Directrec, you can set your PC to open the [Re-
mote Edit] window directly without entering the DSS Player main window.
1
From the DSS Player main window, click the [Tools] menu, select
[Options...], then click the [Directrec] tab.
2
Check [Start Remote Edit window automatically when Dictation
Module is launched] and then click the [OK] button.
The pre-settings are now complete.
When pre-settings are checked, the computer recognizes the Directrec device
connection as the DSS player starting, and opens the [Remote Edit] window
without opening the main application window (☞P.11).
2

14

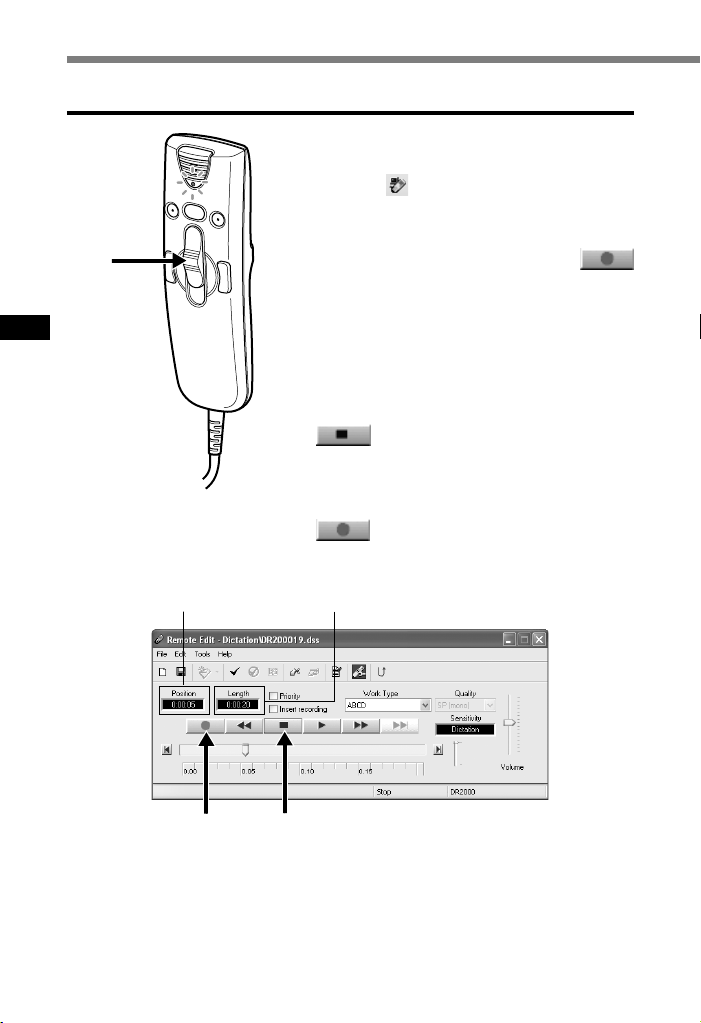

New Recording
1
From the DSS Player main window, click
the [File] menu, then select [New File], or
click the icon.
[Remote Edit] window appears.
2
Move the slide switch on the Directrec
to the REC position or press the
(Record) button in the [Remote Edit]
window to start recording.
The red record/play indicator light on
Directrec will become lit. Point the micro-
phone at the sound source.
3
Move the slide switch on the Directrec
to the STOP position or press the
(Stop) button to stop
recording.
If you want to append additional recordings
to the same file, Move the slide switch on the
Directrec to the REC position or press the
button again.
Direct Recording
2,3
Current recording
time Remaining recording
time
2 3

15

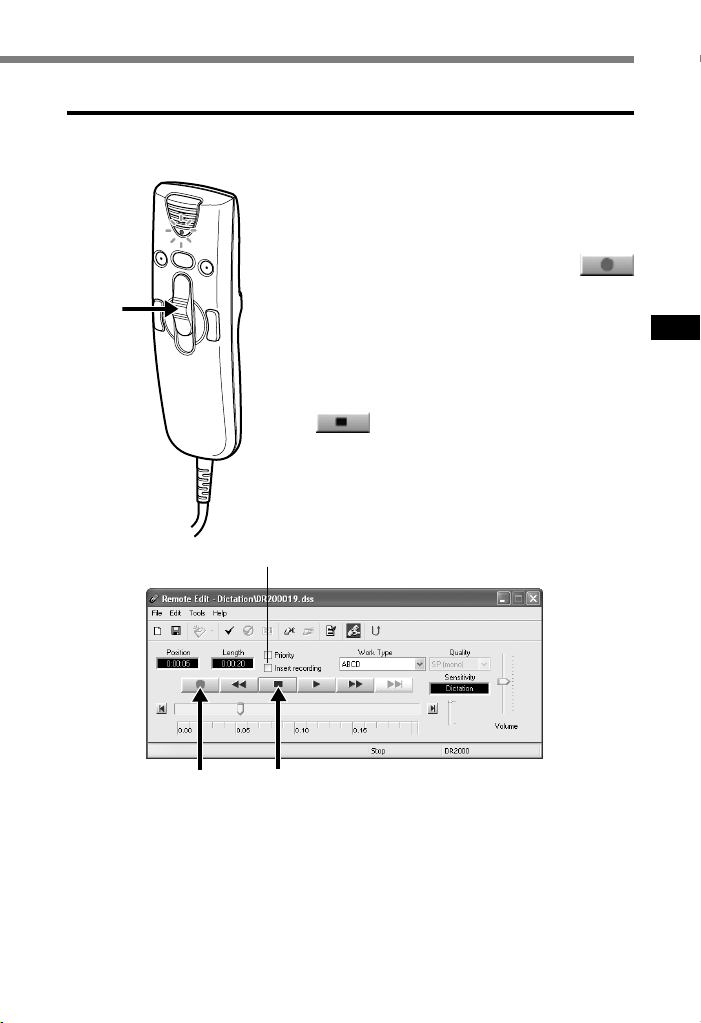

Overwrite Recording
You can overwrite a previous recording from any point within the file.
Note that the overwritten recordings will be premanently erased.
1
Make sure you are at the starting point
of the recording to be overwritten.
2
Move the slide switch on the Directrec
to the REC position or press the
(Record) button in the [Remote Edit]
window.
The record/play indicator light on the Directrec
will light up and Overwrite Recording will start.
3
Move the slide switch on the Directrec
to the STOP position or press the
(Stop) button in the [Remote
Edit] window to stop overwriting.
......................................................................................................................................
Notes
•Ensure that the “Insert recording”box (☞P.16) in the [Remote Edit] window is not checked
or the overwrite recording will not proceed.
•You cannot select a different recording mode (SP, LP) than that of the original file before
overwriting a recording.
2,3
2 3
Do not check here.

16
Insert Recording
Additional recording can be inserted into a previously recorded file.
1
Check ( )“Insert recording”box in
the [Remote Edit] window.
2
Make sure you are at the right position
in the file where recording insert
should take place.
3
While playing the file, move the slide
switch on the Directrec to the REC
position or press the (Record)
button in the [Remote Edit] window to
start inserting an additional recording.
The red record/play indicator light on
Directrec will become lit.
4
Move the slide switch on the Directrec
to the STOP position or press the
(Stop) button in the [Remote
Edit] window to the stop inserting the
additional recording.
......................................................................................................................................
Notes
•Ensure that the “Insert recording”box in the [Remote Edit] window is checked or the
recording will not be inserted.
•If you place the slide switch in the STOP position for more than two seconds while moving
the slide switch from the PLAY position to the REC position, the Inserted recording will be
cancelled.
•You cannot select a different recording mode (SP, LP) than that of the original file before
overwriting a recording.
34
1
Direct Recording
3,4

17
Playback (Playing a Dictation File)
1
Move the slide switch on the Directrec
to the PLAY position or press the
(Play) button in the [Remote
Edit] window to start playback.
The green record/play indicator light on
Directrec will become lit.
2
Adjust the volume slider in the
[Remote Edit] window to the required
level.
The recording will be played through the
Directrec speaker.
3
Move the slide switch on the Directrec
to the STOP position or press the
(Stop) button in the [Remote
Edit] window at any point you want
to stop the playback.
1,3
2
3 1
Playback slider
Shows the current
playback position
Time axis
Current playback
time Total recording time of the file being played

18
Playback functions
Operation
Press the button once while
stopped.
Press the button once while
stopped.
Hold the button while stopped
or playing a file.
Hold the button while stopped
or playing a file.
How to Cancel
Press the button.
➥Recorded file will play again.
Release the button.
Release the button.
Playback
functions
Fast Forward
(FF)
Rewind (REW)
Cue (CUE)
Review (REV)
Playing (Playing a Dictation File)
•Please refer to our Online Help for further information about Directrec functions and controls
(☞P.8).
Various functions are available with Directrec and the [Remote Edit] window to
playback a recorded file.
Operation
Press the FF button once while
stopped.
Press the REW button once while
stopped.
Hold the FF button while stopped or
playing a file.
Hold the REW button while stopped
or playing a file.
Move the slide switch to the REV
position.
How to Cancel
Move the slide switch to a position
other than the STOP position.
➥The Directrec starts the
operation of the set position.
Release the button.
Release the button.
Release the slide switch.
Playback
functions
Fast Forward
(FF)
Rewind (REW)
Cue (CUE)
Review (REV)
Directrec playback functions
Functions using the [Remote Edit] window

19

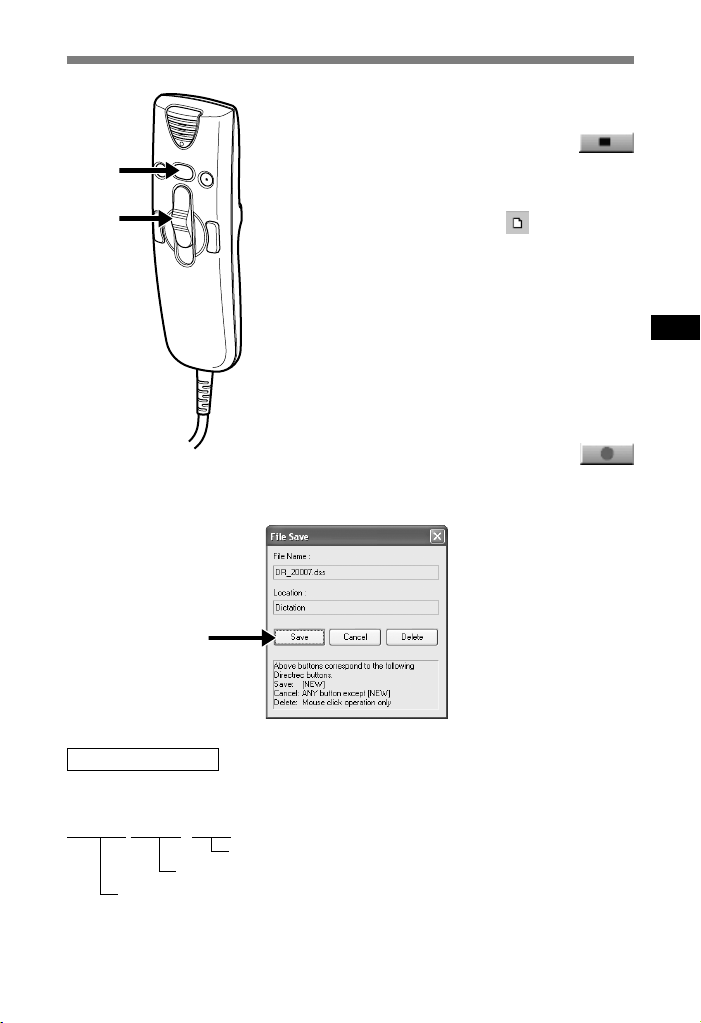

Save Recording
1
To save the current recording, move the
slide switch on the Directrec to the
STOP position or press the
(Stop) button to stop recording.
2
Either press the NEW button on
Directrec or click the icon on the
toolbar in the [Remote Edit] window.
[File Save] window will appear to save the data.
3
To save the file, either press the NEW
button on Directrec or click the [Save]
button on the [Remote Edit] window.
The recorded data will be saved.
4
The Directrec is now available for
recording on a new file.
Move the slide switch on the Directrec
to the REC position or press the
(Record) button in the [Remote Edit]
window to start recording.
2,3
DR_2 0001.dss
Extension
File number .... Aserial number automatically assigned by the DSS Player.
The ID that has been set on the Directrec. The default ID is “DR_2000”.
The Author ID can be modified with DSS Player (☞P.26-28).
File names are assigned in the following manner.
File Name Format
3
4

20
Microphone sensitivity is adjustable to meet recording needs.
Microphone Sensitivity
Recording Modes
1
Select from the “Sensitivity” box either “Dictation” or
“Conference” in the [Remote Edit] window.
Conference :The high-sensitivity mode suitable for recording the ambient sounds.
Dictation :The low-sensitivity mode suitable for recording dictation.
......................................................................................................................................
Note
• If you want to record clear or noise-free dictation, select Dictation mode and place the
microphone 5 to 10 cm (2 to 4 inches) from the source.
1
Select from the “Quality” box either “SP(mono)” or “LP(mono)” in the
[Remote Edit] window.
SP: Default recording mode.
LP: Can record in a smaller file size with the same recording time as the SP mode.
......................................................................................................................................
Note
• Choose SP mode for recording meetings or lectures with crisp clarity.
1
1
Two recording modes are available with the Directrec. SP (standard recording)
and LP (long-term recording).
