Omcan CE-CN-0034-T User manual

Revised - 09/11/2020
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Induction Cooker
Model CE-CN-0034-T
Item 44744
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 6
-------------------------------------------------------------------------- 6
-------------------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------- 8 - 9
--------------------------------------------------------------------------------------- 10
----------------------------------------------------------------------------- 10 - 11
---------------------------------------------------------------------------- 12 - 13
---------------------------------------------------------------------------- 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Warranty Registration
Model CE-CN-0034-T

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
General Information
Safety and Warranty
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
IMPORTANT SAFETY INFORMATION
CAUTION: Read all instructions before using this appliance. Before operating your cooktop, do the
following:
• Remove all packing material and save for subsequent shipment or in case of concealed shipping damage.
• Place the unit on a dry, level, stable, and non-ammable surface.
• Keep unit away from other heat sources.

5
Safety and Warranty
• Do not touch hot surfaces.
• To protect against electrical shock, do not immerse cord or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking o󰀨 parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair
or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance rst, then plug cord into the wall outlet. To disconnect, turn any control to
“o󰀨”, then removed plug from wall outlet.
• Do not use appliance for other than intended use.
• Save these instructions.
NOTE: Do not use extension cord. If one must be used, use a cord with a minimum of 1.5mm gauge
and no longer than 3 meter.
If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of
purchase, it will be repaired free of charge.
This Guarantee is subject to the following terms:
• OMCAN must be notied of ant malfunction.
• Proof of purchase must be present to OMCAN or its nominated representative.
• The warranty will be void if the product if modied, misused or repaired by an unauthorized person.
• If the power cord has broken, please send the unit to the nominated representative for repair.
• The warranty after repair will not be extended beyond the original one-year period.
• All replacement parts will be new or reconditioned.
• Parts, which are replaced, become the property of OMCAN.
• The warranty applies for the use of the product in the Canada and USA only.
What is NOT COVERED:
• Warranty DOES NOT include freight charges.
• Incidental or consequential damage caused by possible defects with this product.
• Damage to product caused by improper power supply voltage, accident, re, oors or acts of nature.
• Failure of product resulting from unauthorized modications to the product.
• Improper installation or failure to perform the necessary maintenance.
This GUARANTEE is in addition to your Statutory Rights
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

6
Technical Specications
Model CE-CN-0034-T
Safety Devices
Overheat Protection
Automatic Hazard Detection
Circuit Protection Sensor
High Voltage
Small Object Heat Prevention
Thermostat
Pan Material Detection
Electrical 220V / 60Hz / 1
Ceramic Plate Dimensions 13.8” x 13.8” x 0.16” / 350 x 350 x 4mm
Power 3400 W
Dimensions 18.1” x 22” x 5.1” / 460 x 560 x 130mm
Item Number 44744
Safety and Warranty
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete information.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7
Installation
ELECTRICAL INSTALLATION REQUIREMENTS
Every installation site has di󰀨erent electrical wiring. Because many di󰀨erent local codes exist, it is the Owner
and Installer’s responsibility to comply with those codes. Omcan is not responsible for any consequential
damages as a result of failure to comply with installation requirements:
1. Read all installation instructions carefully before starting installation.
2. Remove all loose packaging and accessories and save for subsequent shipment or in case of concealed
shipping damage.
3. It is the responsibility of the installer to comply with all federal, state and local codes.
4. Any installation not matching the specications discussed in this manual automatically voids the product’s
warranty.
5. Company recommends that a dedicated electrical line be used for each cooktop installed.
Note: Electrical circuits should not be shared with any other electrical equipment.
Please follow the listed guidelines below to ensure product reliability:
Spacing Requirements:
• All units requires a minimum clearance of four 4’’(101.6mm) between all sides of the housing and any
surface or obstacle.
• All drop-in/built-in units requires a minimum clearance of open space below the unit of six 6’’ (152mm).
The space must have openings allowing for the ow of cool air to the cooktop housing intake vents. If
either the air intake or exhaust outlet is blocked, the internal temperature will rise, causing an error code to
occur (NOTE: The 6’’(152mm) can be reduced if additional fans and ducting are added to provide forced
ventilation).
• Avoid installing the unit near other equipment that generates excessive heat that can be pulled into the unit
by its fan (i.e. griddles, fryers, etc.).
• Avoid placing the unit near items that generate excessive steam that can be pulled into the unit by its fan
(i.e.pasta cookers, steam baths, dishwashers, etc.).
Electrical Requirements:
• Always provide a dedicated electrical circuit for the equipment.
• Never use an extension cord or power strip, if one must be used, use a cord with a minimum of 1.5mm
gauge and no longer than 3 meter.
General Maintenance:
• All units should be checked for build up and debris around the intake and exhaust vents on the bottom of
the unit.
• If debris is found on the vents, you should unplug the unit and clean away the debris with a dry cloth to
ensure proper airow is provided to the equipment.
Air ow and Ambient Temperature:
• Avoid ambient temperatures exceeding 50˚C/122˚F.
General:
• Never leave an empty pan on the unit.
• Always turn the unit o󰀨 when not in use.

8
Operation
CONTROL PANEL
1. ON/OFF key.
2. Power function key.
3. Temperature function key.
4. Timer function key.
5. ‘+’ increase.
6. Power indicator light.
7. Temperature indicator light.
8. Timer indicator light.
9. LED for display Power Level, Temperature, Timer.
10. ‘-’ decrease.
COOKING BY POWER/TIMER/TEMP (WATTAGE)
The operation of this induction cooktop has three functions:
POWER, TIMER & TEMP. In <POWER> Function (POWER indicator is on):
• LED displays 3 or 4 digit number, indicating the power level (1-10) l Unit will continuously cook until:
manually shut o󰀨.
In <TIMER> Function (TIMER indicator is on):
LED displays a one, two or three digit number, indicating cooking time.
• Unit will cook until set timer is reached.
• When set timer is reached, unit will stop heating.
In <TEMP> Function (TEMP indicator is on):
LED displays a two or three digit number, indicating cooking temperature.
HOW TO USE
1. Plug in power cord (220V / 60Hz) - unit will blink once and indicator is on.
2. Please use suitable induction rated cookware and add food contents.
3. Touch ON/OFF button (red indicator light is illuminate), unit will auto shut o󰀨 after 1 min with no cookware

9
Operation
placed.
4. - Touch TIMER button to select setting timer.
TIMER mode: LED displays timer.
- Touch TEMP/POWER button to select setting temperature or power.
5. Touch POWER or TIMER button to set power level or time.
Timer mode:
Touch “+” or “-” buttons to set in 1-minute increments (0-90 min), long-press “+” or “-” buttons to set in
5-minute increments. LED will display POWER/TEMP within 8s after setting timer. Touch Timer button for
the third time, then the Timer will be shut o󰀨.
6. When cooking is done, turn unit o󰀨 by touching the ‘ON/OFF’ button.
NOTE:
• If unit is o󰀨, you must touch the ON/OFF button.
• Safety feature: if no cookware is placed, unit will shut o󰀨 after 1 minute.
• To avoid temperature jump, please cook at least 1 quart of food/content.
UNSUITABLE COOKWARE
The below cookware are not suitable for the induction cooktop.
• Cookware with a diameter less than 12cm (4.5”).
• Copper, bronze and aluminum cookware.
• Glass cookware.
• Pottery.
• Ceramic cookware (without special coating).
• Pans with feet.
• Flat tray.
BEFORE USE
• Place cooktop on at surface, but keep away from the wall or other articles. For best results, leave at least
4” from all sides. When the air entrance or the air outlet is blocked, the internal temperature of the cooktop
rises and may automatically shut o󰀨 during cooking.
• Keep away from water source; the cooktop will not work if the air inlet and the air outlet are wet.
• Keep away from gas range or coal oil stove. If the surrounding temperature is high, cooker will stop
heating.
• Please do not use this cooktop near credit card, disc, watch or radio.
DURING USE
• Do not place a sealed can on the cooktop. It may explode.
• Do not place paper or cloth in between the cooktop and cookware to prevent over heating.
• If the cooking oil is not enough or an empty pan is left on the cooktop for too long, it will damage the
cookware.

10
Maintenance
Troubleshooting
CARE AND CLEANING
The Omcan Induction Cooktop is easy to keep clean. Be sure to follow these easy instructions:
• Turn the unit OFF and remove the plug from any power outlets prior to cleaning.
• When the unit is cool, wipe the surface and body with a damp cloth. Use a mild scouring agent on the
stainless steel housing for greasy or resistant soiling. DO NOT use a lye-based cleaner, such as an oven
cleaner, as it may damage the cooktop.
• To clean the glass surface, use a mild detergent or glass cooktop cleaning cream.
• Never immerse the cooktop in water or put it in the dishwasher.
NOTE
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm
to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect equipment to an outlet that’s on a di󰀨erent circuit than the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modications not expressly approved by the party responsible for compliance could void the
user’s warranty for the equipment.
Error Error Code Failure Analysis
Main board can not connect
with control panel.
EC/E16 Check the wire connection between the main PCB board
and display control board.
Circuit failure. E0 Check the coil is it open circuit?
Empty Pan Protection. E1 Is the pan placed on the induction cooker?
Is it an induction compatible pan?
Low Voltage Protection. E2 Check if the voltage is low.
High Voltage Protection. E3 Check if the voltage is high.
Temperature sensor open
circuit.
E4 Check if the Temperature sensor on heating sink was open
circuit, broken or unplug.
Temperature sensor short
circuit.
E4 Check if the Temperature sensor on heating sink.
Is the insulated leather broken or is the metal wire ex-
posed?
Check if the outlet is broken.

11
Troubleshooting
IGBT sensor open circuit. E7 Check if the IGBT sensor on heating sink was open circuit,
broken or unplug.
IGBT sensor short circuit. E7 Check the IGBT sensor on heating sink.
Is the insulated leather broken or is the metal wire ex-
posed?
Check if the outlet was broken.
Temperature sensor overheat. E8 Check if the oil container is empty.
Check if the exhausted fans under the coil is broken.
Poor heat dissipation.
IGBT sensor over heat. E9 Check if the fans in the main board was broken or the air
inlet was blocked, resulting in poor heat dissipation.
OTHER IMPORTANT SYMBOLS
Dangerous voltage
Non-ionizing electromagnetic radiation
REFERENCE
Item Number Model Number Description Manufacturer Model Number
44744 CE-CN-0034-T
Super Wide Commercial Induction Cooker
18x22x5 Inches 3400W 220V/60/1
cETLus/NSF for up to 14” Pot
SL-34-TP2

12
Parts Breakdown
Model CE-CN-0034-T 44744

13
Parts Breakdown
Model CE-CN-0034-T 44744
Item
No. Description Position Item No. Description Position Item No. Description Position
AD113 350 x 350 x 4mm Flat Glass Plate for
SL-34-TP2 1 AD119 7025 Fans on Main Board Cover for SL-34-TP2 7 AD125 8025 Back Fans for SL-34-TP2 13
AD114 TP2 Stainless Steel Housing for SL-34-TP2 2 AD120 Main Board Under Cover for SL-34-TP2 8 AD126 Filter for SL-34-TP2 14
AD115 3400W Flat Coil for SL-34-TP2 3 AD121 Wind Proof Cover for SL-34-TP2 9 AD127 KP2 Waterproof Slot for SL-34-TP2 15
AD116 Upper Case for Main Board for SL-34-TP2 4 AD122 TP2 Aluminum Base for SL-34-TP2 10 AD128 PCB Control Board for SL-34-TP2 16
AD117 12025 Fans on Heat Sink for SL-34-TP2 5 AD123 4335 Alloy Feet for SL-34-TP2 11 AD129 Glass Control Panel for SL-34-TP2 17
AD118 Main PCB Board for SL-34-TP2 6 AD124 80 Fan Net for SL-34-TP2 12 AD130 3 x 2.0mm 14 Power Line for SL-34-TP2 18

14

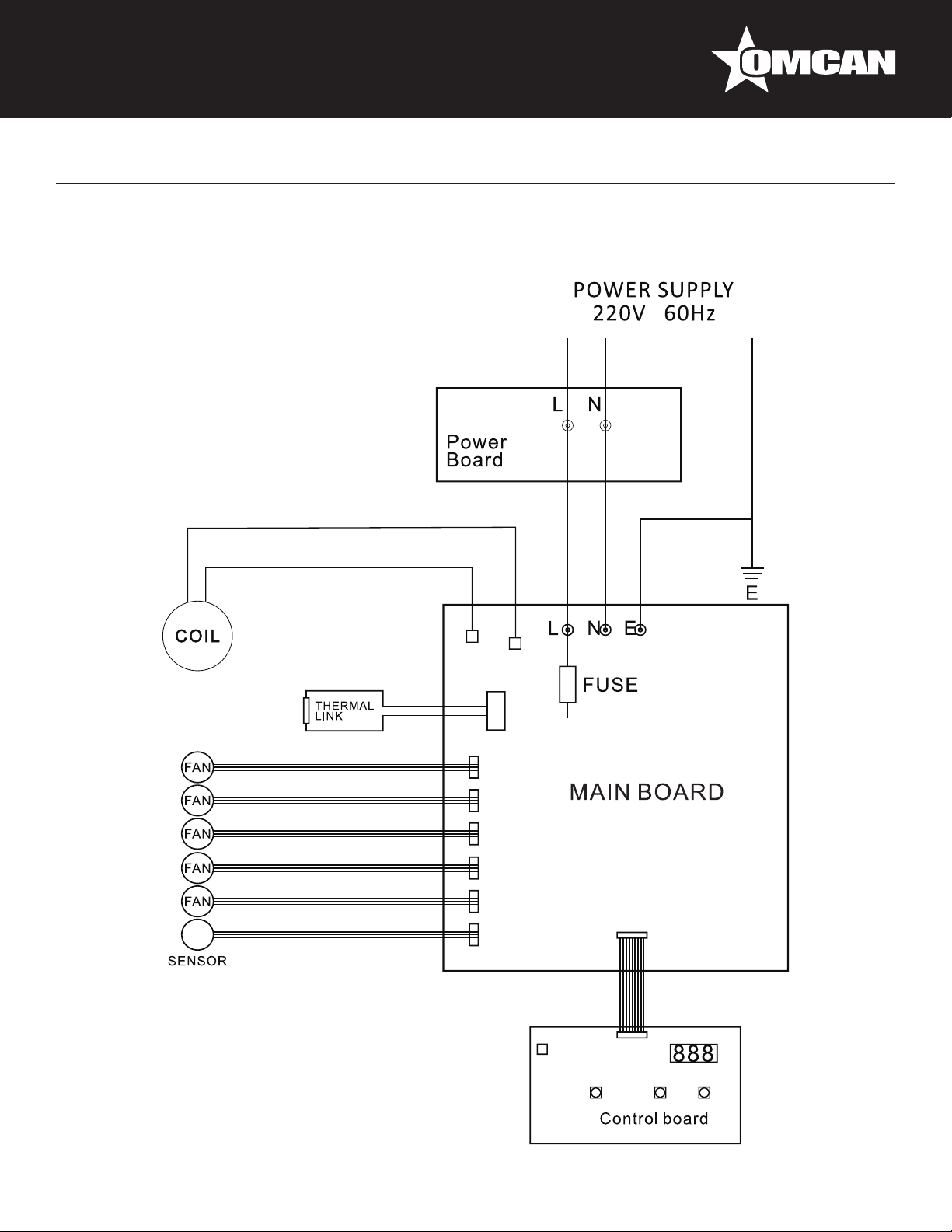

Electrical Schematics
Model CE-CN-0034-T 44744

15
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
