Omcan Fw-cn-0005-e User manual

Revised - 01/23/2018

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Hot Dog Rollers

Models FW-CN-0005-E, 0007-E, 0009-E

Items 44131, 44132, 44133

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

--------------------------------------------------------------------------------------- 5 - 7

--------------------------------------------------------------------------------------------- 7

------------------------------------------------------------------------------------- 7 - 8

----------------------------------------------------------------------------- 8 - 10

---------------------------------------------------------------------------- 11

------------------------------------------------------------------------------------------- 12 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model FW-CN-0005-E / Model FW-CN-0007-E / Model FW-CN-0009-E

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

5

Safety and Warranty

Technical Specications

Installation

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste

and can therefore be disposed of without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Model FW-CN-0005-E FW-CN-0007-E FW-CN-0009-E

Number of Rollers 579

Hotdog Capacity 12 18 24

Length of Rollers 17”/ 431.8 mm

Temperature 0 - 250°C / 32 - 482°F

Electrical 110V / 60Hz / 1

Power 0.7 kW 0.9 kW 1.2 kW

Weight 15 lbs. / 6.8 kgs. 19 lbs. / 8.6 kgs. 24 lbs. / 10.88 kgs.

Dimensions 10.25” x 23” x 7”

260 x 584 x 178mm

13” x 23” x 7”

330 x 584 x 178mm

16” x 23” x 7”

406 x 584 x 178mm

Item Number 44131 44132 44133

TRANSPORT AND STORAGE

During the transport the hot dog roller should be handled with care and should be protected against strong

vibrations and convulsions; the machine shouldn’t be stored outside. It should be stored in a well-ventilated

room.

6

Installation

HOT DOG ROLLER COVER ASSEMBLY

1. Take the hot dog machine, Glass cover, and sideboards carefully out of the carton. Please review the parts

list of the hot dog roller cover as follow to ensure you have all parts to complete assembly.

2. Place the plastic base onto the machine and fasten the screws, and then place one of glass panels into

one set of plastic base. Repeat for other side.

3. Put the curved top glass into plastic base and put it down on the machine body, fasten the cover to

machine with bolt on right place.

7

Maintenance

Operation

• Before any maintenance and cleaning or cleaning work, the machine should be switched off in order to

prevent any damage and injuries.

• For cleaning, please do not use any hard metallic objects. A soft dry cloth or pieces made of wood are

sufcient to prevent any damage to surface.

• Directly after use please clean the device only using a soft, dry close. Hence, the functionality of the drive is

not effected by dirt. Please DO NOT clean the machine with water to prevent damage and to ensure it can

function properly.

• Before the rst use please apply some vegetable oil onto the reels, so that they can move around smoothly.

• Turn on the power switch.

• Depending on the amount and desired degree of browning, you could regulate the temperature of the

wheel unit with using the buttons integrated on the front panel. The temperature control lamp lights up by

the time you adjust a selected temperature. Once the selected temperature is reached, the temperature

control lamp switches off automatically. If the temperature should be reduced again. The temperature

control lamp lights again. The temperature will automatically be adjusted. In the view its modern

construction and efcient design the machine is highly economical and energy-saving.

• Turn off the power switch after you are done cooking.

Installation

4. Set the front stainless plate onto the edge of the top glass, and tighten the front stainless plate to the glass

with nuts and bolts.

8

Maintenance

REFERENCE

Item Number Model Number Description Manufacturer Model Number

44131 FW-CN-0005-E Hot Dog Roller 5 Roll 110V/60HZ cETLus ET-R2-5

44132 FW-CN-0007-E Hot Dog Roller 7 Roll 110V/60HZ cETLus ET-R2-7

44133 FW-CN-0009-E Hot Dog Roller 9 Roll 110V/60HZ cETLus ET-R2-9

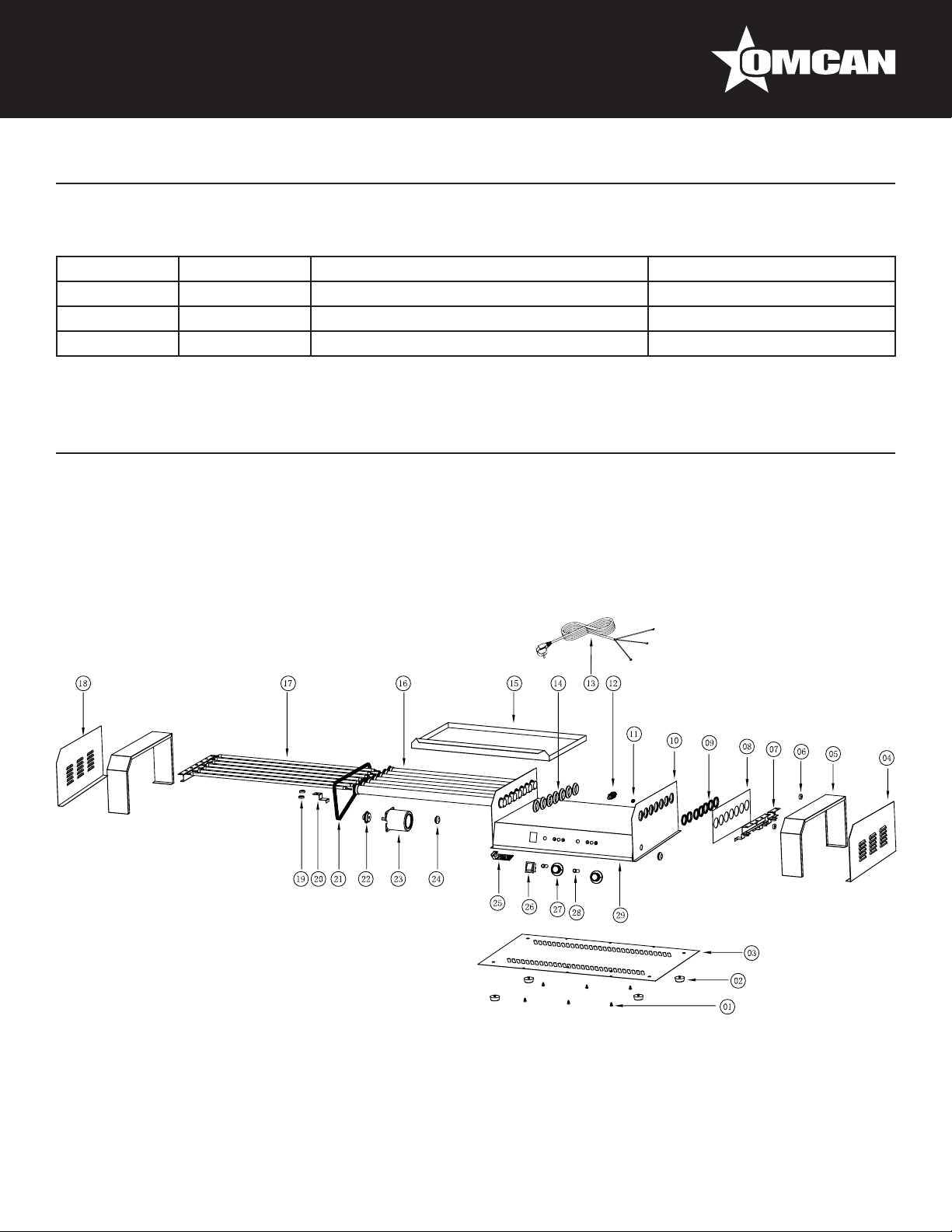

Parts Breakdown

Model FW-CN-0005-E 44131

Model FW-CN-0007-E 44132

Model FW-CN-0009-E 44133

9

Item No. Description Position Item No. Description Position Item No. Description Position

64679 Tapping Screw for ET-R2-5 1 64701 Ground Wire Screw for ET-R2-5 11 64715 5 Roller Chain for ET-R2-5 21

64680 Rubber Foot for ET-R2-5 2 64702 Fuse for ET-R2-5 12 64718 Wheel Gear for ET-R2-5 22

64681 Bottom Plate for ET-R2-5 3 64703 Power Plug for ET-R2-5 13 63458 Motor for ET-R2-5 23

64684 Right Side Plate for ET-R2-5 4 64704 Rubber Gasket for ET-R2-5 14 64719 Gasket for ET-R2-5 24

64687 Left and Right Frame for ET-R2-5 5 64705 Oil Tray for ET-R2-5 15 64720 Logo for ET-R2-5 25

64690 Silicone Pad for ET-R2-5 6 64708 Roller for ET-R2-5 16 64721 Switch for ET-R2-5 26

64691 5 Roller Heating Element Fixed Plate

for ET-R2-5 7 64709 Heating Pipe for ET-R2-5 17 64722 Temperature Controller with Knob for

ET-R2-5 27

64694 Left and Right Roller Fixed Plate for

ET-R2-5 8 64710 Left Side Plate for ET-R2-5 18 64723 Indicator Light for ET-R2-5 28

64697 Roller Sleeve for ET-R2-5 9 64713 Insulated Gasket for ET-R2-5 19 64724 Decal Sticker for ET-R2-5 29

64698 Right Inside Plate for ET-R2-5 10 64714 Insulation Pad for ET-R2-5 20

Item No. Description Position Item No. Description Position Item No. Description Position

64679 Tapping Screw for ET-R2-7 1 64701 Ground Wire Screw for ET-R2-7 11 64716 7 Roller Chain for ET-R2-7 21

64680 Rubber Foot for ET-R2-7 2 64702 Fuse for ET-R2-7 12 64718 Wheel Gear for ET-R2-7 22

64682 Bottom Plate for ET-R2-7 3 64703 Power Plug for ET-R2-7 13 63458 Motor for ET-R2-7 23

64685 Right Side Plate for ET-R2-7 4 64704 Rubber Gasket for ET-R2-7 14 64719 Gasket for ET-R2-7 24

64688 Left and Right Frame for ET-R2-7 5 64706 Oil Tray for ET-R2-7 15 64720 Logo for ET-R2-7 25

64690 Silicone Pad for ET-R2-7 6 64708 Roller for ET-R2-7 16 64721 Switch for ET-R2-7 26

64692 7 Roller Heating Element Fixed Plate

for ET-R2-7 7 64709 Heating Pipe for ET-R2-7 17 64722 Temperature Controller with Knob for

ET-R2-7 27

64695 Left and Right Roller Fixed Plate for

ET-R2-7 8 64711 Left Side Plate for ET-R2-7 18 64723 Indicator Light for ET-R2-7 28

64697 Roller Sleeve for ET-R2-7 9 64713 Insulated Gasket for ET-R2-7 19 64724 Decal Sticker for ET-R2-7 29

64699 Right Inside Plate for ET-R2-7 10 64714 Insulation Pad for ET-R2-7 20

Model FW-CN-0005-E 44131

Model FW-CN-0007-E 44132

Parts Breakdown

10

Parts Breakdown

Item No. Description Position Item No. Description Position Item No. Description Position

64679 Tapping Screw for ET-R2-9 1 64701 Ground Wire Screw for ET-R2-9 11 64715 5 Roller Chain for ET-R2-9 21

64680 Rubber Foot for ET-R2-9 2 64702 Fuse for ET-R2-9 12 64718 Wheel Gear for ET-R2-9 22

64683 Bottom Plate for ET-R2-9 3 64703 Power Plug for ET-R2-9 13 63458 Motor for ET-R2-9 23

64686 Right Side Plate for ET-R2-9 4 64704 Rubber Gasket for ET-R2-9 14 64719 Gasket for ET-R2-9 24

64689 Left and Right Frame for ET-R2-9 5 64707 Oil Tray for ET-R2-9 15 64720 Logo for ET-R2-9 25

64690 Silicone Pad for ET-R2-9 6 64708 Roller for ET-R2-9 16 64721 Switch for ET-R2-9 26

64693 4 ROLLER Heating Element Fixed Plate

for ET-R2-9 7 64709 Heating Pipe for ET-R2-9 17 64722 Temperature Controller with Knob for

ET-R2-9 27

64691 5 ROLLER Heating Element Fixed Plate

for ET-R2-9 7 64712 Left Side Plate for ET-R2-9 18 64723 Indicator Light for ET-R2-9 28

64696 Left and Right Roller Fixed Plate for

ET-R2-9 8 64713 Insulated Gasket for ET-R2-9 19 64724 Decal Sticker for ET-R2-9 29

64697 Roller Sleeve for ET-R2-9 9 64714 Insulation Pad for ET-R2-9 20

64700 Right Inside Plate for ET-R2-9 10 64717 4 Roller Chain for ET-R2-9 21

Model FW-CN-0009-E 44133

11

Electrical Schematics

Model FW-CN-0005-E 44131

Model FW-CN-0007-E 44132

Model FW-CN-0009-E 44133

M

K1 Power Switch

RHeater

M Motor

T1 Thermostatic Controller

T2 Thermostatic Controller

D1 Heating Indicator Light

D2 Heating Indicator Light

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan FW-CN-0005-E User manual

Popular Cooker manuals by other brands
