Omcan CE-CN-3500 User manual

Revised - 08/31/2017
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Induction Cooker
Model CE-CN-3500
Item 44226
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------------- 7
-------------------------------------------------------------------------------- 7 - 8
----------------------------------------------------------------------------- 9 - 10
---------------------------------------------------------------------------- 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting

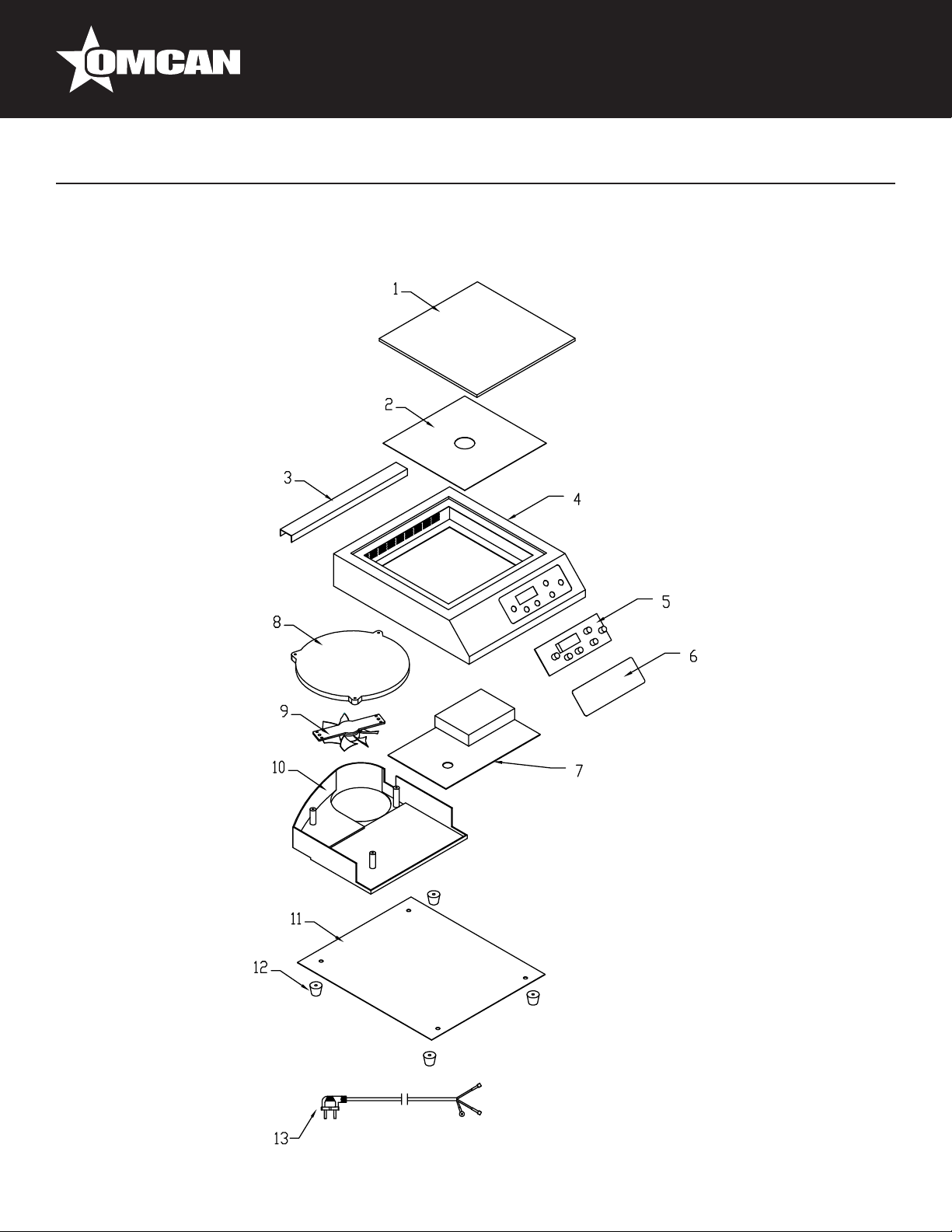

Parts Breakdown
Electrical Schematics
Warranty Registration
Model CE-CN-3500

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
Warning: Switch off the induction cooker in case of any crack on the cook-top panel.
1. Do not place the unit in any place that is near gas or hot environment in order to avoid damages or
malfunction.
2. To reduce the risk and damage, this plug should be t into an individual outlet. The rated electrical current
is not less than 16A.
3. Place the unit on a level surface, the distance between it and its background surrounding must be not less
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
than 10cm.
4. Do not immerse the appliance and electric cord in water liquid, or allow liquid to go into the cabinet and get
short/contact inner electrical parts, the power cord must be plugged out before cleaning.
5. Do not cover gas vent with anything during cooking, otherwise it will cause danger.
6. To avoid danger, please uncap the cover before heating tinned food.
7. If it is still not working after the inspection by self, please immediately contact Omcan, do not apart the unit
to avoid any danger.
8. Be sure to use the power cord recommended by the appliance manufacturer after it is damaged.
9. It would get dangers when the metal gets heated directly or indirectly.
10. Do not place any metal on the plate, also the nonmetal pad within 10cm.
11. Do not cook with an empty pot, it will cause malfunction or danger.
12. Always clean the unit to avoid any dirt goes into the fan to effect normal working.
13. Do not touch the plate while the unit is working, to avoid getting burned.
14. Do not let children operating alone to avoid getting burned or danger.
15. Who with cardiac pacemaker, please operating the unit after conrm with doctor there’s no any effect.
16. Do not operate the unit on the gas stove to avoid any danger.
17. Please do not place paper, cloth or other articles under the bottom of the pan to get heated, to avoid the
danger of re.
18. Do not place the unit on the cloth, carpet to avoid blocking the gas vent.
19. Please kindly avoid hitting the plate of the unit, in case of getting cracked, should turn off the unit and plug
out immediately, and then contact Omcan.
20. Do not touch the control panel with any sharp implements.
21. Do not place any metal on the unit while operating.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Technical Specications
Operation
SELECTION OF COOKWARE
MATERIAL REQUIRED:
Steel, cast iron, enameled iron, stainless steel, at-bottom pans/pots with bottom diameter from 12cm to 26cm.
We suggest to use the required pot, do not try to use other pot instead (especially pressure sensors vessels.)
Please kindly according to the below requirement if necessary to use the vessel is not equipped.
• Pan/pot must be suitable for induction cooker.
• Pan/pot should be tried out if it’s bought by self to see if there are unusual phenomena.
• Pan/pot bought by self should be at and come with the cover with gas vent.
PRODUCT OPERATING INSTRUCTIONS
After inserting the plug into the socket, a “Beep” will emit and the all indicators and LED display will ash once,
indicating the appliance in connection with a power source. Place a suitable cookware on the center of the
cooking zone. Press the ON/OFF once, the red indicator light above this button will turn on, indicating that the
appliance goes to selection mode. Press the corresponding function keys to start operation. Stop the operation
and switch to standby mode by pressing [On/Off] key after cooking.
COOKING MODE
Temperature: Press the TEMP. key until the indicator of TEMP. lights up, display will show [465] representing
that the default temperature is 465F. It can be adjusted by pressing the [+] or [–] key to set the desired
temperature(140F-465F).
Power: Press the POWER key until the indicator of POWER lights up, display will show [1700] representing
that the default power is 3500W. It can be adjusted by pressing the [+] or [–] key to set the desired power(500-
3500W).
Timer Function: User can set the cooking time when specic cooking mode is selected. Press the [Timer] key
Model CE-CN-3500
Temperature Range 60°C - 240.6°C / 140°F - 465°F
Cooking Surface 11” x 11” / 280 x 280mm
Power 3500W
Electrical 240V / 60Hz / 1
Dimensions 16.5” x 12.9” x 3.9” / 420 x 328 x 100mm
Packaging Dimensions 19.7” x 16.5” x 7.1” / 500 x 420 x 180mm
Item Number 44226

7
Operation
Maintenance
once to access the timer function, the [Timer] indicator on the left of the key will light up. Display will show the
default time [120], user can press [+] or [–] key to set for the desired time; [+] key to set from 1 minute to 180
minutes by 1 minute increment and [–] to set from 180 minutes to 0 minutes by 10 decrement (press and hold
+ or - for 3 seconds to access quick adjustment by 10 minutes), the time can be adjusted from 1 minute to 180
minutes. After setting, user can press [Timer] key once to conrm or wait until the display stop ashing. After
the “Beep” signal, the appliance will stop the operation and change to standby mode automatically when the
end of the countdown. To cancel this function, user can either press the [On/Off] key to return to standby mode
or hold the [Timer] key to resume the desired power or temperature operation.
MAINTENANCE AND DAILY CARE
1. Remove the power plug from the socket prior to cleaning the unit. Do not clean it until the surface cools
down.
2. Glass plate, panel and the shell:
- Soft cloth for slight stain.
- For greasy, dirt, blot by using a clean damp cloth with neutral detergent.
3. While the radiator-fan working, dust and dirt would remain on the gas vent, please clean it by brush or cot-
ton stick regularly.
4. Remember do not washing the unit by water directly to avoid damaging.
5. To protect induction cooker, be sure to have a good contact between plug and socket before using.
6. Do not pull out the power cord directly during operation. To extend the appliance’s using life, press the “ON/
OFF” button rst, then pull out the power cord.
7. In order to make operating time longer, the fan would still working for cooling the plate, is better to plug out
after the fan stops working.
8. Please pull out the power cord and put it away when not used for a long time.
9. Some models have structural design to against cockroaches, if needed, can put something like mothball to
expel the cockroaches.
Troubleshooting
Symptoms Problem Remedy
After connecting the power and
pressing the “power” key, the
appliance has no response.
Is the electricity in suspension? Use after resuming the electricity.
Is the fuse broken down? Check the root causes carefully.
If the problem cannot be xed,
please contact Omcan for checking
and repairing.
Is the plug connected rmly?

8
Troubleshooting
Heating being interrupted in normal
use and a “Beep” will be heard.
Incompatible cookware or no
cookware is used?
Replace compatible cookware for
the induction cooker.
Is the cookware not considerably
placed form the center of the
heating zone?
Place the cookware at the center
of the dened heating zone.
Is the cookware being heated but
continually being removed?
Place a cookware inside the
heating zone.
No operation during the heating
being in use.
Is the cookware empty or the
temperature too high?
Please check whether the
appliance is being misused.
Is the air intake/exhaust vent
clogged or dirt has accumulated?
Remove the stuff clogging the
air intake/exhaust vent. Operate
the appliance again after cooling
down.
Is the cooker working over 2 hours
without any external instruction?
Reset cooking modes or use timer
function.
Error codes occur. E0 Internal circuit error. Please contact Omcan for
checking and repairing.
E1 Without cookware or
Incompatible cookware used.
Please check whether the
cookware is not suitable, or switch
on the appliance again after it is
cooled down naturally.
E2 Internal overheat.
E3 Over-voltage. Please contact Omcan for
checking and repairing.
E4 Under-Voltage.
E5 Top plate sensor open/short
circuit.
E6 IGBT sensor open circuit/short
circuit.
E7 Top plate overheat. Please check whether the
cookware is not suitable, or switch
on the appliance again after it is
cooled down naturally.
If the above remedies/controls can not x the problem, unplug the appliance immediately, contact Omcan for
inspection and repairing, note the error code and report it to Omcan. To avoid any danger and damage to the
appliance, do not disassemble or repair it by yourself.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
44226 CE-CN-3500 Induction Cooker Commercial Digital
3500 W 240V/60/1 cETLus JDLC35A1

9
Parts Breakdown
Model CE-CN-3500 44226

10
Parts Breakdown
Model CE-CN-3500 44226
Item No. Description Position Item No. Description Position Item No. Description Position
AC781 Glass Plate for JDLC35A1 1 - 2, 4 63679 Main Board for JDLC35A1 7 63683 Aluminum Bottom for JDLC35A1 11
63675 Waterproof Bafe for JDLC35A1 3 63680 Coil Pan for JDLC35A1 8 63684 Foot Furnace for JDLC35A1 12
63677 Light Board for JDLC35A1 5 63681 Fan for JDLC35A1 9 63685 Power Cord for JDLC35A1 13
63678 PVC for JDLC35A1 6 63682 Plastic Bracket for JDLC35A1 10
Electrical Schematics
Model CE-CN-3500 44226

11
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
www.omcan.com/warrantyregistration.html
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour diffusion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 3, 500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 3, 500 productos con origen a nivel mundial.
