Omcan Aurora FR-CN-0737E-HC User manual

Revised - 11/17/2021
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Aurora Freezer
Model FR-CN-0737E-HC
Item 59023
Instruction Manual

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 7
-------------------------------------------------------------------------- 8
--------------------------------------------------------------------------------------- 8 - 9
----------------------------------------------------------------------------------- 9 - 10
----------------------------------------------------------------------------- 10 - 11
---------------------------------------------------------------------------- 12 - 13
---------------------------------------------------------------------------- 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Maintenance
Troubleshooting
Parts Breakdown

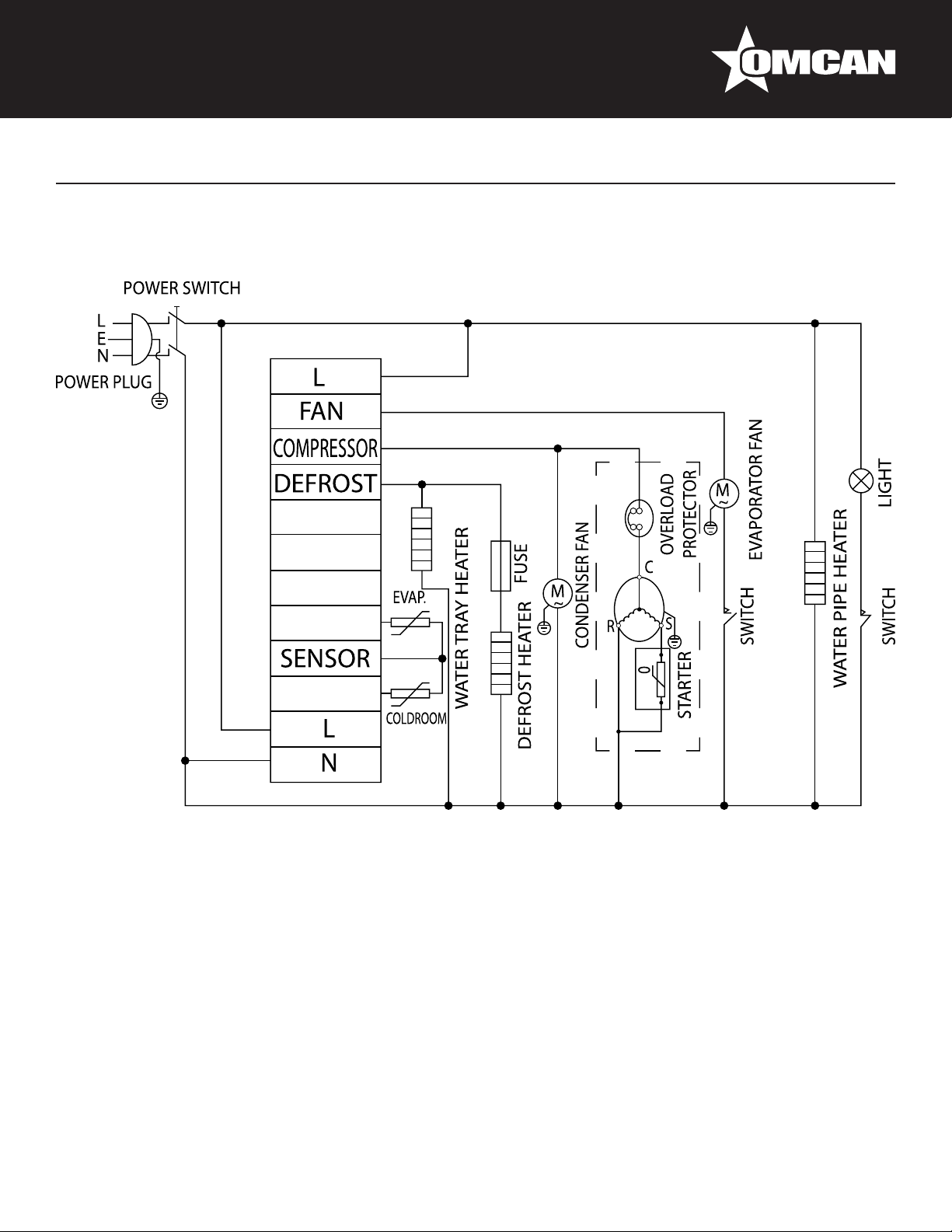

Electrical Schematics
Warranty Registration
Model FR-CN-0737E-HC

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR
DIMINISHED COOLING OR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY IS VOID
IF THE AMBIENT ROOM TEMPERATURE
EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS
NOT CONNECTED DIRECTLY TO A FLOOR
DRAIN.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
Safety and Warranty
General Information
Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious
injury and can damage the unit.
CAUTION FOR SAFETY
1. Leave enough space from the wall to the cabinet and the ceiling; do not place the back of the unit against
the wall.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

6
Safety and Warranty
Caution: keep a minimum of 20cm from the cabinet and the wall.
2. Please keep other objects away from the unit that may cause a re.
3. Do not store ammable or combustible materials near the unit.
4. Only connect to a grounded single phase connection.
Caution: Do not connect grounding wire to a water or gas pipe.
5. Handle with caution during transportation, the unit can only be leaned a maximum of 45°.
6. When encountering problems, please refer to the Troubleshooting section or call Omcan.
Danger: Flammable refrigerant used. Do not use mechanical devices to defrost the unit. Do not
puncture the refrigerant tubing. To be repaired only by trained service technicians.
Caution: Flammable refrigerant used. Consult repair manual/owners guide before attempting to service
this unit. All safety precautions must be followed.
Caution: Dispose of properly in accordance with federal or local regulations. Flammable refrigerant
used.
Caution: Follow handling instructions carefully.
Caution: Ensure all ventilation openings are unobstructed.
Caution: Servicing shall be done by authorized service personnel, so as to minimize the risk of injury
due to incorrect parts or improper service.
ATTENTION
• To minimize shock and re hazards, be sure not to overload outlet. Please designate one outlet for your
unit.
• Do not use extension cords.
• Do not put your hands under the unit when the unit is required to be moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so could cause
damage to the compressor.
UNPLUG CORD
• To minimize shock and re hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit..
PROPER GROUNDING REQUIRED
• To minimize shock and re hazards, make sure that the unit is properly grounded.
PROHIBITION
• Do not attempt to remove or repair any component unless instructed by Omcan.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any ammable or explosive material inside the unit.

7
Safety and Warranty
• Do not attempt to alter or tamper with the electrical cord.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Installation
IMPORTANT!!! PLEASE READ BEFORE INSTALLATION
• If the unit has recently been transported, please let the unit stand upright for a minimum of 24 hours before
plugging it in.
• Make sure that the unit drops down to the desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (shelves, casters, ect.) before plugging in the unit.
• Please read through the manual in its entirety.
CABINET LOCATION GUIDELINES
INSTALL THE UNIT ON A STRONG AND LEVELED SURFACE
• Unit may make unpleasant noises if surface is uneven.
• Unit may malfunction if surface is uneven.
Technical Specications
Model FR-CN-0737E-HC
Temperature Range -22 to -18°C / -7.6 to -0.4°F
Max Ambient Temp
Rating 32°C / 90°F
Power 1/2 HP
Electrical 115V / 60Hz / 1
Current 7.1A
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Number Of Shelves 3
Shelf Capacity 88.2 lbs. / 40 kgs.
Exterior Dimensions 29” x 32.2” x 82.5” / 736 x 818 x 2095mm
Interior Dimensions 24.4” x 27.1” x 53.5” / 620 x 688 x 1360mm
Packing Dimensions 30.3” x 34.6” x 84.4” / 770 x 880 x 2145mm
Net Volume 583 L / 20.6 cu.ft.
Weight 282.2 lbs. / 128 kgs.
Packaging Weight 346.1 lbs. / 157 kgs.
Item Number 59023

9
Maintenance
CLEANING THE CONDENSER COIL
• For e󰀩cient operation, it is important that the condenser surface be kept free of dust, dirt and lint.
• We recommend cleaning the condenser coil and ns at least once per month.
• Clean with a commercial condenser coil cleaner. Brush the condenser ns from top to bottom, not side to
side.
• After cleaning, straighten any bent condenser ns with a n comb.
CLEANING THE FAN BLADES AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan blades, cover
the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF THE UNIT
• When cleaning the cabinet interior, us a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel
surface.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the
Installation
INSTALL THE UNIT IN AN INDOOR, WELL VENTILATED AREA
• Unit performs more e󰀩ciently in a well ventilated area.
• For best performance, please maintain a clearance of 4” from the back of the unit.
• Not to be used outdoors.
AVOID INSTALLATION IN A HIGH HUMIDITY AND/OR DUSTY AREA
• Humidity can cause the unit to rust and decrease e󰀩ciency of the unit.
• Dust collected on the condenser coil will cause the unit to malfunction. Clean the condenser at least once a
month with a brush or clean cloth.
SELECT A LOCATION AWAY FROM HEAT AND MOISTURE-GENERATING EQUIPMENT
• High ambient temperatures will cause the compressor to overwork, leading to higher energy bills and
gradual breakdown of the unit.
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage
can detrimentally a󰀨ect the refrigeration unit. All units should be plugged into a grounded a properly-sized
electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirements on the rating
plate. Please make sure that your unit has its own dedicated outlet. Do not use an extension cord.

10
Troubleshooting
Problem Possible Cause Solution
Compressor not running. Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to a lower
temperature.
Cabinet in defrost cycle. Wait for defrost cycle to nish.
Condensing unit runs for long
periods of time.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to
cool down.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Door gaskets not sealing properly. Ensure gaskets are snapped in
completely. Remove gaskets and
wash with soap and water. Check
condition of gaskets and replace if
necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that the
door gaskets are sealing properly.
Maintenance
door, soak in warm water and soap for thirty (30) minutes, dry with a soft cloth and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water.
To remove the pilasters, rst remove the shelves and shelf brackets. Then, simply lift the pilaster up and
out.
Warning: Disconnect power cord before cleaning any parts of the unit.

11
Troubleshooting
Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to a lower
temperature.
Blocking air ow. Re-arrange product to allow for
proper air ow. Make sure there
is at least 4” of clearance from
evaporator.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to
cool down.
Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Dirty condenser coil. Clean the condenser coil.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Evaporator coil iced over.
Cabinet is noisy. Loose parts. Locate and tighten the loose parts.
Tubing vibration. Ensure tubing is free from contact
with other tubing or components.

12
Model FR-CN-0737E-HC 59023
Parts Breakdown

13
Model FR-CN-0737E-HC 59023
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AF024 Cabinet for 59023 1 AF035 Inner Drain Pan Fixer for 59023 21 AI321 Condenser Fan Motor for 59023 45
AI316 Control Panel for 59023 2 AA969 Drain Hose for 59023 22 AB959 Outer Drain Pan for 59023 46
AF026 Control Panel Fixer for 59023 3 69703 Elbow Pipe for 59023 23 AF055 Condenser for 59023 47
AF027 Front Grill for 59023 4 AA970 Light Components for 59023 24 AF045 Back Grill Fixer for 59023 48
AA954 Upper Right Hinge Holder for 59023 5 AF037 Evap Fan Motor Cover for 59023 25 AA989 Back Grill for 59023 49
AA955 Left/Right Spring Hinge for 59023 6 AA972 Bottom Cover for Reversible Door for
59023 26, 31 AA124 Power Switch for 59023 50
AA956 Bottom Right Hinge Holder for 59023 7 26884 K Clip for 59023 27 AI322 Thermostat for 59023 51
AI317 Door for 59023 8 AA809 K Strip for 59023 28 AB977 Door Switch for 59023 52
AA958 Gasket for 59023 9 AA975 Shelf for 59023 29 AF046 Drain Plug for 59023 53
AA959 Hinge for 59023 10 AF038 Evaporator Cover for 59023 30 26247 Caster without Brake for 59023 54
AA197 Lock for 59023 11, 61 AF039 Limited Block of Installation Board for
59023 32 26246 Caster with Brake for 59023 55
AF028 Lock Bolt for 59023 12 AF040 Left Track for Assembling Panel for 59023 33 AA993 Power Plug Fitting Base for 59023 56
AF029 Leg Supporter for 59023 13 AF041 Right Track for Assembling Panel for
59023 34 AA379 Temperature Probe for 59023 58
AF825 Evaporator Fan Motor for 59023 14 AF042 Compressor Unit Installation Board for
59023 35 AA864 Drain Pan Heater for 59023 59
AA962 Blade of Evaporator Fan Motor for 59023 15 AI319 Compressor for 59023 36 AB084 Evaporator Temperature Sensor for
59023 60
AF031 Evaporator Fan Motor Holder for 59023 16 AI320 Compressor Starting Components for
59023 37-40, 57 AA865 Defrost Heater for 59023 62
AF032 Right Air Guide Sheet for 59023 17 AB595 Filter Fixer for 59023 41 AA867 Drain Hose Heater for 59023 63
AF033 Left Air Guide Sheet for 59023 18 AB594 Filter for 59023 42 AA216 Drain Tube for 59023 64
AI318 Evaporator for 59023 19 AA249 Condenser Fan Motor Cover for 59023 43 AA135 Power Cord for 59023 65
AF034 Inner Drain Pan for 59023 20 AA764 Condenser Fan Motor Blade for 59023 44

14
Electrical Schematics
Model FR-CN-0737E-HC 59023

15
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 6,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 6,500 productos con origen a nivel mundial.
