Omcan Fr-cn-1473 User manual

Revised - 08/13/2021

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Ice Cream Display Freezers

Models FR-CN-1473, 2007

Items 31457, 37815

Instruction Manual

2

Page

-------------------------------------------------------------------------------------------- 3

--------------------------------------------------------------------------- 4 - 5

--------------------------------------------------------------------------- 5 - 6

-------------------------------------------------------------------------- 6

-------------------------------------------------------------------------------------------- 7

--------------------------------------------------------------------------------------------- 7

----------------------------------------------------------------------------------------- 8

-------------------------------------------------------------------------------- 8 - 9

---------------------------------------------------------------------------- 10 - 11

---------------------------------------------------------------------------- 12

------------------------------------------------------------------------------------------- 13 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

Disclaimer

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Troubleshooting

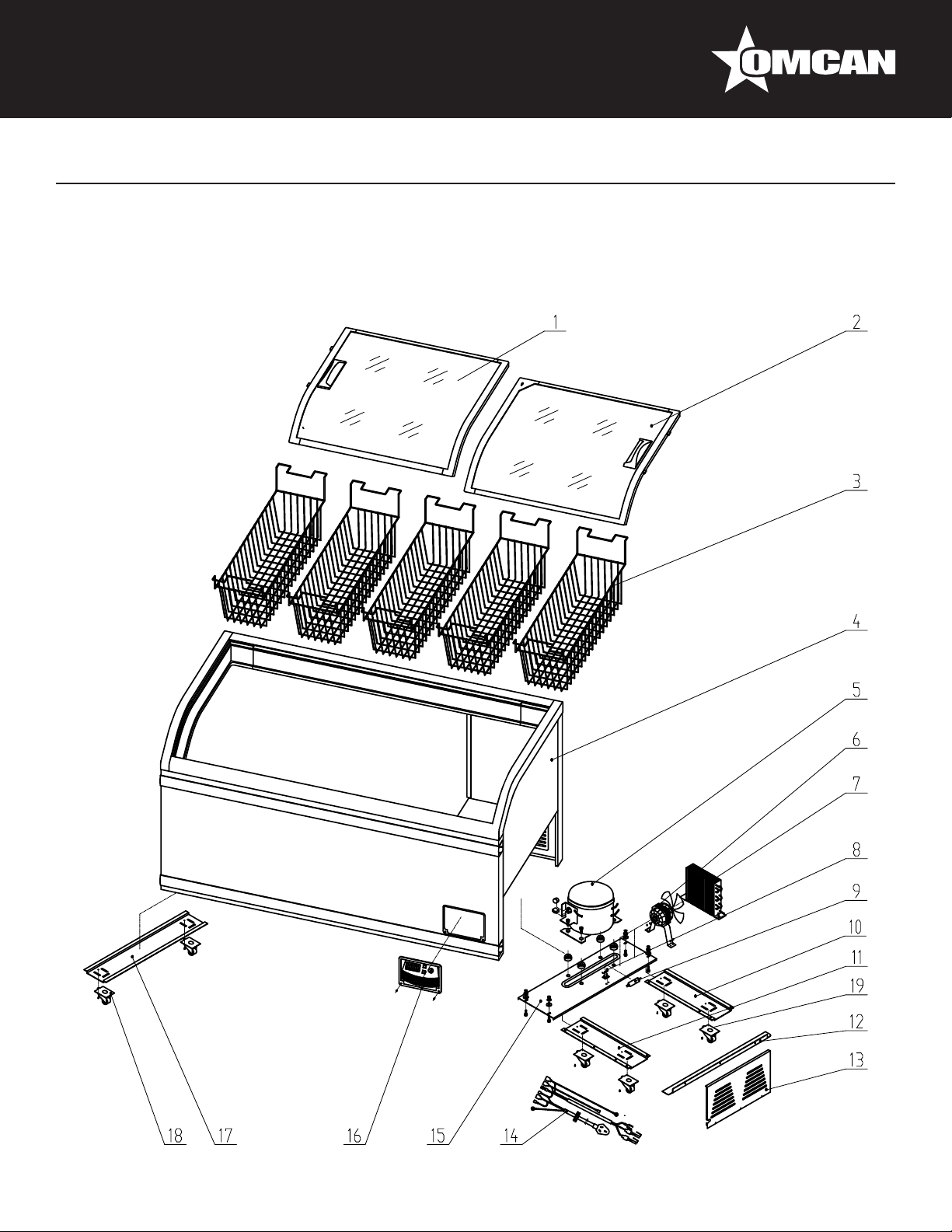

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model FR-CN-1473 / Model FR-CN-2007

3

Disclaimer

OMCAN IS NOT RESPONSIBLE FOR

ANY DAMAGES DUE TO WATER LEAKS.

WARRANTY FOR WATER LEAKS IS VOID

IF THE AMBIENT ROOM TEMPERATURE

EXCEEDS 75°F AND 55% RELATIVE HUMIDITY,

AND THE APPLIANCE DRAIN IS NOT

CONNECTED DIRECTLY TO A FLOOR DRAIN.

4

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

5

General Information

Safety and Warranty

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

possible.

1 YEAR PARTS AND LABOUR WARRANTY

6

Technical Specications

Safety and Warranty

Model FR-CN-1473 FR-CN-2007

Power 0.4 HP / 0.33 kW 0.9 HP / 0.65 kW

Freezer Capacity 500 L / 17.7 cu. ft 700 L / 24.7 cu. ft.

Number of Doors 2

Number of Baskets 5 6

Max Ambient Temp

Rating 32°C / 90°F

Temperature Range -18°C to 10°C / -0.4°F to 50°F

Refrigerant R290

Electrical 110V / 60Hz / 1

Weight 176.3 lbs. / 80 kgs. 264.5 lbs. / 120 kgs.

Packaging Weight 209.5 lbs. / 95 kgs. 308.5 lbs. / 140 kgs.

Dimensions 58” x 29.8” x 32.3”

1473 x 756 x 819mm

78.7” x 29.8” x 32.3”

2000 x 756 x 819mm

Packaging Dimensions 60” x 31.8” x 34.8”

1524 x 806 x 883mm

81” x 32” x 37”

2057 x 813 x 940mm

Item Number 31457 37815

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7

Operation

POWER SOURCE AND TEST-RUNNING

• Specied capacity of the wire is 6A. Section squares of the wire is 0.75mm. Single line or compound lines

are all allowed. The fuse of 2.5A specied electric current should be installed. (Power cord should be

replaced with the same of 6A and 0.75mm, when it is damaged).

• Single-phase power supply, 60Hz, voltage 110V. If the voltage is unstable, please install a voltage stabilizer

with capacity above 1000W.

• Avoid turning on and off the power too frequently. If the power is turned off, wait an interval of 5 minutes

before turning it on again.

• When the freezer will be out of use for a long time, disconnect the power rst, then clean it. Please

examine the circuit whether it is excellent before reuse.

OPERATION OF THE TEMPERATURE CONTROL KNOB

• The temperature in the cabinet can be controlled with the temperature control knob.

• The knob should be kept upright normally to adjust the temperature. FREEZING MAX is the strongest

cooling position and is suitable for fast freezing. Do not keep the knob at this point for long.

FOOD STORAGE

• There must be space between the foods stored in the cabinet, between the foods and the inner surface

of the cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or

canned beverage with freezing point above the temperature in the cabinet when it is below zero.

• For foods that should be moisture-free or lose water easily, wrap them up with hermetic food bags or fresh

lms before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.

• Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol, etc. is

forbidden.

Installation

TRANSPORTATION AND PLACEMENT

• When transporting the chest freezer from one place to another, the inclination of the cabinet should not

exceed 45 degrees, for prevention against compressor or system damage.

• Before use, remove all the packing material. The back side of the cabinet should be more than 20cm /

7.87” away from the wall, both ank sides more than 20cm / 7.87”.

• The freezer should be put in well-ventilated, dry place. Don’t use it under direct sunshine. The freezer

should be kept away from water sink, heat source and any volatile, corrosive material.

8

Troubleshooting

Maintenance

Symptom Cause Solution

The indicator is not on or the

compressor does not start.

The plug isn’t connected to the

socket.

Re-connect it.

No power. Connect to a socket with power.

The indicator is on, but the

compressor doesn’t work and

buzzes only.

The power voltage is <110V. Attach a power-regulator with more

than 1000W power.

The compressor stops a minute

after start, and restart after a few

minutes, and so repeatedly.

The power voltage is >110V.

• The freezer should be cleaned regularly. When cleaning, turn off the power, take out the foods in the

cabinet, clean the inside using water or a little neutral detergent.

• Do not use boiling water, acid, chemical diluters, petrol and oil, or dirt-removing powder.

• Dry it after cleaning.

• Use light soap water when cleaning the door seal, apply a little of talcum powder on it after natural drying to

extend its service life.

• Use soft cloth with water or a little detergent to clean the out surface.

Note, keeping the power supply and lower part of connect wires away from water to avoid

electricity leakage.

• Except common breakdowns, those who are not service technician should not take apart and repair the

freezer on their own so as to avoid worsening the trouble. Unauthorized repair of electrical part such as

compressor, temperature controller is forbidden.

DEFROSTING

• Defrost for better freezing efciency when the frost lm in the cabinet is 4-5mm thick.

• When defrosting, turn off the power, take out the frozen foods, open the door for warming and melting. Use

soft cloth to absorb water and clean it up.

• Do not use sharp metal tools such as steel brush to clean the frost lm when defrosting so as to avoid

evaporator damage.

9

Troubleshooting

The compressor works normally,

but the temperature in the cabinet

cools too slowly.

The door is being opened too

frequently.

Reduce open times.

The is too much food in the

cabinet, and it is placed improperly.

Place food properly, keep space

between them for ventilation of

cold air.

The frost lm is too thick. Take out food and defrost.

The surface of the condenser is

too dirty.

Stop and clean the condenser.

The door doesn’t seal. Adjust the door seal.

The noise is too loud. The freezer is placed in a unstable

location.

Place it in a stable location.

The xing of the freezer is loose. Tighten the xing.

There’s contact between pipes. Separate the pipes.

THE FOLLOWING ARE WITHIN NORMAL OPERATING PARAMETERS:

• When the freezer is working or after is stops for a while, the refrigerant in the pipes is cycling and gives out

“running water” sounds.

• The surface temperature of the compressor may be up 70°C ~ 80°C / 158°F ~ 176°F when it is working.

• The back side of step freezer gives out heat.

• In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use.

Just dry it with a piece of cloth.

For service call 1-800-465-0234.

10

Parts Breakdown

Model FR-CN-1473 31457

Model FR-CN-2007 37815

11

Parts Breakdown

Model FR-CN-1473 31457

Item No. Description Position Item No. Description Position Item No. Description Position

28455 Left Glass Door for 31457 1 28460 Filter Support for 31457 8 28466 Plug Series for 31457 14

40162 Right Glass Door for 31457 2 28461 Filter for 31457 9 28467 Compressor Support for 31457 15

76695 Basket for 31457 3 28462 Caster Iron Channel A for 31457 10 28468 Thermostat Series for 31457 16

63505 Compressor (R290) for 31457 5 28463 Caster Iron Channel B for 31457 11 76709 Castor Channel Iron for 31457 17

28458 Cooling Motor for 31457 6 28464 Iron Liner for 31457 12 76710 Castor with Brake for 31457 18

28459 Finned Condenser for 31457 7 28465 Shutter for 31457 13 28469 Caster without Brake for 31457 19

Item No. Description Position Item No. Description Position Item No. Description Position

40164 Left Glass Door for 37815 1 76700 Filter Support for 37815 8 76706 Power Cable for 37815 14

40163 Right Glass Door for 37815 2 76701 Filter for 37815 9 76707 Compressor Support for 37815 15

76695 Basket for 37815 3 76702 Castor Channel Iron A for 37815 10 28468 Thermostat Series for 37815 16

AE662 Compressor for 37815 5 76703 Castor Channel Iron B for 37815 11 76709 Castor Channel Iron for 37815 17

76698 Cooling Fan for 37815 6 76704 Iron Liner for 37815 12 76710 Castor with Brake for 37815 18

76699 Condenser for 37815 7 76705 Shutter for 37815 13 28469 Caster without Brake for 37815 19

Model FR-CN-2007 37815

12

Electrical Schematics

Model FR-CN-1473 31457

Model FR-CN-2007 37815

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 5,000 productos con origen a nivel mundial.

Omcan FR-CN-1473 User manual

Popular Freezer manuals by other brands
