Omcan Fr-cn-0150 User manual

Revised - 05/19/2021

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Ice Cream Freezers

Models FR-CN-0150, 0200, 0320

Items 45291, 45292, 45293

Instruction Manual

2

Page

-------------------------------------------------------------------------------------------- 3

--------------------------------------------------------------------------- 4 - 5

--------------------------------------------------------------------------- 5 - 7

-------------------------------------------------------------------------- 7

--------------------------------------------------------------------------------------------- 7

----------------------------------------------------------------------------------------- 8

-------------------------------------------------------------------------------- 8 - 9

---------------------------------------------------------------------------- 10 - 13

---------------------------------------------------------------------- 14 - 15

------------------------------------------------------------------------------------------- 16 - 18

---------------------------------------------------------------------------- 19

Table of Contents

Section

Disclaimer

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Troubleshooting

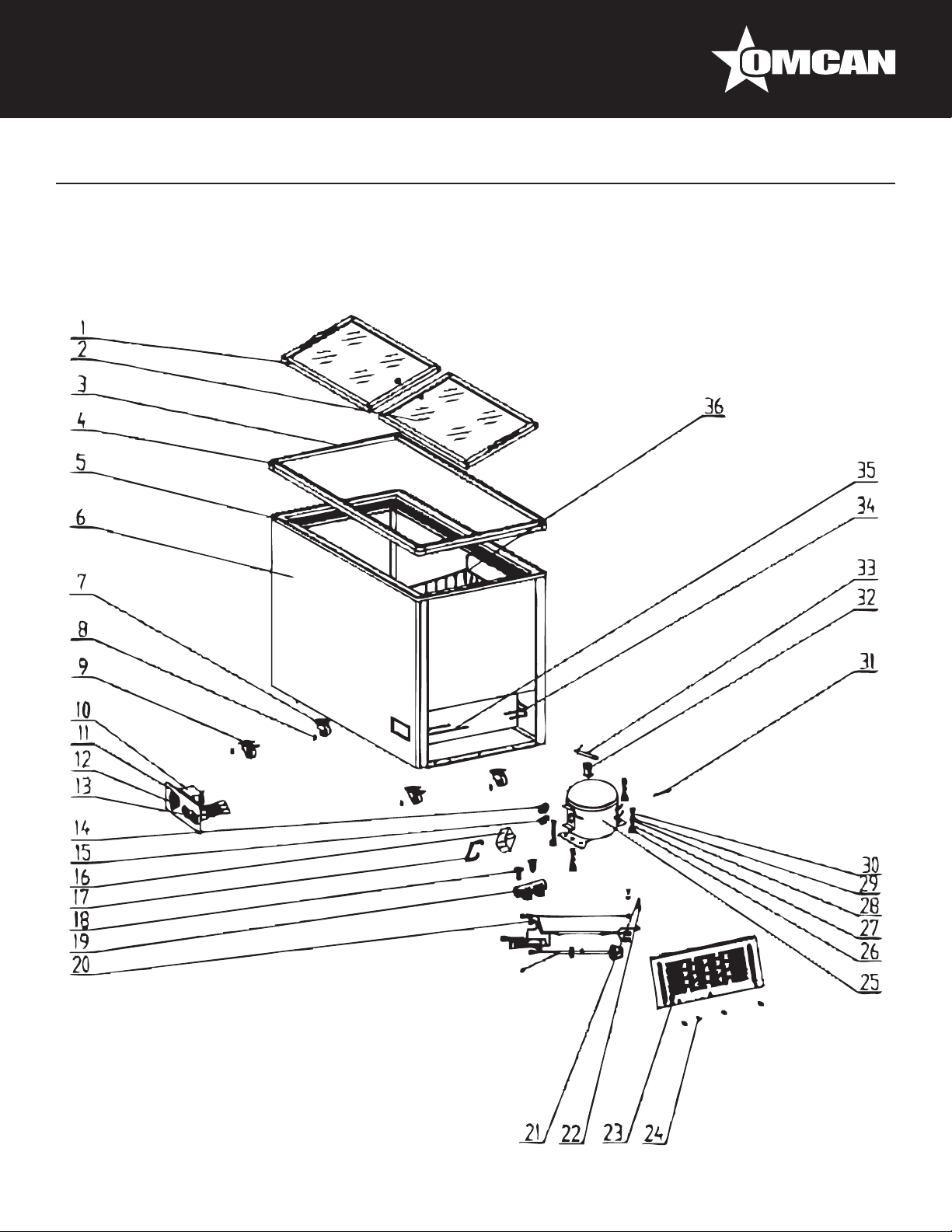

Parts Breakdown

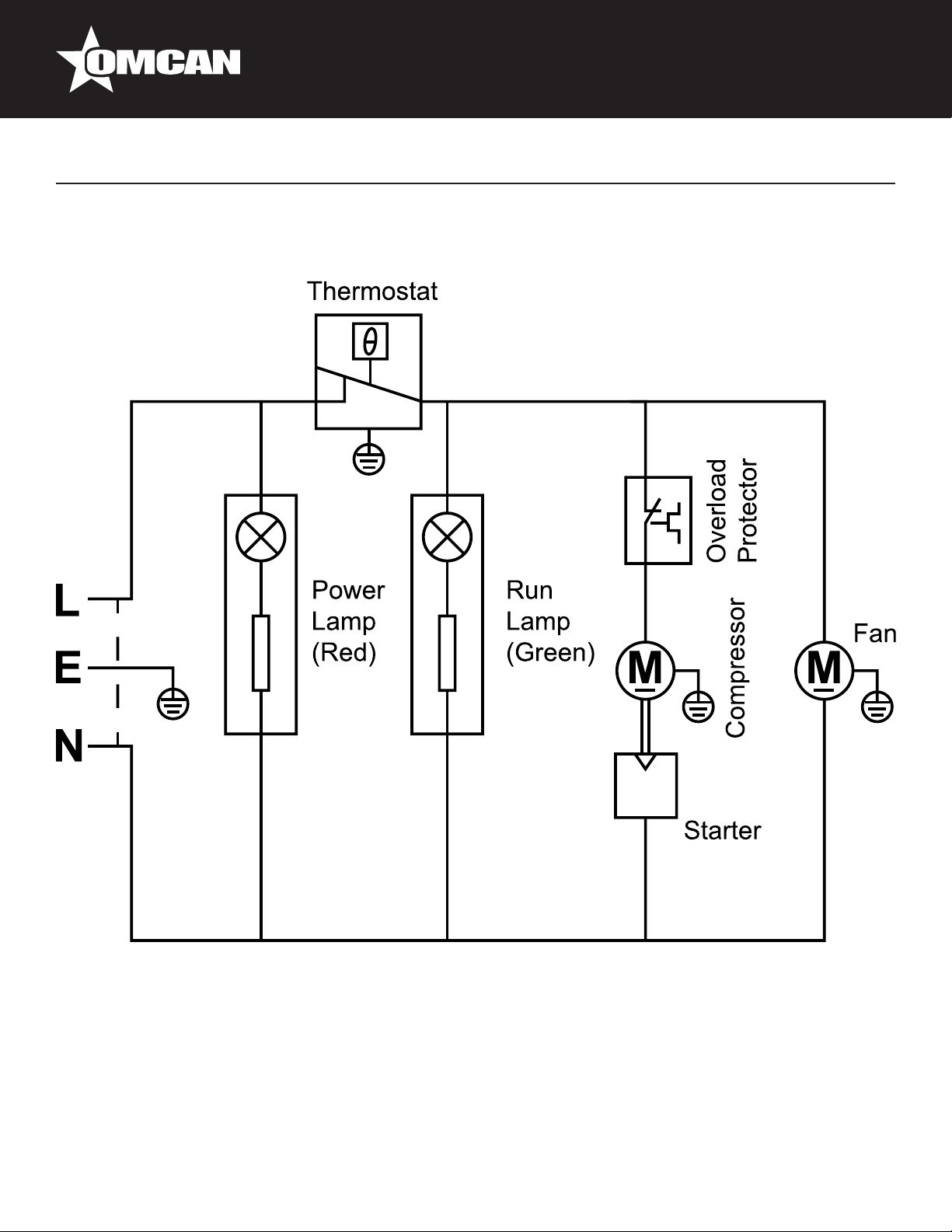

Electrical Schematics

Notes

Warranty Registration

Model FR-CN-0150 / Model FR-CN-0200 / Model FR-CN-0320

3

Disclaimer

OMCAN IS NOT RESPONSIBLE FOR

ANY DAMAGES DUE TO WATER LEAKS.

WARRANTY FOR WATER LEAKS IS VOID

IF THE AMBIENT ROOM TEMPERATURE

EXCEEDS 75°F AND 55% RELATIVE

HUMIDITY, AND THE APPLIANCE DRAIN IS

NOT CONNECTED DIRECTLY TO A FLOOR

DRAIN.

4

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

5

General Information

Safety and Warranty

• The appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

6

Safety and Warranty

TRANSPORTATION AND PLACEMENT

• When transporting the chest freezer from one place to another, the inclination of the cabinet should not

exceed 45 degrees, for prevention against compressor or system damage.

• Before use, remove all the packing material. The back side of the cabinet should be more than 20cm away

from the wall, both ank sides more than 20cm.

• The freezer should be put in well-ventilated, dry place. Don’t use it under direct sunshine. The freezer

should be kept away from water sink, heat source and any volatile, corrosive material.

POWER SOURCE AND TEST-RUNNING

• Specied capacity of the wire is 7A. Section squares of the wire is 0.82mm2. Single line or compound

lines are all allowed. The fuse of 2.5A specied electric current should be installed.(Power cord should be

replaced with the same of 7A and 0.82mm2, when it is damaged).

• Single-phase power supply, 60Hz, voltage range 98~132V. If the voltage is unstable, please install a

voltage stabilizer with capacity above 1000W.

• Avoid turning on and o󰀨 the power too frequently. If the power is turned o󰀨, wait an interval of 5 minutes

before turning it on again.

• When the freezer will be out of use for a long time, disconnect the power rst, then clean it. Please

examine the circuit whether it is excellent before reuse.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

possible.

1 YEAR PARTS AND BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o󰀨 to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without di󰀩culty.

In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated

waste) according to the current norms.

7

Operation

OPERATION OF THE TEMPERATURE CONTROL KNOB

• The temperature in the cabinet can be controlled with the temperature control knob.

• The knob should be kept upright normally to adjust the temperature. FREEZING MAX is the strongest

cooling position and is suitable for fast freezing. Do not keep the knob at this point for long.

FOOD STORAGE

• There must be space between the foods stored in the cabinet, between the foods and the inner surface

of the cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or

canned beverage with freezing point above the temperature in the cabinet when it is below zero.

• For foods that should be moisture-free or lose water easily, wrap them up with hermetical food bags or

fresh lms before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.

• Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol ,etc. is

forbidden.

Technical Specications

Model FR-CN-0150 FR-CN-0200 FR-CN-0320

Freezer Capacity 150 L / 5.3 cu. ft 201 L / 7.1 cu. ft 311 L / 11 cu. ft

Built-In Lock Yes

Number of Baskets 1

Temperature ≤ -18°C / -0.4°F

Max Ambient Temp

Rating 32°C / 90°F

Refrigerant R134a

Electrical 110V / 60Hz / 1

Amps 1.4 A 2.1 A

Weight 75 lbs. / 34 kgs. 79.4 lbs. / 36 kgs. 99.2 lbs. / 45 kgs.

Dimensions 21.3” x 29” x 30.5”

541 x 737 x 775mm

21.3” x 34” x 30.5”

541 x 864 x 775mm

23.6” x 45.7” x 30.5”

599 x 1161 x 775mm

Item Number 45291 45292 45293

Safety and Warranty

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8

Troubleshooting

Maintenance

Problem Cause Solution

The indicator is not on.

The compressor doses not start.

The plug isn’t connected to the

socket really.

Replug it.

No power Connect the socket with power.

The indicator is on, but the

compressor doesn’t work and

buzzes only

The power voltage is <98V. Put a power regulater more than

1000W power together.

The compressor stops a minute

after start, and restart after a few

minutes, and so repeatedly.

The power voltage is >132V.

• The freezer should be cleaned regularly. When cleaning, turn o󰀨 the power, take out the foods in the

cabinet, clean the inside using water or a little neutral detergent.

• Do not use boiling water, acid, chemical diluents, petrol and oil, or dirt-removing powder.

• Dry it after cleaning.

• Use light soap water when cleaning the door seal, apply a little of talcum powder on it after natural drying to

extend its service life.

• Use soft cloth with water or a little detergent to clean the out surface.

Note: keeping the power supply and lower part of connect wires away from water to avoid

electricity leakage.

• Except common breakdowns, those who are not service technician should not take apart and repair the

freezer on their own so as to avoid worsening the trouble. Unauthorized repair of electrical part such as

compressor, temperature controller is forbidden.

DEFROSTING

• Defrost for better freezing e󰀩ciency when the frost lm in the cabinet is 4-5mm thick.

• When defrosting, turn o󰀨 the power, take out the frozen foods, open the door for warming and melting. Use

soft cloth to absorb water and clean it up.

• Do not use sharp metal tools such as steel brush to clean the frost lm when defrosting so as to avoid

evaporator damage.

9

Troubleshooting

The compressor works normally,

but the temperature in the cabinet

lowers too slowly.

The door is opened too frequently. Reduce open times.

The food in the cabinet is too

much, and placed improperly.

Place foods properly keep place

between them for ventilation of

cold air.

The frost lm is too thick. Take out foods and defrost.

The surface of the condenser is

too dirty.

Stop and clean the condenser.

The door seals badly. Adjust the door seal.

The noise is too loud The freezer is placed unstably. Place it stably.

The xing of the freezer is loose. Tighten the xing.

There’s contact between pipes. Separate them.

THE FOLLOWING ARE NOT FAULTS:

• When the freezer is working or after is stops for a while, the refrigerant in the pipes is cycling and gives out

“running water” sounds.

• The surface temperature of the compressor may be up 70°C~80°C when it is working.

• The back side of freezer gives out heat.

• In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use.

Just dry it with a piece of cloth.

10

Parts Breakdown

Model FR-CN-0150 45291

Model FR-CN-0200 45292

11

Parts Breakdown

Model FR-CN-0150 45291

Model FR-CN-0200 45292

Item No. Description Position Item No. Description Position Item No. Description Position

64432 Upper Glass Door for 45291 1 79808 PTC Starter for 45291 14 79818 Connecting Sleeve for 45291 27

79798 Lower Door for 45291 2 79809 Protector for 45291 15 79819 Washer for 45291 28

64433 Aluminum Alloy Frame for 45291 3 79810 Cover for 45291 16 79820 Spring Hooks for 45291 29

AG529 Corner for 45291 4 79811 Clamp for 45291 17 79821 Bolt for 45291 30

64434 Cabinet Plastic Frame for 45291 5 64436 Screw for 45291 18 79822 Charge Pipe for 45291 31

79802 Cabinet for 45291 6 79812 Printable Double-Hollow Wire Clamp

for 45291 19 64441 Filter Support for 45291 32

79803 Castor for 45291 7 79814 Power Plug for 45291 20 79823 Filter for 45291 33

64435 Screw for 45291 8 64437 Copper Screw for 45291 21 79824 Back Condensor for 45291 34

AE741 Castor with Brakes for 45291 9 64438 Washer for 45291 22 79825 Front Condensor for 45291 35

79804 Thermostat for 45291 10 64439 Tapping Screw for 45291 23 63990 Basket for 45291 36

79805 Thermostat Control Panel for 45291 11 79815 Shutter for 45291 24 AE742 Key for 45291

79806 Thermostat Knob for 45291 12 79816 Compressor for 45291 25

39587 Indicator Lamp for 45291 13 79817 Rubber Boot for 45291 26

Item No. Description Position Item No. Description Position Item No. Description Position

64442 Upper Door for 45292 1 64449 PTC Starter for 45292 14 64462 Connecting Sleeve for 45292 27

64443 Lower Door for 45292 2 64450 Protector for 45292 15 64463 Washer for 45292 28

64444 Aluminum Alloy Frame for 45292 3 64451 Cover for 45292 16 64464 Spring Hooks for 45292 29

64445 Corner for 45292 4 64452 Clamp for 45292 17 64465 Bolt for 45292 30

64446 Cabinet Plastic Frame for 45292 5 64453 Screw for 45292 18 64466 Charge Pipe for 45292 31

64447 Cabinet for 45292 6 64454 Double Hollow Wire Clamp for 45292 19 64467 Filter Support for 45292 32

79803 Castor for 45292 7 64455 Power Plug for 45292 20 79823 Filter for 45292 33

64448 Screw for 45292 8 64456 Copper Screw for 45292 21 64468 Back Condenser for 45292 34

AE741 Castor with Brakes for 45292 9 64457 Washer for 45292 22 64469 Front Condenser for 45292 35

79804 Thermostat for 45292 10 64458 Tapping Screw for 45292 23 63990 Basket for 45292 36

79805 Thermostat Control Panel for 45292 11 64459 Shutter for 45292 24 AE743 Key for 45292

79806 Thermostat Knob for 45292 12 28451 Compressor for 45292 25

39587 Indicator Lamp for 45292 13 64461 Rubber Boot for 45292 26

12

Parts Breakdown

Model FR-CN-0320 45293

13

Parts Breakdown

Model FR-CN-0320 45293

Item No. Description Position Item No. Description Position Item No. Description Position

64470 Upper Door for 45293 1 79777 PTC Starter for 45293 14 79787 Connecting Sleeve for 45293 27

79767 Lower Door for 45293 2 79778 Protector for 45293 15 79788 Washer for 45293 28

79768 Aluminum Alloy Frame for 45293 3 79779 Cover for 45293 16 79789 Spring Hooks for 45293 29

79770 Corner for 45293 4 79780 Clamp for 45293 17 79790 Bolt for 45293 30

64472 Cabinet Plastic Frame for 45293 5 64474 Screw for 45293 18 AE744 Bolt for 45293 31

79771 Cabinet for 45293 6 79781 Printable Double-Hollow Wire Clamp

for 45293 19 64478 Front Condenser for 45293 32

79803 Castor for 45293 7 79783 Power Plug for 45293 20 79792 Fan Motor for 45293 33

64473 Screw for 45293 8 64475 Copper Screw for 45293 21 79793 Charge Pipe for 45293 34

AE741 Castor with Brakes for 45293 9 64476 Washer for 45293 22 79794 Filter Support for 45293 35

79804 Thermostat for 45293 10 64477 Tapping Screw for 45293 23 79823 Filter for 45293 36

79805 Thermostat Control Panel for 45293 11 79784 Shutter for 45293 24 79796 Back Condensor for 45293 37

79806 Thermostat Knob for 45293 12 79785 Compressor for 45293 25 43825 Basket for 45293 38

39587 Indicator Lamp for 45293 13 79786 Rubber Boot for 45293 26 AE745 Key for 45293

14

Electrical Schematics

Model FR-CN-0150 45291

Model FR-CN-0200 45292

15

Electrical Schematics

Model FR-CN-0320 45293

16

Notes

________________________________________________________________________________________

17

Notes

________________________________________________________________________________________

18

Notes

________________________________________________________________________________________

19

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour di󰀨usion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 5,000 productos con origen a nivel mundial.

Omcan FR-CN-0150 User manual

Popular Freezer manuals by other brands
