Omcan FR-CN-0142 User manual

Revised - 12/22/2020
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Chest Freezers
Models FR-CN-0142, 0192, 0282, 0445, 0600
Items 46501, 46502, 46503, 46504, 46505
Instruction Manual

2
Page
--------------------------------------------------------------------------------------------------- 3
---------------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------------- 5 - 7
--------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------------- 8
--------------------------------------------------------------------------------------- 8 - 9
---------------------------------------------------------------------------------- 10 - 14
---------------------------------------------------------------------------- 15 - 17
------------------------------------------------------------------------------------------------------- 18
---------------------------------------------------------------------------------- 19
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Maintenance
Troubleshooting

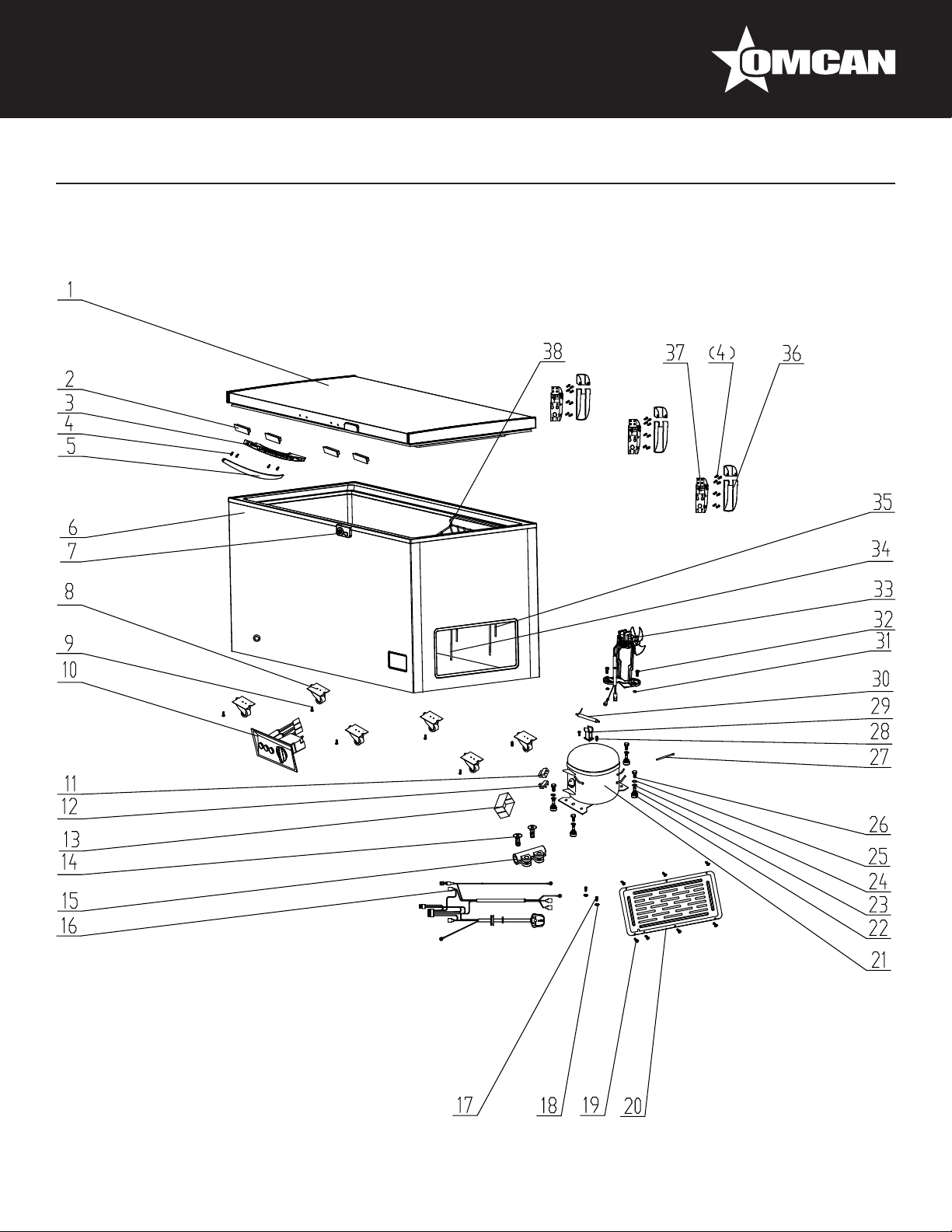

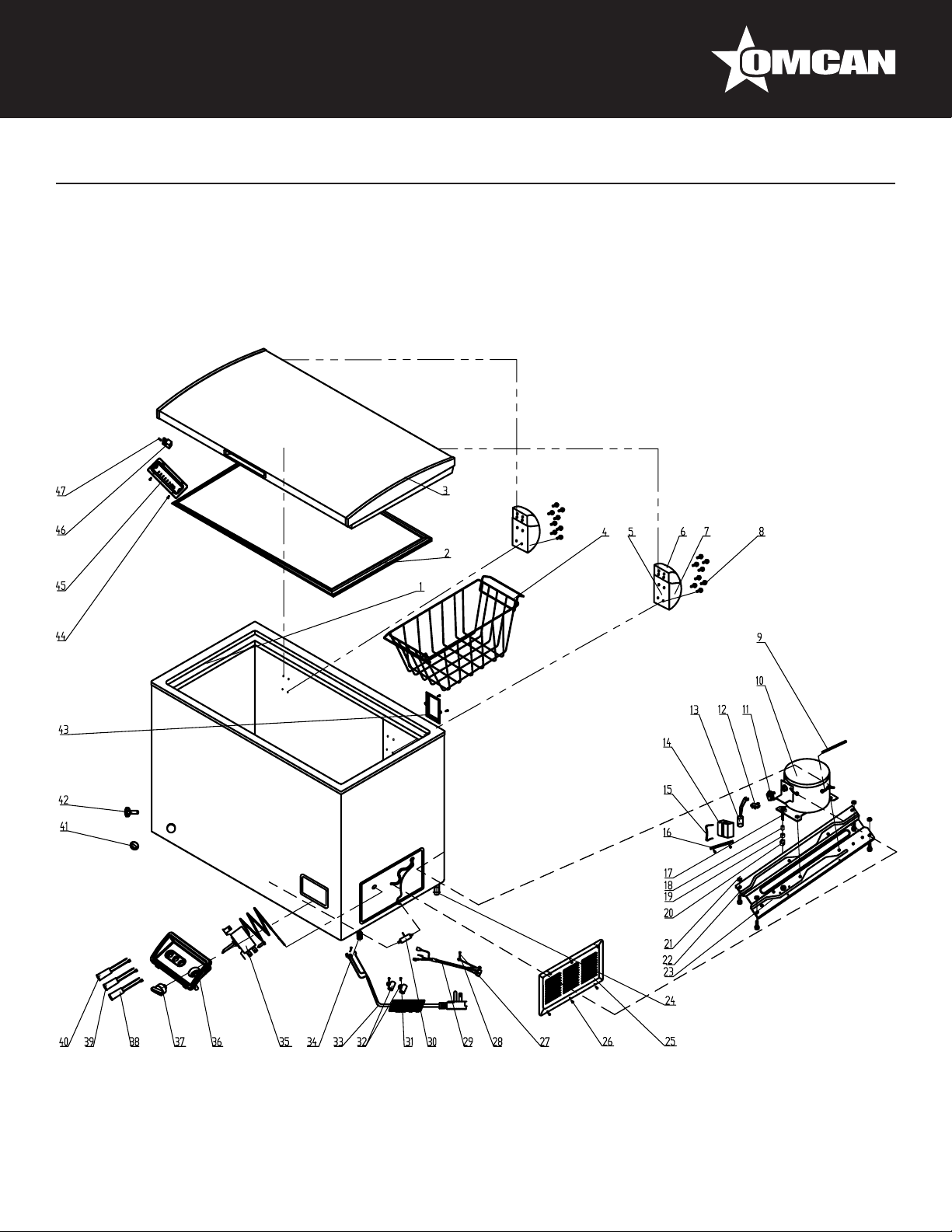

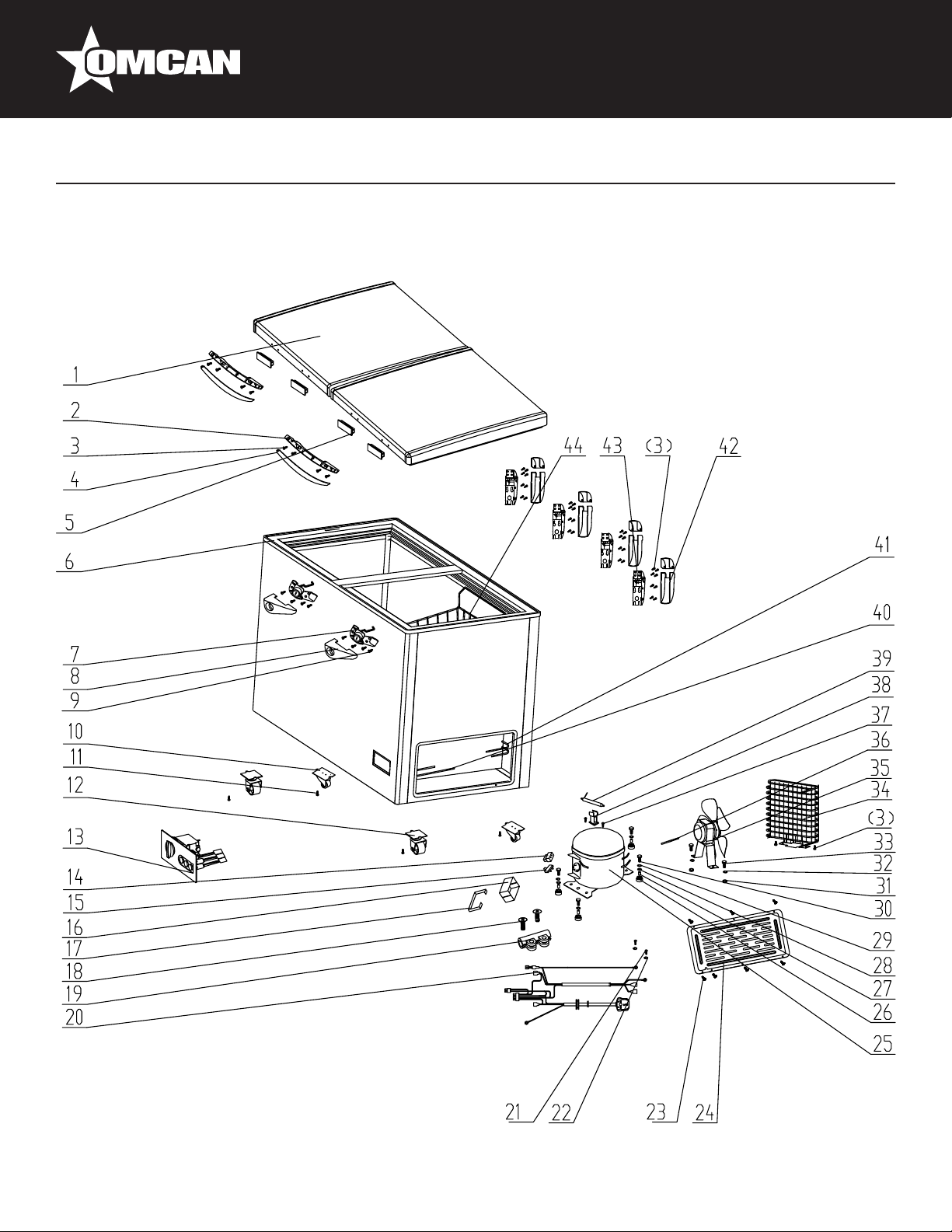

Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model FR-CN-0142 / Model FR-CN-0192 / Model FR-CN-0282
Model FR-CN-0445 / Model FR-CN-0600

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR
ANY DAMAGES DUE TO WATER LEAKS.
WARRANTY FOR WATER LEAKS IS VOID
IF THE AMBIENT ROOM TEMPERATURE
EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS
NOT CONNECTED DIRECTLY TO A FLOOR
DRAIN.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
Safety and Warranty
General Information
CAUTION FOR USING
1. Unpack all packages before using the showcase. Don’t bend it over more than 60° while moving it.
2. The showcase should be installed in the environment of good ventilation, Cool and dry and without
corrosive gas. It should not be installed close to heat sources or directly under the sunlight. The space
more than 10cm between the wall of the front and the back of the showcase should be allowed. When
installing, the universal wheels should be padded well. So as to make the showcase be level and stable, or
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

6
Safety and Warranty
it will cause vibration and too much noise.
3. When initial operation, the refrigerator should run empty for about one hour before storing food in it.
4. Before placing food into the freezer, adjust the temperature control to the lowest point (highest number) and
let it run until the temperature of inner cabinet decreases to 0°F. Put the food in, and after 12 hours adjust
the temperature control to the normal point.
5. The thermostat could adjust the temperature inside the showcase. When you turn the knob in clockwise.
The bigger the gure, the lower the temperature. Generally, the position of ‘4’ is suitable. ‘0’ position stand
for stopping operation. ‘Max’ position will be operating not continually as compressor won’t stop (no cycle).
Turn the temperature control to the “4” or “5” when temperature inside is stable for ice cream and similar
products.
6. Never store ammable, explosive or corrosive products in the freezer, and keep the freezer away from such
materials.
7. If power is cut o󰀨, wait at least 5 minutes before turning on again to avoid damage to the compressor.
8. To save energy, the door should not be frequently opened for left open for a long time.
9. The surface and the inside of the showcase should be dry and clean. Long term moisture with cause the
showcase rust slowly. (There will be some stains on the surface.)
10. Periodical cleaning is suggested for your reference. Generally, 30-45 days once is best. When cleaning, it
is best to wipe the inside and the surface of the showcase with the soft cloth with neutral soap or detergent.
Attention: To ensure safety, the power plug must be pulled out before cleaning. All safety precautions
must be followed. Dispose of properly in accordance with Federal or local regulations. Risk of re or
explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
DANGER: Risk of re or explosion. Flammable refrigerant R290 used. To be repaired only by trained
service personnel. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant
tubing.
FOOD STORAGE
• Do not ll the freezer full of products. You should leave space between items and the inner surface of the
cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or canned
beverage with freezing point above the temperature in the cabinet when it is below zero.
• For foods that should be moisture-free or lose water easily, wrap them up with hermetical food bags or
fresh lms before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.
• Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol, etc. is
forbidden.
• Never put hot food directly in the freezer. Food should be cold or frozen before placing it inside.
• The cabinet is intended exclusively for the storage and/or display of packaged foods only.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

7
Technical Specications
Model FR-CN-0142 FR-CN-0192 FR-CN-0282 FR-CN-0445 FR-CN-0600
Capacity 138.8 L / 4.9 cu. ft. 189.7 L / 6.7 cu. ft. 283.2 L / 10 cu. ft. 433.2 L / 15.3 cu. ft. 566.3 L / 20 cu. ft.
Power 1/6 HP 1/4 HP 1/3 HP 1/2 HP
Refrigerant R600 R290
Adjustable
Thermostat Mechanical
Max Ambient Temp
Rating 32°C / 90°F
Temperature Range -15°C to -22°C / 5°F to -8°F
Electrical 115V / 60Hz / 1
Current 1.4A 2.2A 2.8A 3.6A
Number of Doors 1 2
Number of Baskets
Included 1 2
Maximum Basket
Capacity 23456
Defrost Manual
Foaming
Component Cyclopentane
Dimensions 30” x 22.2” x 33.2”
754 x 564 x 845mm
37” x 22.2” x 33.2”
950 x 564 x 845mm
44” x 25 x 33.2”
1116 x 644 x 845mm
60” x 29” x 32.5”
1535 x 740 x 825mm
76” x 28” x 32.5”
1930 x 710 x 826mm
Packaging
Dimensions
30.3” x 22.8” x 34.6”
770 x 580 x 880mm
38.6” x 22.8” x 34.6”
982 x 580 x 880mm
45” x 25.9” x 34.6”
1148 x 660 x 880mm
62” x 30” x 34”
1580 x 770 x 870mm
77.8” x 30.3” x 34.3”
1976 x 770 x 870mm
Weight 68 lbs. / 30.8 kgs. 77 lbs. / 35 kgs. 90 lbs. / 40.8 kgs. 139 lbs. / 63 kgs. 165 lbs. / 75 kgs.
Packaging Weight 75 lbs. / 34 kgs. 86 lbs. / 39 kgs. 101 lbs. / 45.8 kgs. 165 lbs. / 75 kgs. 209 lbs. / 94.8 kgs.
Item Number 46501 46502 46503 46504 46505
Safety and Warranty
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Maintenance
• The freezer should be cleaned regularly. When cleaning, turn o󰀨 the power, take out the food in the cabinet,
clean the inside using water or a little neutral detergent.
• Do not use boiling water, acid, chemical diluents, petrol and oil, or dirt-removing powder.
• Dry it after cleaning.
• Use light soap water when cleaning the door seal, apply a little of talcum powder on it after natural drying to
extend its service life.
• Use soft cloth with water or a little detergent to clean the out surface. Note, keeping the power supply and
lower part of connect wires away from water to avoid electricity leakage.
• Except common breakdowns, those who are not service technician should not take apart and repair the
freezer on their own so as to avoid worsening the trouble. Unauthorized repair of electrical part such as
compressor, temperature controller is forbidden.
DEFROSTING
• Defrost for better freezing e󰀩ciency when the frost lm in the cabinet is 4-5mm thick.
• When defrosting, turn o󰀨 the power, take out the frozen foods, open the door for warming and melting. Use
a soft cloth to absorb water and clean it up.
• Do not use sharp metal tools such as steel brush to clean the frost lm when defrosting so as to avoid
evaporator damage.
Troubleshooting
Problem Possible Cause Solution
The indicator is not on.
The compressor does not start.
The plug isn’t fully connected to
the socket.
Replug it.
No power. Connect the socket with power.
The indicator is on, but the
compressor doesn’t work and
buzzes only.
The power voltage is <98V. Put a power-regulater more than
1000W power together.
The compressor stops a minute
after start, and restart after a few
minutes, and so repeatedly.
The power voltage is >132V. Put a power-regulater more than
1000W power together.
The compressor works normally,
but the temperature in the cabinet
lowers too slowly.
The door is opened too frequently. Reduce open times.
The food in the cabinet is too
much, or placed improperly.
Place foods properly, keep space
between them for ventilation of
cold air.
The frost lm is too thick. Take out foods and defrost.
The surface of the condenser is
too dirty.
Stop and clean the condenser.
The door seals badly. Adjust the door seal.

9
Troubleshooting
The noise is too loud. The freezer is placed unstably. Place it stably.
The xing of the freezer is loose. Tighten the xing.
There’s contact between pipes. Separate them.
THE FOLLOWING ARE NOT FAULTS:
• When the freezer is working or after stopping for a while, the refrigerant in the pipes is cycling and gives out
“running water” sounds.
• The surface temperature of the compressor may be up 70~80°C when it is working.
• The back side of step freezer gives out heat.
• In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use.
Just dry it with a piece of cloth.

10
Model FR-CN-0142 46501
Model FR-CN-0192 46502
Model FR-CN-0282 46503
Parts Breakdown

11
Parts Breakdown
Model FR-CN-0142 46501
Model FR-CN-0192 46502
Model FR-CN-0282 46503
Item No. Description Position Item No. Description Position Item No. Description Position
AE768 Cabinet for 46501 1 AE775 Compressor Pipe for 46501 9 AE783 Power Cable for 46501 33
AE769 Door Gasket for 46501 2 AE776 Compressor for 46501 10 AE784 Support Feet for 46501 34
AE770 Door for 46501 3 AE777 Capacitor Bracket for 46501 16 AE785 Thermostat for 46501 35
79826 Basket for 46501 4 AE778 Fixing Screw for 46501 17 AE786 Control Board for 46501 36
AE771 Door Hinge for 46501 5 AE779 Screw for 46501 20 AE787 Indicate Light Red for 46501 38
AE772 Hinge Upper Cover for 46501 6 AE780 Screw for 46501 21 AE788 Indicate Light Green for 46501 40
AE773 Hinge Bottom Cover for 46501 7 AE781 Rollers for 46501 24
AE774 Screw for 46501 8 AE782 Filter for 46501 30
Item No. Description Position Item No. Description Position Item No. Description Position
AE789 Cabinet for 46502 1 AE796 Compressor Pipe for 46502 9 AE804 Power Cable for 46502 33
AE790 Door Gasket for 46502 2 AE797 Compressor for 46502 10 AE805 Support Feet for 46502 34
AE791 Door for 46502 3 AE798 Capacitor Bracket for 46502 16 AE806 Thermostat for 46502 35
79826 Basket for 46502 4 AE799 Fixing Screw for 46502 17 AE807 Control Board for 46502 36
AE792 Door Hinge for 46502 5 AE800 Screw for 46502 20 AE808 Indicate Light Red for 46502 38
AE793 Hinge Upper Cover for 46502 6 AE801 Screw for 46502 21 AE809 Indicate Light Green for 46502 40
AE794 Hinge Bottom Cover for 46502 7 AE802 Rollers for 46502 24
AE795 Screw for 46502 8 AE803 Filter for 46502 30
Item No. Description Position Item No. Description Position Item No. Description Position
AE810 Cabinet for 46503 1 AE818 Compressor Pipe for 46503 9 AE826 Power Cable for 46503 33
AE811 Door Gasket for 46503 2 AE819 Compressor for 46503 10 AE827 Support Feet for 46503 34
AE812 Door for 46503 3 AE820 Capacitor Bracket for 46503 16 AE828 Thermostat for 46503 35
AE813 Basket for 46503 4 AE821 Fixing Screw for 46503 17 AE829 Control Board for 46503 36
AE814 Door Hinge for 46503 5 AE822 Screw for 46503 20 AE830 Indicate Light Red for 46503 38
AE815 Hinge Upper Cover for 46503 6 AE823 Screw for 46503 21 AE831 Indicate Light Green for 46503 40
AE816 Hinge Bottom Cover for 46503 7 AE824 Rollers for 46503 24
AE817 Screw for 46503 8 AE825 Filter for 46503 30

12
Model FR-CN-0445 46504
Parts Breakdown

13
Parts Breakdown
Model FR-CN-0600 46505

14
Parts Breakdown
Model FR-CN-0445 46504
Item No. Description Position Item No. Description Position Item No. Description Position
AE832 Door for 46504 1 AE839 Control Board for 46504 10 AE846 Filter for 46504 30
AE833 Door Gasket for 46504 1 AE840 Indicate Light Red for 46504 10 AE847 Hinge Cover for 46504 33
AE834 Outer Handle for 46504 3 - 5 AE841 Indicate Light Green for 46504 10 AE848 Door Hinge for 46504 34
AE835 Cabinet for 46504 6 AE842 Thermostat for 46504 10 AE154 Basket for 46504 35
AE836 Lock for 46504 7 AE843 Power Cable for 46504 16 AE849 Fan for 46504
AE837 Rollers for 46504 8 AE844 Compressor Room Cover for 46504 20
AE838 Screw for 46504 9 AE845 Compressor for 46504 21
Model FR-CN-0600 46505
Item No. Description Position Item No. Description Position Item No. Description Position
AE850 Door for 46505 1 AE858 Rollers for 46505 10 - 12 AE866 Wire Condenser for 46505 34
AE851 Handle for 46505 2 AE859 Control Board for 46505 13 AE867 Fan for 46505 35
AE852 Screws for 46505 3 AE860 Indicate Light Red for 46505 13 AE868 Filter for 46505 39
AE853 Handle Cover for 46505 4 AE861 Indicate Light Green for 46505 13 AE869 Front Inside Condenser for 46505 40
AE854 Cabinet for 46505 6 AE862 Thermostat for 46505 13 AE870 Back Inside Condenser for 46505 41
AE855 Lock for 46505 7 AE863 Power Cable for 46505 20 AE871 Door Hinge Cover for 46505 42
AE856 Lock Cover for 46505 8 AE864 Compressor Room Cover for 46505 24 AE872 Door Hinge for 46505 43
AE857 Bolt for 46505 9 AE865 Compressor for 46505 25 AE873 Basket for 46505 44

15
Electrical Schematics
Model FR-CN-0142 46501
Model FR-CN-0192 46502
Model FR-CN-0282 46503

16
Electrical Schematics
Model FR-CN-0445 46504

17
Electrical Schematics
Model FR-CN-0600 46505

18
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________

19
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
