Display Freezers
Models FR-CN-0166, 0266, 0296, 0366
Items 47751, 47752, 47753, 47754
Instruction Manual

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 8
-------------------------------------------------------------------------- 8
--------------------------------------------------------------------------------------------- 9
----------------------------------------------------------------------------------- 9 - 11
----------------------------------------------------------------------------- 11 - 12
---------------------------------------------------------------------------- 13 - 20
---------------------------------------------------------------------------- 21
------------------------------------------------------------------------------------------------- 22
---------------------------------------------------------------------------- 23
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model FR-CN-0166 / Model FR-CN-0266
Model FR-CN-0296 / Model FR-CN-0366

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR
WATER LEAKS IS VOID IF THE AMBIENT ROOM
TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS
DAÑOS CAUSADOS POR FUGAS DE AGUA. LA
GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA
SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y
EL 55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATO NO ESTÁ CONECTADO DIRECTAMENTE A
UN DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE
L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT
À UN DRAIN DE PLANCHER.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Safety and Warranty
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
• The products are commercial display freezers. These products are intended solely for the storage and/or
display of packaged products that are not potentially hazardous foods.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

6
Safety and Warranty
• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
• Please according to local regulations regarding disposal of the appliance for its ammable blowing gas.
Before you scrap the appliance, please take o󰀨 the doors to prevent children trapped.
• WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
• WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
• WARNING – Do not damage the refrigerant circuit.
• WARNING – Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
• This appliance is intended to be used in household and similar applications such as, sta󰀨 kitchen areas
in shops, o󰀩ces and other working environments; farm houses and by clients in hotels, motels and other
residential type environments; catering and similar non-retail applications.
• The appliance shall not be installed in public corridors or lobbies. Please according to local regulations
regarding disposal of the appliance for its ammable gas. Before you scrap the appliance, please take o󰀨
the doors to prevent children trapped
• Warning: the appliance shall be installed in accordance with national wiring regulations.
• The appliance is to be installed in accordance with the Safety Standard for Refrigeration Systems, ANSI/
ASHRAE 15.
• Notice: servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of
the person competent in the use of ammable refrigerants.
• Notice: component parts shall be replaced with like components so as to minimize the risk of possible
ignition due to incorrect parts.
• The appliance is to be installed in accordance with the safety instructions.
• WARNING: do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer. The appliance shall be stored in a room without continuously operating
ignition sources (for example: open ames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• Warning: the appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specied for operation.
• Warning: the appliance shall be stored in a room without continuously operating open ames (for example
an operating gas appliance) and ignition sources (for example an operating electric heater).
• Warning: the appliance shall be stored so as to prevent mechanical damage from occurring.
• Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any
other adverse environmental e󰀨ects. The check shall also take into account the e󰀨ects of aging or continual
vibration from sources such as compressors or fans.
• Before carrying out decommissioning procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered
safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is
required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the
task is commenced.

7
Safety and Warranty
• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended
good practice that all refrigerants are removed safely.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment
that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when
applicable, FLAMMABLE REFRIGERANTS.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and
the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in
cylinders.
CAUTION FOR USING
1. Unpack all packages before using the freezer. Don’t tilt it over 60° while moving it.
2. The freezer should be installed in the environment of good ventilation, cool and dry and without corrosive
gas. It should not be installed close to heat sources or directly under the sunlight. The space more than
10cm between the wall of the front and the back of the freezer should be allowed. When installing, the
wheels should be padded well so as to make the freezer be level and stable, or it will cause vibration and
too much noise.
3. If power is cut o󰀨, wait at least 5 minutes before turning on again to avoid damage to the compressor.
4. To save energy, the door should not be frequently opened for a long time.
5. The surface and the inside of the freezer should be dry and clean. Long term moisture will cause the
freezer rust slowly. (There will be some stains on the surface.)
6. Periodical cleaning is suggested for your reference. Generally, 30 - 45 days once is best. When cleaning, it
is best to wipe the inside and the surface of the showcase with the soft cloth with neutral soap or detergent.
Attention: to ensure safety, the power plug must be pulled out before cleaning. All safety precautions
must be followed. Dispose of properly in accordance with federal or local regulations. Risk of re or
explosion due to puncture of refrigerant tubing. Follow handling instructions carefully.
DANGER: risk of re or explosion. Flammable refrigerant R290/R600a used. To be repaired only by
trained service personnel. Do not use mechanical devices to defrost refrigerator. Do not puncture
refrigerant tubing.
RESIDENTIAL USERS: vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PART AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.

8
Technical Specications
Safety and Warranty
Model FR-CN-0176 FR-CN-0266 FR-CN-0296 FR-CN-0366
Climate Type N/ST
Freezer Capacity 117 L / 4.1 cu.ft. 190 L / 6.7 cu.ft. 214 L / 7.6 cu.ft. 263 L / 9.3 cu.ft.
Number of Baskets 3456
Defrost Manual
Electrical 110-120V / 60Hz / 1
Refrigerant R290
Door Panel LOW-E + Tempered
Door Type Sliding
Door Frame Color Black, Gray
Lock Yes
Inside Walls Embossed Aluminum
Adjustable
Thermostat Mechanical
Number of Casters 4
Dimensions 30.8” x 24” x 33”
781 x 610 x 838mm
43.5” x 24” x 33”
1105 x 610 x 838mm
47.81” x 24” x 33”
1214 x 610 x 838mm
56.5” x 24” x 33”
1435 x 610 x 838mm
Packaging
Dimensions
32.5” x 25.8” x 34.3”
826 x 655 x 872mm
45.3” x 25.8” x 34.3”
1151 x 655 x 872mm
49.6” x 25.8” x 34.3”
1260 x 655 x 872mm
58.3” x 25.8” x 34.3”
1482 x 655 x 872mm
Weight 207.2 lbs. / 94 kgs. 255.7 lbs. / 116 kgs. 280 lbs. / 127 kgs. 324.1 lbs. / 147 kgs.
Packaging Weight 235.9 lbs. / 107 kgs. 291 lbs. / 132 kgs. 315.3 lbs. / 143 kgs. 363.8 lbs. / 165 kgs.
Item Number 47751 47752 47753 47754
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

9
Operation
Maintenance
HOW TO USE
Allow to stand for a minimum of 4 hours before plugging in to the mains.
The temperature is controlled by the temperature control knob located on the front face, at the bottom right
hand side. Rotate the control knob left or right to regulate the temperature inside the freezer.
1. When initial operation, the freezer should run emptily about one hour before storing food in it.
2. The thermostat could adjust the temperature inside the freezer. When you turn the knob in clockwise. The
bigger the gure, the lower the temperature. Generally, the position of ‘4’ is suitable, around 0°F. At “Max/7/
HI” position, the compressor will run constantly to reach the coldest temperature as quickly as possible
without stop (no cycle). Turn the temperature control to the “4” or “5” when temperature inside is stable for
ice cream and similar products.
INDICATOR LIGHTS
• Power: indicates the freezer is switched on.
• Run: indicates the compressor is working.
FOOD STORAGE
• Do not ll the freezer full of products. You should leave space between items and the inner surface of the
cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or canned
beverage with freezing point above the temperature in the cabinet when it is below zero.
• For foods that should be moisture-free or lose water easily, wrap them up with hermetical food bags or
fresh lms before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.
• Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol ,etc. is
forbidden.
• Never put hot food directly in the freezer. Food should be cold or frozen before placing it inside.
• The cabinet is intended exclusively for the storage and/or display of packaged foods only.
• The freezer should be cleaned regularly. When cleaning, turn o󰀨 the power, take out the foods in the
cabinet, clean the inside using water or a little neutral detergent.
• Do not use boiling water, acid, chemical diluent, petrol and oil, or dirt removing powder.
• Dry it after cleaning.
• Use light soap water when cleaning the door seal, apply a little of talcum powder on it after natural drying to
extend its service life.
• Use soft cloth with water or a little detergent to clean the out surface.
Note: keeping the power supply and lower part of connect wires away from water to avoid
electricity leakage.
• Except common breakdowns, those who are not service technician should not take apart and repair the

10
Maintenance
freezer on their own so as to avoid worsening the trouble. Unauthorized repair of electrical part such as
compressor, temperature controller is forbidden.
• All maintenance sta󰀨 and others working in the local area shall be instructed on the nature of work being
carried out. Work in conned spaces shall be avoided.
• If any hot work is to be conducted on the refrigerating equipment or any associated parts, appropriate re
extinguishing equipment shall be available on hand. A dry chemical or CO2 re extinguisher should be
adjacent to the charging area.
• Notice: any person who is involved with working on or breaking into a refrigerant circuit should hold
a current valid certicate from an industry accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an industry recognized assessment
specication.
• Notice: servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of
the person competent in the use of ammable refrigerants.
• No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe
work shall use any sources of ignition in such a manner that it may lead to the risk of re or explosion. All
possible ignition sources, including cigarette smoking, should be kept su󰀩ciently far away from the site
of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the
surrounding space. Prior to work taking place, the area around the equipment shall be surveyed to make
sure that there are no ammable hazards or ignition risks.“No Smoking” signs shall be displayed.
• Checking for presence of refrigerant, the area shall be checked with an appropriate refrigerant detector
prior to and during work, to ensure the technician is aware of potentially toxic or ammable atmospheres.
Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e.,
non-sparking, adequately sealed, or intrinsically safe.
• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into
the atmosphere.
• Where electrical components are being changed, they shall be t for the purpose and to the correct
specication. At all times, the manufacturer’s maintenance and service guidelines shall be followed. If in
doubt, consult the manufacturer’s technical department for assistance.
• Detection of ammable refrigerants: Under no circumstances shall potential sources of ignition be used in
the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame)
shall not be used.
DEFROSTING
• Defrost for better freezing e󰀩ciency when the frost lm in the cabinet is 5mm/1/5’’ thick.
• When defrosting, turn o󰀨 the power, take out the frozen foods, open the door for warming and melting. Use
soft cloth to absorb water and clean it up.

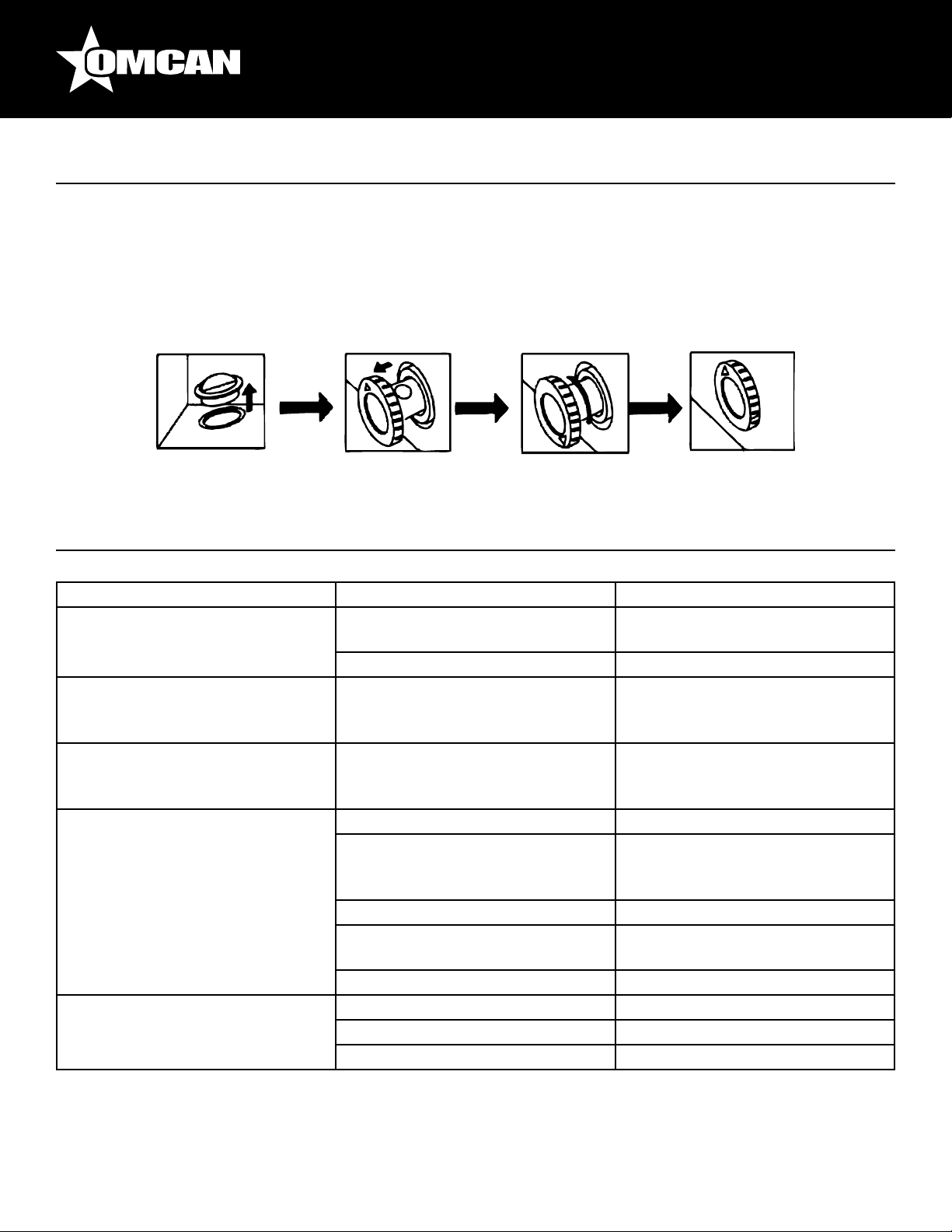

• Extract the water conduit and put in a water container.
• Do not use sharp metal tools such as steel brush to clean the frost lm when defrosting so as to avoid
evaporator damage.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
• When defrosting has nished drain the water in the bottom of the freezer by removing the cap, as illustrated

11
Maintenance
below.
• There is a water conduit at the bottom of the freezer, when defrosting, extract the rubber cover, the
defrosted water will drip into the hole and ow out.
NOTE: PLEASE KEEP THE RUBBER COVER SAFE DURING THE DEFROSTING AND PUT IT BACK
AFTER THE DEFROSTING IS COMPLETE.
Troubleshooting
Problem Cause Solution
The indicator is not on. The
compressor doses not start.
The plug isn’t connected to the
socket really.
Replug it.
No power. Connect the socket with power.
The indicator is on, but the
compressor doesn’t work and
buzzes only.
The power voltage is <98V. Put a power-regulator more than
1000W power together.
The compressor stops a minute
after start, and restart after a few
minutes, and so repeatedly.
The power voltage is >132V. Put a power-regulator more than
1000W power together.
The compressor works normally,
but the temperature in the cabinet
lowers too slowly.
The door is opened too frequently. Reduce open times.
The food in the cabinet is too
much, and placed improperly.
Place foods properly keep place
between them for ventilation of
cold air.
The frost lm is too thick. Take out foods and defrost.
The surface of the condenser is
too dirty.
Stop and clean the condenser.
The door seals badly. Adjust the door seal.
The noise is too loud. The freezer is placed unstably. Place it stably.
The xing of the freezer is loose. Tighten the xing.
There’s contact between pipes. Separate them.
The following are not faults:
• When the freezer is working or after stopping for a while, the refrigerant in the pipes is cycling and gives out

12
Troubleshooting
“running water” sounds.
• The surface temperature of the compressor may be up 70~80°C/158~176°F when it is working.
• The back side of freezer gives out heat.
• In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use.
Just dry it with a piece of cloth.
• The protective lm on the inner tank is to avoid damage during production purpose. Don’t worry about
peeling it o󰀨. It’s okay to tear it o󰀨 when you use it.

13

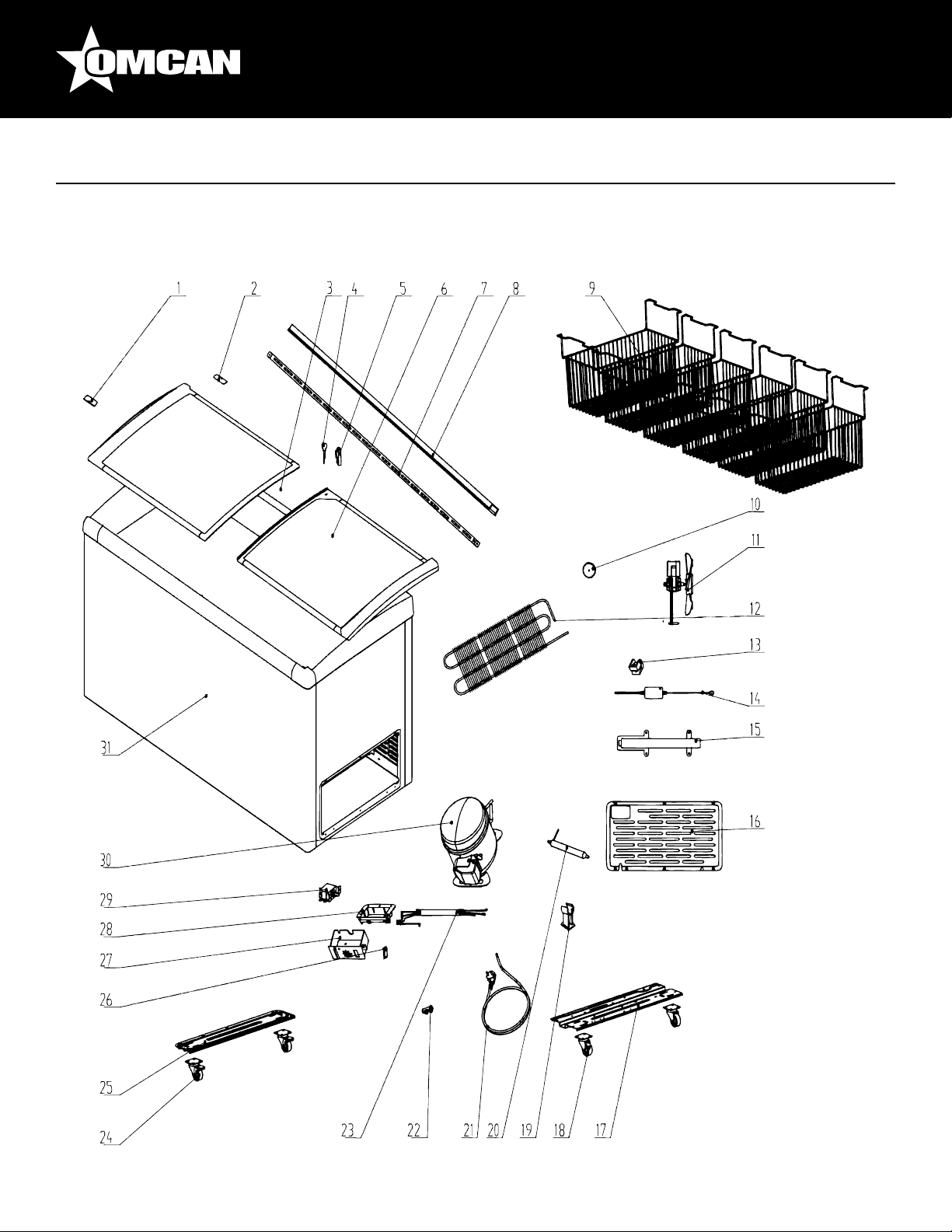

Parts Breakdown
Model FR-CN-0166 47751

14
Parts Breakdown
Model FR-CN-0166 47751
Item No. Description Position Item No. Description Position Item No. Description Position
AN604 Stop Block for 47751 1, 2 AN614 Condenser Mounting Bracket for 47751 13 AN624 Temperature-Controlled Wiring for 47751 23
AN605 Upper Glass Door Assembly for 47751 3 AN615 LED Light Transformer for 47751 14 AN625 Castor with Brake for 47751 24
AN606 Lock Bracket and Key for 47751 4, 5 AN616 Drip Tray for 47751 15 AN626 Castor Channel Iron for 47751 25
AN607 Bottom Glass Door Assembly for 47751 6 AN617 Compressor Cover for 47751 16 AN627 Flame-Proof Switch for 47751 26
AN608 LED Light for 47751 7 AN618 Compressor Support for 47751 17 AN628 Temperature Control Box for 47751 27
AN609 LED Light Cover for 47751 8 AN619 Castor without Brake for 47751 18 AN629 Thermostat Support for 47751 28
AN610 Basket for 47751 9 AN620 Filter Support for 47751 19 AN630 Thermostat for 47751 29
AN611 Thermostat Cover for 47751 10 AN621 Filter for 47751 20 AN631 Compressor LZ43XU1 for 47751 30
AN612 Fan Motor for 47751 11 AN622 Power Cord Assembly for 47751 21 AN632 Cabinet for 47751 31
AN613 Condenser for 47751 12 AN623 Wire Clamp for 47751 22

15

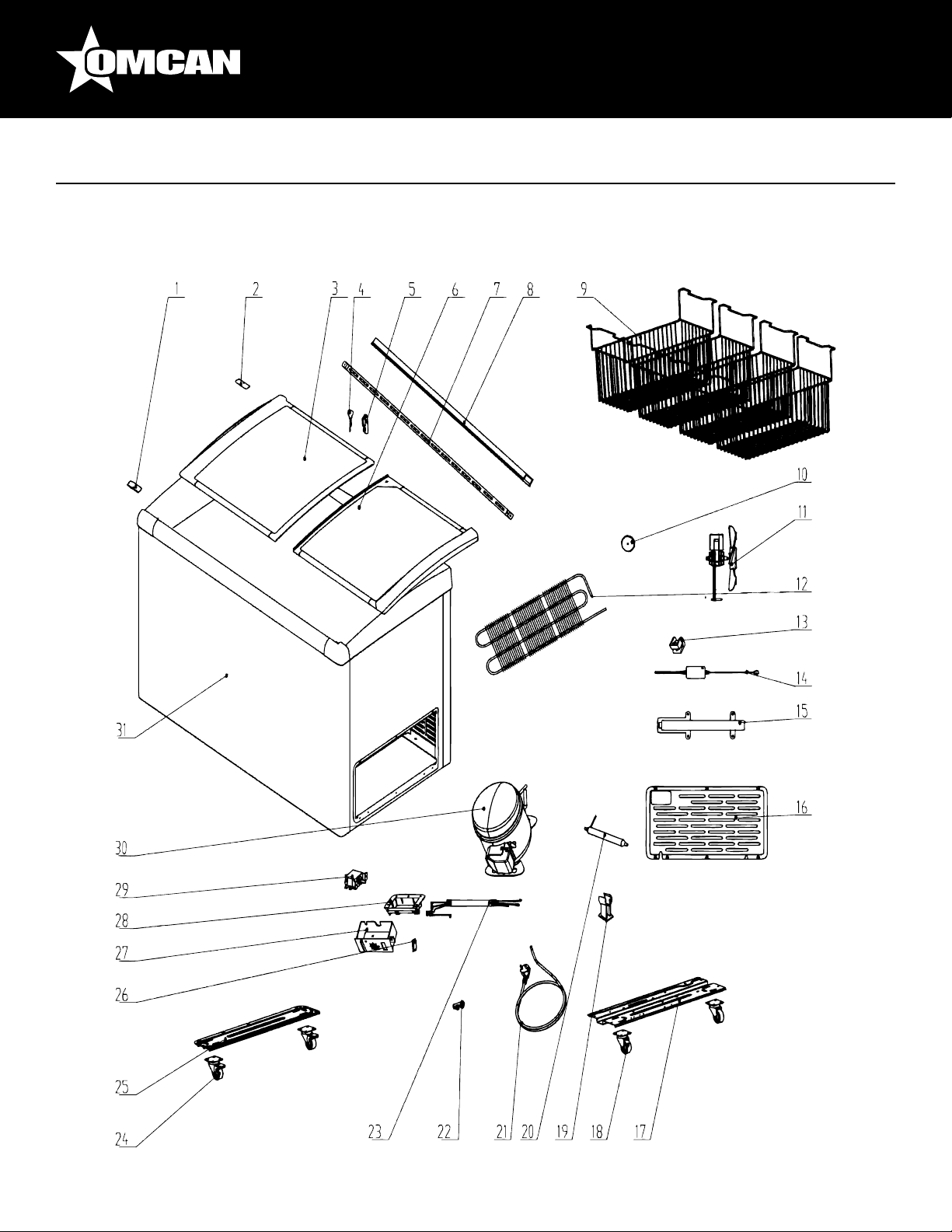

Parts Breakdown
Model FR-CN-0266 47752

16
Parts Breakdown
Model FR-CN-0266 47752
Item No. Description Position Item No. Description Position Item No. Description Position
AN604 Stop Block for 47752 1, 2 AN614 Condenser Mounting Bracket for 47752 13 AN624 Temperature-Controlled Wiring for 47752 23
AN633 Upper Glass Door Assembly for 47752 3 AN615 LED Light Transformer for 47752 14 AN625 Castor with Brake for 47752 24
AN606 Lock Bracket + Key for 47752 4, 5 AN616 Drip Tray for 47752 15 AN626 Castor Channel Iron for 47752 25
AN634 Bottom Glass Door Assembly for 47752 6 AN617 Compressor Cover for 47752 16 AN627 Flame-Proof Switch for 47752 26
AN635 LED Light for 47752 7 AN618 Compressor Support for 47752 17 AN628 Temperature Control Box for 47752 27
AN636 LED Light Cover for 47752 8 AN619 Castor without Brake for 47752 18 AN629 Thermostat Support for 47752 28
AN610 Basket for 47752 9 AN620 Filter Support for 47752 19 AN630 Thermostat for 47752 29
AN611 Thermostat Cover for 47752 10 AN621 Filter for 47752 20 AN637 Compressor LZ45XU1 for 47752 30
AN612 Fan Motor for 47752 11 AN622 Power Cord Assembly for 47752 21 AN638 Cabinet for 47752 31
AN613 Condenser for 47752 12 AN623 Wire Clamp for 47752 22

17
Parts Breakdown
Model FR-CN-0296 47753

18
Parts Breakdown
Model FR-CN-0296 47753
Item No. Description Position Item No. Description Position Item No. Description Position
AN604 Stop Block for 47753 1, 2 AN614 Condenser Mounting Bracket for 47753 13 AN624 Temperature-Controlled Wiring for 47753 23
AN639 Upper Glass Door Assembly for 47753 3 AN615 LED Light Transformer for 47753 14 AN625 Castor with Brake for 47753 24
AN606 Lock Bracket and Key for 47753 4, 5 AN616 Drip Tray for 47753 15 AN626 Castor Channel Iron for 47753 25
AN640 Bottom Glass Door Assembly for 47753 6 AN617 Compressor Cover for 47753 16 AN627 Flame-Proof Switch for 47753 26
AN641 LED Light for 47753 7 AN618 Compressor Support for 47753 17 AN628 Temperature Control Box for 47753 27
AN642 LED Light Cover for 47753 8 AN619 Castor without Brake for 47753 18 AN629 Thermostat Support for 47753 28
AN610 Basket for 47753 9 AN620 Filter Support for 47753 19 AN630 Thermostat for 47753 29
AN611 Thermostat Cover for 47753 10 AN621 Filter for 47753 20 AN643 Compressor LZ58XU1 for 47753 30
AN612 Fan Motor for 47753 11 AN622 Power Cord Assembly for 47753 21 AN644 Cabinet for 47753 31
AN613 Condenser for 47753 12 AN623 Wire Clamp for 47753 22

19
Parts Breakdown
Model FR-CN-0366 47754

20
Item No. Description Position Item No. Description Position Item No. Description Position
AN604 Stop Block for 47754 1, 2 AN614 Condenser Mounting Bracket for 47754 13 AN624 Temperature-Controlled Wiring for 47754 23
AN645 Upper Glass Door Assembly for 47754 3 AN615 LED Light Transformer for 47754 14 AN625 Castor with Brake for 47754 24
AN606 Lock Bracket and Key for 47754 4, 5 AN616 Drip Tray for 47754 15 AN626 Castor Channel Iron for 47754 25
AN646 Bottom Glass Door Assembly for 47754 6 AN617 Compressor Cover for 47754 16 AN627 Flame-Proof Switch for 47754 26
AN647 LED Light for 47754 7 AN618 Compressor Support for 47754 17 AN628 Temperature Control Box for 47754 27
AN648 LED Light Cover for 47754 8 AN619 Castor without Brake for 47754 18 AN629 Thermostat Support for 47754 28
AN610 Basket for 47754 9 AN620 Filter Support for 47754 19 AN630 Thermostat for 47754 29
AN611 Thermostat Cover for 47754 10 AN621 Filter for 47754 20 AN649 Compressor LZ58XU1 for 47754 30
AN612 Fan Motor for 47754 11 AN622 Power Cord Assembly for 47754 21 AN650 Cabinet for 47754 31
AN613 Condenser for 47754 12 AN623 Wire Clamp for 47754 22
Parts Breakdown
Model FR-CN-0366 47754
