Omcan FR-CN-0105 User manual

Revised - 11/18/2021
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Display Freezer
Model FR-CN-0105, 0105B, 0098NB, 0098
Items 47241, 47242, 47239, 44526
Instruction Manual

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 6
-------------------------------------------------------------------------- 7
--------------------------------------------------------------------------------------- 7 - 8
--------------------------------------------------------------------------------------------- 8
----------------------------------------------------------------------------------------- 9
------------------------------------------------------------------------------- 9 - 10
---------------------------------------------------------------------------- 11 - 16
---------------------------------------------------------------------- 17 - 18
---------------------------------------------------------------------------- 19
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting

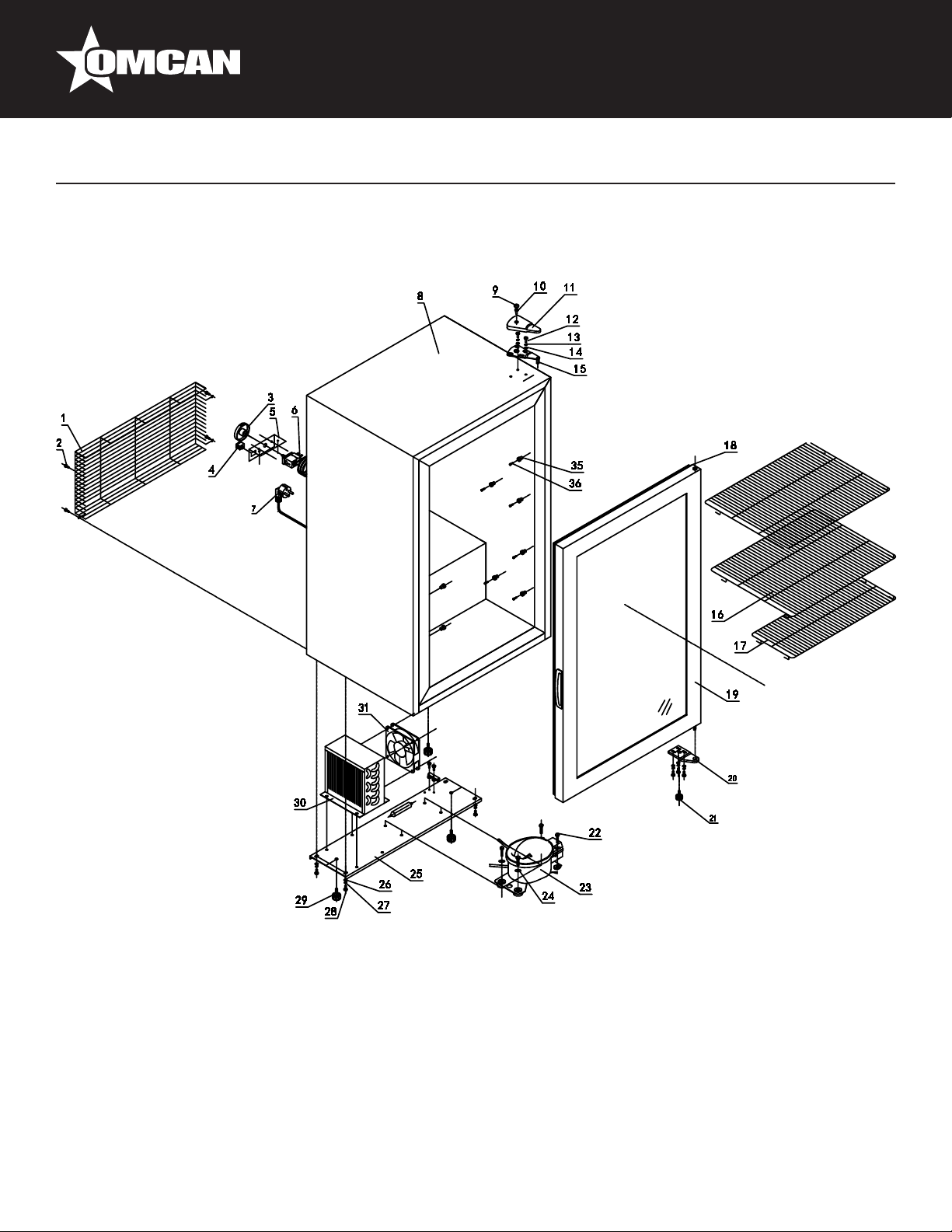

Parts Breakdown
Electrical Schematics
Warranty Registration
Model FR-CN-0105 / Model FR-CN-0105B
Model FR-CN-0098NB / Model FR-CN-0098

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR
DIMINISHED COOLING OR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY IS VOID
IF THE AMBIENT ROOM TEMPERATURE
EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS
NOT CONNECTED DIRECTLY TO A FLOOR
DRAIN.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Safety and Warranty
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
SAFETY CAUTIONS
1. This unit uses AC110V/60Hz power, there should be a 500VA stabilizer if the voltage uctuation exceed
AC198V~242V.
2. The user should hold the plug when the power is on/o󰀨, dragging or pulling the power cord is prohibited.
3. Do not remove the power cord or plug.
4. Must use dependent socket and reliable ground wire. Ground wire must not connect with the null line of the

6
Safety and Warranty
gas pipe, warm gas pipe, water pipe and must be single power.
5. Never splash water on the unit directly.
6. Keep away from explosive, hazardous goods such as ether, gas, alcohol, bonding agents, gunpowder etc.
7. Keep away from spray of inammables such as paints, coating materials etc.
8. After the unit is switched o󰀨, it should not be restarted within 5 minutes.
9. Do not leave the power cord under any heavy objects including the unit itself.
10. Do not drill holes or install other objects on the casing.
11. This cooler is not suitable for storage pharmaceutical products.
CAUTION
• The unit is not suitable for storage of blood, pharmaceutical products and biological products
• Do not place heavy articles on the top of the unit.
• In case of trouble, please ask professional person for service, do not dismantle the unit without prior
authority to avoid hazard.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7
Installation
INSTALLATION AND STORAGE
1. Keep the unit vertical when carrying the unit, the angle to the horizontal line should not be over 50°,
otherwise it will damage the compressor and a󰀨ect normal operation of the unit.
2. The unit should be place on a solid and rm ground, take away the bottom pack to lower the shock and
noise.
3. Leave at least 20 cm of distance between the back of the unit and the wall for ventilation and leave a space
with an open angle of 160° for the door.
4. Keep the unit away from heat sources and avoiding direct sunlight.
5. Never place the unit on a location where water can reach or with high moisture. Splashed water and dirt
should be wiped o󰀨 in time by using a soft cloth.
Technical Specications
Model FR-CN-0105 FR-CN-0105B FR-CN-0098NB FR-CN-0098
Capacity 105 L / 3.7 cu.ft. 98 L / 3.46 cu. ft.
Power 180 W 158 W
Power Consumption 2.3 kW/h 3.3 kW/h
Temperature Range -18 to -20°C / -0.4 to -4°F
Refrigerant R290
Maximum Ambient
Temperature 32°C / 90°F
Defrosting Manual
Temperature
Controller Digital Controller
Number of Shelves 6 3
Shelf Material Metal ABS
Shelf Capacity 33.1 lbs. / 15 kgs.
Shelf Dimensions 10.2” x 10.2”
260 x 260mm
17.4” x 15”
442 x 380mm 17.8” x 14.2”
453 x 360mm
17.8” x 6.7”
453 x 170mm
Electrical 110V / 60Hz
Interior Dimensions 11” x 12.2” x 49.8”
280 x 310 x 1265mm
17.9” x 15.4” x 26.8”
455 x 390 x 680mm
17.8” x 14.2” x 25.6”
453 x 360 x 650mm
Exterior Dimensions 16.5” x 16.9” x 69.1”
420 x 430 x 1755mm
16.5” x 16.9” x 74.2”
420 x 430 x 1885mm
23.4” x 20.1” x 33.8”
595 x 510 x 859mm
23.4” x 21.5” x 34.3”
595 x 545 x 870mm
Weight 121.3 lbs. / 55 kgs. 143.3 lbs. / 65 kgs. 110.2 lbs. / 50 kgs.
Item Number 47241 47242 47239 44526

8
Operation
Installation
6. Do not place the unit in the environment cold enough to be iced.
BEFORE USE
1. Remove the carton and packing foam (including the bottom foam) before using.
2. Clean the unit before using.
3. Adjust the foot to make the unit steady according to the ground condition to lower the shock and noise.
4. After moving the unit, place the unit for 30 minutes before switching it on.
Running: close the door and connect the power, turn on the lamp switch on the control panel, the lamp is on.
Half an hour later, the temperature inside the case lower apparently, it indicates the unit on be normally used.
5. After connecting the power, the unit should be kept empty for one hour.
SETTING AND ADJUSTING THE TEMPERATURE
1. Adjust the storage temperature through the
temperature controller located on the back of the
case, adjust the temperature according to the ambient
temperature and the foodstu󰀨.

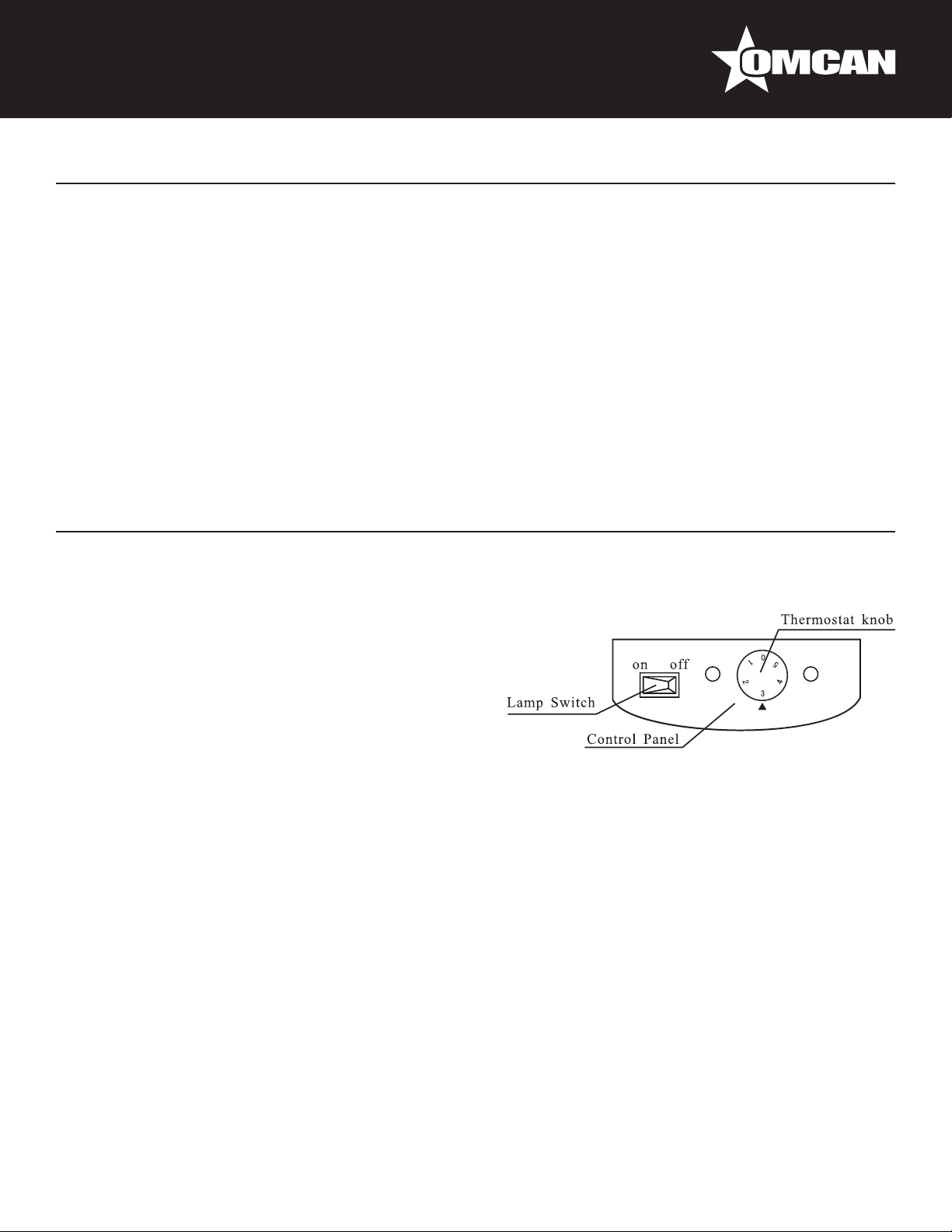

2. See the following picture about the knob scale. The
temperature adjustable capacity is from “1”-“5”, adjust
the storage temperature by turning the temperature
controller clockwise. The higher of the number shows
the lower of the storage temperature. The knob can turn freely but can’t turn clockwise from “5” to “1”.
Factory setting position is on “3”.
3. Check if the scale is on an appropriate position before using, frequent adjustment is not appropriate when
using. Normally in summer, the ambient temperature is high, anti clockwise turn the knob to “2”, while in
winter, the ambient temperature is low, clockwise turn the knob to “4”.
4. Position “0” represent stop running.
STORAGE OF PRODUCT
1. Do not put large amount of product into the unit at one time, you should leave some space around the
foodstu󰀨 to let cold air inside the cabinet counter to ow. Keep bottled articles away from the walls of
interior cabinet so as not to freeze it until broken.
2. Do not put warm food into the unit directly until they are cooled under normal temperature, it will facilitate to
lower its energy consumption and prolong service life of the compressor.

9
Troubleshooting
Problems Possible Causes Solutions
The units does not work. Bad connection of plug. Re-connect the plug to power
supply
Abnormal operation of the
compressor or has buzz sound.
The power voltage is out of the
rated range.
Disconnect the power supply
immediately and reconnect
with it after normal voltage. It
is necessary to have a voltage
stabilizer in case of poor power
supply.
Compressor operates too long time
and no frost on the surface of inner
cabinet.
Refrigeration system is at fault
(leakage or blocked).
Send the unit to service
department for repair.
There is frost or ice on the walls
of the inner cabinet and too
low internal temperature, the
compressor operates never stop.
Thermostat does not work. Ask service department for repair.
The internal temperature is too
high and the compressor operates
never stop.
Bad heat dissipation and
ventilation of casing, the ambient
temperature is too high.
Improve ventilation and lower the
ambient temperature.
Too much warm food was put in at
one time.
Take out some food.
Door open frequently and long time
door opening.
Decrease number and time of door
opening.
Maintenance
DISCONNECT THE POWER SUPPLY BEFORE MAINTENANCE FOR THE MACHINE!
1. Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as before. Putting some
talcum powder on the magnetic surface would prolong its service life.
2. Bulb replacement: remove the lamp shade, take out the bulb, replace with a new bulb, then mount it again.
3. If there is heavy frost on the evaporator after long usage, take out the stu󰀨 inside the case, disconnect the
power, the frost will melt automatically, clean up the water and connect the power again.
4. Use a soft cloth and dip some water or soap (Non-caustic, neutral detergent is also available) to clean the
unit. Dry the unit after cleaning to avoid rust.
5. Do not use organic liquid, boiled water, washing powder or acid stu󰀨 to clean the unit. Rinsing the case by
water is not allowed, don’t use hard brush, steel brush to clean the case.
6. If the unit will not be used for a long time, disconnect the power, clean it by following the above steps, wipe
o󰀨 the water inside the case with a soft cloth.

10
Troubleshooting
Too high noise. The unit is not level. Adjust the adjustable legs.
The fastener of the unit is loose. Fasten the loose fastener.
Pipes are touching the
compressor.
Careful separate the touched
pipes.
Light is not on. The light is burned out. Replace the light.
NORMAL PHENOMENA
1. Sometime hear light sound of water owing in the unit, this is the sound of refrigerant owing inside the
pipe.
2. The top, and the two sides of the casing will be warm, even too hot.
3. In a humidity place, there is dew on the casing or the door, it can dry by dry cloth.

11
Parts Breakdown
Model FR-CN-0105 47241
Model FR-CN-0105B 47242

12
Parts Breakdown
Model FR-CN-0105 47241
Model FR-CN-0105B 47242
Item
No. Description Position Item No. Description Position Item No. Description Position
AH263 Top Panel for 47241 1 AH273 Lampshade for 47241 11 AH283 Connector for Front Bottom Panel for
47241 21
AH264 Digital Temperature Controller for 47241 2 AH274 Evaporation Fan for 47241 12 AH284 Hinge Down for 47241 22
AH265 On/Off Button for 47241 3 AH275 Power Line for 47241 13 AH285 Glass Door for 47241 23
AH266 Back Panel for 47241 4 AH276 Seal Plate for Compressor Room for 47241 14 AH286 Shelf Holder for 47241 24
AH267 Transformer for LED for 47241 5 AH277 Base Foot for 47241 15 AH287 Stand Column for 47241 25
AH268 Lamp Holder for 47241 6 AH278 Compressor for 47241 16 AH288 Hinge Upper for 47241 26
AH269 LED Tube for 47241 7 AH279 Bottom Plate for Compressor for 47241 17 AH289 Top Frame for Light Box for 47241 27
AH270 Case for 47241 8 AH280 Filter Drier for 47241 18 AH290 Lamp Plate for 47241 28
AH271 Condenser for 47241 9 AH281 Heat Elimination Fan for 47241 19 AH291 Shelf for 47241 29
AH272 Inner LED Lamp for 47241 10 AH282 Front Bottom Panel for 47241 20
Item
No. Description Position Item No. Description Position Item No. Description Position
AH311 Top Panel for 47242 1 AH321 Lampshade for 47242 11 AH331 Connector for Front Bottom Panel for
47242 21
AH312 Digital Temperature Controller for 47242 2 AH322 Evaporation Fan for 47242 12 AH332 Hinge Down for 47242 22
AH313 On/Off Button for 47242 3 AH323 Power Line for 47242 13 AH333 Glass Door for 47242 23
AH314 Back Panel for 47242 4 AH324 Seal Plate for Compressor Room for 47242 14 AH334 Shelf Holder for 47242 24
AH315 Transformer for LED for 47242 5 AH325 Base Foot for 47242 15 AH335 Stand Column for 47242 25
AH316 Lamp Holder for 47242 6 AH278 Compressor for 47242 16 AH336 Hinge Upper for 47242 26
AH317 LED Tube for 47242 7 AH327 Bottom Plate for Compressor for 47242 17 AH337 Top Frame for Light Box for 47242 27
AH318 Case for 47242 8 AH328 Filter Drier for 47242 18 AH338 Lamp Plate for 47242 28
AH319 Condenser for 47242 9 AH329 Heat Elimination Fan for 47242 19 AH339 Shelf for 47242 29
AH320 Inner LED Lamp for 47242 10 AH330 Front Bottom Panel for 47242 20

13
Parts Breakdown
Model FR-CN-0098NB 47239

14
Parts Breakdown
Model FR-CN-0098NB 47239
Item
No. Description Position Item No. Description Position Item No. Description Position
AD668 Mesh Enclosure for 47239 1 AC799 M5 Nut for 47239 12 AH278 Compressor for 47239 23
AC789 Screw for 47239 2 AC800 Gasket for 47239 13 AC811 M6 Nut for 47239 24
AC790 Temperature Control Knob for 47239 3 AC801 Lock Washer for 47239 14 AC812 Floor Presser for 47239 25
AC791 Lamp Switch for 47239 4 AC802 Top Hinge for 47239 15 AC813 M6 Nut for 47239 26
AC792 Temperature Controller Holder for 47239 5 AC803 Big Shelf for 47239 16 AC814 Lock Washers for 47239 27
AC793 Temperature Controller for 47239 6 AC804 Small Shelf for 47239 17 AC815 N6 Nut for 47239 28
AC794 Power Line for 47239 7 AC805 Door Gasket for 47239 18 AC816 Base Angle for 47239 29
AC795 Body for 47239 8 AC806 Glass Door for 47239 19 AC817 Condenser for 47239 30
AC796 Top Hinge Box Buckle for 47239 9 AC807 Hinge for 47239 20 AC818 Draught Fan for 47239 31
AC797 M4 Nut for 47239 10 AC808 Base Angle for 47239 21
AC798 Top Hinge Box for 47239 11 AC809 M6 Nut for 47239 22

15
Parts Breakdown
Model FR-CN-0098 44526

16
Parts Breakdown
Model FR-CN-0098 44526
Item
No. Description Position Item No. Description Position Item No. Description Position
AH292 Ventilation Grill for 44526 1 AH299 Lock for 44526 8 AH306 Plug for 44526 15
AH293 Upper Hinge for 44526 2 AH300 Door for 44526 9 AH307 Temperature Control for 44526 16
AH294 Condenser for 44526 3 AH301 Bottom Hinge for 44526 10 AH308 On/Off Switch for 44526 17
AH295 Bottom Panel for 44526 4 AH302 Shelf for 44526 11 AH309 Bracket for Light for 44526 18
AH296 Feet for 44526 5 AH303 Light for 44526 12 AH310 Top Light for 44526 19
AH278 Compressor for 44526 6 AH304 Light Box for 44526 13
AH298 Fan Motor for 44526 7 AH305 Cabinet for 44526 14

17
Electrical Schematics
Model FR-CN-0105 47241
Model FR-CN-0105B 47242

18
Electrical Schematics
Model FR-CN-0098NB 47239
Model FR-CN-0098 44526

19
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 6,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 6,500 productos con origen a nivel mundial.
