Salamander Heaters

Models CE-CN-1534-S, 1633-S

Items 39581, 39582

Instruction Manual

2 3

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

--------------------------------------------------------------------------------------- 5 - 6

--------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------- 7 - 9

---------------------------------------------------------------------- 10 - 11

------------------------------------------------------------------------------------------ 12 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

Model CE-CN-1534-S / Model CE-CN-1633-S

4 5

Technical Specications

General Information

Installation

Model CE-CN-1534-S CE-CN-1633-S

Warming Base 13.75” x 17.7” / 355 x 450 mm 13.75” x 22.8” / 355 x 580 mm

Power 1800 W

Electrical 120V / 60

Weight 63.9 lbs. / 29 kg. 92.6 lbs. / 42 kg.

Dimensions 19.1” x 20.5” x 20.8”

485.1 x 520.7 x 528.3 mm

23” x 20.5” x 20.8”

584.2 x 520.7 x 528.3 mm

Item Numbers 39581 39582

Take out the Salamander from the packaging and locate the unit on a rm level surface.

When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative

nished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with

Safety and Warranty

Please take care when in use to avoid oil spilling.

Please take notice that the unit will still be too hot to handle immediately after use. Gloves must be worn for

protection when handling.

If the power cord is damaged, it must be replaced by qualied technician.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de

operación y seguridad.

Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para

guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje

para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

6 7

Installation

a suitable non-combustible heat-insulating material, and that the closet attention be paid to re prevention

regulations. Ensure a minimum of 6” (152.4 mm) of clearance from the top and side of the salamander.

Once the Salamander has been placed in position by consulting International Standards and regulations. You

can choose put on the table or hang on the wall. The Salamander is ready to operate.

Operation

Maintenance

Plug in the power, the red indicator light will be light. Turn the energy regulator dial to required temperature,

the elements will start heating. You can adjust the heating height according to cooking different food. When

nished turn the energy regulator dial back to the ‘O’ position and unplug the unit.

The Salamander should be unplugged before being cleaned using warm, soapy water after each day’s

operation.

After cleaning, be sure the trays should be dry before putting them back to the unit.

Do not immerse in water to clean, or use high pressure water jets.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

39581 CE-CN-1534-S Salamander Grill Single 18” x 21” x 20” /

460mm x 533mm x 513mm 120V/60/1 CE PA10630S

39582 CE-CN-1633-S Salamander Grill Double 23” x 21” x 21” /

584mm x 521mm x 528mm 120V/60/1 CE PA10630D

Parts Breakdown

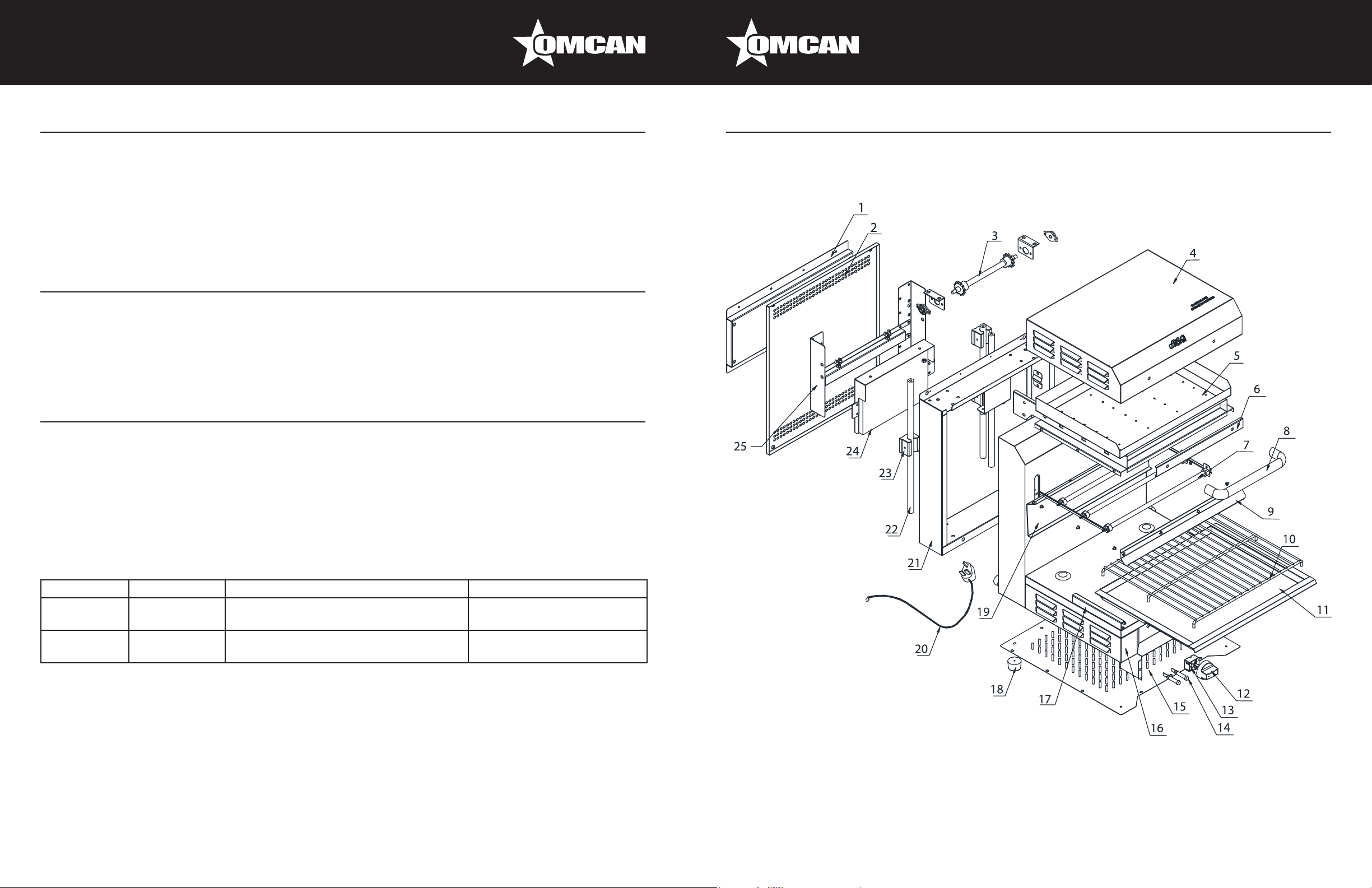

Model CE-CN-1534-S 39581

8 9

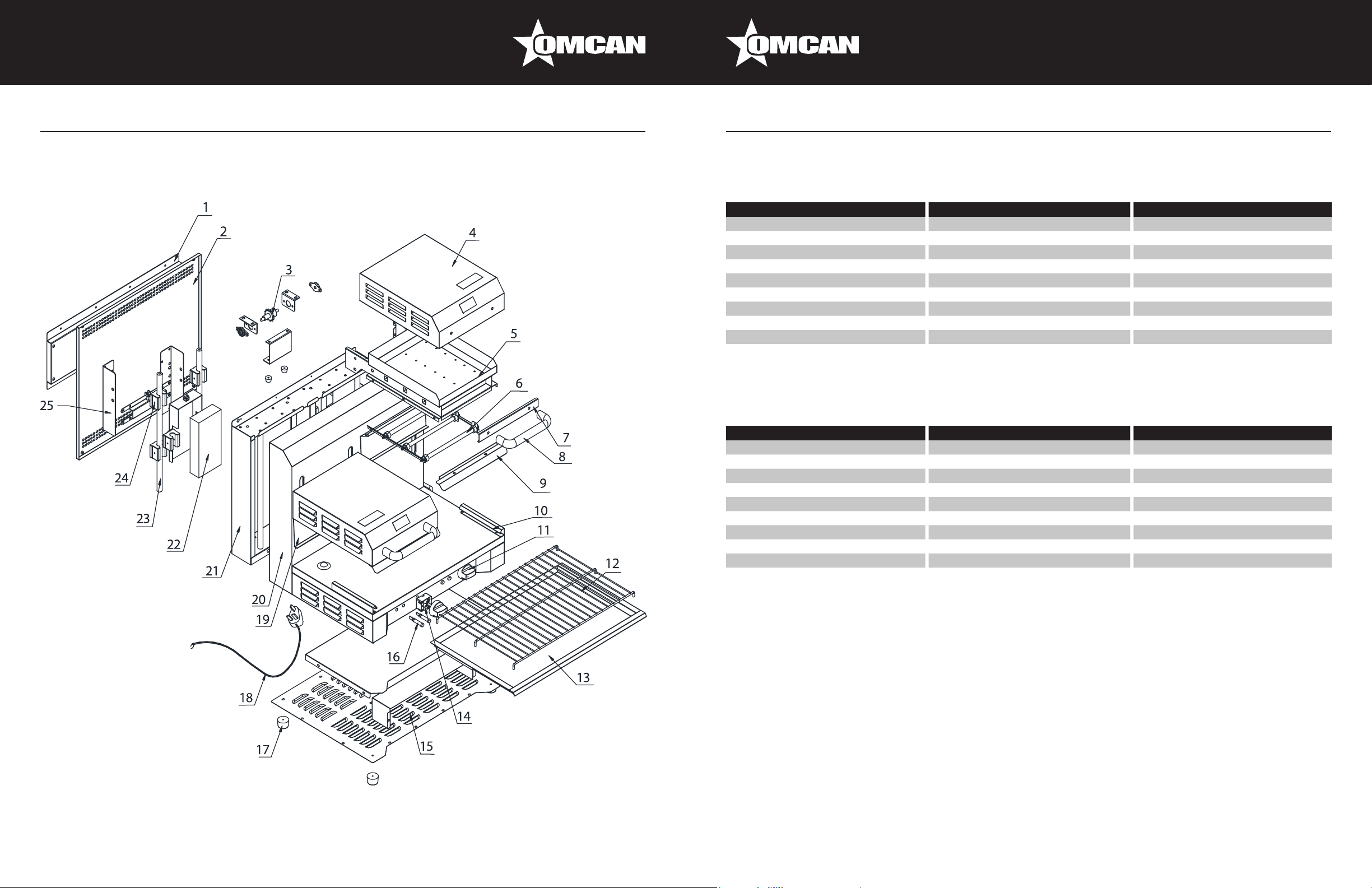

Model CE-CN-1633-S 39582

Parts Breakdown

Model CE-CN-1633-S 39582

Parts Breakdown

Model CE-CN-1534-S 39581

Item No. Description Position Item No. Description Position Item No. Description Position

77932 Body Fixed for PA10630S 1 44729 Grilling for PA10630S 10 77936 Back Front Plate for PA10630S 19

44742 Back Plate for PA10630S 2 44730 Tray for PA10630S 11 44741 Plug and Lead for PA10630S 20

44720 Shaft for PA10630S 3 44732 Dial for PA10630S 12 77937 Inner Body Plate for PA10630S 21

44725 Lid for PA10630S 4 44737 Energy Regulator for PA10630S 13 77938 Type Bearing Track for PA10630S 22

44728 Inner Body for PA10630S 5 44731 Indicator Light for PA10630S 14 77939 Type Bearing for PA10630S 23

77933 Handle Plate for PA10630S 6 77934 Bottom Cover for PA10630S 15 44721 Clump Weight for PA10630S 24

44727 Element for PA10630S 7 44740 Body for PA10630S 16 77940 Type Bearing Plate for PA10630S 25

44726 Back Body for PA10630S 8 77935 Tray Guide Rail for PA10630S 17

44739 Cover Front for PA10630S 9 44738 Feet for PA10630S 18

Item No. Description Position Item No. Description Position Item No. Description Position

77923 Body Fixed for PA10630D 1 77926 Tray Guide Rail for PA10630D 10 77927 Back Front Plate for PA10630D 19

76297 Back Plate for PA10630D 2 76305 Dial for PA10630D 11 76312 Body for PA10630D 20

76298 Shaft for PA10630D 3 76307 Grilling for PA10630D 12 77928 Inner Body Plate for PA10630D 21

76300 Lid for PA10630D 4 76308 Tray for PA10630D 13 76299 Clump Weight for PA10630D 22

76302 Inner Body for PA10630D 5 76306 Energy Regulator for PA10630D 14 77929 Type Bearing Track for PA10630D 23

44033 Element for PA10630D 6 76311 Bottom Cover for PA10630D 15 77930 Type Bearing for PA10630D 24

77924 Handle Plate for PA10630D 7 76310 Indicator Light for PA10630D 16 77931 Type Bearing Plate for PA10630D 25

76301 Handle for PA10630D 8 76309 Feet for PA10630D 17

77925 Cover Front for PA10630D 9 76313 Plug and Lead for PA10630D 18

10 11

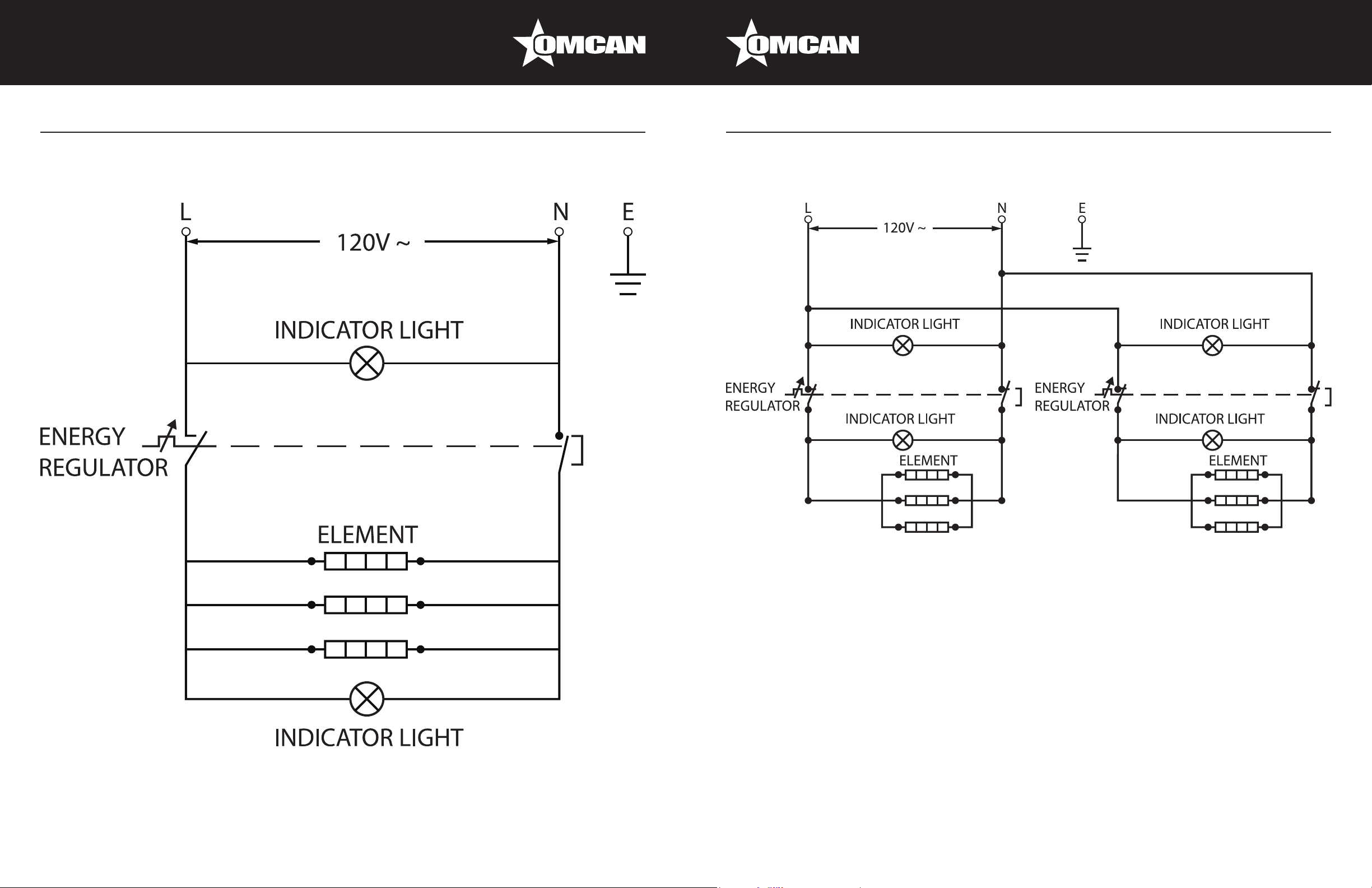

Electrical Schematics

Model CE-CN-1534-S 39581

Electrical Schematics

Model CE-CN-1633-S 39582

12 13

Notes Notes

________________________________________________________________________________________

14 15

Notes

________________________________________________________________________________________

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan CE-CN-1534-S User manual

Popular Heater manuals by other brands
