Omcan WC-CN-0181-DB User manual

Revised - 02/17/2023
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Wine Coolers
Models WC-CN-0181-DB, 0181-D, 0192-SB, 0192-S, 0040-DB, 0040-D,
0051-SB, 0051-S
Items 48258, 45258, 48259, 45259, 48260, 45260, 48261, 45261
Instruction Manual

2
Page
---------------------------------------------------------------------------------------------------------- 3
----------------------------------------------------------------------------------------- 4 - 5
---------------------------------------------------------------------------------------- 5 - 6
---------------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------------------- 8 - 9
--------------------------------------------------------------------------------------------------- 10 - 11
----------------------------------------------------------------------------------------------------- 11
------------------------------------------------------------------------------------------- 11 - 13
----------------------------------------------------------------------------------------- 14 - 23
------------------------------------------------------------------------------------ 24 - 25
-------------------------------------------------------------------------------------------------------------- 26
----------------------------------------------------------------------------------------- 27
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model WC-CN-0181-DB / Model WC-CN-0181-D / Model WC-CN-0192-SB
Model WC-CN-0192-S / Model WC-CN-0040-DB / Model WC-CN-0040-D
Model WC-CN-0051-SB / Model WC-CN-0051-S

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR
WATER LEAKS IS VOID IF THE AMBIENT ROOM
TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS
DAÑOS CAUSADOS POR FUGAS DE AGUA. LA
GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA
SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y
EL 55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATO NO ESTÁ CONECTADO DIRECTAMENTE A
UN DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE
L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT
À UN DRAIN DE PLANCHER.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Safety and Warranty
Basic precautions when using:
1. Only use your wine cabinet for intended purposes, as described in this guide.
2. Never unplug the wine cabinet by pulling out the power cord; grip the plug rmly and pull straight out to
remove from wall socket.
3. Immediately repair or replace any worn or damaged cord; never use a cord that is split or which shows
signs of wear along its length or on its ends.
4. This appliance is not intended for use by people (including children) with reduced physical, sensory, or
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de
operación y seguridad.
Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para
guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje
para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

6
Safety and Warranty
mental capabilities, or lack of experience and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance. Do not allow children to
climb on, sit on or stand on the wine cabinet, nor hang from its shelves. They could damage the cabinet.
6. Do not use an extension cord. Do not operate this device if its power cable or plug is damaged if it does
not work properly or if it is damaged or has work properly or if it is damaged or has been dropped. If the
power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar
qualied person to avoid any danger.
7. Do not place other appliance inside the cabinet.
WARNING: Refrigerant and foaming material is ammable. Please take care when going through installation,
operation, and maintenance.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7
Technical Specications
Model WC-CN-0181-DB WC-CN-0181-D WC-CN-0192-SB WC-CN-0192-S
Type Full Glass Stainless Full Glass Stainless
Temperature Range 3 - 22°C / 37.4 - 71.6°F
Max Ambient Temp Rating 24°C / 75°F
Inner Humidity 40% - 60%
Power 160 W / 0.16 kW
Bottle Capacity 181 192
Rated Current 2.4A
Refrigerant R600a
Electrical 110-120V / 60 Hz / 1
Dimensions 26.6” x 23.4 x 73” / 675 x 595 x 1854mm
Packaging Dimensions 30” x 26” x 76” / 762 x 660 x 1930mm
Weight 224.7 lbs. / 101.9 kgs. 228 lbs. / 103.4 kgs.
Packaging Weight 237 lbs. / 107.5 kgs. 240 lbs. / 109 kgs.
Item Number 48258 45258 48259 45259
Model WC-CN-0040-DB WC-CN-0040-D WC-CN-0051-SB WC-CN-0051-S
Full Glass Stainless Full Glass Stainless
Temperature Range 3 - 22°C / 37.4 - 71.6°F
Max Ambient Temp Rating 24°C / 75°F
Inner Humidity 40% - 60%
Power 121 W / 0.12 kW
Bottle Capacity 40 51
Rated Current 1.5A
Refrigerant R600a
Electrical 110-120V / 60 Hz / 1
Dimensions 23.4” x 22.8” x 32.3”
595 x 580 x 820mm
22.6” x 23.4” x 32.3”
574 x 594 x 820mm
Packaging Dimensions 25.5” x 25.5” x 36”
648 x 648 x 914mm
26” x 26” x 36”
660 x 660 x 914mm
Weight 98 lbs. / 44.5 kgs. 100 lbs. / 45.4 kgs.
Packaging Weight 110 lbs. / 50 kgs. 107 lbs. / 48.5 kgs.
Item Number 48260 45260 48261 45261

8
(A) (B)
WINE CABINET INSTALLATION
1. When you receive the cabinet, make sure when you unpack it there is no aws in its external appearance
(from shocks, deformation, etc.)
2. Open the door and check all interior ttings and supplied items if they are all complete (shelves, instruction,
control panel, etc.) Please install it according to the following points if the shelves or shelf brackets fall o󰀨
during transit.
3. After checking and there’s no problem, then please carry to the nal place which should be taken cared as
follows:
a. Leaving space of minimum 5 cm between your wine cabinet and left and right wall; at least 8 cm
between back of cabinet and the wall (Freestanding only).
b. Position the wine cabinet on a at level surface; if not, adjust the feet of wine cabinet to keep level.
4. Away from sources of heat and high humidity areas (laundry room and bathroom, etc.)
5. Do not tilt it at an angle of more than 45 / 113 degrees when moving the cabinet. Allow a minimum
10-minute interval between transit and re-starting.
6. Make sure the ventilation is free if you wish to install your cabinet into a worktable; otherwise, it will reduce
the e󰀨ect of usage.
7. Please check the plug and cable before you connect the power.
INSTALLING THE HANDLE
Install the handle according to the following four steps:
1. Move door seal out in the place of installing the handle.
2. Take screws from manual bag and put it in the appointed place.
3. Fasten door handle by screw driver.
4. Ret the door seal to the relevant position.
WOOD SHELF CHANGING
Once wood shelf needs to be changed, please check which kind of slider and which one is used.
If slider is (A), take out the shelf only and change another
new shelf - it will be okay. Please make sure the wood hole
needs to match the slider hook.
If slider is (B):
1. Unscrew the wood shelf from slider.
2. Take out the old wood shelf and change new one.
3. Screw the wood shelf again from shelf bottom as previous then it is okay.
Installation

9
Installation
INSTALLING OR REMOVING THE DOOR
Before beginning, please remove the power plug from the socket, follow the below images (Pictures A-H) to
remove the door.
In order to reassemble the door, follow the below images in reverse order.

10
Operation

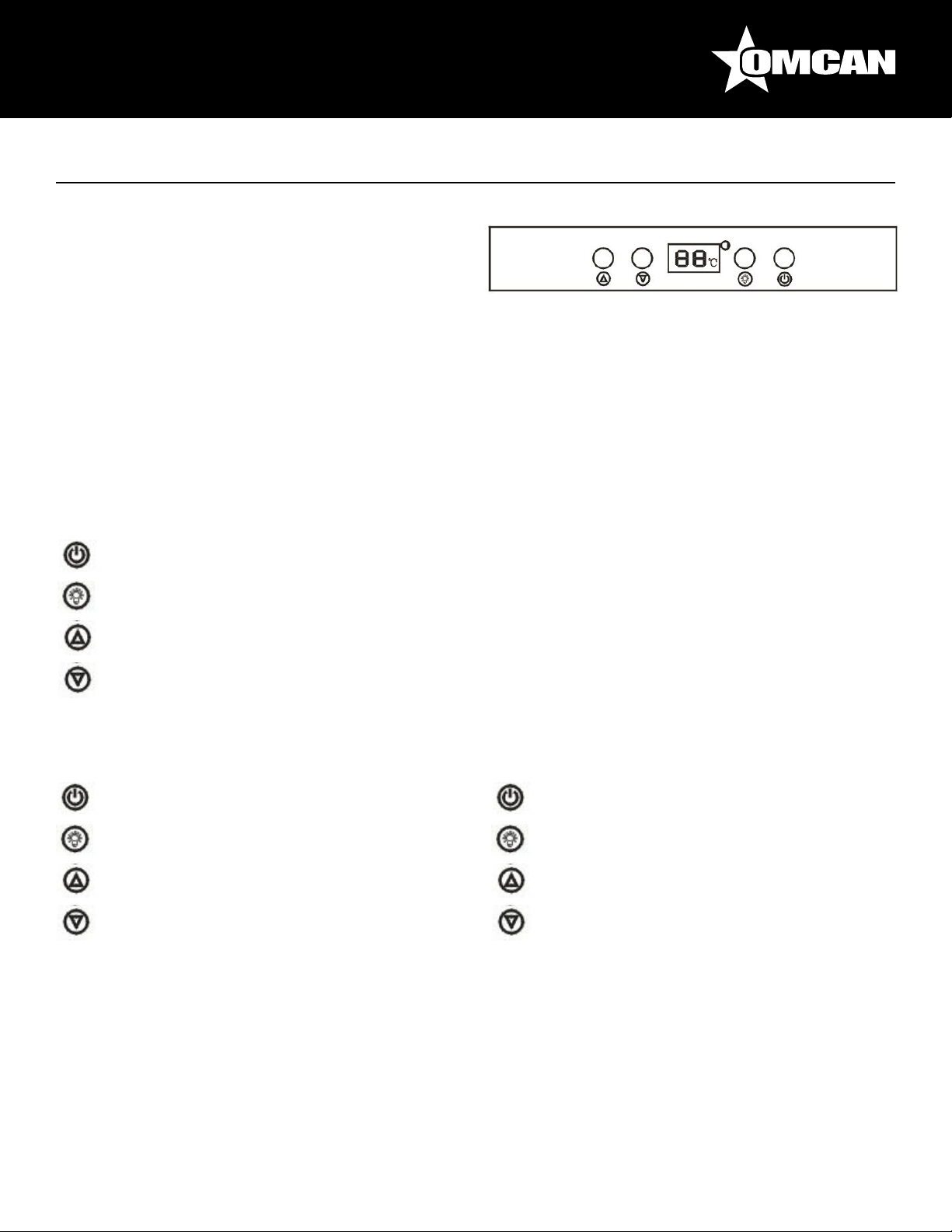

CONTROL PANEL FOR DUAL ZONE
Upper Control Panel
ON/OFF of the whole system.
ON/OFF of Inside Cabinet LED light.
Temperature Up setting.
Temperature Down setting.
Down Control Panel
ON/OFF of the down zone system.
ON/OFF of Inside Cabinet LED light.
Temperature Up setting.
Temperature Down setting.
LOADING AND STORAGE OF WINE BOTTLE
Bottle Loading Method
• Wooden shelf capacity: 5, 9 or 11 bottles per shelf.
• Bottom shelf capacity: 8 or 12 bottles per shelf.
• Maintain a minimum 20 mm between bottle and back plate.
• Ensure storage bottle bottom dia. 78 mm and 300 mm height; otherwise, less bottle loading.
CONTROL PANEL FOR SINGLE ZONE
ON/OFF of the whole system.
ON/OFF of Inside Cabinet LED light.
Temperature Up setting.
Temperature Down setting.
TEMPERATURE SETTING
• The item will be used under the room temperature
ranging from 16°C to 38°C (61°F to 100°F).
• Temperature setting range of cabinet is 5°C to 20°C
(41°F to 68°F). Customers can reset the temperature according to their actual demands. Both the wine
cabinet and the indicator will turn on until the desired temperature is achieved. Single Temperature Zone is
the same operation.
• Pushing the temperature key up and down for 5 seconds, then temperature display mode will be exchange
between °C and °F.
• The temperature of the top compartment must be set lower than the bottom compartment, or at the same
temperature as the bottom compartment, but it should not set at temperature higher than the bottom
compartment.

11
Maintenance
In order to ensure best performance and long-lasting reliable working item, please follow the simple
maintenance and cleaning operation as follows:
• Make sure the power cord is unplugged before cleaning the back of your cabinet or before moving it.
• Clean the inside of your cabinet thoroughly once a year after unplugging and unloading it. Use water and a
mild cleaning item then rinse carefully.
• To assure that your wine cooler provides a long-lasting reliable performance, you should check it regularly
and inform your dealer if anything unusual is found.
Troubleshooting
PROBLEM SOLUTION
Not working. Check if it is plugged in or not.
Fuse break.
No power.
Cooling problem. Heat source near the item.
Ventilation not well.
Door is not close well or the door is open for so long.
There is a door sealing problem or deformation.
Bottles are loading too much in same shelf.
The air inlet or outlet is blocked.
Control setting problem.
Ventilation space in the right and left casing is not enough.
Noisy. Wine cabinet place is not at.
Item is touching the wall.
Some parts are loose or taken o󰀨.
Ensure bottle and shelf safety
• Spread your bottles out as evenly as possible over the shelves, so weight is not concentrated in one point;
and make sure your bottles will not touch the back of the cabinet.
• Make sure bottles are not grouped together at the top or bottom of the cabinet.
• Following loading instructions provided, according to the type of storage xtures with which your cabinet is
equipped and never stack bottles on a sliding shelf.
• Due to humidity which will be uctuated based on room humidity and temperature, please make special lm
to pack before storage inside cabinet, which will ensure the label of bottle could not be damage.
Operation

12
Troubleshooting
ERROR CODES
Error Code Check & Solution
E2 Problem with cooling.
Check for proper the air circulation inside the unit.
Ensure the air outlet inside the cabinet is not obstructed.
The back plate inside the cabinet has frost buildup.
Make sure the unit is at least 5cm away from the wall.
Keep the unit out of direct sunlight and away from other heat sources.
The door opens frequently.
Ensure the door gasket seals properly.
Ensure the compressor and evaporator fan is running.
Keep corrosive materials away from the casing.
E2.1 Problem with temperature sensor; failure or not connected well.
E9 There is a problem with the signal cable which connects the electric board
and display board, ensure the cable is connected.
If problem still occurs after checking above, please try to contact service provider or dealer.
Note: Normal operation for following circumstances:
1. Compressor won’t start:
Compressor will not start if room temperature is lower than desired temperature, but the cabinet will still
work with heater inside until desired temperature is achieved.
2. Compressor restart:
Compressor will stop working when cooling system in the cabinet reaches presetting temperature and
restarts working until the desired temperature is achieved. Allow a minimum 5 minute interval before
restarting.
3. Dew on the surface of cabinet:
The surface of the wine cabinet, especially the glass door, appears to have some frost if the cabinet is in a
damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away
with dry cloth.
4. Liquid sound:
- The sound of the compressor when it starts or stops working.
- The owing sound of refrigerant in the refrigeration system.
- The evaporating sound of refrigerant in the evaporator.
5. Condensation formed inside the cabinet:
Under the environment with high level of humidity or the door of wine cabinet has been left open for a long
period of time (or opened frequently), there are much condensation - please wipe o󰀨 the water from the
door and walls, and leave the door closed as long as possible.
6. Heat function on bottom zone:
Heat function on bottom zone will automatically be on when:
- Setting temperature is upper than room temperature.
- Inside bottom temperature is lower than setting temperature.

13
Troubleshooting
Indicator Light:
When temperature inside cabinet is out of range of setting temperature, both up and down indicator lights
will be on. Once temperature reaches setting temperature, the light will automatically turn o󰀨.

14
Parts Breakdown
Model WC-CN-0181-DB 48258
Model WC-CN-0181-D 45258

15
Parts Breakdown
Model WC-CN-0181-DB 48258
Item No. Description Position Item No. Description Position Item No. Description Position
AM683 Handle Black for 48258 1 79687 Hinge Cover for 48258 20 79704 Top Ventilation Board for 48258 41
AM684 Door Assemble Full Glass Door for 48258 2 79688 Casing for 48258 21 79705 Fixed Plate for 48258 42
79671 Upper Wood Shelf for 48258 3 68799 Condenser Strip for 48258 22 79706 Up Cover (Mid. Board) for 48258 43
79672 Sliding Trace Left for 48258 4 79690 Condenser for 48258 23 AM666 8025 Fan for 48258 44
AM667 Sliding Trace Right for 48258 4 79691 Water Tray for 48258 24 79707 Bottom Cover for 48258 45
79676 Electric Box Support Left for 48258 5 79692 Hidden Line Box for 48258 25 79677 Control Box PVC for 48258 46
79674 Control Box for 48258 6 79693 Compressor for 48258 26 AM685 Control Panel Sticker-Black for 48258 47
AM665 Electric Box Support Right for 48258 7 79694 Power Supply Cord for 48258 27 79708 Fixation Electrical Box (Down) for 48258 48
79675 Display PCB for 48258 8 79695 Compressor Support Plate for 48258 28 79709 Bottom Wood Shelf for 48258 49
68795 LED Light Strip Blue for 48258 9, 10 79696 Front Foot for 48258 29 79670 Door Gasket for 48258 50
68797 Sensor Cap Foam for 48258 11 79697 Down Hinger+Foot for 48258 30, 31 79712 Shaft Sleeve for 48258 51
79681 Fan-1 for 48258 12 68800 Lock Bracket+Plastic Cushion for 48258 32, 33 79713 Carton for 48258 52
79682 Up-Sensor for 48258 13 79700 Sensor Cap for 48258 34 64165 Slanted Shelf for 48258 53
79683 PVC Sink for 48258 14 79698 Heating Wire for 48258 35 68726 Starting Compoents for the Compressor
LG MA53LBCG for 48258 54
68798 Motor General Assembly Drawing for
48258 15 79699 Down Sensor for 48258 36 69707 Key for 48258 55
79684 Evaporator for 48258 16 79711 Watershed Plate for 48258 37 68796 LED Light Strip - White for 48258 56, 57
79689 Electric Board for 48258 17 79701 8025 Fan for 48258 38 AM686 Door Limit - Full Glass Door for 48258 58
79685 Top Cover for 48258 18 68802 Back Ventilation Board for 48258 39
79686 Upper Hinger for 48258 19 79703 Sealing (Froming) for 48258 40

16
Parts Breakdown
Model WC-CN-0181-D 45258
Item No. Description Position Item No. Description Position Item No. Description Position
79668 Handle Stainless Steel for 45258 1 79687 Hinge Cover for 45258 20 79704 Top Ventilation Board for 45258 41
79669 Door Assemble Stainless Steel Door
for 45258 2 79688 Casing for 45258 21 79705 Fixed Plate for 45258 42
79671 Upper Wood Shelf for 45258 3 68799 Condenser Strip for 45258 22 79706 Up Cover (Mid. Board) for 45258 43
79672 Sliding Trace Left for 45258 4 79690 Condenser for 45258 23 AM666 8025 Fan for 45258 44
AM667 Sliding Trace Right for 45258 4 79691 Water Tray for 45258 24 79707 Bottom Cover for 45258 45
79676 Electric Box Support Left for 45258 5 79692 Hidden Line Box for 45258 25 79677 Control Box PVC for 45258 46
79674 Control Box for 45258 6 79693 Compressor for 45258 26 79710 Control Panel Sticker-Sliver for 45258 47
AM665 Electric Box Support Right for 45258 7 79694 Power Supply Cord for 45258 27 79708 Fixation Electrical Box (Down) for 45258 48
79675 Display PCB for 45258 8 79695 Compressor Support Plate for 45258 28 79709 Bottom Wood Shelf for 45258 49
68795 LED Light Strip-Blue for 45258 9, 10 79696 Front Foot for 45258 29 79670 Door Gasket for 45258 50
68797 Sensor Cap Foam for 45258 11 79697 Down Hinger+Foot for 45258 30, 31 79712 Shaft Sleeve for 45258 51
79681 Fan-1 for 45258 12 68800 Lock Bracket+Plastic Cushion for 45258 32, 33 79713 Carton for 45258 52
79682 Up-Sensor for 45258 13 79700 Sensor Cap for 45258 34 64165 Slanted Shelf for 45258 53
79683 PVC Sink for 45258 14 79698 Heating Wire for 45258 35 68726 Starting Components for the Compressor
LG MA53LBCG for 45258 54
68798 Motor General Assembly Drawing for
45258 15 79699 Down Sensor for 45258 36 69707 Key for 45258 55
79684 Evaporator for 45258 16 79711 Watershed Plate for 45258 37 68796 LED Light Strip - White for 45258 56, 57
79689 Electric Board for 45258 17 79701 8025 Fan for 45258 38 68739 Door Limit - Stainless Steel Door for
45258 58
79685 Top Cover for 45258 18 68802 Back Ventilation Board for 45258 39
79686 Upper Hinger for 45258 19 79703 Sealing (Froming) for 45258 40

17
Parts Breakdown
Model WC-CN-0192-SB 48259
Model WC-CN-0192-S 45259

18
Parts Breakdown
Model WC-CN-0192-SB 48259
Item No. Description Position Item No. Description Position Item No. Description Position
AM683 Handle-Black for 48259 1 68732 Fan Cover for 48259 19 79696 Front Foot for 48259 34
AM684 Door Assemble-Full Glass Door for
48259 2 79700 Sensor Cap for 48259 20 79697 Down Hinger+Front Foot for 48259 36
79712 Shaft Sleeve for 48259 3 79682 Sensor for 48259 21 79693 Compressor for 48259 37
79670 Door Gasket for 48259 4 79702 Back Ventilation Board for 48259 22 68800 Lock Bracket+Plastic Cushion for 48259 38
79674 Electric Box for 48259 7 AM668 12025 Fan for 48259 23 79711 Watershed Plate for 48259 39
79675 Display PCB for 48259 8 68733 Back Ventilation Board Holder for 48259 24 68738 Back Ventilation Board Holder for 48259 40
79676 Electric Box Support Left for 48259 9 79687 Hinge Cover for 48259 26 AM669 Evaporator for 48259 42
68729 Right Support Frame of Upper Electric
Box for 48259 10 79686 Upper Hinge for 48259 27 79709 Bottom Wood Shelf for 48259 43
79708 Fixation Electrical Box (Down) for 48259 11 79690 Condenser for 48259 28 79679 LED Light for 48259 44
79689 Electric Board for 48259 12 68735 Exhaust Pipe for 48259 29 AM686 Door Limit - Full Glass Door for 48259 45
79704 Top Ventilation Board for 48259 15 79691 Water Tray for 48259 30 AM685 Control Panel Sticker-Black for 48259 46
79671 Upper Wood Shelf for 48259 17 68736 Dry Filter for 48259 31 69707 Key for 48259 54
79672 Sliding Trace-Left for 48259 18 79694 Power Supply Cord for 48259 32
AM667 Sliding Trace-Right for 48259 18 79695 Compressor Support Plate for 48259 33
Model WC-CN-0192-S 45259
Item No. Description Position Item No. Description Position Item No. Description Position
79668 Handle Stainless Steel for 45259 1 68732 Fan Cover for 45259 19 79696 Front Foot for 45259 34
79669 Door Assemble Stainless Steel Door
for 45259 2 79700 Sensor Cap for 45259 20 79697 Down Hinger+Front Foot for 45259 36
79712 Shaft Sleeve for 45259 3 79682 Sensor for 45259 21 79693 Compressor for 45259 37
79670 Door Gasket for 45259 4 79702 Back Ventilation Board for 45259 22 68800 Lock Bracket+Plastic Cushion for 45259 38
79674 Electric Box for 45259 7 AM668 12025 Fan for 45259 23 79711 Watershed Plate for 45259 39
79675 Display PCB for 45259 8 68733 Back Ventilation Board Holder for 45259 24 68738 Back Ventilation Board Holder for 45259 40
79676 Electric Box Support Left for 45259 9 79687 Hinge Cover for 45259 26 AM669 Evaporator for 45259 42
68729 Right Support Frame of Upper Electric
Box for 45259 10 79686 Upper Hinge for 45259 27 79709 Bottom Wood Shelf for 45259 43
79708 Fixation Electrical Box (Down) for 45259 11 79690 Condenser for 45259 28 79679 LED Light for 45259 44
79689 Electric Board for 45259 12 68735 Exhaust Pipe for 45259 29 68739 Stainless Steel Door Limit Block for
45259 45
79704 Top Ventilation Board for 45259 15 79691 Water Tray for 45259 30 79710 Control Panel Sticker Silver for 45259 46
79671 Upper Wood Shelf for 45259 17 68736 Dry Filter for 45259 31 69707 Key for 45259 54
79672 Sliding Trace Left for 45259 18 79694 Power Supply Cord for 45259 32
AM667 Sliding Trace Right for 45259 18 79695 Compressor Support Plate for 45259 33

19
Parts Breakdown
Model WC-CN-0040-DB 48260
Model WC-CN-0040-D 45260

20
Parts Breakdown
Model WC-CN-0040-DB 48260
Item No. Description Position Item No. Description Position Item No. Description Position
AM687 Handle-Black for 48260 1 79730 Up-Sensor for 48260 17 79711 Watershed Plate for 48260 33
AM688 Door Assemble-Full Glass Door for
48260 2 79731 Evaporator for 48260 18 79698 Heating Wire for 48260 34
79712 Shaft Sleeve for 48260 3 79732 Sealing PVC for 48260 19 AM690 Front Grill - Black for 48260 35
AM689 Door Gasket (Full Glass Door) for 48260 4 AM672 Upper Hinger for 48260 20 79749 Down Sensor for 48260 36
79718 Upper Wood Shelf for 48260 5 79734 Casing for 48260 21 79701 8025 Fan for 48260 37
79719 Sliding Trace-Left for 48260 6 79735 Compressor for 48260 22 79700 Sensor Cap for 48260 38
AM670 Sliding Trace-Right for 48260 6 AM673 Water Tray for 48260 23 79752 Top Ventilation Board for 48260 39
79674 Control Box for 48260 8 79737 Compressor Support Plate for 48260 24 AM666 8025 Fan for 48260 40
79675 Display PCB for 48260 9 79692 Hidden Line Box for 48260 25 79754 Up Cover (Mid.Board) for 48260 41
79676 Electric Box Support Left for 48260 10 AM674 8025 Fan-2 for 48260 26 79755 Bottom Cover (Mid.Board) for 48260 42
68729 Right Support Frame of Upper Electric
Box for 48260 10 79694 Power Supply Cord for 48260 27 AM685 Control Panel Sticker-Black for 48260 43
79725 Upper Zone LED Light Strip-Blue for
48260 12 79689 Electric Board for 48260 28 79708 Fixation Electrical Box (Down) for 48260 45
AM671 Lower Zone LED Light Strip-Blue for
48260 12 79742 Condenser for 48260 29 79759 Bottom Wood Shelf for 48260 46
79703 Sealing (Froming) for 48260 14 79743 Bottom Reinforcing Bar for 48260 30 79760 Carton for 48260 47
79728 Fan-1 for 48260 15 AM675 Foot for 48260 31 AM676 Upper Zone LED Light Strip-White for
48260 48
79729 Back Ventilation Board for 48260 16 79745 Down Hinger+Front Foot for 48260 32 AM677 Lower Zone LED Light Strip-White for
48260 49
