Omega ODW717WB User manual

ODW717WB,ODW717XB
14 place settings
half-load function

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the !)User Manual
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
Turn on the water tap and press the . The machine will start working
after about 10 seconds.
Start/Pause Button
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing the programme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt foodin pans,
then load the baskets. Refer to the dishwasherloading instructions.
Close the door,press the Programme Button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the Power Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Press the Power button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water alreadydrained. If this is the case, the detergent
dispenser must be refilled.
2.
Press the Start/Pause button, press the program button for more than three seconds,the
machine will be in standby state, then you can change the program to the desired cycle setting
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.

To review the section on troubleshooting Tips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher,it will help you to useandmaintain the
dishwasher properly.
Pass it on to anysubsequent owner of the appliance.
Thismanualcontains sections on safety Instructions,
Operating Instructions, InstallationInstructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
developmentand updating of the product, may
make modifications without giving prior notice.
Keep it as arefer in the later days.
If you can not solvethe problemsby yourself ,
please ask for the help of professional technicians.
This appliance isintended tobe usedin household
andsimilarapplications suchas:
-staff kitchen areas in shops,offices and other
working environments;
-farm houses;
-byclients inhotels, motels and otherresidential
type environments;
-bedand breakfast type environments.
Dishwasher Features.................................... ...2
AttentionbeforeorafterloadingtheDishwasher
Baskets..........................................................6
Filtering System.............................................11
Caring for the Dishwasher..................... .........12.
A Fill the RinseAid Dispenser............. .. ..3、..... ...
B Functionof Detergent .........................4、........
..............7
The Method Loading Normal Dishware
Wash Cycle Table...........................................9
Turning on theAppliance................................9
Change theProgramme.............. ................10....
At theend of the Wash Cycle...........................10
PositioningtheAppliance................... ..........13..
Water Connection.................................. .......14.
AboutPowerConnection........................ .......13.
Startof dishwasher................................ ......15..

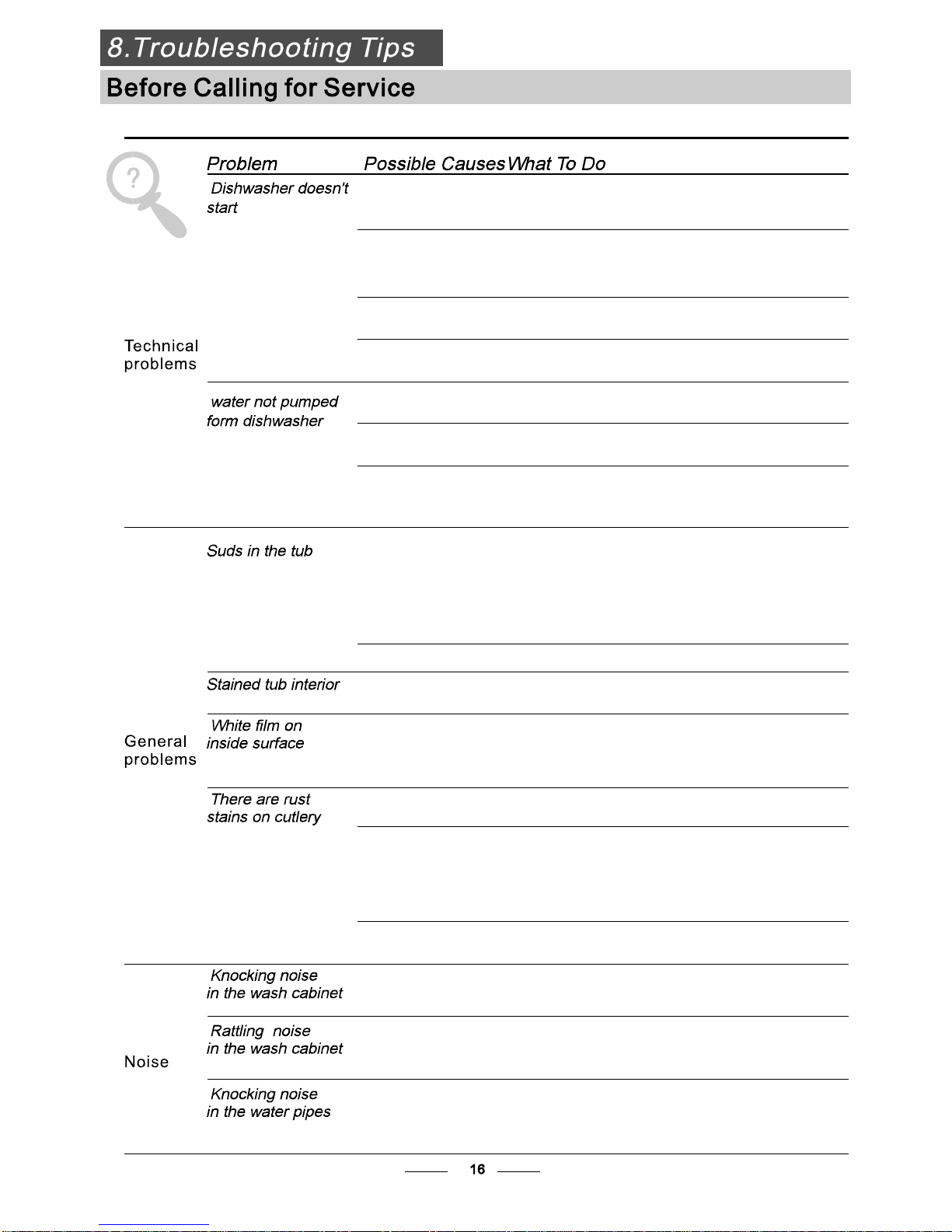

Before calling for service........................... .....16.
Errorcodes.................................... ..............17.
Technical information.............................. .....18..
Control Panel...................................................2

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points mustbe loaded inthe basket
with their pointsdown orplaced in a
horizontalposition.
)
When usingyour dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines witha visual heating
element.)
Ifthesupplycordisdamaged, it mustbereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Pleasedispose ofpackingmaterials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremelydangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of thewashcycle.
Theappliance is to be connectedto the water
mainsusingnewhose sets and that old hose-sets
shouldnot be reused.
Themaximum number of place settings to be
washedis14.
Themaximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increasethe risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
The dishwasher must always be connected to
the water system using new hose sets.
If the appliance is installedon a carpetfloor,
take care that the openings in its base are not obstructed.

beforeusing it for the first time.
To getthe best performance from yourdishwasher,read all operating instructions

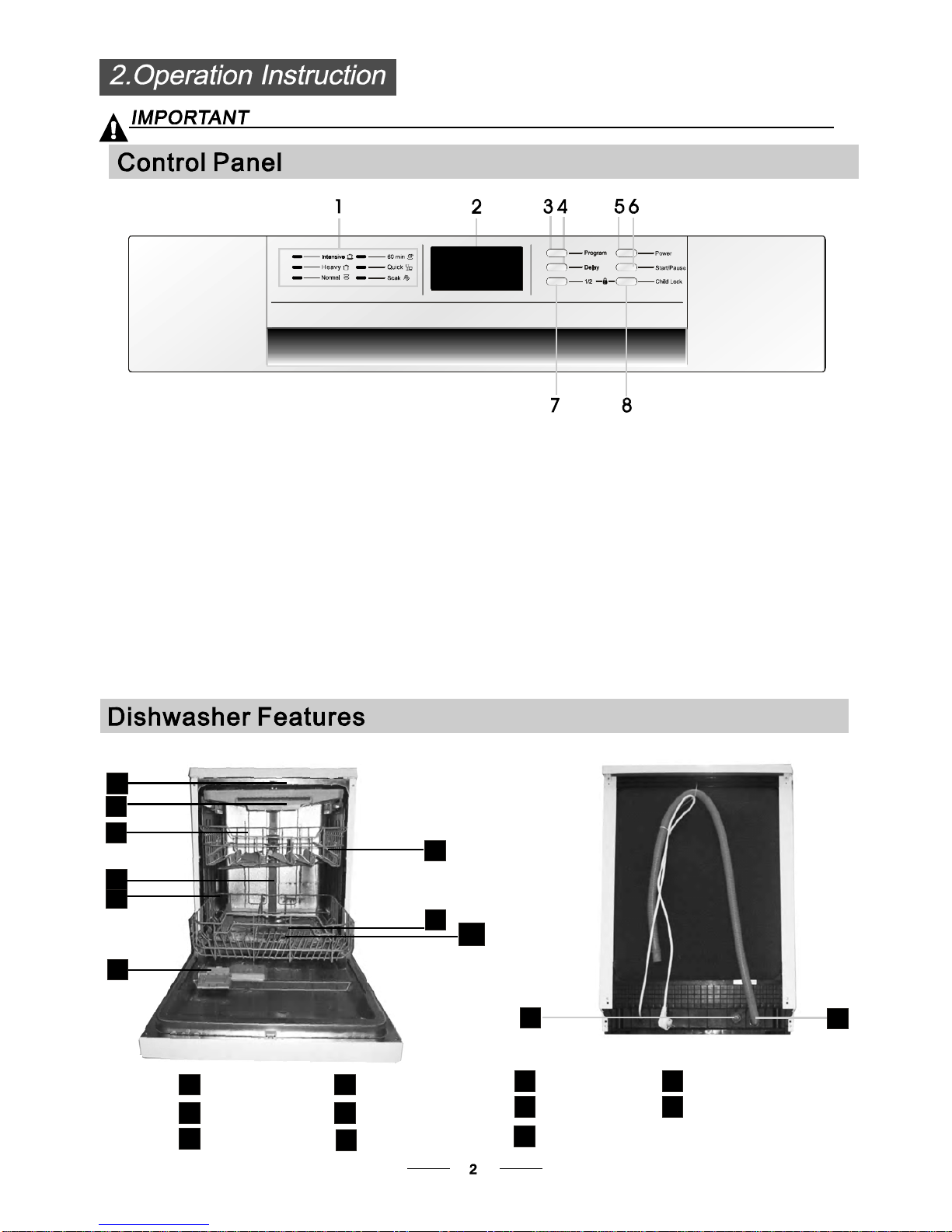

10 11
Back View
1
2
3
4
5
6
7
89
Front view
Lower basket
Dispenser
Cupshelf
Spray arms
Filter assembly
Inletpipeconnector
Drain pipe
Upperbasket
Cutlery rack
Top spray arm
1
Inner pipe
5
6
7
8
9
11
10
3
24
3
13 1
6.Start /Pause button: To start theselected
washingprogram or pausethe washing program
when themachineisworking.
5.Power Button:To turn on/off the power supply. 8.Child lock button: press the two buttons
simultaneously to lock the program.
4.Delay Button :Press the button to delay.
3.Program Button :To Pressthe buttonto select
appropriateProgram.
1. Program indicators: to show which
programyouhavechosen;
2.Display screen: toshowthe reminding time
and the state(running state, delay time etc )
7.If you have only about or less than half of full load
dishes of the dishwasher, you can select the half load
function and your desired programaccording tothe
dishes contaminated degree (The quickand soak programs
can’t select this function).
Aprogramselect the half load function, itcan save time,
energy, and water compare to the program hasn’t select
the half load function.
After the half load function isselected, allthe spray arms
are running, you can load all the baskets.

Before using your dishwasher for the first time:

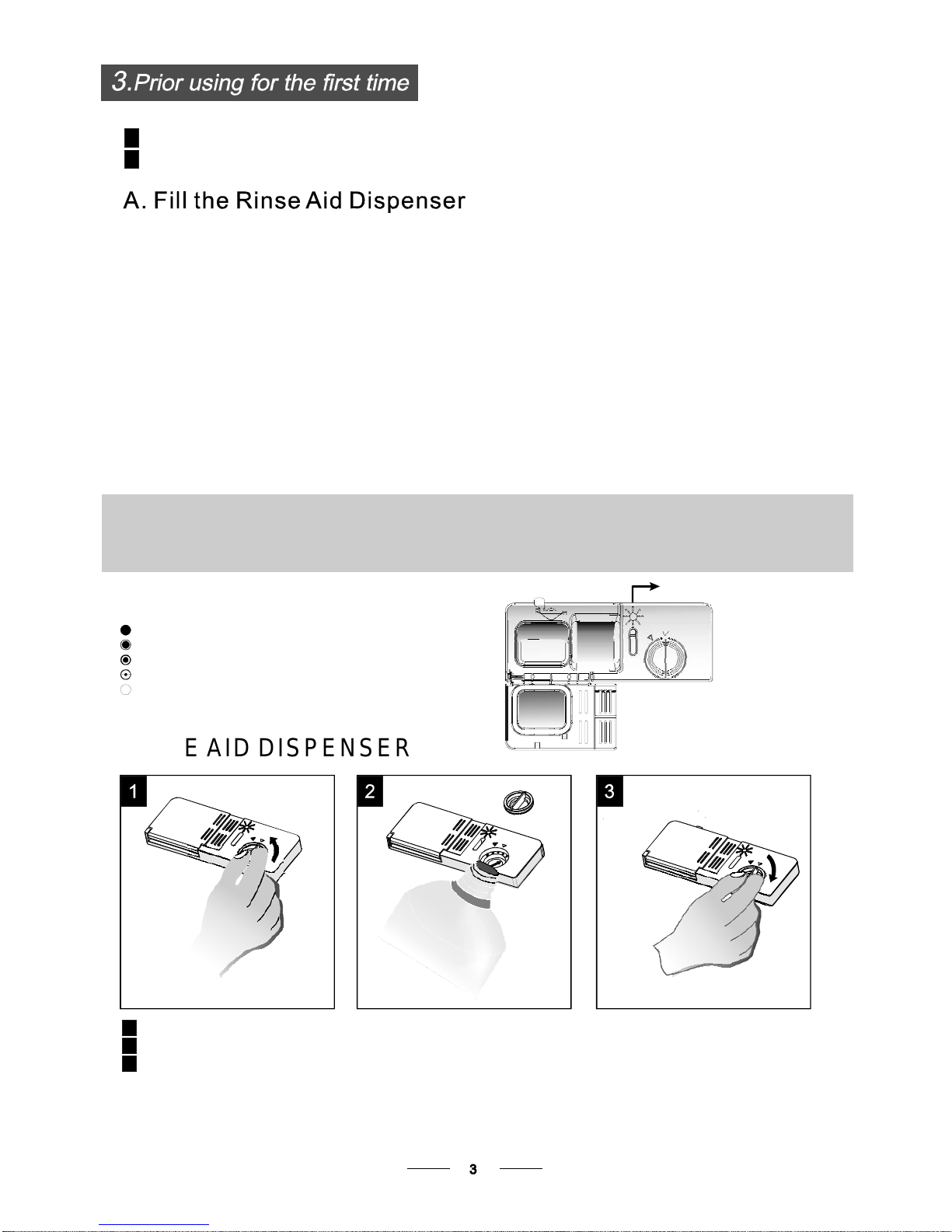

A. Fill therinseaiddispenser
B. Fill in detergent
Therinse aid isreleasedduringthe finalrinseto prevent water from forming dropletson your dishes, which can
leave spots andstreaks. It also improvesdrying by allowing waterto rolloff thedishes. Yourdishwasheris
designedto useliquidrinseaids.The rinseaid dispenseris located insidethe door next to thedetergent dispenser.
Tofill the dispenser,open the capand pour the rinse aidinto the dispenser untilthe levelindicator turns completely
black.Thevolume ofthe rinseaidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically addedduring thelast rinse,ensuring thorough rinsing, andspotand streakfree drying.
Attention!
Only use branded rinse aid for dishwasher.Never fill the rinseaid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinseaid diminishes, the size ofthe black dot
on the rinse aidlevel indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level indicator "C" located next to the cap. When the rinse-aidcontainer is full, the wholeindicator willbe
dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below
1/4full.
When to Refill the RinseAid Dispenser
RINSEAID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pourtherinse aid into the dispenser, being careful not to overfill.
Replace the capby inserting it aligned with "open" arrow and turning ittothe closed (right) arrow.
Be carefulnot tooverfillthe dispenser, because thiscould cause over sudsing. Wipe away anyspills
witha damp cloth. Don't forget to replace the cap before you close the dishwasher door.
Attention!
Clean up any rinse aid spilt during fillingwith an absorbent cloth toavoid excessfoaming
during the nextwash.
1
2
3

Adjusting RinseAid Dispenser
The rinse aid dispenserhas six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aiddispensed by removingthedispenserlidandrotatingthedialto"5".Ifthe
dishes still are not drying properlyor are showing spots,adjust the dial to the next
higher lever until your dishes are spot-free.The recommended setting is "4".
(Factory value is "4".)
Increase the dose if thereare drops of water or lime spots on the dishes after washing.
Reduce itifthere are sticky whitishstains on your dishes or abluish film on glassware or
knifeblades.
Detergents with its chemicalingredients arenecessary toremove dirt, crush dirt andtransport it out of the dishwasher.
Most of the commercial quality detergentsare suitablefor thispurpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
Based on their chemicalcomposition,detergents can be split in two basic types:
Theuseof normal washing programs in combination with concentrated detergents
reducespollutionand is goodforyour dishes;these wash programs arespecificallymatched
to the dirt-dissolving properties of the enzymes of theconcentrated detergent.Forthis reason
normal washprograms inwhich concentrated detergents are used can achieve the same
results thatcan otherwise onlybeachieved using intensive programs.
“”
“”
“”
Detergent tablets ofdifferent brands dissolve at different speeds. For this reason some
detergent tablets cannotdissolve anddevelop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the completeremoval of detergent residuals.
The dispenser mustbe refilled before the start of each wash cycle followingtheinstructions
provided in the wash cycle table . Your dishwasheruses less detergent andrinse aid than
Conventional dishwasher. Generally,onlyone tablespoonof detergent is needed for
a normalwash load.More heavilysoiled itemsneed more detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkalinedetergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulveriseddetergent is withoutphosphate.Thus the water softener function of
phosphate is not given. In this case we recommend tofill salt in thesalt container evenwhen
thehardness ofwater isonly6 dH.Ifdetergentswithout phosphate are used inthecase ofhardwater
often whitespots appear ondishes and glasses. In this case please add more detergentto reach
better results. Detergents without chlorine doonly bleacha little.Strong and coloured spots will not
be removedcompletely. In this case please choose a programwitha higher temperature.
°

AmountofDetergentto Use

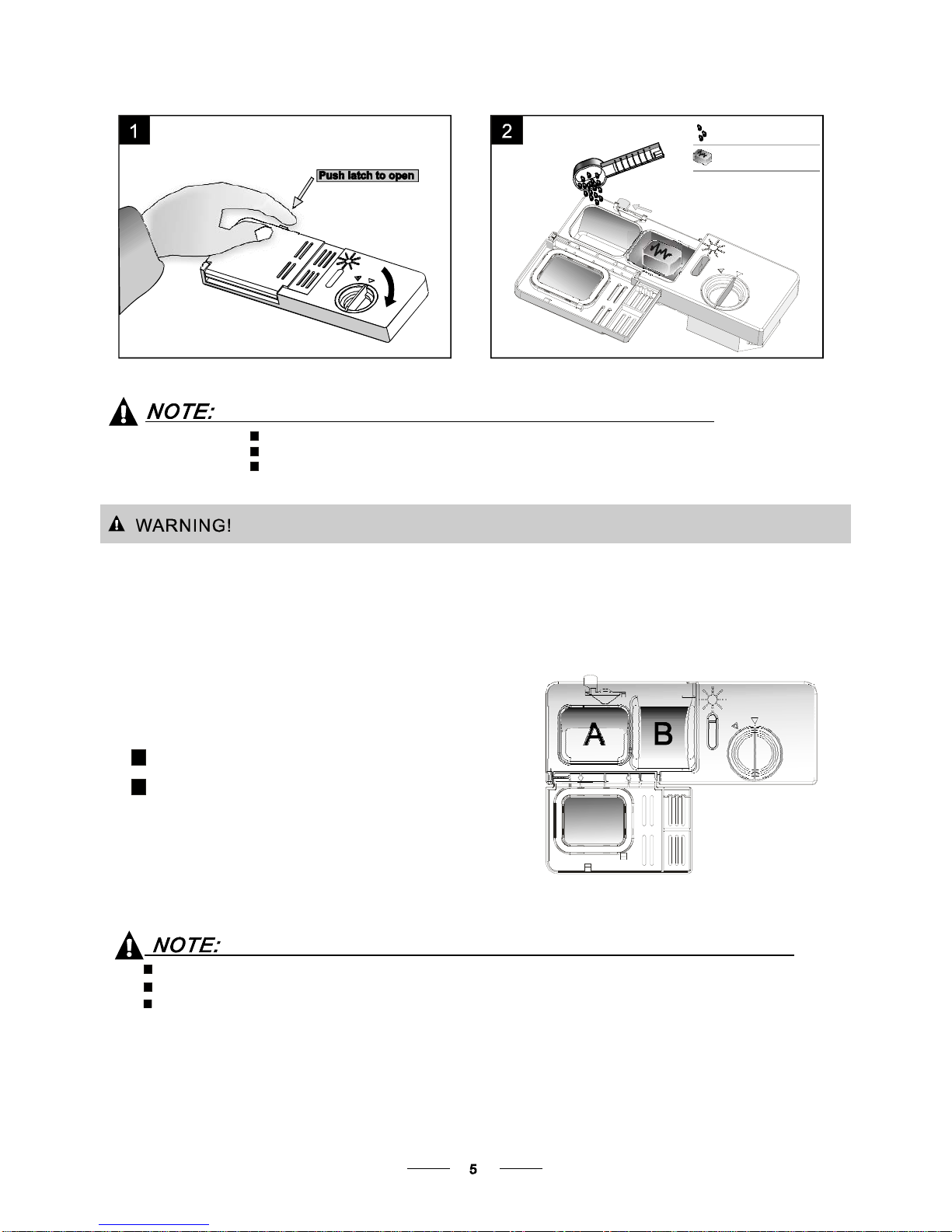

ProperUseofDetergent
Use only detergent specificallymade for the usein dishwashers. Keep your detergent fresh and dry.
Don't put powdereddetergent into the dispenser untilyou're ready to wash dishes.
Dishwasher detergent is corrosive! Take care to keepitoutofreach ofchildren.
Always add the detergentjustbefore starting eachwash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Detergent tablet
Detergent powder
Fill the detergentdispenser with detergent.
Themarking indicatesthe dosinglevels ,as
illustratedontheright:
The place for main washcycle detergent.
The placefor pre -wash cycle detergent.
Please observe the manufacturers dosing andstorage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If thedishesare heavily soiled, placean additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please be aware,thataccording to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer'srecommendations on the detergent packaging.

Cutlerywithwooden, horn china or
mother-of-pearl handles
Plasticitems that arenot heat resistant
Older cutlerywith glued parts that are not
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsynthetic fibres
Some types of glassescan become
dull after a large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patternsmay fade ifmachine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, or cover each other.
To avoiddamage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold moredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important for good resultsand for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Consider buyingutensils which are identifiedas dishwasher-proof.
Usea mild detergentthatis describedas 'kind todishes'.If necessary, seek further
information from thedetergent manufacturers.
Forparticular items,select aprogramwith aslowa temperature aspossible.
Toprevent damage, do not take glass andcutlery out of the dishwasher immediately
after the programmehas ended.

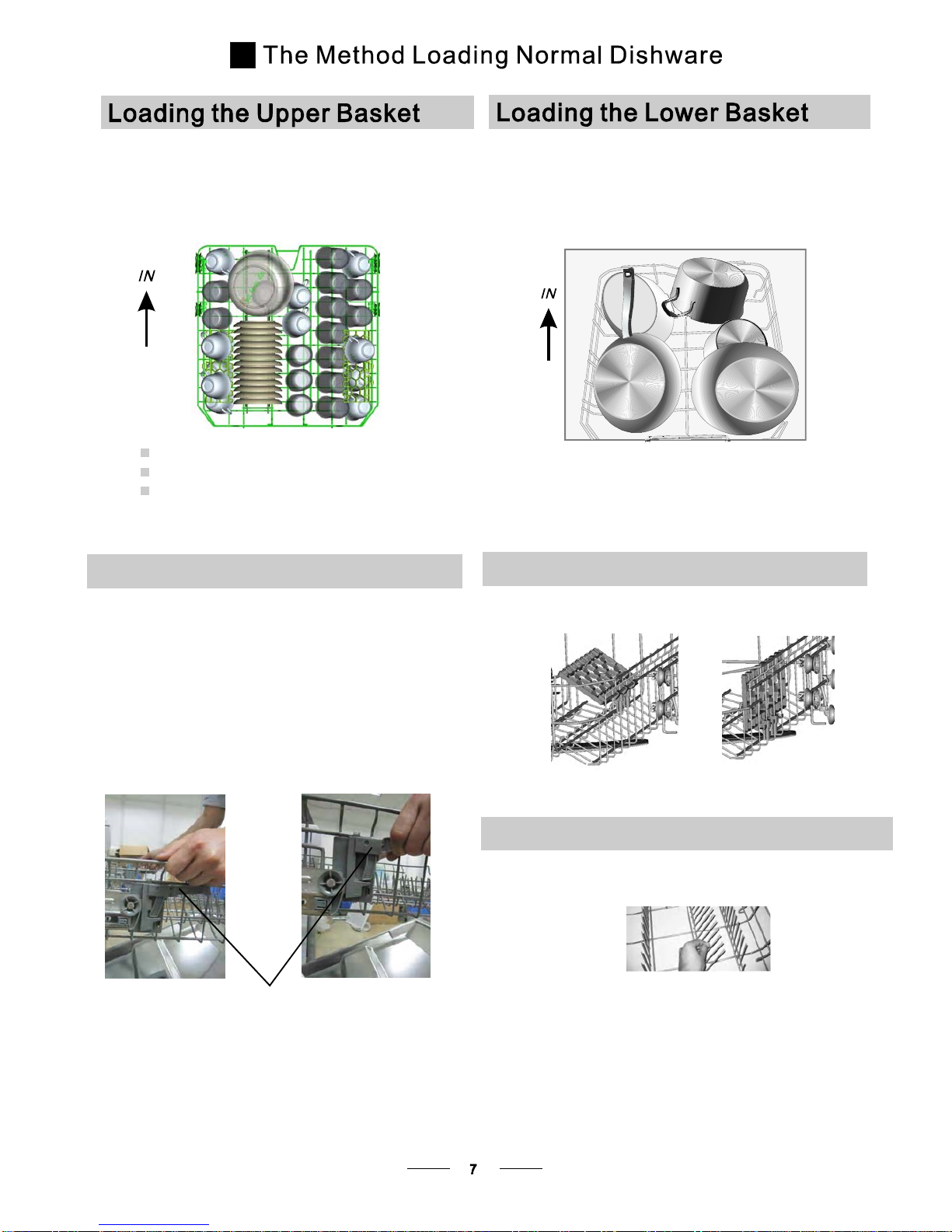

(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybaskets may vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food inpans.
It is not necessary to rinse thedishes under running water.
Place objects inthe dishwasher in the following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curveditems, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely duringwashing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

Theupper basket is designed to holdmore delicate
and lighter dishware such as glasses, coffee and
teacups andsaucers, aswellas plates, small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthedishes andcookwareso thatthey will
notgetmoved bythespray of water.
We suggest that you place large items and the most
difficulttocleanitemsareto be placedintothelower
basket: suchas pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
Forbetter stacking of pots and pans,
the spikescanbe folded down as
show in the picture right.
Folding back the cup shelives
For better stacking of pots and pans,
the spikes can befolded down as
show in the picture right.

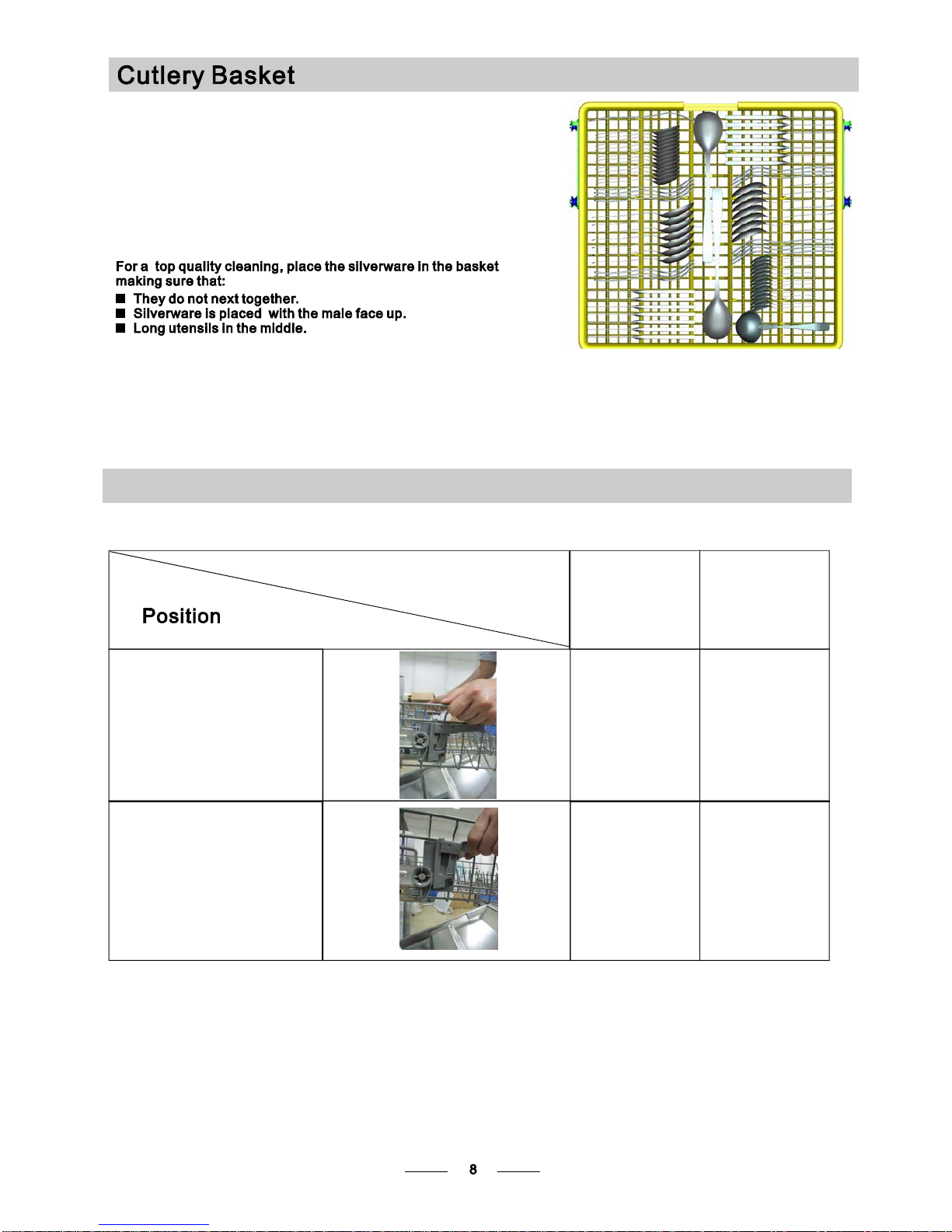

The heightof the upper basket can be adjusted inorder to
create morespace for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by lift up the basket for the upper position, and up
press the handle to lower the upper basket, see the picture
below:
Adjusting the Upper Basket
Lift the basket
for upper postion
Up press the handle
to lower the basket
Adjust handle

Max. Dishes
Max. Dishes
Top basket Bottom basket
LowerPositionmax.Φ
Upper Positionmax.Φ
19cm 25cm
14cm 30cm
Cutlery should be placed in the cutlery rack separately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.

* : This program is the test cycle.Theinformationfor comparabilitytest
in accordance with , as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 14 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Open the door slightly 50mm to assist in drying of the dishes after every wash
Starting a cycle wash
1 Draw out the lowerand upperbasket, load the dishes and pushthem back.
Itis to load the lower basket first,thenthe upper one (see the section entitled
Loading the Dishwasher ).
2 Pour in the detergent (see the section entitled Detergent and RinseAid ).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the power Button,and the display will turn on.
5 Press the program Button , the wash program will be changed asfollows direction:
“”
“”
Intensive->Heavy->Normal->60 min->Quick->Soak;
If a program is selected, theresponse light will light.Then press the Start/Pause button, the
dishwasher begins to start.
recommended
Normal
Intensive
Heavy
(OrAll )in1
5/27.5g
(OrAll )in1
5/27.5g
(OrAll )in1
5/27.5g
Fornormallysoiled loads,
suchas , plates,glasses
and lightly soiledpans.
standarddailycycle.
pots
For theheaviest soiled
loads, such as pots, pans,
casserole dishes and dishes
thathavebeensittingwith
driedfood on them for a
while.
Ashorter wash for lightly
soiled loads that do not
need drying.
Quick
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (60 )
Drying
℃
℃
℃
Pre-wash
Wash (50 )
Rinse
Rinse(50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse(45 )
℃
℃
165
160
135
40
1.15
0.9
1.4
0.5
18
14.5
13.9
10.5
60 min
Pre-wash(50 )
wash(60 )
Rinse (50 )
Drying
℃
℃
℃
60 10
0.9
5/27.5g
20g
Daily wash in only 1 hour.
For lightly andnormally
soiledplates and pans
foreveryday.
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
(*AS/NZS 2007.1)
For heavily soiled loads,
suchas pots, plates, glasses
and lightly soiled pans.
Ashorterwashforlightly
soiled loadsthat do not
need drying.
Soak
Pre-Wash
80.01
3.8

Wash the arms in soapy and warm water and use a softbrush to
clean thejets. Replace them afterrinsingthem thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, becausethe hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for8 seconds, then stop.Turn off
the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher.
Wait for afew minutes before unloadingthedishwasherto avoidhandlingthedishes and utensils while they
are still hot and more susceptible to breakage. Theywill also dry better.
Switch Off theDishwasher
1.Switch off the dishwasher by pressingthe button.
2.Turnoffthewatertap. Power
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removingfromthe appliance.
Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes.In thisway they
will be cooler andthe drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upperone.This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
If you openthe door , the machine will pause. The programlight will
stop blinking and the buzzer will be every minute unless you close the door . After
you close the door ,the machinewillkeepon workingafter 10seconds.
during awash cycle
beeping
Premise:
Acycle that is underway canonly be modified if it has only been running for a short time. Otherwise, the
detergent may have alreadybeen released,and the appliancemay have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pausebutton, the machinewill be in standby state, press the programbutton for more than
3 then you can change the program tothe desired cycle setting (seethe section entitled " Starting awash
cycle. . ." ).
1
2seconds
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Press the Start/Pause button
Press the button, the dishwasher will run
after 10 seconds.
Start/Pause
When you presstheStart/Pausebutton to pauseduring washing,the running indicator will
stop blinking and the dishwasher will every minute unless you press the
button to start.Start/Pause be beeping

The filter preventslarger remnants of food or other objects from getting inside thepump.
Theresidues may block thefilter, inthiscase they must be removed.

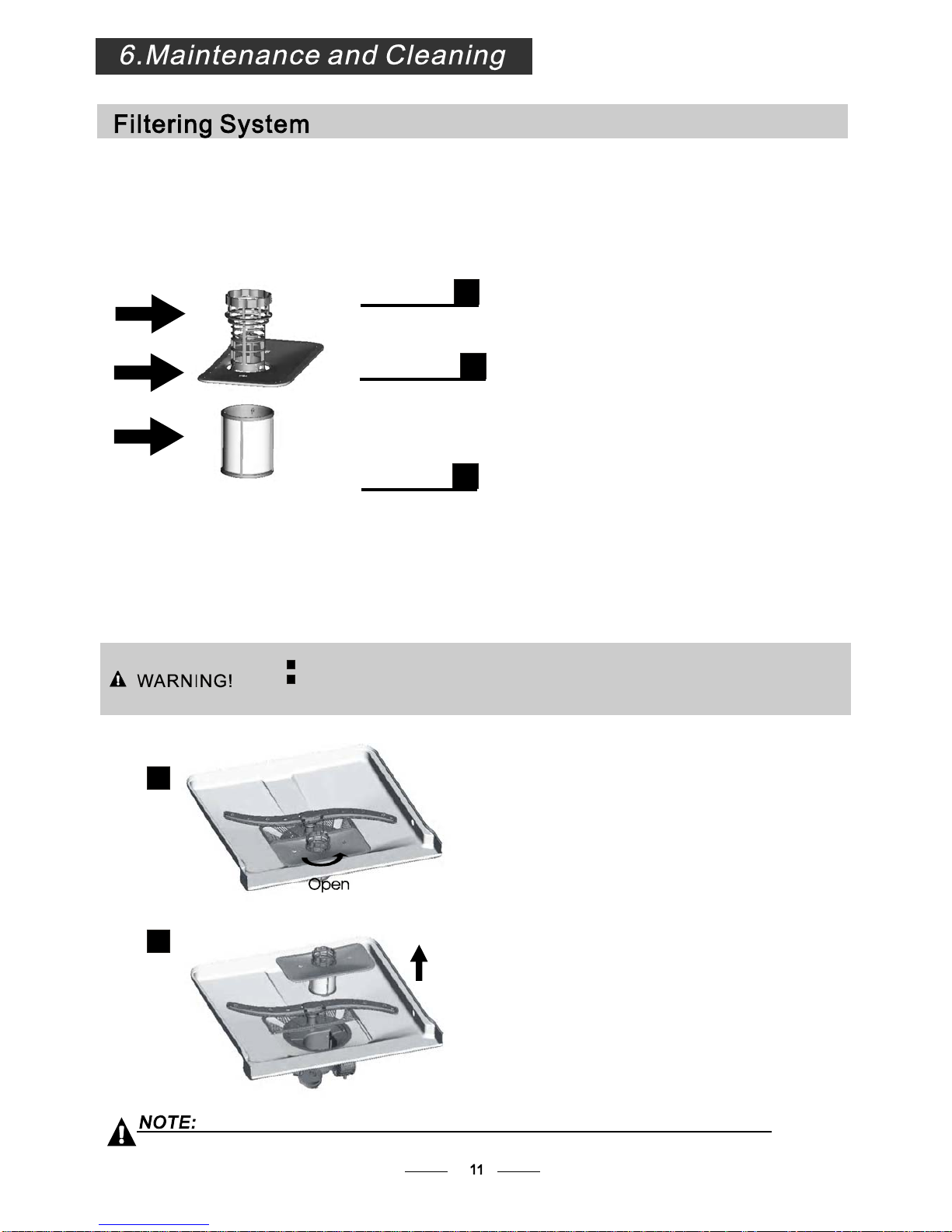

The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped inthis filterarepulverizedby a
special jet on the lower spray arm andwasheddown todrain.
Larger items, such as piecesof bonesor glass, that couldblock
the drain To remove
the itemsandeasilybecometrappedin thecoursefilter
caughtbythe filter,gently squeezethe tap on thetopof this
filterandliftout.
Thisfilter holds soil and food residuesin the sumpareaand
preventsit from being on thedishes during wash cycle.redeposited
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isa goodidea to
remove thelarger food particlestrappedin the filter aftereach washcycle by rinsing the semicircular filterand
cup under running water. To remove thefilter device, pull the cup handle in the upwarddirection.
removes food particles fromthe wash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never beused without the filters.
Improper replacementof the filter may reduce the performancelevelofthe appliance
and damage dishes and utensils.
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter up：
When following this procedure from step 1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1
2

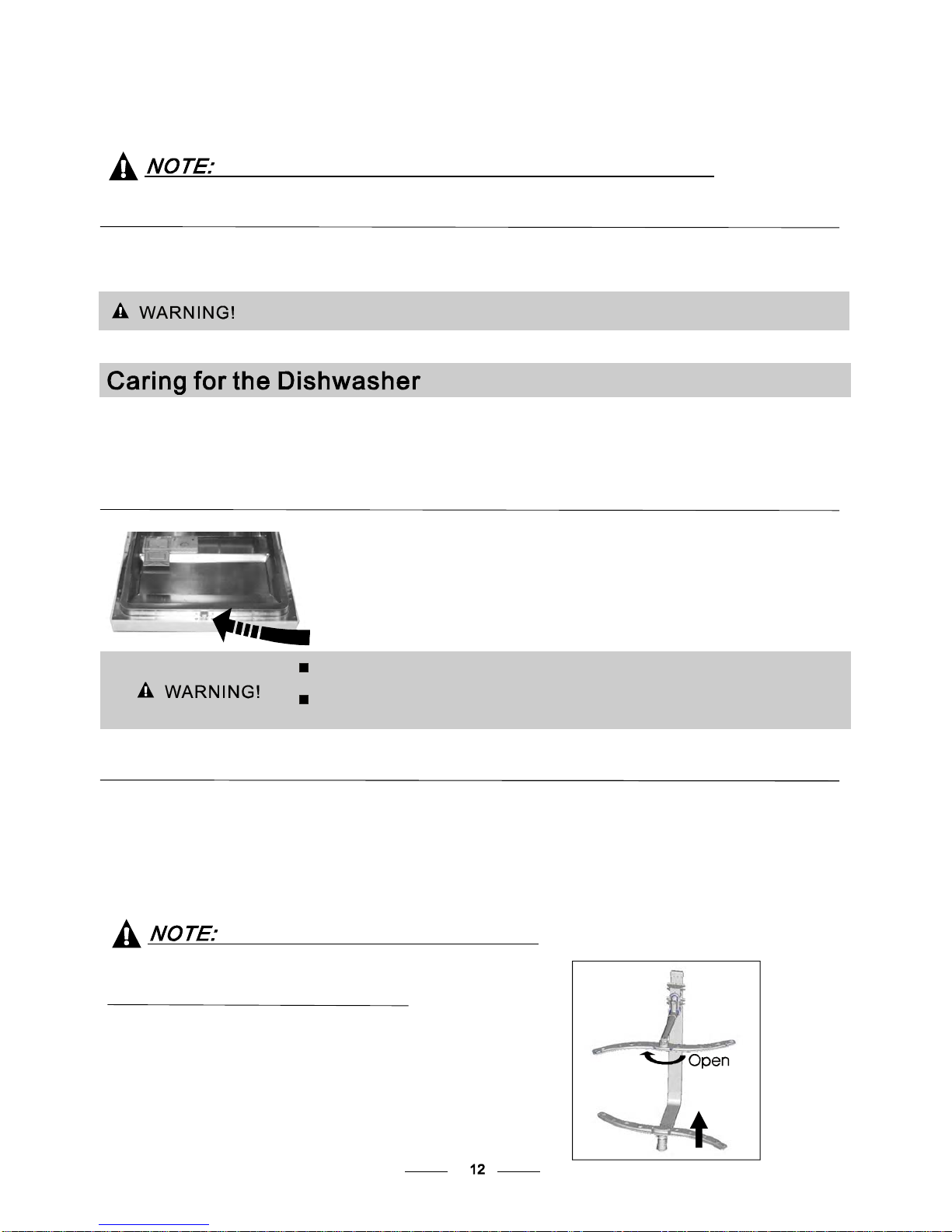

The control panelcan be cleaned by using a lightly dampenedcloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Never usesharp objects, scouring pads orharsh cleaners on any part ofthe dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measures onthe dishwasher in winter. Every fter washingcycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and theperformance ofthe dishwasher couldbe decreased.
To clean the edge around thedoor, you shoulduseonly a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of therisk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
waterchemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assembly should be cleanedonce a week.
Toremove thelowersprayarm, pull out the spray armupward.
To remove the upper sprayarm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy and warm water and use a soft brushto
clean thejets. Replace them after rinsing them thoroughly.

Itisrecommend thatyourun awashcycle with the
dishwasher empty andthenremove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, tryto keep it in the
vertical position.Ifabsolutelynecessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remainstrappedin the seals.
Periodic cleaning with adamp sponge willprevent this
from occurring.
Ensurethevoltageandfrequencyof thepowerbeing used corresponds to
those on the rating plate. Onlyinsert the plug into an electricalsocketwhich isearthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate forthe plug, replace the socket, rather than using aadaptor orthe likes as
they couldcause overheatingandburns.
Pleaselook at therating label to know the rating voltage and connectthe dishwasher to the appropriate power supply.
Use the required fuse 10 amp,timedelay fuse or circuit breakerrecommended and provide separate circuit serving
only this appliance.
Position the appliancein the desired location.The back should rest against the wall behind it, and the sides,
along the adjacent cabinetsor walls.The dishwasher is equipped with water supply and drain hoses that can
be positioned either tothe rightor the left sidesto facilitate proper installation.
Once the applianceis positioned for levelling, the height of the dishwasher
may be alteredvia adjustmentof the screwing level ofthe feet. In any case,
theappliance should not beinclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leavethe doorslightlyopen sothat
moisture and odours arenot trapped inside.
After EveryWash
When not in Use for aLong Time
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an
appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Connect the cold watersupply hose to athreaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
Ifthe water pipesare new orhave not been used for anextended period of time,let the
waterrunto makesurethatthewater isclear. This precautionis needed toavoidthe
risk ofthe water inlet to be blocked and damage the appliance.
Please closethe hydrant after using.
Insert the drain hose intoa drain pipe witha minimum diameterof 40mm, or let it run into thesink, making sure to
avoid bending or crimping it.The topof the hose must be less than 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B

The following thingsshould be checked before starting the dishwasher.
The content of this manual is very helpfulto theusers.
After installation,please make sure to keep this manual.
1
The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of theconducts
4 The wires aretightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 Allpackingmaterials andprintings shouldbe taken out from the dishwasher
Extension Hose
Ifyou needa drainhoseextension,make sure tousea similardrain hose.
It mustbe no longer than 4metres; otherwise thecleaning effectof the dishwasher could be reduced.
Water Outlet
Connect the waterdrain hose. The drain hose mustbe correctlyfittedto avoid water leaks.
Ensure that thewater drain hose is not kinked orsquashed.
If the sink is 1000 higher from the floor, the excess water in hoses cannotbe drained directly
into the sink.Itwillbe necessary todrainexcesswater from hoses into abowlorsuitable
container that is held outside and lower thanthe sink.
How to Drain Excess Water From Hoses
Syphon Connection
Insert the drain hose into a drain pipe with a minimumdiameter of 40mm, or let it run into the sink, making sure to
avoid bending or crimping it.The top of the hose mustbe less than 1000mm.

Fuse blown, or the home
circuit breaker has been
triggered.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Spilled rinse-aid Always wipe up rinse-aid spills immediately.
Hard water minerals
The affected items are
not corrosion resistant.
The lid of the softer
is loose
Aspayarmis
knocking against
an item in a basket
r
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
A programme was not
run after dishwasher
salt was added.
Traces of salt have
gotten into the wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the quick wash programme
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check the lip .Ensure the fix is fine.
Interrupt the programme, and rearrange the items
which are obstructing the sp ay arm.r
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Detergent with
colourant was used Make sure that the detergent is the one without colourant.
Improper detergent
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Error code:E1;
Water pressure is low
Door of dishwasher
not properly closed.
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check the filter
(see section titled )" Cleaning The Filter "
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Use only the special dishwasher detergent to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher, then select any cycle. Dishwasherwill drain
out the water at the first step.
Repeat if necessary.
Open the door after the draining
has stopped and check if the suds have disappeared.

The dishes were not
loaded correctly. See notes in " Loading the Dishwasher Baskets ".
Select a more intensive programme.
See" Wash Cycle Table ."
Use more detergent, or change your detergent.
Rearrange the items so that the sp ay can rotate freely.r
Clean and/or fit the filter combination correctly.
Clean the sp ay arm jets. See "Cleaning the Spray
Arms". r
Use less detergent if you have soft water and select
a shorter cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once
the dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of sp ay arms.r
The filter combination
inthebaseofwash
cabinet is not clean or
is not correctly fitted.
This may cause
the sp ay arm jets
to get blocked.
r
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Overflow.
When some malfunctions come on, the appliance will display error codes to warn you:
Longer inlet time.
Faucets is not opened, or water intake is
restricted,or water pressure is too low.
Some element of dishwasher leaks .
E1
E4
If overflow occurs, turn off the main water supply before calling service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
