Omega OFI604A User manual

14 place settings
OFI604A

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing theprogramme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme Button until the selected programme lights up.
( See the section entitled Operationinstruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoor isopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door andpressthe Programme Button for more than 3 seconds
to cancel the runing progarmme
3.Select a new programme.
4.Close the door,the machine will restart after about 10 seconds.

The section on troubleshooting Tips will help you to solve some common problems by yourself .
Dear Customer,
Please carefully read this manual beforeusing the dishwasher, it willhelp youto useand maintainthe
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant development and updating of the product, may make
modifications without giving prior notice.
Keep it as a reference in the later days.
Ifyou can not solvethe problems by yourself ,please ask for the helpof professional technicians.
This appliance is intended tobe used in household andsimilar applications such as:
-staff kitchen areas in shops,offices and other working environments;
-farm houses;
-by clients inhotels, motels and other residential type environments;
-bed and breakfast type environments.

Dishwasher Features.......................................................................................................................... ...2
Attention before or after loading the Dishwasher
Baskets..............................................................................................................................................6
Filtering System.................................................................................................................................11
Caring fortheDishwasher..................... .............................................................................................12.
A Fillthe RinseAid Dispenser............. ...................................................................................... ..3、..... ....
B Function of Detergent ...............................................................................................................4、........
...................................................................................................7
Max. Dishes........................................................................................................................................8
The Method Loading Normal Dishware
Wash Cycle Table..................................................................................................................................9
Turning on theAppliance......................................................................................................................9
Change the Programme.............. .....................................................................................................10....
At the Eneof theWashCycle................................................................................................................10
Before calling for service........................... ........................................................................................20.
Errorcodes.................................... ................................................................................................21.
Technicalinformation.............................. .22........................................................................................
Control Panel........................................................................................................................................ 2
..................................................................................................................... 13Installationpreparation ...,..................................................................................14Aesthetic panel'sdimensions andinstallation
.................................................................................................15Tensionadjustment of the doorspring
................................................................................................................. 15Connection ofdrain hoses ............................................................................................................16Dishwasher installationsteps
About Electricity Connecting..............................................................................................................17
ColdWaterConnection......................................................................................................................19
Startof dishwasher................................ ......................................................................................... 19..
CONTENTS

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedinthe basket
with their points down or placed in a
horizontalposition.
)
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupplycord isdamaged, it mustbe replaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

beforeusing it for the firsttime.
To get the best performance fromyourdishwasher, read all operating instructions
11
12
Back View
1
2
3
4
5
7
89
10
Front view
Lower basket
Dispenser
Cupshelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutleryrack
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
24
6
Adjuster
9.On/Off Button: To turn on/off the power supply.
7.Delay Button : To Press the button to delay the
washingtime.
2.Rinse aid warning light:To show dispenser need
to be refilled Rinse aid.
5.Program indicators: To show which program you
have chosen;
3.Extra Drying indicator :
Extradrying:An increased temperatureduring the final
rinse to increase drying well. There is a slight increase
in the energy consumption.
1.Power indicator: To show when the power on.
8.Program Button: To Press the button to select a
wash Program.
4.Half load indicator : To show when you select the
halfloadfunction. Ifyou haveonly aboutorless thanhalf
of full load dishes of the dishwasher, you can select the
half load function and your desired program according to
the dishes contaminated degree.Aprogram select the
half load function, it can save time, energy,and water
compare to the program hasn’t select the half load function.
After the half load function is selected, all the spray arms
arerunning,youcanloadallthebaskets.
6.Option Button: To select Half load and Extra dry
functions,thesefunctions can only be used with
programmesIntensive,Heavy, Normal, Glass and
1Hour.
6h 3h 9h
10.Delay indicators: To show the delay time.
(3h/6h/9h)

Before using your dishwasher for the first time:

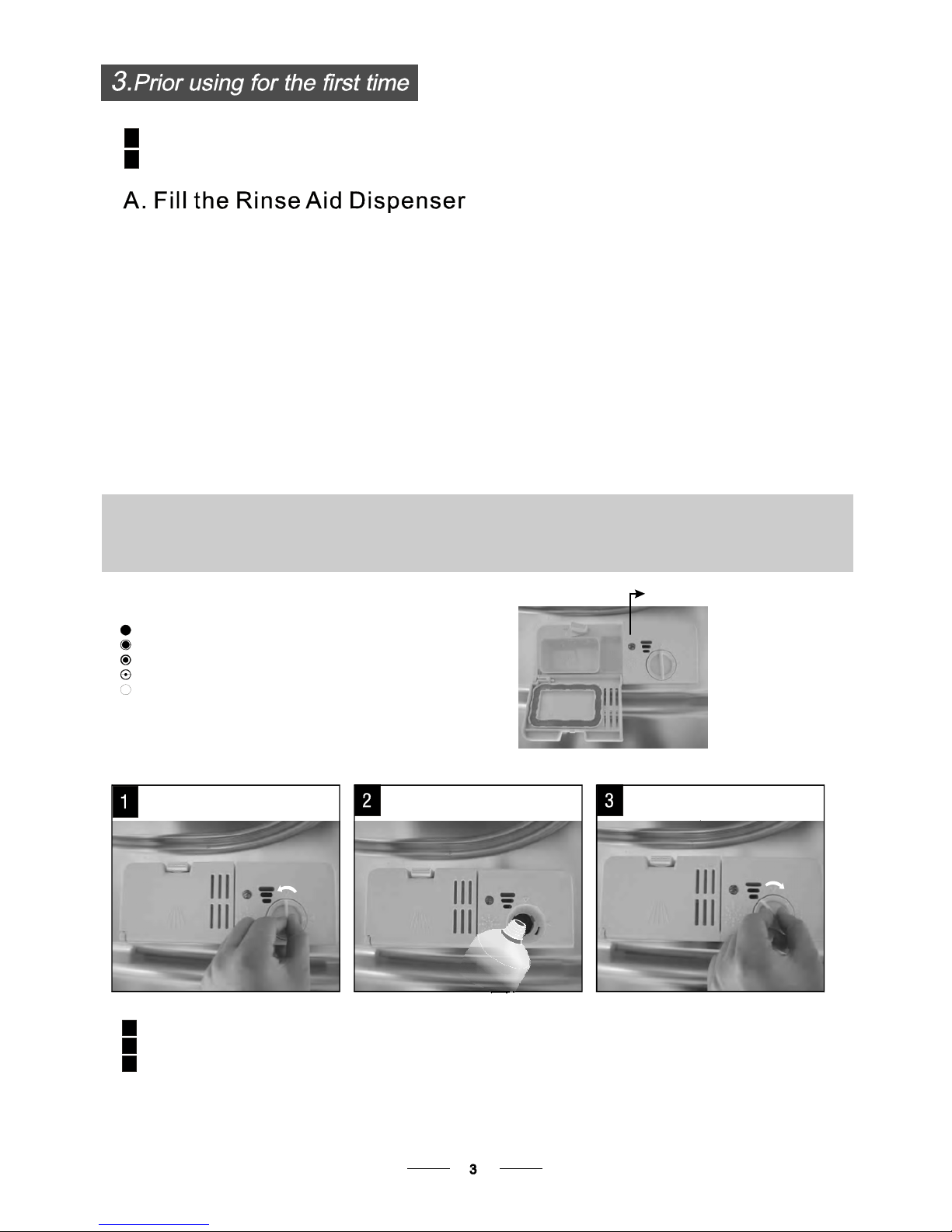

A. Filltherinse aiddispenser
B. Fill in detergent
Therinse aid isreleasedduringthe finalrinse to preventwater from forming dropletson your dishes, which can
leave spots and streaks. It also improvesdryingby allowing water to rolloff thedishes. Yourdishwasheris
designed to use liquidrinse aids.The rinseaid dispenser islocated insidethe door nextto the detergent dispenser.
Tofill the dispenser,open the capand pour the rinse aidinto the dispenser untilthe levelindicatorturns completely
black.Thevolume ofthe rinseaid containeris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelast rinse, ensuring thoroughrinsing, and spot and streak free drying.
Attention!
Onlyuse brandedrinse aid for dishwasher. Never fill the rinseaiddispenserwith any othersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size ofthe black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level indicator "C" located next to the cap. When the rinse-aid container is full, the wholeindicator will be
dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below
1/4full.
When to Refill the RinseAid Dispenser
RINSEAID DISPENSER

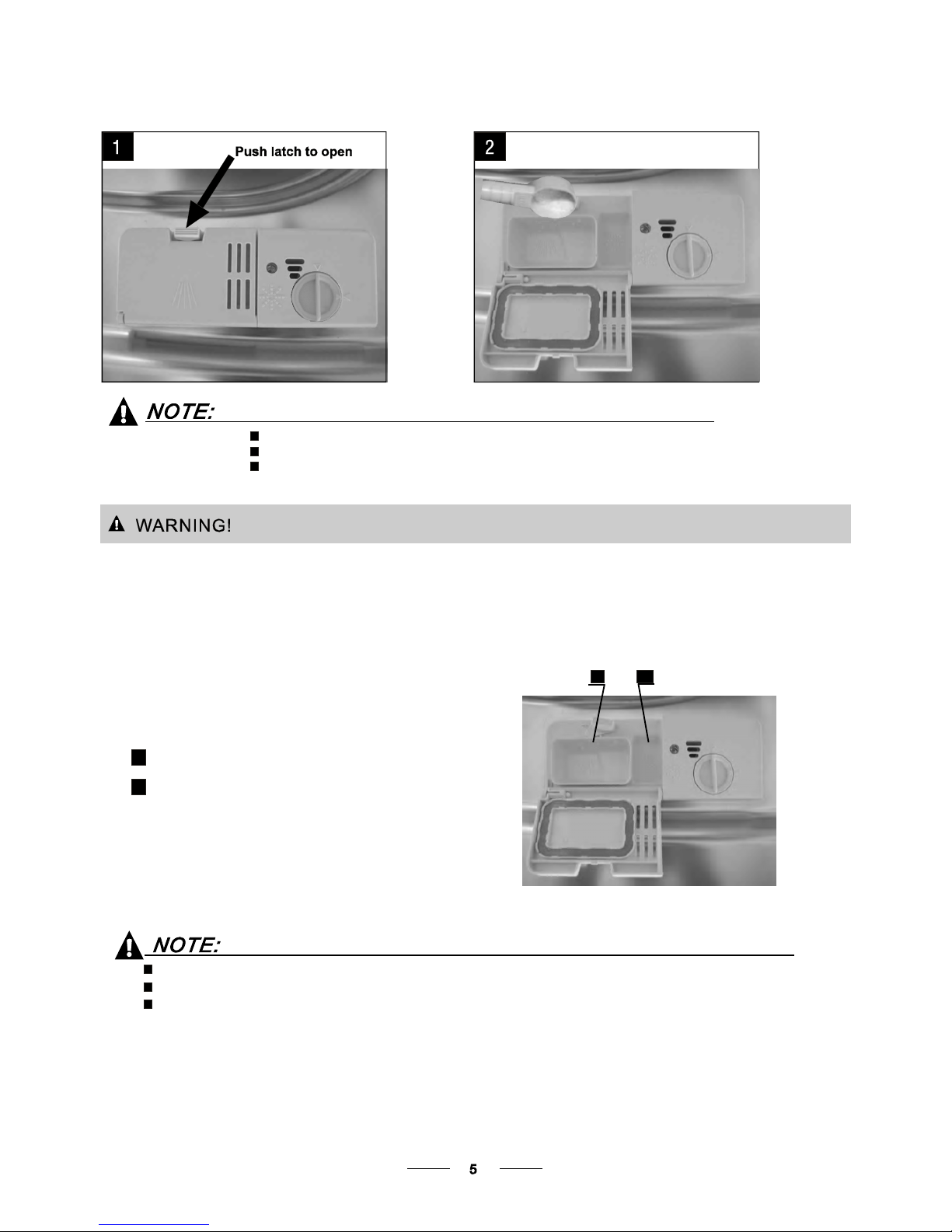

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the capby inserting italigned with "open" arrow and turning ittothe closed (right) arrow.
Be careful not to overfillthe dispenser,because this could cause over sudsing. Wipe away any spills
witha damp cloth. Don'tforget toreplace the cap before you close the dishwasher door.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth toavoid excess foaming
during the nextwash.
1
2
3
C(Rinse-Aidindicator)

Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aiddispensed by removing thedispenserlidandrotatingthedialto"5".Ifthe
dishes still are not drying properly or are showing spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or abluish film on glassware or
knifeblades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergentsare suitable for thispurpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and withchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Based on their chemical composition, detergentscan be split in two basic types:
Theuseof normal washing programs in combination with concentrated detergents
reducespollutionand is goodforyourdishes; these wash programsare specificallymatched
to the dirt-dissolving properties of the enzymes of the concentrated detergent.For this reason
normal washprogramsinwhich concentrated detergents are used can achieve the same
results that can otherwise only be achieved using intensive programs.
“”
“”
“”
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannotdissolve anddevelop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensurethe completeremoval of detergent residuals.
The dispenser must be refilled before the start of each wash cycle followingthe instructions
provided in the wash cycle table . Your dishwasher uses less detergent andrinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavilysoileditems need more detergent.Alwaysaddthe
detergent just before starting thedishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkalinedetergents with caustic components
low alkalineconcentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend tofill salt in the salt container even when
the hardness ofwater isonly6 dH. Ifdetergents without phosphate are used inthe case ofhardwater
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine doonlybleacha little. Strong and coloured spots will not
be removedcompletely.In this case please choose aprogramwitha higher temperature.
°

AmountofDetergenttoUse
ProperUseofDetergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care tokeepitout of reach of children.
Always add the detergent just before starting eachwash cycle.
Only use branded detergent aid for dishwasher.
If thelid is closed: press release button. The lid will spring open.
Fill the detergent dispenser with detergent.
Themarkingindicatesthedosinglevels ,as
illustratedontheright:
The place for main wash cycle detergent.
The place for pre -wash cycle detergent.
Please observe the manufacturers dosing andstorage
Recommendations as stated on the detergent packaging.
Close the lidandpress until itlocks inplace.
Ifthedishesare heavily soiled,placean additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please beaware, that according tothe level soiling and the specific hardnessof water differences are possible.
Please observe the manufacturer'srecommendations on the detergent packaging.
AB

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsyntheticfibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery must notlie insideoneanother, orcover eachother.
To avoid damage to glasses, theymust not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knivesmust be positioned
horizontallyin the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deep base.
Consider buying utensils which are identifiedas dishwasher-proof.
Usea mild detergentthatis describedas 'kind to dishes'. If necessary, seekfurther
information from thedetergent manufacturers.
Forparticular items,select a programwithas low a temperature aspossible.
To prevent damage, do not take glassandcutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow theseloading guidelines.
Features and appearance of baskets and cutlery basketsmay vary from your model.)
Scrape off any largeamounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary torinse the dishes under running water.
Place objects in the dishwasher in the following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, aswell asplates,small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthe dishes andcookwaresothatthey will
notgetmovedbythespray ofwater.
We suggest that you place large items and the most difficult
to cleanitems into thelower basket: suchas pots,pans, lids,
serving dishes and bowls, as shown in the figure below.
It is preferable toplace serving dishesandlids onthesideof
the racks in order to avoid blocking the rotation of the top
spray arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
shown in the picture right.
Folding back the cup shelves
For better stacking of pots and pans,
the spikes can be folded down as
showninthepictureright.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The heightof the upper basket canbe
adjusted byplacing the wheels ondifferent heightof the
rails. Long items, serving cutlery, salad servers and knives
should beplacedonthe shelfso thattheydo not obstruct
the rotation ofthespray arms..

Cutlery should be placed in the cutlery rack separately
fromeach other in the appropriate positions, and do
make sure the utensils do not nest together, this may
cause bad performance.
For a top quality cleaning, place the silverwarein the basket
making surethat:
Theydo not nest together.
Silverware is placed with the male face up.
Long utensils in the middle.
Max. Dishes
Max. Dishes
Top basket Bottom basket
LowerPositionmax.Φ
Upper Position max.Φ
19cm 25cm
14cm 30cm

Startinga cycle wash
Draw out the lower and upper basket, load the dishes and pushthem back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
“”
“”
Open the door, press the ON/OFF Button, and the Power indicator light will turn on.
Press the program Button , the wash program will be changed as follows direction:
If a program is selected, the response light will light. Then close the door, the dishwasher
beginsto start.
Intensive->Heavy->Normal->Glass->1Hour->Quick;
1
2
3
4
5
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 14 setting
PositionUpperbasket:upper wheelsonrails
Rinse aid setting: 6
Open the door slightly 50mm to assist in drying of the dishes after every wash
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
Glass
Forlightlysoiled loads,
such as glasses,
crystal and fine china.
20g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
115
0.8 14.5
Normal
Intensive
Heavy
(OrAll )in1
5/27.5g
5
(OrAll )
/27.5g
in1
(OrAll )in1
5/27.5g
For normally soiled loads,
such as , plates,glasses
and lightly soiledpans.
standard daily cycle.
pots
For the heaviest soiled
loads, such as pots, pans,
casserole dishesand dishes
that have been sitting with
dried foodon them for a
while.
A shorter wash for lightly
soiled loads that do not
need drying.
Quick
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (55 )
Rinse
Rinse(60 )
Drying
℃
℃
℃
Pre-wash
Wash (45 )
Rinse
Rinse(50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
165
160
135
40
1.15
0.87
1.4
0.5
18
14.5
13.6
10.5
1Hour
Pre-wash(50 )
Wash(60 )
Rinse (50 )
Drying
℃
℃
℃
60 10
0.9
5/27.5g
20g
Daily wash in only 1 hour.
Forlightly andnormally
soiled plates and pans
foreveryday.
(*AS/NZS 2007.1)
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button,shut offthe water supply and open the doorof the dishwasher.
Wait for a few minutesbefore unloading the dishwasher to avoidhandling the dishes and utensilswhile they
are still hotand more susceptible to breakage.They will alsodry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn offthewatertap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool downaround 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lowerone.
If you open thedoor , the machine will pause. The program lightwill
stop blinking and thebuzzer will mooing every minute unless you closethe door . After
you closethe door ,the machine will keep on working after 10 seconds.
duringawashcycle
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Open the door ,press the Program button , the machine will be in standby state,
then you can change the program to the desired cycle setting (see thesection entitled " Starting a
wash cycle. . ." ).
more than 3 seconds
1
2
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
The dishwasher will run after 10 seconds.
Wash thearms insoapy and warm water and use asoftbrush to
clean the jets. Replace them after rinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.

The filter preventslarger remnants of food or other objects from getting inside the pump.
Theresidues may block the filter, in thiscase they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drainaretrappedin the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filterandliftout.
Thisfilter holds soil and food residuesin the sumpareaand
prevents itfrom being redeposit on the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove thelarger food particlestrapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under runningwater. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water,allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishesand utensils.
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1
2

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never usesharp objects, scouring pads orharsh cleaners on any part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter.Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and theperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of therisk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly forhard
water chemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entire filter assembly should be cleanedonce a week.
Toremovethelower spray arm, pull out the spray armupward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise toremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itisrecommend thatyourun awashcycle withthe
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealsto lastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition. Ifabsolutely necessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the seals.
Periodic cleaning with a damp sponge will preventthis
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater ana little
vinegar, or a cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightlyopen sothat
moisture and odours are not trapped inside.
After EveryWash
When not inUse for aLongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electricalpower before
installingdishwasher.
Failure to do so can result in death or
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
powercord.
One side of the cabinet sinkshould be chosen tofacilitatethe connection of drain hoses of
thedishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●

Please carefully readthe installation instruction.
Illustrations ofcabinet dimensionsandinstallation position of thedishwasher
Preparations shouldbe made before moving the dishwasher to the installation place.
Choose a placenearthe sinkto facilitate the installation of inletanddrain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the dooris opened.
2
1
Minimumspace when
the door is opened
【】Figure2

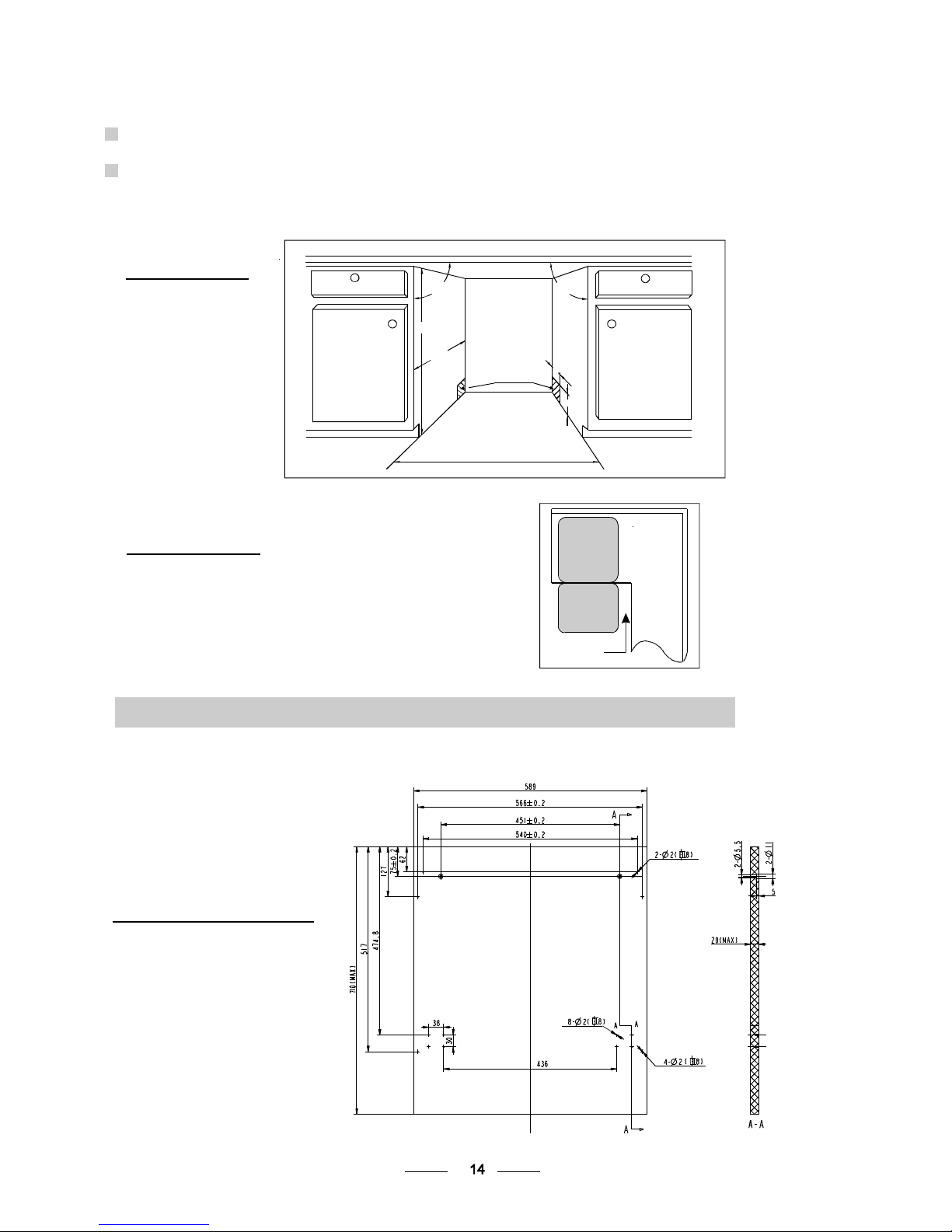

Cabinetdimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1 The aesthetic wooden panel could be processed according to the Figure 3.
Theaestheticpanelshould
be processed in accordance
with the illustrated dimensions
【】Figure3
●Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinetand the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)

Installation of aesthetic panel
【】Figure4a
2 Install the hook on the aesthetic wooden panel andput the hook into the slot of theouter door of
dishwasher(see figure4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
Installationof aesthetic
woodenpanel
【】Figure4b
. take away the four
short screws
. pin up the four long
screws
1
2

Tension adjustment
ofthe door spring
【】Figure5
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw todrive the adjustor to strainor relax the steel cable
(seefigure5).
Door spring tension is correct when
the door remains horizontal in the
fullyopenedposition yet rises
toaclosewiththeslightliftofa
finger.
，

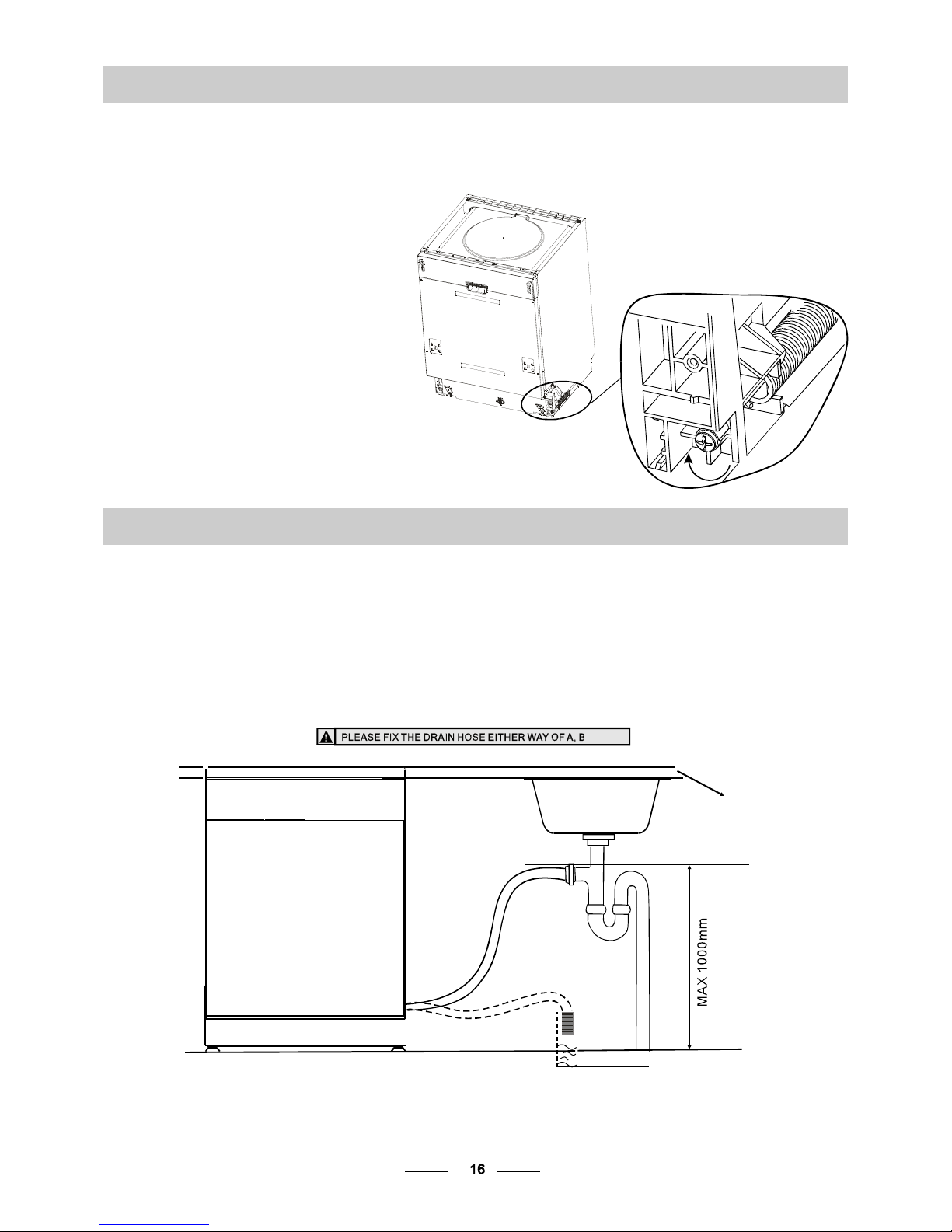

Insert the drainhose into adrainpipe with aminimum diameter of40mm, or letit run into the sink, making sureto
avoid bendingor crimpingit. The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B
