INSTALLATION
AND MAINTENANCE INSTRUCTIONS
Wine Cooler NPW46

CONTENT
SECTION PAGE NO.
Important safety Instructions 3
Warnings 4
Installation Instructions 5-6
Operating Instructions 7
General instruction for wine cooler 8
Trouble shooting 9
Care and maintenance 10
Disposal Information 10
CONGRATULATIONS
Thank you for choosing one of our fantastic NEIL PERRY KITCHEN by OMEGA Wine Cooler.
We are confident that this advanced product will meet all your needs. Before you use the wine cooler
we strongly recommend that you read though all safety rules and operating instructions.
To avoid the ever-present risks involved with using an electrical appliance it is vital that this wine
cooler is installed correctly and that you read the safety instructions carefully to avoid misuse and
hazards. It is important that you retain these instructions and your proof of purchase along with any
other important documents about this product for future reference.
2

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully
before removing the contents of this carton.
1. In certain circumstances electrical appliances may be a danger hazard.
2. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
3. Children should be supervised to insure that they do not play with the appliance.
4. Never allow children to operate, play with, or crawl inside the appliance.
5. Do not disconnect the appliance with wet hands and do not disconnect the power cord with
extreme force.
6. Unplug the appliance before carrying out maintenance.
7. If the power cord is damaged, it must be replaced by the manufacturer, an authorised service
centre or similarly qualified persons to avoid a hazard.
8. There is a fire risk if cleaning is not carried out in accordance with the instructions.
9. Please don’t clean the cabinet with flammable liquid, in order to avoid causing a fire or
explosion.
10.After the appliances are junked or abandoned, please remove the glass door of cabinet, and
choose an authorised disposal site.
11.Flammable and explosive articles should not be put in or near the cabinet, to avoid fire or cause
explosion.
12.Do not attempt to move the wine cooler, when loaded with wine.
13.Do not touch the compressor with your hands.
3

WARNINGS
A. Neil Perry Kitchen by Omega offers no guarantee for the wine cooler if it is being used for any
purpose other than for which it was specifically designed.
B. This Wine cooler is not designed for perishable food; it is designed for wine only.
C. Neil Perry Kitchen by Omega is not responsible or liable for any spoilage or damage to wines or
any other contents incidental or consequential to possible defects of the wine cooler.
D. Warranty applies to the wine cooler only and not to the content of the wine cooler.
E. Make sure the door is opened all the way before pulling the shelves out, to prevent ant
damages to the door gasket.
F. Indoor use only.
G. Keep clear of obstruction all ventilation opening in the appliance enclosure or in the structure for
build-in
R600A WARNINGS
H. This appliance contains a small quantity of R600A refrigerant which is environmentally friendly,
but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
I. During transportation and installation, ensure that the tubing of the refrigerant circuit is not
damaged.
J. Avoid using or manipulating sharp objects near by the appliances.
K. Leaking refrigerant can ignite and may damage the eyes.
L. In the event of any damage, avoid exposure to open fires and any device which creates a
spark. Disconnect the appliance from the mains power.
M. Do not damaged the refrigerant circuit
4

INSTALLATION INSTRUCTIONS
Before using your Wine Cooler:
Remove the exterior and interior packing.
Before connecting the Wine Cooler to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water with a soft cloth.
Install the handle on the left side of the door.
Installation of your Wine Cooler
This appliance is designed to be for free standing installation or built-in.
Place your Wine Cooler on a floor that is strong enough to support it when it is fully loaded.
To lever your Wine Cooler, adjust the leveling leg at the level position.
Locate the Wine Cooler away from direct sunlight and sources of heat (stove, radiator, electric
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption.
Avoid locating the unit in moist area.
Plug the Wine Cooler into an exclusive, properly installed-grounded wall outlet.

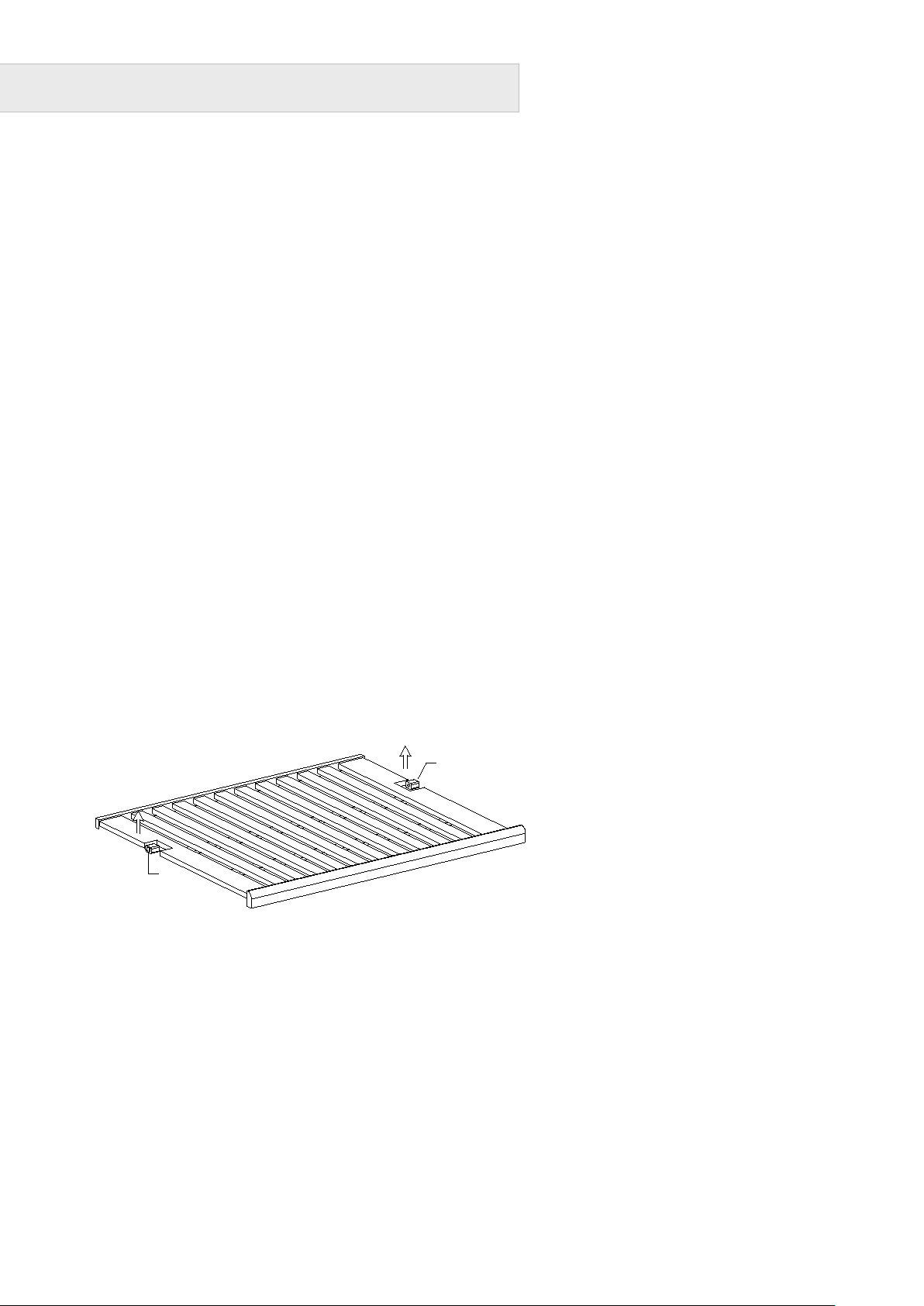

Install or remove the shelf
To prevent the door gasket from damages, make sure the door is opened completely once pulling
the shelves out.
If a shelf needs to be removed, slide the shelf towards the gap located on both side and align it
with the shelf support (A). Then lift the shelf up and pull it out from the cabinet once disengaged.
A
A
5

Reverse the door
This appliance has the capability to change the door opening from either the left or right side. The unit
is delivered to you with the door opening from the left side. Should you desire to reverse the opening
please follow the direction below:
•Remove the Lock screws①(picture 1)
•Pull the door ⑤outward and take it out (picture 2)
•Remove the Right Top hinge④(picture 3)
•Fix the Top hinge (Left) and Lower hinge (Left) with bolts on the position as picture shows.
•Rotate the door at 180 degrees, then assemble the door as per the reverse way.( picture 4)
12
3 4
①Lock screws ②Lower hinge (Right) ③Door axis
④Top hinge (Right) ⑤Door ⑥Cabinet
⑦Top hinge (Left)
6

OPERATING INSTRUCTIONS
Setting the Temperature Controls

The power button is used to turn the wine cooler on and off. Press and Hold for approximately 3
seconds to turn it on or off. (the RUN indicator will illuminate when the cooling system is running)

Control the interior light ON/OFF

Control the temperature setting in the upper compartment. The temperature setting can be
adjusted from 5℃to 12℃. The display shows the actual temperature of the compartment.
Press this button to adjust the temperature, the temperature display will start flashing, keep pressing to
adjust the temperature in one degree increments, when exceeding the minimum value, the display will
jump to the highest adjustable temperature value automatically. When you reach your desired
temperature you may stop pressing the button, the LED figure will stop flashing after few a seconds
and will then revert back to the actual the temperature of the upper compartment to slowly achieve
your desire setting.

Control the temperature setting in the lower compartment. The temperature setting can be
adjusted from 12℃to 18℃. The display shows the actual temperature of the compartment.
Press this button to adjust the temperature, the temperature display will start flashing, keep pressing to
adjust the temperature in one degree increments, when exceeding the minimum value, the display will
jump to the highest adjustable temperature value automatically. When you reach your desired
temperature you may stop pressing the button, the LED figure will stop flashing after a few seconds
and will then revert back to the actual the temperature of the lower compartment to slowly achieve
your desire setting.
If the unit is unplugged, the system will return to the factory setting temperature as per below:
Upper compartment: 6 ℃
Lower compartment: 12 ℃
7

GENERAL INSTRUCTION FOR WINE COOLER
Store sealed wine bottles.
Do not overload the cabinet.
Do not open the door unless necessary
Do not cover shelves with aluminum foil or any other shelf material, which may prevent air
circulation.
Should the wine cooler be stored without being used for long periods it is suggested to turn off
and unplug the wine cooler, leave the door open to allow air to circulate inside the cabinet in order
to avoid possible formations of condensation, mold or odors.
Keep children away
The appliance is designed with a LED light, if the LED light is damaged; please contact your after-sale
service.
If the unit is unplugged, power is lost, or turned off; you must wait 3 to 5 minutes to restart the unit.
When first using the wine cooler or using it after it has been turned off for a long period, the
temperature will be different to what the LED display shows. Run the wine cooler for approximately 2
hours in order to allow the refrigerant to settle.
This appliance is designed for freestanding or build in installation. Please follow the images below for
build-in or under bench installation.
8

TROUBLESHOOTING
Problems with your Wine Cooler
Some problems can be solved easily, follow the guide below to avoid any service calls
Troubleshooting Guide
Problem
Possible Cause
Wine Cooler does not operate
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold
enough
Check the temperature control setting.
External Environment may be affecting the
temperature. Adjust temperature control setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently
The room temperature is hotter than normal.
Overload of the cabinet
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”
Vibrations
Check to assure that the wine cooler is leveled.
Floor is uneven or weak. The appliance rocks on the
floor when it is moved slightly.
Make sure the floor can adequately support the
appliance.
The appliance is touching the wall.
Popping or Cracking sound when
the compressor comes on
Metal parts undergo expansion and contraction, as in
hot water pipes. This is normal.
The sound will level off or disappear as the appliance
continues to run.
The Wine Cooler is not level.
Bubbling or gurgling sound, like
water boiling
Refrigerant is circulating throughout the system.
This is normal.
The door will not close properly
The Wine Cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
9

CARE & MAINTENANCE
Clean your Wine Cooler
Turn off the power, unplug the appliance, and remove all items including shelves and rack.
Wash the inside surfaces with warm water and a mild solution.
Wash the shelves with a mild detergent solution.
Wipe down the control panel with warm water and cloth, wipe dry with a clean soft cloth.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with
a clean soft cloth.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance, if you minimize the number of times the door is opened. If the power is going to be off
for a long period of time, you need to take the proper steps to protect your contents.
Vacation Time

Short vacations
: Leave the Wine Cooler operating during vacations which may be less than three
weeks.
If the appliance will not be used for several months, remove all items and turn off the appliance.
Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open
slightly.
Keep Children away
Moving your Wine Cooler
Unplug the wine cooler
Remove all items.
Take out the loose items inside the wine cooler (such as the shelf), or fix the loose items with foam.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket or similar items.
DISPOSAL INFORMATION
Most of the packing materials are recyclable. Please dispose of those materials through your local
recycling depot or by placing them in appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method
of disposal.
Warning: When disposing of this wine cooler, remove any doors. Children can suffocate if they get
trapped inside.
10
