Omega OBO690GG User manual



OPERATINGANDINSTALLATIONINSTRUCTIONS
FOR


OBO690GG
M
2


2





































3

INSTALLATION,OPERATIONANDMAINTENANCEINSTRUCTIONS 
FOROMEGABUILT‐INELECTRICOVENRANGE
OBO690GGBUILT‐INELECTRICOVEN



CONGRATULATIONS

Thankyouforchoosingoneofourmanyfantasticbuiltinovens.Weareconfidentthatyouwillnowbe
abletomeetyourcookingneeds.Beforeyouusetheovenwestronglyrecommendthatyouread
thoughthewholeusermanualwhichprovidesthedescriptionofthisproductandtheproperuseofits
functions.
Toavoidtheever‐presentrisksinvolvedwithusinganelectricalapplianceitisvitalthattheovenis
installedcorrectlyandthatyoureadthesafetyinstructionscarefullytoavoidmisuseandhazards.Itis
importantthatyouretaintheseinstructionsandyourproofofpurchasealongwithanyotherimportant
documentsaboutthisproductforfuturereference.



CONTENTS


SECTION PAGENO.
ImportantSafetyInstructions………….. 4
ApplianceDetails………………………… 5
ElectricalConnections………………..…. 5‐6
Installation………………………………… 7‐8
OperatingInstructions…………………… 9‐14
Cleaning………………………………….. 15
Troubleshooting………………………….. 15
Transportation……………………………. 16
CookingGuides...….………………….…. 17‐18




DISPOSALINFORMATION

 Mostofthepackingmaterialsarerecyclable.Pleasedisposeofthosematerialsthroughyour
localrecyclingdepotorbyplacingtheminappropriatecollectioncontainers.
 Ifyouwishtodiscardthisproduct,pleasecontactyourlocalauthoritiesandaskforthe
correctmethodofdisposal.



4


IMPORTANTSAFETYINSTRUCTIONS
IMPORTANT:Readtheassemblyinstructionsectionandsafetyprecautionsofthisbookletcarefullybeforeremovingthe
contentsofthiscarton.
1. Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,sensoryormentalcapabilities,or
lackofexperienceorknowledge,unlesstheyhavebeengivensupervisionorinstructionconcerningtheuseoftheappliance
byapersonresponsiblefortheirsafety.Childrenshouldbesupervisedtoinsurethattheydonotplaywiththeappliance.
2. Incertaincircumstanceselectricalappliancesmaybeadangerhazard.
3. Donotplaceheavyobjectsinorontheseappliances,oruseforstorage,orletchildrenplayorswingfromthedoor.These
appliancesaredesignedforcookingfoodonly.
4. Thisapplianceisdesignedfordomestichouseholduseonlyandforthecookingofdomesticfoodproducts.Useasa
commercialappliancewillvoidthewarranty.Itshouldnottobeusedinamarineenvironmentoroutdoors.
5. Thisapplianceissuppliedwitha10ampplug.
6. Iftheelectricalsupplycordisdamaged,eitherwhenbeinginstalledorafterinstallation,itmustbereplacedbythe
manufacturer,itsservicecentreorsimilarlyqualifiedpersonsinordertopreventahazard.
7. Theelectricalconnectionmustbeaccessibleafterinstallation.Theappliancemustbeelectricallyisolatedbeforeany
maintenancecanbeperformed,whichincludeschangingalamp.
8. Electricalconnectionmustbemadeasperlocalwiringrulesandregulations.Donotdisconnecttheappliancewithwethands
orbarefeet,anddonotdisconnectthepowercordwithextremeforce.
9. Alwaysgrasptheovendoorinthecentreofthehandleastheareasaroundthedooredgesmaybehotduetotheescapeofhot
air.
10. Ensurethatthekitcheniswellventilatedormechanicalventilationisinusewhilecookinginthisappliance.
11. Donotstoreoruseflammablematerialsoraerosolsneartheoven.Itemsmadefromaluminium,plasticorplasticfilm
shouldalsobekeptawayfromtheappliance,astheymayfusetothesurface.
12. Neverlinetheovenbottomwithaluminiumfoil,astheconsequentaccumulationofheatcouldcompromisethecookingand
evendamagetheenamel.
13. WARNING‐Theovenwillbecomehotduringanddirectlyafteruse.Donottouchanycomponentsduringthistime,astheymay
behotandcancauseburns.Donottouchtheheatingelementsinsidetheoventoavoidburns.Childrenshouldbekeptaway.
Useheatresistantcookinggloveswhere‐everpossiblewhenmovingfoodandcookingutensilsinandoutoftheoven.
14. Cleaningmayonlybecommencedontheapplianceonceithascooleddown(bestslightlywarm).Theapplianceshouldbe
disconnectedfromthepoweroutletorturnedoffatyourisolationswitchbeforecommencinganycleaningprocess.Donotuse
asteamjetoranyotherhighpressurecleaningequipmenttocleantheappliance.Followovencleanerdirectionsiftheseare
beingused.
15. Washallaccessoriesinhotsoapywaterorinadishwasher,wipedrywithapaperorclothtowel.Ifyouuseyourovenforan
extendedperiodoftime,condensationmayform.Dryitusingasoftdrycloth.
16. Whentheapplianceisnotbeingused,theknobsmustbekeptinthe‘OFF’position.
17. Wherethisapplianceisinstalledinacaravan,itshallNOTbeusedasaspaceheater.
18. Donotmodifythisappliance.
19. Donotuseharshabrasivecleanersorsharpmetalscraperstocleantheovendoorglassasitcanscratchthesurface,whichmay
resultintheglassshattering.Cleantheglassdoorusingwarmdampclothanddryitwithasoftcloth.
20. Allcabinetryandmaterialsusedintheinstallationmustbeabletowithstandaminimumtemperatureof50°Cabovethe
ambienttemperatureoftheroomitislocatedin,whilstinuse.Certaintypesofvinylorlaminatekitchenfurnitureare
particularlypronetoheatdamageordiscolourationattemperaturesoutsidetheguidelinesgivenabove.Anydamagecaused
bytheappliancebeinginstalledwithoutadheringtothetemperaturelimitssetoutabovewillbetheliabilityoftheowner.
21. Thisappliancemustbecorrectlyinstalledbyasuitablyqualifiedperson,strictlyinaccordancewiththemanufacturer’s
instructions.Pleaseseethespecificsectionofthisbookletthatreferstoinstallation.
22. Theappliancemustbeinstalledandputinoperationbyanauthorisedtechnicianundertheconditionsprovidedbythe
manufacturerinthismanual.Themanufacturercannotbeheldresponsibleforanydamagethatmightoccurduetofaulty
installation.
23. Thevaluesindicatedontheprinteddocumentsfoundontheproductarevaluesobtainedinlaboratoryenvironment
accordingtorelevantstandards.Thesevaluesmayvaryaccordingtotheusageandenvironmentconditionsofproduct.







5


APPLIANCEDETAILS

ELECTRICALDETAILS:

OVENS:OBO690GG
RatedVoltage: 220‐240Vac50Hz
MaxRatedInputs: 1800‐2200W
SupplyConnection: OVENS‐10Aplug
Thisinformationcanbefoundontheratingplate(datalabel)affixedtotheinsideofthedoorjamb.
SIZES:

RelevantSizes: LENGTH(mm) WIDTH(mm) HEIGHT(mm)
ExternalOvensize 595 575 595


ELECTRICALCONNECTIONS

LOCALAUTHORITYREQUIREMENTS
Installation is only permitted by a licensed electrician, and carried out according to instructions
provided by the manufacturer. Incorrect installation might cause harm and damage which the
manufactureracceptsnoresponsibility.
ELECTRICALINSTALLATIONFORTHELICENSEDELECTRICIAN
Thisovenmustbeconnectedtoa220‐240V50Hzpowersupply.Itisearthedviathecordand10Aplug.
Beforecarryingouttheconnectiontothepowersupply,thevoltageratingoftheappliance(stampedonthe
applianceidentificationplate)mustbecheckedforcorrespondencetotheavailablemainssupplyvoltage,andthe
mainselectricwiringshouldbesuitablefortheoven’spowerrating(alsoindicatedontheapplianceidentification
plate);
Theswitchedoutletmustbeconnectedtoasuitableearthwiring,inconformitytocurrentsafetyregulations.
Thisappliancemustbepluggedintoa10Aswitchedoutlet.Itshouldnotbelocatedabovetheapplianceandno
more than 1.25m away from it. The power supply cord must not touch against any hot surfaces and must be
placedsothatitstemperaturedoesnotexceed75°Catanypointalongitslength.
Afterhavinginstalledtheappliance,theswitchedoutletmustalwaysbeinanaccessibleposition.
NOTE:Forconnectionstothemainspowersupply,neveruseadapters,reductionsormultiplepowerpointsas
thesemayoverheatandcatchfire.
Themainsterminalblockislocatedonthebackoftheovenandtheterminalsareaccessiblebyopeningthe
terminalblockcover.Note:Theterminalcovershouldnotbeopenedwhenthemainspowerisstillconnectedto
theapplianceandneverbyanunauthorizedperson.

Theelectricalsafetyofthisappliancecanonlybeguaranteediftheoven
iscorrectlyandefficientlyearthed.Themanufacturerdeclinesall
responsibilityfordamageresultingfromaninstallationwhichhasnot
beenearthedcorrectly.
Theuseofadapters,multiplesocketsand/orextensions,isnotallowed.


6


OVENLAMPREPLACEMENT

 Theappliancemustfirstbedisconnectedfromthepoweroutletorturnedoffatyourisolationswitch.
 Unscrewtheglasscoverattachedtothelampholder;anti‐clockwise.
 Unscrewthelampandreplaceitwithanotherhigh‐temperaturelampwiththefollowingcharacteristics:

Type:E14

Voltage:AC220V‐240V
Wattage:25WTemperaturerating:300°
 Remounttheglasscoverandreconnecttheappliancetothepowersupply

NOTE:Shouldyouexperienceanydifficultypleasecontactyournearestafter‐salesservicecentre.





7
 





INSTALLATION


Theadjacentfurnituremustbeableto withstand a minimumtemperatureriseof100°Cabove the
ambient temperature of the room it is located in, during periods of use. The power supply to the
appliancemustbecutoffbeforeanyadjustmentsormaintenanceworkisdoneonit.

PREPARATIONFORINSTALLATIONANDUSE
Manufacturedwithbestqualitypartsandmaterials,thismodern,functionalandpracticalovenwillmeetyour
needsinallrespects.Makesuretoreadthemanualtoobtainsuccessfulresultssoasnottoexperienceany
problemsinthefuture.Theinformationgivenbelowcontainsrulesthatarenecessaryforcorrectpositioningand
serviceoperations.Theyshouldbereadwithoutfail,especiallybythetechnicianwhowillpositiontheappliance.

CHOOSINGAPLACEFORTHEAPPLIANCES
There are several points to pay attention to when choosing a place for your oven. Make sure to take into
accountourrecommendationsbelowinordertopreventanyproblemsanddangeroussituations,whichmight
occurlater!
Whenchoosingaplacefortheoven,attentionshouldbepaidthattherearenoflammableorcombustible
materialsintheclosevicinity,suchascurtains,oil,clothetc.whichquicklycatchfire.
Furnituresurroundingtheovenorcooktopmustbemadeofmaterialsresistanttotemperaturesabove100C°.
Requiredchangestowallcabinetsandexhaustfansaboveabuilt‐incooktopaswellasminimumheightsfromthe
ovenboardareshowninFigure1.Accordingly,theexhaustfanshouldbeataminimumheightof65cmfromthe
cooktop.Ifthereisnoexhaustfantheheightshouldnotbelessthan70cm.




8

INSTALLATIONOFBUILTINOVEN
Inserttheovenintocabinetpartlybypushingitforward.Opentheovendoorandinsert2screwsintotheholeson
theovenframe.Whiletheproductframetouchesthewoodensurfaceofthecabinet,tightenthescrews.If
installedunderacooktop,theremustbeatleast50mmbetweenthetwoappliances,andthedistancebetweenthe
worktopandthetopofthecontrolpanelmustbeaminimumof25mm.
Thedimensionsandmaterialofthecabinetinwhichtheovenwillbeinstalledmustbecorrectandresistantto
increasesintemperature.Inacorrectinstallation,contactwithelectricalorinsulatedpartsmustbeprevented.
Insulatingpartsneedtobefittedinawaytoensurethattheycannotberemovedbyusinganykindoftool.
Installingtheapplianceintheclosevicinityofarefrigeratororadeep‐freezerisnotrecommendedasthe
performanceoftheabove‐mentionedapplianceswillbenegativelyaffectedduetoemanatingheat.After
removingyourovenfromitspackaging,besurethattheovenisnotdamaged.Ifyoususpectanydamagetothe
appliance,donotuseit;immediatelycontactanauthorisedServiceCentre.




9
 

OPERATINGINSTRUCTIONS

FRONTVIEW:


INTERNALVIEWS:














01.ControlPanel. 05.OvenLamp.
02.OvenDoor. 06.WireGrill.
03.Handle. 07.ShallowTray.
04.GrillElement 08.DeepTray&WireGrillRack.

Whenyoufirstrunyourovenacertainsmellwillbeemanatedarisingfromtheinsulationmaterialsandtheheater
elements.Forthisreason,beforeusingyouroven,runitemptyatmaximumtemperaturefor45minutes.Atthe
sametimeyouneedtoproperlyventilatetheenvironmentinwhichtheovenisinstalled.
Inordertocookinyouroven,theovenfunctionandtemperaturesettingcontrolsneedtobeadjustedandtheoven
timer,ifavailable,needstobeprogrammed.Otherwise,theovenwillnotoperate.
Unplugyourappliancewhenitisnotinuse.
Protectyourappliancefromatmosphericeffects.Donotleaveitundertheeffectsofthesun,rain,snow,dustetc.


  10 


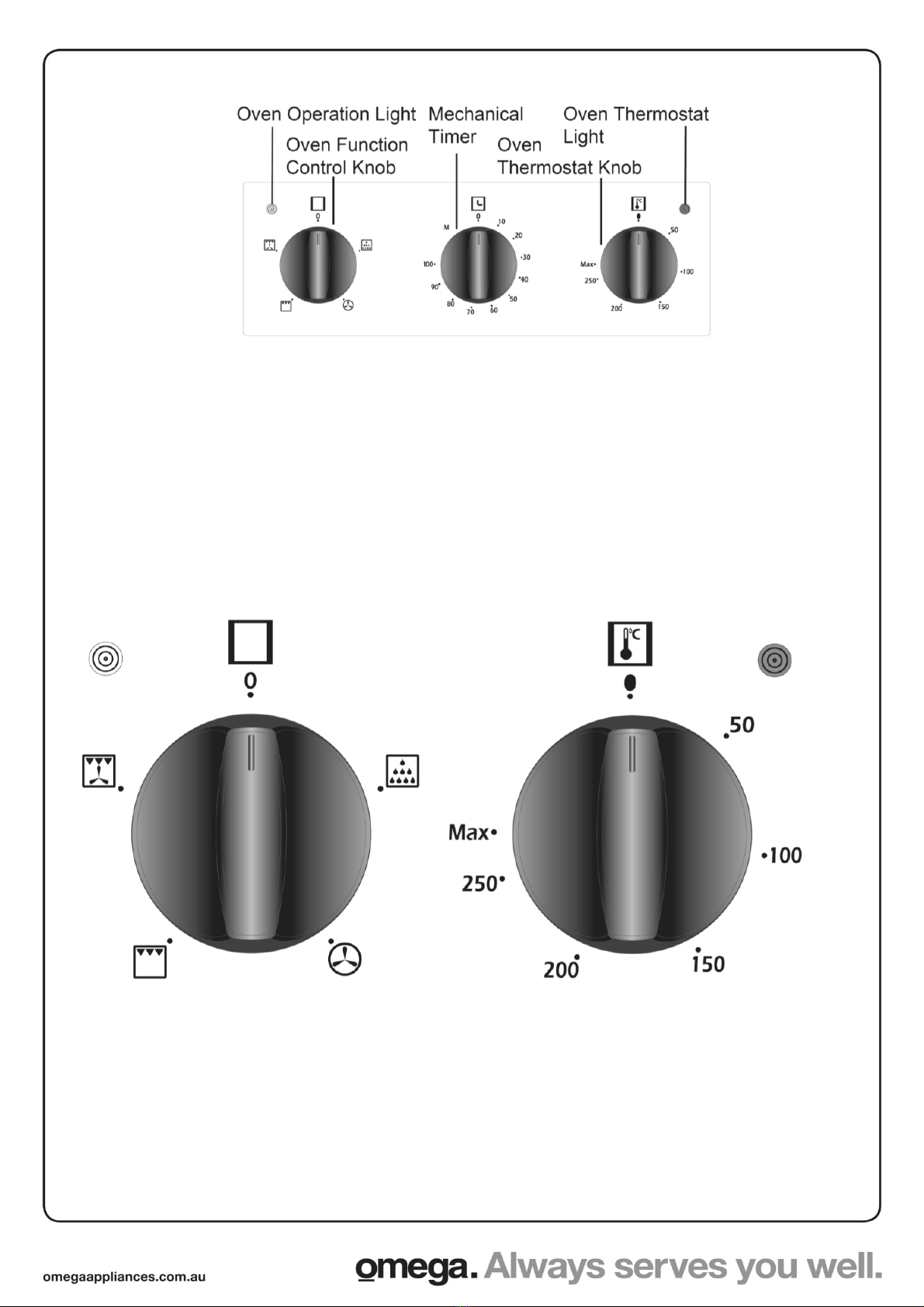

CONTROLS













OVENFUNCTION/WARNINGLIGHTCONTROL
Theovenfunction/warninglightcontrolbuttonisusedtoselectthedifferentfunctions.Eachisexplainedindetail.
Toselectafunction,turnthecontrolknobtothedesiredovenfunctionandthensetthetemperaturewiththe
thermostatcontrol.

OVENTHERMOSTATCONTROL
Theoventhermostatcontrolisusedtoselectthedesiredtemperatureforcooking.Whenthetemperatureinside
yourovenreachesthevalueset,thethermostatwillcutthecircuitandthethermostatlightwillgooff.Whenthe
temperaturefallsbelowthesetvalue,thethermostatwillagainbeturnedonalongsidethethermostatlight.Itis
normalforthistooccurduringthecookingprocess,particularlywhenthedoorhasbeenopened.





11


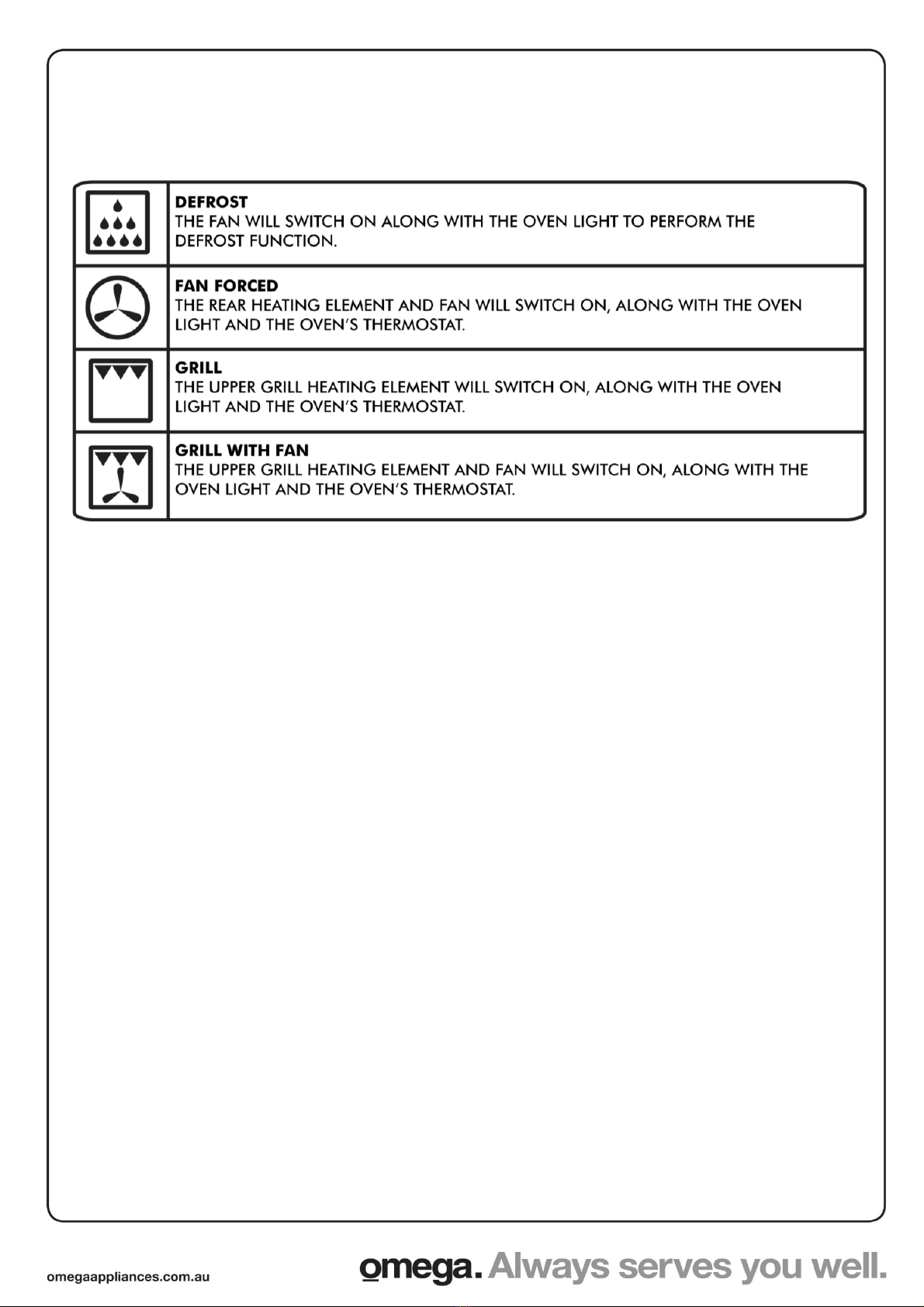

OVENFUNCTIONCONTROLCHART

Theoven’smechanicaltimermustbeonandinuseorthecontrolknobsettomanualfortheoventowork.














Note:Ovenshelvesarenumberedfrom12atthetopdownto1atthebottom.

Duringheatedovenfunctionsacoolingfaninthetopoftheovenwilloperateinordertocooldowntheovendoor
andkitchencabinetaswellasreducingcondensationintheoven.Therewillthenbeaslightreleaseofwarmair
fromthetopoftheclosedovendoor.Thisisnotaleakinheatfromtheovencavity.


12

OVENFUNCTIONCONTROLS


DefrostFunction:




FanForcedFunction:
ThisFanForcedfunctionusestheturboheater(locatedinthebackoftheoven)toevenlydispersetheheatinthe
oven.Thisfunctionissuitableforcookingmultipledishesonvariousovenshelves.Adjustthefunctioncontrolknob
soitindicatestheFanForcedfunctionsymbol.Adjustthethermostatcontrolknobofyouroventoatemperature
recommendedonthecookingtableforthecookingoperationyouwishtoperform.
Preheatingoftheovenforabout10minutesisrecommended.Placethefoodinasuitablecontainer,thenplace
intoovenandcookfortherequiredtime.
Ifyouaregoingtocookusingtwotraysatthesametime,whileadjustingthecookingtemperature,selectthe
temperaturethatisthelowestamongthelevelssuitableforyourfoodofchoice,asshownonthetable.
Cookingwithtwotraysrequiresadditionalcookingtimecomparedtocookingwithonetray.Usually,thefoodon
eachtraydoesnotfinishatthesametimesoyoumayneedtotakethetrayofcookedfoodoutoftheoven,and
continuethecookingoperationfortheremainingtray.
Aftercooking,turnofftheovenfunctionandtemperaturecontrolknobsandcancelthetimerprogramifinuse.
Takethecookedfoodoutoftheovenandplaceitinasafeheatproofsurface.Astheovenwillbehot,worknear
withcautionandkeepchildrenawayfromthecoolingoven.
Youcanstartthedefrostoperationbyputtingthefrozenfood
intoovenandbringingthefunctioncontrolknobtothe
indicatedmark.Thisfunctionwillnotcook/bakethefood;itonly
helpstodefrostitwithinashorttime.
Putthefoodtobedefrostedonthewirerackthatyouwillplace
onthemiddleracksupportfromthebottom(Figure13).To
collectthewaterthataccumulatesduetothemeltingice,insert
anoventrayontoalowerrack.Thisfunctionisperfectfor
finishingoffthedefrostprocessforfrozenfoodthathasbeenin
therefrigeratorfromtheeveningbeforeandmaynotbe
completelythawedout.


13

GrillFunction:
Thisfunctionisusedforgrilling.AdjustthefunctioncontrolknobsoitindicatestheMid‐Grillfunctionsymboland
adjusttheoventimertotherecommendedtimeforcooking.Settheoven’sthermostatcontrolknobtothe
requiredtemperature.Afterapreheatingperiodof10minutes,putyourfoodintotheoven.Forgrilling,putthe
foodonthegrillrackandsitintothetray.Placethetrayonthehighestshelves(11/12).Placingtherackwithinthe
oventrayprovidedwillensurethatanymarinade,fatoroildroppingfromthefoodwillbecollected.Whengrilling,
theovendoormustbeclosed.Onthisfunction,themiddleheatingelements/coilsofthegrilloperate.

Thissettingisidealfortoastingbread,cheesemeltsandmeltingcheesetoppeddishesorfinishingoffadishto
lightlybrownonthesurface.Alsousedforherbandgarlicbread.
Aftercooking,turnofftheovenfunctionandtemperaturecontrolknobsandcancelthetimerprogramifinuse.
Takethecookedfoodoutoftheovenandplaceitinasafeheatproofsurface.Astheovenwillbehot,worknear
withcautionandkeepchildrenawayfromthecoolingoven.


GrillwithFanFunction:

Thisfunctionwillensurecomplete,fastandallovergrillingbyworking,thefan,thegrillandtheupperheating
elementatthesametime.AdjustthefunctioncontrolknobsoitindicatestheGrillwithFanfunctionsymboland
adjusttheoventimertotherecommendedtimeforcooking.Settheoven’sthermostatcontroltotherequired
temperature.Afterapreheatingperiodof10minutes,putyourfoodintotheoven.Forgrilling,putthefoodonthe
grillrackandsitintothetray.Placethetrayonthehighestshelves(11/12).Placingtherackwithintheoventray
providedwillensurethatanymarinade,fatoroildroppingfromthefoodwillbecollected.Whengrilling,theoven
doormustbeclosed.

Thegrillwithfanfunctionisidealforcookingfoodtoachieveacrispyskin(suchaschickenthighorbreastwiththe
skinon)andlightlybrowningmeatsuchaslambandseafood.
Aftercooking,turnofftheovenfunctionandtemperaturecontrolknobsandcancelthetimerprogramifinuse.
Takethecookedfoodoutoftheovenandplaceitinasafeheatproofsurface.Astheovenwillbehot,worknear
withcautionandkeepchildrenawayfromthecoolingoven.

ENERGYSAVING

Choosecookwareofanappropriatesize.Usingalidwillreducecookingtimes.
Minimizetheamountofliquidorfattoreducecookingtimes.
Ovendoorshouldnotbeopenedoftenduringcookingperiod


14

USINGTHEMECHANICALTIMER

To run the oven in Manual function (not using the timer) adjust the
Timer control to the position indicating M as shown on the picture,
you can continuously operate your oven (upper diagram). When the
timer control knob is in the off (0) position, the oven will not operate.
To set a time, rotate the timer control knob clockwise to a certain time
range between 0 - 100 minutes, as shown on the picture (lower
diagram). The oven will stop when the set time range is completed,
and the timer will give an audible warning once.
This is referred to as Manual use or Manual operation, when you
want total control of the cooking functions and cooking time.
NOTE: The oven will not operate unless the mechanical timer is set to
a cooking time (e.g. 30 minutes) or turned to the “M” position for
manual use.





ACCESSORIES

Itisrecommendedthatyouusethecontainersindicateddependingonthefoodyouwillcookinyouroven.Youcan
alsouseglasscontainers,cakepansandspecialoventrayssuitableforuseinyouroven(availableinkitchenware
shops).Payattentiontotheinformationgivenbythesupplierforuseofthiscookware.Theinformationgiven
belowshouldbeimplementedforenamelledcontainers.

Ifthefoodtobecookeddoesnotcompletelycovertheoventray,ifthefoodistakenoutofthedeep‐freezerorif
thetrayisusedtocollectthedrippingjuicesofthefoodsduringthegrilloperation,deformationmightbe
observedonthetrayovertimeduetohightemperaturesformingduringthecooking/bakingoperation.Thisisa
normal,physicalstatethatresultsduringtheheattransfer.Donotleaveaglasstrayorcontainerinacold
environmentimmediatelyaftercookinginthem.Donotplacethemoncoldandwetsurfaces.Ensurethatthey
slowlycooloffbyplacingthemonadrypieceofclothorwoodenboard,otherwise,theglasstrayorcontainer
mightbreak.Ifyouaregoingtousethelargewireovenrack/grill,insertatrayintooneofthelowerracksto
collectfatoroil.Tomakecleaningeasier,addsomewaterintothistray.Inagrillingoperation,usetheshelfin
position11or12.

Each wire grid and tray comes with a built-in safety feature to help minimise them being accidentally
pulled fully out. This comes in the way of a “step”, positioned part-way in from the rear of the accessory.
To fit them into the oven, push the wire grid or tray part way into the oven until the step “catches”, then
angle the part over the step & fully insert. To remove, repeat the operation in reverse.






15

CLEANING

NOTE:Cleaningandmaintenanceoperationsmustonlybecarriedoutwhentheoveniscool.
Theapplianceshouldbedisconnectedfromthepoweroutletorturnedoffatyourisolationswitch
beforecommencinganycleaningprocess.

Cleaningtheovenexterior:
Beforestartingtocleanyouroven,besurethatallcontrolbuttonsareoffandyourappliancehascooledoff.Unplug
theappliance.
Donotusecleaningmaterialscontainingparticlesthatmightscratchtheenamelledandpaintedpartsofyouroven.
Usecreamcleanersorliquidcleaners,whichdonotcontainparticles.Asthesecleanersmaydamagethesurfaces,
donotusecausticcreams,abrasivecleaningpowders,roughwirewoolorhardtools.Intheeventofanyexcess
liquidsspillingoveryourovensurfaceduringcleaning,cleanupimmediatelysoastopreventpossibledamageto
theenamelormetalsurface.Donotusesteamcleanersforcleaningtheoven.

Cleaningtheinterioroftheoven:
Makesuretounplugtheovenbeforestartingtocleanit.Youwillobtainbestresultsifyoucleantheoveninterior
whiletheovenisslightlywarm(theovenshouldnotbeoperating).Wipeyourovenwithasoftpieceofcloth(e.g.
dishcloth)dampenedwithwarmsoapywateraftereachuse,rinseclothinwarmwaterthenwipeovenagainand
thenfinishbywipingwithadrycloth.Foracompletecleaningprocess,usedryandpowdertypeovencleaners,
followingtheovencleaningproduct’sinstructions.


TROUBLESHOOTING

Iftheovendoesnotoperate:
 Theovenmaybeunpluggedfromthepowersourceorswitchedoffatthepowersource.
 Thehouseholdfusehasblownorhouseholdpowersupplyisoff.
 TheTimer(ifavailable)maynotsetcorrectly.

Iftheovendoesnotheat:
 Theheatmaynotbesetcorrectlywiththeoven’stemperaturesetting.

Iftheinteriorlightinglampdoesnotlight:
 Thelampsaredefective.Iftheyaredefective,youcanchangethemfollowingtheinstructionswithinthis
manual.

Cooking(iflower‐upperpartdoesnotcookequally):
 Controltheshelflocations,cookingperiodandheatvaluesaccordingtothemanual.

Unitsmokingwhenfirstused:
 Thisisaresultofprotectiveoilsbeingremovedandistobeexpectedwithafirstuse.

Ovenfanisstillrunningeventhoughknobsinoffposition:
 Thecoolingfanhasactivatedtocooldownthecontrol,thisisnormalandmaystayonforsometime.

ClockFlashingonDisplay
 Powerfailureorinterruption

Ifyouhaveanyfurtherproblemswithyourproduct,pleasecallyourAuthorisedServiceCentre.


16

TRANSPORTATION

Keeptheoriginalcartonoftheproductandusethispackagingiftheitemneedstobetransported.Followthe
transportsignsonthecarton.
Placeapaperbetweentheuppercoverandcookingpanel,covertheuppercover,thantapetothesidesurfaces
ofoven.
Tapecardboardorpaperontotheinsidefaceoftheglassasitwillbesusceptibletodamagefromthetrays.Use
cardboardcoversforthewiregrillandtraysinyouroven.Alsotapetheoven’scoverstothesidewalls.

Iftheoriginalcartonisunavailable,takemeasurestoprotecttheexternalsurfaces(glassandpaintedsurfaces)of
ovenagainstpossibleblows,aswellastheabove.


17


COOKINGGUIDES


 Foroptimumcookingkeepedgesofbakingdishesandpansatleast4cmfromthesidesoftheoven.This
allowsfreeheatcirculationandensuresevencooking.
 Wherepossibleremovelargecutsofmeat1kgoroverfromthefridge1hourpriortocooking.Allow,to
standcoveredandawayfromdirectsun/heat.Thisprocesswilltakethe“chill”ofthefridgeawayfromthe
foodandassistinmoreevencooking.

OvenShelfLocation

YourOmegaovenhasfivepositionsorracksfortheovenshelvestobepositioneddependingonyourchoiceof
cookingfunctionandsizeofroastingdishesorcontainers.Thesearenumberedfrom1(thelowestshelfposition)to
12(thehighestshelfposition).Seediagraminovenmanual.
Toobtainmaximumspaceaboveandbelowtheshelves,itisrecommendedthatyoupositiontraysanddishesin
thefollowingway:

 Whenusingonly1shelf,useposition/rack3or4(That’sovenshelfposition).
 Whenusing2shelves,useposition/rack4and8.

RoastingMeat,CookingChickenandFish

 Ideally,meatshouldbeatleast1Kgormorewhenroastinginordertopreventitfromdryingout.
 Whencookingwhitemeat,poultryandfish,usetemperaturesettings(180°C‐220°C).
 Forredmeatthatshouldbewelldoneontheoutsidewhiletenderandjuicyontheinside,itisagoodidea
tostartwith
ahightemperaturesetting(200°C‐220°C)forashorttime,thenturntheovendownafterwardsandfinish
off.
 When larger cuts of meat, poultry or fish have finished cooking, ideally remove the food from oven and
coverwithfoilandstandfor10‐20minutes(dependingonsize).Thiswillhelpretainthejuiceswhenthe
meatiscarved.
 Whencookinglargewholefish1kgorlargeitisrecommendedthatthefleshbescoredorslashed2‐3
timesoneithersidetoassistinmoreevencooking.Todothiscutintothethickfishfleshbehindthehead
throughtothebone.Thesescoredareasalsoallowyoutocheckeasilytoseeifthefishiscooked.
 Itisagoodideatoeithermeasuretheinsideofyourovenforwidthandeitherwritethisdowninbookyou
mayhavewithyouwhenshoppingoryoucancutapieceofstringtheovenwidththismakesiteasierto
knowifyourfishwillfitintotheoven.Lookscanbedeceivingandthefishlookssomuchbetterwholewith
itsheadandtail.Ifitdoesn’tfityouwillprobablyneedtoremovetheheadpriortobaking.


18


Grilling

Cookingtimesmayvaryaccordingtothenatureofthefoods,theirhomogeneityandtheirvolume.Whencooking
acertainfoodforthefirsttime,itisadvisabletochoosethelowesttemperatureandthenincreasetemperature
asrequired.

CakesandBaking

Organizetheovenshelveswhiletheoveniscoldandbeforepreparingarecipe.Whenbakingfollowthedirectionsin
therecipehoweverifindoubtasageneralrulethefood(e.g.cake)ispositionedonashelfthatwillhavethetopof
thecakesurfaceasneartothecentreoftheovenaspossible.
 Preheatovenbeforepreparingthecakeorbakeditemsassomebakedfooddoesnotliketositwaiting
fortheoventoreachtherequiredtemperature.Forbestresultsthebakedfoodshouldgostraightinto
thepreheatovenatthecorrecttemperature.
 Usekitchenbakingpapertolinecaketinsandbakingtraysforcookiesandroastvegetablessuchas
pumpkin.
 Whenmakingcakeshaveeggsatroomtemperature.
 Whenmakingspongecakesdon’ttapthebeatersonthesideofthebowlwhenthebeatingiscomplete
asthiswillknockoutpreciousairyouhavejustspenttimeadding.Removethebeatersfromthehand
mixerandtapthemovertheedgeofyouropenpalmtoknockanyremainingcakemixintothebowl
below.


PavlovaandMeringues

 Eggsshouldbeatroomtemperature.
 Ensurethatthebowlandbeaterstobeusedaresupercleanandhavenogrease,oilorfatonthemasthis
willretardthebeatingandpeakformingprocess.
 Itisagoodideatocracktheeggstobeusedoneatatimeoverasmallbowltoseparatetheeggyolks
andwhitesthatwayifayolkdoesbreakitwillnotendupinyourmainbowlofeggwhites.
 Whenmakingpavlovaormeringuesdon’ttapthebeatersonthesideofthebowlwhenthebeatingis
completeasthiswillknockoutpreciousairyouhavejustspenttimeadding.Removethebeatersfromthe
handmixerandtapthemovertheedgeofyouropenpalmtoknockanyremainingmixintothebowlbelow.
 Linebakingtrayswithkitchenbakingpaper.
 Whentheyarecooked,removethetrayfromtheovenanduseaveryflatspatulatoloosenthefoodfrom
thebakingpaper.ReturnthePavlovaormeringuestotheovenandallowtostandovernightoruntilthe
oveniscoldforbestresults.
Thinkaboutusingtheremainingeggyolkstomakehomemademayonnaise.



19


















