1-1
Electronics Tray
Introduction
This section will give detailed instructions on the proper way to replace specific parts within the
CT PC Sled, also known as the electronics tray. To complete any of these procedures, first ensure
that the sled has been unplugged from any power outlet.
Tools List
The following tools are required to install the Electronics Tray:
T8 Torx Driver
T10 Torx Driver
T15 Torx Driver
9/64” Allen wrench
Removal Procedure
LCD Screen
1. Perform a graceful shutdown of the electronics tray.
2. Remove the four outer screws that secure the LCD bezel to the cabinet.
Use a Torx T10 screwdriver.
Figure 1-1. Remove the Four Outer Screws
3. Remove the front bezel.

1-2 Electronics Tray
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
LCD Assembly
1. Tilt the LCD assembly forward and disconnect the cables from the back of the LCD assembly.
a. Disconnect the inverter to power cable.
b. Disconnect the flat panel cable.
2. Set the lid back down.
3. Remove the four inner screws at the back of the console lid.
Figure 1-2. Remove the Four Inner Screws
4. Remove the LCD assembly from the LCD housing.
Speaker
1. Perform a graceful shutdown of the electronics tray.
2. Open the console top.
3. Remove the speaker from the motherboard.

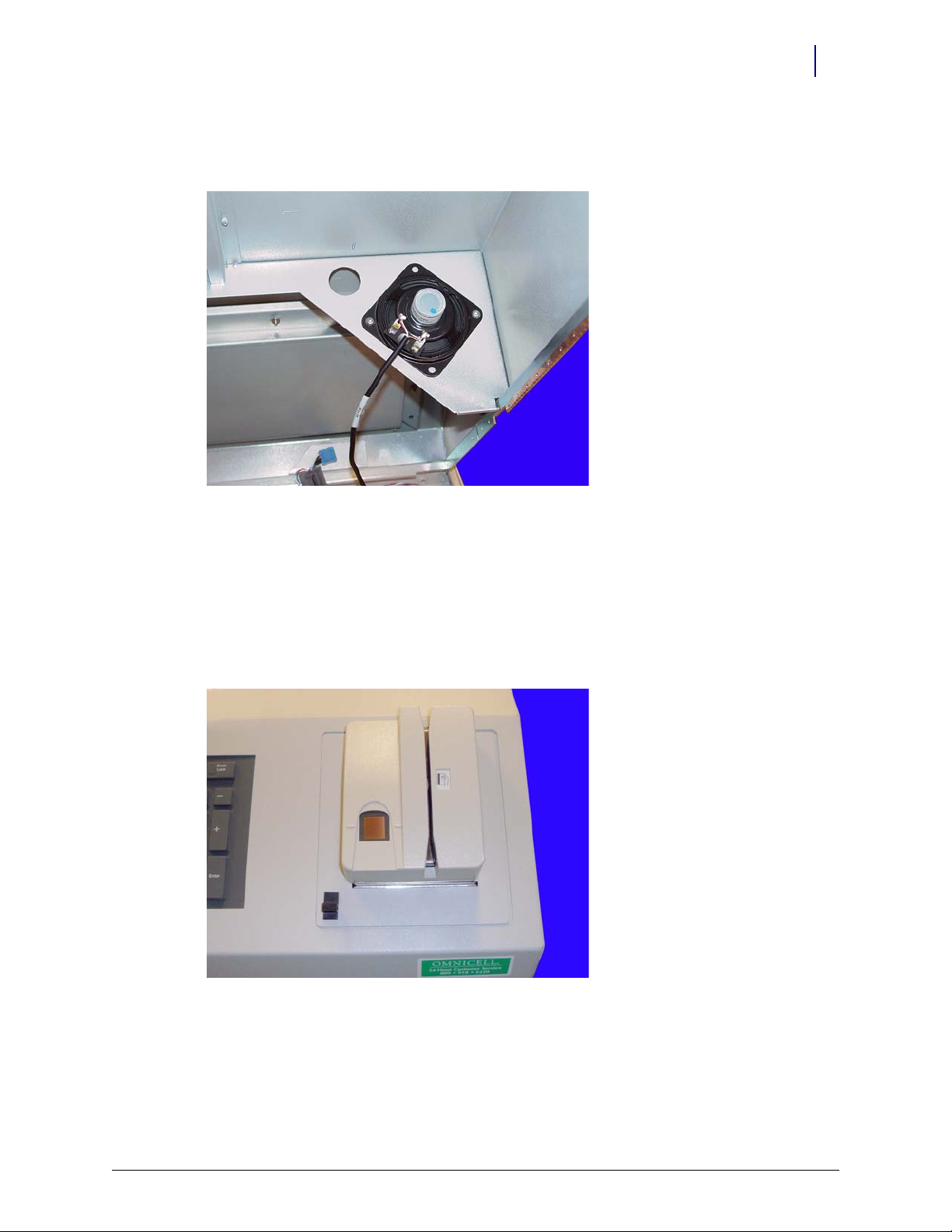

Figure 1-3. Disconnect the speaker From the motherboard
Note: Hold onto the front of the LCD screen while removing the screws so that the assembly does not fall.

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-3
Removal Procedure
4. Remove the two screws that hold the speaker in place.
Use a Torx T10 screwdriver.
Figure 1-4. Remove the two screws that secure the speaker
5. Disconnect the speaker from the console top.
Printer
1. Perform a graceful shutdown of the electronics tray.
2. Open the printer cover by pushing the black release mechanism toward the rear of the
machine and lifting the cover.
Figure 1-5. Open the Printer Cover

1-4 Electronics Tray
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
3. Remove the paper from the printer. Push the platen lever to the left to set it to the disengage
position.
Figure 1-6. Turn the Platen Lever to the Left and Remove the Paper
4. Remove the four screws (two on each side) that secure the printer assembly to the cover.
Figure 1-7. Remove the Screws Securing the Printer Assembly
5. Remove the printer assembly.

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-5
Removal Procedure
6. Remove the four screws that secure the lower assembly to the frame.
Figure 1-8. Remove the Screws that Secure the Lower Assembly
7. Disconnect the printer ribbon cable and the printer data cables from the printer PC board.

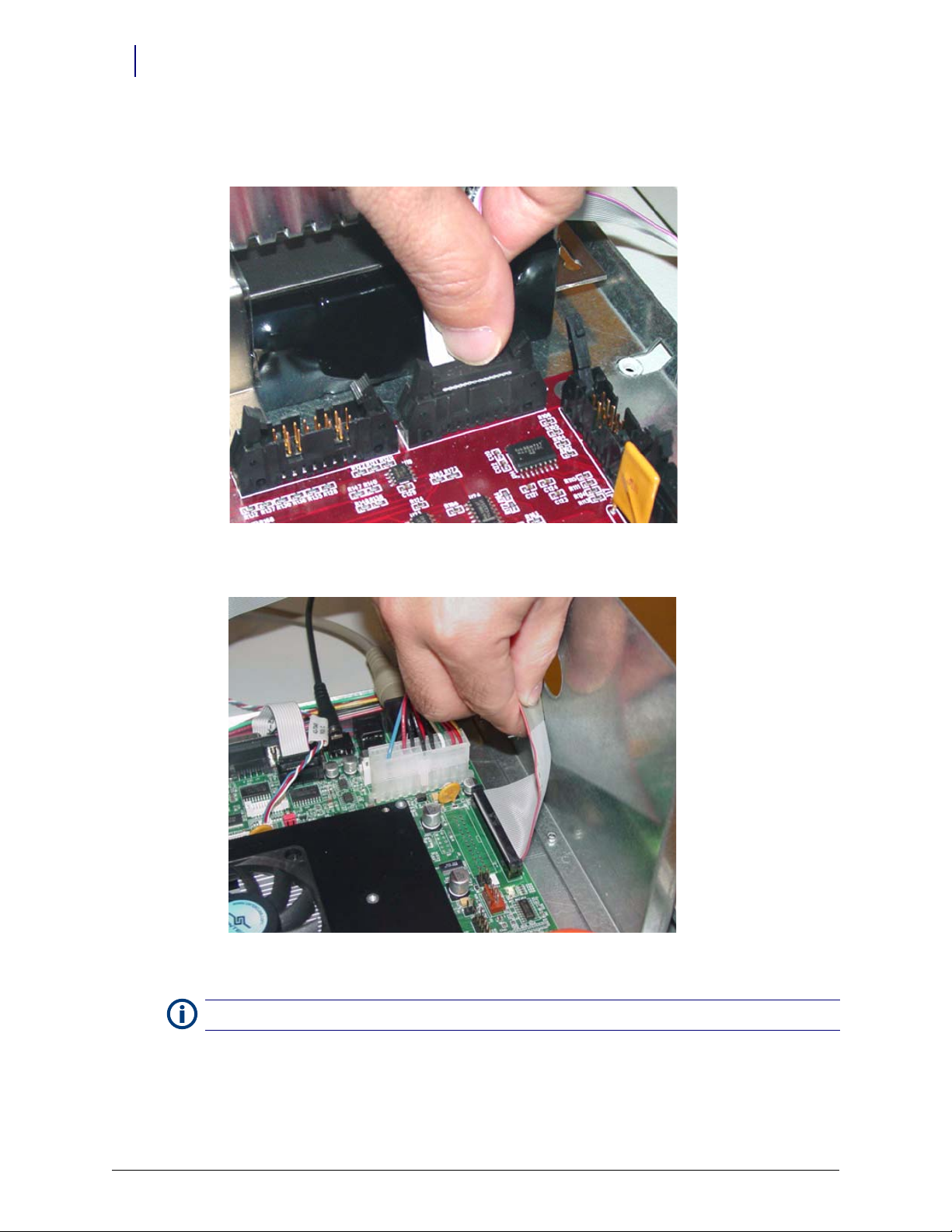

Figure 1-9. Remove the Printer Ribbon Cable and the Printer Data Cable

1-6 Electronics Tray
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
8. Remove the printer.

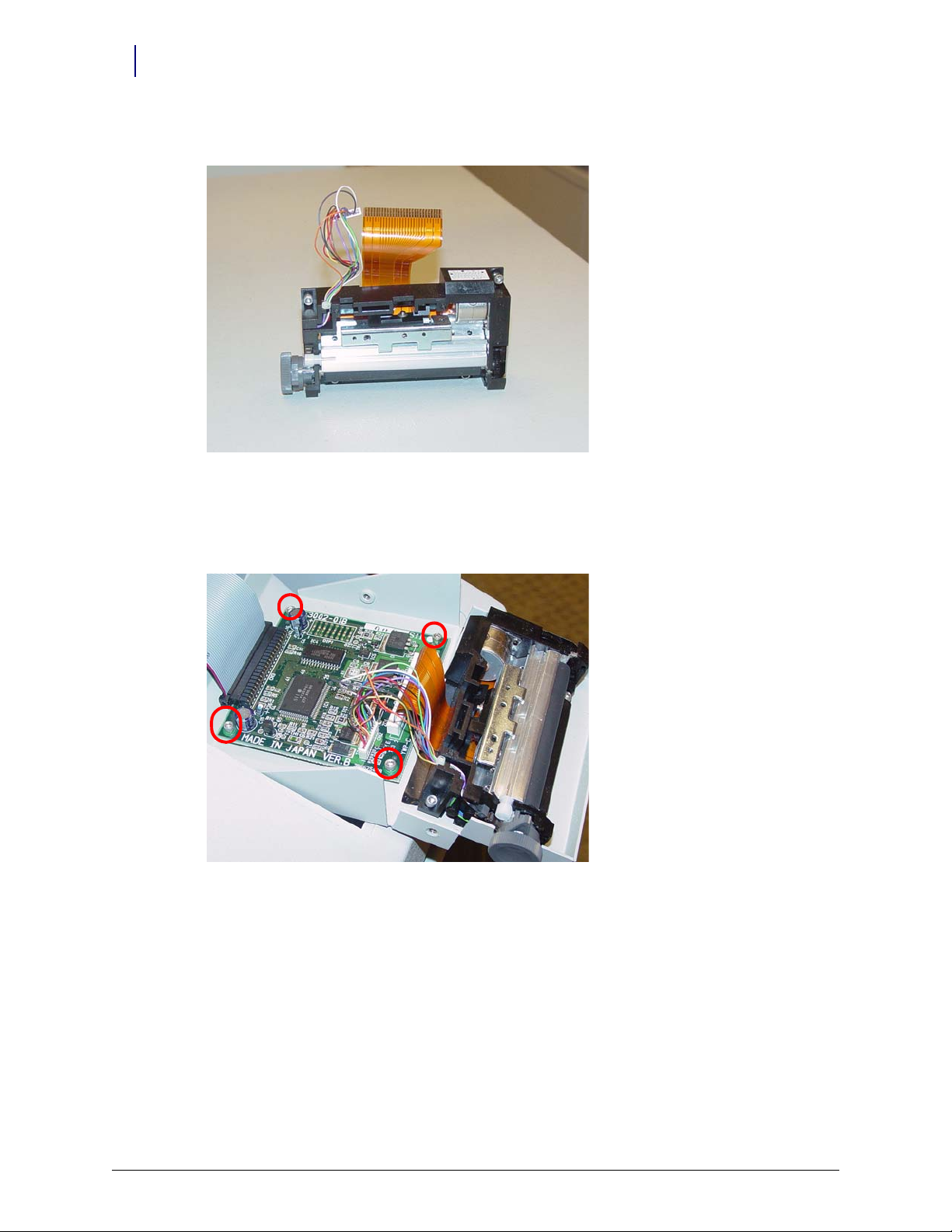

Figure 1-10. Remove the Printer
Printer PC Card
1. Remove the four screws that secure the PC card to the frame.
Figure 1-11. Remove the Screws that Secure the Printer PC Card
2. Lift the card off the frame slightly, then remove the printer ribbon cable.

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-7
Removal Procedure
Keyboard
1. Remove the 14 nuts that secure the keyboard cover to the tray.

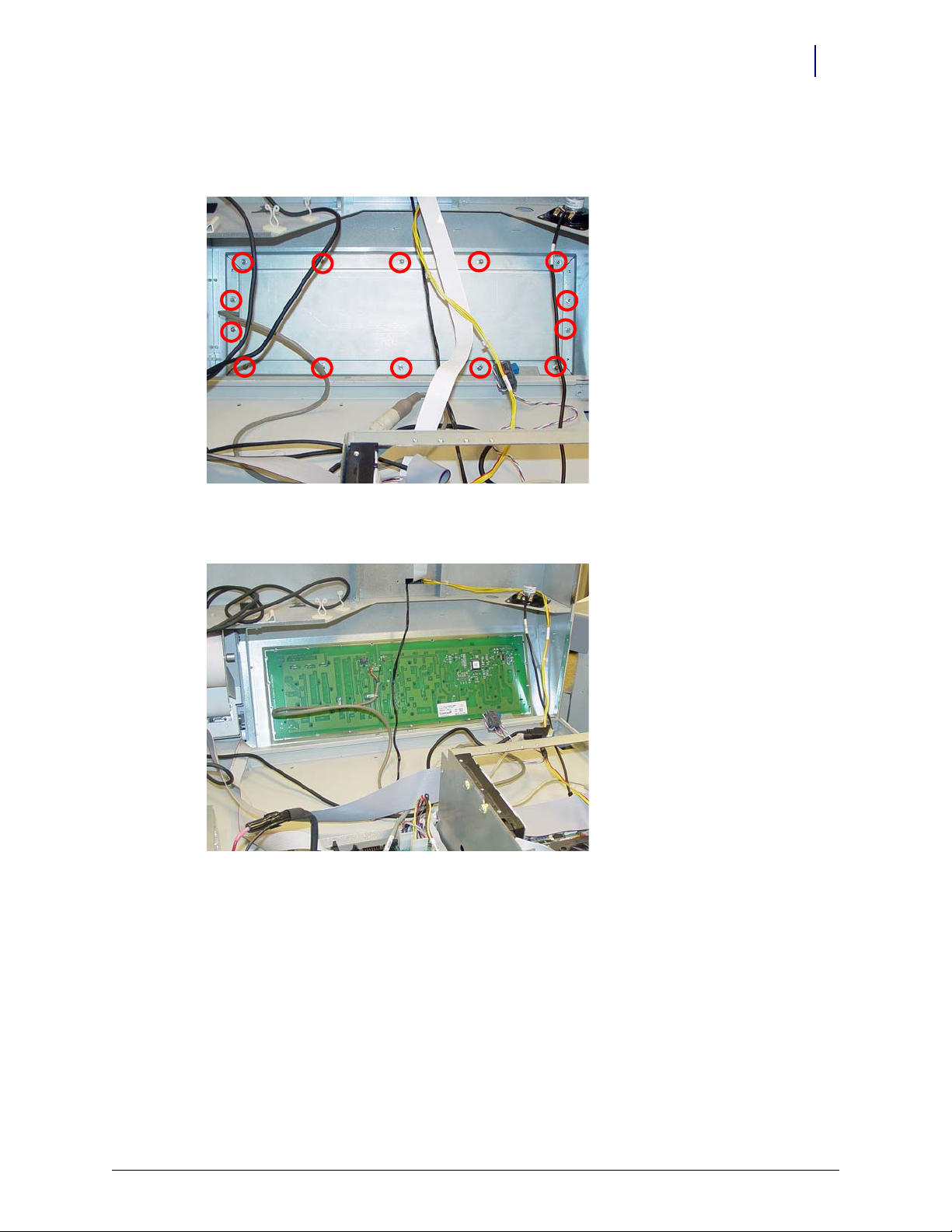

Figure 1-12. Remove the nuts that secure the keyboard cover to the tray
2. Remove the keyboard cover.
Figure 1-13. Remove the keyboard cover

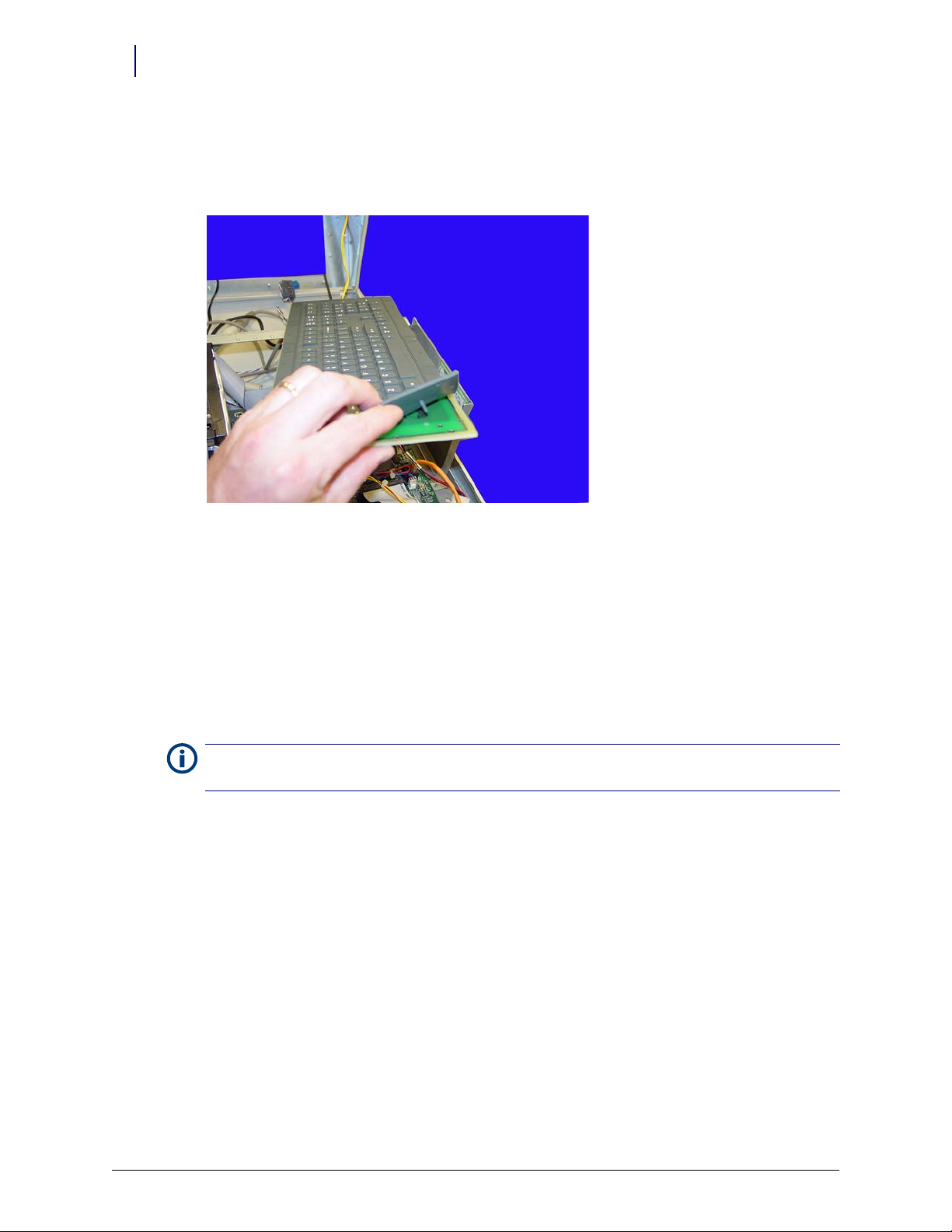

3. Remove the keyboard from the tray.

1-8 Electronics Tray
Replacement Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
Elastomer
1. Hold the keypad with the elastomer facing up and gently pull the elastomer up and off the
keyboard.
Figure 1-14. Pull the elastomer up and off the keyboard
Replacement Procedure
Elastomer
1. Gently place the new elastomer onto the keyboard and push the rubber tabs through the holes
on the keyboard.
2. Keeping the keypad upright, reach underneath the keyboard and gently pull the tabs until the
elastomer rests snugly on the keyboard.
3. Remove any bubble or ripples in the elastomer and then place the new keypad and elastomer
back into place on the tray.
Keyboard
1. Replace the keyboard cover.
2. Replace the screws that secure the keyboard cover to the tray.
Note: To prevent ripples in the elastomer, pull the tabs through going left to right, right to left, bottom to top
or top to bottom. Do not pull the tabs through in a random order or in a circular pattern.

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-9
Electronics Tray
Electronics Tray
1. Disconnect the LAN cable and the AUX cables from the rear of the TT cabinet.
Figure 1-15. Location and labels for LAN and AUX cable connections on CT PC Tray
2. Access the electronics tray.

1-10 Electronics Tray
Electronics Tray
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
3. Disconnect the following cables (from tray only):
a. LCD data cable
b. Contrast cable
c. Inverter (backlight) cable
d. Touch screen data cable
e. Keyboard cable
f. Speaker cable
g. Card reader cable (if applicable–not shown)
h. Fan power cable (if applicable)
i. Printer cable (free cable from any clips)
j. Cabinet power/comm cable

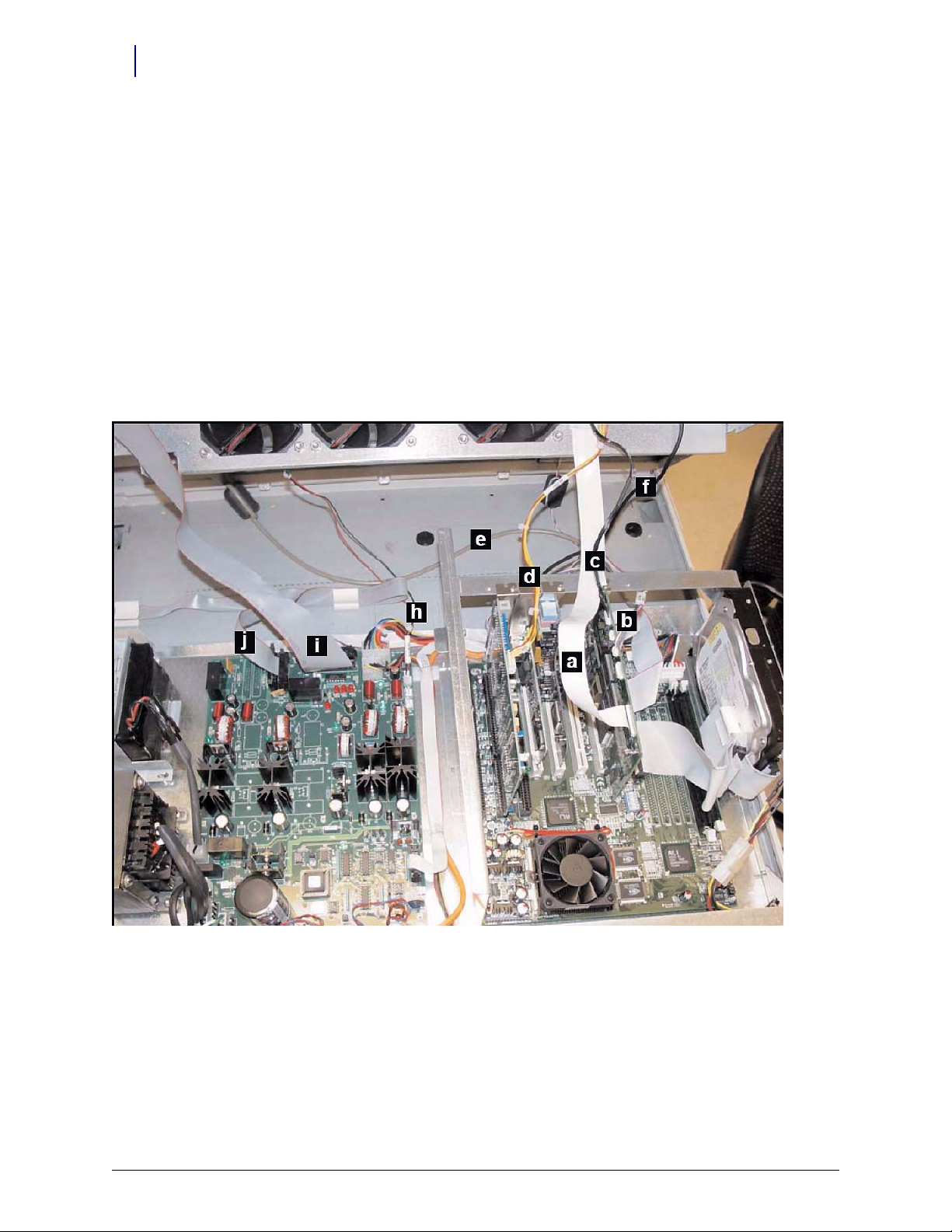

Figure 1-16. Location of cables on the CT PC Tray with PowerCom2 Board

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-11
Electronics Tray
PowerCom2 Tray
1. Lift the front edge of the tray over the two standoffs and pull the tray forward.
Figure 1-17. Lift and remove the CT PC Tray from the Omni TT
2. Lift the rear of the tray and twist slightly until the front tabs clear the frame.
3. Remove the (old) electronics tray.
PowerCom3 CT PC Tray
1. Place the new electronics tray into the cabinet
2. Turn the two 1/4-turn fasteners securing the electronics tray clockwise to lock the tray into
place.
Figure 1-18. Place the CT PC Tray into the Omnicell unit

1-12 Electronics Tray
Electronics Tray
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
Cables
1. Connect the wireway cable to the J10 of the PowerCom3 Board
.
Figure 1-19. Connect the Wireway Cable to J10 of the PowerCom3 Board
2. Connect the printer cable to J27 on the motherboard.
Figure 1-20. Connect the Printer Cable to J27 of the Motherboard
3. Connect the fan power cable to J17 on the UPS board (if applicable).
Note: Ensure that the red wire is connected closest to Pin 1.

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-13
Electronics Tray

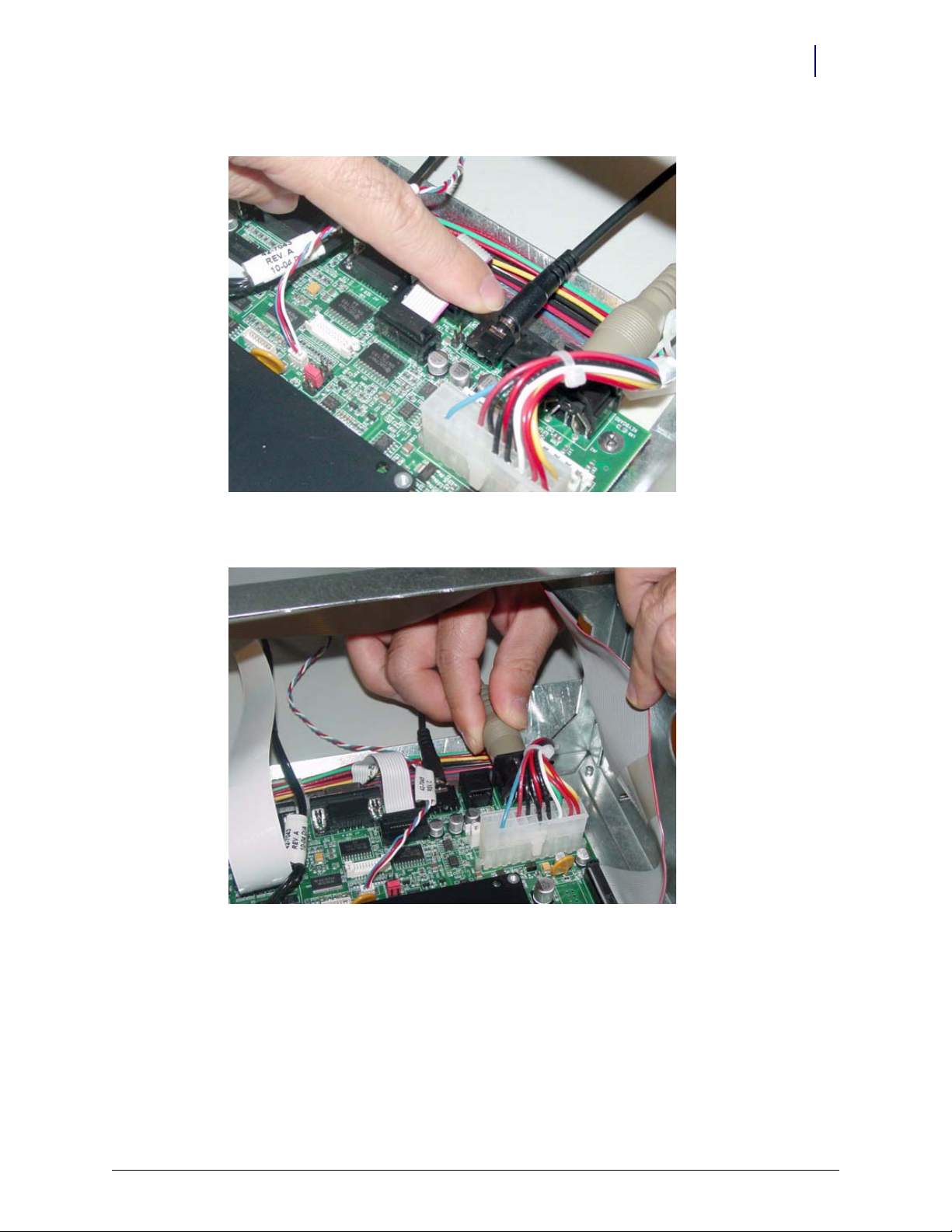

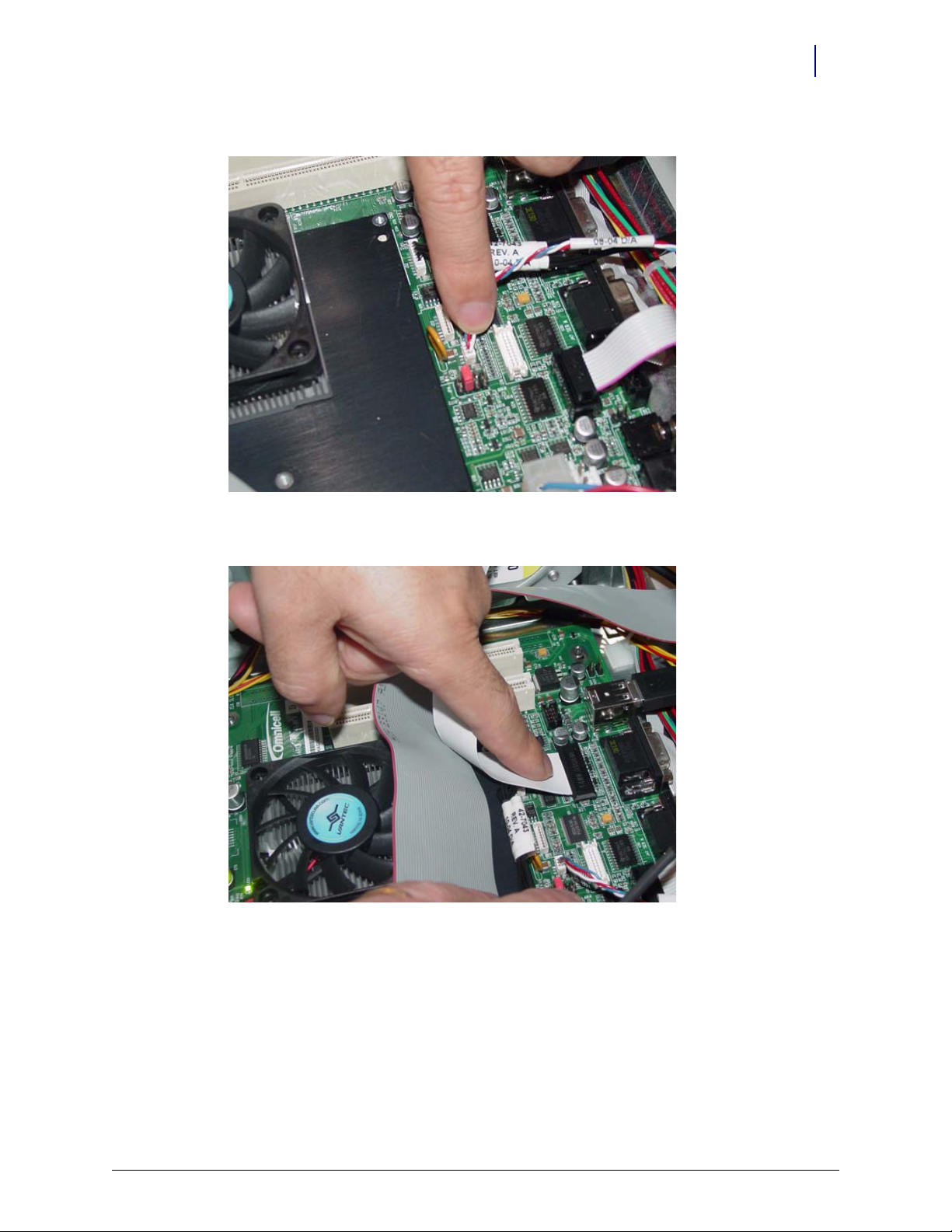

4. Connect the speaker cable to port J45 on the motherboard.

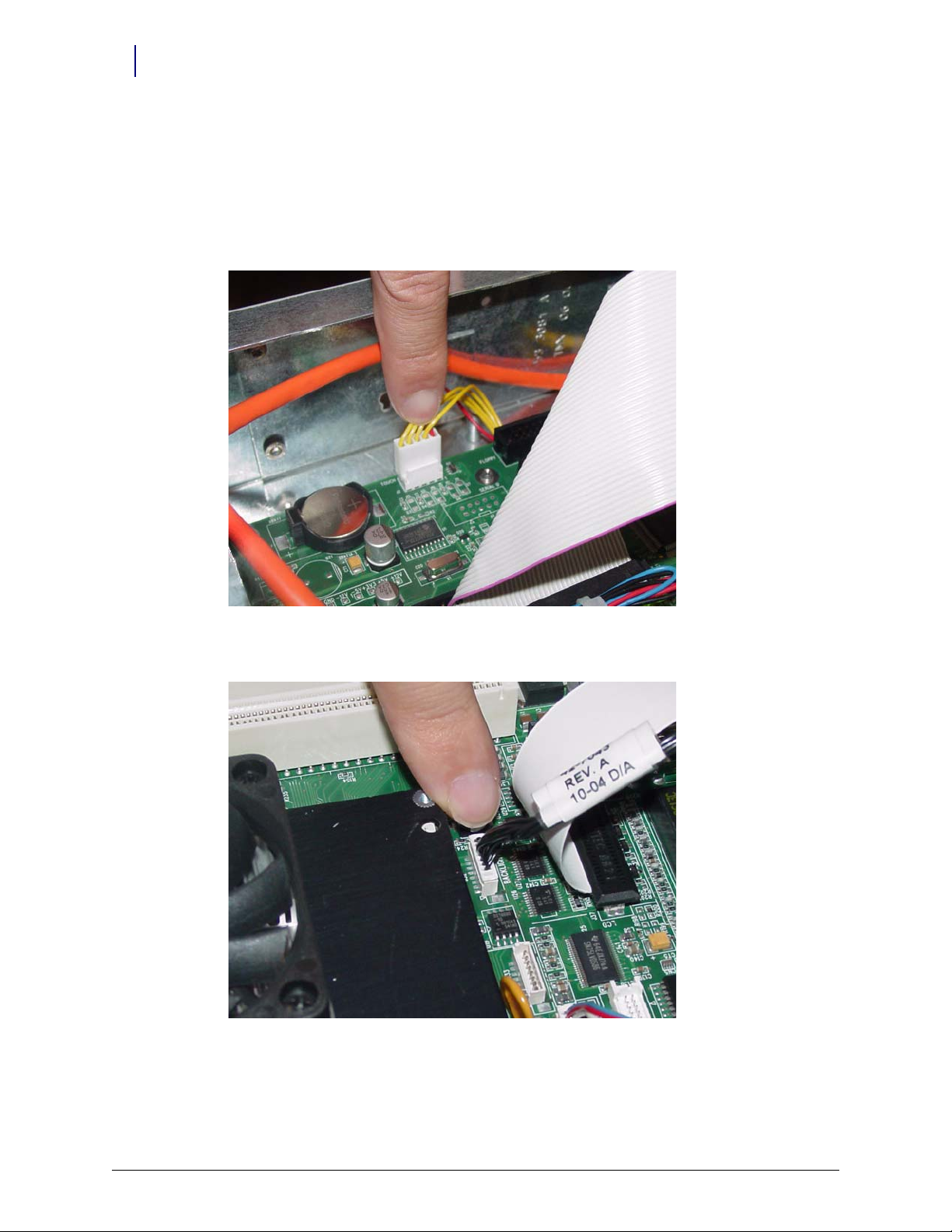

Figure 1-21. Connect the Speaker Cable to J45 of the Motherboard
5. Connect the keyboard cable to port J42 on the motherboard.
Figure 1-22. Connect the Keyboard Cable to J42 of the Motherboard

1-14 Electronics Tray
Electronics Tray
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
6. Connect the touch screen data cable to J2 on the motherboard:
a. Connect the extension cable provided in the kit to the touch screen data cable (red wire to
red wire).
b. Wrap the joined connectors with electrical tape to ensure that the cables do not become
disconnected.
c. Connect the touch screen data cable extension to J2 on the motherboard.
Figure 1-23. Connect the Touch Screen Data Cable to J2 of the Motherboard
7. Connect the inverter cable (backlight) to J32 on the motherboard.
Figure 1-24. Connect the Backlight Cable to J32 of the Motherboard

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-15
Electronics Tray
8. Connect the contrast cable to J31 on the motherboard.
Figure 1-25. Connect the Contrast Cable to J31 of the Motherboard
9. Connect the LCD data cable to J37 on the motherboard
Figure 1-26. Connect the LCD Data Cable to J37 of the Motherboard
10. If a card reader is present and needs to be reconnected:
a. Connect the card reader serial cable to J47 on the motherboard.
b. Connect the card reader power cable to the back of the card reader serial connector.
c. Insert card reader power cable pins into the disk drive power connector.
d. Align the red-stripe pin to the red cable and the gray-stripe pin to the gray cable in next
spot.

1-16 Electronics Tray
Standardization Changes
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
Standardization Changes
To standardize the peripherals that Omnicell products use, the Seiko printer and PS/2 keyboards
are being replaced by APS printers and USB keyboards with a numeric pad. The console is
swapped out in this procedure.
1. Lift and prop-up the lid if it is not already open.
2. Disconnect all console cables.
3. Remove the console.
4. Replace the cable cover bracket with the new, wider one using three screws.

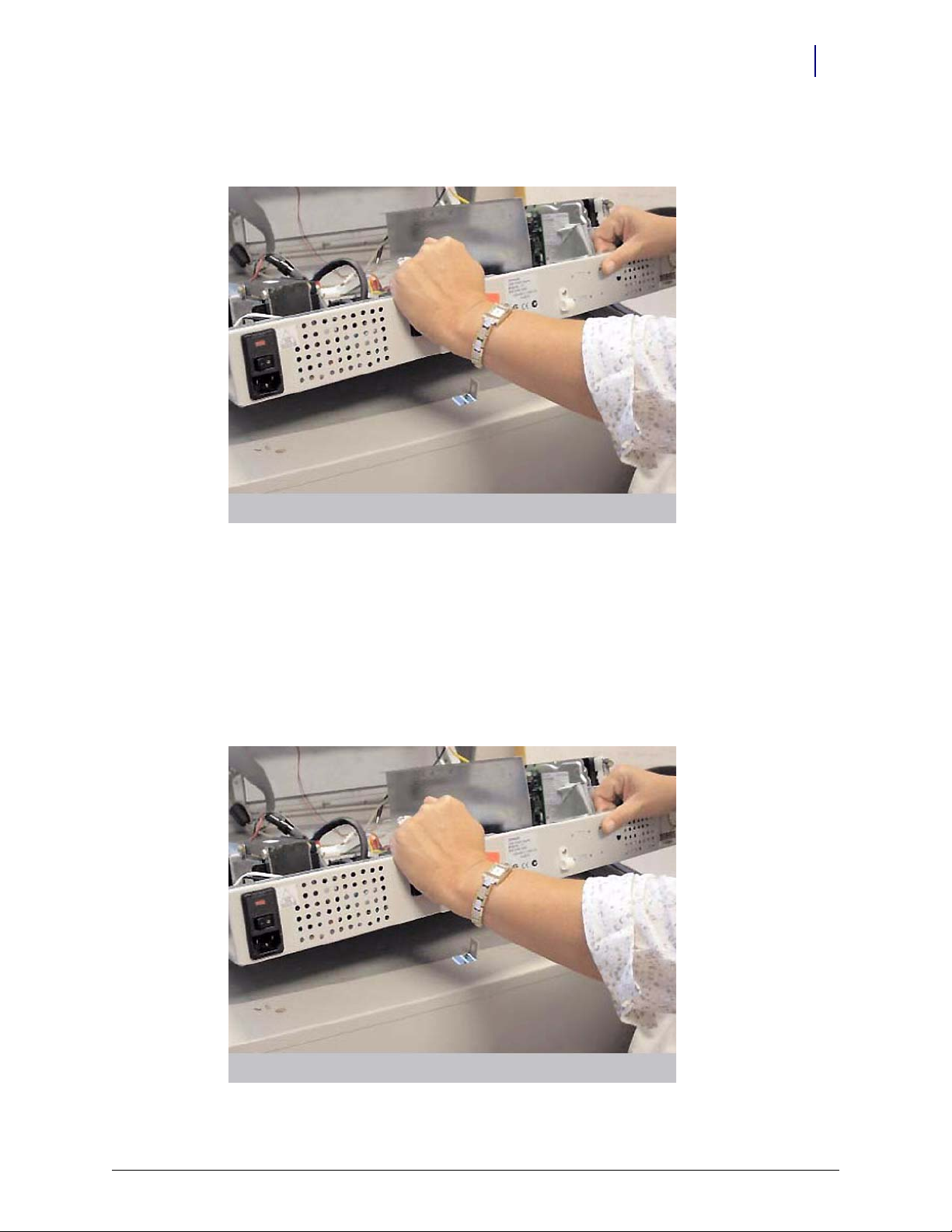

Figure 1-27. Cable cover bracket
5. Place new console into position, then prop it open.
6. Re-connect the cables. Most will go back where the old cables were with a couple of exceptions.
The contrast cable goes into J33 instead of J32.
The USB keyboard cable goes to the USB port (vs. the PS/2 connection).
Move the jumper on JP1 from pins 1-2 to 3-4.
