Omnicharge Omni 20 Operating and maintenance instructions

Quick Start Guide

Omni 20 for Power Station

www.omnicharge.co

2

POWER YOUR NEXT ADVENTURE

For more information visit our support page at www.omnicharge.co

3

Max output power: 100W

Double Press the Power Button to enter the menu and select Wall Socket.

Next, choose AC or HVDC.

US/JP

US/JP model

EU model

EU

AC OUTLET

1. Choose 120 V AC/150V HVDC (EU model: 230V AC/300V HVDC) mode in the menu.

2. Turn on AC/HVDC, the icon should appear on the screen

3. Power any device.

Note:

Only choose 150V HVDC/300V HVDC if you are using a switch mode power supply, such as

a laptop’s AC power adapter. Check our support page at www.omnicharge.co for more

detailed information.

120V AC

150V HVDC

0.00 W 99:99

24.3 °C

100%

65.04 W

AC

Laptop TV Drone DSLR Projector And more

AC

HV

DC

120V/230V AC output

or

150V/300V HVDC output

.............................................................................................................................................................................................................................

0.00 W 99:99

24.3 °C

100%

65.04 W

HV

DC

230V AC

300V HVDC

WALL SOCKET

DC OUT

USB

SCREEN OFF

WALL SOCKET

DC OUT

USB

SCREEN OFF

or

4

1V - 24V with 0.1V Accuracy, up to 3.5A (70W max)

DC OUTPUT

1. Find the correct voltage for your laptop from its power adaptor.

2. Set voltage through the menu

WALL SOCKET

DC OUT

USB

EXIT

.............................................................................................................................................................................................................................

3. DC icon will appear on the screen

DC Adjustable DC output

4. Power your device through DC port

DC to MagSafe 2 Cable

DC to Surface

Connect Cable

..........................................................

Step 1

20.0V

16.5V

15.0V

12.0V

Confirm 20.0V?

Incorrect setting

may harm your device.

Yes No

Step 2 Step 3

Note:

i. Omnicharge keeps 4 sets of preset voltage.

Press and hold the power button to change the preset voltage on step 3.

i. After step 1, you may also long press the USB button and directly jump to step 3.

Note: For more information visit our support page at www.omnicharge.co

20.00 V 99:99

24.3 °C

100%

70.00 W

DC

DC In / DC Out

5

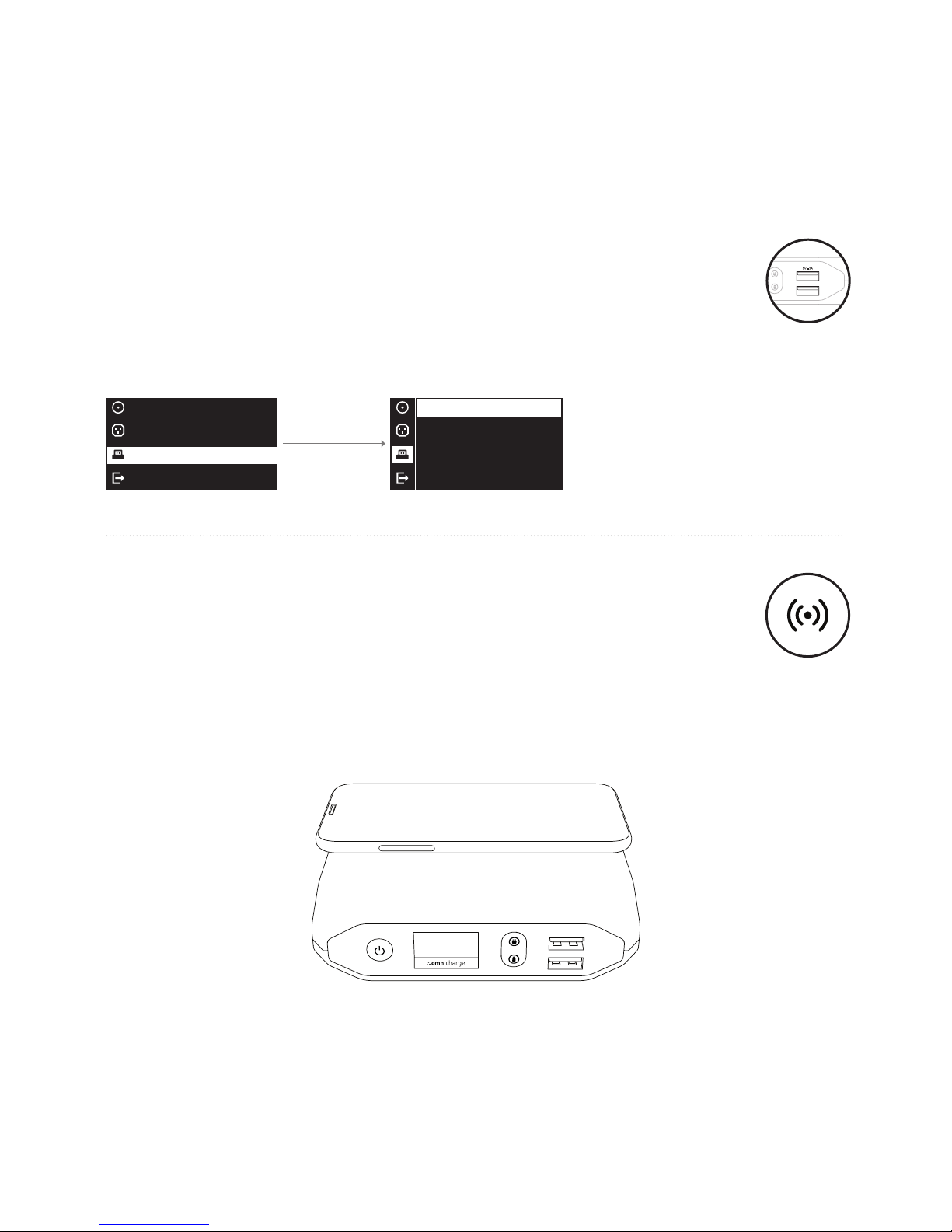

RAPID-CHARGING

USB PORTS

1. Choose whether the USB output is On or Off when you turn on your Omnicharge

WALL SOCKET

DC OUT

USB

EXIT

DEFAULT ON

DEFAULT OFF

.............................................................................................................................................................................................................................

USB Port 1: 5V/3A, USB Port 2: QC 3.0

1. Press USB Ports to activate wireless mode

2. Place your wireless device on the top of Omnicharge as shown in the illustration below.

Make sure the center or the device is aligned over the center of the charging base.

Charging will begin on contact.

Charging your wireless device

WIRELESS CHARGING

6

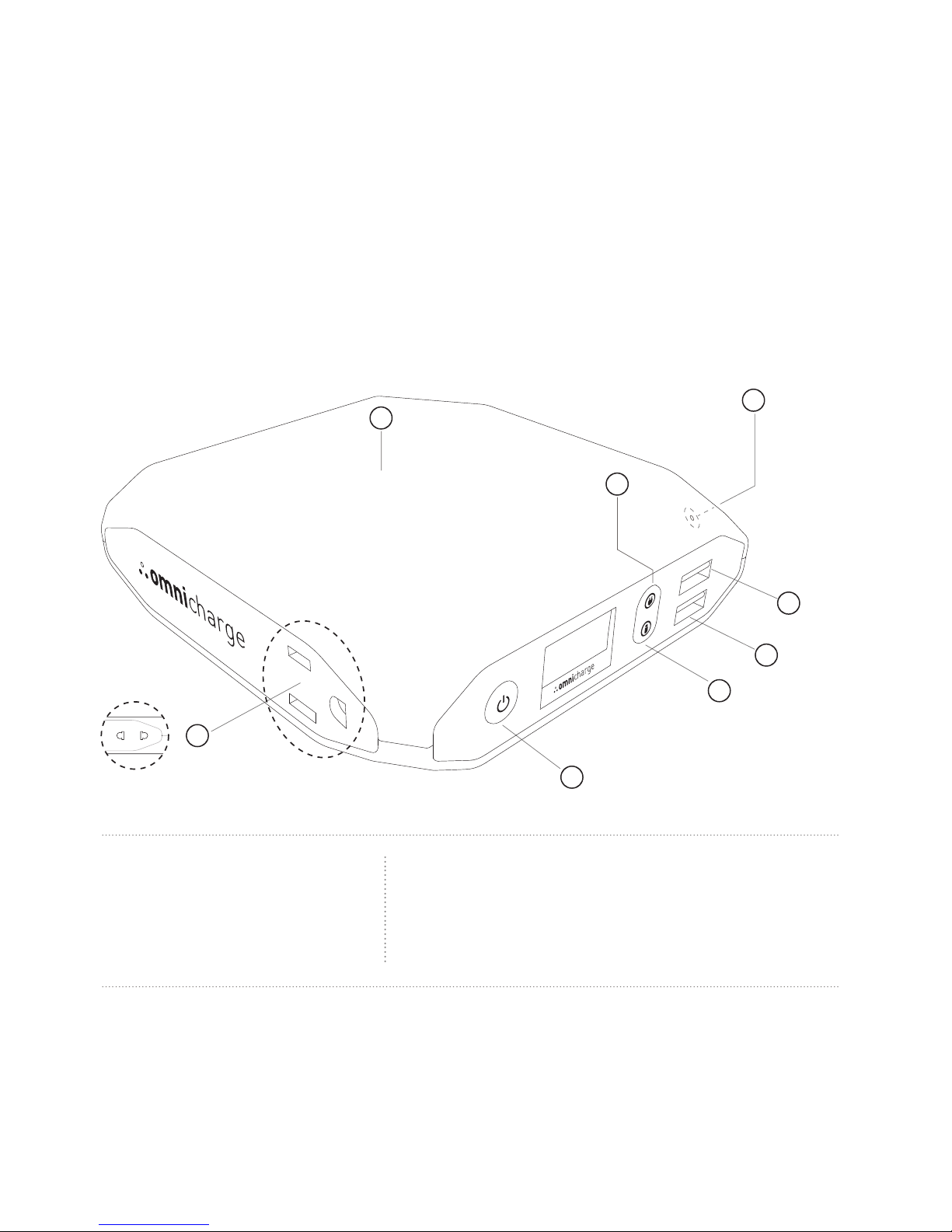

PORTS AND BUTTONS

1. Power and Menu Button

2. USB Button

3. AC Outlet Button

4. AC Outlet (US/JP or EU version)

5. Quick Charge USB (Qualcomm 3.0 Compatible)

6. 5V/3A USB Port

7. DC Output and Input (5.5 x 2.1mm Barrel Port)

8. Wireless Charging Base

.............................................................................................................................................................................................................................

........................

2

3

6

7

5

1

8

4

US/JPEU

7

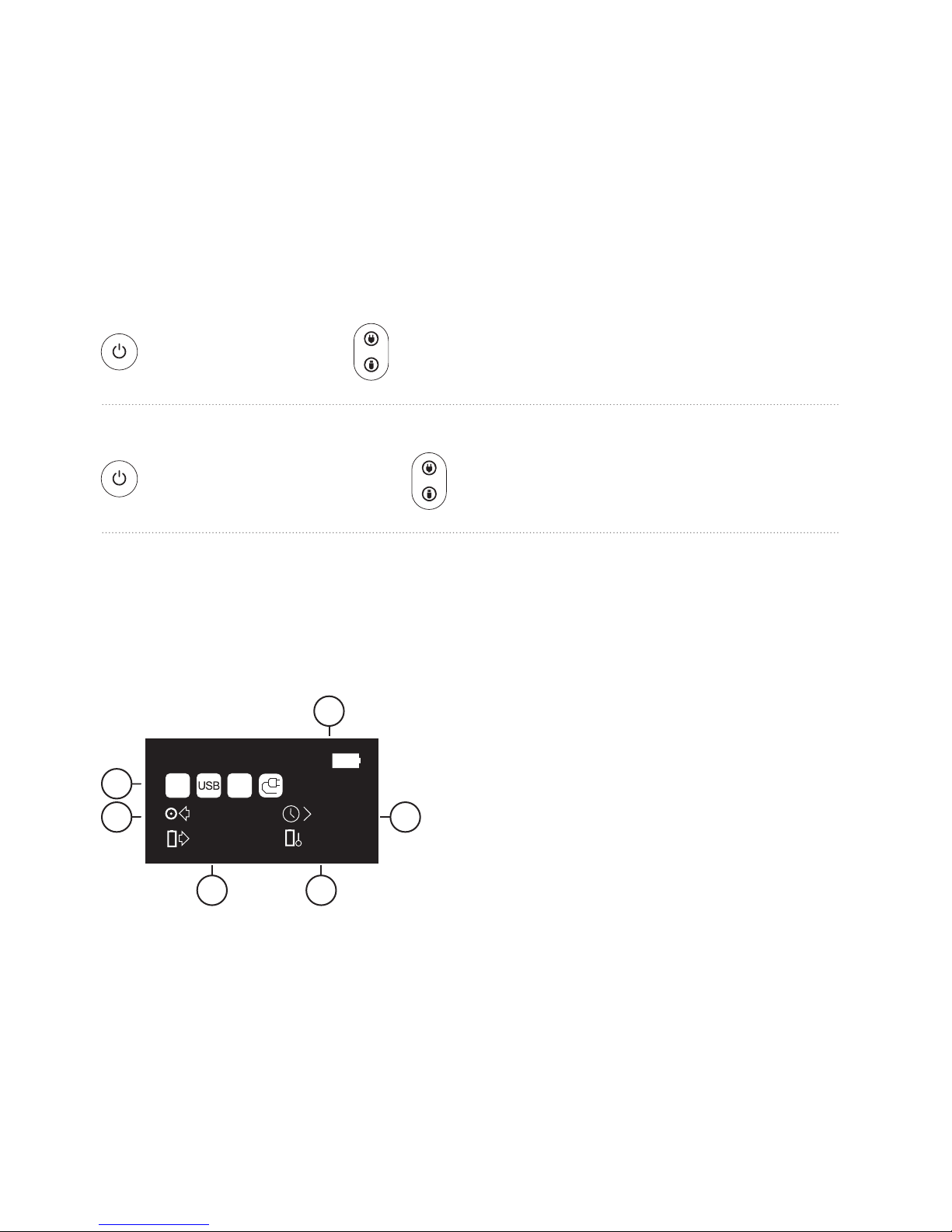

BUTTON FUNCTIONS

SCREEN

OLED screen with real time metrics

MAIN CONTROLS

MENU CONTROLS

• Quick press to power on

• Long press to power off

• On/Off AC Outlet

• On/Off USB Ports (Long press to jump to DC output settings)

• Double press to enter the menu

• Quick press to select

• Move Up

• Move Down

.............................................................................................................................................................................................................................

99:99

24.3 °C

100%

AC DC

65.02 W

34.00 W

5

6

12

3

4

1. Battery Temperature

2. Battery Power Output (watt)

3. Power Input (watt)

4. Icon Display

6. Battery Level (+/- 1%)

7. DC power output (voltage)

8

MENU NAVIGATION

Turn on DC output and set the voltage.

Choose whether the AC outlet will output 120V/230V or 150V/300V HVDC.

Choose whether the USB output is On or Off when you turn on your Omnicharge.

Set the OLED screen auto turn-off time here. The default setting is 5 minutes.

Choose whether or not your Omnicharge will automatically shut off. The default setting is 5 minutes.

DC OUT

WALL SOCKET

USB

SCREEN OFF

AUTO SHUT OFF

.............................................................................................................................................................................................................................

Choose Fahrenheit or Celsius here.

Find the model name, capacity, firmware version number and serial number here.

TEMPERATURE

ABOUT

9

SCREEN ICON

AC

HV

DC

120V/230V AC OUTPUT

150V/300V HVDC OUTPUT

ADJUSTABLE DC OUTPUT

WIRELESS CHARGING ACTIVATED

CHARGING INPUT

OPTIMAL CHARGING

SOLAR CHARGING

120V/230V AC outlet is activated.

150V/300V HVDC (high voltage DC) is activated.

Adjustable 1V-24V DC is activated.

Your Omnicharge is being charged.

Omnicharge is being charged at maximum power.

Omnicharge is being charged from solar power.

.............................................................................................................................................................................................................................

USB OUTPUT

USB ports are turned on.

10

LOW TEMPERATURE PROTECTION

OVERPOWER PROTECTION

OVERHEATING PROTECTION

Battery's temperature is too low and the charging circuit is shut off.

Your device is drawing too much power.

Omnicharge will limit or cut off its output power.

Battery or circuit boards' temperature is too high.

Omnicharge will limit or cut off its input and output power.

.............................................................................................................................................................................................................................

When you’re using your Omnicharge, it is normal for the surface to get warm. For

prolonged use, place your Omnicharge on a flat, stable surface with adequate ventilation.

When your Omnicharge’s battery is low, please put it back in the power station for

recharging. The configuration will be restored after recharging.

Using your Omnicharge

If you are going to store your Omnicharge for an extended period of time, keep it in a cool

location (ideally, 71℉or 22℃) and charge the battery to 100%. When storing your

Omnicharge for more than 5 months, charge the battery to 100% every six months.

Storing Your Omnicharge

If you carry your Omnicharge in a bag or briefcase, make sure there are no loose objects that

could accidentally get inside the Omnicharge through airflow vents or get stuck inside a port.

Carrying Your Omnicharge

NOTICE:

.............................................................................................................................................................................................................................

THANK YOU

www.omnicharge.co

https://www.facebook.com/omnicharge

https://www.instagram.com/omnicharge

https://www.youtube.com/c/omnicharge

https://twitter.com/omni_charge

All Omnicharge products have gone through quality inspection. If you find your Omnicharge

or any Omnicharge accessory is experiencing or demonstrating any abnormal behavior,

immediately stop all product use and contact us at [email protected].

CUSTOMER SUPPORT

.................................................................................................................................................................................................................................................................

is a trademark of Omnicharge Inc. v.1.01
