omnicharge Omni 20 User manual

Quick Start Guide
Omni 20
www.omnicharge.co
230V AC / 300V HVDC

2
POWER YOUR NEXT ADVENTURE
For more information visit our support page at www.omnicharge.co

3
BEFORE USING

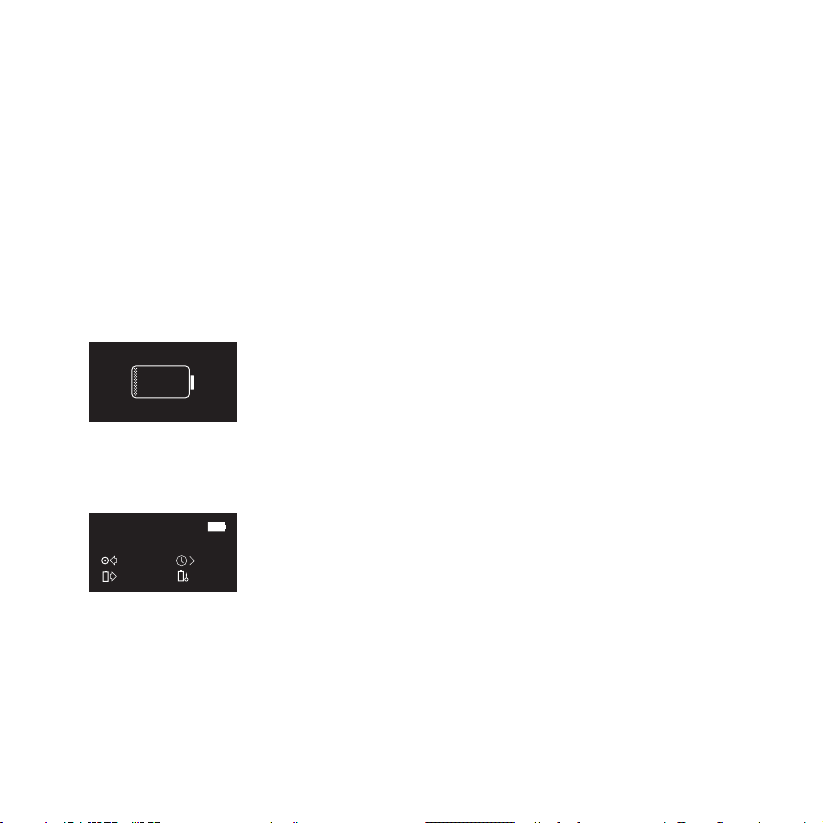

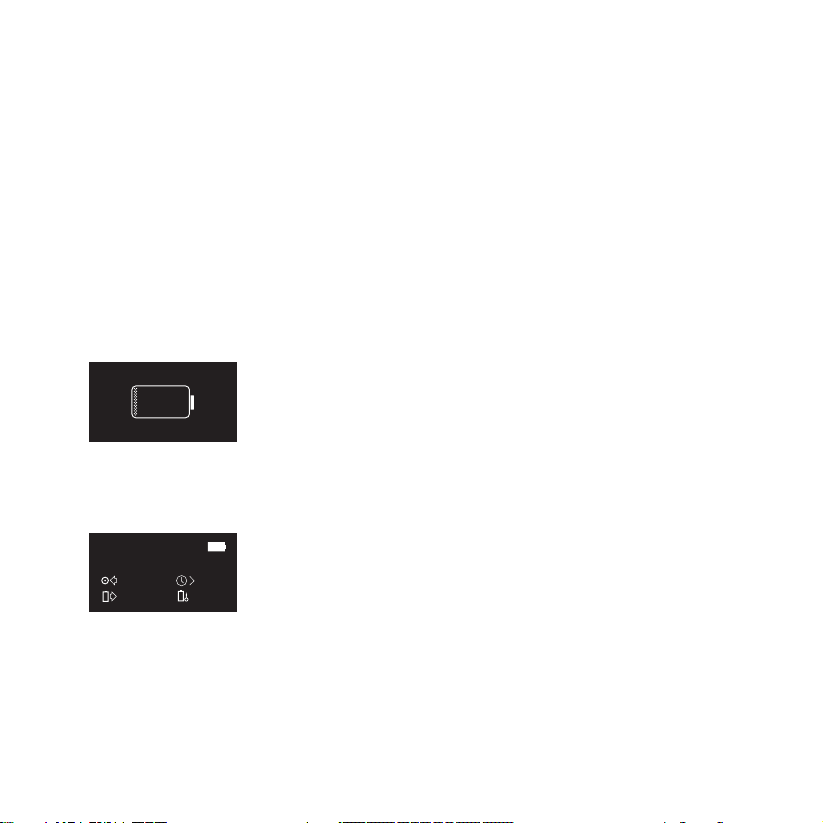

Calibrate the battery
1. Fully discharge Omnicharge until the screen turns off. Press the Power Button and you
should see an empty battery icon on the screen.
It's easy to do. Follow these steps:
To make sure the battery percentage reading is correct, please calibrate Omnicharge’s
battery when you first receive the product and periodically in the future.
2. Fully charge your Omnicharge to 100% to finish the calibration.
And that's it! Your Omnicharge's battery is calibrated.
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
73.000 W•h
0.00 W
0.00 W 99:99
24.3 °C
100%

4
Max output power: 100W

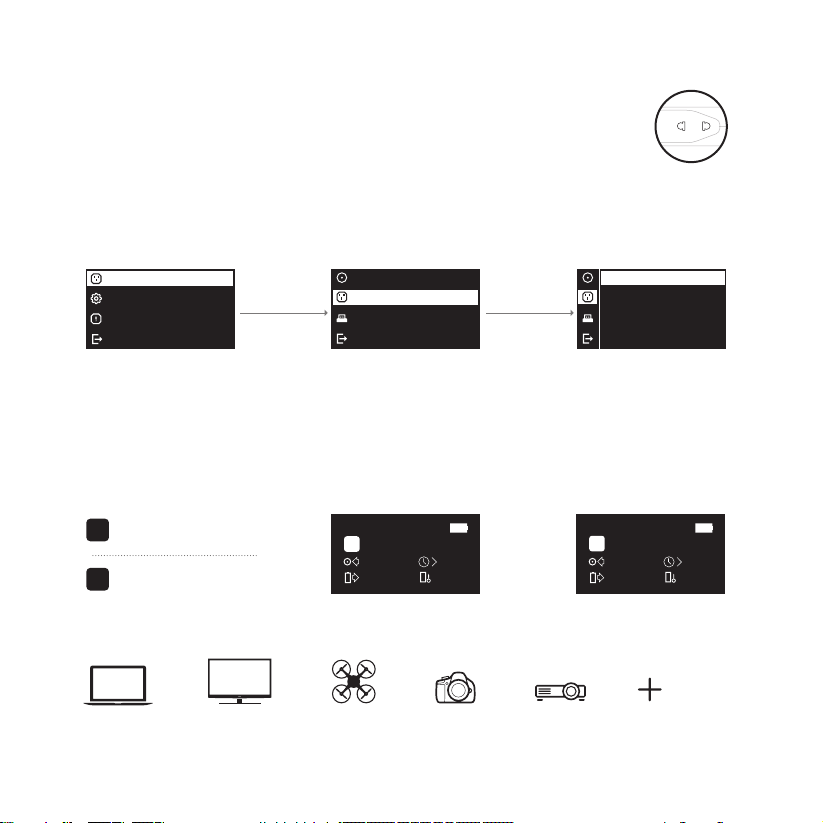

Double press the Power Button to enter the menu and choose Wall Socket option.
Next choose Output Mode.
AC OUTLET
1. Choose 230V AC/300V HVDC mode in the menu
2. Turn on AC/HVDC, the icon should appear on the screen
3. Power any device.
Note:
Only choose 300V HVDC if you are using a switch mode power supply, such as a laptop’s
AC power adaptor. Check our support page at www.omnicharge.co for more detailed
information.
PORT SETTINGS
GENERAL SETTINGS
ABOUT
EXIT
WALL SOCKET
DC OUT
USB
EXIT
230V AC
300V HVDC
73.000 W•h
0.00 W 99:99
24.3 °C
100%
65.04 W
AC
Laptop TV Drone DSLR Projector And more
AC
HV
DC
230V AC output
or
300V HVDC output
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
73.000 W•h
0.00 W 99:99
24.3 °C
100%
65.04 W
HV
DC

5
1V - 24V with 0.1V Accuracy, up to 3.5A (70W max)

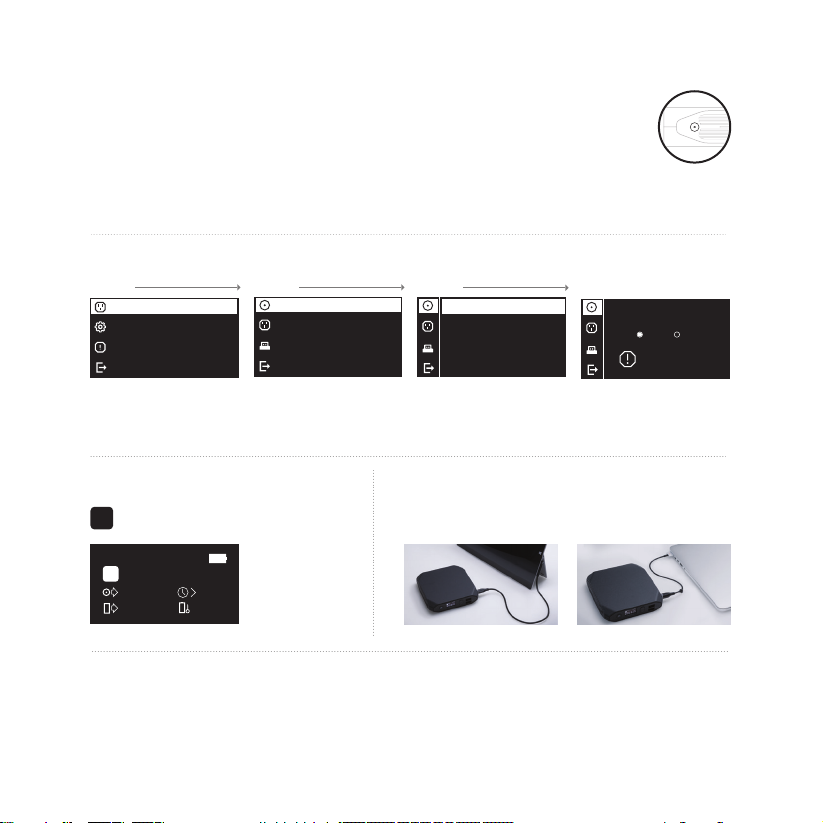

DC OUTPUT
1. Find the correct voltage for your laptop from its power adaptor.
DC output cables may be included in the packaging. You can purchase additional cables
from our website. For more information about available accessories,
please visit www.omnicharge.co.
2. Set voltage through the menu
PORT SETTINGS
GENERAL SETTINGS
ABOUT
EXIT
WALL SOCKET
DC OUT
USB
EXIT
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
3. DC icon will appear on the screen
DC Adjustable DC output
.............................................................................................................................................................................................................................
4. Power your device through DC port
DC to MagSafe 2 Cable
DC to Surface
Connect Cable
..........................................................
Step 1 Step 2
20.0V
16.5V
15.0V
12.0V
Confirm 20.0V?
Incorrect setting may
harm your device.
Yes No
Step 3 Step 4
Note: Omnicharge keeps 4 sets of preset voltage.
Press and hold the power button to change the preset voltage on step 3.
Note: For more information visit our support page at www.omnicharge.co
73.000 W•h
20.00 V 99:99
24.3 °C
100%
70.00 W
DC
DC In / DC Out
5

6

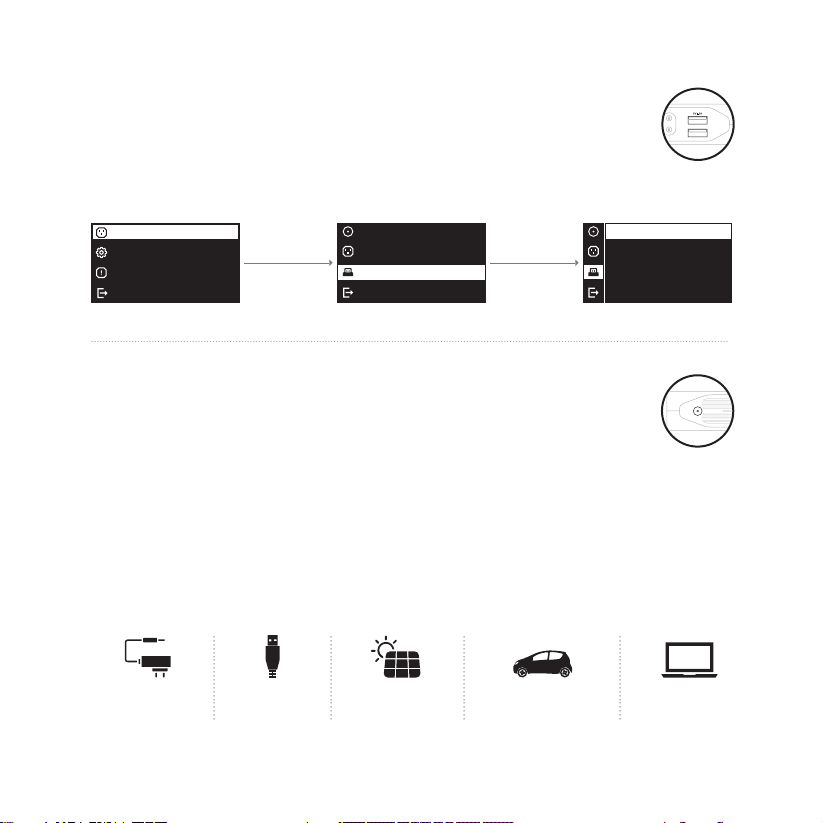

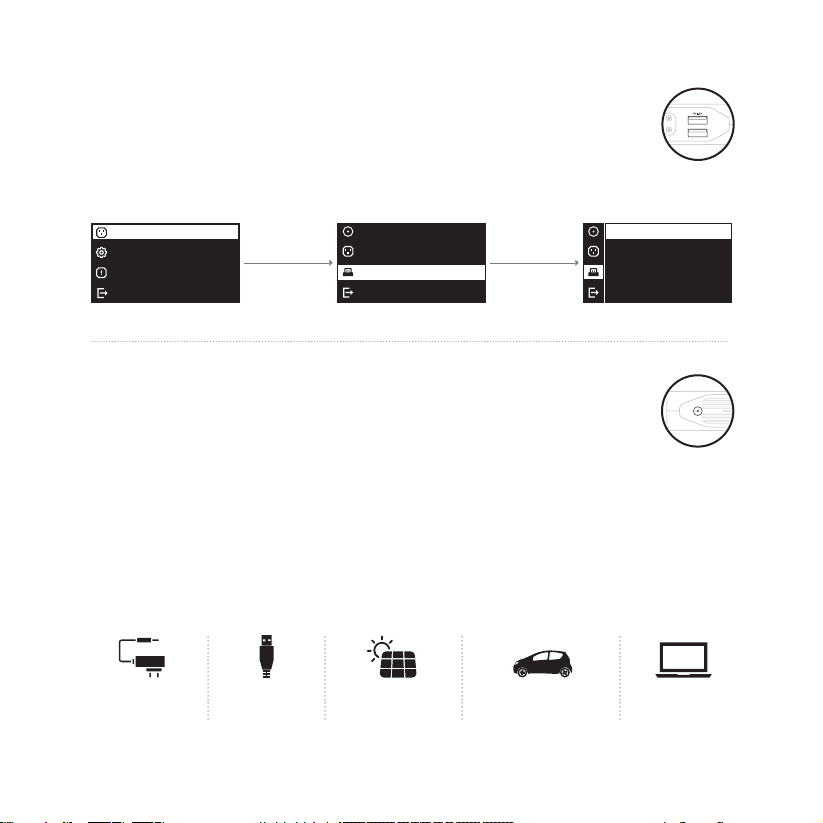

RAPID-CHARGING
USB PORTS
1. Choose whether the USB output is On or Off when you turn on your Omnicharge
PORT SETTINGS
GENERAL SETTINGS
ABOUT
EXIT
WALL SOCKET
DC OUT
USB
EXIT
DEFAULT ON
DEFAULT OFF
.............................................................................................................................................................................................................................
USB Port 1: 5V/3A, USB Port 2: QC 3.0
USB sources
5-7 hours
AC wall charger
3 hours
Solar (up to 45W)
3-6 hours
Car power port (12V)
3 hours
Laptop adapter
3 hours
......................
......................
......................
......................
Charging from the Wall
Use the included AC wall charger, or other power adapters like your laptop charger to
recharge your Omnicharge.
Note: Make sure the output voltage of your adapter falls within 4.5V - 36V range.
Use our brand specific DC-input tip. Omnicharge only accepts 5.5 x 2.1mm barrel plug.
DC Input 4.5V-36V, Up to 3A (2W - 45W)
THE OMNICHARGE MAY BE
RECHARGED IN A VARIETY OF WAYS
DC In / DC Out

7

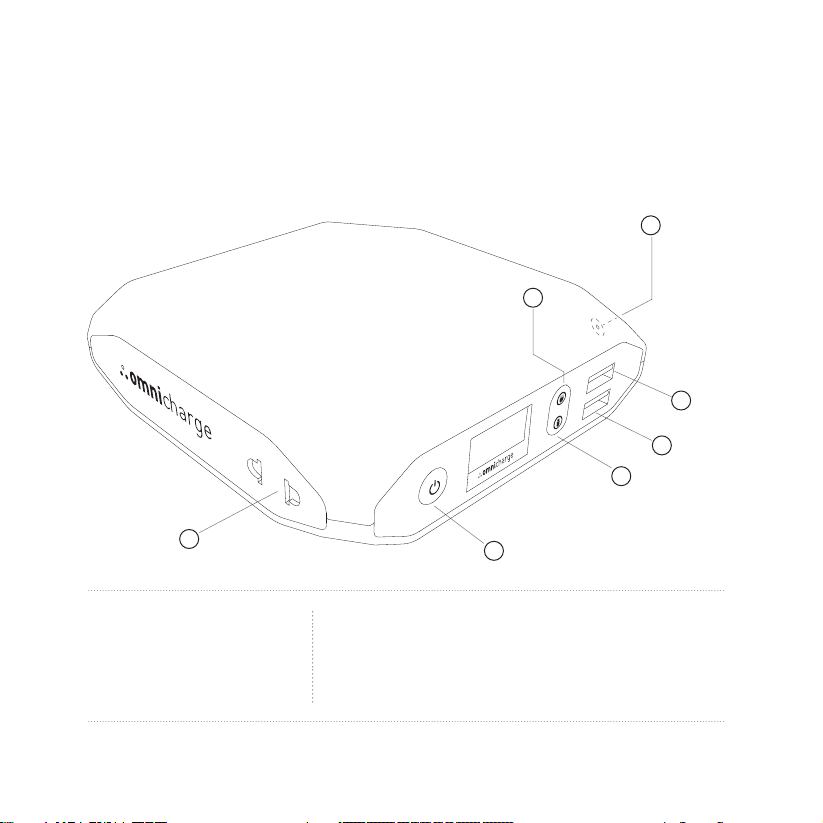

PORTS AND BUTTONS
1. Power and Menu Button
2. USB Button
3. AC Outlet Button
4. AC Outlet
5. Quick Charge USB (Qualcomm 3.0 Compatible)
6. 5V/3A USB Port
7. DC Output and Input (5.5 x 2.1mm Barrel Port)
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
2
3
6
7
5
1
4
........................

8

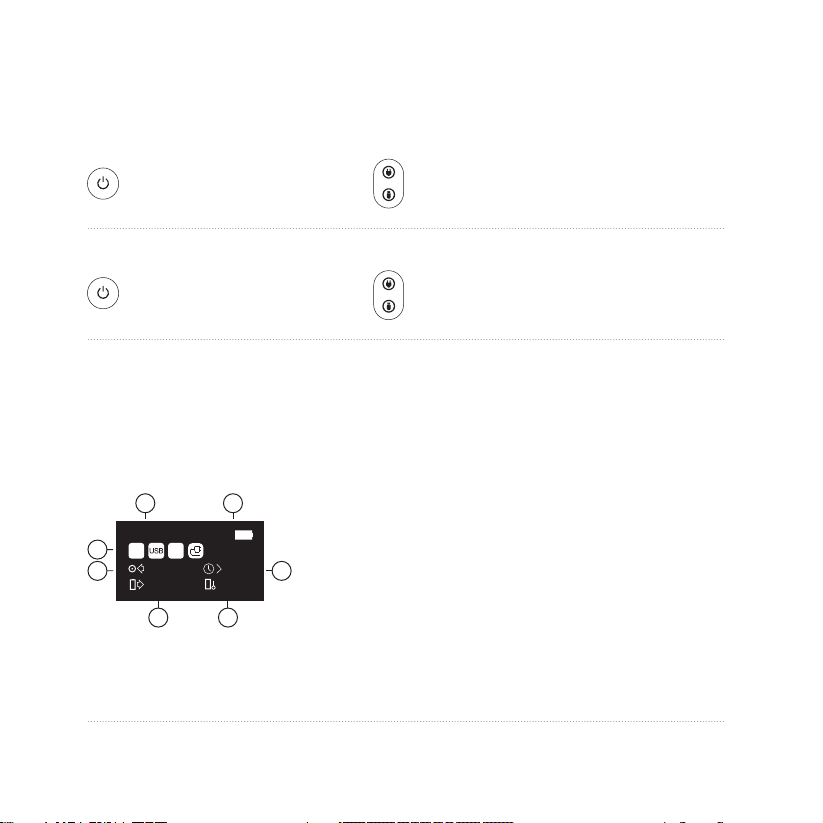

BUTTON FUNCTIONS
SCREEN
OLED screen with real time metrics
MAIN CONTROLS
MENU CONTROLS
• Quick press to power on
• Long press to power off
• On/Off AC Outlet
• On/Off USB Ports
• Double press to enter the menu
• Quick press to select
• Move Up
• Move Down
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
73.000 W•h
99:99
24.3 °C
100%
AC DC
65.02 W
34.00 W
1. Battery Temperature
2. Battery Power Output (watt)
3. Power Input (watt)
4. Icon Display
5. Battery Remaining Capacity
6. Battery Level (+/- 1%)
7. Charge Time Remaining
Note: Calculated based on optimal level of power
input for your device and Omnicharge’s battery level
5 6
7
12
3
4

9
MENU NAVIGATION
Turn on DC output and set the voltage.
Choose whether the AC three-prong outlet will output 230V AC or 300V HVDC.
Choose whether the USB output is On or Off when you turn on your Omnicharge.
Set the OLED screen auto turn-off time here. The default setting is 1 min.
Choose whether or not your Omnicharge will automatically shut off.
Choose whether cooling fan will be enabled or disabled.
Choose Fahrenheit or Celsius here.
Find the model name, capacity, firmware version number and serial number here.
DC OUT
WALL SOCKET
USB
SCREEN OFF
AUTO SHUT OFF
COOLING FAN
TEMPERATURE
ABOUT
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................

10
SCREEN ICON
AC
HV
DC
DC
230V AC OUTPUT
300V HVDC OUTPUT
ADJUSTABLE DC OUTPUT
USB OUTPUT
CHARGING INPUT
OPTIMAL CHARGING
SOLAR CHARGING
COOLING FAN DISABLED
230V AC outlet is activated.
300V HVDC (high voltage DC) is activated.
Adjustable 1V-24V DC is activated.
USB ports are turned on.
Your Omnicharge is being charged.
Omnicharge is being charged at maximum power.
Omnicharge is being charged from solar power.
Cooling fan is deactivated.
Note: Charge time may be longer if turned off.
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
