omnicharge Omni 20+ User manual

Quick Start Guide
Omni 20+
www.omnicharge.co
120V AC / 150V HVDC

2
POWER YOUR NEXT ADVENTURE
For more information visit our support page at www.omnicharge.co/support

3
BEFORE USING
Calibrate the battery
1. Fully discharge Omnicharge until the screen turns off. Press the Power Button and you
should see an empty battery icon on the screen.
It's easy to do. Follow these steps:
To make sure the battery reading is correct, please calibrate the Omnicharge battery when
you first receive the product and periodically in the future.
2. Fully charge your Omnicharge to 100% to finish the calibration.
And that's it! Your Omnicharge is calibrated.
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
0.00 V
20.3 °C
100%
C
0.50 W
0.00 W
AC

4
PORTS AND BUTTONS
1. AC Outlet
2. Power and Menu Button
3. USB Button
4. AC Outlet Button
5. Quick Charge USB (Qualcomm 3.0 Compatible)
6. 5V/3A USB Port
7. DC Input/Output (5.5 x 2.1mm Barrel Port)
8. USB-C Input/Output
9. Wireless Charging
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
3
4
6
7
5
2
1
........................
8
9
Note: For optimal wireless charging, place phone
horizontally towards the back of the Omnicharge.

5
BUTTON FUNCTIONS
SCREEN
OLED screen with real time metrics
PRIMARY CONTROLS
MENU CONTROLS
• Long press to power on
• Long press to power off
• On/Off AC Outlet
• On/Off USB Ports
• Double press to enter the menu
• Quick press to select
• Move Up
• Move Down
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
100%
AC DCC
65.02 W
34.00 W
1. Battery Temperature
2. Battery Power Output (watts)
3. Power Input (watts)
4. Icon Display
5. Battery Level (+/- 5%)
6. DC Output Voltage
5
6
12
3
4
0.00 V
20.3 °C

6
Max output power: 100W
To change the AC output mode, double press the Power Button to enter the menu and
select Wall Socket.

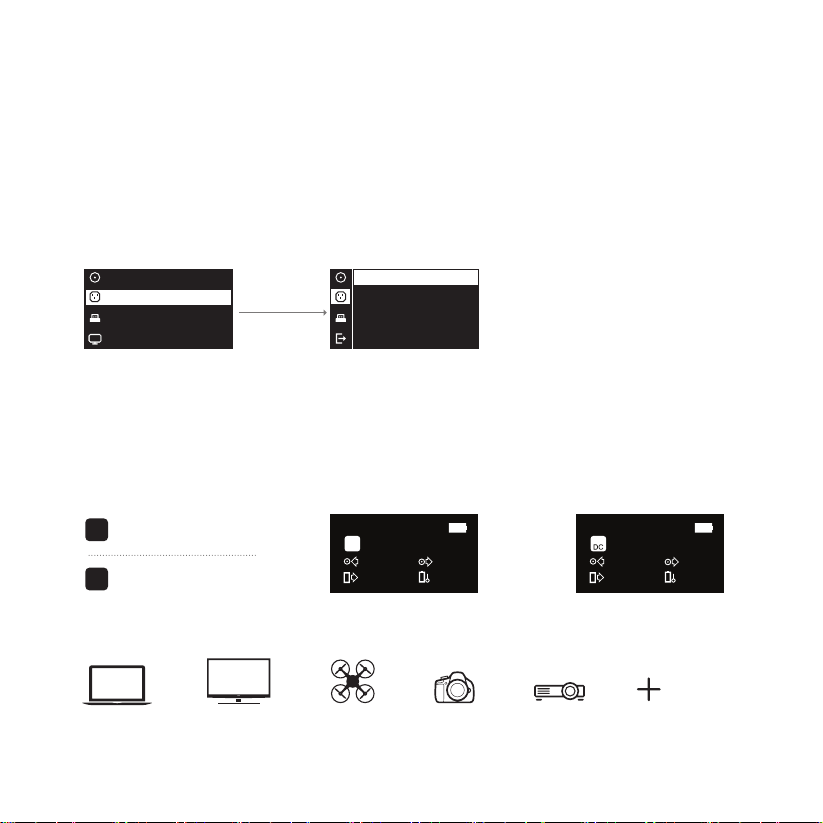

AC OUTLET
2. When AC/HVDC is active, the following icons should appear on the screen
3. Power any device.
Note:
Only choose 150V HVDC if you are using a switch mode power supply, such as a laptop’s AC
power adapter. Check our support page at www.omnicharge.co for more detailed
information.
WALL SOCKET
DC OUT
USB
120V AC
150V HVDC
Laptop TV Drone DSLR Projector And more
AC
HV
DC
120V AC output
or
150V HVDC output
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
1. Choose 120V AC/150V HVDC mode in the menu
SCREEN OFF
0.00 V
20.3 °C
100%
0.50 W
0.00 W
AC
0.00 V
20.3 °C
100%
0.50 W
0.00 W
HV

7
5V - 25V with 0.1V Accuracy, up to 5A (100W max)
DC OUTPUT
Warning: Before using DC Output find the correct voltage for your laptop from its power
adapter. Using the wrong voltage can damage your device.
The DC output feature can directly charge your laptop without needing your laptop charger.
You can purchase additional DC cables from our website. For more information about
available accessories, please visit www.omnicharge.co/products
Set voltage and amperage through the menu
WALL SOCKET
DC OUT
USB
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
Once active, the DC icon will appear.
DC Adjustable DC output
.............................................................................................................................................................................................................................
Power your device through the DC port.
DC to MagSafe 2 Cable
DC to Surface
Connect Cable
..........................................................
Step 1 Step 2
25.0V = 4.0A
20.0V = 5.0A
15.0V = 2.5A
12.0V = 2.0A
Confirm 25.0V = 4.0A?
Incorrect setting may
harm your device.
Yes No
Step 3
Omnicharge keeps 4 voltage presets. On step 2, press and hold the power button to create
your own preset.
Note: For more information visit our support page at www.omnicharge.co/support
SCREEN OFF
100%
0.50 W
0.00 W 0.00 V
20.3 °C

8
USB-C port max output: 60W
The USB-C port is plug-and-play. Plug your USB-C device into the USB-C port to start
charging
USB-C PORT
Note: If your USB-C output does not start charging, try to reconnect the USB-C cable.
USB-C port max input: 45W
Fully recharge in 3 hours
Plug in a USB-C wall charger and it will start recharging the Omni 20+.
RECHARGING FROM THE USB-C PORT
And more
Action Camera Smartphone Tablet LaptopNintendo Switch
Power any USB-C device.
Note: If the Omnicharge does not detect incoming power, try to plug in your USB-C charger
while the Omnicharge is turned off. Once charging has started, you can power on the
Omnicharge to utilize pass-through charging.

9
RAPID-CHARGING
USB PORTS
1. Choose whether the USB output is on or off by default.
WALL SOCKET
DC OUT
USB
DEFAULT ON
DEFAULT OFF
.............................................................................................................................................................................................................................
USB Port 1: 5V/3A, USB Port 2: QC 3.0
USB sources
5-7 hours
AC wall charger
3 hours
Solar (up to 45W)
3-6 hours
Car power port (12V)
3 hours
Laptop adapter
3 hours
......................
......................
......................
......................
Charging your Omnicharge`
Use the included USB charging cable to recharge your Omnicharge. A fast charger is
included on certain models and can also be purchased separately.
Note: Make sure the output voltage of your adapter falls within 4.5V - 36V range.
The Omni 20+ only accepts 5.5 x 2.1mm barrel plugs.
DC Input 4.5V-36V, Up to 3A (2W - 45W)
RECHARGING FROM THE BARREL PORT
SCREEN OFF

10
MENU NAVIGATION
Turn on DC output and set the voltage and amperage.
Choose whether the AC three-prong outlet will output 120V AC or 150V HVDC.
Choose whether the USB output is On or Off when you turn on your Omnicharge.
Set the OLED screen auto turn-off time here. The default setting is 1 min.
Choose whether or not your Omnicharge will automatically shut off.
Choose whether button lights are default on or off.
Find the model name, capacity, firmware version number and serial number here.
DC OUT
WALL SOCKET
USB
SCREEN OFF
AUTO SHUT OFF
BUTTON LIGHT
Choose Fahrenheit or Celsius here.
TEMPERATURE
ABOUT
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
.............................................................................................................................................................................................................................
