Omnitec OmniFlow User manual

Operation and Maintenance Manual
Water Filtration System
BY OMNITEC DESIGN, INC.
BY OMNITEC DESIGN, INC.
BY OMNITEC DESIGN, INC.
BY OMNITEC DESIGN, INC.
BY OMNITEC DESIGN, INC.

CONFORMS TO UL STD 507
CERTIFIED TO CAN/CSA STD
C22.2 NO. 113-M1984
WARNING
Do not use to pump flammable liquids. Never operate the pump in an explosive
environment. Do not assume fluid compatibility. Do not adjust pressure switches without
consulting with pump manufacturer. Do not use pump with fluids at temperatures higher
than 130 degrees Fahrenheit.
Safety Warning Instructions:
READ AND SAVE THESE INSTRUCTIONS
This equipment to be operated only by trained personnel.
Do not use with combustible or explosive material.
Connect only to grounded outlet with GFCI device.
Disconnect power for cleaning and servicing.
Do not operate if cord or plug is damaged. Contact a authorized service facility for examination and/or repair.
Do not run cord under carpeting.
Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic areas and where it is
not a tripping hazard.
Avertissement de sécurité Instructions:
LIRE ET CONSERVER CES INSTRUCTIONS
Cet équipement doit être utilisé que par un personnel formé.
Ne pas utiliser avec des matières combustibles ou explosives.
Connectez uniquement à une prise mise à la terre avec un dispositif GFCI.
Coupez l’alimentation électrique pour le nettoyage et l’entretien.
Ne pas utiliser si le cordon ou la fiche est endommagé. Contactez un centre de service autorisé pour examen et/ou
réparation.
Ne pas passer le cordon sous un tapis. Ne pas couvrir le cordon avec des carpettes, les coureurs, ou revêtements similaires.
Éloigner le cordon des endroits passants et où il n’est pas un risque de déclenchement.

The OmniFlow is commercial and industrial water filtration system designed for purification of contaminated water at
asbestos, lead abatement projects and similar sources at construction sites. Our portable system consists of self
priming, positive displacement pump and two filtration stages with 20 and 5 micron filters. The unit is capable of high
suction lift and 45 psi discharge pressure. This portable unit has a strong aluminum housing with rubber grip handle
and easily accessible hose connections. OmniFlow’s two-stage filtration allows for the use of various filter cartridges to
meet your requirements. Our standard configuration consists of a 20μ and 5μ filter.
OmniFlow Specifications
Flow Capacity: 3 gpm
Filtration Stages: 50# screen, 20 & 5 micron filters
Water Connection: 3/4” male garden hose connection
Power Requirements: 115 VAC/60Hz, 1.0 amps
Electrical Protection: circuit breaker
Housing: aluminum, riveted construction
Size/Weight with Filters: 8”W x 15”H x 23”L; 25 lbs.
Operating Instructions
Unpacking: Check unit for damage.
Locate the Water Filtration System (WFS) close to the waste water storage on a level, dry surface and standing upright.
WFS pump is self priming and has up to 9 feet of vertical lift. The discharge pressure is factory set at 45 psi.
To start the machine:
1. Connect the suction hose (garden hose thread) from the waste water storage to WFS inlet connection and from WFS
outlet to drain. Make sure the hose is not kinked or damaged.
2. Connect power cord to 115 VAC grounded circuit. Keep the cord out of water and do not route it under the unit.
3. Turn unit ON and wait for the pump to prime the system and check that the water is discharged from the unit. Note:
New filters take longer to fill with water.
4. When you deplete the water source, turn the pump OFF. The pump can operate dry without damage, but it is better
to shut it down.

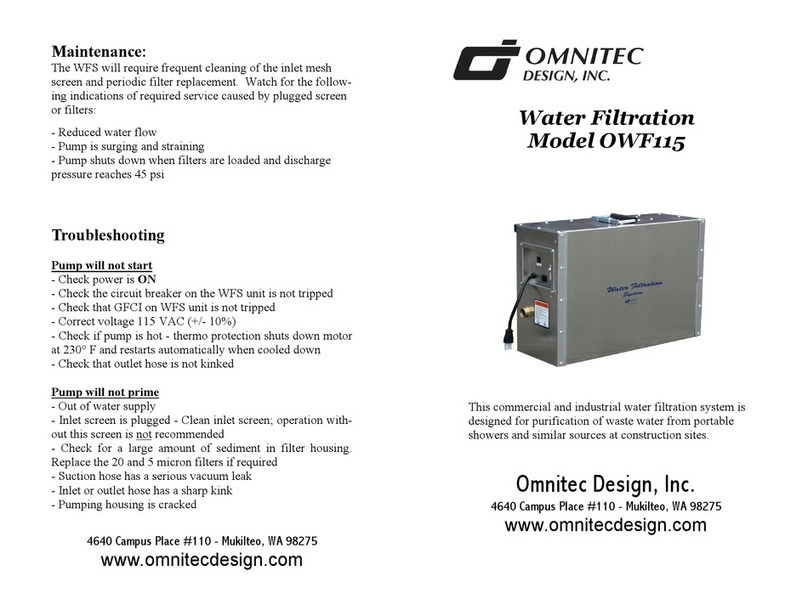

Maintenance of the OmniFlow
The WFS unit will require frequent cleaning of the inlet mesh screen and periodic filter replacement. Watch for the
following indications of required service caused by plugged screen or filters:
- Water flow is reduced
- Pump is surging and straining
- Pump shuts down when filters are loaded and discharge pressure reaches 45 psi
ALWAYS FOLLOW YOUR ESTABLISHED HAZMAT PROCEDURES.
Troubleshooting
Your Omnitec Design machine is designed and engineered to provide years of trouble free service. Occasionally
though problems do occur. Here are some helpful tips and solutions to common problems.
The pump will not start
1. Check power is ON
2. Check the circuit breaker on the WFS unit is not tripped
3. Check that GFCI on WFS unit is not tripped
4. Correct voltage 115 VAC (+/- 10%)

5. Check if pump is hot - thermo protection shuts down motor at 230° F and restarts automatically when cooled down.
6. Check that outlet hose is not kinked.
The pump will not prime
1. Out of water supply
2. Inlet screen is plugged - Clean inlet screen; operation without this screen is not recommended.
3. Check for a large amount of sediment in filter housing. Replace the 20 and 5 micron filters if required.
4. Suction hose has a serious vacuum leak.
5. Inlet or outlet hose has a sharp kink
6. Pumping housing is cracked
Ordering Info Part #
OmniFlow OWF115
Water Filter, 20 Micron OWF20
Water Filter, 5 Micron OWF5

LIMITED WARRANTY REGISTRATION
The undersigned has read and understood the above Warranty and Limitation of Warranty and Limitation of Remedy.
PRODUCT # SERIAL #
PURCHASED FROM DATE
CUSTOMER INFORMATION
COMPANY PHONE
STREET
CITY STATE ZIP CODE
BY DATE
PLEASE SEND TO:
Omnitec Design Inc 4640 Campus Place Ste. 100 Mukilteo, WA 98275
Omnitec Design Inc. LIMITED WARRANTY
Omnitec Design Inc warrants, for a period of twelve (12)
months from the date of purchase, that all Products,
component parts and accessories, excluding filters,
will be free from defects in material and workmanship
under normal use and service.
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF DEFECTIVE PARTS F.O.B., Omnitec
Design Inc 4640 Campus Place Ste. 100, Mukilteo, WA
98275 Phone: [phone]
In order to keep this warranty in effect for the
aforementioned twelve-month period, the purchaser
must (i) promptly, i.e., immediately upon discovery,
inform Omnitec Design Inc’s customer service of any
defects, and (ii) properly use and maintain the Product
prior to the discovery of any defect.
This warranty does not cover normal wear and tear or
defects caused by (i) improper or negligent handling or
unauthorized modifications; (ii) defective or improper
premises, chemical, or electrical influences; or (iii)
weather or other forces of nature.
In order to provide the best customer service possible,
Omnitec Design Inc requests that purchaser completes
the enclosed LIMITED WARRANTY REGISTRATION FORM
and returns it to Omnitec Design Inc within 30 days of
purchase date.
LIMITATIONS OF WARRANTY
THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY AND ALL
OTHER WARRANTIES AND OBLIGATIONS OF Omnitec
Design Inc OR ITS SUPPLIERS, EXPRESS OR IMPLIED,
AND Omnitec Design Inc EXPRESSLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE.
LIMITATION OF REMEDY
Under no circumstances shall Omnitec Design Inc
or any supplier of Omnitec Design Inc be liable for
any loss or damage, including, but not limited to, loss
or damage arising out of the failure of the Products to
operate for any period of time, inconvenience, the use
of rental or replacement equipment, loss of profits or
other economic loss, or general, direct, special, indirect,
incidental or consequential damages or property
damages.
PRODUCT SUITABILITY
Many states and localities have their own varied
codes and regulations governing sales, construction,
installation, and/or use of Products for certain purposes.
While Omnitec Design Inc attempts to assure that its
Products comply with such codes, it cannot guarantee
compliance, and cannot be responsible for how the
Products are installed or used. Omnitec Design Inc
recommends that, before purchasing and using a
Product, purchasers review the Product application, and
federal, state and local regulations, to be sure that the
Products, installation, and use will comply with them.
