Omron BP761CAN User manual

Monitor
Battery Set
Instruction Manual
ComFit™ Cuff
English
Français
7series Blood Pressure Monitor
ModelBP761CAN
InstructionManual
English
Manufactured for/Fabriqué pour :
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN
Distributed by/Distribué par :
OMRON HEALTHCARE, INC.
1925 West Field Court Lake Forest, IL 60045 U.S.A.
www.omronhealthcare.ca
© 2014 OMRON HEALTHCARE, INC.
Made in China/Fabriqué en Chine
Français
2298824-1A
Le produit inclut :
Tensiomètre
jeu depiles
Guide de l’utilisateur
Quick Start Guide
Guide de démarrage rapide
Brassard ComFit™
BP761CAN
Product includes:
HEM-7320-Z_A_M02_131217.pdf
7 series Blood Pressure Monitor
Model BP761CAN
Instruction Manual

1
EN
Important Safety Information
Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
(General Usage)
DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as
prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.
The monitor is not intended to be a diagnostic device.
Consult your physician before using the device for any of the following conditions: common arrhythmias such as
atrial or ventricular premature beats or atrial fibrillation, arterial sclerosis, poor perfusion, diabetes, age,
pregnancy, pre-eclampsia, renal diseases.
Note that PATIENT motion, trembling, shivering may affect the measurement reading.
Do not use the device on the injured arm or the arm under medical treatment.
Do not apply the arm cuff on the arm while on an intravenous drip or blood transfusion.
Consult your physician before using the device on the arm with an arterio-venous (A-V) shunt.
Do not use the device with other medical electrical (ME) equipment simultaneously.
Do not use the device in the area of HF surgical equipment, MRI, or CT scanner, or in an oxygen rich environment.
The air tube or the AC adapter cable may cause accidental strangulation in infants.
Contains small parts that may cause a choking hazard if swallowed by infants.
(Data Transmission)
Do not use this product on aircraft or in hospitals. Please remove the battery and AC adapter from the unit. This
product emits radio frequencies (RF) in the 2.4 GHz band, use of this product in locations where RF is restricted is
not recommended.
The use of RF in this product is licensed for use by the FCC, for further information on any potential restrictions
refer to documentation on Bluetooth®usage by the FCC.
(AC Adapter (optional) Usage)
Do not use the AC adapter if the device or the power cord is damaged. Turn off the power and unplug the power
cord immediately.
Plug the AC adapter into the appropriate voltage outlet. Do not use in a multi-outlet plug.
Never plug in or unplug the power cord from the electric outlet with wet hands.
HEM-7320T-Z_A_M.book Page 1 Wednesday, May 7, 2014 4:38 PM

2
Important Safety Information
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury to the user or patient or damage to the equipment or other property.
(General Usage)
Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
Consult your physician before using the device for any of the following conditions:
• If you have had a mastectomy.
• Do not take measurements more than necessary. It may cause bruising due to blood flow interference.
• People with severe blood flow problems or blood disorders as cuff inflation can cause bruising.
Remove the arm cuff if it does not start deflating during the measurement.
Do not use this device on infants or persons who cannot express their intentions.
Do not use the device for any purpose other than measuring blood pressure.
Use only the approved arm cuff for this device. Use of other arm cuffs may result in incorrect measurement results.
Do not use a mobile phone or other devices that emit electromagnetic fields near the device except when in use
for wireless communications. This may result in incorrect operation of the device.
Do not disassemble the monitor or arm cuff. This may cause an inaccurate reading.
Do not use in a location with moisture, or a location where water may splash on the device. This may damage the
device.
Do not use the device in a moving vehicle (car, airplane).
Read "If your systolic pressure is more than 210 mmHg" (page11) of this instruction manual, if your systolic
pressure is known to be more than 210 mmHg. Inflating to a higher pressure than necessary may result in bruising
where the cuff is applied.
(AC Adapter (optional) Usage)
Fully insert the power plug into the outlet.
When disconnecting the power plug from the outlet, do not pull the power cord. Be sure to pull from the power plug
safely.
When handling the power cord, take care not to do the following:
Do not damage. Do not break it.
Do not tamper with it. Do not forcibly bend or pull.
Do not twist. Do not bundle during use.
Do not pinch. Do not place under heavy objects.
HEM-7320T-Z_A_M.book Page 2 Wednesday, May 7, 2014 4:38 PM

3
Important Safety Information
EN
Wipe the dust off from the power plug.
Unplug monitor when not in use.
Disconnect the power plug before cleaning.
Use only an OMRON AC adapter designed for this device. Use of unsupported adapters may damage and/or may
be hazardous to the device.
(Battery Usage)
Do not insert the batteries with their polarities incorrectly aligned.
Use only 4 “AA” alkaline or manganese batteries with this device. Do not use other types of batteries. Do not use
new and used batteries together.
Remove the batteries if the device will not be used for three months or more.
General Precautions
• Do not forcibly crease the arm cuff or the air tube excessively.
• Do not press the air tube while taking a measurement.
• To unplug the air plug, pull on the air plug at the connection with the monitor, not the tube itself.
• Do not drop the monitor or subject device to strong shocks or vibrations.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not use the device outside the specified environment. It may cause an inaccurate reading.
• Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful
disposal may cause environmental pollution.
HEM-7320T-Z_A_M.book Page 3 Wednesday, May 7, 2014 4:38 PM

4
1. Know Your Device
Monitor
Air jack
Blood pressure color indicator
Date/Time setting button
USER ID selection switch
Display
Memory button
START/STOP button
Up/Down buttons
Battery compartment
AC adapter jack (for optional AC adapter)
Arm cuff
Arm cuff (Arm circumference
9” - 17” (22 - 42 cm))
Air plug
Air tube
Display
Memory symbol
USER ID symbol
Average value symbol
Systolic blood pressure
Diastolic blood pressure
Transfer indicator
Memory full symbol
OK symbol
Heartbeat symbol
(Flashes during measurement)
Date/Time display
Movement error symbol
Irregular heartbeat symbol
Blood pressure level indicator
Low battery symbol
Deflation symbol
Pulse display / Memory number
Open the rear cover page to read the following:
The letter identifiers on the rear cover page correspond to those in the body of this page.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
AC
HEM-7320T-Z_A_M.book Page 4 Wednesday, May 7, 2014 4:38 PM

5
1. Know Your Device
EN
1.1 Display Symbols
Irregular Heartbeat Symbol ( )

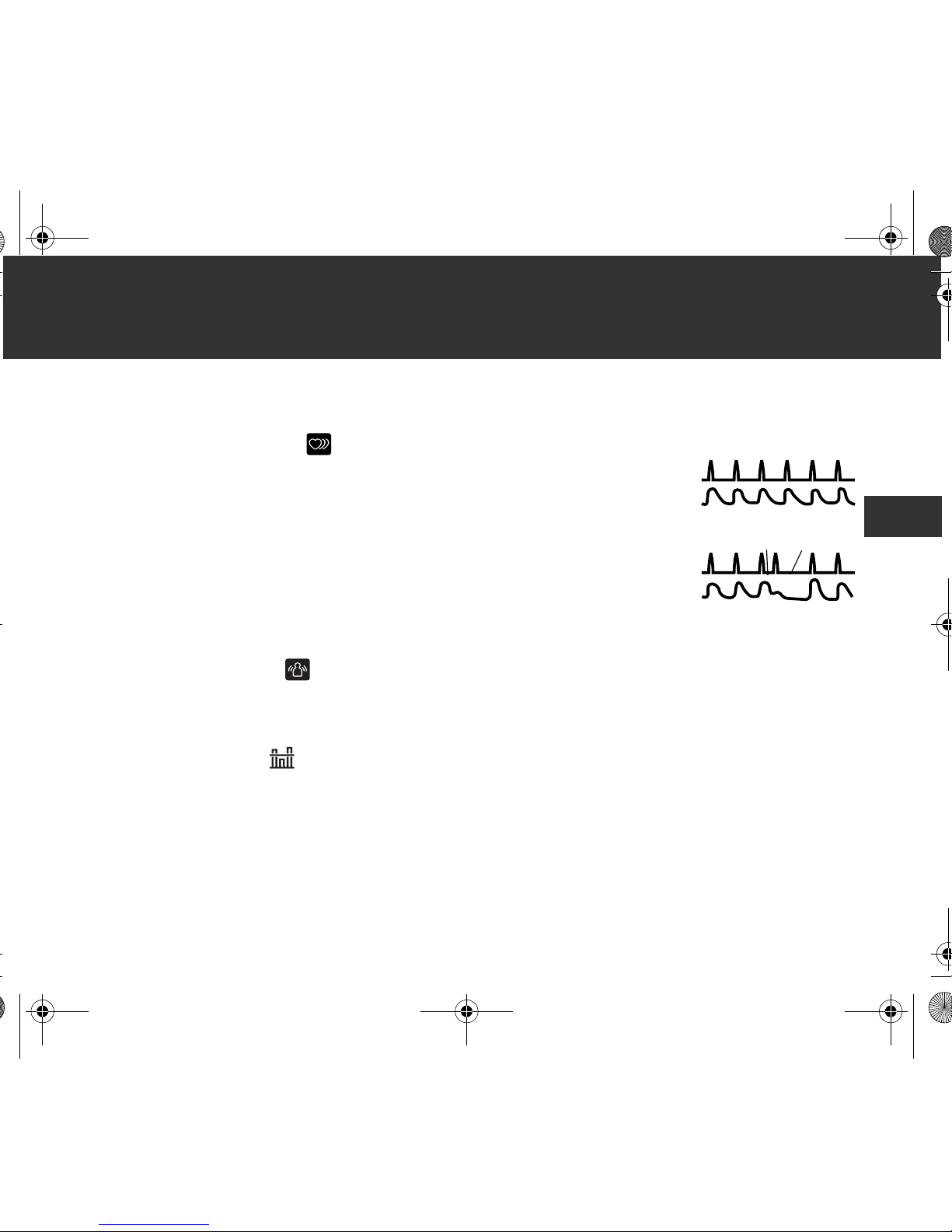

When the monitor detects an irregular rhythm two or more times during the
measurement, the irregular heartbeat symbol will appear on the display with
the measurement values.
An irregular heartbeat rhythm is defined as a rhythm that is 25% less or 25%
more than the average rhythm detected while the monitor is measuring the
systolic and diastolic blood pressure.
If the irregular heartbeat symbol displays with your measurement results, we
recommend you consult your physician. Follow the directions
of your physician.
Movement Error Symbol ( )
The movement error symbol is displayed if you move your body during the measurement. Please remove the arm
cuff, and wait 2-3 minutes. Take another measurement, remain still during measurement.
Average Value Symbol ( )
The average value symbol is displayed when you press and hold the memory button for more than 3 seconds. The
most recent average value appears on the display screen.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood pressure
Blood pressure
Short Long
Pulse
HEM-7320T-Z_A_M.book Page 5 Wednesday, May 7, 2014 4:38 PM

6
1. Know Your Device
Blood Pressure Color Indicator

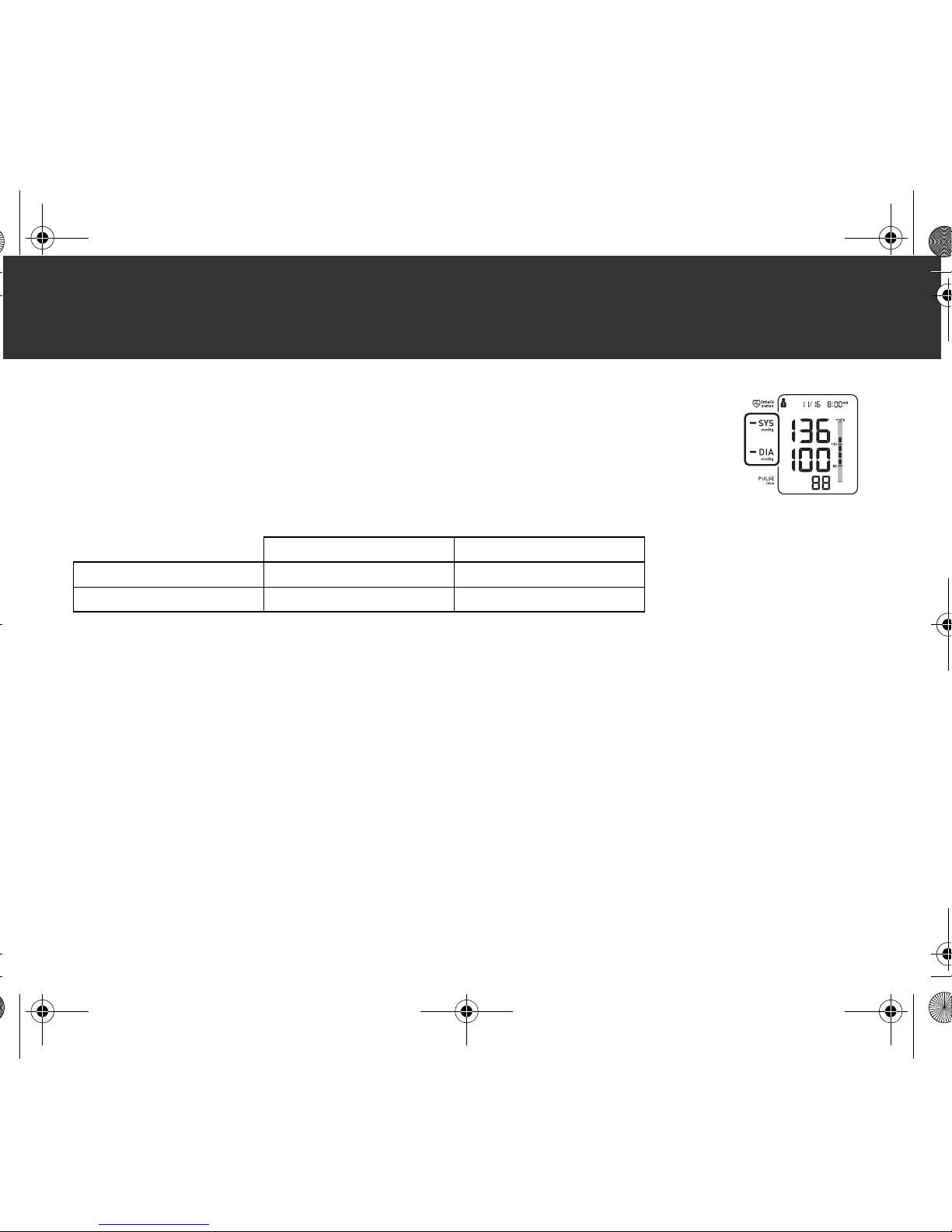

If your Systolic Blood Pressure is 135 mmHg or above and/or the Diastolic Blood Pressure
is 85 mmHg or above, the blood pressure color indicator will light in “orange” when the
measurement result is displayed. If the measurements are within the standard range, the
blood pressure color indicator will light in “green”.
2013 ESH/ESC Guidelines for the management of arterial hypertension
Definitions of hypertension by office and home blood pressure levels
These are from statistical values for blood pressure.
1.2 Before Taking a Measurement
To help ensure an accurate reading, follow these directions:
1. Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for 30 minutes before taking a
measurement. Rest for at least 15 minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit on a chair with your feet flat on the floor. Rest your arm on a table so that the arm cuff is at the same level as
your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not
provide an accurate indication of your true blood pressure. You need to take and record several readings over a
period of time. Try to measure your blood pressure at the same time each day for consistency.
Office Home
Systolic Blood Pressure ≥140 mmHg ≥135 mmHg
Diastolic Blood Pressure ≥90 mmHg ≥85 mmHg
HEM-7320T-Z_A_M.book Page 6 Wednesday, May 7, 2014 4:38 PM

7
EN
2. Preparation
2.1 Battery Installation
1. Remove the battery cover.
2. Insert 4 “AA” batteries as
indicated in the battery
compartment.
3. Replace the battery cover.
Notes:
• When the low battery symbol ( ) appears on the display, turn the monitor off, then replace all batteries
at the same time. Long life alkaline batteries are recommended.
• The measurement values continue to be stored in memory even after the batteries are replaced.
• Dispose of the device, components and optional accessories according to applicable local regulations.
Unlawful disposal may cause environmental pollution.
HEM-7320T-Z_A_M.book Page 7 Wednesday, May 7, 2014 4:38 PM

8
2. Preparation
2.2 Setting the Date and Time
Set the monitor to the correct date and time before taking a measurement for the first time.

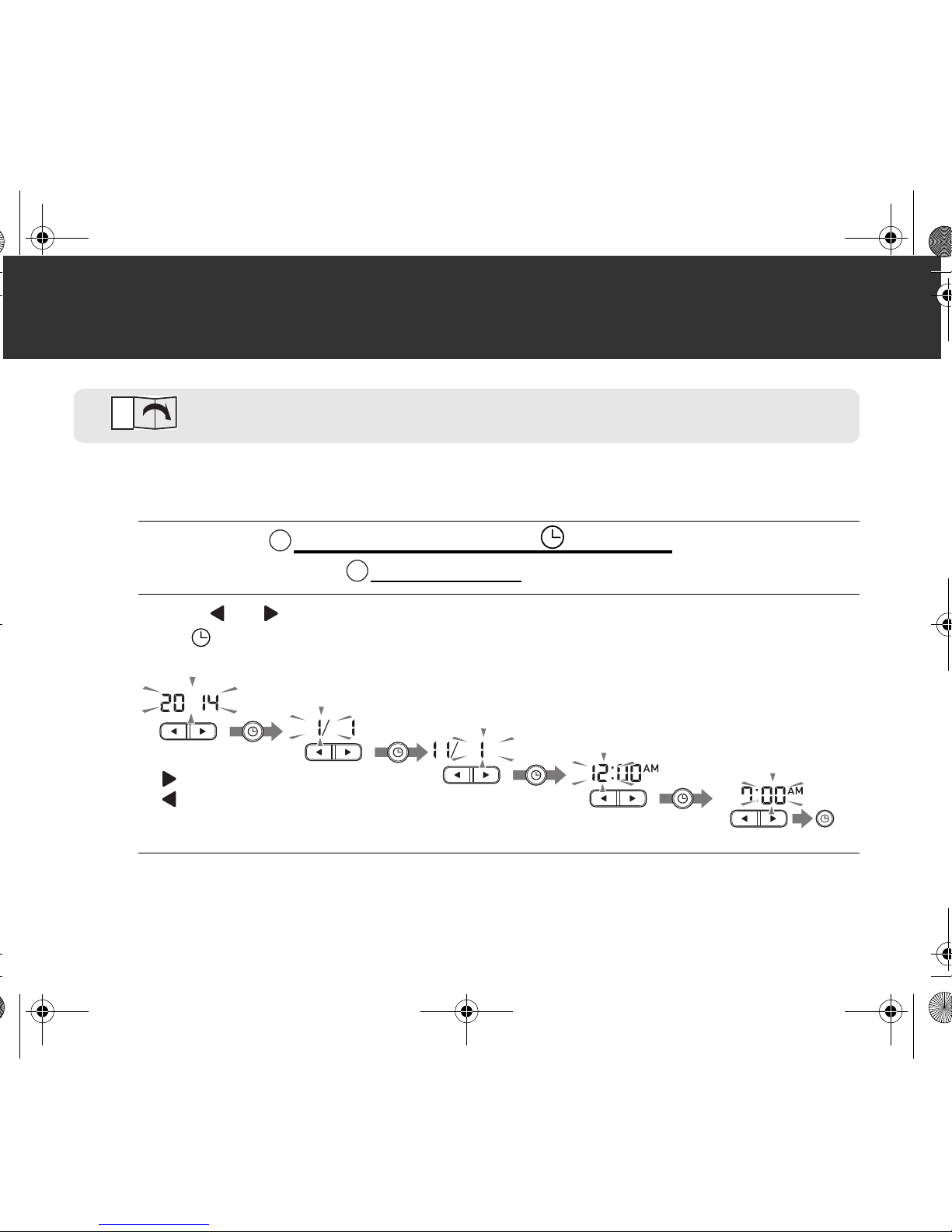

1. Press the Date/Time setting ( ) button twice.
The year flashes on the Date/Time display.
2. Push or button to change the year.
Push button to confirm the year and then the month flashes. Repeat the same
steps to change the month, day, hour, and minute.
3. Press the START/STOP button to turn the monitor off.
Notes:
• If the batteries have been replaced, the date and time setting will need to be reset.

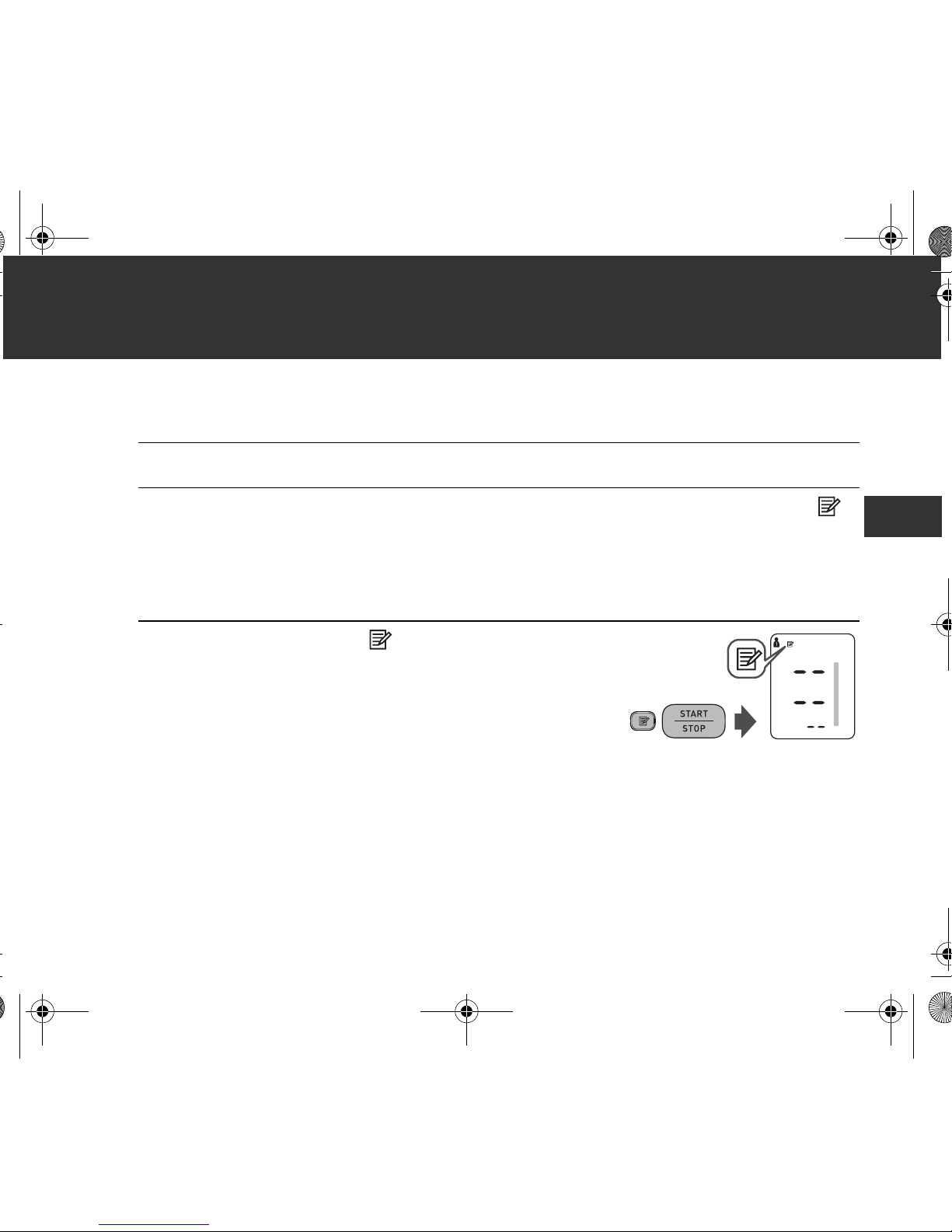

• If the date and time are not set, “-/ - -:--” appears during or after measurement.
Open the rear cover page to read the following:
The letter identifiers on the rear cover page correspond to those in the body of this page.
C
W
Year
Month
Day Hour
Minute
Change Confirm
Change Confirm
Change Confirm
Change Confirm
Change Confirm
: Forward
: Back
HEM-7320T-Z_A_M.book Page 8 Wednesday, May 7, 2014 4:38 PM

9
EN
3. Using the Device
3.1 Applying the Arm Cuff
Remove tight-fitting clothing or tight rolled up sleeve from your left upper arm.
Do not place the arm cuff over thick clothes.
1. Insert the air plug into the air jack securely.
2. Apply the arm cuff to your left upper arm.
The bottom edge of the arm cuff should be 1/2 inch (1 to 2 cm) above the elbow.
Air tube is on the inside of your arm and aligned with your middle finger.
3. Secure closed with the fabric fastener.
Notes:
• When you take a measurement on the right arm, the air tube will be at the side of your elbow. Be careful
not to rest your arm on the air tube. ---
• The blood pressure can differ between the right arm and the left arm, and the measured blood pressure
values can be different. OMRON recommends to always use the same arm for measurement. If the
values between both arms differ substantially, please check with your physician which arm to use for your
measurements.
Open both the front and rear covers to read the following:
The letter identifiers on the cover page correspond to those in the body of this page.
L
A
a
M
b
HEM-7320T-Z_A_M.book Page 9 Wednesday, May 7, 2014 4:38 PM

10
3. Using the Device
3.2 How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under
comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking,
exercising or eating 30 minutes before taking a measurement.
• Sit on a chair with your feet flat on the floor.
• Sit upright with your back straight. ---
• Sit with your back and arm being supported.
• The arm cuff should be placed on your arm at the same level as your heart. ---
c
d
HEM-7320T-Z_A_M.book Page 10 Wednesday, May 7, 2014 4:38 PM

11
3. Using the Device
EN
3.3 Taking a Measurement
Notes:
• To stop a measurement, press the START/STOP button once to deflate the arm cuff.
• Remain still and quiet while taking a measurement.
The monitor is designed to take measurements and store the measurement values in
the memory for 2 people using USER ID 1 and USER ID 2.

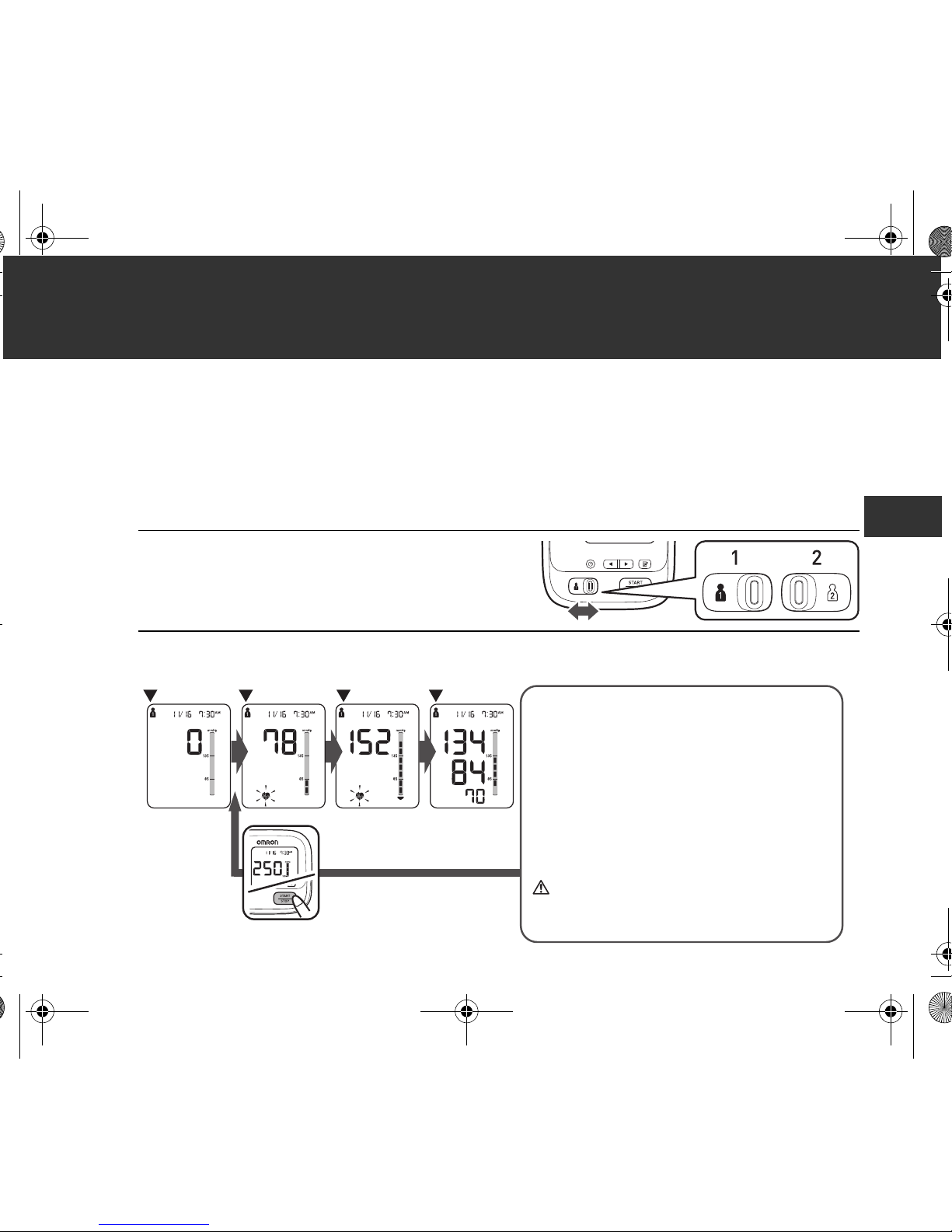

1. Select your USER ID (1 or 2).
2. Press the START/STOP button.
The arm cuff starts to inflate automatically.
If your systolic pressure is
more than 210 mmHg
After the arm cuff starts to inflate, press and
hold the START/STOP button until the
monitor inflates 30 to 40 mmHg higher than
your expected systolic pressure.
Notes:
• The monitor will not inflate above 299 mmHg.
Inflating to a higher pressure than
necessary may result in bruising where
the arm cuff is applied.
START INFLATE DEFLATE COMPLETE
HEM-7320T-Z_A_M.book Page 11 Wednesday, May 7, 2014 4:38 PM

12
3. Using the Device
3. Remove the arm cuff.
4. Press the START/STOP button to turn the monitor off.
The monitor automatically stores the measurement result in its memory.
It will automatically turn off after 2 minutes.
Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the
arteries to return to the condition prior to taking a measurement.
Using the Guest Mode
The monitor stores measurement values for 2 users in the memory. The guest mode
can be used to take a single measurement for another user. No measurement values
are stored in the memory when the guest mode is selected.
1. Press and hold the START/STOP
button for more than 3 seconds.
The USER ID symbol and the Date/Time display will disappear.
2. Release the START/STOP button when the Date/Time
display turns off.
The arm cuff will start to inflate automatically.
HEM-7320T-Z_A_M.book Page 12 Wednesday, May 7, 2014 4:38 PM

13
3. Using the Device
EN
DO NOT adjust medication based on measurement results from this blood pressure monitor. Take
medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High
Blood Pressure.
This monitor is not intended to be a diagnostic device.
Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
Read "If your systolic pressure is more than 210 mmHg" (page11) of this instruction manual, if your
systolic pressure is known to be more than 210 mmHg. Inflating to a higher pressure than necessary
may result in bruising where the cuff is applied.
HEM-7320T-Z_A_M.book Page 13 Wednesday, May 7, 2014 4:38 PM

14
3. Using the Device
3.4 Using the Memory Function
The monitor automatically stores the results up to 60 sets for each user (1 and 2).
It can also calculate an average value based on the last 3 measurement values taken
within 10 minutes.
Notes:
• If there are only 2 measurement values in the memory for that period, the average will be based on these
2 values.
• If there is 1 measurement value in the memory for that period, this is displayed as the average.
• If the memory is full, the monitor will delete the oldest value.
• When viewing the measurement value taken without setting the date and time, “-/ - -:--” is displayed
instead of the date and time.

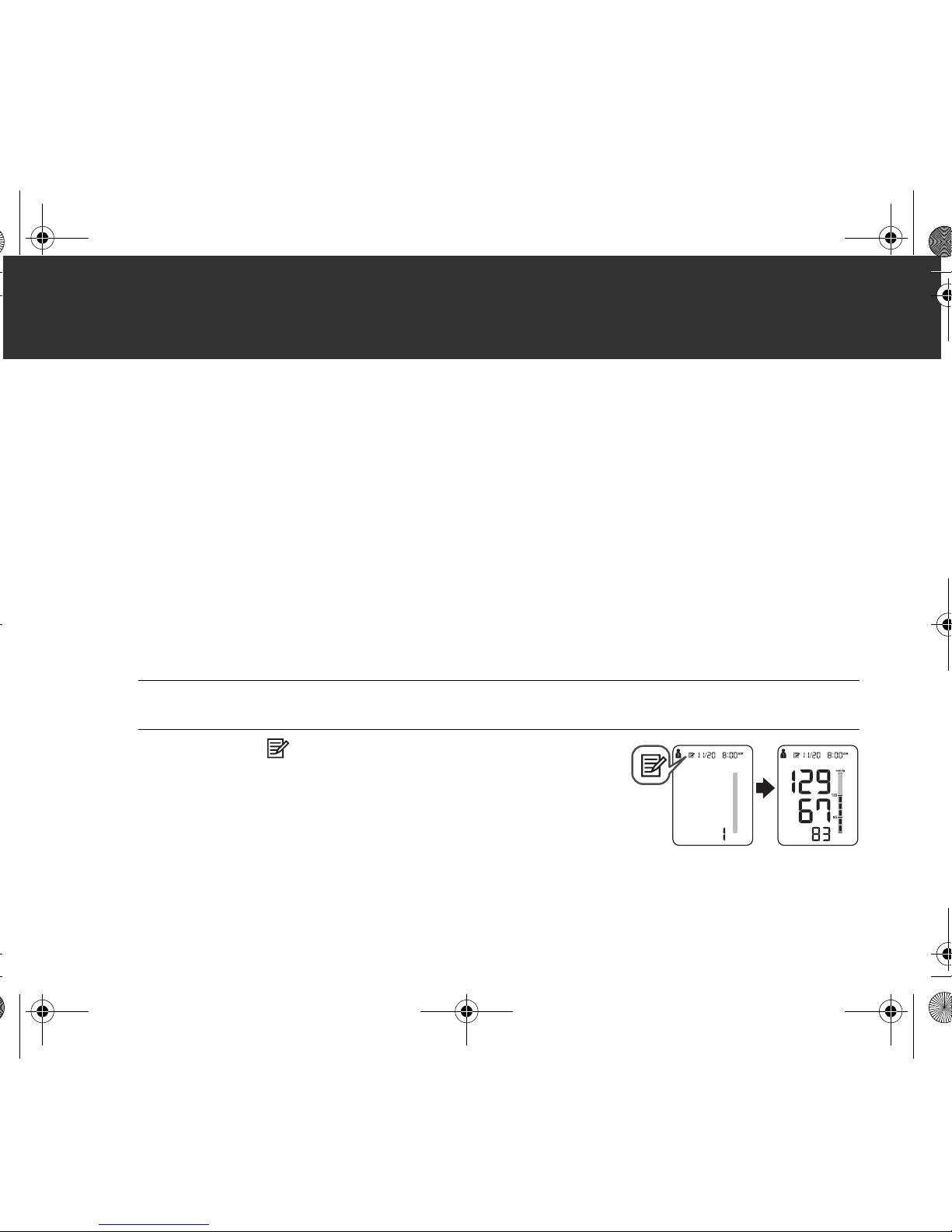

To View the Measurement Values Stored in Memory
1. Select your USER ID (1 or 2).
2. Press the button.
The Memory number appears for a second before the
pulse rate is displayed. The newest set is numbered “1”.
HEM-7320T-Z_A_M.book Page 14 Wednesday, May 7, 2014 4:38 PM

15
3. Using the Device
EN
3. Press the or button to view the values stored in the
memory.
: To view the older values
: To view the more recent values
To View the Average Value
1. Select your USER ID (1 or 2).
2. Press and hold the button for more
than 3 seconds.
Notes:
• If the previous measurement was taken without setting the date and time,
the average value is not calculated.
• If there are no measurement values stored in the memory, the screen to
the right is displayed.
HEM-7320T-Z_A_M.book Page 15 Wednesday, May 7, 2014 4:38 PM

16
3. Using the Device

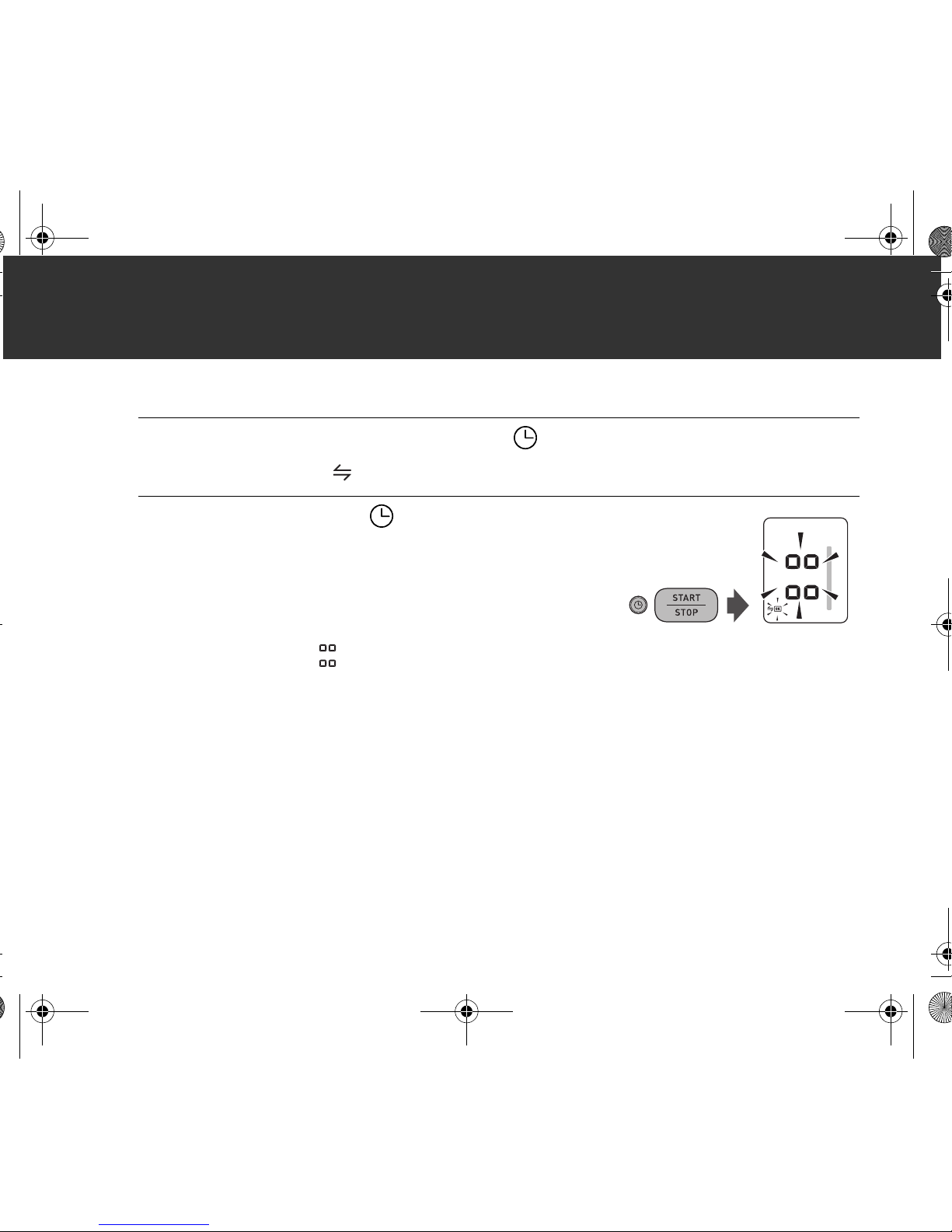

To Pair This Device With a Smartphone
To begin using the OMRON Wellness software for the first time, please visit
www.omronwellness.com for the initial set-up instructions.
1. Download and install onto your smartphone, the free
"Omron Wellness" APP.
2. Open the App on your smartphone and follow set-up and
pairing instructions.
3. Press the Date/Time setting ( ) button.
The transfer indicator ( ) will appear on the display.
HEM-7320T-Z_A_M.book Page 16 Wednesday, May 7, 2014 4:38 PM

17
3. Using the Device
EN

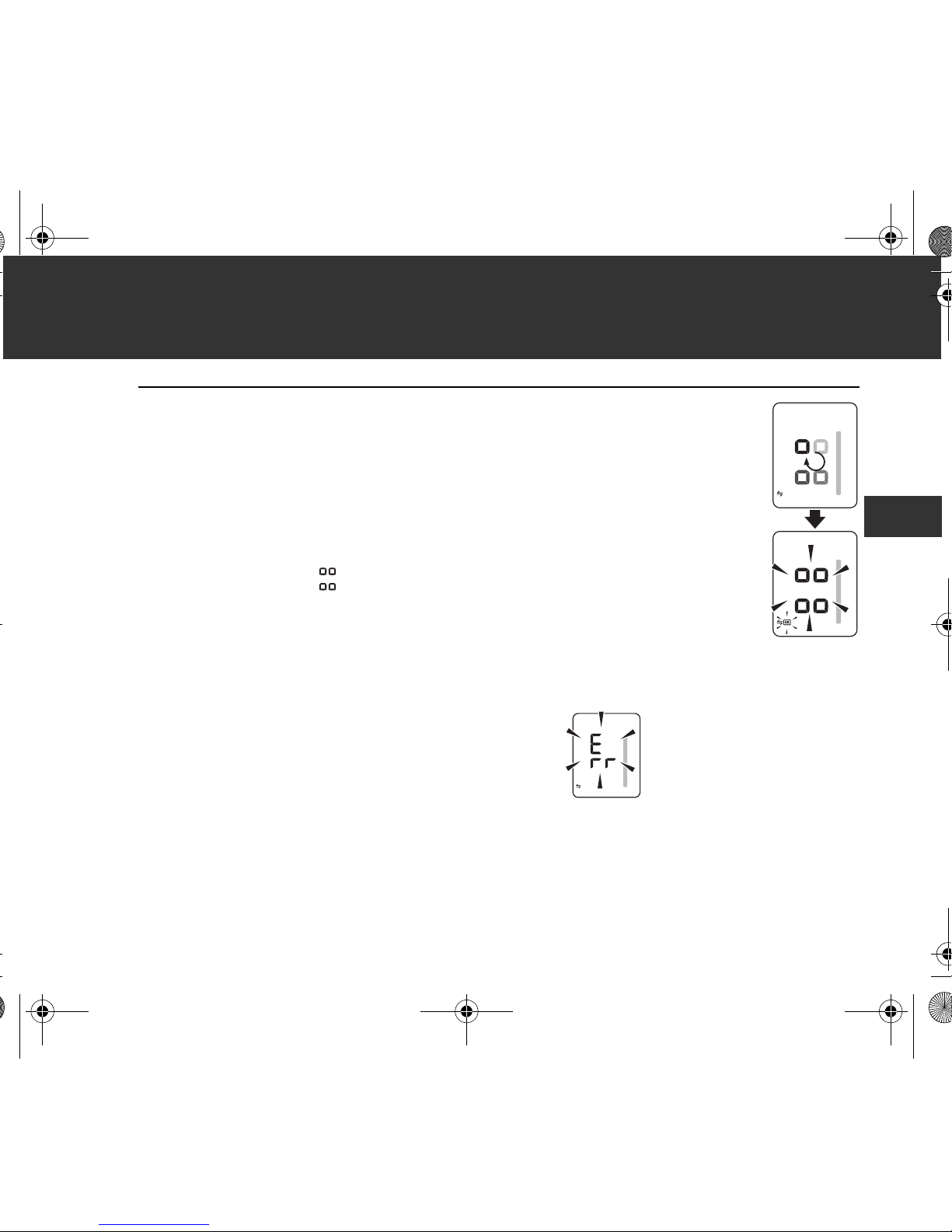

4. Open the App on your smartphone and follow the
device pairing instructions shown on your
smartphone, while the transfer indicator is
flashing on the display.
The OK symbol and will flash when pairing is completed.
Any readings currently saved in the blood pressure monitor's memory will
automatically be transfered to the Omron Wellness App after successful
completion of the pairing process.
Notes:
• If pairing has failed, the screen to the right is displayed.
• You can pair up to 2 destination devices with the monitor.
• The monitor will automatically turn off after 10 seconds.
HEM-7320T-Z_A_M.book Page 17 Wednesday, May 7, 2014 4:38 PM

18
3. Using the Device
To Unpair Your Device
1. Press the Date/Time setting ( ) button.
The transfer indicator ( ) will appear on the display.
2. While holding the button down,
press the START/STOP button for
more than 2 seconds.
The OK symbol and will flash if your device has been unpaired.
Notes:
• Unpairing your device will not delete the information in the phone app.
• The monitor will automatically turn off after 10 seconds.
• If you re-pair your smartphone to your blood pressure monitor, all prior reading history stored on the
mobile App will be retained and all readings currently stored on the blood pressure monitor will be added
to the mobile App.
HEM-7320T-Z_A_M.book Page 18 Wednesday, May 7, 2014 4:38 PM

19
3. Using the Device
EN
To Delete All the Values Stored in Memory
The values stored in the memory are deleted by USER ID.
1. Select your USER ID (1 or 2).
2. Press the Memory button, while the memory symbol ( )
appears.
3. While holding the button down,
press the START/STOP button for
more than 3 seconds.
Note: You cannot partially delete the values stored in the memory.
All values for the user you select will be deleted.
HEM-7320T-Z_A_M.book Page 19 Wednesday, May 7, 2014 4:38 PM
