Omron Hem-8711 User manual

Automatic Blood Pressure Monitor

HEM-8711

LCD Digital Display

Oscillometric method

Pressure: 0 to 299 mmHg

Pulse: 40 to 180 beats/min.

14 Measurements

Pressure: ±3 mmHg

Pulse: ±5% of display reading

Automatic by electric pump

Automatic pressure release valve

DC6V 4W

4 “AAA” batteries 1.5V or AC adapter (optional)

Capacity of new alkaline batteries is approximately

300 measurements

= Type B

Internally powered ME equipment

(When using only the batteries)

= Class II ME equipment

(Optional AC adapter)

10°C to 40°C/ 30 to 85% RH

-20°C to 60°C/ 10 to 95% RH/ 700-1060 hPa

Approximately 245 g without batteries

Approximately 120 g

Approximately

104 (w) mm × 64 (h) mm × 128 (l) mm

Approximately 146 mm × 446 mm

(Medium cuff: arm circumference 22 to 32 cm)

Main unit, Medium cuff, Instruction manual, Battery

set

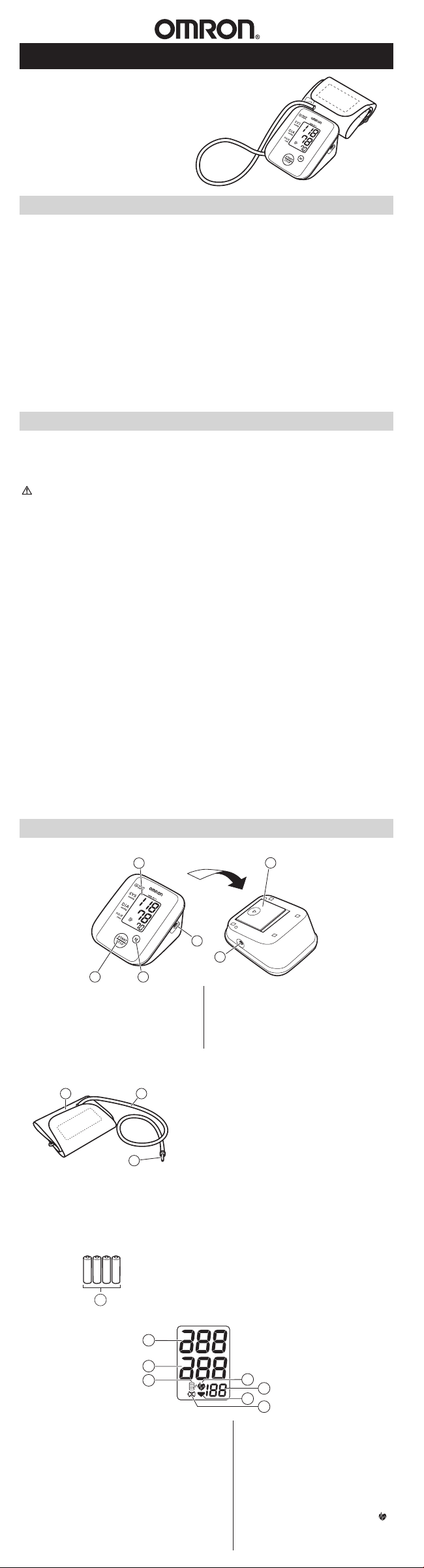

Instruction Manual

Introduction

Important Safety Information

1. Overview

Automatic

Blood Pressure Monitor

Model HEM-8711

Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia

or arteriosclerosis.

You should never change the dosage of medication prescribed by your doctor.

Caution:

• Do not leave the unit unattended with infants or persons who cannot express

their consent.

• People with severe blood flow problems, or blood disorders, should consult

a doctor before using the unit. Cuff inflation may cause internal bleeding.

• If battery fluid should get in your eyes, immediately rinse with plenty of clean

water. Consult a doctor immediately.

• Do not use the unit for any purpose other than measuring blood pressure.

• Do not use a cellular phone near the unit. This may result in incorrect

operation of the unit.

• Do not operate the unit in a moving vehicle (car, airplane).

• Do not apply strong shocks and vibrations to or drop the main unit and arm

cuff.

• Please observe the following points.

- Do not insert the batteries with their polarities incorrectly aligned.

- Replace old batteries with new ones immediately.

- When you are not going to use the unit for a long period of time

(approximately three months or more), take out the batteries.

- Do not use new and used batteries together.

- Do not use batteries of a different type together.

- Only use four “AAA” alkaline batteries with this unit. Do not use other types of

batteries.

- When using batteries, the battery liquid may leak and damage the main unit.

• Do not force to bend the arm cuff or bend the air tube excessively.

• When removing the air tube, pull on the air plug at the connection with the

main unit not the tube itself.

• Do not inflate the arm cuff when it is not wrapped around your arm.

Arm cuff:

Thank you for purchasing the OMRON HEM-8711 Digital Automatic Blood

Pressure Monitor.

The OMRON HEM-8711 is a fully automatic blood pressure monitor, operating

on the oscillometric principle. It measures your blood pressure and pulse rate

simply and quickly.

The unit also stores up to 14 measurements in memory.

Intended Use

This product is designed to measure the blood pressure and pulse rate of

people within the range of the designated arm cuff, following the instructions in

this instruction manual.

It is mainly designed for general household use. Please read the Important

Safety Information in this instruction manual before using the unit.

Please read this instruction manual thoroughly before using the unit. For specific

information about your own blood pressure, CONSULT YOUR DOCTOR.

If air starts to leak from the arm cuff,

please replace with a new one.

Refer to “6. Optional Parts”.

G. Arm cuff

(Medium cuff:

arm circumference 22-32 cm)

H. Air tube

I. Air plug

Note: The optional arm cuff does not

include the air plug. Do not throw

the air plug away in case

purchasing the new one.

Main unit:

A. Display

B. START/STOP button

C. Memory button

D. AC adapter jack

(for optional AC adapter)

E. Battery compartment

F. Air jack

Package contents:

Display:

K. Systolic blood pressure

L. Diastolic blood pressure

M. Memory symbol

(Displayed when viewing

values stored in memory)

N. Heartbeat symbol

1. Flashes during measurement

2. If flashing after measurement

complete indicates blood pressure

out of standard range

O. Pulse display/Memory number

P. Deflation symbol

Q. Battery low symbol

Note: If your systolic or diastolic

pressure is outside the

standard range

(above 135/85 mmHg),

the Heartbeat symbol ( )

will blink. Refer to

“3.2 Taking a Reading”.

J. Four “AAA” alkaline (LR03)

batteries

•Instruction manual

•Blood pressure monitor unit

B C

4. Handling Errors and Problems

4.1 Error Messages

Error Display Cause Remedy

Cuff is under inflated.Carefully read and repeat the

steps listed in “3.3 Instructions

for Special Conditions”.

Movement during

measurement.

Repeat measurement. Remain

still and do not talk during

measurement.

Air plug disconnected.

Insert the air plug securely.

Refer to “3.1 Applying the Arm

Cuff”.

Arm cuff not applied

correctly.

Apply the arm cuff correctly.

Refer to “3.1 Applying the Arm

Cuff”.

Clothing is interfering

with the arm cuff.

Remove any clothing

interfering with the arm cuff.

Air is leaking from the

arm cuff. Replace cuff with new one.

Arm cuff has been

inflated above

299 mmHg.

Do not inflate the arm cuff

above 299 mmHg.

Refer to “3.3 Instructions for

Special Conditions”.

Battery power is low.

Replace all four “AAA”

batteries with new ones.

Refer to “2.1 Installing/

Replacing the Batteries”.

Device error. Contact your OMRON retail

outlet or distributor.

Blinks or appears

continuously

Arm cuff pressure

does not rise.

Is the air jack

securely inserted into

the main unit?

Make sure that the air

jack is connected

securely.

Refer to “3.1 Applying

the Arm Cuff”.

Air is leaking from the

arm cuff.

Replace the arm cuff

with a new one.

Arm cuff deflates too

soon. The arm cuff is loose.

Apply the cuff correctly

so that it is firmly

wrapped around the

arm.

Refer to “3.1 Applying

the Arm Cuff”.

Cannot measure or

readings are too low

or too high.

Has the arm cuff

been inflated

sufficiently?

Inflate the cuff so that it

is 30 to 40 mmHg

above your previous

measurement result.

Refer to “3.3 Instructions

for Special Conditions”.

The unit loses power

during measurement.

The batteries are

empty.

Replace the batteries

with new ones.

Nothing happens

when you press the

buttons.

The batteries are

empty.

Replace the batteries

with new ones.

The batteries have

been inserted

incorrectly.

Insert the batteries with

the correct (+/ -)

polarity.

4.2 Troubleshooting

Problem CauseRemedy

The reading is

extremely low (or

high).

Arm cuff not applied

correctly.

Apply the arm cuff

correctly.

Refer to “3.1 Applying

the Arm Cuff”.

Movement or talking

during measurement.

Remain still and do not

talk during

measurement.

Clothing is interfering

with the arm cuff.

Remove any clothing

interfering with the arm

cuff.

Other problems.

Press the START/STOP button and repeat

measurement.

If the problem continues, try replacing the

batteries with new ones.

If this still does not solve the problem, contact

your OMRON retail outlet or distributor.

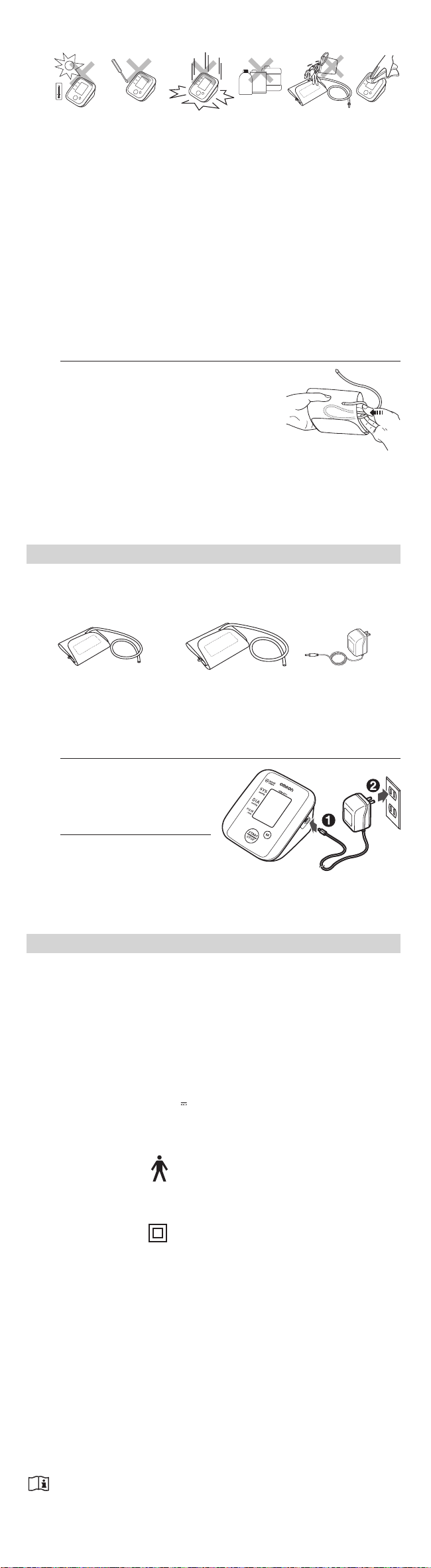

5. Maintenance and Storage

Maintenance

To protect your unit from damage, please observe the following:

• Do not subject the main unit and cuff to extreme

temperatures, humidity, moisture or direct sunlight.

• Do not fold the cuff or tubing tightly.

• Do not inflate the arm cuff over 299 mmHg.

• Do not disassemble the unit.

• Do not subject the unit to strong shocks or vibrations

(for example, dropping the unit on the floor).

• Do not use volatile liquids to clean the main unit.

The unit should be cleaned with a soft, dry cloth.

• Do not wash the arm cuff or immerse it in water.

Important:

• If your systolic or diastolic pressure is outside

the standard range, the heartbeat symbol will

blink when the measurement result is displayed.

Recent research suggests that the following

values can be used as a guide to high blood

pressure for measurements taken at home.

4. Remove the arm cuff.

5. Press the START/STOP button to turn the unit off.

Note: If you forget to turn the unit off, it will automatically shut itself off after

five minutes.

Note: When 14 sets of readings are stored in memory, the oldest set will be

deleted to store a new set.

Note: If there are no measurements results

stored in memory, the screen to the right

is displayed.

Systolic Blood PressureAbove 135 mmHg

Diastolic Blood Pressure Above 85 mmHg

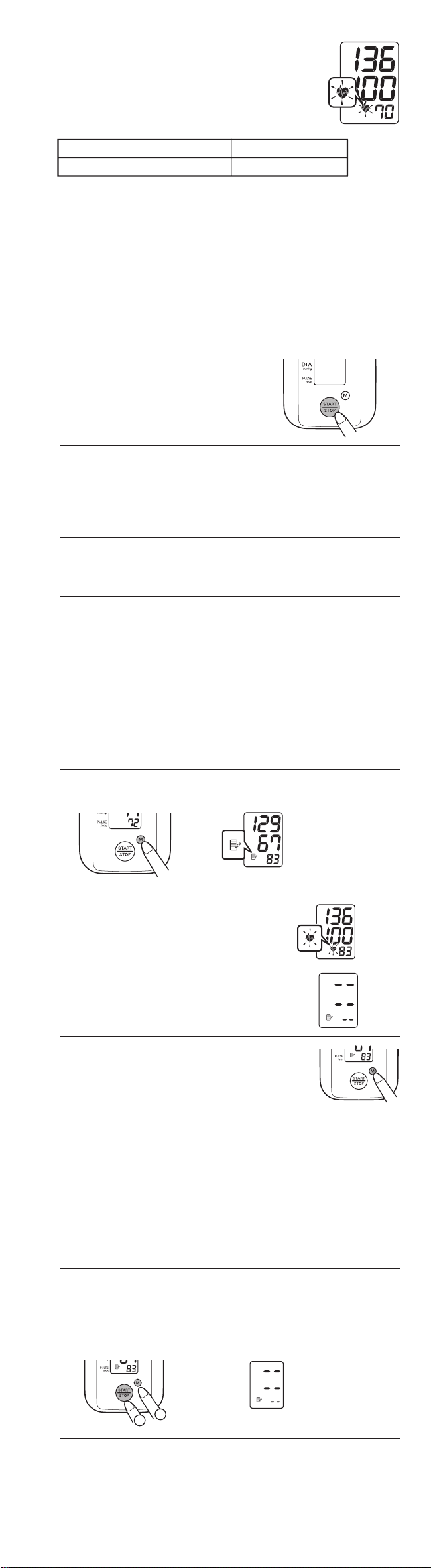

This unit has a memory capable of storing 14 sets of readings. Every

time you complete the measurement, the unit automatically stores the

blood pressure and pulse rate.

If your systolic or diastolic pressure is

outside the standard range, the heartbeat

symbol will blink when the measurement

result is displayed.

Refer to “3.2 Taking a Reading”.

1. Press the Memory (M) button.

The result from the most recent measurement is displayed.

Press the Memory (M) button repeatedly to

cycle through the previous measurement

results.

The Memory number appears for a second

before the pulse rate is displayed.

The newest set is numbered “1”.

3. Press the START/STOP button to turn the unit off.

If you forget to turn the unit off, it will automatically shut

itself off after five minutes.

1. To delete stored readings, first press the Memory (M)

button.

Then while holding it down, press the START/STOP

button simultaneously for about 2-3 seconds. All readings

will then be deleted.

2. Press the START/STOP button to turn the unit off.

If you forget to turn the unit off, it will automatically shut

itself off after five minutes.

If your systolic pressure is known to be more than 140 mmHg, press

and hold the START/STOP button until the arm cuff inflates 30 to

40 mmHg higher than your suspected systolic pressure.

1. Press the START/STOP button

to turn the unit on.

Measurement starts.

3.3 Instructions for Special Conditions

2. When the cuff starts to inflate, press the START/STOP button

and keep it pressed until the pressure is 30 to 40 mmHg

higher than your suspected systolic pressure.

3. Release the START/STOP button when the cuff has been

inflated to the desired pressure.

The cuff starts to deflate and measurement starts.

Note: You cannot inflate the cuff above 299 mmHg. (An error will be displayed

if you try to inflate the cuff above 299 mmHg.)

To Delete All the Values Stored in Memory

You cannot delete individual stored readings, all the

readings in the unit will be deleted.

4. The rest of the procedure is the same as for normal

measurement. Refer to “3.2 Taking a Reading”, steps 3 to 5.

Note: Do not apply more pressure than necessary.

3.4 Using the Memory Function

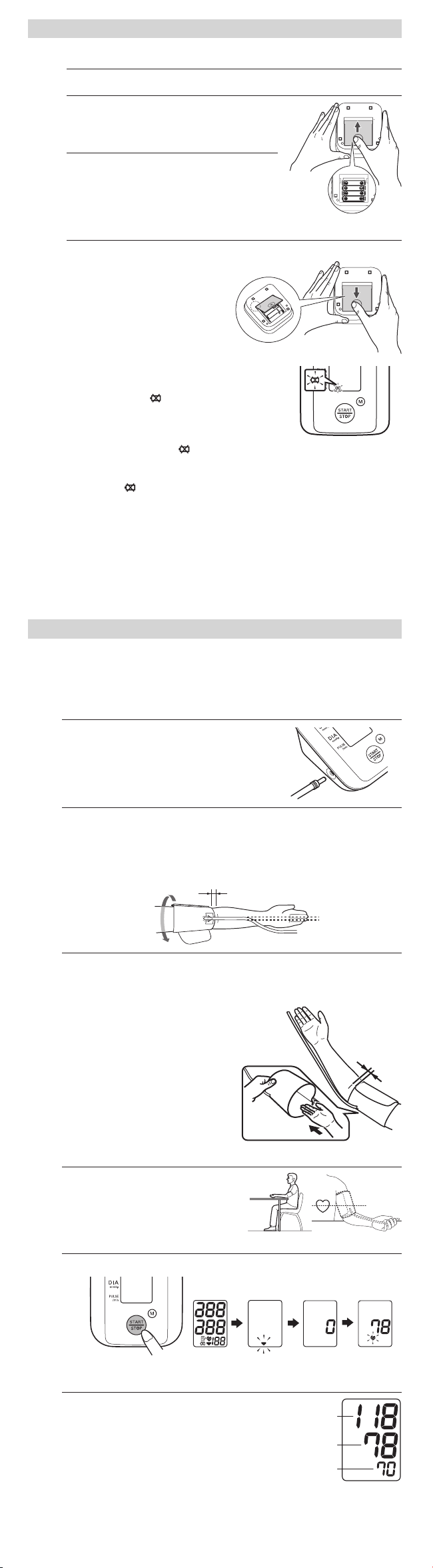

2.1 Installing/Replacing the Batteries

2. Preparation

3. Using the Unit

Be sure to wrap the arm cuff correctly so that you get accurate results.

Measurements can be taken in light clothing. However, please remove

thick clothes, such as sweaters, before taking a reading.

Apply the cuff so that the air tube is

at the side of your elbow.

Notes:

• Be careful not to rest your arm on

the air tube, or otherwise restrict

the flow of air to the cuff.

• The cuff should be 1 to 2 cm above

the elbow.

Note: To cancel a measurement, press the START/STOP button to turn the

unit off and to release the air in the arm cuff.

1 - 2 cm

Taking a Reading on the Right Arm

1. Turn the main unit upside down.

1. Insert the air plug into the air jack

on the left side of the main unit.

Put your left arm through the cuff loop and apply the arm cuff to

your upper arm. The air tube should be centred on the inside of

your arm and point down the inside of the arm, so that the air tube

runs down the inside of your forearm and is in line with your

middle finger.

3. When the cuff is positioned correctly, close the fabric fastener

firmly.

1. Sit on a chair with your feet flat on

the floor and place your arm on a

table so that the arm cuff will be

at the same level as your heart.

Keep still and do not talk during measurement.

2. Press the START/STOP button to turn the unit on.

Check the measurement results.

The unit automatically stores blood

pressure and pulse rate into its memory.

Refer to “3.4 Using the Memory

Function”.

Notes:

• Self-diagnosis of measured results and treatment are dangerous.

Please follow the instructions of your doctor.

• Wait 2-3 minutes before taking another blood pressure reading.

Waiting between readings allows the arteries to return to the condition prior

to taking the blood pressure measurement.

2. Slide the battery cover in the direction

of the arrow while pressing the ribbed

part of the cover.

3. Install or replace four “AAA” size

batteries so that the + (positive)

and - (negative) polarities match

the polarities indicated on the battery

compartment.

4. Put the battery cover back in place.

Slide the battery cover as indicated,

until it clicks into place.

Note: The measurement

values continue to be

stored in memory even

after the batteries are replaced.

1 - 2 cm

Diastolic blood

pressure

Systolic blood

pressure

Pulse display

2.2 Battery Life & Replacement

3.1 Applying the Arm Cuff

3.2 Taking a Reading

- When the battery low symbol ( ) starts to blink, you will still be able to use

the unit for a short while. You should replace the batteries with new ones

ahead of time.

- When the symbol ( ) remains lit, the batteries are exhausted. You should

replace the batteries with new ones at once. Turn the unit off before replacing

the batteries.

Four new “AAA” alkaline batteries will last for approximately 300 measurements,

when used to take two measurements a day.

Since the supplied batteries are for monitoring use only, they may have

a shorter life and not last for 300 measurements.

• Remove the batteries if the unit will not be used for three months or more.

• Dispose of batteries according to applicable local regulations.

If the battery low symbol ( ) appears on the display,

replace all four batteries at the same time.

Using the Optional AC Adapter

Product Description

Model

Display

Measurement Method

Measurement Range

Memory

Accuracy

Inflation

Deflation

Rating

Power Source

Battery life

Applied Part

Protection against

Electric Shock

Operating

Temperature/ Humidity

Storage Temperature/

Humidity/ Air Pressure

Console Weight

Cuff Weight

Outer Dimensions

Cuff Dimensions

Package Content

Notes:

• Subject to technical modification without prior notice.

•

Disposal of this product and used batteries should be carried out in accordance

with the national regulations for the disposal of electronic products.

7. Technical Data

6. Optional Parts

• Do not use petrol, thinners or similar solvents to clean

the arm cuff.

•

Use a soft, moistened cloth and soap to clean the arm cuff.

• Do not carry out repairs of any kind by yourself.

If a defect occurs, consult your OMRON distributor.

Calibration and Service

• The accuracy of this blood pressure monitor has been

carefully tested and is designed for a long service life.

• It is generally recommended to have the unit inspected

every two years to ensure correct functioning and

accuracy. Please consult your authorised OMRON

dealer.

• Do not carry out any repairs yourself. If a defect occurs

or you have doubts about the correct functioning of the

device, consult your authorised OMRON dealer.

Note: Do not bend the air tube excessively.

1. Unplug the air tube from the air jack.

Gently fold the air tube

into the arm cuff.

Storage

Do not store the unit in the following situations:

• If the unit is wet.

• Locations exposed to extreme temperatures, humidity, direct sunlight,

dust or corrosive vapours.

• Locations exposed to vibrations, shocks or where it will be at an angle.

• Locations exposed to chemicals or corrosive vapours.

Medium arm cuff

Arm circumference

22 - 32 cm

Large arm cuff

Arm circumference

32 - 42 cm

AC adapter

1. Insert the AC adapter

plug into the AC adapter

jack on the right side of

the main unit.

2. Plug the AC adapter into

an electrical outlet.

Notes:

• Never plug or unplug the power cord with wet hands.

• Use only the original AC adapter designed for this unit. Use of

unsupported adapters may damage the unit.

To disconnect the AC adapter, unplug the AC adapter from the

electrical outlet first and then immediately remove the AC adapter plug

from the main unit.

1670515-7B

Please read this instruction manual carefully before using the device.

• This device fulfils the provisions of EC directive 93/42/EEC (Medical Device

Directive).

• This blood pressure monitor is designed according to the European Standard

EN1060, Noninvasive sphygmomanometers Part 1: General Requirements

and Part 3: Supplementary requirements for electromechanical blood

pressure measuring systems.

Important information regarding Electro Magnetic Compatibility (EMC)

With the increased number of electronic devices such as PC’s and mobile

(cellular) telephones, medical devices in use may be susceptible to

electromagnetic interference from other devices.

Electromagnetic interference may result in incorrect operation of the medical

device and create a potentially unsafe situation.

Medical devices should also not interfere with other devices.

In order to regulate the requirements for EMC (Electro Magnetic Compatibility)

with the aim to prevent unsafe product situations, the EN60601-1-2:2007

standard has been implemented. This standard defines the levels of immunity to

electromagnetic interferences as well as maximum levels of electromagnetic

emissions for medical devices.

This medical device manufactured by OMRON HEALTHCARE conforms to this

EN60601-1-2:2007 standard for both immunity and emissions.

Nevertheless, special precautions need to be observed:

• Do not use mobile (cellular) telephones and other devices, which generate

strong electrical or electromagnetic fields, near the medical device. This may

result in incorrect operation of the unit and create a potentially unsafe situation.

Recommendation is to keep a minimum distance of 7 m. Verify correct

operation of the device in case the distance is shorter.

Further documentation in accordance with EN60601-1-2:2007 is available at OMRON

HEALTHCARE EUROPE at the address mentioned in this instruction manual.

Documentation is also available at www.omron-healthcare.com.

This marking shown on the product or its literature, indicates that it

should not be disposed of, with other household wastes at the end

of its working life. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please separate

this from other types of wastes and recycle it responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this

product, or their local government office, for details of where and how they can

take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product should not be mixed with other commercial

wastes for disposal.

This product does not contain any hazardous substances.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

Asia Pacific HQ

OMRON HEALTHCARE Co., Ltd.

53, Kunotsubo, Terado-cho, Muko, Kyoto

617-0002 JAPAN

OMRON HEALTHCARE EUROPE B.V.

Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS

OMRON HEALTHCARE SINGAPORE PTE LTD.

438A Alexandra Road, #05-05/08, Alexandra Technopark

Singapore 119967

www.omron-healthcare.com.sg

Production Facility

OMRON HEALTHCARE MANUFACTURING VIETNAM

CO., LTD.

Binh Duong Province, Vietnam

HEM-8711-C1_C_M04_100331.pdf

This OMRON product is manufactured under the strict quality system of

OMRON HEALTHCARE Co., Ltd., Japan. The Core component for OMRON

blood pressure monitors, which is the Pressure Sensor, is produced in Japan

for assembly.
