Omron M2 Compact User manual

Digital Automatic Blood Pressure Monitor
Model M2 Basic
• Instruction Manual
• Gebrauchsanweisung
EN
DE
IM-HEM-7116-E(V)-03-05/2012
5331307-2C
12E1131
HEM-7116-E(V)_EN_DE.book Page 1 Monday, June 18, 2012 4:21 PM

2
Contents
Before using the unit
Introduction..................................................................................3
Important Safety Information......................................................4
1. Overview..................................................................................7
2. Preparation............................................................................10
2.1 Installing/Replacing the Batteries......................................10
Operating instructions
3. Using the Unit........................................................................12

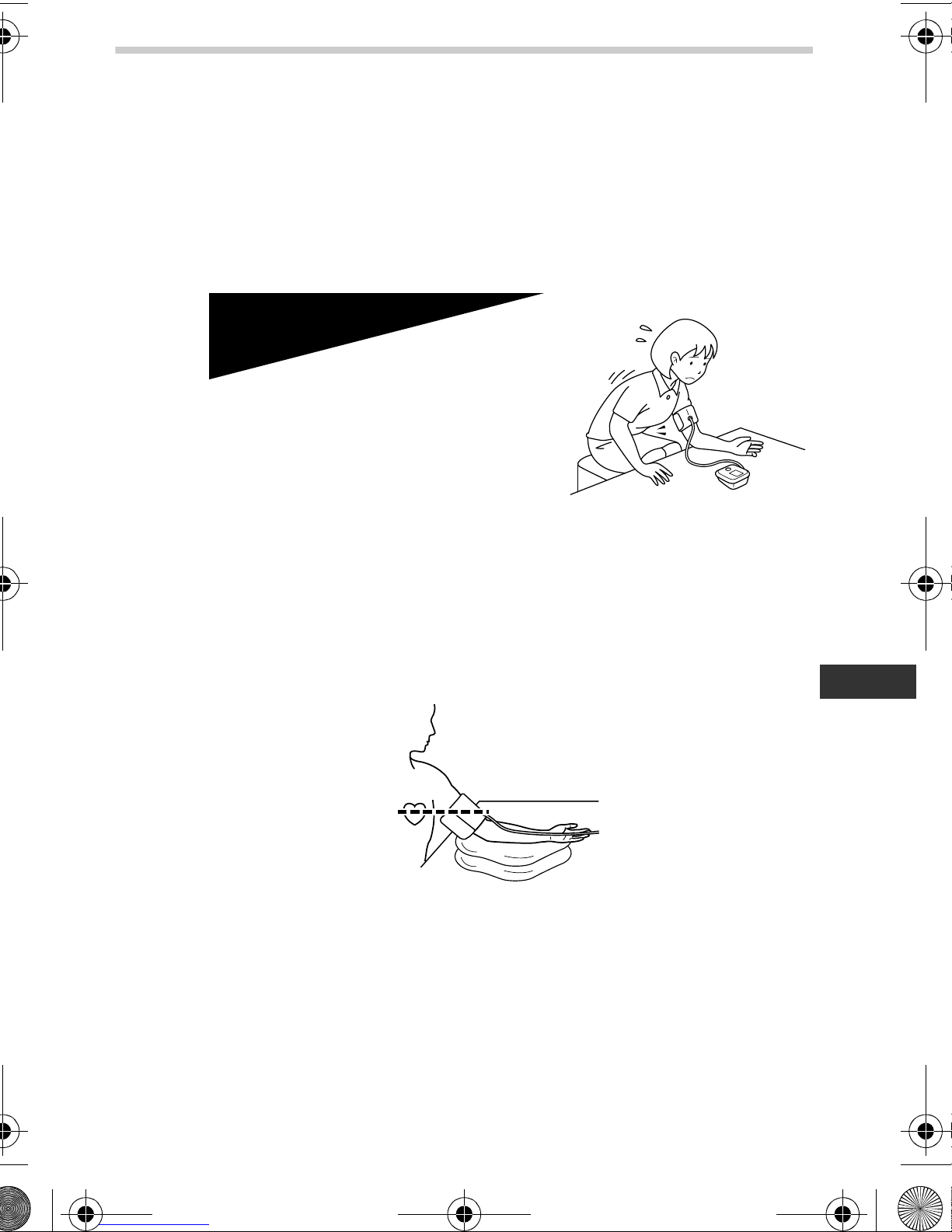

3.1 How to Sit Correctly When Taking a Measurement ..........12
3.2 Applying the Arm Cuff .......................................................14

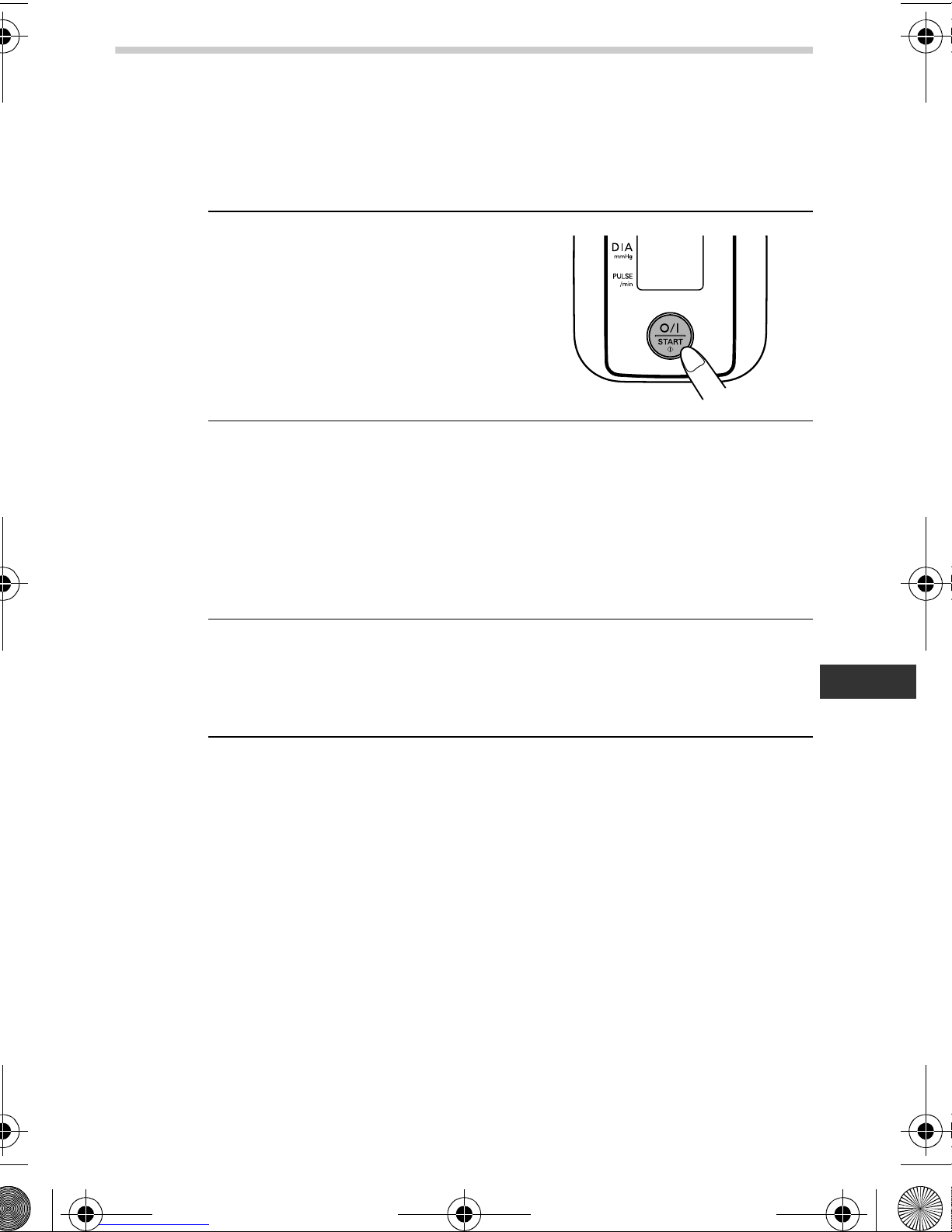

3.3 Taking a Reading..............................................................16
3.4 Instructions for Special Conditions....................................19

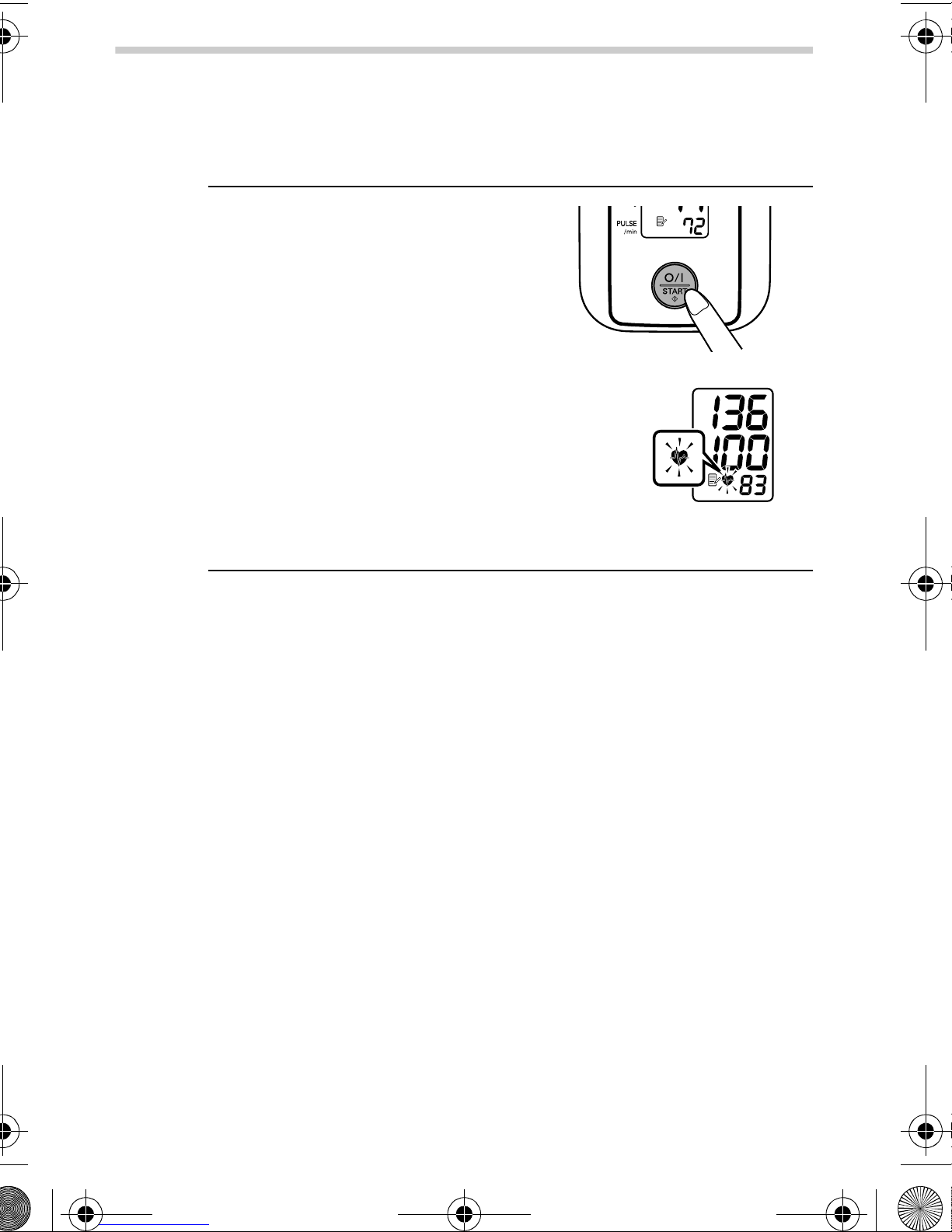

3.5 Using the Memory Function ..............................................20
4. Quick Reference Guide ........................................................22
Care and maintenance
5. Handling Errors and Problems............................................23
5.1 Error Messages.................................................................23
5.2 Troubleshooting ................................................................25
6. Maintenance and Storage ....................................................27
7. Optional Parts .......................................................................29
8. Technical Data.......................................................................30
9. Some Useful Information about Blood Pressure...............32
HEM-7116-E(V)_EN_DE.book Page 2 Monday, June 18, 2012 4:21 PM

3
EN
Introduction
Thank you for purchasing the OMRON M2 Basic Upper Arm Blood
Pressure Monitor.
The OMRON M2 Basic is a fully automatic blood pressure monitor,
operating on the oscillometric principle. It measures your blood
pressure and pulse rate simply and quickly. For comfortable controlled
inflation without the need of pressure pre-setting or re-inflation the
device uses its advanced “IntelliSense” technology.
The unit also stores the last measurement value in memory.
Intended Use
This product is designed to measure the blood pressure and pulse rate
of people within the range of the designated arm cuff, following the
instructions in this instruction manual.
It is mainly designed for general household use. Please read the
Important Safety Information in this instruction manual before using the
unit.
Please read this instruction manual thoroughly before using
the unit. For specific information about your own blood
pressure, CONSULT YOUR DOCTOR.
Before using the unit
HEM-7116-E(V)_EN_DE.book Page 3 Monday, June 18, 2012 4:21 PM

4
Important Safety Information
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with
arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results
and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should
consult a doctor before using the unit, as cuff inflation can cause
internal bleeding.
(AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with
wet hands.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of
clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury to the user or patient or damage to
the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot
express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Do not disassemble the unit or arm cuff.
• Use only the approved arm cuff for this unit. Use of other arm cuffs
may result in incorrect measurement results.
• Make sure that the air tube is not wrapped around other parts of your
body when taking measurements. This could result in injury when the
air pressure in the air tube is increased.
HEM-7116-E(V)_EN_DE.book Page 4 Monday, June 18, 2012 4:21 PM

5
Important Safety Information
EN
• Do not leave the cuff wrapped on the arm if taking measurements
during the night. This could result in injury.
• Do not inflate the arm cuff over 299 mmHg.
• Do not use a mobile phone or other devices that emit electromagnetic
fields, near the unit. This may result in incorrect operation of the unit.
• Do not operate the unit in a moving vehicle (car, airplane).
• To inflate the cuff manually, refer to Chapter 3.4. If the cuff is over
inflated, it can cause internal bleeding.
(AC Adapter Usage)
• Use only the original AC adapter (optional) designed for this unit. Use
of unsupported adapters may damage and/or may be hazardous to
the unit.
• Plug the AC adapter into the appropriate voltage outlet.
• Do not use the AC adapter if the unit or the power cord is damaged.
Turn off the power and unplug the power cord immediately.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.
• Use only four “AAA” alkaline batteries with this unit. Do not use other
types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm
cuff.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with
the main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your arm.
HEM-7116-E(V)_EN_DE.book Page 5 Monday, June 18, 2012 4:21 PM

6
Important Safety Information
• Do not wash the arm cuff or immerse it in water.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.
HEM-7116-E(V)_EN_DE.book Page 6 Monday, June 18, 2012 4:21 PM

7
1.Overview
EN
1. Overview
Main Unit
Arm Cuff
A. Display
B. O/I START button
C. AC adapter jack (for optional
AC adapter)
D. Battery compartment
E. Air jack
F. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
G. Air tube
H. Air plug
A
B
D
E
C
GF
H
HEM-7116-E(V)_EN_DE.book Page 7 Monday, June 18, 2012 4:21 PM

8
1.Overview

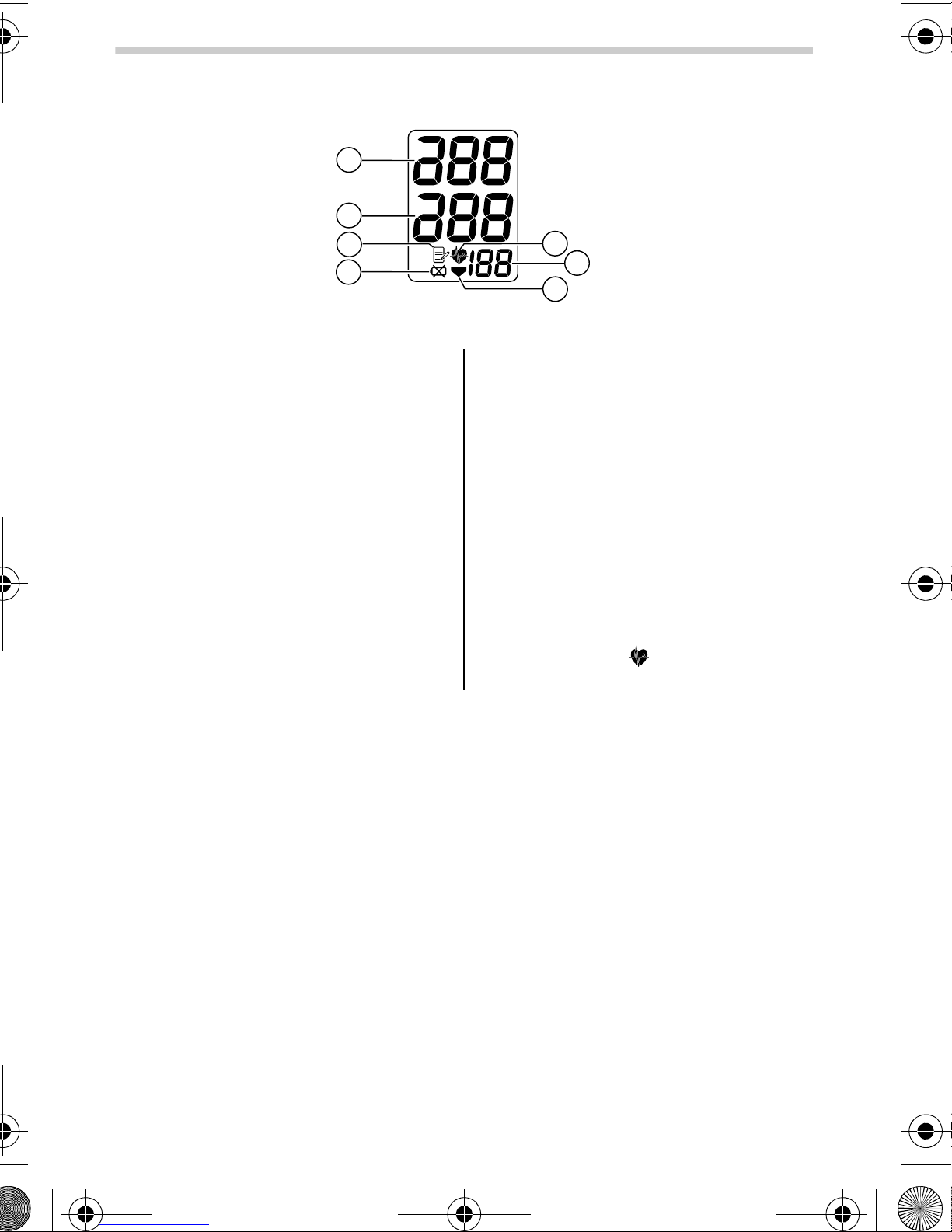

Display
I. Systolic blood pressure
J. Diastolic blood pressure
K. Memory symbol
Displayed when viewing values
stored in memory
L. Battery low symbol
M. Heartbeat symbol
1. Flashes during measurement
2. If flashing after measurement
completed or when viewing
results stored in the memory,
indicates blood pressure out of
recommended range*
N. Pulse display

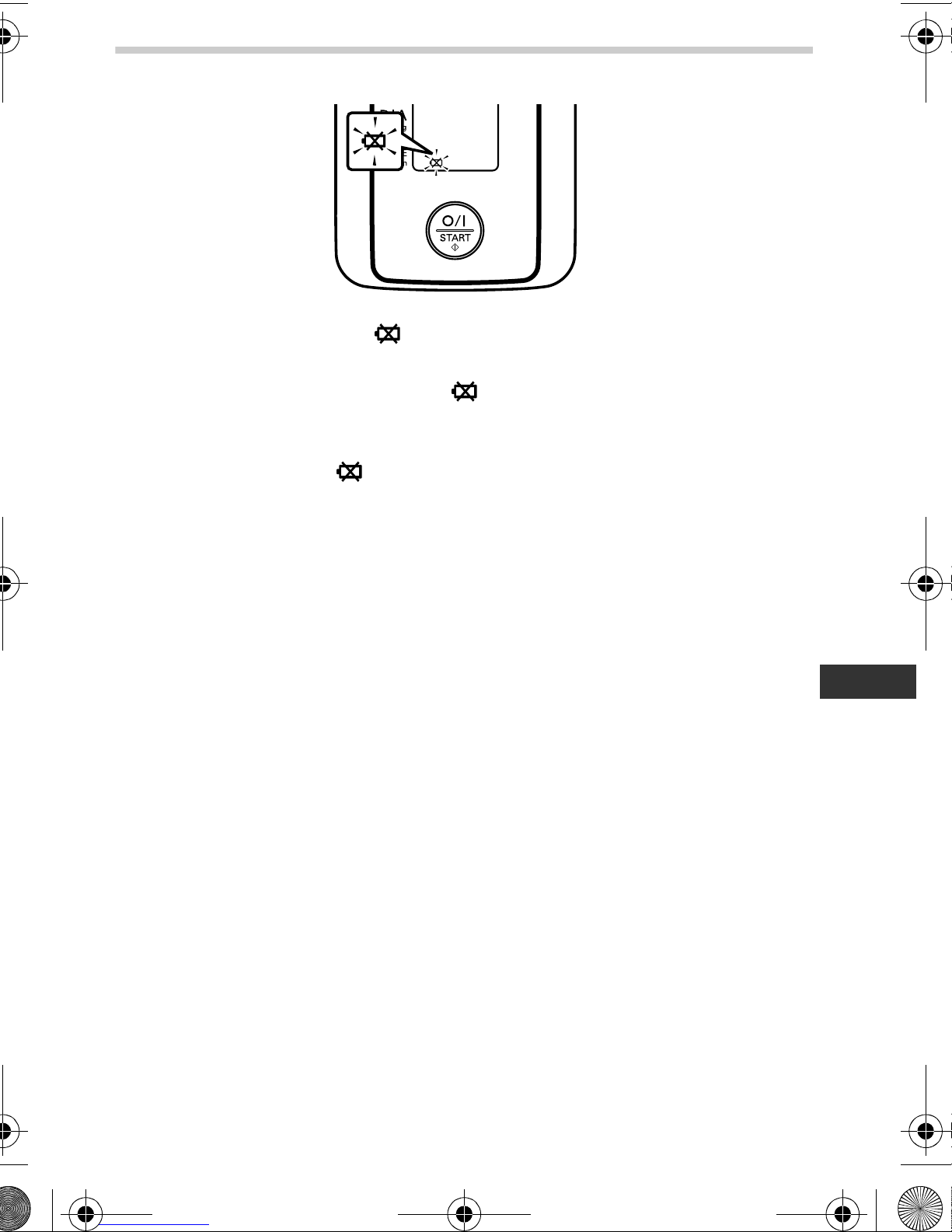

O. Deflation symbol

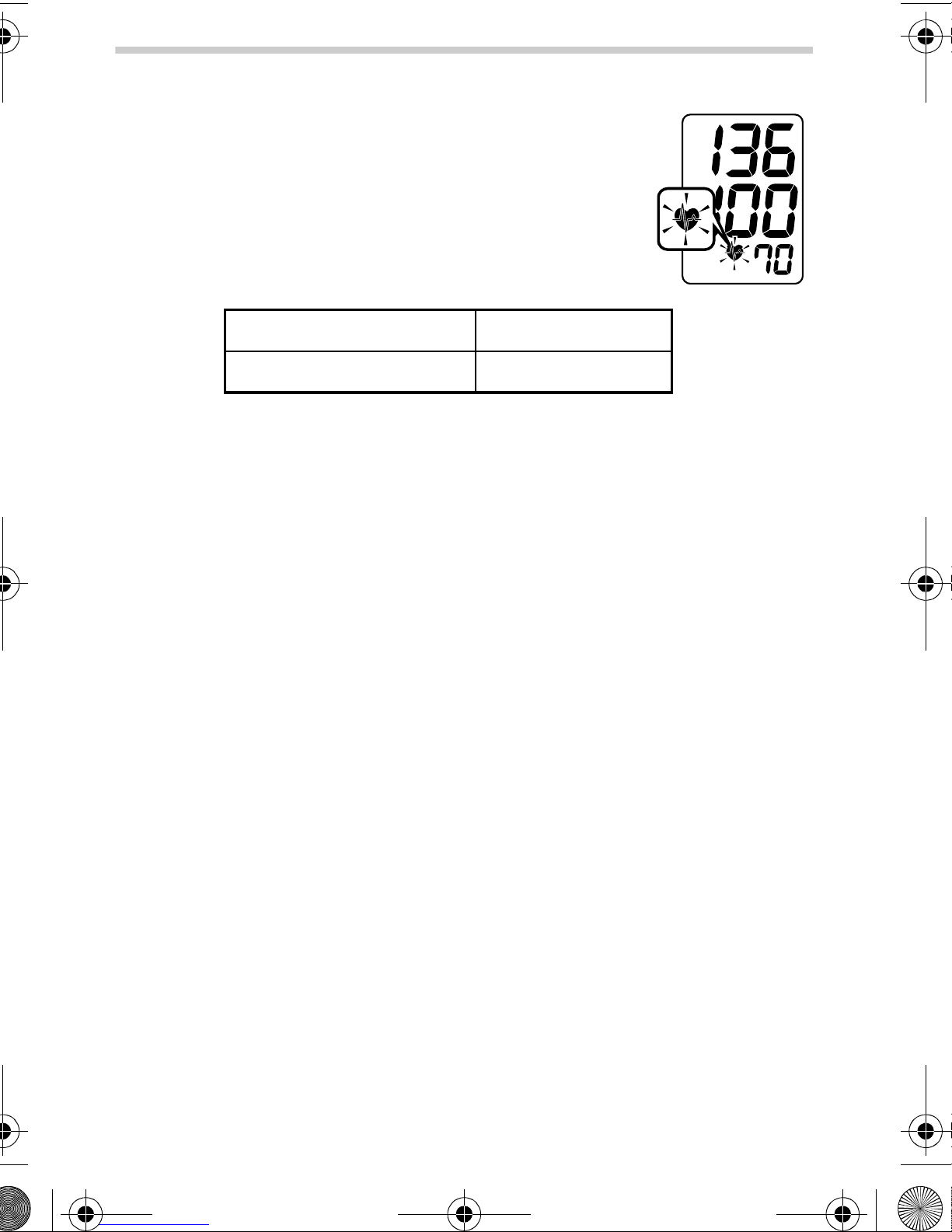

* Note: If your systolic or diastolic
pressure is outside the
standard range (above 135/
85 mmHg) the Heartbeat
symbol ( ) will blink.
Please refer to Chapter 3.3.6.
I
J
L
K
N
M
O
HEM-7116-E(V)_EN_DE.book Page 8 Monday, June 18, 2012 4:21 PM

9
1.Overview
EN
Package Contents (others)
P. Four “AAA” alkaline (LR03)
batteries • Instruction manual
• Guarantee card
• Blood pressure pass
P
HEM-7116-E(V)_EN_DE.book Page 9 Monday, June 18, 2012 4:21 PM

10
2.Preparation
2. Preparation
2.1

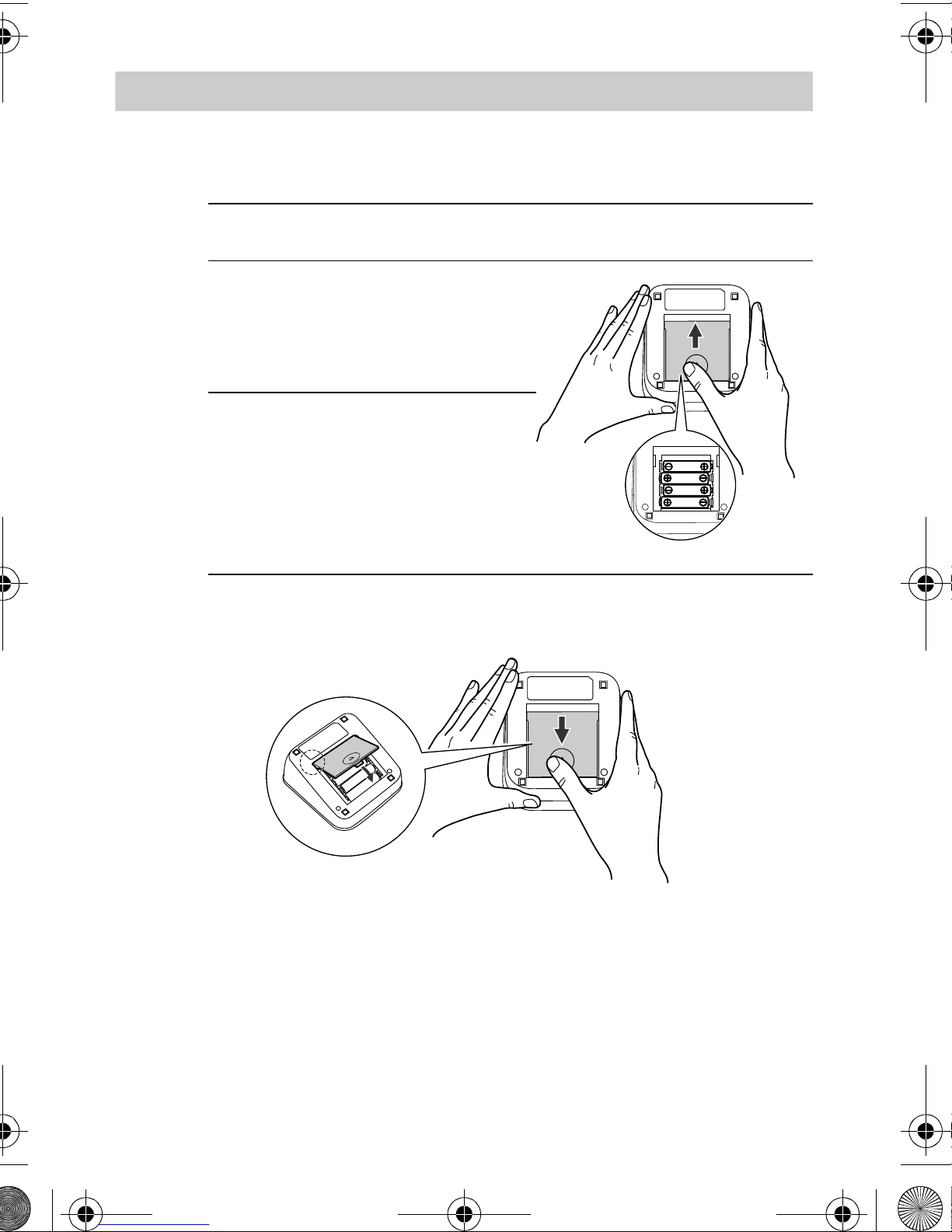

Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AAA”
size batteries so that the
+ (positive) and - (negative)
polarities match the
polarities indicated on the
battery compartment.
4. Put the battery cover back in place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
HEM-7116-E(V)_EN_DE.book Page 10 Monday, June 18, 2012 4:21 PM
