Contents
Thank you for purchasing the OMRON M6 Automatic Blood Pressure Monitor.
The OMRON M6 is a compact, fully automatic blood pressure monitor, operating on the
oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. For
comfortable controlled inflation without the need of pressure pre-setting or re-inflation the
device uses its advanced “IntelliSense” technology.
Intended Use
This product is designed to measure the blood pressure and pulse rate of people within the
range of the designated arm cuff, following the instructions in this instruction manual.
It is mainly designed for general household use. Please read the Important Safety Information
in this instruction manual before using the unit.
Important Safety Information ........................1
1. Overview................................................................. 3
2. Preparation.............................................................4
2.1 Installing/Replacing the Batteries...........4
2.2 Setting the Date and Time .....................5
3. Using the Unit ........................................................ 6
3.1 Applying the Arm Cuff ............................6
3.2 How to Sit Correctly ...............................7
3.3 Taking a Reading ...................................8
3.4 Using the Memory Function .................11
4. Troubleshooting and Maintenance................13
4.1 The Icons and Error Messages ........... 13
4.2 Troubleshooting................................... 15
4.3 Maintenance ........................................ 17
4.4 Storage ................................................ 18
5. Optional Parts...................................................... 19
6. Technical Data.....................................................20
7. Some Useful Information about Blood Pressure ..23
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR
DOCTOR.
21
a
b
J
c
d
F
L
I J K
L
A
B
C
D
E
F
GG
HH
M
N
O
P
Q
R
S
T
U
V
W
Y
Z
X

1
EN
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a doctor before using the unit, as cuff
inflation can cause internal bleeding.
(AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet hands.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user
or patient or damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express their consent.
• Do not use the unit for any purpose other than measuring blood pressure.
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result in incorrect measurement results.
• Make sure that the air tube is not wrapped around other parts of your body when taking measurements at night.
This could result in injury when the air pressure in the air tube is increased.
• Do not leave the cuff wrapped on the arm if taking measurements during the night. This could result in injury.
• Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in
incorrect operation of the unit.
• Do not operate the unit in a moving vehicle (car, airplane).
• To inflate the cuff manually, refer to Section 3.3. If the cuff is over inflated, it can cause internal bleeding.
HEM-7211-E_A_M_main.book Page 1 Thursday, October 7, 2010 2:51 PM

2
Important Safety Information
(AC Adapter Usage)
• Use only the original AC adapter (optional) designed for this unit. Use of unsupported adapters may damage and/or
may be hazardous to the unit.
• Plug the AC adapter into the appropriate voltage outlet. Do not use a multiple-tap.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off the power and unplug the power cord
immediately.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.
• Use only four “AA” alkaline or manganese batteries with this unit. Do not use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four batteries at the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm cuff.
• Do not take measurements after bathing, drinking alcohol or caffeine, smoking, exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with the main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the Technical Data
Section.
• Read and follow the “Correct Disposal of This Product” in the Technical Data Section when disposing of the device
and any used accessories or optional parts.
HEM-7211-E_A_M_main.book Page 2 Thursday, October 7, 2010 2:51 PM

3
EN
1. Overview
Main unit
Display
Memory button
O/I START ( ) button
Up/Down ( ) buttons
Date/Time setting ( ) button
Air Jack
Battery compartment
AC adapter jack (for optional AC
adapter)
Arm cuff
Arm cuff (Medium cuff: arm
circumference 22-32cm)
Coloured Marker
Air tube
Air plug
Display
Date/Time display
Dual Check System
Systolic blood pressure
Diastolic blood pressure
Heartbeat symbol
(Flashes during measurement)
Battery low symbol
Average value symbol
Memory symbol
Irregular heartbeat symbol
Movement error symbol
Blood pressure level indicator
Deflation symbol
Cuff wrapping guide
Pulse display and Memory
number

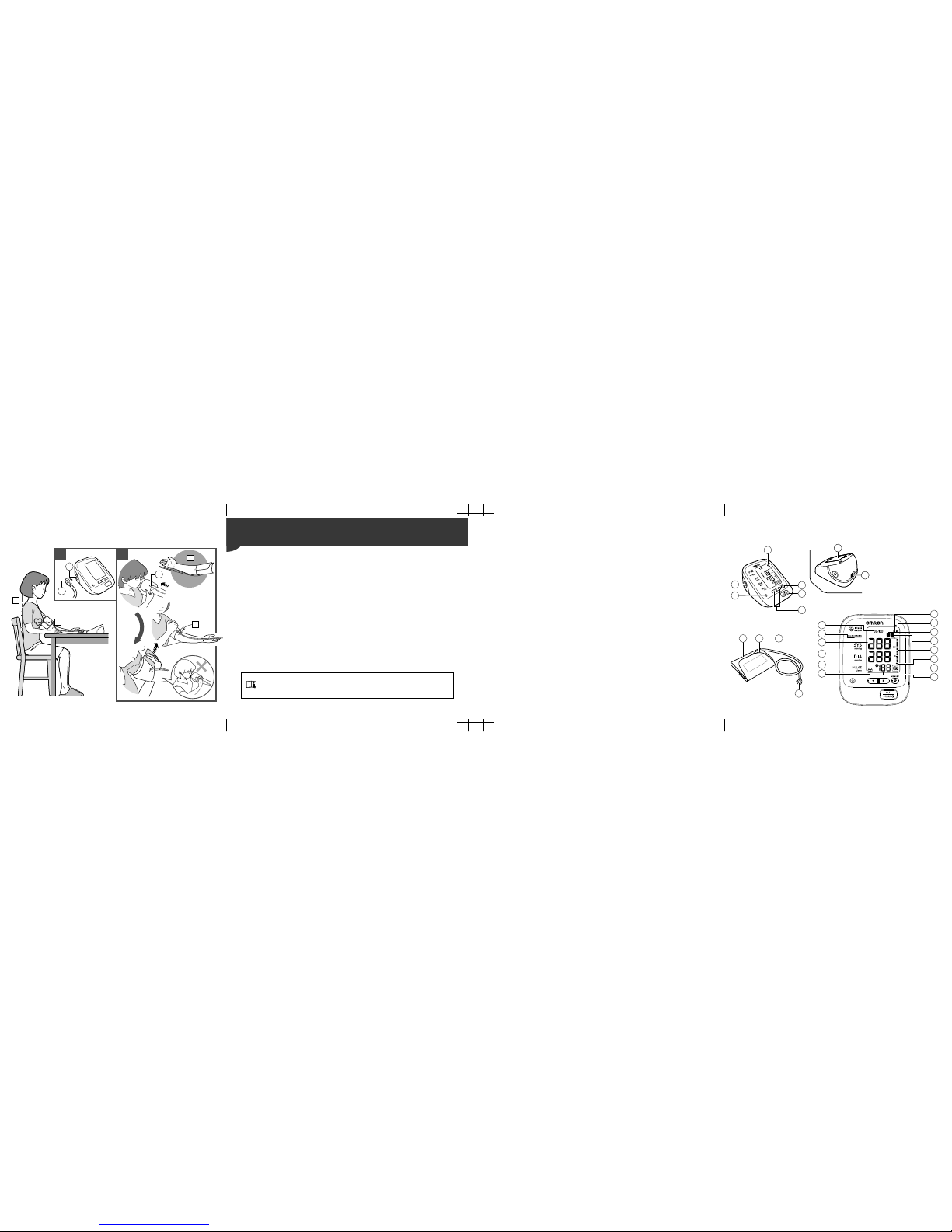

Open the rear cover page to read following:
The alphabet in the rear cover page correspond to those in the body page.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
HEM-7211-E_A_M_main.book Page 3 Thursday, October 7, 2010 2:51 PM

4
2. Preparation
2.1 Installing/Replacingthe
Batteries

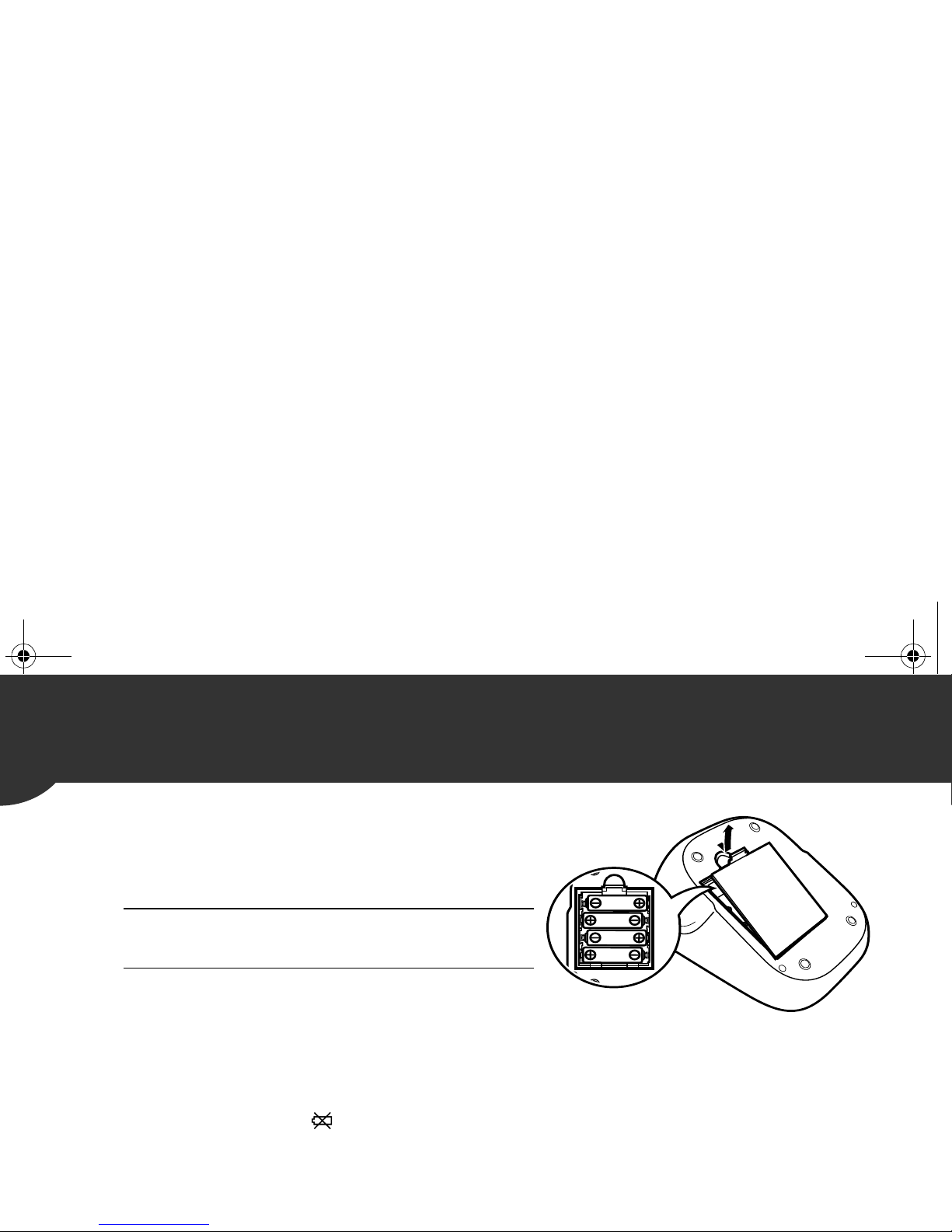

1. Remove the battery cover.
2. Insert four “AA” batteries as
indicated in the battery
compartment and then replace the battery cover.
Notes:
• If the battery low symbol ( ) appears on the display, turn the unit off then replace all batteries at the same
time.
• The measurement values continue to be stored in memory even after the batteries are replaced.
Disposal of used batteries should be carried out in accordance with the national
regulations for the disposal of batteries.
HEM-7211-E_A_M_main.book Page 4 Thursday, October 7, 2010 2:51 PM

5
2. Preparation
EN

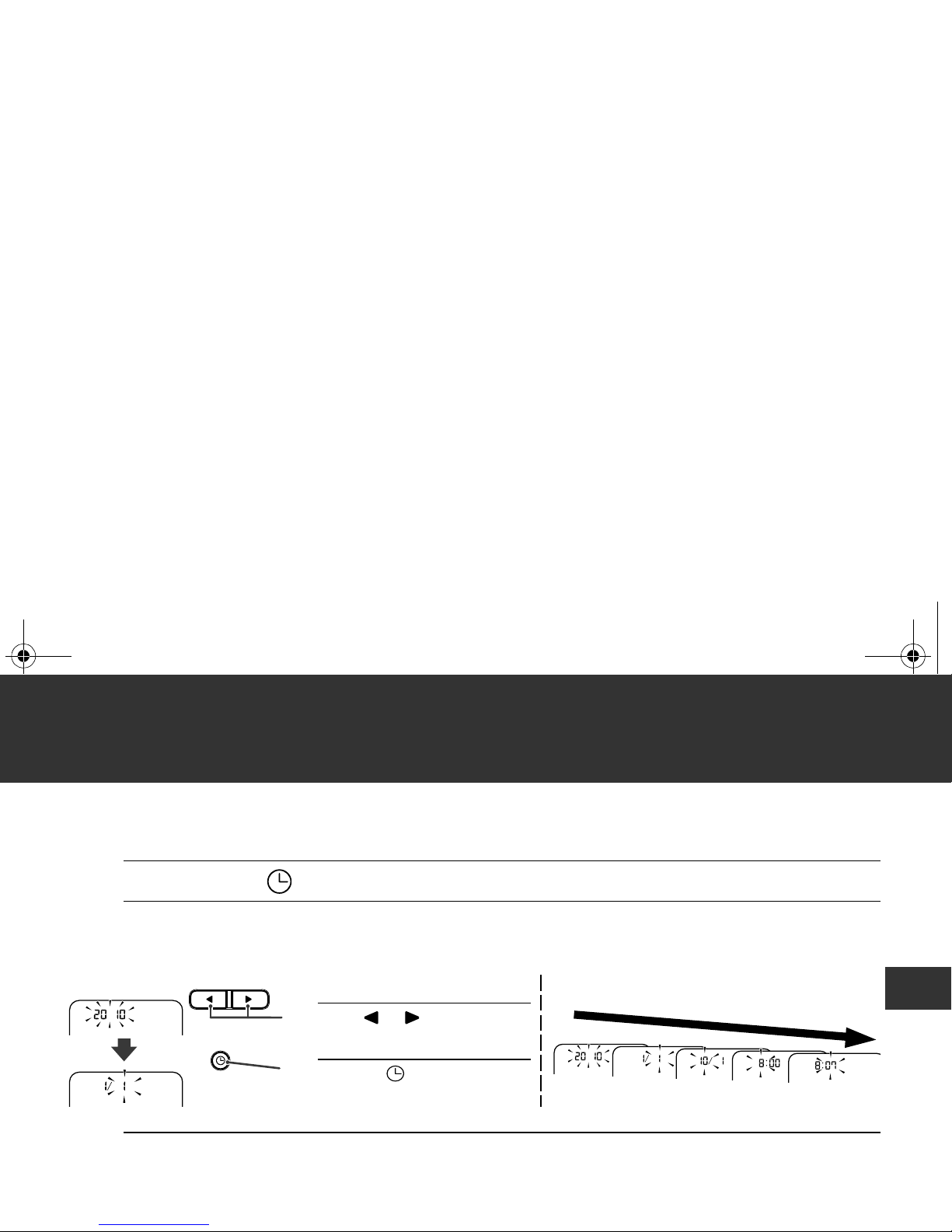

2.2 Setting the Date and Time
