Introduction
Thank you for purchasing the OMRON M1 Compact Upper Arm Blood
Pressure Monitor.
The OMRON M1 Compact is a manual inflation blood pressure monitor,
operating on the oscillometric principle. It measures your blood
pressure and pulse rate simply and quickly.
The unit also stores up to 14 measurements in memory.
Please read this instruction manual thoroughly before using
the unit. For specific information about your own blood
pressure, CONSULT YOUR DOCTOR.
Before using the unit
HEM-4022-IM_Main_[D].book 3 ページ ２０１１年１１月２日 水曜日 午後３時２４分

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and arteriosclerosis.
You should never change the dosage of medication prescribed by your
doctor.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results
and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should
consult a doctor before using the unit. Cuff inflation can cause internal
bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of
clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury to the user or patient or damage to
the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot
express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Do not disassemble the unit, arm cuff or inflation bulb.
• Use only the approved arm cuff for this unit. Use of other arm cuffs
may result in incorrect measurement results.
• Make sure that the air tube is not wrapped around other parts of your
body when taking measurements at night. This could result in injury
when the air pressure in the air tube is increased.
• Do not wrap the arm cuff tightly when taking measurements at night.
This could result in injury.
HEM-4022-IM_Main_[D].book 4 ページ ２０１１年１１月２日 水曜日 午後３時２４分

5
Important Safety Information
EN
• Do not inflate the arm cuff over 299 mmHg. If the cuff is over inflated,
it can cause internal bleeding.
• Do not use a mobile phone near the unit. This could cause a
malfunction.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.
• Use only four “AAA” alkaline batteries with this unit. Do not use other
types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more.
• Do not use new and used batteries together.
General Precautions
• Do not operate unit in a moving vehicle (car, airplane).
• Do not apply strong shocks and vibrations to or drop the unit and arm
cuff.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the edge of the tube at the
connection with the main unit not the middle of the tube.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not wash the arm cuff or immerse it in water.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.
HEM-4022-IM_Main_[D].book 5 ページ ２０１１年１１月２日 水曜日 午後３時２４分

6
1.Overview
1. Overview
Main unit
Arm Cuff
A. Display
B. I/O button (Power switch)
C. Air connector for cuff and
inflation bulb
D. M (Memory) button
E. Battery compartment
F. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
G. Air Tube
B
A
C
D
E
GF
HEM-4022-IM_Main_[D].book 6 ページ ２０１１年１１月２日 水曜日 午後３時２４分

7
1.Overview
EN
Inflation Bulb
Display
H. Air Release Button
I. Air Tube
J. Air Inflation Bulb
K. Systolic blood pressure
L. Diastolic blood pressure
M. Memory symbol
Displayed when viewing values
stored in memory
N. Battery low symbol
O. Heartbeat symbol
1. Flashes during measurement
2. If flashing after measurement
completed or when viewing
results stored in the memory,
indicates blood pressure out of
recommended range*
P. Pulse display
Q. Deflation symbol
R. Reinflation symbol

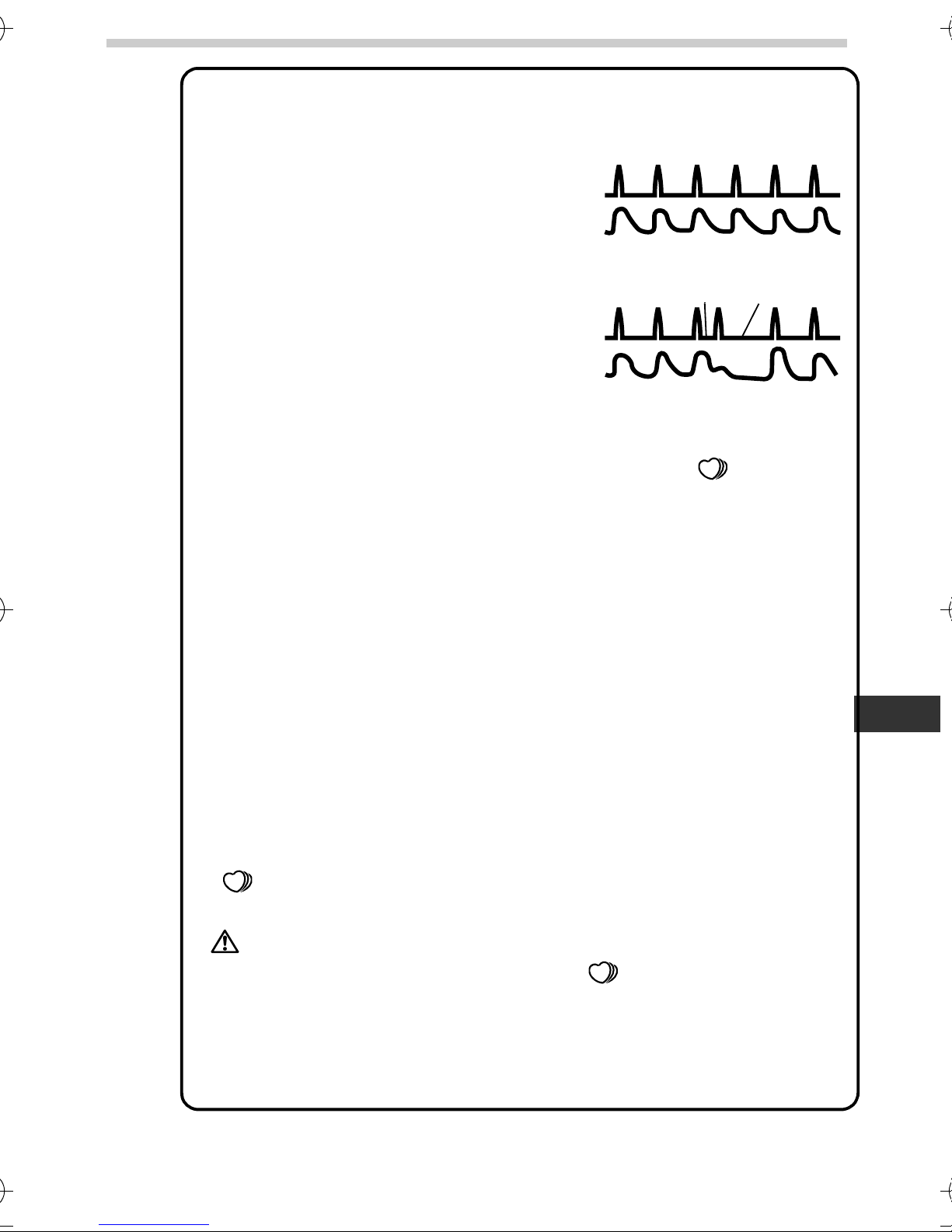

S. Irregular heartbeat symbol
* Note: If your systolic or diastolic
pressure is outside the
standard range (above
135/85 mmHg) the Heartbeat
symbol ( ) will blink.
Please refer to Chapter 3.3.7.
I
J
H
K
O
Q
R
L
MP
S
N
HEM-4022-IM_Main_[D].book 7 ページ ２０１１年１１月２日 水曜日 午後３時２４分

8
1.Overview

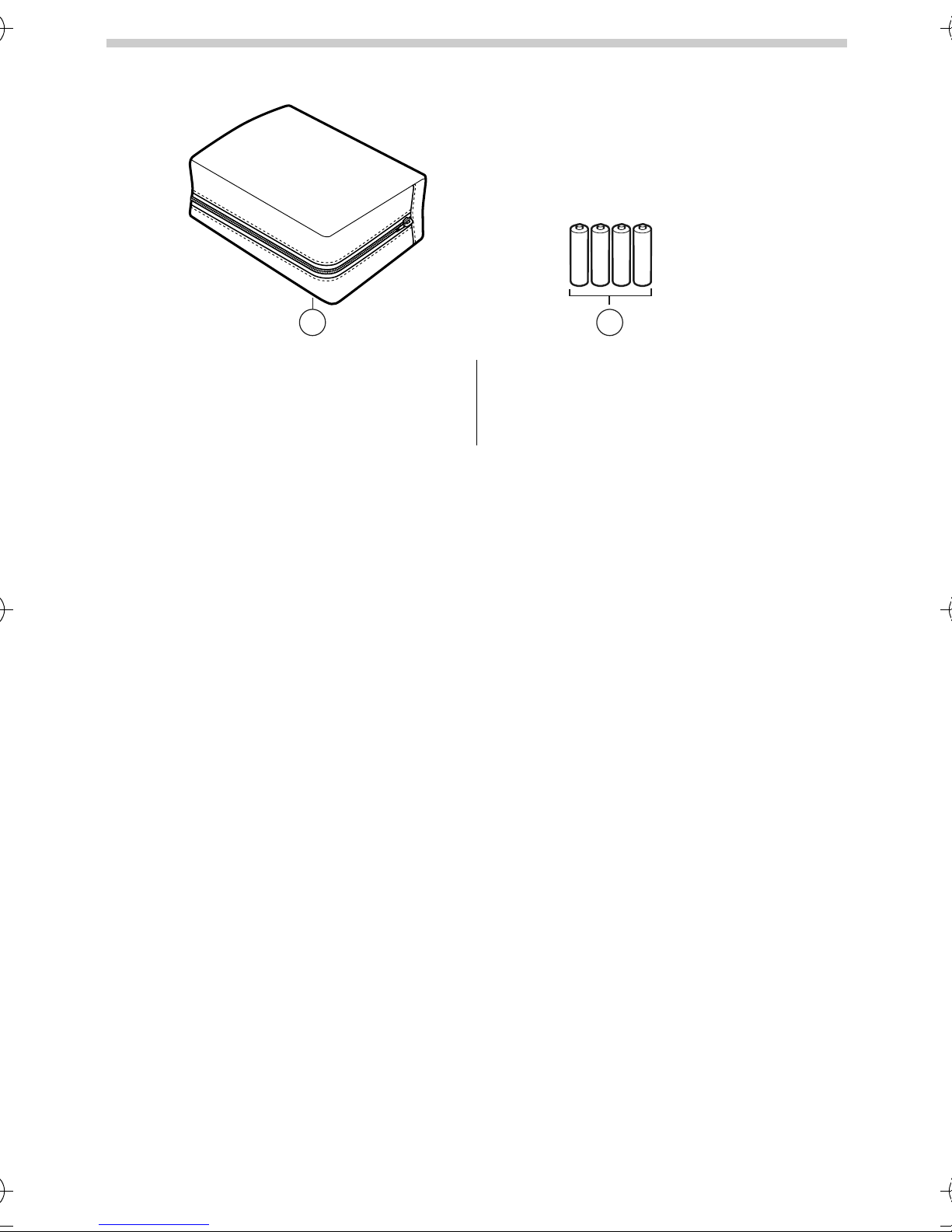

Package contents (others)
T. Storage case
U. Four “AAA” alkaline (LR03)
batteries
• Instruction manual
• Guarantee card
• Blood pressure pass
UT
HEM-4022-IM_Main_[D].book 8 ページ ２０１１年１１月２日 水曜日 午後３時２４分

9
2.Preparation
EN
2. Preparation
2.1
Installing/Replacing the Batteries

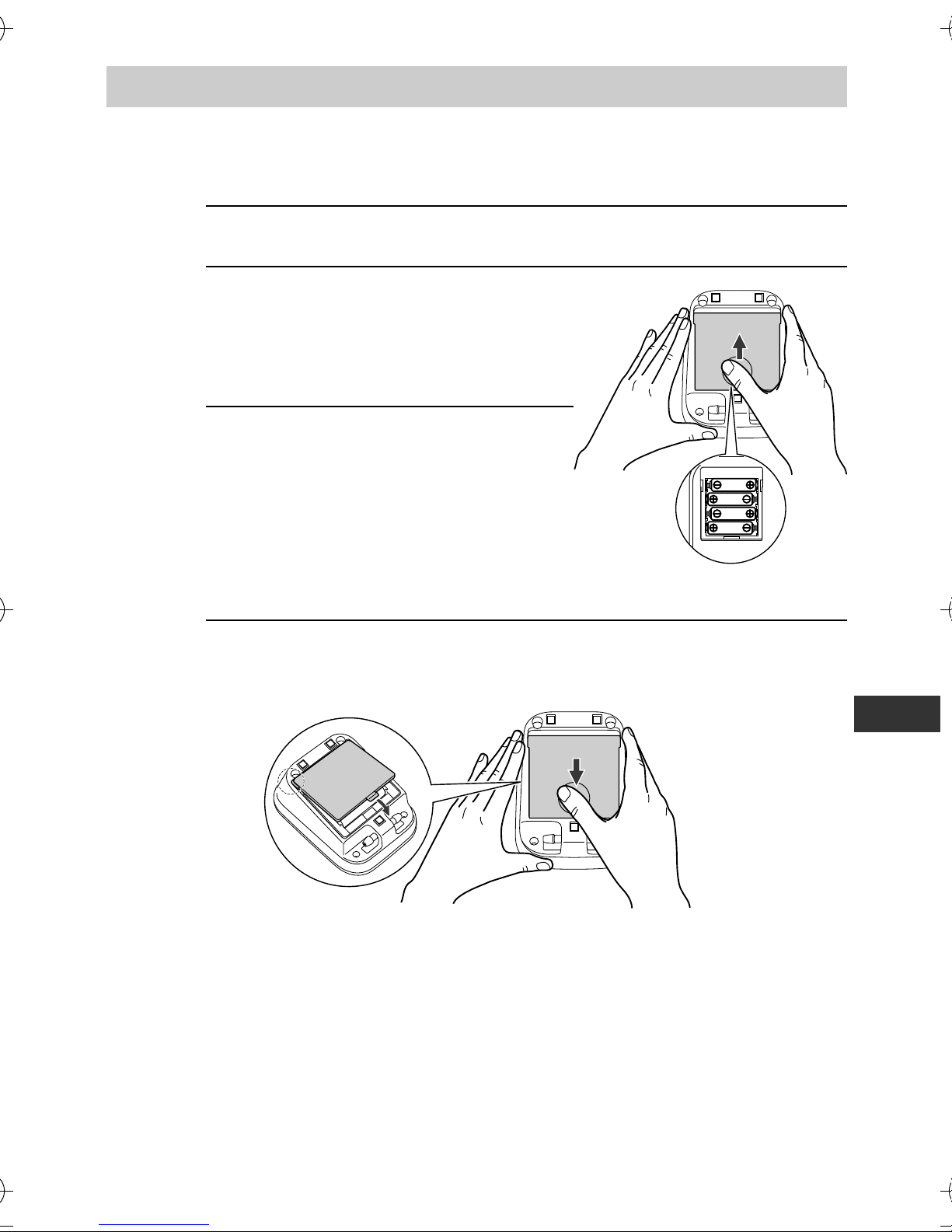

1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AAA”
size batteries so that the
+ (positive) and - (negative)
polarities match the polarities
indicated on the battery
compartment.
4. Put the battery cover back in place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
HEM-4022-IM_Main_[D].book 9 ページ ２０１１年１１月２日 水曜日 午後３時２４分

10
2.Preparation
Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace all four
batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still be
able to use the unit for a short while. You should replace the
batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are exhausted. You
should replace the batteries with new ones at once.
• Remove the batteries if the unit will not be used for three months or
more.
• Dispose of batteries according to applicable local regulations.
Four new “AAA” alkaline batteries will last for approximately 1500
measurements, when used to take two measurements a day.
Since the supplied batteries are for monitoring use only, they may have
a shorter life and not last for 1500 measurements.
HEM-4022-IM_Main_[D].book 10 ページ ２０１１年１１月２日 水曜日 午後３時２４分

11
3.Using the Unit
EN
3. Using the Unit
3.1
How to Sit Correctly When Taking a Measurement
Correct posture during measurement is necessary to get accurate
results.
Notes:
• Measurements should be taken in a quiet place and you should be in
a relaxed, seated position. Make sure that the room is not too hot or
too cold.
• Avoid eating, drinking alcohol, smoking, or exercising for at least 30
minutes before taking a measurement.
• Do not move or talk during measurement.
Correct
Posture Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your
sleeve if it is too tight.
Sit upright
with your
back straight. Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
Operating instructions
HEM-4022-IM_Main_[D].book 11 ページ ２０１１年１１月２日 水曜日 午後３時２４分

12
3.Using the Unit
Note: You can take a measurement on either your left or right
arm. The blood pressure can differ between the right
arm and the left arm and therefore also the measured
blood pressure values can be different. Omron
recommends to always use the same arm for
measurement. If the values between the two arms differ
substantially, please check with your physician which
arm to use for your measurement.

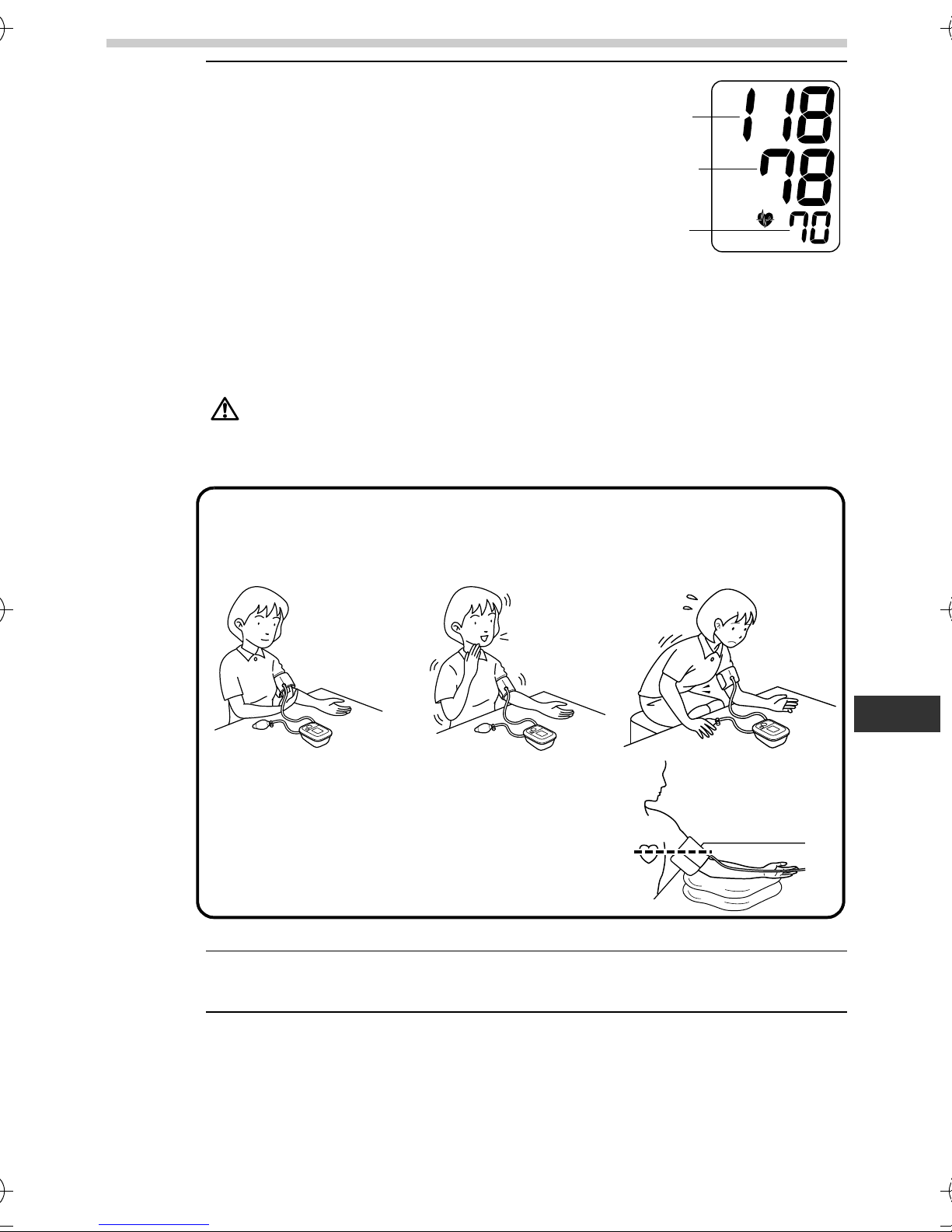

Incorrect Posture
These situations could lead to higher blood pressure
values due to strain or the arm cuff being lower than the
heart.
If the arm cuff is at a lower position than your heart use
cushions etc., to adjust the height of your arm.
• Arched back (leaning forwards)
• Sitting cross-legged
• Sitting on a sofa or at a low table
so that you tend to lean forward
HEM-4022-IM_Main_[D].book 12 ページ ２０１１年１１月２日 水曜日 午後３時２４分

13
3.Using the Unit
EN
3.2 Applying the Arm Cuff
Be sure to wrap the arm cuff correctly so that you get accurate results.
Measurements can be taken in light clothing. However, please remove
thick clothes, such as sweaters, before taking a reading.

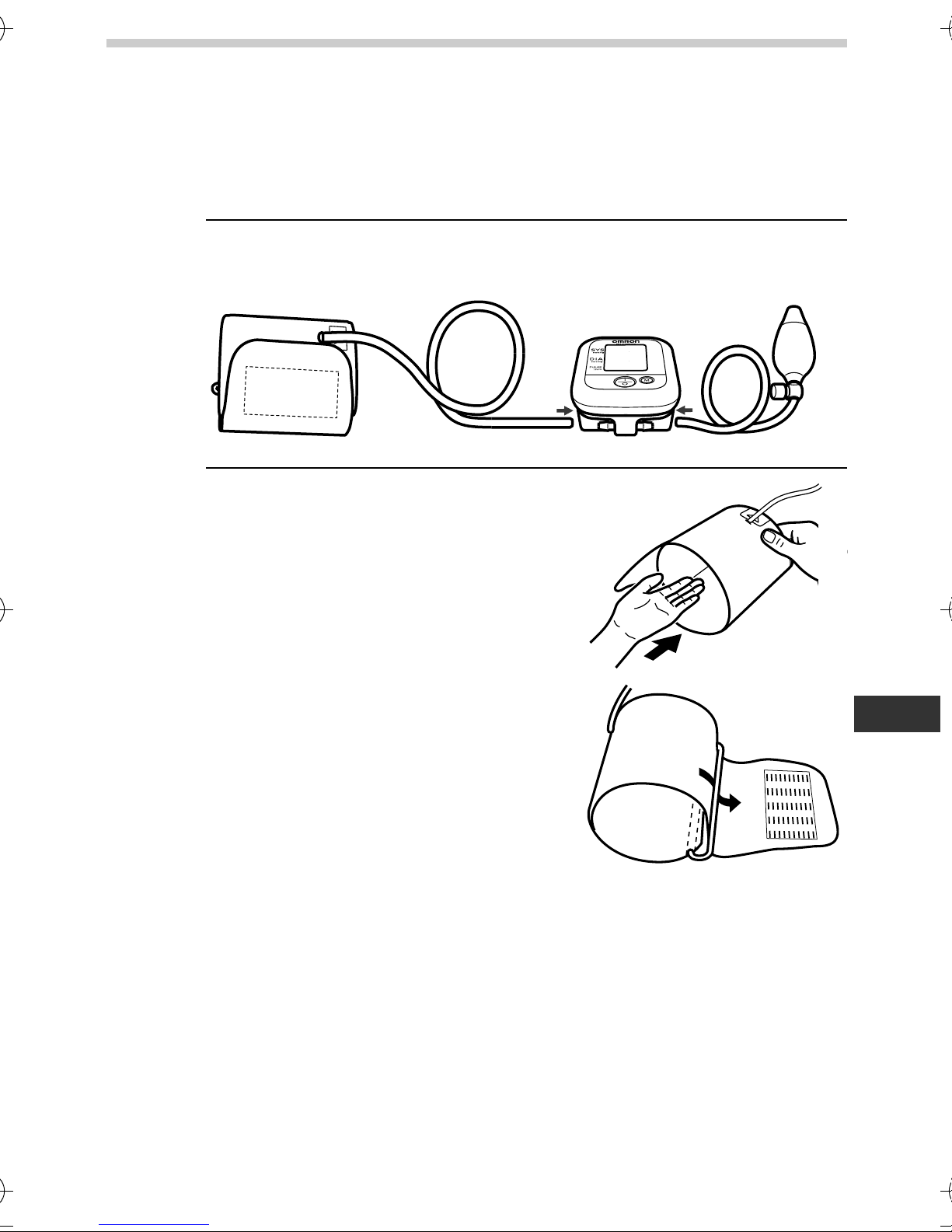

1. Connect the air tube of the arm cuff and the inflation bulb to
their respective air connectors.
2. Put your left arm through the cuff
loop.
Note: If the cuff is not assembled,
pass the end of the cuff
furthest from the tubing
through the metal D-ring to
form a loop. The smooth
cloth should be on the inside
of the cuff loop.
HEM-4022-IM_Main_[D].book 13 ページ ２０１１年１１月２日 水曜日 午後３時２４分

14
3.Using the Unit
3. Position the arm correctly.
Taking measurements on the right arm
Apply the cuff so that the
air tube is at the side of
your elbow.
• Be careful not to rest
your arm on the air
tube, or otherwise
restrict the flow of air to
the cuff.
• The cuff should be 1 to
2 cm above the elbow.
4. When the cuff is positioned correctly, close the fabric fastener
FIRMLY.
1) The air tube should run
down the inside of your
forearm and be in line with
your middle finger.
2) The bottom of the cuff
should be approximately 1
to 2 cm above your elbow.
3) Apply the cuff to your
upper arm so that the
coloured marker (blue
arrow under tube) is
centered on the middle of
your inner arm and points
down the inside of the
arm.
1 to 2 cm
HEM-4022-IM_Main_[D].book 14 ページ ２０１１年１１月２日 水曜日 午後３時２４分

15
3.Using the Unit
EN
3.3 Taking a Reading
1. Preparation
1) Press the air release button to release any air in the arm
cuff.
2) Press the I/O button to turn the unit on.
3) All items in the display will be displayed briefly.
4) The deflation symbol will flash.
5) Finally, the heartbeat symbol will appear and 0 is
displayed.
Note: If the deflation symbol does not disappear soon, press
the air release button to release any air in the arm cuff.
2. Pump the inflation bulb to inflate the arm cuff.
1) Inflate the cuff until it is 30 to
40 mmHg above your expected
systolic blood pressure value.
ex) If your expected blood
pressure is around 140mmHg,
inflate the arm cuff to between
170 and 180 mmHg. Inflate the
cuff rapidly so that the pressure
is reached in about five seconds.
2) When the desired pressure has been achieved, release
the inflation bulb. Remain still and do not talk.
HEM-4022-IM_Main_[D].book 15 ページ ２０１１年１１月２日 水曜日 午後３時２４分

16
3.Using the Unit
Notes:
• If the reinflation symbol ( ) appears, squeeze the inflation
bulb to re-inflate the arm cuff.
• Do not inflate the arm cuff more than necessary.
3. Measurement starts.
Measurement starts
automatically after you stop
inflating the arm cuff. Decreasing
numbers appear on the display
and the heartbeat symbol
flashes.
Remain still and do not talk
during measurement.
Note: To cancel a measurement, press the I/O button to turn
off the unit and press the air release button to release
the air in the arm cuff.
4. Measurement ends.
When the measurement is finished,
the deflation symbol flashes on the
display. Blood pressure and pulse
rate values are displayed.
Press the air release button to
release the air in the arm cuff until
the deflation symbol is no longer
displayed.
HEM-4022-IM_Main_[D].book 16 ページ ２０１１年１１月２日 水曜日 午後３時２４分

17
3.Using the Unit
EN
5. Check the measurement
results.
The unit automatically stores
blood pressure and pulse rate
into its memory, Refer to “3.4
Using the Memory Function”.
Note: Wait 2-3 minutes before taking another blood pressure
measurement. Waiting between readings allows the
arteries to return to the condition prior to taking the
blood pressure measurement.
Warning:
Self-diagnosis of measured results and treatment are
dangerous. Please follow the instructions of your doctor.
6. Undo the fastener and remove the arm cuff.
7. Press the I/O button to turn the unit off.
Note: If you forget to turn the unit off, it will automatically shut
itself off after five minutes.
Diastolic blood
pressure
Systolic blood
pressure
Pulse display
Common Causes of Inaccurate Results
Leaning forwards.Arm cuff is too loose. Movement or talking
during measurement.
Note: If the arm cuff is at a lower position
than your heart use cushions etc., to
adjust the height of your arm.
HEM-4022-IM_Main_[D].book 17 ページ ２０１１年１１月２日 水曜日 午後３時２４分

18
3.Using the Unit
Important:
• If your systolic or diastolic pressure is
outside the standard range, the heartbeat
symbol will blink when the measurement
result is displayed.
Recent research suggests that the
following values can be used as a guide to
high blood pressure for measurements
taken at home.
This criteria is for home blood pressure measurement.
For professional office blood pressure measurement criteria,
please refer to Chapter 9 “Some Useful Information about
Blood Pressure”
• Your blood pressure monitor includes an
irregular heartbeat feature. Irregular
heartbeats can influence the results of the
measurement. The irregular heartbeat
algorithm automatically determines if the
measurement is usable or needs to be
repeated. If the measurement results are
affected by irregular heartbeats but the
result is valid, the result is shown together with the irregular
heartbeat symbol ( ). If the irregular heartbeats cause
the measurement to be invalid, no result is shown. If the
irregular heartbeat symbol ( ) is shown after you have
taken a measurement, repeat the measurement. If the
irregular heartbeat symbol ( ) is shown frequently,
please make your doctor aware of it.
Systolic Blood Pressure Above 135 mmHg
Diastolic Blood Pressure Above 85 mmHg
HEM-4022-IM_Main_[D].book 18 ページ ２０１１年１１月２日 水曜日 午後３時２４分

19
3.Using the Unit
EN
What is Irregular Heartbeat?
An irregular
heartbeat is a
heartbeat rhythm
that varies by more
than 25% from the
average heartbeat
rhythm detected
while the unit is
measuring the
systolic and diastolic
blood pressure.
If such an irregular rhythm is detected more than twice during
measurement, the irregular heartbeat symbol ( ) appears
on the symbol when the measurement results are displayed.
What is Arrhythmia?
A heartbeat is stimulated by electrical signals that cause the
heart to contract.
Arrhythmia is a condition where the heartbeat rhythm is
abnormal due to flaws in the bio-electrical system that drives
the heartbeat. Typical symptoms are skipped heartbeats,
premature contraction, an abnormally rapid (tachycardia) or
slow (bradycardia) pulse. This can be caused by heart
disease, aging, physical predisposition, stress, lack of sleep,
fatigue etc. Arrhythmia can only be diagnosed by a doctor
through a special examination.
Whether the appearance of the irregular heartbeat symbol
( ) in the results indicates arrhythmia or not can only be
determined by an examination and diagnosis by your doctor.
Warning:
If the irregular heartbeat symbol ( ) is shown
frequently, please make your doctor aware of it.
Conducting self-diagnosis and treatment based on
measurement results is dangerous. Be sure to follow the
instructions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood pressure
Blood pressure
Short Long
Pulse
HEM-4022-IM_Main_[D].book 19 ページ ２０１１年１１月２日 水曜日 午後３時２４分

20
3.Using the Unit
3.4 Using the Memory Function
The unit automatically stores up to 14 sets of measurement values
(blood pressure and pulse rate). When 14 sets of measurement values
are stored, the oldest record is deleted to save the most recent values.
1. Press the I/O button to turn the
power on.
2. When the heartbeat symbol
appears on the display, press the
M button.
The result from the most recent
measurement is displayed.
Note: If there are no measurements results stored
in memory, the screen to the right is
displayed.
Important: If your systolic or
diastolic pressure is
outside the standard
range, the heartbeat
symbol will blink when
the measurement
result is displayed.
Refer to 3.3, number 7.
HEM-4022-IM_Main_[D].book 20 ページ ２０１１年１１月２日 水曜日 午後３時２４分
