Omron M1 Eco User manual

Manual Inflation Blood Pressure Monitor
Model M1 Eco
• Instruction Manual
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
M1 Eco
EN
RU
IM-HEM-4011C-RU-04-07/2011
1649511-0E
HEM-4011C-EN-RU.book Page 1 Tuesday, June 28, 2011 10:30 AM

2
Contents
Before using the unit
Introduction ...........................................................................3
Important Safety Information ...............................................4
1.Overview .............................................................................6
2.Preparation .........................................................................9
2.1 Installing/Replacing the Batteries..................................9
2.2 Setting the Date and Time ..........................................11
2.3 Adjusting the Settings Modes .....................................14
Operating instructions
3.Using the Unit...................................................................15
3.1 How to Sit Correctly When Taking a Measurement ....15
3.2 Applying the Arm Cuff .................................................17
3.3 Taking a Reading........................................................20
3.4 Using the Memory Function ........................................25
4.Quick Reference Guide....................................................28
Care and maintenance
5.Handling Errors and Problems .......................................29
5.1 Error Messages...........................................................29
5.2 Troubleshooting ..........................................................31
6.Maintenance and Storage................................................33
7.Optional Parts...................................................................36
8.Technical Data..................................................................37
9.Some Useful Information about Blood Pressure ..........39
HEM-4011C-EN-RU.book Page 2 Tuesday, June 28, 2011 10:30 AM

3
EN
Introduction
Thank you for purchasing the OMRON M1 Eco Upper Arm Blood
Pressure Monitor.
The OMRON M1 Eco is a manual inflation blood pressure monitor,
operating on the oscillometric principle. It measures your blood
pressure and pulse rate simply and quickly.
The unit also stores up to 42 measurements in memory and calculates
an average reading based on the three most recent measurements
taken within 10 minutes of the last reading. (If there are only two
readings in memory for that period, the average will be based on two
readings. If there is only one reading in memory for that period, that
reading will be displayed as the average value.)
Please read this instruction manual thoroughly before using
the unit. For specific information about your own blood
pressure, CONSULT YOUR DOCTOR.
HEM-4011C-EN-RU.book Page 3 Tuesday, June 28, 2011 10:30 AM

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and arteriosclerosis.
You should never change the dosage of medication prescribed by
your doctor.
Use the M1 Eco only for yourself.
Warning:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results
and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should
consult a doctor before using the unit. Cuff inflation can cause
internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty
of clean water. Consult a doctor immediately.
Caution:
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury to the user or patient or damage to
the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot
express their consent.
• Do not use the unit for any purpose other than measuring blood
pressure.
• Do not disassemble the unit or arm cuff.
• Do not inflate the arm cuff over 299 mmHg.
• Do not use a mobile phone, or other devices that emit
electromagnetic fields, near the unit. This may result in incorrect
operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
HEM-4011C-EN-RU.book Page 4 Tuesday, June 28, 2011 10:30 AM

5
Important Safety Information
EN
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse
with plenty of clean water.
• Use only four “AA” alkaline batteries with this unit. Do not use other
types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four
batteries at the same time.
• Remove the batteries if the unit will not be used for three months or
more.
• When the batteries are replaced, you may need to reset the date
and time. If the year is flashing on the display screen, refer to “2.2
Setting the Date and Time”.
• Do not use new and used batteries together.
General Safety Precautions
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not wash the arm cuff or immerse it in water.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any used
accessories or optional parts.
Save these instructions for future reference.
HEM-4011C-EN-RU.book Page 5 Tuesday, June 28, 2011 10:30 AM

6

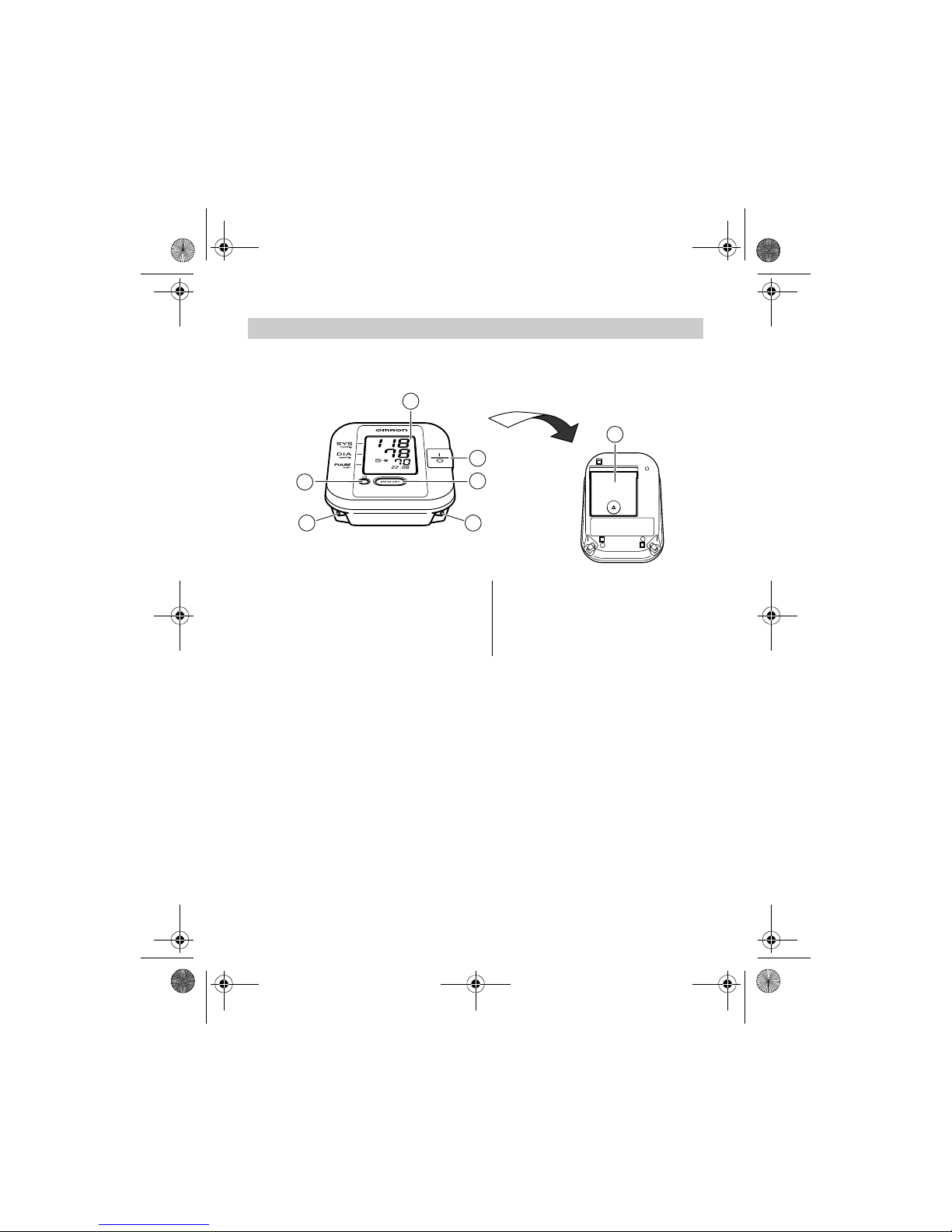

1.Overview
1. Overview
Main unit
A. Display
B. SET button
C. Air connector
D. MEMORY button
E. I/O button
F. Battery compartment
B
A
C C
E
D
F
M1 Eco
HEM-4011C-EN-RU.book Page 6 Tuesday, June 28, 2011 10:30 AM

7
1.Overview
EN
Arm Cuff
If air starts to leak from the arm cuff, please replace with a new
one. (Refer to Chapter 7 “Optional Parts”)
Inflation Bulb
G. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
H. Air Tube
I. Air Release Button
J. Air Tube
K. Air Inflation Bulb
HG
J
K
I
HEM-4011C-EN-RU.book Page 7 Tuesday, June 28, 2011 10:30 AM

8
1.Overview

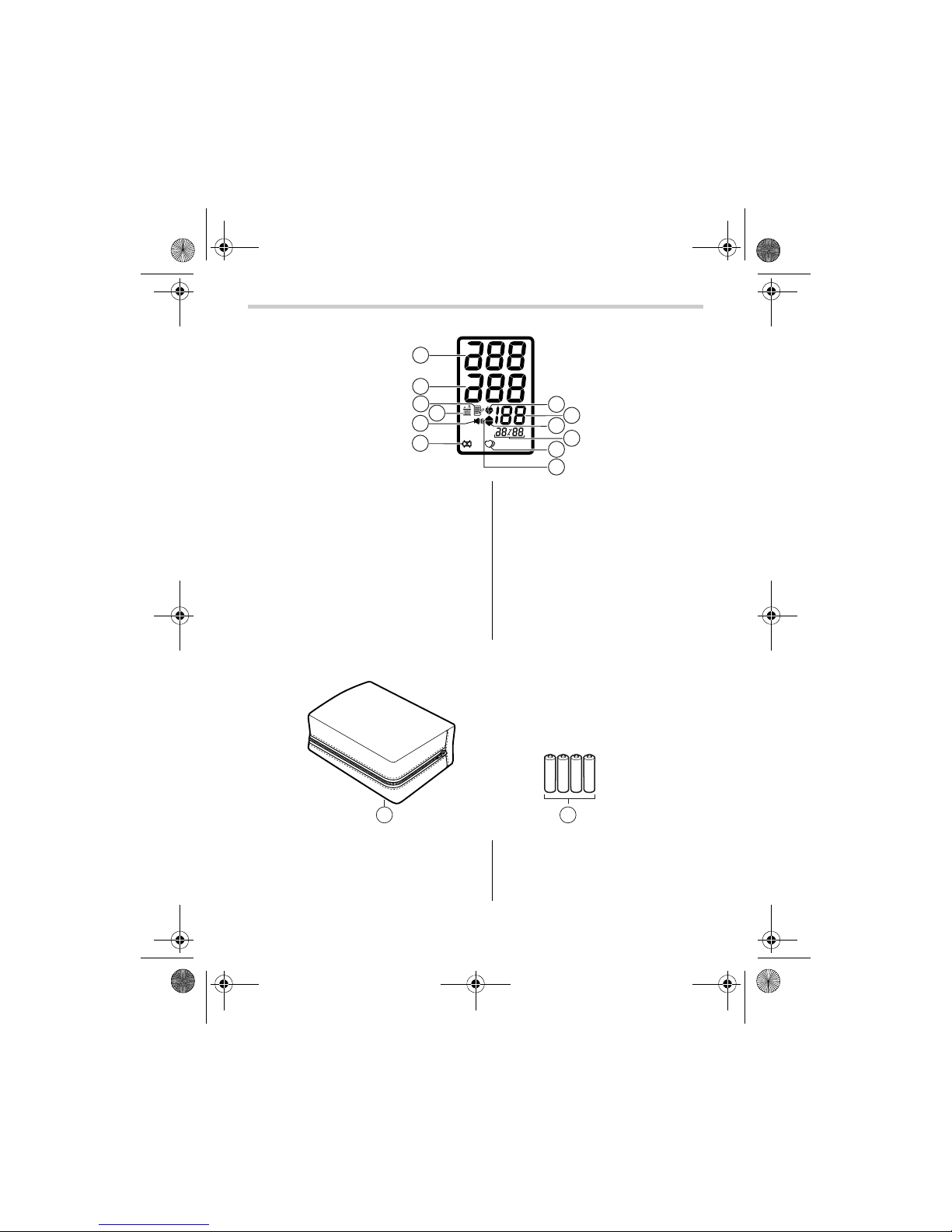

Display
Package contents
L. Systolic blood pressure
M. Diastolic blood pressure
N. Memory symbol
(Displayed when viewing
values stored in memory)
O. Average value symbol
(Displayed when viewing
average value for the last three
measurements)
P. Buzzer symbol
Q. Battery low symbol
R. Heartbeat symbol
1. (Flashes during measurement)
2. (If flashing after measurement
is complete, indicates blood
pressure out of recommended
range)
S. Pulse
T. Deflation symbol
U. Date/Time
V. Irregular heartbeat symbol
W. Reinflation symbol
X. Storage case
Y. Four “AAA” alkaline (LR03)
batteries
• Instruction manual
• Guarantee card
• Blood pressure pass
• Blood Pressure Monitor unit
L
R
T
W
M
O
P
N
S
U
V
Q
YX
HEM-4011C-EN-RU.book Page 8 Tuesday, June 28, 2011 10:30 AM

9
2.Preparation
EN
2. Preparation

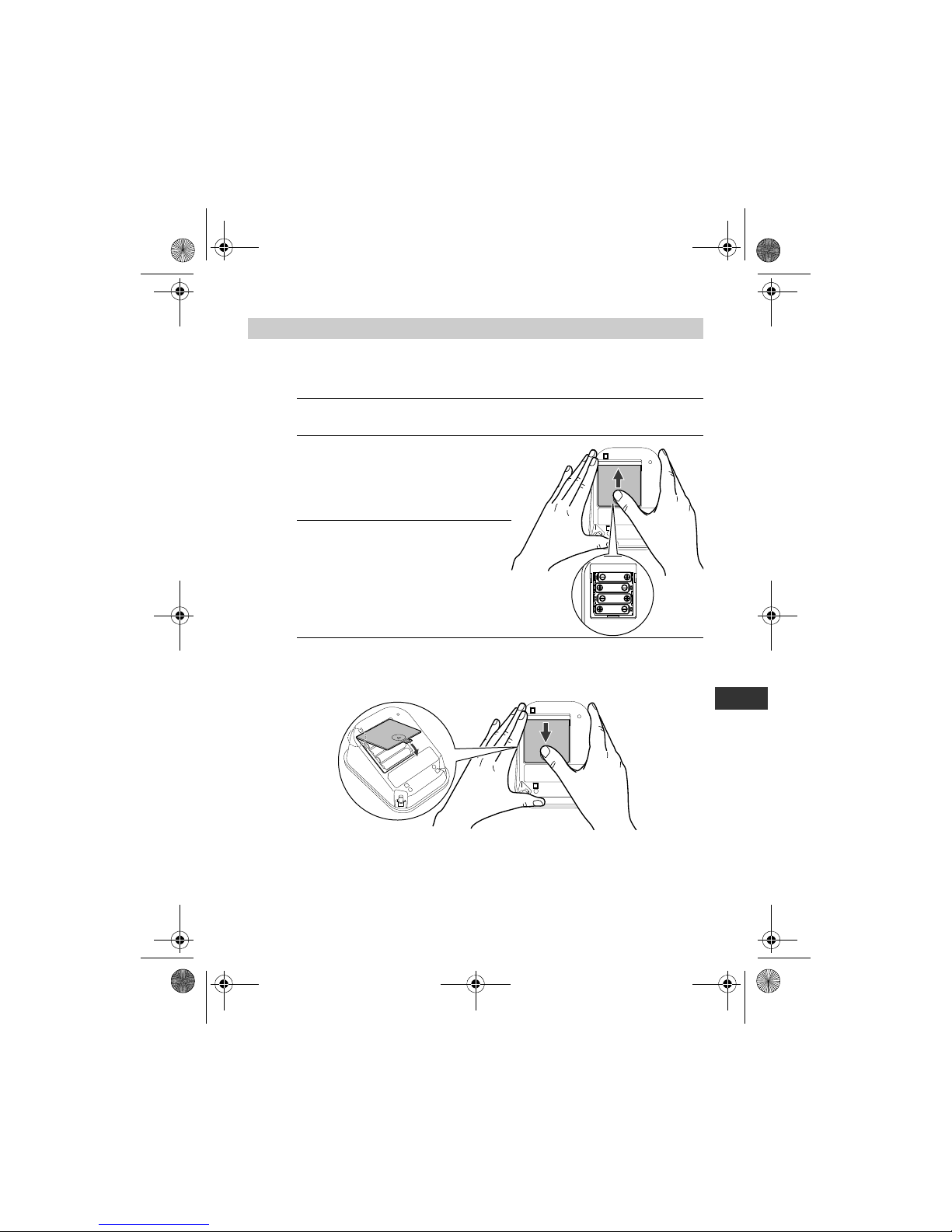

2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AAA”
size batteries so that the
+ (positive) and - (negative)
polarities match the polarities
indicated on the battery
compartment.
4. Put the battery cover back in
place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
HEM-4011C-EN-RU.book Page 9 Tuesday, June 28, 2011 10:30 AM

10
2.Preparation
Battery Life & Replacement
If the battery low symbol ( ) appears on the display, replace
all four batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still
be able to use the unit for a short while. You should replace
the batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are
exhausted. You should replace the batteries with new ones
at once.Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries are removed for 30 seconds, the Date/Time
setting will need to be reset. See “2.2 Setting the Date and
Time” for details.
• Dispose of batteries according to applicable local regulations.
Four new “AAA”alkaline batteries will last for approximately
1500 measurements, when used to take two measurements a
day.
Since the supplied batteries are for monitoring use only, they
may have a shorter life and not last for 1500 measurements.
HEM-4011C-EN-RU.book Page 10 Tuesday, June 28, 2011 10:30 AM

11
2.Preparation
EN
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 42
measurements values, including date and time of
measurement, in its memory and calculates an average value
based on the three most recent measurements taken within 10
minutes of the last reading.
To make use of the memory and average values functions:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed for more than 30 seconds,
the date and time setting will need to be reset.
1. When the I/O button is
pressed to turn the unit on for
the first time after inserting
batteries, the year digits
(2005) will flash on the
display.
2. Press the MEMORY button to
advance the digits one at a
time.
Notes:
• The range for the year
setting is 2005 to 2030. If the
year reaches 2030, it will
return to 2005.
• If you hold down the
MEMORY button, the digits
will advance rapidly.
HEM-4011C-EN-RU.book Page 11 Tuesday, June 28, 2011 10:30 AM

12
2.Preparation
3. Press the SET button to confirm the setting when the desired
number appears on the display.
The year is set and the month digits flash on the display.
4. Repeat steps 2 and 3 to set
the month.
The month is set and the day
digits flash on the display.
5. Repeat steps 2 and 3 to set
the day.
The day is set and the hour
digits flash on the display.
6. Repeat steps 2 and 3 to set
the hour.
The hour is set and the
minutes digits flash on the
display.
HEM-4011C-EN-RU.book Page 12 Tuesday, June 28, 2011 10:30 AM

13
2.Preparation
EN
7. Repeat steps 2 and 3 to set
the minutes.
The minutes settings is set.
The unit automatically
switches to standby mode
after the minute setting has
been set.
To adjust the date and time, press the SET button twice while
the monitor is in standby mode.
Notes:
• After the buzzer setup is completed, the time/date setting will
flash on the display.
• After each setup is completed, please push the I/O button to
turn off the monitor.
HEM-4011C-EN-RU.book Page 13 Tuesday, June 28, 2011 10:30 AM

14
2.Preparation
2.3 Adjusting the Settings Modes
You can modify the options for the various settings of your unit.
This is done by pressing the SET button to select a setting,
then pressing the MEMORY button to select the options for that
setting. After selecting a setting, press the I/O button to confirm
the setting and turn the power off.

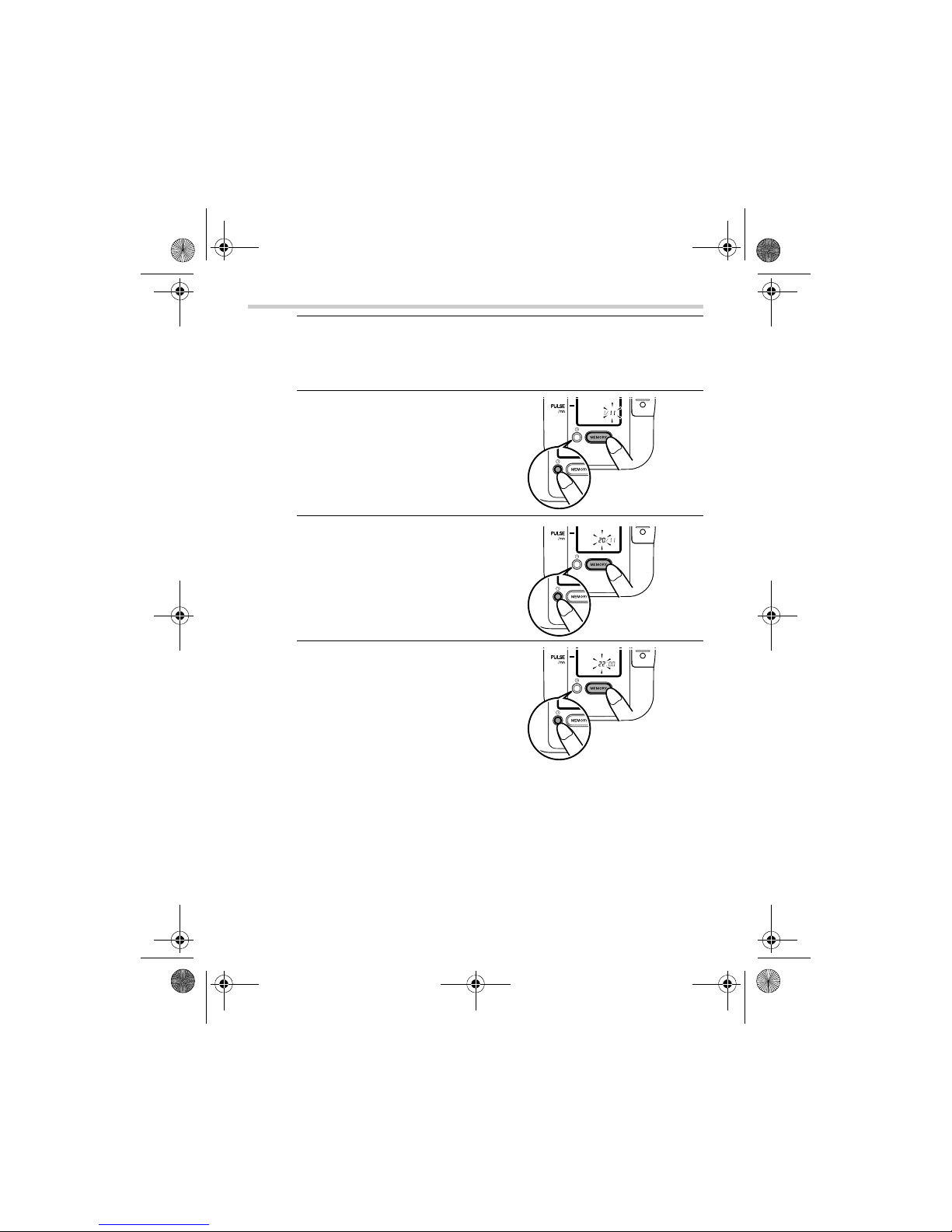

Buzzer Mode
When Buzzer mode is on, the unit emits sounds, during
measurement (to indicate that pulse waves are detected), and
when measurement is complete.
1. Press the SET button once
while the unit is in standby
mode.
The buzzer symbol
appears on the display.
2. Press the MEMORY button to select
“on”or “off”.
The setting alternates between “on”
and “off” with each press of the
MEMORY button.
The default setting is “on”.
3. When you have selected the desired setting, press the I/O
button to turn the unit off.
Notes:
• If you want to adjust the date or time, press the SET button
after setting the buzzer setting, follow steps for setting date
and time (Refer to 2.2) press the I/O button to turn the unit off.
• If you forget to turn the unit off, it will automatically shut itself
off after five minutes.
HEM-4011C-EN-RU.book Page 14 Tuesday, June 28, 2011 10:30 AM

15
3.Using the Unit
EN
3. Using the Unit
3.1
How to Sit Correctly When Taking a Measurement
You can take a measurement on either your left or right arm.
Note:
• Measurements should be taken in a quiet place and you
should be in a relaxed, seated position. Make sure that the
room is not too hot or cold.
• Do not take measurement after bathing, drinking alcohol, or
exercising.
• Do not move or talk during measurement.
Correct
Posture
Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your sleeve
if it is too tight.
Sit upright
with your
back straight.
Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
HEM-4011C-EN-RU.book Page 15 Tuesday, June 28, 2011 10:30 AM

16
3.Using the Unit
Notes:
• Correct posture during measurement is necessary to get
accurate results.
• You should also try to measure your blood pressure at the
same time each day. (Within 1 hour after waking up is
recommended.)

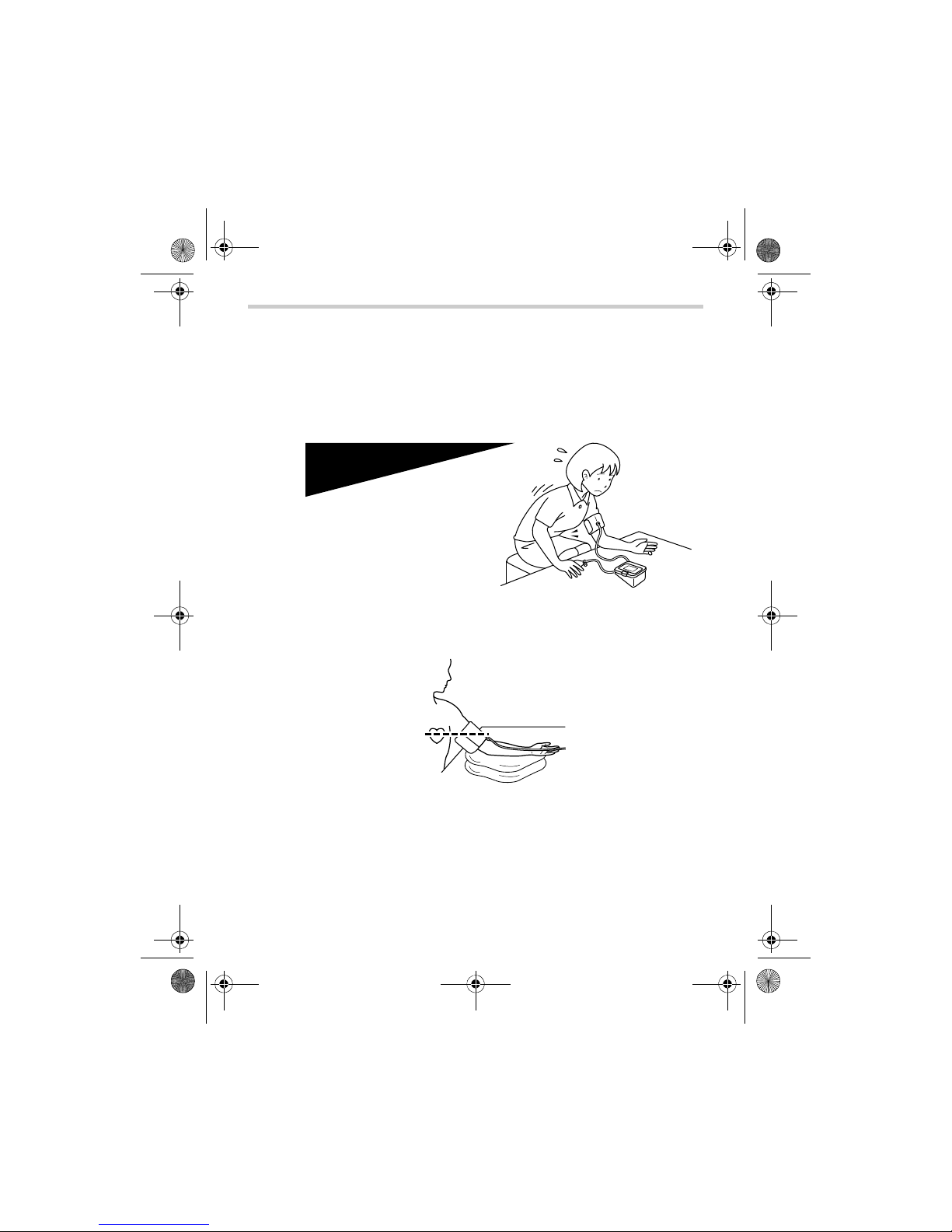

Incorrect Posture
These situations tend to lead to higher blood pressure values due to
strain or the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions
etc., to adjust the height of your arm.
•Arched back (leaning
forwards)
•Sitting cross-legged
•Sitting on a sofa or at a low
table so that you lean forward
HEM-4011C-EN-RU.book Page 16 Tuesday, June 28, 2011 10:30 AM

17
3.Using the Unit
EN
3.2 Applying the Arm Cuff
Notes:
• Be sure to wrap the arm cuff correctly so that you get accurate
results.
• Measurements can be taken in light clothing. However, please
remove thick clothes, such as sweaters, before taking a
reading.
• You can take a measurement on either your left or right arm.
The blood pressure can differ between the right arm and the
left arm and therefore also the measured blood pressure
values can be different. Omron recommends to always use
the same arm for measurement. If the values between the two
arms differ substantially, please check with your doctor which
arm to use for your measurement.
1. Connect the air tube of the arm cuff and the inflation bulb to
their respective air connectors.
M1Eco
HEM-4011C-EN-RU.book Page 17 Tuesday, June 28, 2011 10:30 AM

18
3.Using the Unit
2. Put your left arm through the cuff
loop.
Note: If the cuff is not assembled,
pass the end of the cuff
furthest from the tubing
through the metal D-ring to
form a loop. The smooth cloth
should be on the inside of the
cuff loop.
HEM-4011C-EN-RU.book Page 18 Tuesday, June 28, 2011 10:30 AM

19
3.Using the Unit
EN

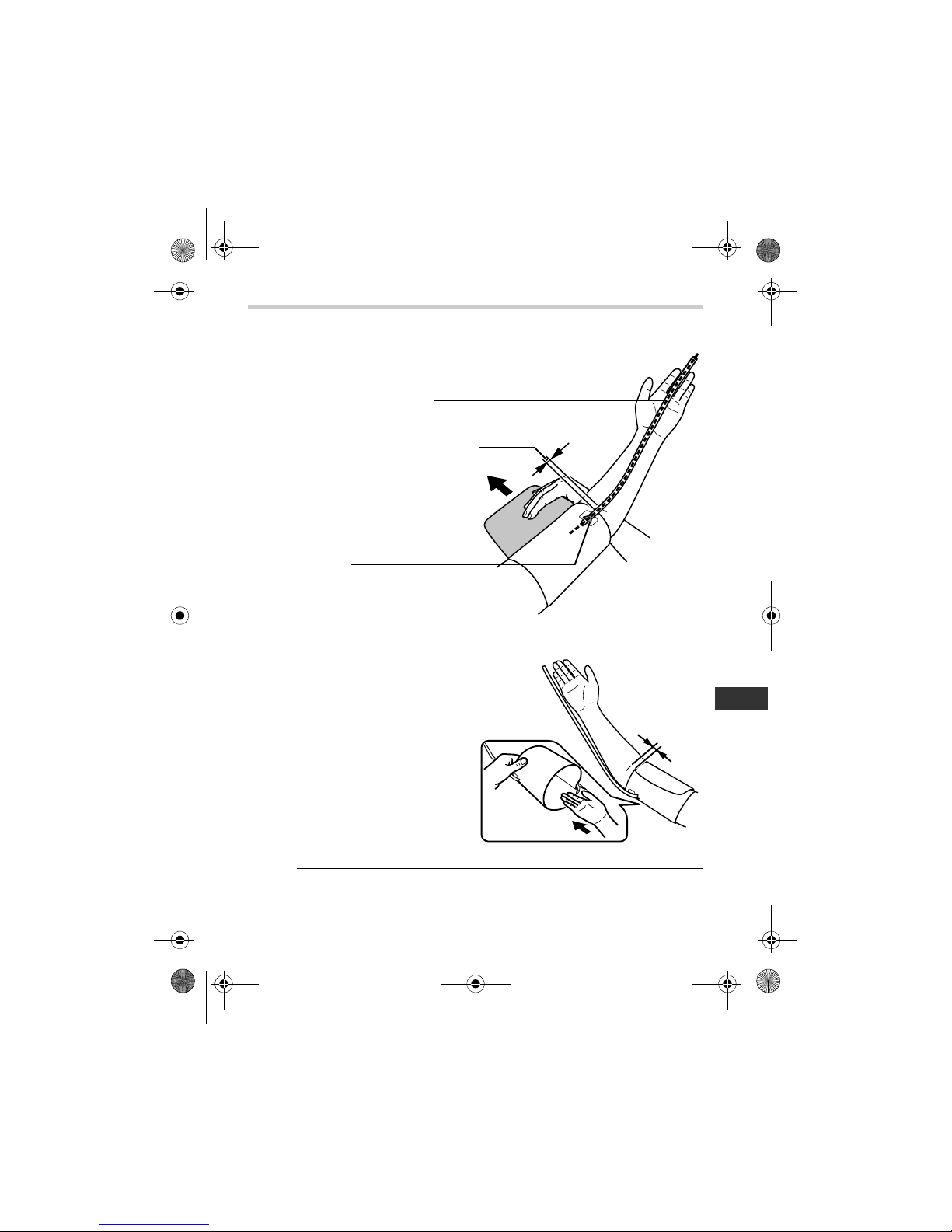

3. Position the arm correctly.
Taking measurements on the right arm
Apply the cuff so that the
air tube is at the side of
your elbow.
• Be careful not to rest
your arm on the air tube,
or otherwise restrict the
flow of air to the cuff.
• The cuff should be 1 to 2
cm above the elbow.
4. When the cuff is positioned correctly, close the fabric fastener
FIRMLY.
1) The air tube should run
down the inside of your
forearm and be in line with
your middle finger.
2) The bottom of the cuff
should be approximately 1
to 2 cm above your elbow.
3) Apply the cuff to your
upper arm so that the
coloured marker (blue
arrow under tube) is
centered on the middle of
your inner arm and points
down the inside of the
arm.
1 to 2 cm
HEM-4011C-EN-RU.book Page 19 Tuesday, June 28, 2011 10:30 AM

20
3.Using the Unit
3.3 Taking a Reading
1. Preparation
1) Press the air release button to release any air in the arm cuff.
2) Press the I/O button to turn the unit on.
3) All items in the display will be displayed briefly.
The battery symbol will also be displayed for test purposes.
This does not mean the batteries are empty.
4) The current date is displayed and the deflation symbol will flash.
5) Finally, the heartbeat symbol will appear and the current time
and 0 is displayed.
Note: If the deflation symbol does not disappear soon, press
the air release button to release any air in the arm cuff.
2. Pump the inflation bulb to inflate the arm cuff.
1) Inflate the cuff until it is 30 to 40
mmHg above your expected
systolic blood pressure value.
ex) If your expected blood
pressure is around 140mmHg,
inflate the arm cuff to between 170
and 180 mmHg. Inflate the cuff
rapidly so that the pressure is
reached in about five seconds.
2) When the desired pressure has been achieved, release the
inflation bulb. Remain still and do not talk.
HEM-4011C-EN-RU.book Page 20 Tuesday, June 28, 2011 10:30 AM
