Omron MIT Elite User manual

Digital Automatic Blood Pressure Monitor
Model MIT Elite
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•   
IM-HEM-7300-WE7-03-05/2012
5329377-2D
12D0973
EN
FR
DE
IT
ES
NL
RU
AR

2
Contents
Before using the unit
Introduction ................................................................................ 3
Important Safety Information .................................................... 4
1. Overview ............................................................................... 6
2. Preparation .........................................................................10
2.1 Installing/Replacing the Batteries.................................... 10
2.2 Setting the Date and Time .............................................. 12
Operating instructions
3. Using the Unit.....................................................................15
3.1 How to Sit Correctly When Taking a Measurement ........15
3.2 Applying the Arm Cuff ..................................................... 17
3.3 Taking a Reading............................................................ 20
3.4 Using the Memory Function ............................................ 25
4. Quick Reference Guide ..................................................... 29
Care and maintenance
5. Handling Errors and Problems .........................................30
5.1 Error Messages...............................................................30
5.2 Troubleshooting .............................................................. 32
6. Maintenance and Storage .................................................34
7. Optional Parts ....................................................................36
8. Technical Data.................................................................... 37
9. Some Useful Information about Blood Pressure ............39

3
EN
Introduction
Thank you for purchasing the OMRON MIT Elite Upper Arm Blood
Pressure Monitor.
The OMRON MIT Elite is a fully automatic blood pressure monitor,
operating on the oscillometric principle. It measures your blood
pressure and pulse rate simply and quickly. For comfortable controlled
inflation without the need for pressure pre-setting or re-inflation the
device uses its advanced “IntelliSense” technology.
The unit also stores up to 90 measurements in memory and calculates
an average reading based on the three most recent measurements
taken within 10 minutes of the last reading.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.
g

4
Important Safety Information
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and arteriosclerosis. Please
read this section carefully before using the unit.
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and self-
treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a
doctor before using the unit. Cuff inflation can cause internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
water. Consult a doctor immediately.
(Optional AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet
hands.
Caution:
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury to the user or patient or damage to the equipment or
other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express
their consent.
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or arm cuff.
• Do not inflate the arm cuff over 299 mmHg.
• Do not use a mobile phone, or other devices that emit electromagnetic fields,
near the unit. This may result in incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).
(Optional AC Adapter Usage)
• Use only the original AC adapter designed for this unit. Use of unsupported
adapters may damage and/or may be hazardous to the unit.
• Plug the AC adapter into the appropriate voltage outlet.

5
Important Safety Information
EN
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off
the power and unplug the power cord immediately.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with
plenty of clean water.
• Use only four “AAA” alkaline batteries with this unit. Do not use other types of
batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
• Replace old batteries with new ones immediately. Replace all four batteries at
the same time.
• Remove the batteries if the unit will not be used for three months or more.
• When the batteries are replaced, you may need to reset the date and time. If
the year is flashing on the display screen, refer to “2.2 Setting the Date and
Time”.
• Do not use new and used batteries together.
General Safety Precautions
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not wash the arm cuff or immerse it in water.
• Read and follow the “Important information regarding Electro Magnetic
Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.
Save these instructions for future reference.

6
1.Overview
1. Overview

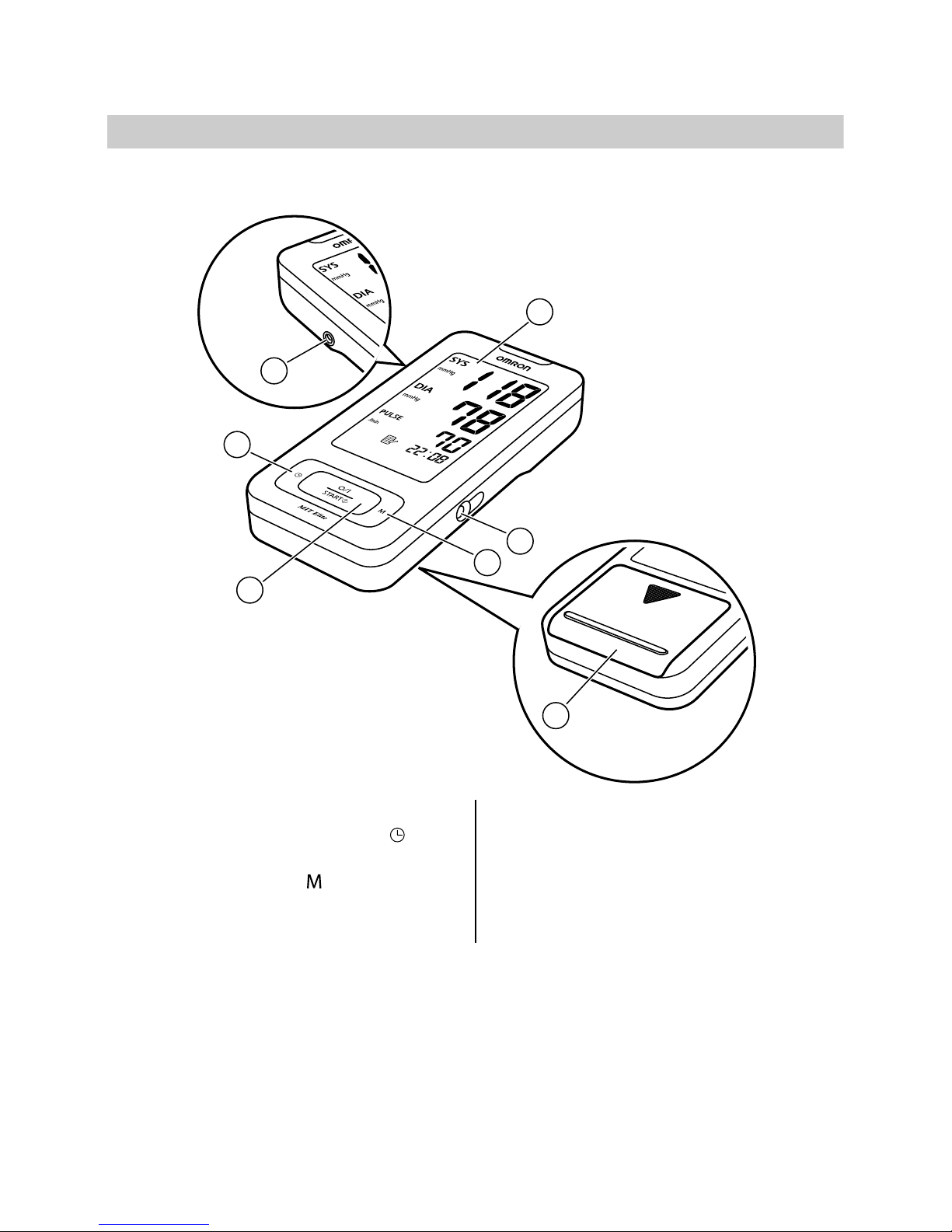

Main unit
A. Air jack
B. Date/time setting button ( )
C. O/I START button
D. Memory button ( )
E. AC adapter jack (for optional AC
adapter)
F. Display
G. Battery compartment
F
C
A
G
E
D
B

7
1.Overview
EN
Arm Cuff
H. Arm cuff
(Medium cuff: arm circumference 22-32 cm)
I. Air tube
J. Air plug
J
I
H

8
1.Overview

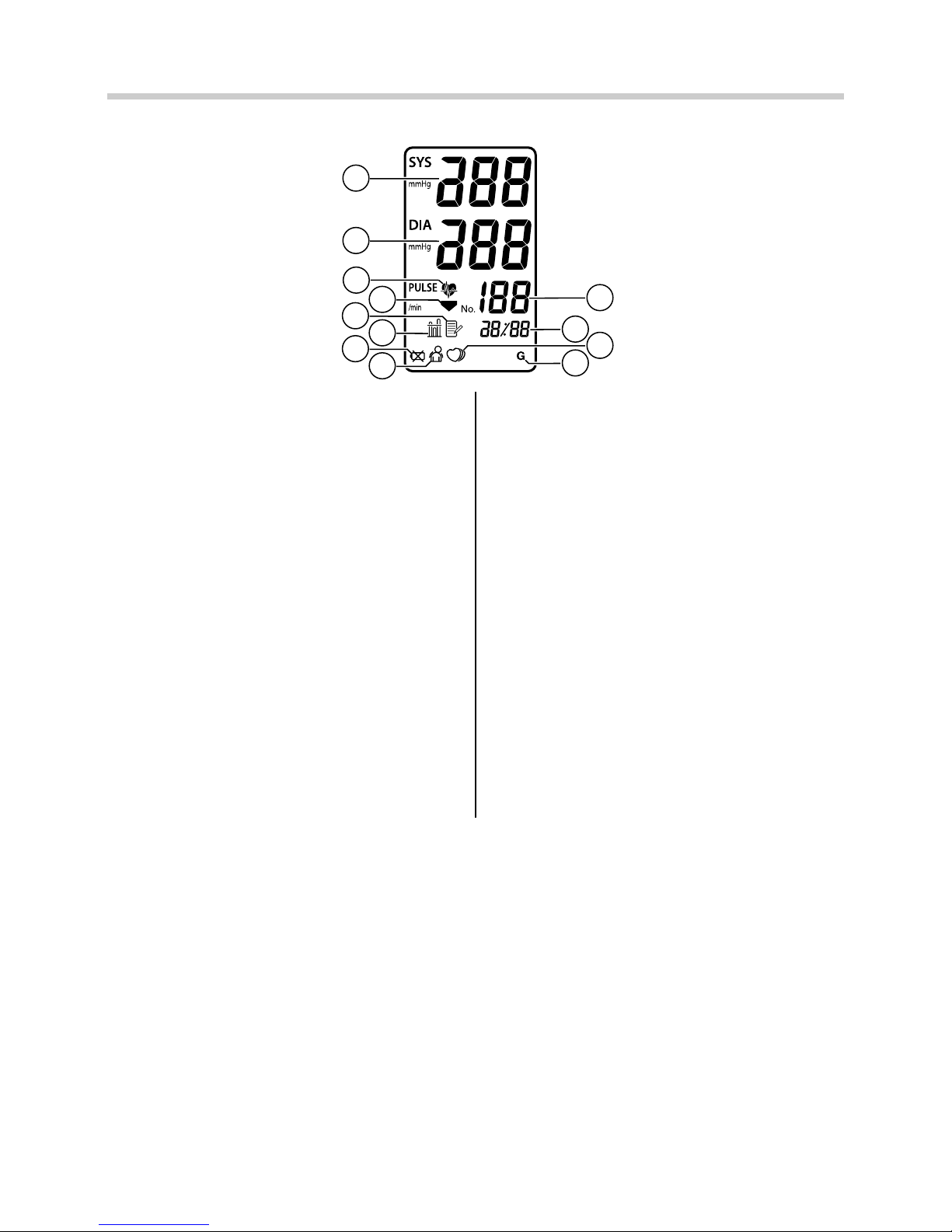

Display
K. Systolic blood pressure
L. Diastolic blood pressure
M. Heartbeat symbol
1.
Flashes during measurement
2. If flashing after measurement
complete indicates blood
pressure out of recommended
range
N. Deflation symbol
O. Memory symbol
Displayed when viewing values
stored in memory
P. Average value symbol
Displayed when viewing value for
the last three measurements
Q. Battery low symbol
R. Movement error symbol
Displayed if you move your body
during the measurement
S. Pulse display
T. Date/Time display
U. Irregular heartbeat symbol
V. Guest symbol
K
L
N
P
R
M
T
V
S
U
O
Q

9
1.Overview
EN
Package contents
W. Storage case
X. Four “AAA” alkaline (LR03)
batteries
• Instruction manual
• Guarantee card
• Blood pressure pass
XW

10
2.Preparation
2. Preparation
2.1 Installing/Replacing the Batteries

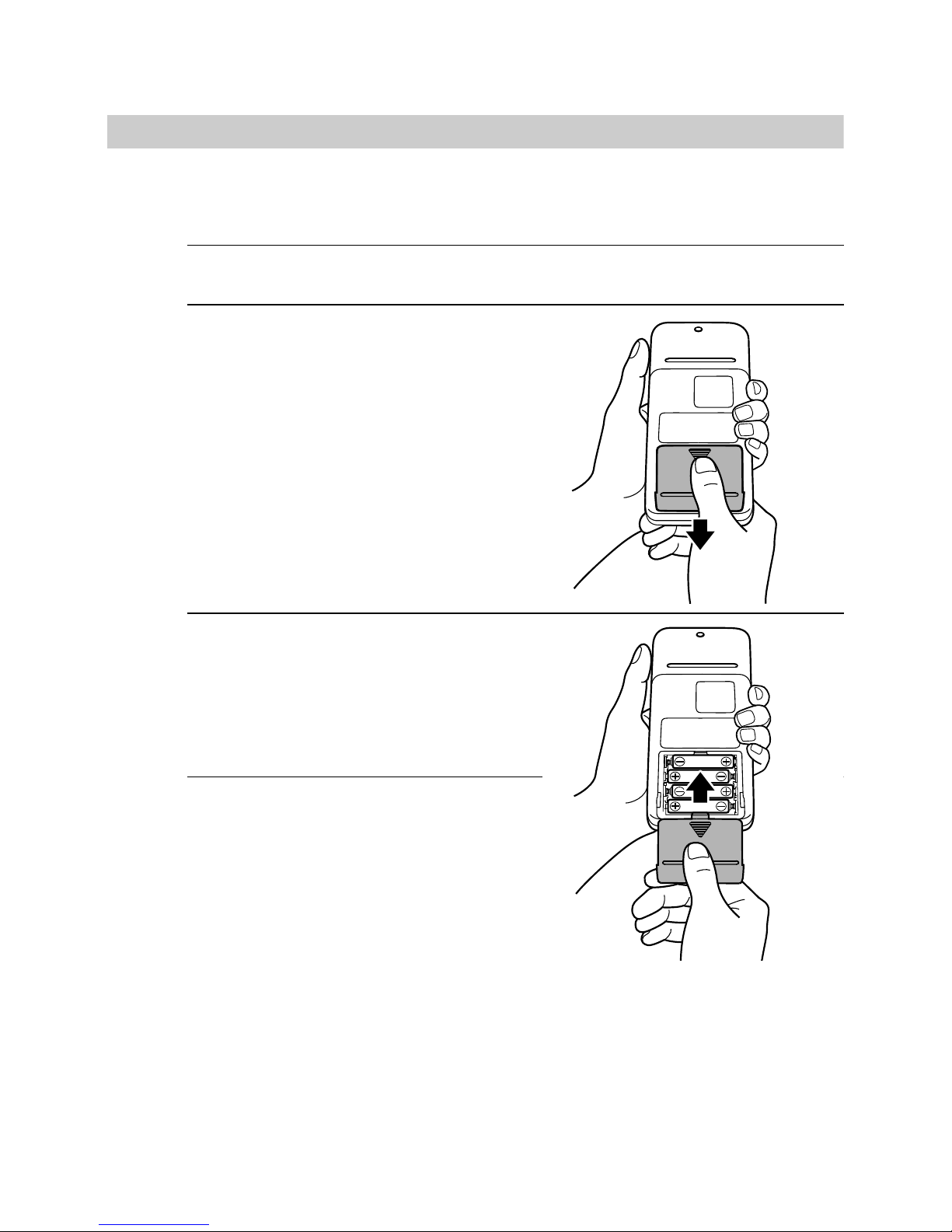

1. Turn the main unit upside down.
2. Slide the battery cover in the
direction of the arrow while
pressing the ribbed part of the
cover.
3. Install or replace four “AAA”size
batteries so that the + (positive)
and - (negative) polarities match
the polarities indicated on the
battery compartment.
4. Put the battery cover back in
place.
Slide the battery cover as
indicated, until it clicks into
place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.

11
2.Preparation
EN
Battery Life & Replacement

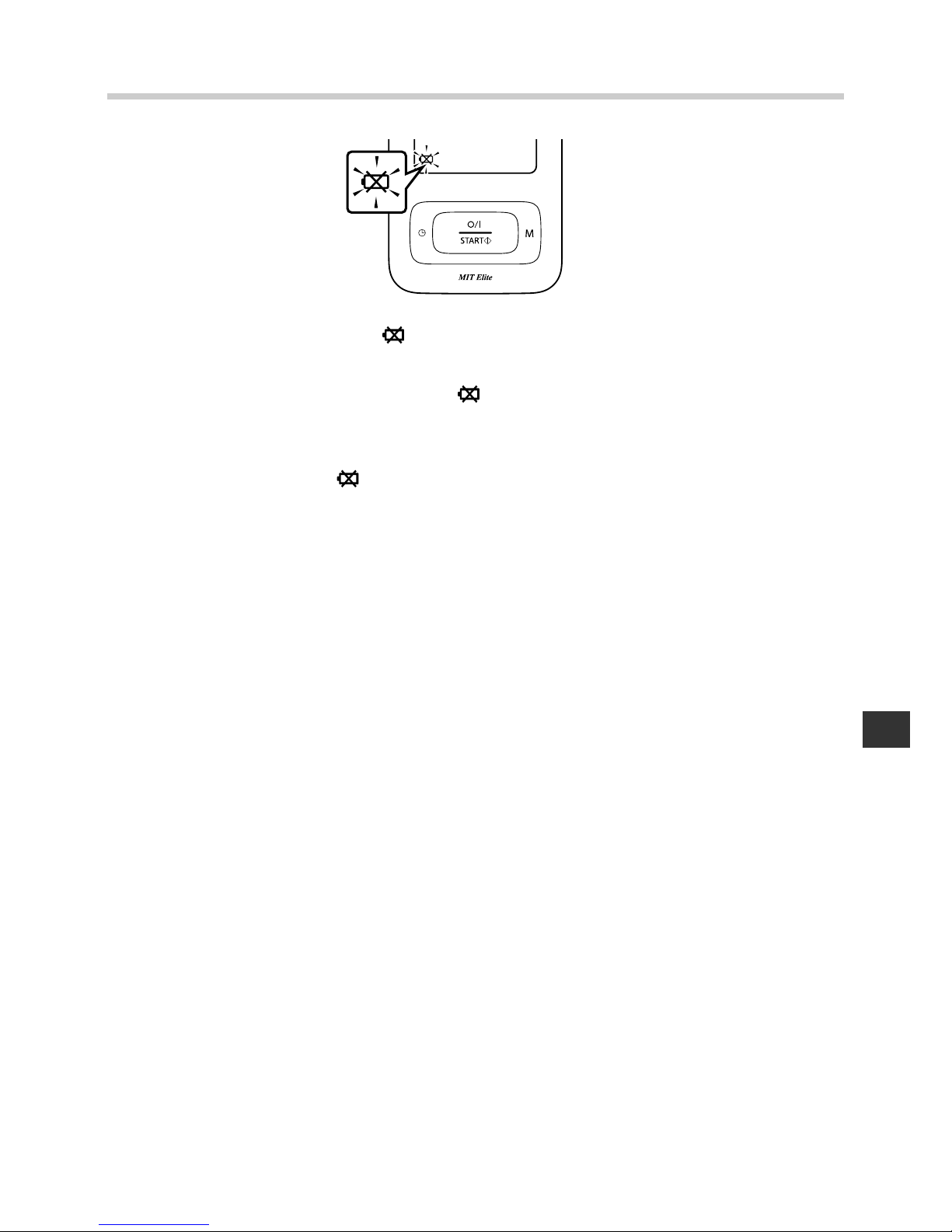

If the battery low symbol ( ) appears on the display, replace all four
batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will still be
able to use the unit for a short while. You should replace the
batteries with new ones ahead of time.
- When the symbol ( ) remains lit, the batteries are exhausted. You
should replace the batteries with new ones at once. Turn the unit off
before replacing the batteries.
• Remove the batteries if the unit will not be used for three months or
more.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be reset. See “2.2 Setting the Date and
Time” for details.
• Dispose of batteries according to applicable local regulations.
Four new “AAA”alkaline batteries will last for approximately 300
measurements, when used to take three measurements a day.
Since the supplied batteries are for monitoring use only, they may have
a shorter life and not last for 300 measurements.

12
2.Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 90
measurements values with the date and time. To make use of the
memory and average values functions:
• Set the unit to the correct date and time before taking a measurement
for the first time.
• If the batteries have been removed for more than 30 seconds, the
Date/Time setting will need to be set.

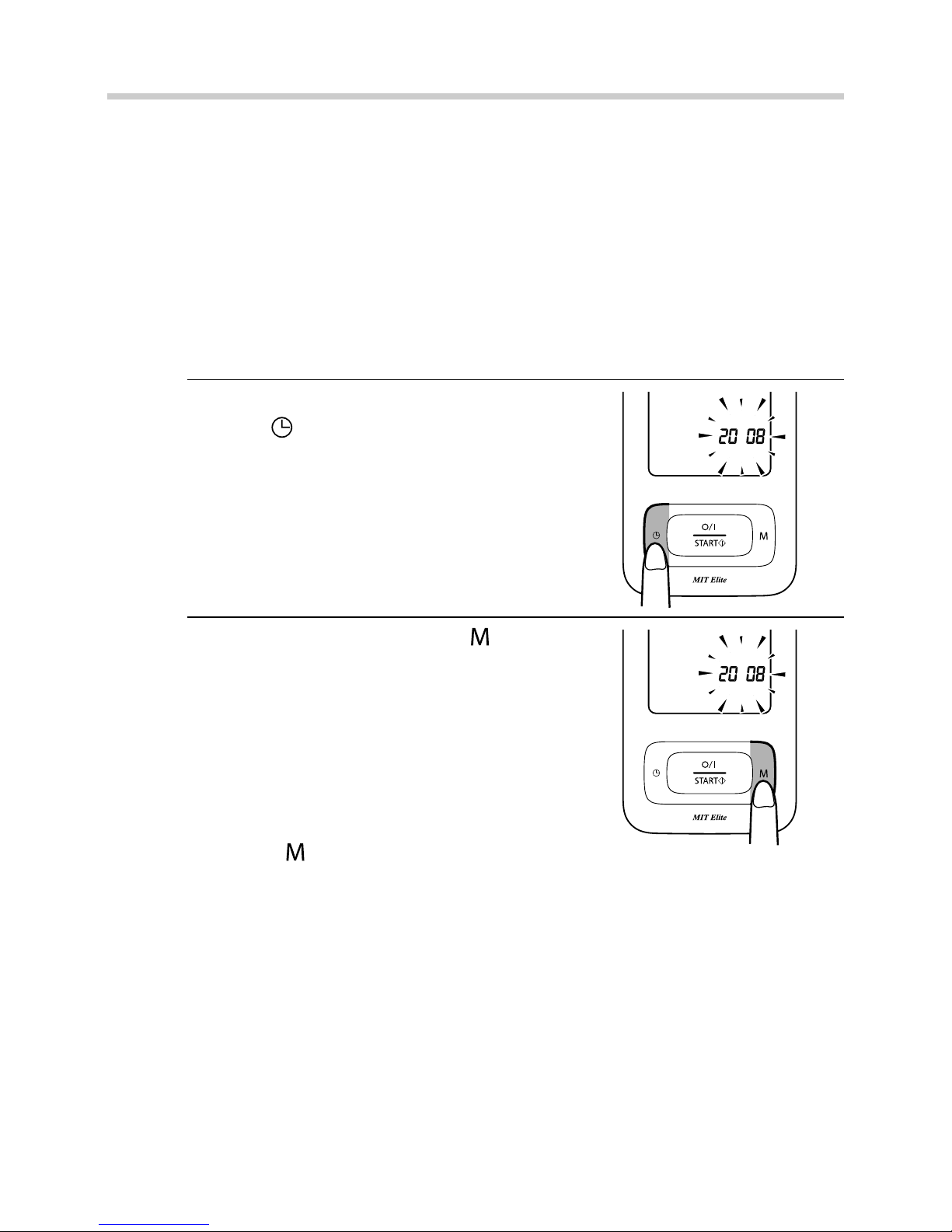

1. Press and hold the Date/time setting
button ( ) to adjust the date and
time. The year digits (2008) will flash
on the display.
2. Press the Memory button ( ) to
advance the digits one at a time.
Notes:
• The range for the year setting is
2008 to 2030. If the year reaches
2030, it will return to 2008.
• If you hold down the Memory
button ( ), the digits will advance
rapidly.

13
2.Preparation
EN
3. Press the Date/time setting button
( ) to confirm the setting when the
desired number appears on the
display.
The year is set and the month digits
flash on the display.
4. Repeat steps 2 and 3 to set the
month.
The month is set and the day digits
flash on the display.
5. Repeat steps 2 and 3 to set the day.
The day is set and the hour digits
flash on the display.

14
2.Preparation
6. Repeat steps 2 and 3 to set the
hour.
The hour is set and the minutes
digits flash on the display.
7. Repeat steps 2 and 3 to set the minutes.
The minutes settings is set.
Press the Date/time setting button
( ) to turn the monitor off.
When adjusting the date and time,
press the Date/time setting button
( ) to turn the monitor on, follow
the steps above, and press the O/I START button to turn the
monitor off.

15
3.Using the Unit
EN
3. Using the Unit
3.1
How to Sit Correctly When Taking a Measurement
You can take a measurement on either your left or right arm.
Notes:
• Measurements should be taken in a quiet place and you should be in
a relaxed, seated position. Make sure that the room is not too hot or
cold.
• Avoid eating, drinking alcohol, smoking, or exercising for at least 30
minutes before taking a measurement.
• Do not move or talk during measurement.
Correct
Posture
Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick
clothes and do not roll up your sleeve
if it is too tight.
Sit upright
with your
back straight.
Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the
chair and the top of the
table should be between
25cm to 30cm.
pg

16
3.Using the Unit
Notes:
• Correct posture during measurement is necessary to get accurate
results.
• You should also try to measure your blood pressure at the same time
each day. (Within 1 hour after waking up is recommended.)
Incorrect Posture
These situations could lead to higher blood pressure values due to
strain or the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions
etc., to adjust the height of your arm.
•Arched back (leaning
forwards)
•Sitting cross-legged
•Sitting on a sofa or at a low
table so that you tend to lean
forward

17
3.Using the Unit
EN
3.2 Applying the Arm Cuff
Notes:
• Be sure to wrap the arm cuff correctly so that you get accurate
results.
• Measurements can be taken in light clothing. However, please
remove thick clothes, such as sweaters, before taking a reading.
• You can take a measurement on either your left or right arm. The
blood pressure can differ between the right arm and the left arm and
therefore also the measured blood pressure values can be different.
Omron recommends to always use the same arm for measurement. If
the values between the two arms differ substantially, please check
with your doctor which arm to use for your measurement.
Taking measurements on the left arm
1. Insert the air plug into the air
jack on the left side of the main
unit.

18
3.Using the Unit

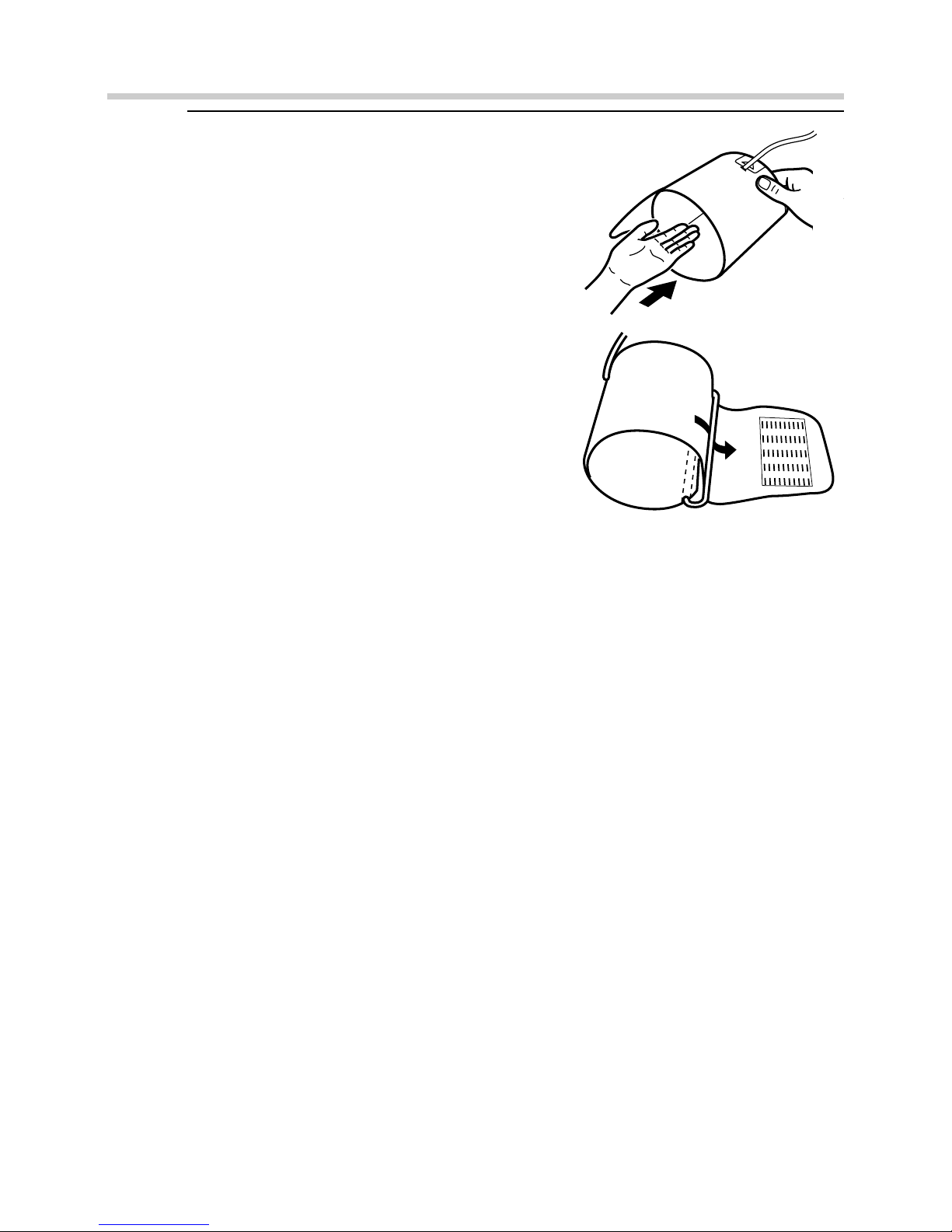

2. Put your left arm through the cuff
loop.
Note: If the cuff is not assembled,
pass the end of the cuff
furthest from the tubing
through the metal D-ring to
form a loop. The smooth cloth
should be on the inside of the
cuff loop.

19
3.Using the Unit
EN
3. Position the arm correctly.
Taking measurements on the right arm
Apply the cuff so that the
air tube is at the side of
your elbow.
• Be careful not to rest
your arm on the air tube,
or otherwise restrict the
flow of air to the cuff.
• The cuff should be 1 to
2 cm above the elbow.
4. When the cuff is positioned correctly, close the fabric fastener
FIRMLY.
1) The air tube should run
down the inside of your
forearm and be in line with
your middle finger.
2) The bottom of the cuff
should be approximately 1
to 2 cm above your elbow.
3) Apply the cuff to your
upper arm so that the
coloured marker (blue
arrow under tube) is
centred on the middle of
your inner arm and points
down the inside of the
arm.
1 to 2 cm

20
3.Using the Unit
3.3 Taking a Reading
1. Press the O/I START button to turn on the unit.
All symbols appear on the display.
The cuff starts to inflate automatically. As the cuff inflates, the
unit automatically determines your ideal inflation level. This unit
detects the pulse during inflation. Do not move your arm and
remain still until the entire measurement process is completed.
Note: To stop the inflation or measurement, press and release
the O/I START button. The unit will stop inflating, start
deflation and will turn off.
2. When the measurement is complete, the arm
cuff completely deflates. Your blood pressure
and pulse rate are displayed.
