Omron 705CP-II User manual

Instruction manual page 1
Gebrauchsanweisung Seite 23
Gebruiksaanwijzing pagina 45
Mode demploi page 67
Istruzioni per luso pagina 89
Instrucciones de uso pagina 111
Automatic Blood Pressure
Monitor & Printer
The World Hypertension
League recommends regular blood
pressure monitoring with clinically
validated devices.
705CP-II
IM-HEM-759-E2-02-10/2011
1628532-8F

705CP-II English
Dear Customer
Contents Blood pressure monitor
Important instructions to help you obtain
meaningful readings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Your blood pressure monitor: the benefits . . . . . . . . . . .3
Battery installation / replacement . . . . . . . . . . . . . . . . . . . .4
How to set time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
How to apply the cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
How to take a reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
How to use the memory function . . . . . . . . . . . . . . . . . . .10
Hints on taking blood pressure readings . . . . . . . . . . .11
Failure, causes and rectification . . . . . . . . . . . . . . . . . . . .12
Maintenance and storage . . . . . . . . . . . . . . . . . . . . . . . . . .13
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
OMRON spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Some useful information about blood pressure . . . . .16

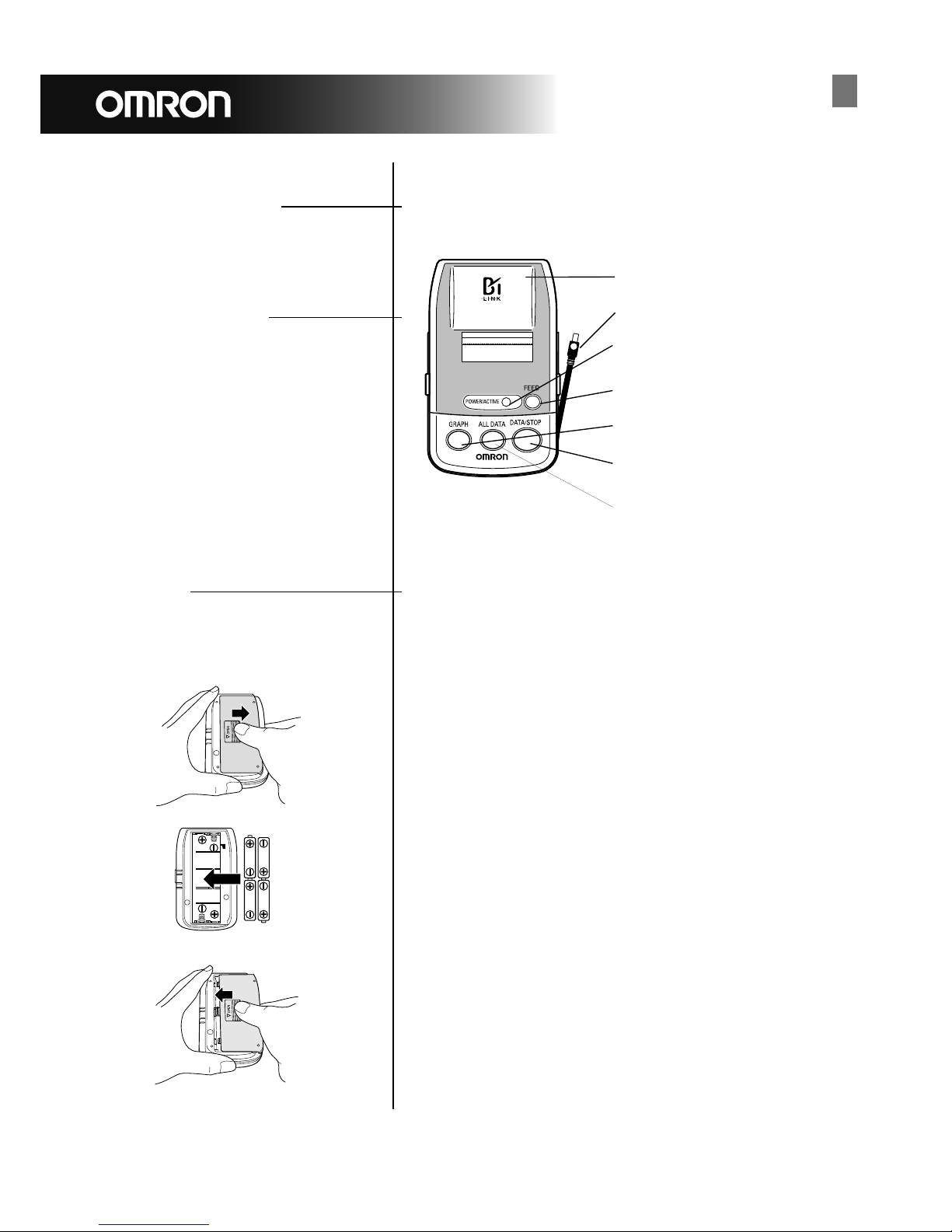

Printer
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Description of the printer . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Battery installation/ replacement . . . . . . . . . . . . . . . . . . .18
How to connect printer unit . . . . . . . . . . . . . . . . . . . . . . . . .19
How to load printer paper . . . . . . . . . . . . . . . . . . . . . . . . . .19
How to use the printer unit . . . . . . . . . . . . . . . . . . . . . . . . .20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Thank you for purchasing an OMRON product. You
can be sure you have made a wise choice. By buying
the OMRON 705CP-II blood pressure monitor and
printer, you have chosen a high-quality, innovative
instrument for health monitoring. During its develop-
ment, particular emphasis was placed upon reliability
and ease of use. Before using for the first time,
please read through this manual carefully. If you
should still have any questions regarding its use,
please contact the OMRON distributor at the given
address on the packaging. They will be pleased to
help you.
Best wishes for a healthy future.
Yours sincerely,
OMRON HEALTHCARE
1

2
705CP-II English

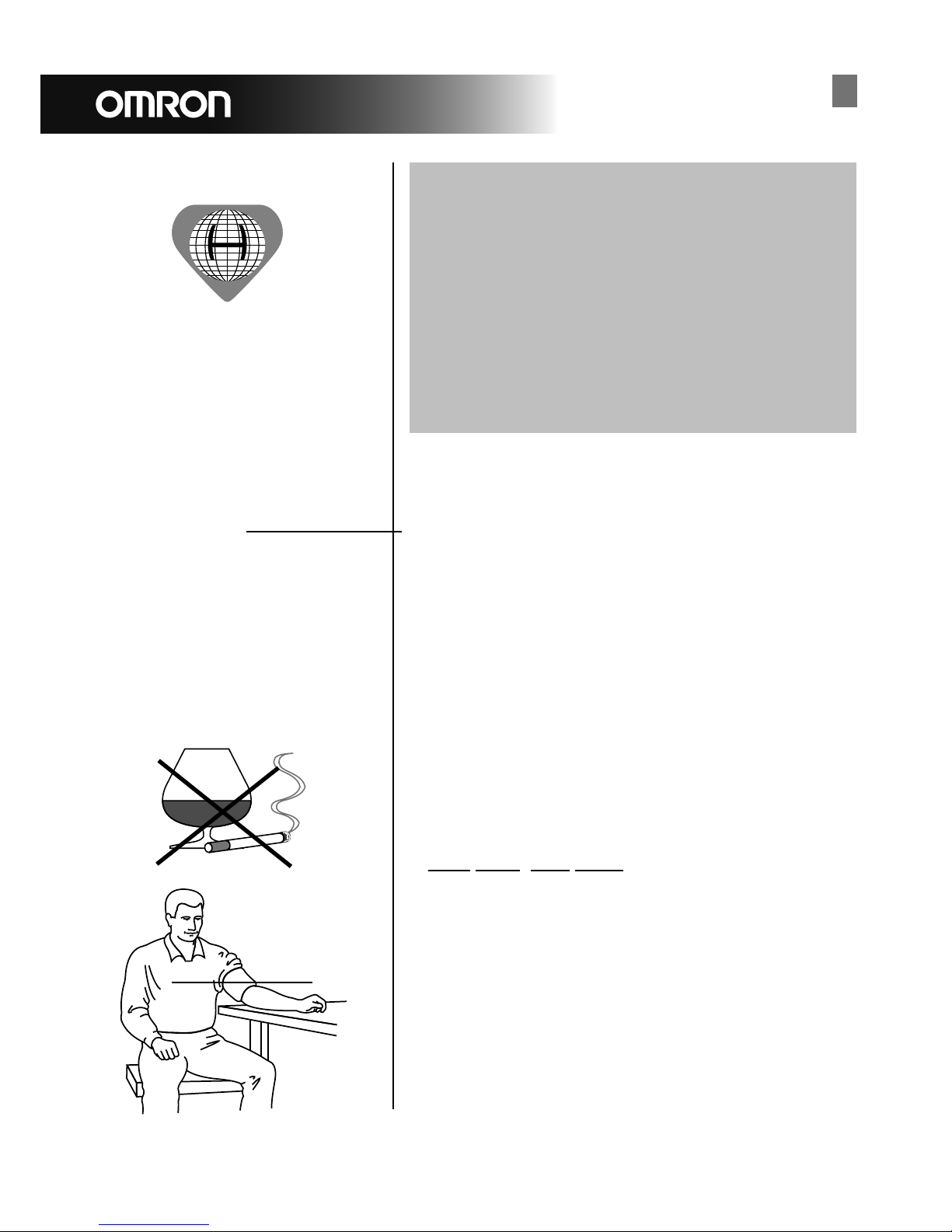

The World Hypertension League
recommends regular
blood pressure monitoring by
doctors and patients with clinically
validated devices
Regular blood pressure monitoring is essential for the
prevention, the control and the management of
hypertension. It also helps to support the doctors' work.
The World Hypertension League is a world-wide
association of experts specialising in hypertension. The
World Hypertension League recommends regular blood
pressure monitoring by doctors and patients with
clinically validated devices.
As the worlds leading manufacturer OMRON provides a
range of products for regular blood pressure monitoring.
Important
instructions to
help you obtain
meaningful
readings
•Important: Blood pressure measurement is not
suitable in cases of serious arteriosclerosis
(hardening of the arteries).
• The pulse display is not suitable for monitoring the
frequency of cardiac pacemakers.
• If you suffer from disorders of heart rhythm, known
as arrythmia, you should only use this blood pressure
monitor in consultation with your doctor. In certain
cases the oscillometric measuring method can
produce incorrect readings.
• Pregnant women should only measure their own
blood pressure in consultation with their doctor, since
the readings may be changed by pregnancy.
• You should avoid eating, drinking (alcohol), smoking
and sports before measuring your blood pressure, as
this could affect your blood pressure level.
• Dont move, dont speak while measurement is being
taken.
• Make yourself comfortable in a chair and relax before
each reading.
• We recommend that you monitor your blood pressure
twice a day, in the morning after getting up and in the
evening after work, or as advised by your doctor.
•Please remember: Self-measurement is not the
same as medical treatment !
You should never change the dose of medicines
prescribed by your doctor.

3
705CP-II English
ON/OFF (O/I) button
START ( ) button
OMRON 705CP-II is a compact, fully automatic blood
pressure monitor, operating on the oscillometric
principle. It measures your blood pressure and pulse
rate simply and quickly. It contains an intelligent “fuzzy
logic” system for controlled inflation,
known as “Intellisense”. This is an
advanced method of oscillometric
measurement and does not require pressure pre-
setting or re-inflation. OMRON is the worlds leading
manufacturer of blood pressure monitors with the goal
to always fulfill the need for reliable regular monitoring.
Your blood
pressure
monitor:
the benefits
AC Adapter Jack
USB Connector
Pulse Rate
Date/Time Display
Heart Symbol
Memory recall Button
Systolic Blood
Pressure
Set Button Adjust Button
Diastolic Blood
Pressure
Air Jack
Air Tube
Green Mark
Air Plug (Connects to Air Jack)
Cuff (Applicable cuff for Adults 22 to 32 cm.)

4
705CP-II English

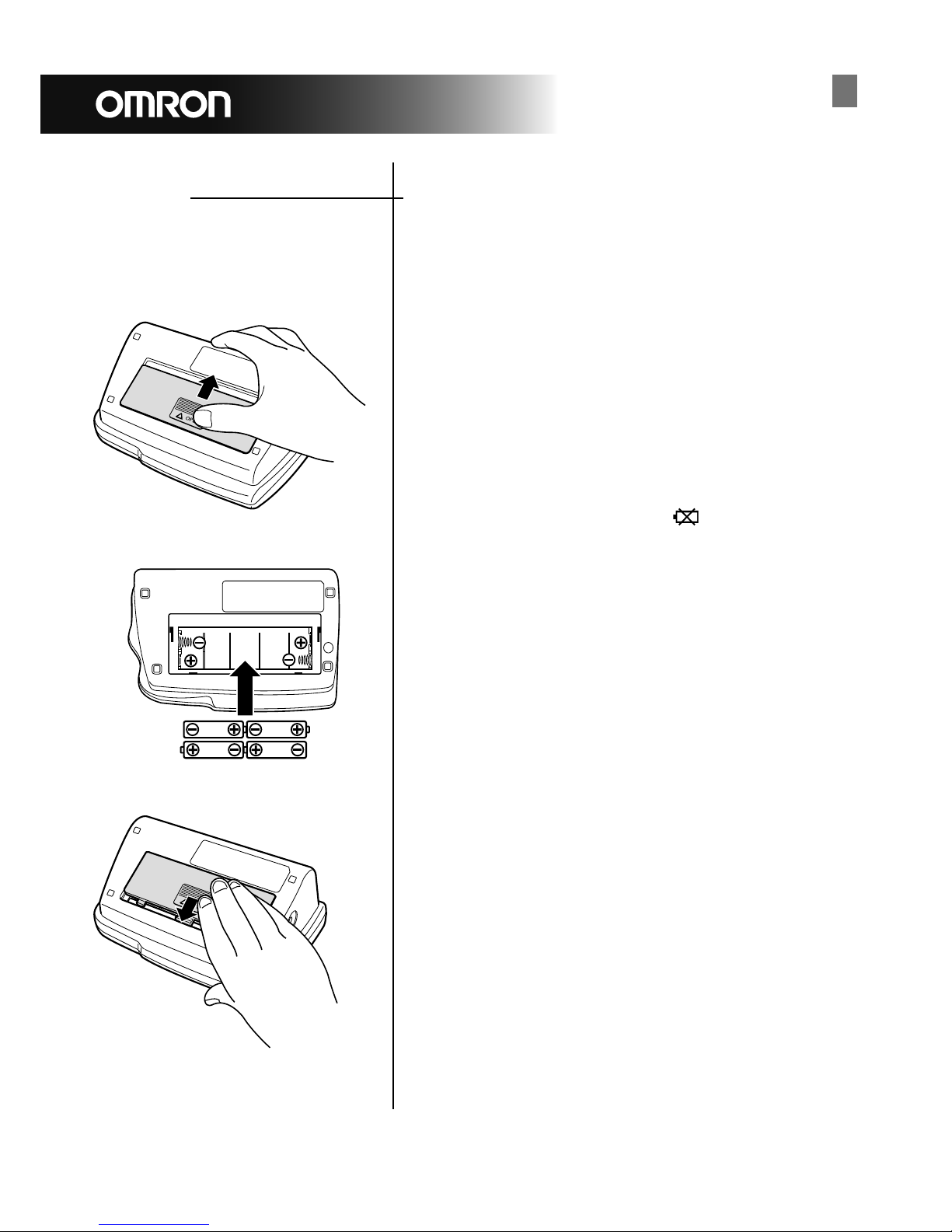

Battery
installation /
replacement
Slide the battery cover off in the direction of the
arrow.
Install or replace 4 “LR6” batteries so the +
(positive) and – (negative) polarities match the
polarities of the battery compartment as indicated.
Replace the battery cover.
NOTES :
If the Low Battery Indicator ( ) appears on the
display, replace all four batteries. Long-life alkaline
batteries are recommended.
Remove the batteries if the monitor will not be
used for an extended period of time.
Replace batteries within 30 seconds. If the
batteries remain removed longer than that time,
the set date and time will be deleted.

5
705CP-II English

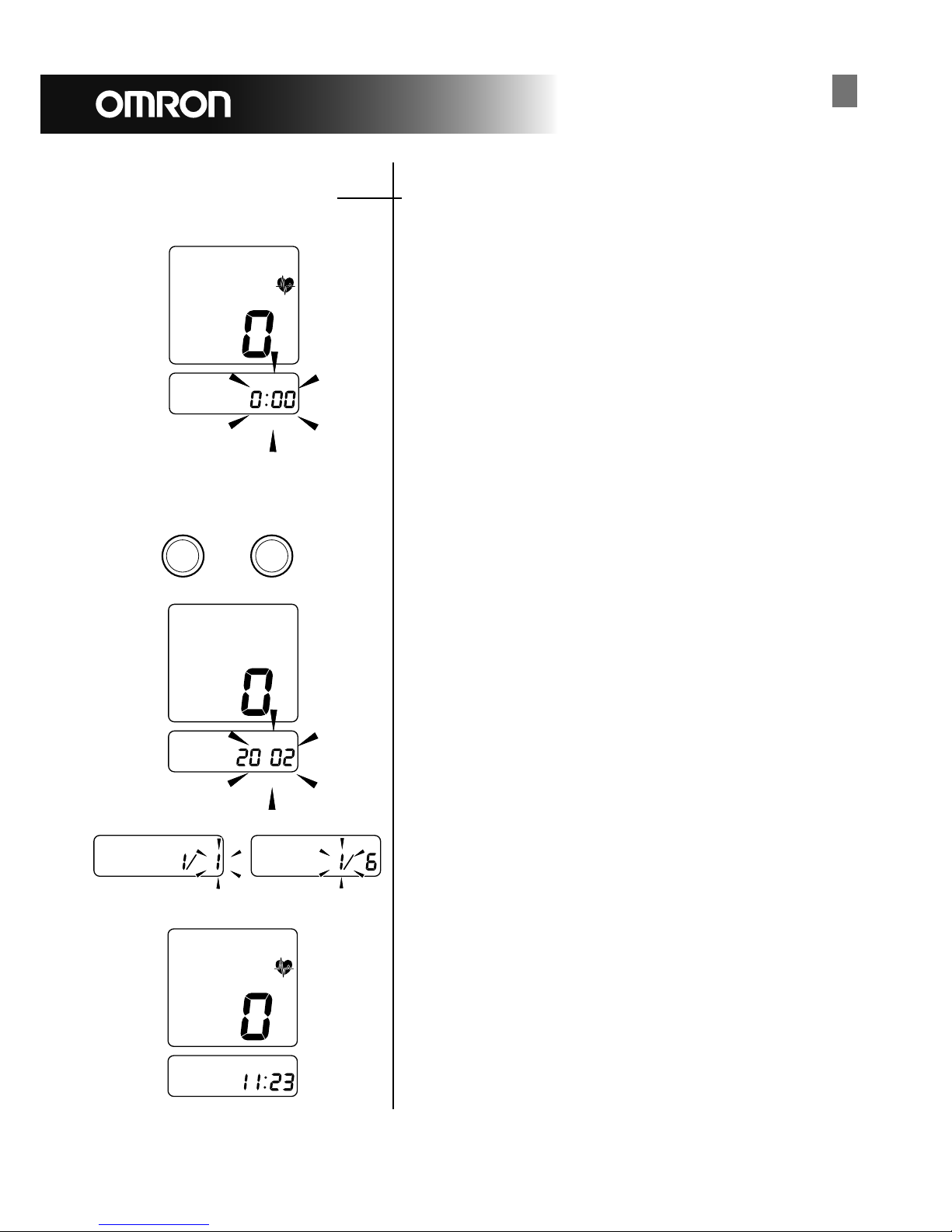

How to set time
and date
Install the batteries and press the ON/OFF button.
The display will show 0:00
Press and hold the SET button.
The year digits (2002) will flash.
Press the ADJUST button to advance the digit(s)
one at a time.
If you hold down the ADJUST button, the digits will
advance rapidly.
Press SETbutton when desired number is on the
display to lock setting.
Repeat Step 3-4 for month and date.
Repeat Step 3-4 for hour and minutes.
ADJUST SET
DATE/TIME SET

6
705CP-II English

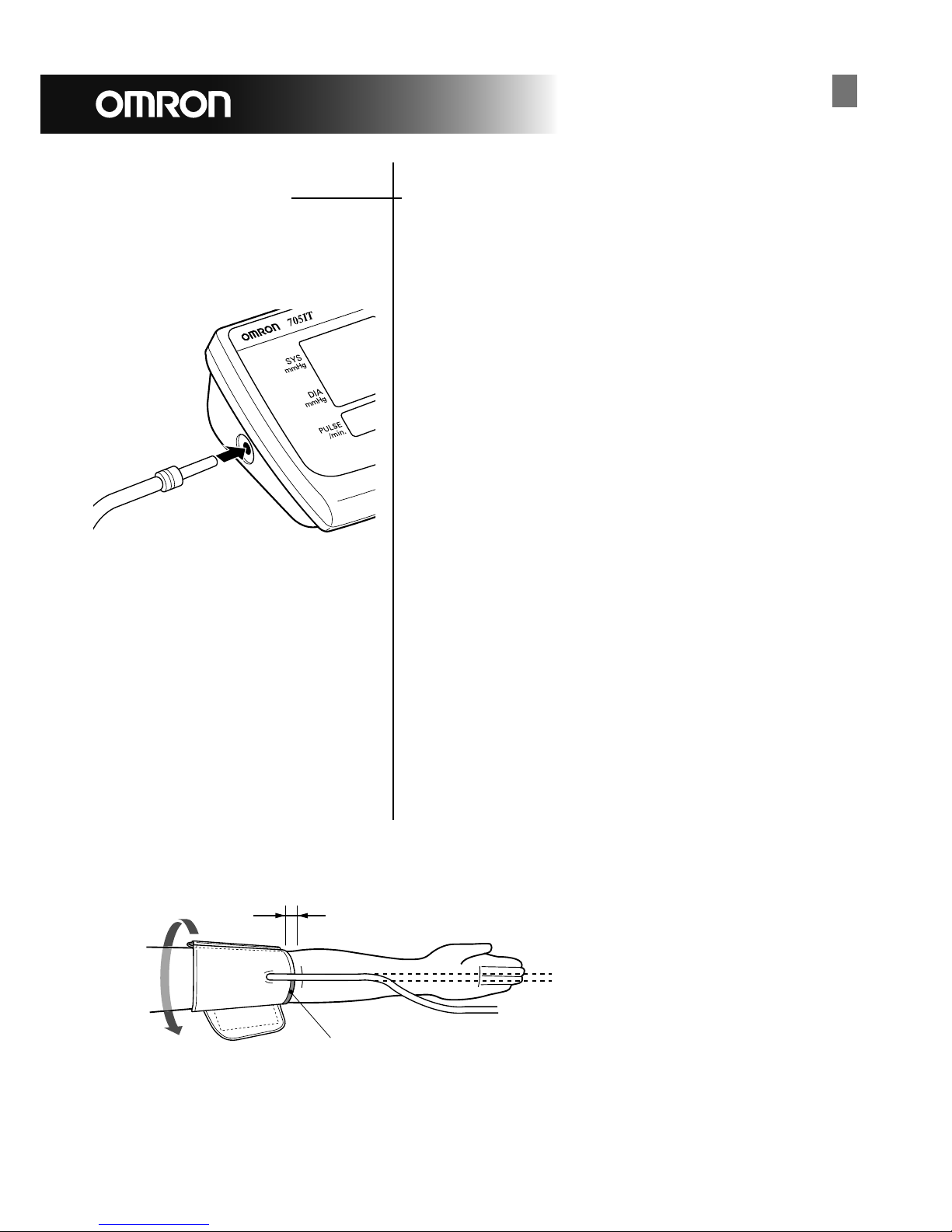

How to apply
the cuff
(when wrapping on your left arm)
• You can wrap the cuff either on your right or left arm.
Insert air tube to air jack (on the left side of the
divice). The cuff must be airless.
Remove tight-fitting clothing from your upper arm.
Sit in a chair with your feet flat on the floor and
place your arm on a table so that the cuff is at the
same level as your heart.
Put your arm through the cuff loop. The bottom of
the cuff should be approximately 1 to 2 cm above
the elbow. The green marker on the cuff should lie
over the brachial artery on the inside of the arm.
The tube should run down centre of arm
approximately even with middle finger.
Bottom Edge 1 to 2 cm
Green Mark
Cuff Tube

7
705CP-II English

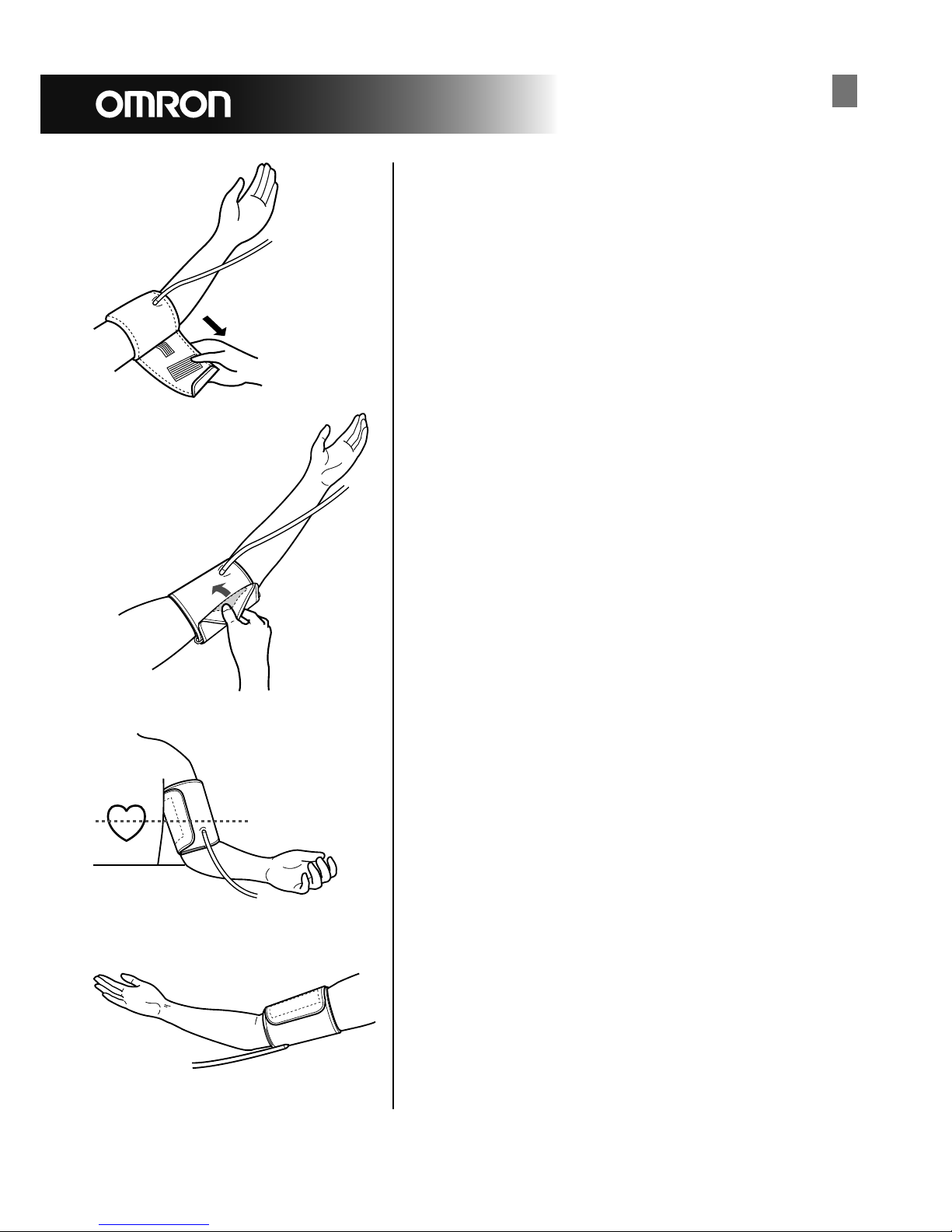

Pull the cuff so that the top and bottom edges are
tightened evenly around your arm.
When the cuff is positioned correctly, close the
velcro fastener FIRMLY.
Make certain the cuff fits snugly around your arm.
The cuff should make good contact with your skin.
You should be able to fit your index finger
between the cuff and your arm easily, so you
can pull the cuff off and on.
Relax your arm and turn your palm upward.
Be sure there are no kinks in the air tubing.
Right hand measurement

8
705CP-II English

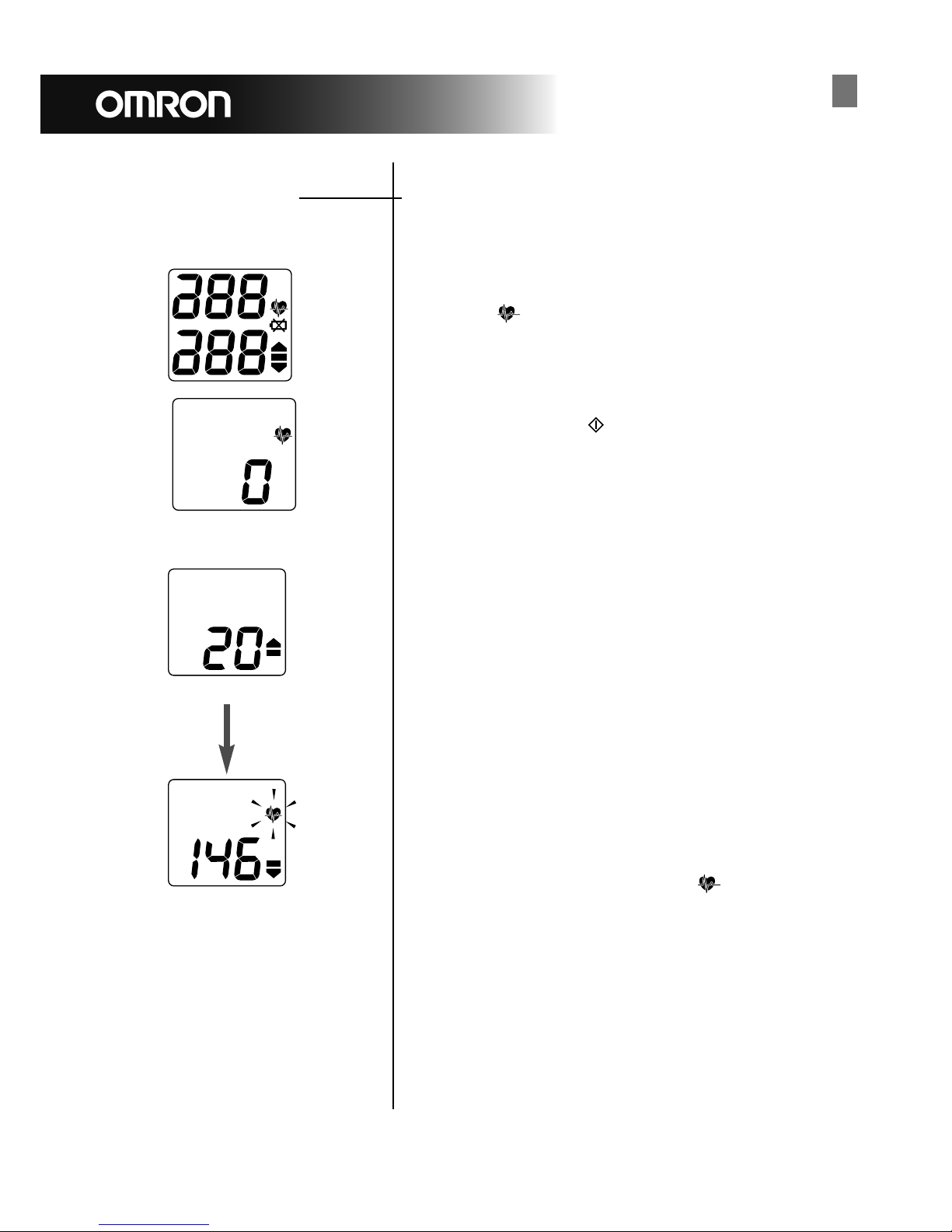

How to take a
reading
Press the (O/I) button.
a) All display symbols appear for approximately
one second.
b) When the monitor becomes ready to measure,
the ( ) symbol appears on the display.
Press the (START ) button and remain still.
As the cuff begins to inflate, the monitor
automatically determines your ideal inflation level.
Because this monitor detects the pulse even
during inflation, do not move your arm but remain
still until the entire measurement completes.
• If you want to stop the inflation or measurement,
press the (O/I) button. The monitor will stop
inflating and start deflating rapidly, then the
monitor will turn off.
Inflation stops automatically and measurement is
started.
As the cuff slowly deflates, decreasing numbers
appear on the display and the ( ) symbol
flashes at every heartbeat. In rare circumstances,
a higher inflation may be necessary. In those
cases, the monitor reinflates the cuff up to 30
mmHg higher than initial inflation and restarts the
measurement.
Inflation
Deflation

9
705CP-II English
START
Continue to press button
When the measurement is complete, the cuff
completely deflates and your blood pressure and
pulse rate are displayed.
NOTE :
The monitor automatically stores blood pressure
and pulse rate into the memory.
• When 28 sets of readings are stored in memory,
the oldest set will be deleted to store a new set.
Press the (O/I) button to turn the monitor off.
NOTE :
If you forget to turn the monitor off, it will
automatically shut itself off after five minutes.
Instructions for special conditions:
• If your systolic pressure is known to be more than
220 mmHg, press and hold the (START ) button
until the monitor inflates 30 to 40 mmHg higher
than your suspected systolic pressure.
NOTE :
Do not apply more pressure than necessary.
The monitor will not inflate above 300 mmHg.

10
705CP-II English

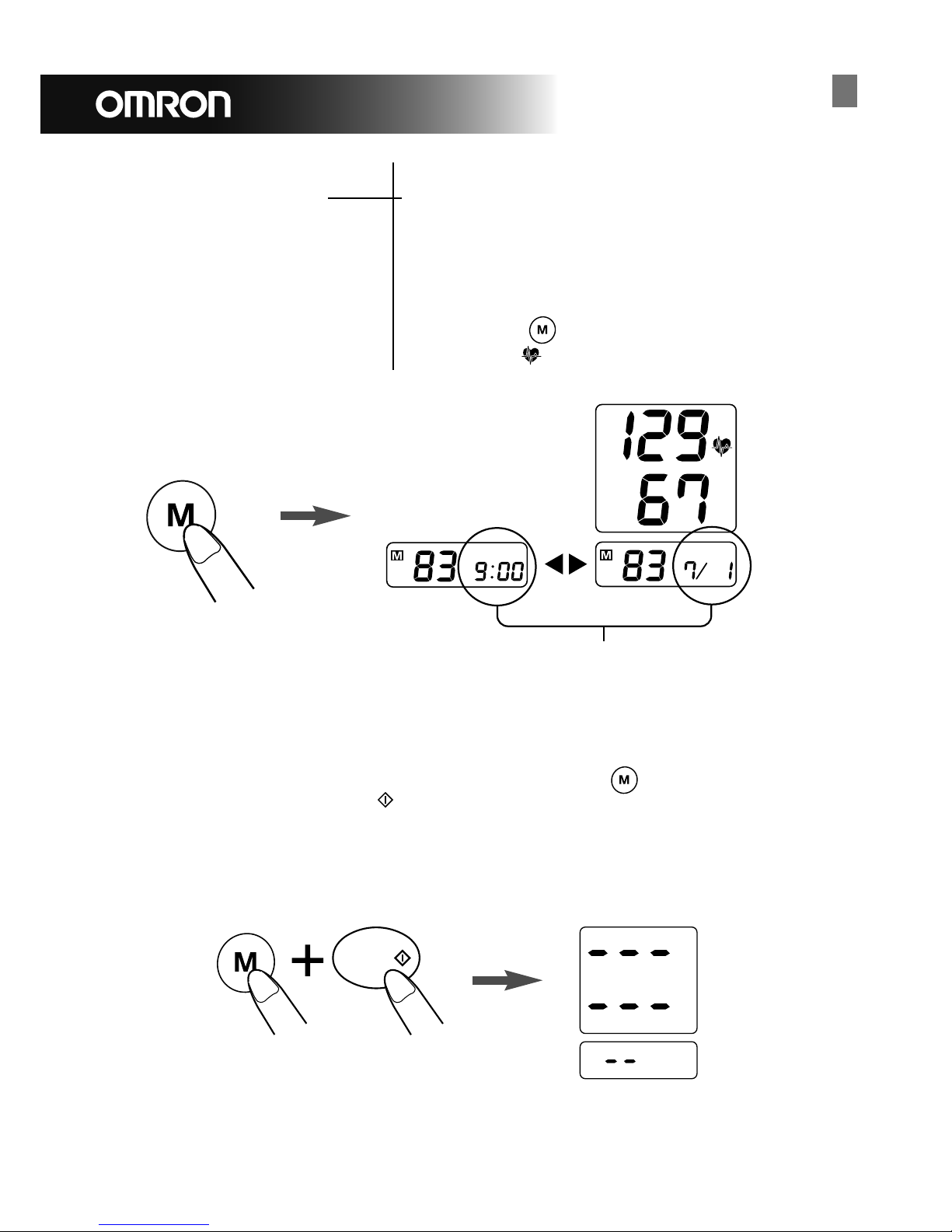

How to use the
memory
function
This monitor has a memory capable of storing 28
sets of readings. Every time you complete the
measurement, the monitor automatically stores blood
pressure and pulse rate.
• Turn on the monitor by pressing the (O/I) button.
• Press the ( ) button to recall stored readings
while the ( ) symbol is displayed.
START
Press these two buttons
at the same time.
• To delete all the stored readings, press the ( ) button
and the (START ) button simultaneously.
NOTE :
You can not delete the stored readings partially.
Date and Time of stored readings
will be alternately displayed.

11
705CP-II English
• Before measuring, stretch your back and sit up
straight, breath normally 5-6 times, relax your
shoulders, arms and entire body.
• Slightly bend and support your elbow (e.g. on a
table).
• Do not move, talk or touch the device during
measurement.
• Stress influences your blood pressure, so try to
relax before taking a measurement.
• To compare results, measurements must always
be taken from the same arm.
• Do not place the cuff over thick clothes and do not
roll up your sleeve if it is too tight.
• Align the cuff with the height of your heart (breast
height). If necessary use a pillow or cushion.
• Coldness raises your blood pressure. It is
recommended to measure at room temperature
(+20°C).
• Relax before measurement. If necessary go to the
bathroom before measurement.
• Do not measure directly after bathing.
• If you wish to interrupt measurement prematurely,
press the (O/I) button. Inflation is stopped and the
air is automatically released from the cuff.
• Blood pressure measurements taken in a moving
vehicle may be influenced by vibration.
• If an error has occurred during measurement is
displayed. Please refer to the next chapter.
• The monitor should be switched off after
measurement to avoid running down the batteries
unnecessarily. If you forget to do so, the monitor
switches itself off automatically after 5 minutes.
E
Hints on taking
blood pressure
readings

12
705CP-II English
Failure, causes and rectification
Failure and their possible causes
Incorrect measurement is indicated by
1. A correct reading could not be obtained
because measurement was disturbed by
movement of the body.
2. The cuff is not fitted correctly.
3. Your clothing has constricted your
blood flow.
4. There is still air in the cuff when the
monitor is switched off.
The (START ) button was pressed
before the ( ) symbol was displayed.
The blood pressure values displayed are
extremely low or high, or they are
implausible.
The display does not light up when the
(START ) button is pressed.
1. The batteries are exhausted.
2. The +/- poles of the batteries have been
reversed.
3. The battery contacts are dirty.
The batteries are weak or exhausted.
The cuff pressure does not rise
although the pump motor can be heard.
problem with mem. function
E
Er
Rectification
1. Repeat the measurement keeping
perfectly still. Do not move your arm and
do not speak.
2. Check that the cuff is correctly fitted.
Then repeat the measurement.
3. Remove the item of clothing which
caused the constriction.
4. The unit may be defective. Please have
it examined and, if necessary, repaired
by OMRON.
Wait for the ( ) symbol indicating
readiness before you press the (START )
button.
Refer to the instructions and then repeat
the measurement.
1. Check the batteries and, if necessary, fit
4 new batteries.
2. Reinsert the batteries with the +/- poles
the right way round.
3. Clean the battery contacts with a dry
cloth.
Fit new batteries.
Check that the air tube is properly
connected to the monitor. Push the tube
connector firmly into the socket.
Contact your Omron retailer or distributor.

13
705CP-II English
Maintenance
and storage
• For cleaning the monitor only use a soft, lightly
moistened cloth.
Do not use petroleum spirits, thinners or
similar solvents !
• Stains on the cuff can be carefully removed using
a moist cloth and soapy water.
Do not wash the cuff or make it wet !
• Keep your blood pressure monitor in the storage
case to protect it from dust and moisture.
• Protect your monitor against vibrations and do not
leave it in a place where temperatures are
extremely low (below -20°C) or extremely high
(above 60°C) or with high humidity (+ 85%).
• Do not use your monitor at very low temperatures
(below 10°C) or very high temperatures (above
40°C).
• Do not fold the cuff or air tube together too tightly
and do not crease them.
• Do not carry out repairs of any kind yourself.
If a defect occurs, consult the OMRON distributor
or Customer Services or seek the advice of your
surgical appliance stockist or pharmacist.
• The accuracy of this blood pressure monitor is
designed to last a long time.
• In order to increase the lifetime of the batteries
take them out when you store the device for a
longer period than 2 months.
• Electro-magnetic fields can influence the
measurement. Do not use a portable phone near
this unit.

14
705CP-II English
Technical data This device fulfils the provisions of the EC directive
93/42/EEC (Medical Device Directive). This blood
pressure monitor is designed according to the
European standard EN1060, Non-invasive sphygmo-
manometers Part 1: General requirements and Part
3: Supplementary requirements for electromechani-
cal blood pressure measuring systems. This OMRON
product is produced under the strict quality system
of OMRON HEALTHCARE CO. LTD., Japan. The Core
component for OMRON blood pressure monitors,
which is the Pressure Sensor, is produced in Japan.
Model: OMRON 705CP-II
Display: LCD digital display
Blood Pressure Pressure: 0 mm Hg to 299 mm Hg
Measurement Range: Pulse: 40 – 180/min.
Accuracy: Pressure: ±3 mm Hg
Pulse: ±5% of reading
Memory: 28 measurements
Inflation: Fuzzy-Logic controlled by electric pump
Deflation: Automatic pressure release valve
Pressure Detection: Capacitive pressure sensor
Measurement Method: Oscillometric method
Power Source: 4 Alkaline batteries 1.5V (Type LR6) or
AC/DC adapter (optional, 6V = 4W)
Battery Life: Capacity of new batteries is approx. 300 measurements
Operating Temperature: 10°C to 40°C
Storage Temperature: -20°C to 60°C
Humidity: 15 to 90% RH maximum
Storage humidity: 10 to 95% RH maximum
Console Weight: Approximately 380g without batteries
Outer Dimensions: Approximately 115 (l) mm x 177 (w) mm x 71 (h) mm
Cuff Dimensions: Approximately 140 mm x 480 mm
(arm circumference 22 – 32 cm)
Accessories: Medium cuff, instruction manual, storage case, battery
set
Made in China
NOTE: Subject to technical modification without prior notice
= Type B
• Disposal of this product and used batteries should be carried out in accordance
with the national regulations for the disposal of electronic products.

15
705CP-II English
OMRON spare
parts
Calibration
The accuracy of this blood pressure monitor has
been carefully tested and is designed for a long
service life. It is generally recommended to have the
monitor inspected every two years to ensure correct
functioning and accuracy. Please consult your
authorised dealer or the OMRON Customer Service
at the address given on the packaging/attached
literature.
OMRON devices are especially designed for regular
blood pressure monitoring. OMRON therefore has
direct contact with medical specialists and takes
advice, on the design and features of its blood
pressure monitors.
Spare parts & accessories
Due to high company quality standards, OMRON
considers the main unit as a non-serviceable part
because of the necessity of proper calibration after
replacement of high-tech components.
AC adapter
Small cuff
Arm circumference 17 – 22 cm
Medium cuff
Arm circumference 22 – 32 cm
Extra large cuff
Arm circumference 32 – 42 cm

16
705CP-II English
Some useful information about blood pressure
What is Blood Pressure ?
Blood pressure is a measure of the force of blood flowing against the walls of the
arteries. Arterial blood pressure is constantly changing during the course of the hearts
cycle. The highest pressure in the cycle is called the SYSTOLIC BLOOD PRESSURE;
the lowest is the DIASTOLIC BLOOD PRESSURE. Both pressure readings, the
SYSTOLIC and DIASTOLIC, are necessary to enable a doctor to evaluate the status of
a patients blood pressure.
Many factors such as physical activity, anxiety, or the time of day, can influence
your blood pressure. Blood pressure is typically low in the morning and increases from
afternoon to evening. It is lower in the summer and higher in the winter.
Blood pressure is measured in millimetres of mercury (mmHg) and measurements
are written with the systolic pressure before the diastolic e.g. A blood pressure written
as 140/90, is referred to as 140 over 90 mmHg.
High Blood Pressure
The discovery that you have high blood pressure is more often than not a chance
finding. People with high blood pressure usually feel well unless the blood pressure has
been high for some time, and complications have occurred. Such complications may
effect the heart, brain and other important organs. They may bring on ill health and
affect your enjoyment of life. It is because of the complications, rather than the high
blood pressure itself, that this condition is taken so seriously today.
High blood pressure is sometimes referred to as raised blood pressure, elevated blood
pressure, or hypertension. Most people with this condition require regular long-term
drug treatment, usually in the form of tablets. Some can lower their blood pressure
sufficiently by other means, such as changing diet and life-style.
People who have high blood pressure, and who also understand their condition, have
an advantage. They are more likely to attend for regular check-ups, to cooperate with
advised diets and changes in lifestyle, and to take medicines correctly. This
immediately leads to better health. It is hoped that, by a better understanding of high
blood pressure and how it is treated, you will take an active and informed part in your
health care, and so enjoy a better quality of life.

17
705CP-II English
What Causes High Blood Pressure ?
Blood pressure is only classed as high if it doesnt go down when you rest. Permanently raised blood
pressure can be caused by several factors such as hardening of the arteries, smoking or drinking too
much alcohol. It can also be caused by cholesterol, a type of fat, building up inside your blood vessels
and making them narrower. Being under stress can add to the problem.
High blood pressure is also known to run in families hence if you find you have a high blood pressure it
is a good idea to test other closely related members of your family.

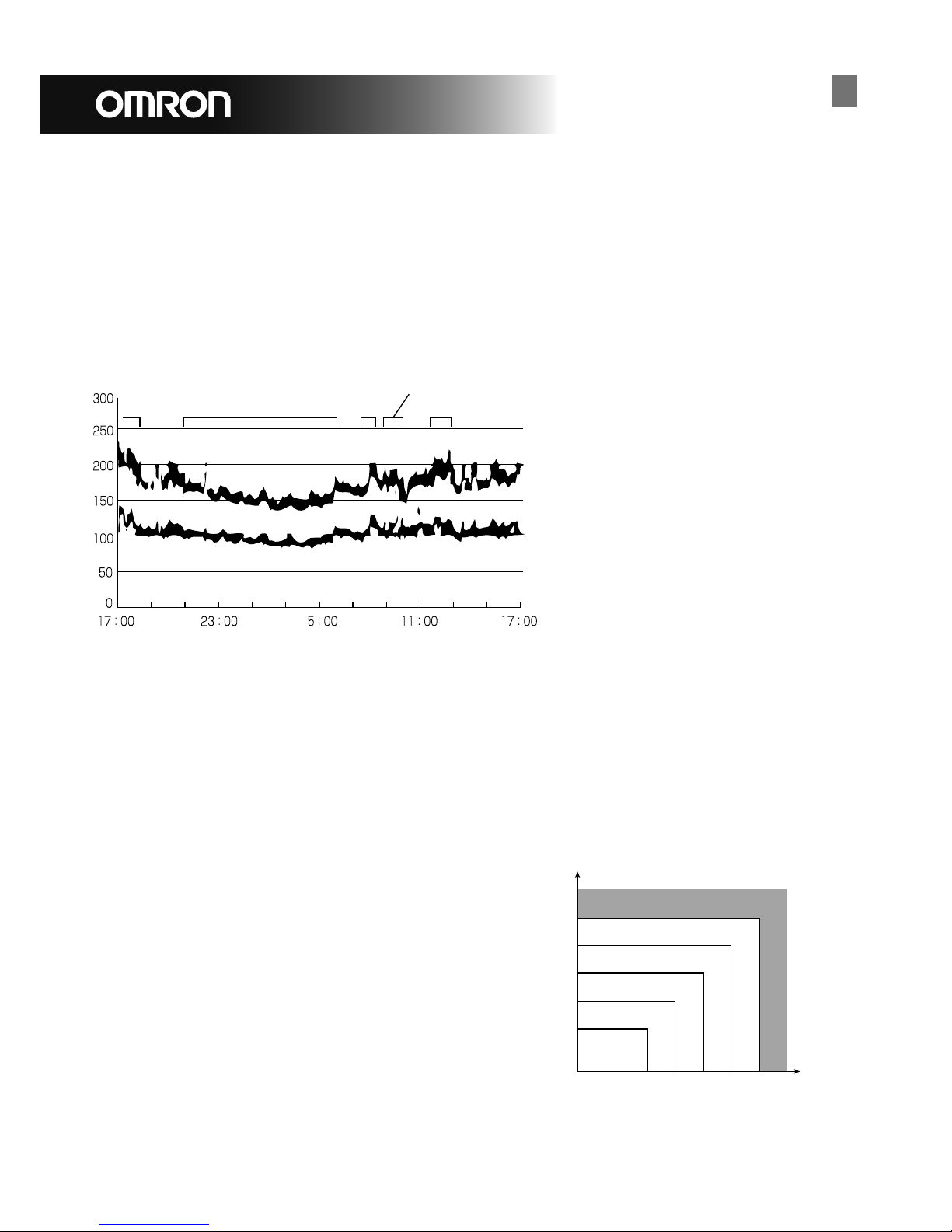

Dinner Sleep
Rest room
Breakfast
Lunch
Blood pressure
(mmHg)
Systolic
blood
pressure
Diastolic
blood
pressure
Time
Brachial blood pressure data
Why is it a Good Thing To Measure Blood Pressure at Home ?
Having your blood pressure measured by a doctor can cause anxiety which is a cause itself of high
blood pressure. As a variety of conditions affect blood pressure, a single measurement may not be
sufficient for an accurate diagnosis.
The blood pressure measured first thing in the morning after getting up, before eating and while at rest,
is known as the fundamental blood pressure. In practice it is rather difficult to record the fundamental
blood pressure, but it is important to get readings in an environment that is as close as possible to this.
Classification of Blood Pressure by the World Heath
Organization
The World Health Organization (WHO) and the International
Society of Hypertention (ISH) developed the Blood Pressure
Classification shown in this figure.
This classification is based on the blood presure values
measured on people in a sitting position in outpatient
departments of hospitals.
*There is no universally accepted definition of hypotension. However, those
having the systolic pressure below 100 mmHg are assumed as hypotensive.
(mmHg)
According to the blood pressure classification by the WHO/ISH* (revised in 1999)
* International Society of Hypertension
(mmHg)
80 85 90 100 110
120
130
140
160
180
Systolic blood pressure
Diastolic
blood
pressure
Optimal blood
pressure
(target value)
Normal blood pressure
Normal systolic value
Mild hypertension
Moderate hypertension
Severe hypertension
Fluctuation within a Day
(Example: 35-year-old male)

18
705CP-II English
Introduction The OMRON printer can be conected to OMRON
blood pressure monitors with IT functions.
Description
Paper Feed
Print Graph
Print All Data
Print Current Data/Stop Printing
Printer Cover
Printer Cable Plug
Power/Operation
Light
Battery
installation /
replacement
Slide the battery cover off in the direction of the
arrow.
Install or replace 4 “LR6” batteries so the +
(positive) and – (negative) polarities match the
polarities of the battery compartment as indicated.
Replace the battery cover.Remove the batteries if
the monitor will not be used for an extended
period of time.

19
705CP-II English
How to connect
the printer unit
Remove printer cable plug from the printer unit.
Connect printer cable plug cord to the main unit.
The circle on the cable plug should face up.
Open printer cover in the direction indicated by
the arrow symbol and remove paper roll from the
main unit.
Peel of the glued edge of the printing paper
included with the unit, and cut the first 10 cm (4
inch) with a pair of scissors.
Press theFEED button while inserting the edge
of the printing paper into the paper feeding slot.
When the edge of the paper protrudes sufficiently,
release the FEED button.
Close the plastic printer cover. Make certain that
the paper sticks out from the top when the cover
is replaced.
Thermal sensitive paper is supplied with the unit.
Use only thermal paper of similar size (width
approx. 38mm) and roll diameter (not to exceed
approx. 26mm)! These rolls of paper can be
ordered from OMRON. Printer paper can be
ordered by your OMRON shop or distributor.
4in
How to load the
printer paper
