OMT-Veyhl Clever benching User manual

USER GUIDE
HEIGHT
ADJUSTABLE
BENCHING SYSTEM

2
User Guide
PRODUCT OVERVIEW
This page was intentionally left blank.

3
User Guide
Parts Diagram 4
Safety Information 5-6
Assembly Instructions 7-13
Electrical Installation 14
Operation 15-16
Initialization and Reset 15
Handswitch Operation 15
Programmable Handswitch Operation 15
- Change the Height Unit 16
- Adjust Height Display 16
- Save Memory Position 16
- Recall Memory Position 16
Troubleshooting 17-18
Unit Errors 17
Handswitch Errors 18
Technical Data 19
Warranty 19
Standards & Certications 19
TABLE OF CONTENTS
TABLE OF CONTENTS
This manual explains how this sit-stand desk is assembled, used, and maintained.
All sit-stand tables are subjected to functional and quality tests before leaving
our facility.

4
User Guide
3
18
413
1
8
12 11 10
14
7
9
2
16
15
5
17
PARTS Qty/Package
1. Independent Beam 4
2. Column 4
3. Top Support 4
4. Ganging Bracket 2
5. Cover 2
6. U-Channel 1
7. Cable Tray 1
8. M8-1.25 Keps Nut 4
9. M8-1.25x12mm Self Threading Screw 16
10. M8-1.25x16mm Screw 4
Qty/Package
11. M8 Split Washer 4
12. M8 Nut 4
13. M4-0.7x6mm Screw 4
14. Control Box 2
15. Handswitch 2
16. Power Cord 2
17. HAT Channel 2
(for tables equal or greater than 72")
18. #10 x ¾ Screw 48
PARTS DIAGRAM
DO NOT remove the foam
surrounding the motor.
PARTS
DIAGRAM

5
User Guide SAFETY INFORMATION
1"
1"
1"
1"
1"
1"
SAFETY
INFORMATION
INSTALL ONLY APPROVED WORK SURFACES
This table system does not include a work surface (desktop). Work surface must be at least ¾" thick and weigh no
more than 5 lb. per square foot (For example, a 2'x6' desktop should weigh no more than 60 lb). Do not exceed a
maximum weight for the desktop of 75 lb. To prevent table from tipping or collapsing, make sure the desk frame
is not overloaded by the weight of tabletop and objects you plan to put on the table. If you are unsure, contact
customer service.
KEEP AWAY FROM CHILDREN
This table system is not designed for use in homes or other areas accessible by small children.
For indoor commercial ofce use only.

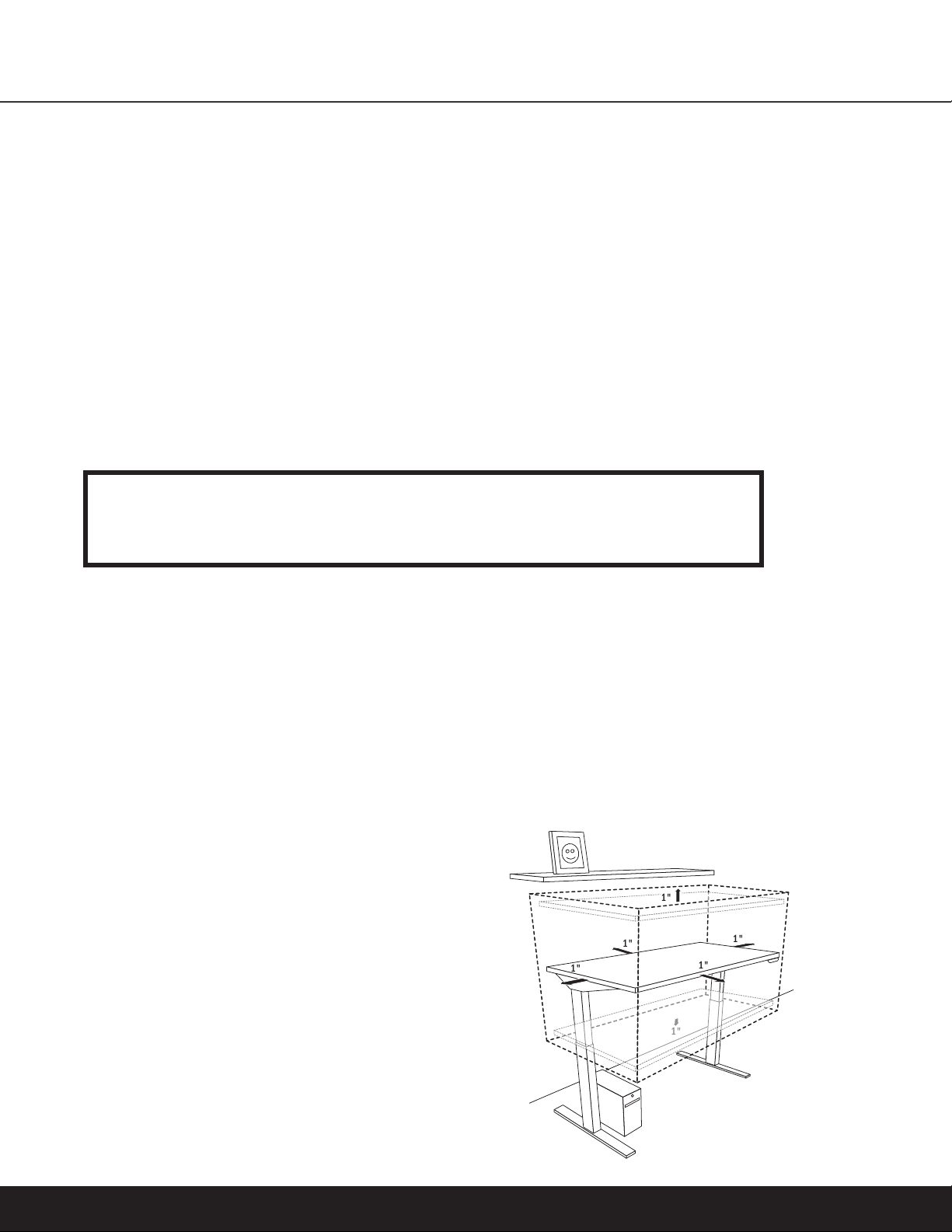

BE CAREFUL WHEN ADJUSTING DESK HEIGHT
Body parts and property can be caught between the
moving work surface and an immobile obstacle (such as
shelves, furniture, window sills, or walls). Keep at least
one inch of clearance around desk and make sure nothing
is in table’s path for its entire range of motion.
Before raising or lowering:
• Check surroundings on all sides of desk are clear
• Make sure corded objects will not be pulled off table
or cause other objects to fall
• Make sure desk power cord moves freely
as desk moves up and down
IMPORTANT SAFETY INSTRUCTIONS Save these instructions.
DANGER To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING: To reduce the risk of death, serious injury, or property damage, read and
follow this safety information and the provided instructions when assembling this product.
Do not change or replace components and accessories provided by OMT-Veyhl.

6
User Guide
SAFETY INFORMATION
DO NOT OVERLOAD DESK
• Do not exceed maximum load (including weight of desktop) of 200 lb. (91Kg) for two-leg conguration.
• Do not exceed edge load of 25 lb. when positioning monitors or mounting accessories.
• Do not sit or stand on table
USE CARE WHEN MOVING DESK
• Clear objects and equipment from table before moving to reduce the risk of tipping over.
• Adjust the desk to its lowest height before moving
• To disconnect, remove plug from outlet
• Do not move a loaded desk
DO NOT OPEN ELECTRICAL COMPONENTS
Do not attempt to service table components. There are no user-serviceable parts inside the motor control
units or table legs. If your table needs service, contact customer service. Never operate this workstation if
it has a damaged cord or plug.
KEEP TABLE FRAME DRY
Keep all electrical components away from water and high humidity. Clean only with a dry or
slightly damp cloth. Do not spray cleaning solutions directly onto table system.
GROUNDING INSTRUCTIONS
This product may be equipped with a cord having an
equipment-grounding conductor and a grounding plug.
Use only the cord provided. Make sure that the product
is connected to an outlet having the same conguration
as the plug (as shown in Illustration A) that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the product
– if it will not t the outlet, have a proper outlet
installed by a qualied electrician.
No adapters are to be used with this product.
Keep cord away from heated surfaces.
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
ILLUSTRATION A

7
User Guide ASSEMBLY INSTRUCTIONS
ASSEMBLY
INSTRUCTIONS

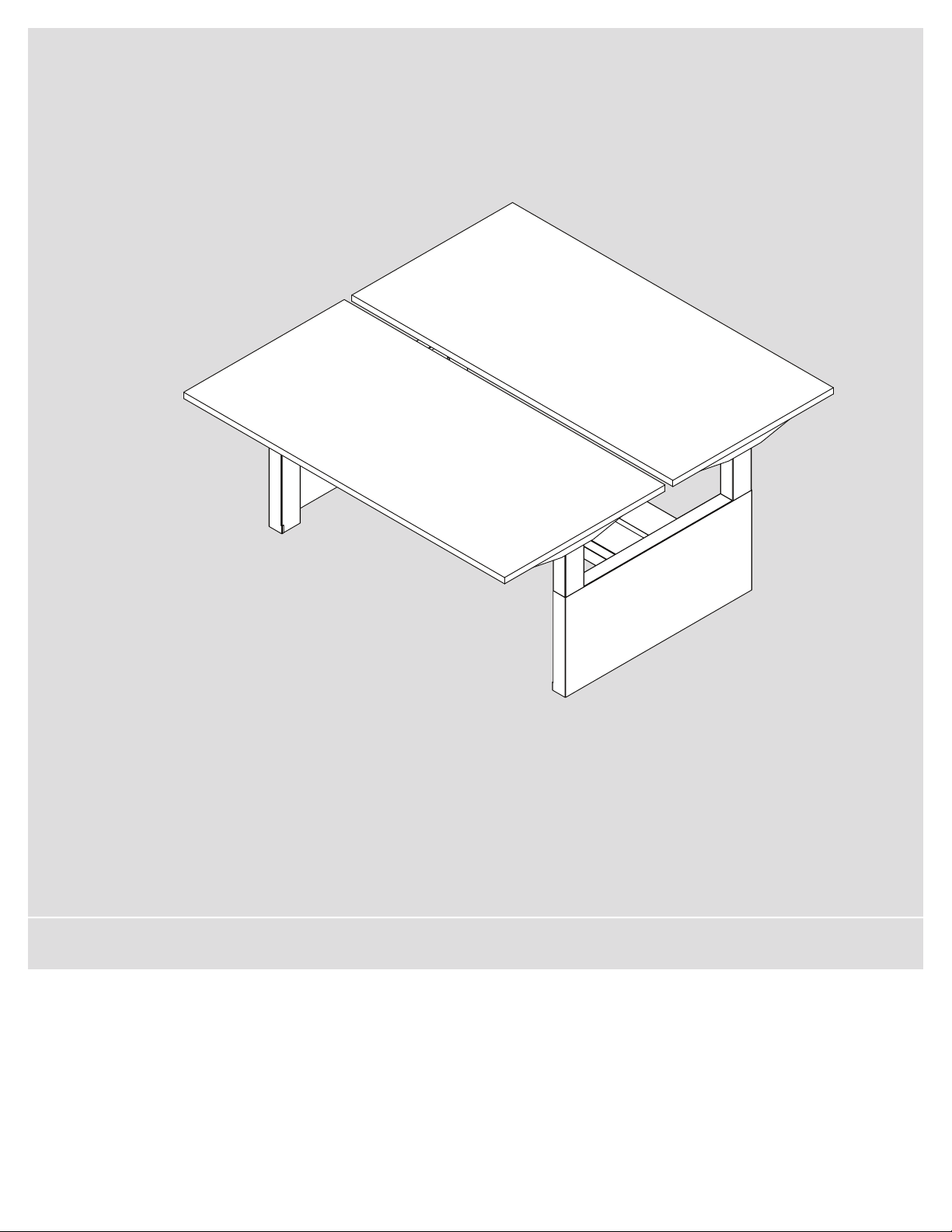

ASSEMBLY OVERVIEW 1. Attach top supports and rails to columns
2. Attach ganging tubes to columns
3. Assemble the electrical (if applicable)
Assemble to cable tray
4. Attach work surface to column assemblies
5. Fasten cable tray assembly onto the ganging brackets
6. Attach the HAT channel (for tables equal to or greater than 66")
7. Fasten the control box and handswitch to the table top
8. Connect the motor cables to the control box
9. Connect the handswitch (HS) cable to the control box
10. Connect the supplied power cord (AC) to the control box
11. Attach all cables to the table frame or the underside
of the table top
12. Connect side-by-side benches
DO NOT remove the foam surrounding the motor.
To avoid product damage, steps 4-13 should be done with the
column assemblies in the upright position.
If you have any difculty assembling this unit, or need to order
replacement parts, please contact our Customer Service department.
Use the parts diagram on page 4 as a reference.
Assemble the table frame in accordance with this manual.
Changes to the table frame or improper use may affect the safety, function, and life of your product.
This manual is for all sit-stand tables from the series.
Due to different models or types, pictures may vary.

8
User Guide
ATTACH GANGING TUBE TO COLUMNS
Assemble using the M8-1.25 Tooth Lock Washer Nut
(2 per column). The maximum tightening torque for
these nuts is 15.8Nm (10 ft-lbs).
Repeat steps 1 and 2 for second set of columns,
top supports and ganging tube.
ASSEMBLY INSTRUCTIONS
2

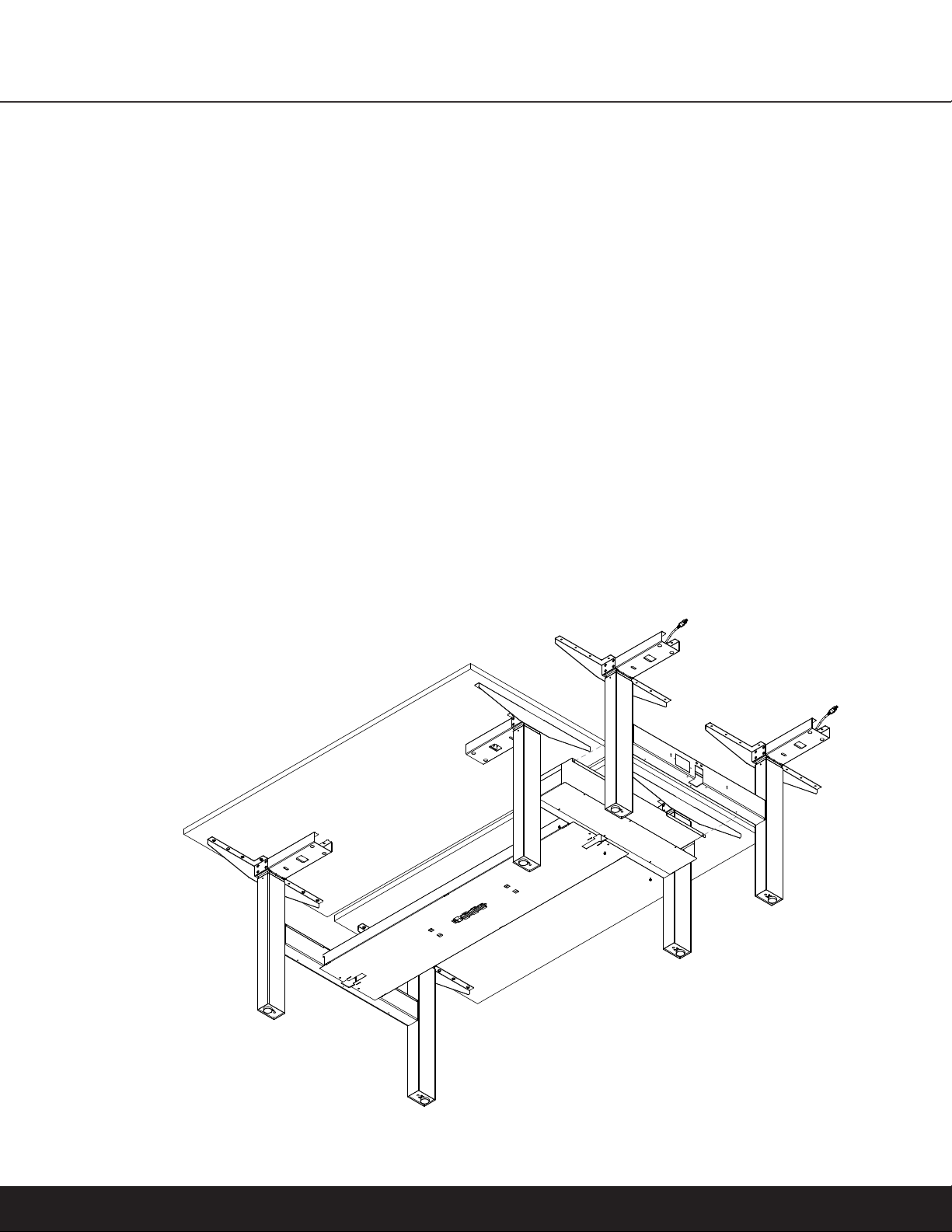

ATTACH TOP SUPPORTS AND RAILS
TO COLUMNS
Ensure the mounting holes in the column remain
aligned with the corresponding holes in the beam
or independent beam.
Align the beam or independent beam to the top
support. Assemble using the M8x1.25 x 12mm
length screws (4 per column) and a T40 Torx
driver. Be aware that the mounting holes may
not be tapped. As they are inserted, the provided
M8x1.25 x 12mm length screws will form their
own fastening threads if none are already present.
An average fastening torque of 8Nm (6 lbs-ft) will
be required to initially engage the screw in the hole.
The maximum tightening torque for these screws
is 20Nm (15 lbs-ft). Repeat as necessary for
remaining columns.
1

9
User Guide ASSEMBLY INSTRUCTIONS
(FOR ELECTRICAL SYSTEM UPGRADE ONLY)
ASSEMBLE ELECTRICAL
See page 14
ASSEMBLE THE CABLE TRAY
Align and insert the tabs on the u-channel
into the tray. Squeeze the u-channel so that
all tabs are secured into the tray.
3A
3B
ATTACH WORK SURFACE TO COLUMN ASSEMBLIES
Flip table into upright position.
Top supports should be mounted 1.5" from edge
of work surface. Be sure to use approved screws
per the table top supplier.
4

10
User Guide
ASSEMBLY INSTRUCTIONS

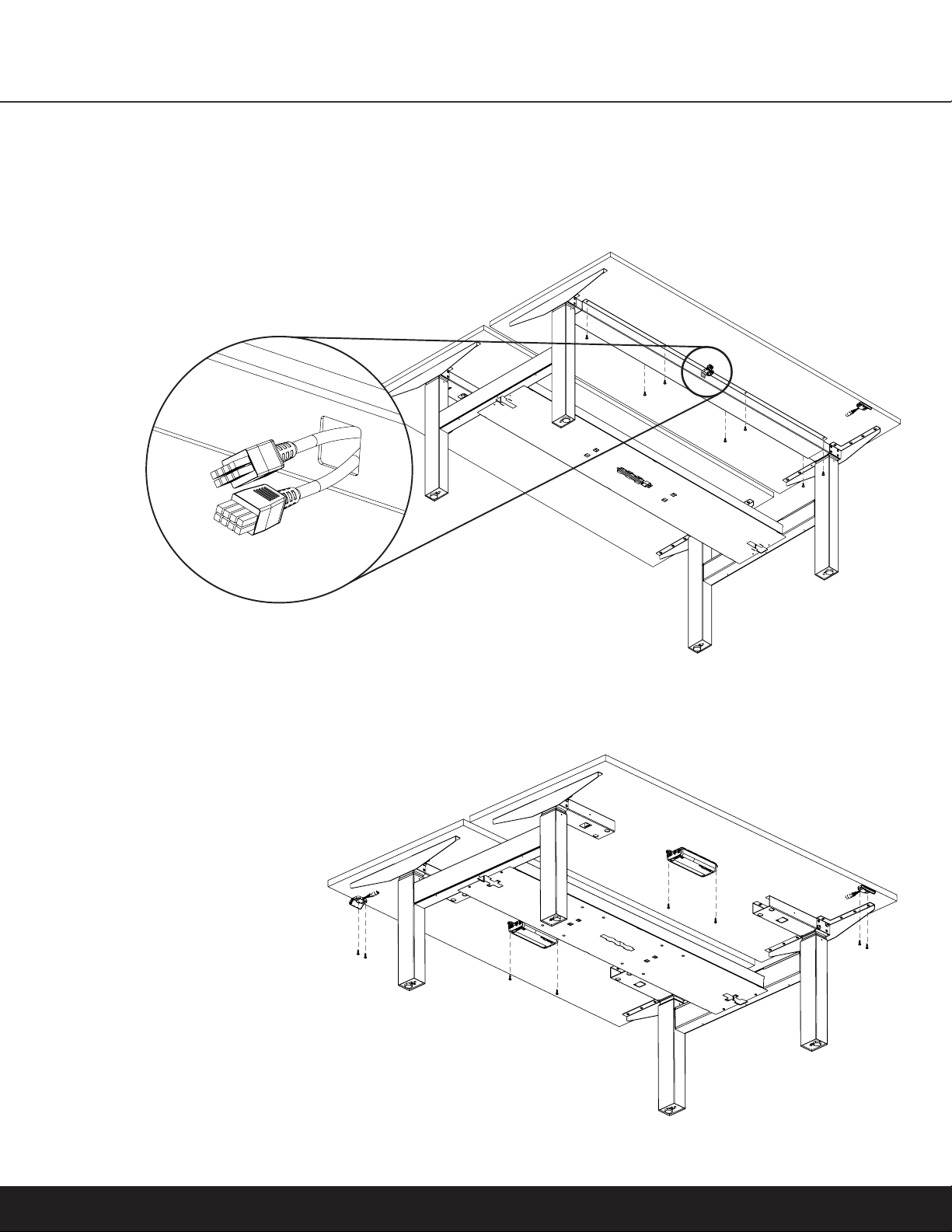

FASTEN THE CABLE TRAY ASSEMBLY ONTO THE GANGING BRACKETS
Attach the tray to the ganging brackets using the M4-0.7x6mm length screws. The maximum tightening
torque for these screws is 4Nm (35 in-lbs). Attach the u-channel to the ganging bracket using the M8
1.25x16mm length screws, M8-1.25 nut, and M8 lock washer (2 per ganging bracket). The maximum
tightening torque for these screws is 20Nm (14.8 ft-lbs). A socket wrench is recommended for this step
to hold the nut in place. Repeat for both sides.
SNAP ON THE GANGING BRACKET COVERS
The covers will self-secure when snapped on to the
ganging brackets.
5

11
User Guide ASSEMBLY INSTRUCTIONS
(FOR TABLES EQUAL TO OR GREATER THAN 66")
ATTACH THE HAT CHANNEL
Feed the motor cables through the
HAT channel cut out.
6
FASTEN THE CONTROL BOX AND
HANDSWITCH TO THE TABLE TOP
Make sure the control box and handswitch
are fastened in a location where all the
cables will connect without being in
tension. Be sure to use approved
screws per the table top supplier.
7

12
User Guide
ASSEMBLY INSTRUCTIONS

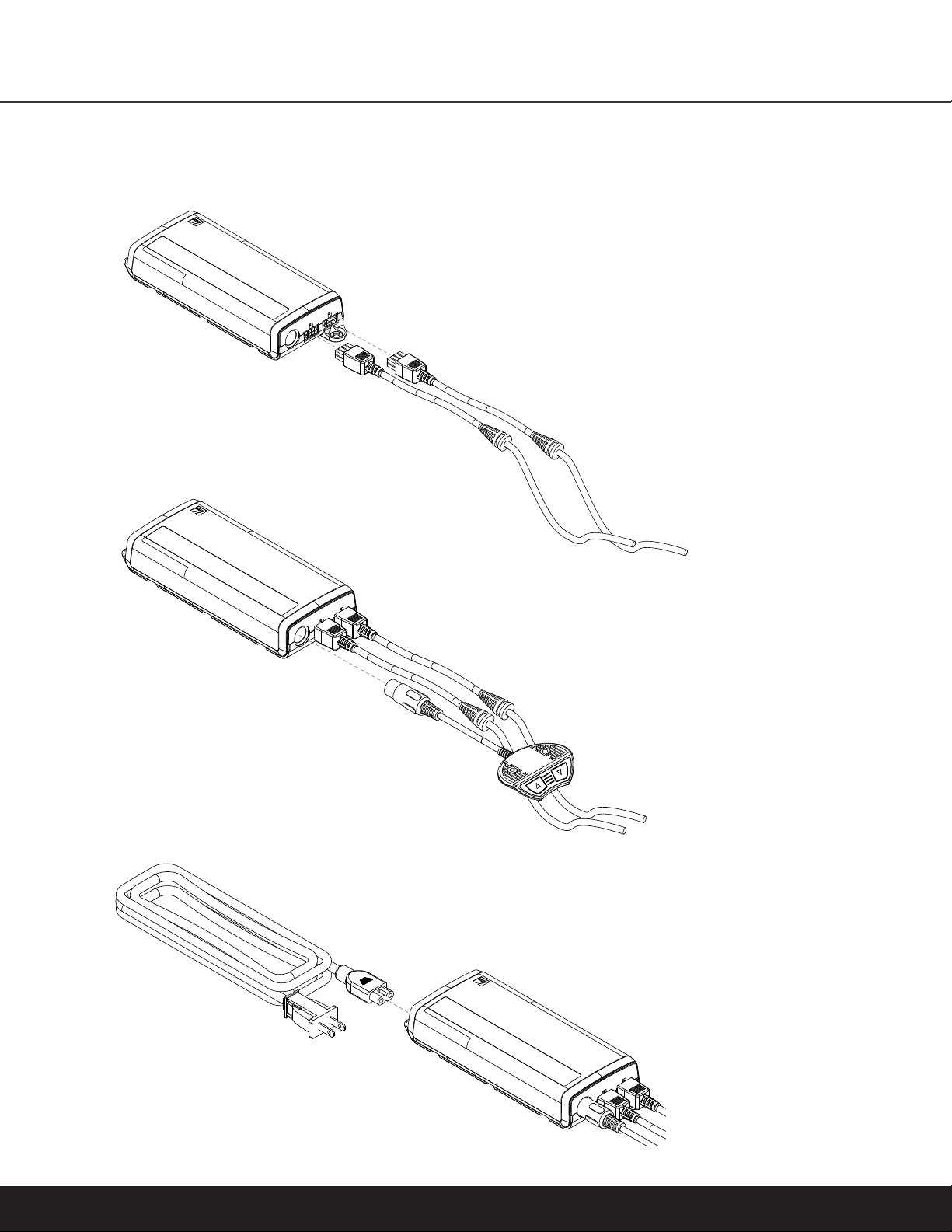

CONNECT THE HANDSWITCH (HS)
CABLE TO THE CONTROL BOX
CONNECT THE SUPPLIED POWER CORD
(AC) TO THE CONTROL BOX
10
CONNECT THE MOTOR CABLES
TO THE CONTROL BOX
The motor cable plug-connection has to
click into place.
Connections to the control box:
M1-M2 = Connectors for the columns
HS = Connectors for the handset
AC = Connector for the power cord (3-pin)
8
9

13
User Guide ASSEMBLY INSTRUCTIONS
ATTACH ALL CABLES TO THE THE TABLE TOP
Attach cables in order to avoid any damage during operation.
Be sure to leave enough slack in the cables to allow for the
table to move into it’s highest position. Never wrap cables
and/or cords around the columns.
CONNECT SIDE-BY-SIDE TABLES*
*For units specied to use a side-to-side connector, attach
lower tray to the bottom of the ganging bracket of each
bench using the M4-0.7x6mm length screws. The maximum
tightening torque for these screws is 4Nm (35in-lbs).
Once installed, the upper tray can be slid on to t.
11
12
CONNECT THE SUPPLIED POWER CORD
(AC) TO THE CONTROL BOX

14
User Guide
ELECTRICAL INSTALLATION
ELECTRICAL INSTALLATION
INSTALL SIMPLEX RECEPTACLES
INTO POWER BLOCK
Insert terminals into corresponding slots in block and seating
receptacle until catches engage on both sides of receptacles.
Note: a noticeable “snap” will be heard when receptacle is
fully engaged into block. Ensure terminals go directly into
slots and do not get inserted into an adjacent slot.
(FOR TABLES ORDERED WITH THE ELECTRICAL SYSTEM UPGRADE)
CONNECT CABLES TO BLOCK
Connect as required (not shown). Ensure cables are completely seated under cable latches
and into block. Power disruption may occur if cables are not fully seated into block.
INSTALL POWER BLOCK INTO TRAY
Place the power block into the provided
cut-out in the tray and slide the block to
lock it into place.
INSTALL U-CHANNEL TO TRAY
Remove the punch-out features from both sides
of the u-channel. Power block will wedge into
the channel between the punch out features,
secure by squeezing the u-channel and locking
the tabs into the tray.
For Simplex Receptacle Removal
Insert ends of Simplex removal tool into slots above and below
receptacle (shown) and push rmly into block until it catches on tool,
snap over receptacle edges. Pull receptacle tool and receptacle
straight out of the block. Note: Simplex removal tool sold separately.
Simplex Receptacles
Power Block
Block Latch
Cable Latch
Mounting Bar
Simplex Removal Tool
Simplex Receptacles
Power Block
Block Latch
Cable Latch
Mounting Bar
Simplex Removal Tool

15
User Guide
OPERATION
INFORMATION
INITIALIZATION/RESET
The desk must be initialized/reset after any of the following:
- After assembly
- After disconnection from the power supply
- After any impact on the table top.
To initialize/reset, move the table to the lowest position by pressing the DOWN button on the handswitch until
the columns reach the lowest position. Press the DOWN button again until the table moves slightly down to
the machine zero point and back up to the operation zero point. Release the DOWN button. If the button is
released too soon, the table legs will not move up. Repeat the reset process.
The control box is programmed with a parameter le which controls the table legs’ lower and upper travel
limits. Under no circumstance should a control box from one table be moved to another.
NORMAL HANDSWITCH OPERATION (for all handswitch types)
By pressing the UP or DOWN buttons, the table will move up or down to the desired position. Once the
desired position is reached, let go of the UP or DOWN button. The table legs will stop once they reach
the lower or upper height limits.
PROGRAMMABLE HANDSWITCH OPERATION (optional)
This programmable handswitch is
equipped with a display for showing
the current table height in centimeters
or inches.
The handswitch also will display an error code if an error is detected by the control box. When an error
is detected, the display will show an error code “EXX,” instead of the current table height. To resolve the
error, see the Troubleshooting Section (p. 17-18 of this guide).
The programmable handswitch also has the ability to save up to four different height positions.
OPERATION INFORMATION
1
s
2 3 4

16
User Guide
OPERATION INFORMATION
PROGRAMMABLE HANDSWITCH OPERATION (continued)
CHANGE THE HEIGHT UNIT OF MEASURE (inches or centimeters)
The handswitch can display the table height in either centimeters or inches. With the help of the S5-menus,
the unit of measure can be changed.
To change the unit of measure, follow these steps:
1. Press and hold the 1, 2, and UP buttons until the display shows “S 5”.
2. Conrm by pressing and releasing the “S” button. Now the display will have changed. The control box will
click twice indicating that the unit of measure was changed.
To exit the menu without making a selection, wait until the height display appears again.
CHANGE THE HEIGHT DISPLAY
If the displayed value does not match the actual height of the table top, the display can be corrected as follows:
1. Press and release the “S” button.
2. Press and hold the DOWN button until the display starts to ash.
3. Change the height shown on the handswitch by pressing the UP or DOWN button to the desired height.
Conrm by pressing and releasing the “S” button. The control box will click twice indicating that the unit of
measure was changed.
To exit the menu without making a selection, wait until the height display appears again.
SAVE MEMORY POSITION
1. Move the table up or down to the desired height.
2. Press the “S” button (in the display “S -” is shown.)
3. Select a position by pressing one of the four number buttons, 1-4, (if 1 is selected, the display will show the
setting as “S1”).
4. The saved position is conrmed by a double click sound from the control box. The display shows the current
table height. Repeat steps to save a maximum of four different positions.
RECALL MEMORY POSITION
Press and hold the desired memory button (1, 2, 3 or 4) the table moves from the current position into the
saved position*. The button must be pressed until the position is reached. If the button is released, the table
will stop short of the desired height.
*unless the double click feature is programmed into the control box

17
User Guide
TROUBLESHOOTING
UNIT
TROUBLESHOOTING
ERROR CODE SOURCE SOLUTION
Table does not
move
No power supply Plug in the power cord or check the connection
on the control box
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box
No connection or a loose
connection to the handswitch
Verify the plug connections of the motor cable
to the control box
Max lifting capacity
is exceeded
Reduce the weight or load on the desktop
Replace the handswitch
Max time limit is exceeded Control is activated automatically after approx. 9 minutes
Defective drive Contact customer service
Defective control box Contact customer service
Defective handswitch
Contact customer service
Defective drive
Table moves
down at a
slow rate
Control box expects
new reset Reset control box. (See page 15)
During operation,
tables moves at
a slow rate
Max lifting capacity
is exceeded Reduce weight
Table moves
on one side only
briefly and then
stops
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box and reset the control box

18
User Guide
TECHNICAL DATA
HANDSWITCH DISPLAY
ERROR CODE SOURCE SOLUTION
HOT
E00
E01
E02
The control box monitors the duty
cycle (time-controlled) and its max
temperature. A value has been exceeded.
Wait until the “HOT” display goes out - the table is working properly again
M1 – Internal Fault
Unplug and contact customer service
M2 – Internal Fault
M3 – Internal Fault
E12
E13
E14
M1 – Defect
Unplug.
Correct the external short circuit and/or verify the cable to the drives.
Plug cables into the control box and re-run table.
M2 – Defect
M3 – Defect
E36
E37
E38
M1 – Not connected
Motor not connected.
Check cable / connector to the drive.
Reset the table (see page 15).
M2 – Not connected
M3 – Not connected
E24
E25
E26
M1 – Overcurrent
If the problem still exists, please contact customer service
If necessary, reduce the load on the table
Reset the table (see page 15).
Option ISP function. Remove source.
M2 – Overcurrent
M3 – Overcurrent
Collision resolve if necessary
Collision resolve if necessary
E55
E56
E60
Drive 1 - Synchronization is lost
Drive 2 - Synchronization is lost
Collision identified
E48
E49
Overcurrent drive 1
Overcurrent drive 2
Max load exceeded remove excess load from the table
Max load exceeded remove excess load from the table
The connection to the drive is interrupted or a new drive is connected.
Reset the table (see page 15).
E61 Drive replaced
If it is not possible to resolve an error as described, disconnect the power cord, wait a few minutes and reset the table again.
If the error still occurs, remove the table from the power source and contact customer service.
(Error Code list is valid from rmware 1.7.5 and higher)

19
User Guide
TECHNICAL DATA
STANDARDS & CERTIFICATIONS
ILLUSTRATION B
WARRANT Y
The drive system is tested according to the following standards:
UL 962
Issued: 2014/11/07
Ed: 4 Household and Commercial Furnishings
CSA C22.2#68
Issued: 2009/09/01 Ed: 7 (R2014)
Motor-Operated Appliances (Household and Commercial)
Meets BIFMA X5.5 2014.
TECHNICAL DATA
GENERAL CONTROL BOX
Power supply 120 VAC ±10% / 60 Hz
Standby power consumption, primarily <0.3 W
Operating temperature 0-35°C
Protection class IP 20
Maximum power output 216VA/24V
Maximum input current 5 A
Maximum duty cycle 10% (2 min. on / 18 min. off)
TWO-COLUMN FRAME WITH CONTROL BOX
Maximum lift capacity 200 lb (≈ 90 kg / 890N)
Adj. range, depending on version View Illustration B
Maximum input current 6.5 A
Maximum duty cycle 10% (2 min. on / 18 min. off)
THREE-COLUMN FRAME WITH CONTROL BOX
Maximum lift capacity 250 lb (≈ 113 kg / 1112N)
Adj. range, depending on version View Illustration B

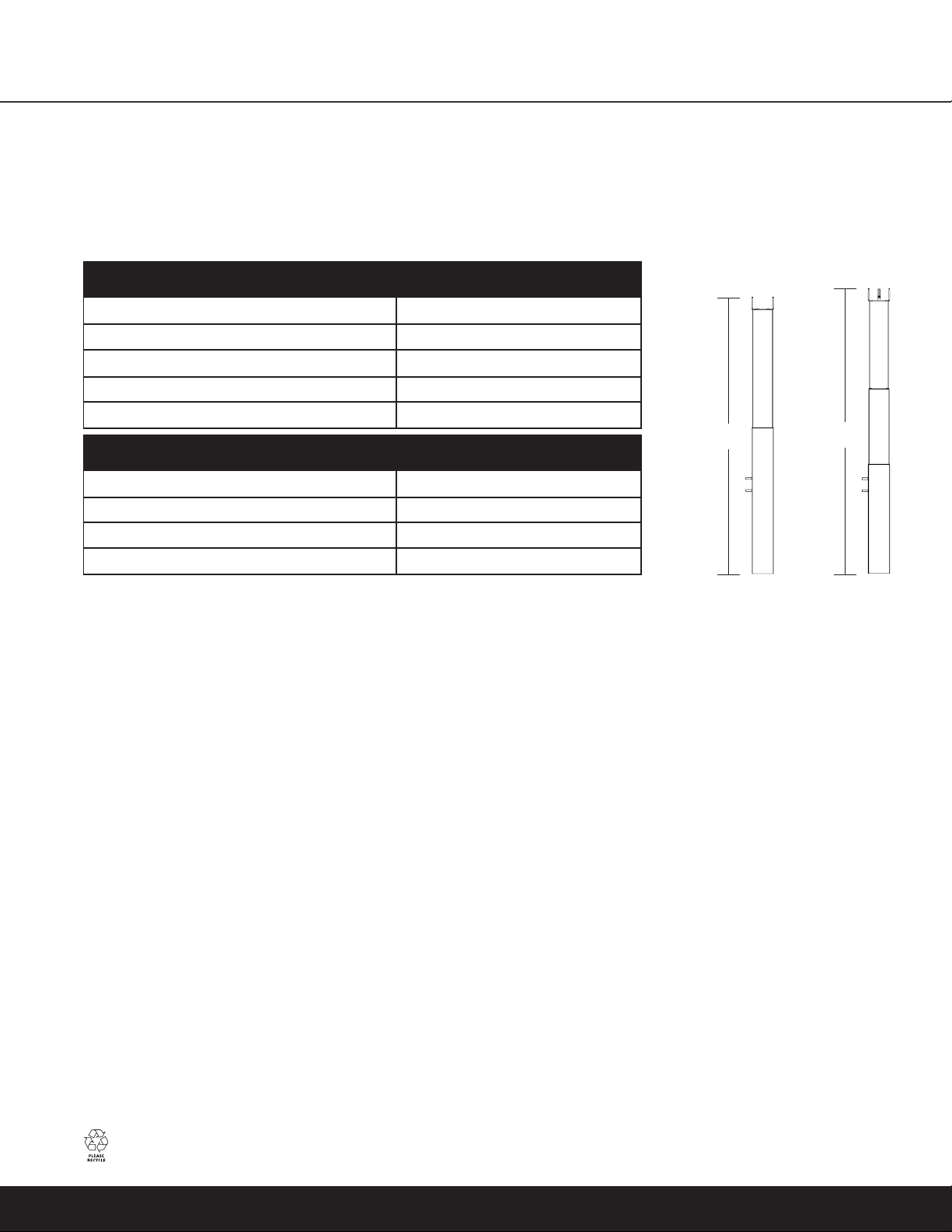

stroke length
18.9"
stroke length
26"
End of life cycle: Once product is disassembled, all steel components can be recycled at your local metal collector.
For products with electronic components, see Disassembly Guide.
INTERTEK LISTING BELONGS TO: System: Clever Bench
OMT-Veyhl USA
11511 James Street
Holland, MI 49424
CONTACT YOUR SALES REPRESENTATIVE FOR WARRANTY INFORMATION

USER GUIDE
Rev F | 092520
