USER GUIDE
OV1001 | Part No. 23620
OV1001
HEIGHT ADJUSTABLE TABLE

2 | OV1001
User Guide: OV1001
OV1001
HEIGHT ADJUSTABLE TABLE
FEATURES
• Full table base (add your own work surface)
• Meets BIFMA X5.5 standards
• UL 962 approved
• Over 150 color options
• Rated at 225 lb. load per two-column kit
A healthier work environment starts with the option to sit or stand
throughout the day. The OV1001 table is the industry standard in
height-adjustable products, and your rst step towards improving
the efciency and well-being of your organization.
Customizable to your standards, OV1001 can support benching for
multiple workstations or be used as stand-alone solutions. This kit
supplies everything you need to assemble your height-adjustable
table base. Just add your own work surface to personalize.
PRODUCT OVERVIEW

OV1001 | 3
User Guide: OV1001
Parts Diagram 4-7
Full Length 4
Independent 5
Adjustable L-Rail 6
Three-Leg 7
Safety Information 8-9
Assembly Instructions 10-13
Operation 14-15
Initialization and Reset 14
Handswitch Operation 14
Programmable Handswitch Operation 14
- Change the Height Unit 15
- Adjust Height Display 15
- Save Memory Position 15
- Recall Memory Position 15
Troubleshooting 16-17
Unit Errors 16
Handswitch Errors 17
Technical Data 18
Standards & Certications 19
TABLE OF CONTENTS
TABLE OF CONTENTS
This manual explains how this sit-stand desk is assembled, used, and maintained.
All sit-stand tables are subjected to functional and quality tests before leaving
our facility.

4 | OV1001
User Guide: OV1001
OV1001
PARTS DIAGRAM
1
3
5
4
10
9
8
6
7
2
PARTS Qty/Package
1. J-Rail 2
2. Column 2
3. Top Support 2
4. Foot 2
5. M6x1.0 12mm Screw 16
6. Handswitch 1
7. Control Box 1
8. Power Cord 1
9. M10x1.5 20mm Screw 4
10. Glide 4
FULL LENGTH
For tables up to 84"
PARTS DIAGRAM

OV1001 | 5
User Guide: OV1001
1
2
3
9
7
6
5
4
8
PARTS Qty/Package
1. Column 2
2. Top Support 2
3. Foot 2
4. Control Box 1
5. Handswitch 1
6. Power Cord 1
7. M10x1.5 20mm Screw 4
8. M6x1.0 12mm Screw 12
9. Glide 4
INDEPENDENT
For tables 60" or Less
PARTS DIAGRAM

6 | OV1001
User Guide: OV1001
2
10
1
3
8
7
6
5
9
4
PARTS Qty/Package
1. Column 2
2. Top Support 2
3. Foot 2
4. Adjustable L-Rail 2
5. Control Box 1
6. Handswitch 1
7. Power Cord 1
8. M10x1.5 20mm Screw 4
9. M6x1.0 12mm Screw 10
10. Glide 4
PARTS DIAGRAM
ADJUSTABLE L-RAIL
For tables up to 84”

OV1001 | 7
User Guide: OV1001
2
1
3
13
10
14
11
12
89
4
5
7
6
PARTS Qty/Package
1. Column 3
2. Top Support 2
3. Foot 2
4. J-Rail 4
5. Left Hand Adapter Bracket 1
6. Right Hand Adapter Bracket 1
7. Third Leg Bracket 1
8. Control Box 1
9. Power Cord 1
10. Handswitch 1
11. M6x1.0 12mm Screw 36
12. M10x1.5 20mm Screw 4
13. Glide 4
14. Hex Leveler 1
PARTS DIAGRAM
THREE-LEG

8 | OV1001
User Guide: OV1001
1"
1"
1"
1"
1"
1"
SAFETY
INFORMATION
INSTALL ONLY APPROVED WORK SURFACES
This table system does not include a work surface (desktop). Work surface must be at least ¾" thick and
weigh no more than 5 lb. per square foot (For example, a 2"x6" desktop should weigh no more than 60 lb).
Do not exceed a maximum weight for the desktop of 75 lb. To prevent table from tipping or collapsing,
make sure the desk frame is not overloaded by the weight of tabletop and objects you plan to put on the
table. If you are unsure, contact customer service.
KEEP AWAY FROM CHILDREN
This table system is not designed for use in homes or other areas accessible by small children.
For indoor commercial ofce use only.
BE CAREFUL WHEN ADJUSTING DESK HEIGHT
Body parts and property can be caught between the
moving work surface and an immobile obstacle (such as
shelves, furniture, window sills, or walls). Keep at least
one inch of clearance around desk and make sure nothing
is in table’s path for its entire range of motion.
Before raising or lowering:
• Check surroundings on all sides of desk are clear
• Make sure corded objects will not be pulled off table
or cause other objects to fall
• Make sure desk power cord moves freely
as desk moves up and down
IMPORTANT SAFETY INSTRUCTIONS Save these instructions.
DANGER To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING: To reduce the risk of death, serious injury, or property damage, read and
follow this safety information and the provided instructions when assembling this product.
Do not change or replace components and accessories provided by OMT-Veyhl.
SAFETY INFORMATION

OV1001 | 9
User Guide: OV1001
DO NOT OVERLOAD DESK
To prevent table from tipping or collapsing, make sure the desk frame is not overloaded by the weight
of tabletop and objects on table. Evenly distribute load; excess loads near edges can reduce stability
and lead to tip over.
• Do not exceed maximum load (including weight of desktop) of 225 lb. (102 Kg)
• Do not exceed edge load of 25 lb. when positioning monitors or mounting accessories.
• Do not sit or stand on table
USE CARE WHEN MOVING DESK
• Clear objects and equipment from table before moving to reduce the risk of tipping over.
• Adjust the desk to its lowest height before moving
• To disconnect, remove plug from outlet
• Do not move a loaded desk
DO NOT OPEN ELECTRICAL COMPONENTS
Do not attempt to service table components. There are no user-serviceable parts inside the motor control
units or table legs. If your table needs service, contact customer service. Never operate this workstation
if it has a damaged cord or plug.
KEEP TABLE FRAME DRY
Keep all electrical components away from water and high humidity. Clean only with a dry or
slightly damp cloth. Do not spray cleaning solutions directly onto table system.

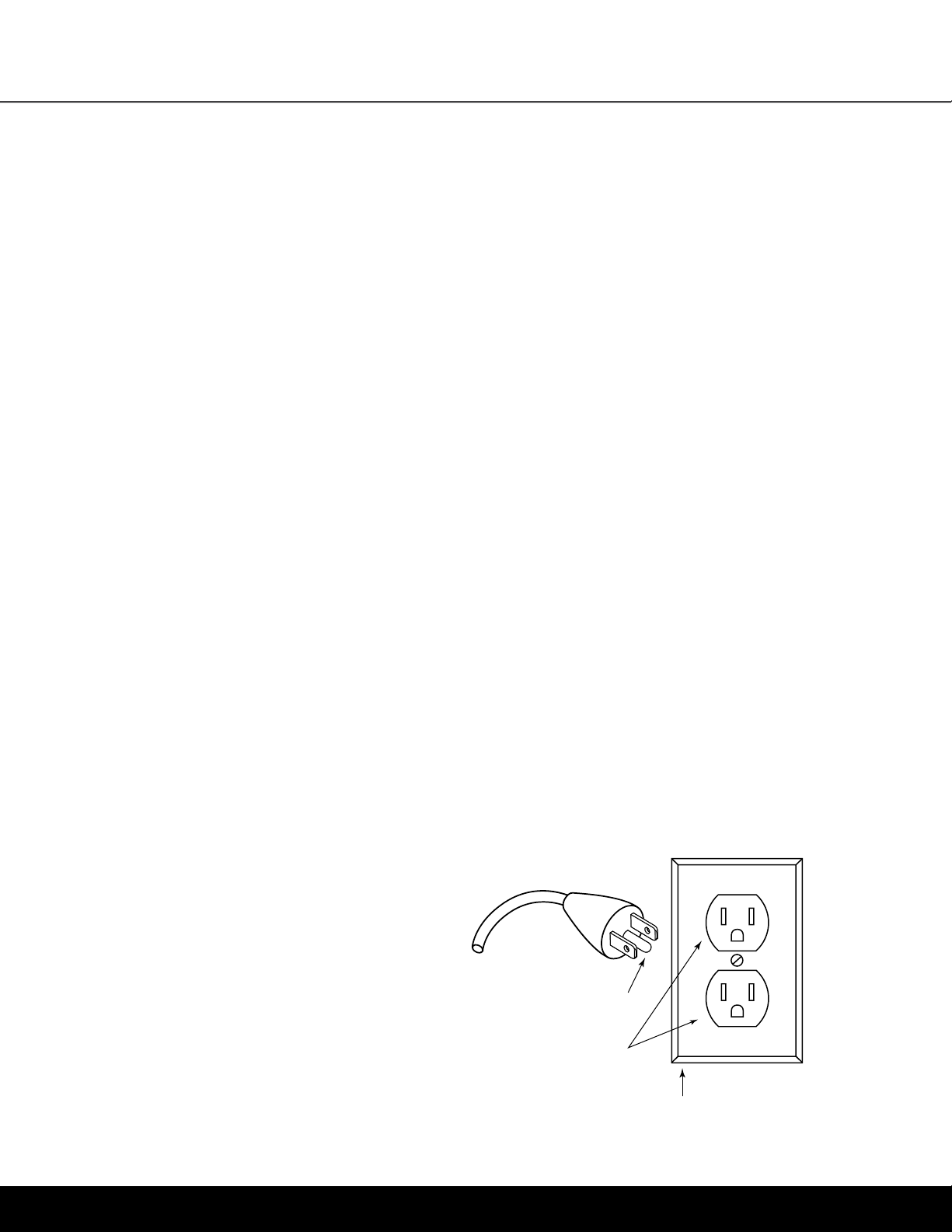

GROUNDING INSTRUCTIONS
This product may be equipped with a cord having an
equipment-grounding conductor and a grounding plug.
Use only the cord provided. Make sure that the product
is connected to an outlet having the same conguration
as the plug (as shown in Illustration A) that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the product
– if it will not t the outlet, have a proper outlet
installed by a qualied electrician.
No adapters are to be used with this product.
Keep cord away from heated surfaces.
SAFETY INFORMATION
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
ILLUSTRATION A

10 | OV1001
User Guide: OV1001
ASSEMBLY
INSTRUCTIONS
ASSEMBLY OVERVIEW
ASSEMBLY INSTRUCTIONS
The assembly of the table frame to be made in accordance with this manual.
Changes to the table frame or improper use may affect the safety, function, and life of your product.
This manual is for all sit-stand tables from the OV1001 series.
Due to different models or types, pictures may vary.
ASSEMBLE THE THIRD COLUMN TO THE ADAPTER
BRACKETS (FOR THIRD LEG ASSEMBLY ONLY)
Assemble using the M6x1.0 12mm length screws
(8 per column). The maximum tightening torque
for these screws is 9.9Nm (7.3 ft-lbs)
1a
1a. Assemble the third column to the adapter brackets
1. Assemble the column to the j-rail
2. Assemble the top support to the column
3. Assemble the foot to the column
4. Fasten the table frame onto the table top
5. Fasten the control box and handswitch to the table top
6. Connect the motor cables to the control box
7. Connect the handswitch (HS) cable to the control box
8. Connect the supplied power cord (AC) to the control box
9. Attach all cables to the table frame or on the underside
of the table top
If you have any difculty assembling this unit or need to order
replacement parts, please contact our Customer Service department.
Use the parts diagrams on page 4-7 as a reference.

OV1001 | 11
User Guide: OV1001
ASSEMBLE THE FOOT TO THE COLUMN
Assemble using the M10x1.5 x 20mm length
screws (2 per column). The maximum tightening
torque for these screws is 48Nm. (35 ft-lbs).
ASSEMBLY INSTRUCTIONS
ASSEMBLE THE COLUMN TO THE J-RAIL
Assemble using the M6x1.0 12mm length screws
(6 per column). The maximum tightening torque
for these screws is 9.9Nm (7.3 ft-lbs)
1
ASSEMBLE THE TOP SUPPORT TO THE COLUMN
Assemble using the M6x1.0 12mm length screws
(2 per top support). The maximum tightening torque
for these screws is 9.9Nm (7.3 ft-lbs)
2
3

12 | OV1001
User Guide: OV1001
ASSEMBLY INSTRUCTIONS
FASTEN THE TABLE FRAME ONTO THE TABLE TOP
Be sure to use approved screws per the table top supplier.
4
FULL LENGTH
ADJUSTABLE L-RAIL
INDEPENDENT
*Please make sure top supports are mounted 1.5"from edge of work surface.
THREE-LEG

OV1001 | 13
User Guide: OV1001 ASSEMBLY INSTRUCTIONS
CONNECT THE HANDSWITCH (HS) CABLE
TO THE CONTROL BOX
CONNECT THE SUPPLIED POWER CORD (AC)
TO THE CONTROL BOX
ATTACH ALL CABLES TO THE TABLE FRAME OR
ON THE UNDERSIDE OF THE TABLE TOP
Attach cables in order to avoid any damage during operation.
Never attach cables and cords to legs.
FASTEN THE CONTROL BOX AND HANDSWITCH
TO THE TABLE TOP
Make sure the control box and handswitch are fastened
in a location where all the cables will connect without
being in tension. Be sure to use approved screws per the
table top supplier.
5
7
8
CONNECT THE MOTOR CABLES TO THE CONTROL BOX
The motor cable plug-connection has to click into place.
Connections to the control box:
M1-M2 = Connectors for the columns
HS = Connectors for the handset
AC = Connector for the power cord (3-pin)
6
9

14 | OV1001
User Guide: OV1001
OPERATION
INFORMATION
INITIALIZATION/RESET
The desk must be initialized/reset after any of the following:
- After assembly
- After disconnection from the power supply
- After any impact on the table top.
To initialize/reset, move the table to the lowest position by pressing the DOWN button on the handswitch until
the columns reach the lowest position. Press the DOWN button again until the table moves slightly down to
the machine zero point and back up to the operation zero point. Release the DOWN button. If the button is
released too soon, the table legs will not move up. Repeat the reset process.
The control box is programmed with a parameter le which controls the table legs’ lower and upper travel
limits. Under no circumstance should a control box from one table be moved to another.
NORMAL HANDSWITCH OPERATION (for all handswitch types)
By pressing the UP or DOWN buttons, the table will move up or down to the desired position. Once the
desired position is reached, let go of the UP or DOWN button. The table legs will stop once they reach
the lower or upper height limits.
PROGRAMMABLE HANDSWITCH OPERATION (optional)
This programmable handswitch is
equipped with a display for showing
the current table height in centimeters
or inches.
The handswitch also will display an error code if an error is detected by the control box. When an error
is detected, the display will show an error code “EXX,” instead of the current table height. To resolve the
error, see the Troubleshooting Section (p. 16-17 of this guide).
The programmable handswitch also has the ability to save up to four different height positions.
OPERATION INFORMATION
1
s
2 3 4

OV1001 | 15
User Guide: OV1001
PROGRAMMABLE HANDSWITCH OPERATION (continued)
CHANGE THE HEIGHT UNIT (inches or centimeters)
The handswitch can display the table height in either centimeters or inches. With the help of the S5-menus,
the unit of measure can be changed.
To change the unit of measure, follow these steps:
1. Press and hold the 1, 2, and UP buttons until the display shows “S 5”.
2. Conrm by pressing the “S” button. Now the display will have changed.
To exit the menu without making a selection, wait until the height display appears again.
CHANGE THE HEIGHT DISPLAY
If the displayed value does not match the actual height of the table top, the display can be corrected as follows:
1. Press and release the “S” button.
2. Press and hold the DOWN button until the display starts to ash.
3. Change the height shown on the handswitch by pressing the UP or DOWN button to the desired height.
Conrm by pressing the “S” button.
To exit the menu without making a selection, wait until the height display appears again.
SAVE MEMORY POSITION
1. Move the table up or down to the desired height.
2. Press the “S” button (in the display “S -” is shown.)
3. Select a position by pressing one of the four number buttons, 1-4, (if 1 is selected, the display will show the
setting as “S1”).
4. The saved position is conrmed by a double click sound from the control box. The display shows the current
table height. Repeat steps to save a maximum of four different positions.
RECALL MEMORY POSITION
Press and hold the desired memory button (1, 2, 3 or 4) the table moves from the current position into the saved
position. The button must be pressed until the position is reached. If the button is released, the table will stop short
of the desired height.
OPERATION INFORMATION

16 | OV1001
User Guide: OV1001
TROUBLESHOOTING
UNIT
TROUBLESHOOTING
ERROR CODE SOURCE SOLUTION
Table does not
move
No power supply Plug in the power cord or check the connection
on the control box
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box
No connection or a loose
connection to the handswitch
Verify the plug connections of the motor cable
to the control box
Max lifting capacity
is exceeded
Reduce the weight or load on the desktop
Replace the handswitch
Max time limit is exceeded Control is activated automatically after approx. 9 minutes
Defective drive Contact customer service
Defective control box Contact customer service
Defective handswitch
Contact customer service
Defective drive
Table moves
down at a
slow rate
Control box expects
new reset Reset control box. (See page 14)
During operation,
tables moves at
a slow rate
Max lifting capacity
is exceeded Reduce weight
Table moves
on one side only
briefly and then
stops
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box and reset the control box

OV1001 | 17
User Guide: OV1001
TROUBLESHOOTING HANDSWITCH DISPLAY
TROUBLESHOOTING
ERROR CODE SOURCE SOLUTION
HOT
E00
E01
E02
The control box monitors the duty
cycle (time-controlled) and its max
temperature. A value has been exceeded.
Wait until the “HOT” display goes out - the table is working properly again
M1 – Internal Fault
Unplug and contact customer service
M2 – Internal Fault
M3 – Internal Fault
E12
E13
E14
M1 – Defect
Unplug.
Correct the external short circuit and/or verify the cable to the drives.
Plug cables into the control box and re-run table.
M2 – Defect
M3 – Defect
E36
E37
E38
M1 – Not connected
Motor not connected.
Check cable / connector to the drive.
Reset the table (see page 14)
M2 – Not connected
M3 – Not connected
E24
E25
E26
M1 – Overcurrent
If the problem still exists, please contact customer service
If necessary, reduce the load on the table
Reset the table (see page 14)
Option ISP function. Remove source.
M2 – Overcurrent
M3 – Overcurrent
Collision resolve if necessary
Collision resolve if necessary
E55
E56
E60
Drive 1 - Synchronization is lost
Drive 2 - Synchronization is lost
Collision identified
E48
E49
Overcurrent drive 1
Overcurrent drive 2
Max load exceeded remove excess load from the table
Max load exceeded remove excess load from the table
The connection to the drive is interrupted or a new drive is connected.
Reset the table (see page 14)
E61 Drive replaced
If it is not possible to resolve an error as described, disconnect the power cord, wait a few minutes and reset the table again.
If the error still occurs, remove the table from the power source and contact customer service.
(Error Code list is valid from rmware 1.7.5 and higher)

18 | OV1001
User Guide: OV1001
TECHNICAL DATA
ILLUSTRATION B
TECHNICAL DATA
GENERAL CONTROL BOX
Power supply 120 VAC ±10% / 60 Hz
Maximum input current 5 A
Standby power consumption, primarily <0.3 W
Operating temperature 0-35°C
Protection class IP 20
Maximum duty cycle 5% (1 min. on / 18 min. off)
Maximum power output 216VA/24V
TWO-COLUMN FRAME WITH CONTROL BOX
Maximum lift capacity 225 lb (≈ 102kg / 1000N)
Adj. range, depending on version View Illustration B
[44in]
1120mm
[46in]
1175mm
[48in]
1220mm

OV1001 | 19
User Guide: OV1001
INTERTEK LISTING BELONGS TO: System: Bold
OMT-Veyhl USA
11511 James Street
Holland, MI 49424
CONTACT YOUR SALES REPRESENTATIVE FOR WARRANTY INFORMATION
WARRANT Y
The drive system is tested according to the following standards:
UL 962
Issued: 2014/11/07 Ed: 4 Household and Commercial Furnishings
CSA C22.2#68
Issued: 2009/09/01 Ed: 7 (R2014)
Motor-Operated Appliances (Household and Commercial)
Meets BIFMA X5.5 2014.
CUSTOMER SERVICE
End of life cycle: Once product is disassembled, all steel components can be recycled at your local
metal collector. For products with electronic components, see Disassembly Guide.
STANDARDS &
CERTIFICATIONS

OV1001
USER GUIDE
Part No. 23620
Rev E | Rev 061919
