OMT-Veyhl OV1024 User manual

USER GUIDE
OV1024 | Part No. 122524
OV1024
HEIGHT ADJUSTABLE TABLE

2 | OV1024
User Guide: OV1024
OV1024
HEIGHT ADJUSTABLE TABLE
FEATURES
• Complete height adjustable table
• Easy-order with one part number
• Lift capacity up to 150 lb.
PRODUCT OVERVIEW

OV1024 | 3
User Guide: OV1024
Parts Diagram 4
Safety Information 5-6
Assembly Instructions 7-10
Operation 11
Troubleshooting 12
Technical Data 13
Warranty 14
TABLE OF CONTENTS
TABLE OF CONTENTS
This manual explains how this sit-stand desk is assembled, used, and maintained.
All sit-stand tables are subjected to functional and quality tests before leaving
our facility.

4 | OV1024
User Guide: OV1024
OV1024
PARTS DIAGRAM
1
3
2
6
8
4
5
7
PARTS Qty/Package
1. Column 2
2. Handswitch 1
3. Control Box 1
4. Power Cord 1
5. #10 x ¾" Screw 24
6. 37mm Locking Caster 4
7. Laminate Work Surface 1
8. Eight-Outlet Power Strip
with Mounting Bracket (optional) 1
PARTS DIAGRAM

OV1024 | 5
User Guide: OV1024 SAFETY INFORMATION
1"
1"
1"
1"
1"
1"
SAFETY
INFORMATION
KEEP AWAY FROM CHILDREN
For indoor use only. Keep small children away from moving desk.

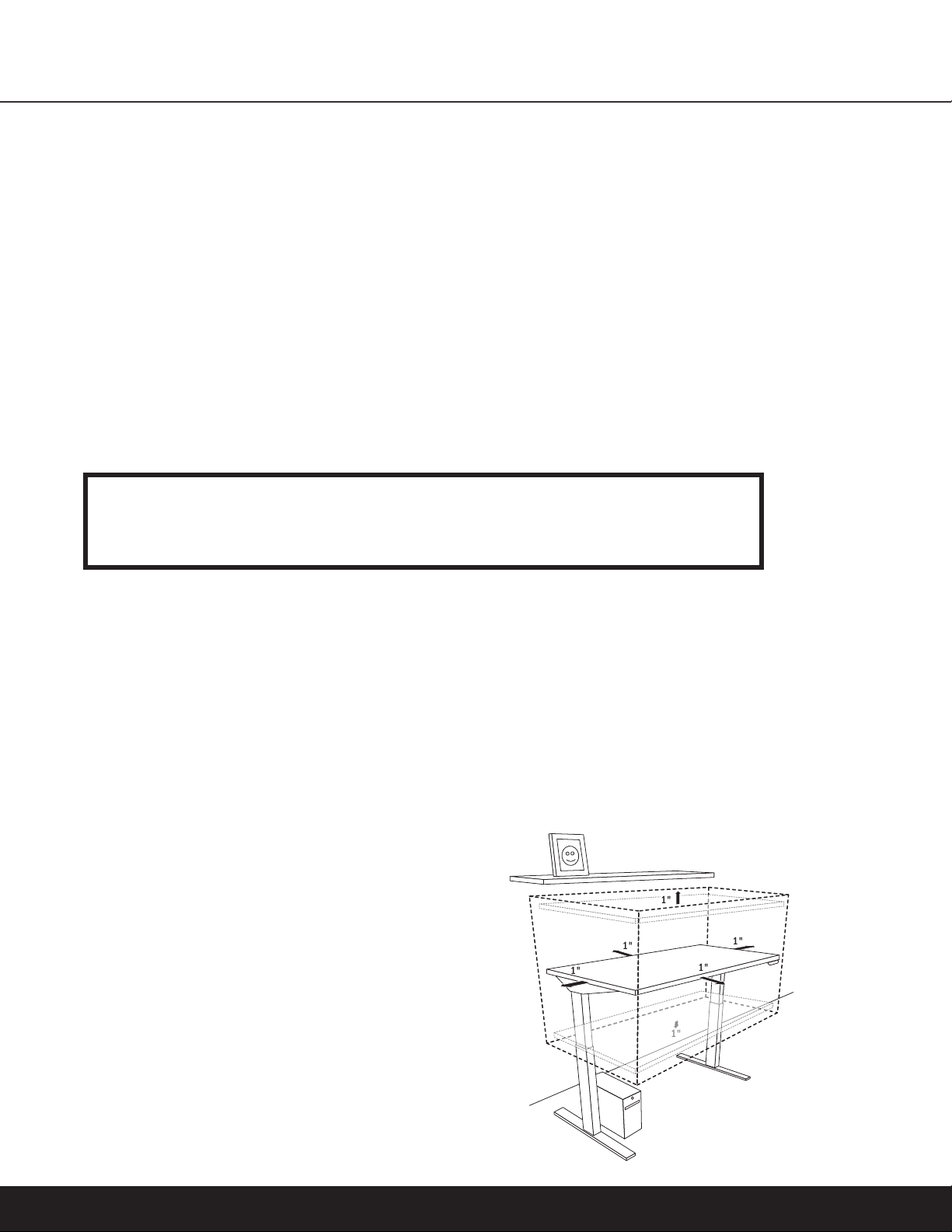

BE CAREFUL WHEN ADJUSTING DESK HEIGHT
Body parts and property can be caught between the
moving work surface and an immobile obstacle (such as
shelves, furniture, window sills, or walls). Keep at least
one inch of clearance around desk and make sure nothing
is in table’s path for its entire range of motion.
Before raising or lowering:
• Check surroundings on all sides of desk are clear
• Make sure that casters are locked before adjusting
desk height
• Make sure corded objects will not be pulled off table
or cause other objects to fall
• Make sure desk power cord moves freely
as desk moves up and down
IMPORTANT SAFETY INSTRUCTIONS Save these instructions.
DANGER To reduce the risk of electric shock:
Always unplug this furnishing from the electrical outlet before cleaning.
WARNING: To reduce the risk of death, serious injury, or property damage, read and
follow this safety information and the provided instructions when assembling this product.
Do not change or replace components and accessories provided by OMT-Veyhl.

6 | OV1024
User Guide: OV1024
SAFETY INFORMATION
DO NOT OVERLOAD DESK
To prevent table from tipping or collapsing, make sure the desk frame is not overloaded by the weight
of tabletop and objects on table. Evenly distribute load; excess loads near edges can reduce stability
and lead to tip over.
• Do not exceed maximum load (including weight of desktop) of 150 lb. (68Kg)
• Do not exceed edge load of 25 lb. when positioning monitors or mounting accessories.
• Do not sit or stand on table
USE CARE WHEN MOVING DESK
• Clear objects and equipment from table before moving to reduce the risk of tipping over.
• Adjust the desk to its lowest height before moving
• To disconnect, remove plug from outlet
• Do not move a loaded desk
• Make sure casters are unlocked before attemping to move table
DO NOT OPEN ELECTRICAL COMPONENTS
Do not attempt to service table components. There are no user-serviceable parts inside the motor control
units or table legs. If your table needs service, contact customer service. Never operate this table if
it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
KEEP TABLE FRAME DRY
Keep all electrical components away from water and high humidity. Clean only with a dry or
slightly damp cloth. Do not spray cleaning solutions directly onto table system.

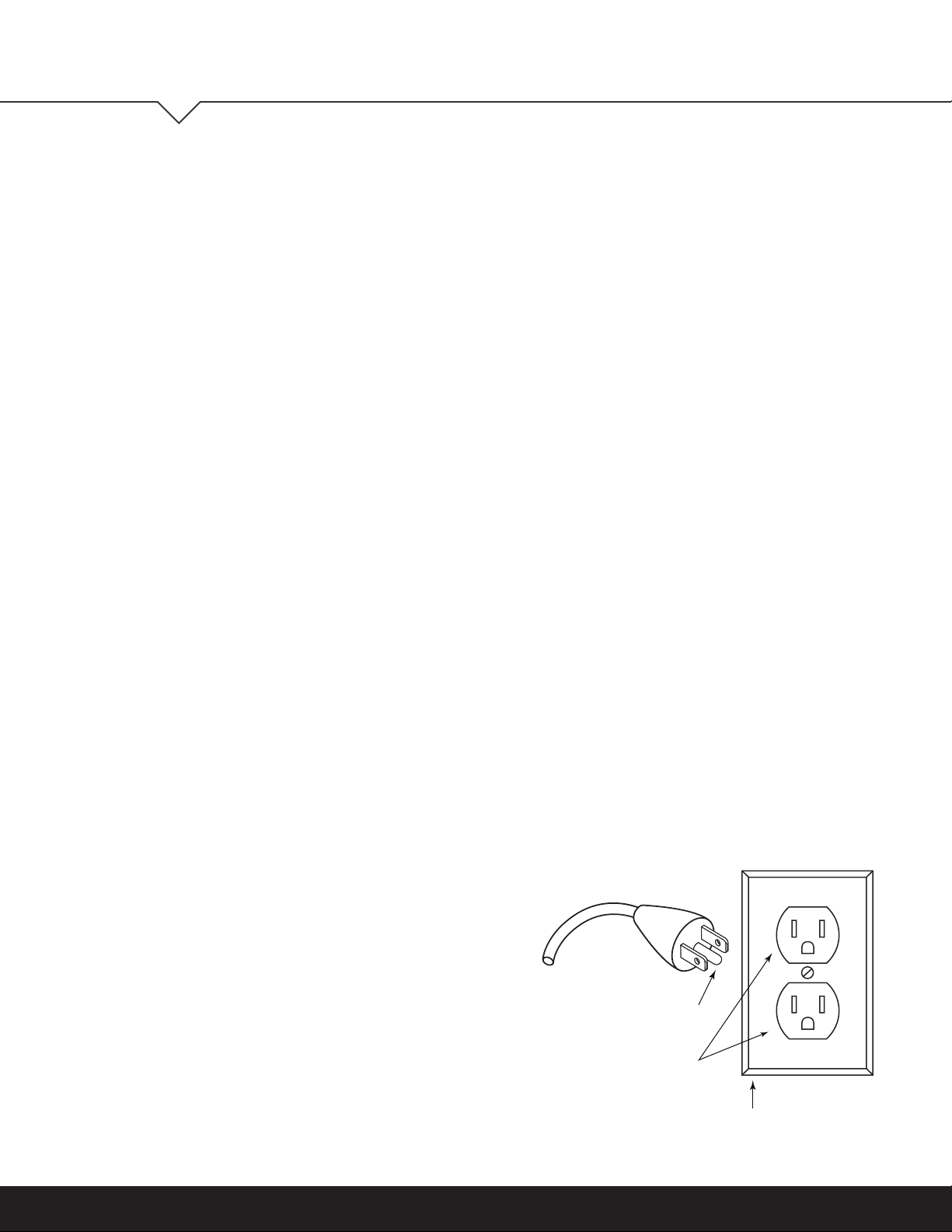

GROUNDING INSTRUCTIONS
This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
Use only the cord provided. Make sure that the product
is connected to an outlet having the same conguration
as the plug (as shown in Illustration A) that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the product
– if it will not t the outlet, have a proper outlet
installed by a qualied electrician.
No adapters are to be used with this product.
Keep cord away from heated surfaces.
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
Grounded
Outlet
Grounded Outlet Box
Grounding
Pin
ILLUSTRATION A

OV1024 | 7
User Guide: OV1024 ASSEMBLY INSTRUCTIONS
ASSEMBLY
INSTRUCTIONS
ASSEMBLY OVERVIEW 1. Assemble the columns to the work surface
2. Assemble the casters to the feet
3. Fasten the control box and handswitch to the table top
4. Connect the motor cables to the control box
5. Connect the handswitch (HS) cable to the control box
6. Connect the supplied power cord (AC) to the control box
7. Attach all cables to the table frame or on the underside
of the table top
8. Assemble power strip (optional)
If you have any difculty assembling this unit, or need to order
replacement parts, please contact our Customer Service department.
Use the parts diagram on page 4 as a reference.
The assembly of the table frame to be made in accordance with this manual.
Changes to the table frame or improper use may affect the safety, function, and life of your product.
This manual is for all sit-stand tables from the OV1024 series.

8 | OV1024
User Guide: OV1024
1.5”
ASSEMBLY INSTRUCTIONS

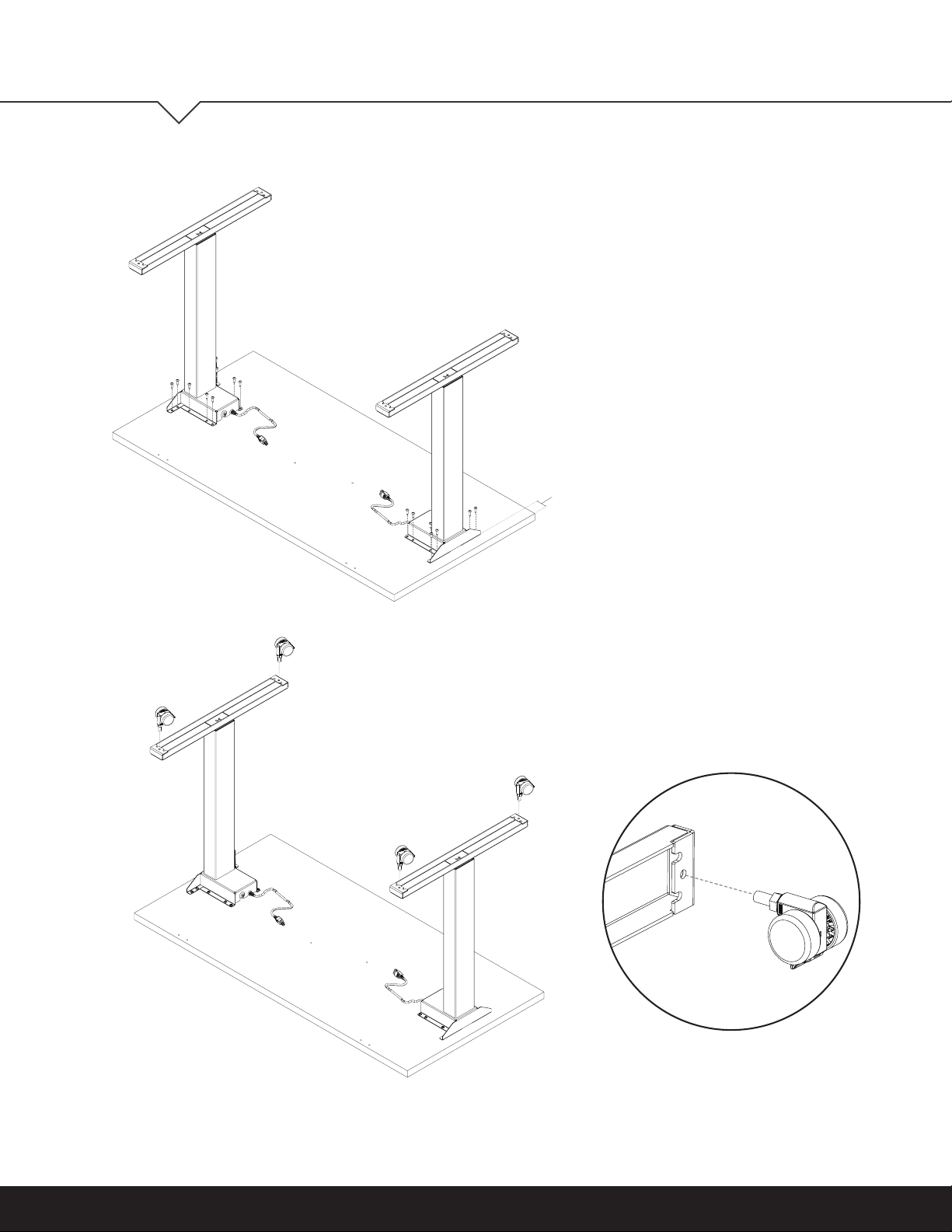

ASSEMBLE THE COLUMNS TO THE
WORK SURFACE
Work surface is pre-drilled with mounting holes for
columns. Align columns with pre-drilled mounting
holes in work surface, and use the #10 x ¾"
screws to fasten the top support onto the table top.
Be sure motor boxes are mounted 1.5" from edge
of work surface.
1
ASSEMBLE CASTERS TO THE FEET
2

OV1024 | 9
User Guide: OV1024
OPTIONAL SWITCH LOCATION
ASSEMBLY INSTRUCTIONS
FASTEN THE CONTROL BOX AND
HANDSWITCH TO THE TABLE TOP
Work surface is pre-drilled with mounting holes for
control box and handswitch. Align control box and
hand switch with pre-drilled mounting holes in work
surface. Make sure the control box and handswitch
are fastened so that all the cables will connect
without being in tension.
3
CONNECT THE HANDSWITCH (HS) CABLE
TO THE CONTROL BOX
5
CONNECT THE MOTOR CABLES
TO THE CONTROL BOX
The motor cable plug-connection has to
click into place.
Connections to the control box:
M1-M2 = Connectors for the columns
HS = Connectors for the handset
AC = Connector for the power cord (3-pin)
4

10 | OV1024
User Guide: OV1024
ASSEMBLY INSTRUCTIONS
CONNECT THE SUPPLIED POWER CORD (AC)
TO THE CONTROL BOX
6
ATTACH ALL CABLES TO THE TABLE FRAME
OR ON THE UNDERSIDE OF THE TABLE TOP
Attach cables in order to avoid any damage during operation.
Never wrap cables and/or cords around the columns.
7
(OPTIONAL)
ASSEMBLE OUTLET POWER STRIP
8
aUsing the provided hardware, fasten the
mounting clip to the bracket using 10-32
machine screw and washer. Attach the
power strip to the mounting clips.
bUsing the #10 x 3/4 Screws, attach the
power strip assembly to back edge and
underside of the table surface.
Please reference the power strip's instruction guide for additional installation information as needed.

OV1024 | 11
User Guide: OV1024 OPERATION INFORMATION
OPERATION
INFORMATION
INITIALIZATION/RESET
The desk must be initialized/reset after any of the following:
- After assembly
- After disconnection from the power supply
- After any impact on the table top.
To initialize/reset, move the table to the lowest position by pressing the DOWN button on the handswitch until
the columns reach the lowest position. Press the DOWN button again until the table moves slightly down to
the machine zero point and back up to the operation zero point. Release the DOWN button. If the button is
released too soon, the table legs will not move up. Repeat the reset process.
The control box is programmed with a parameter le which controls the table legs' lower and upper travel
limits. Under no circumstance should a control box from one table be moved to another.
NORMAL HANDSWITCH OPERATION (for all handswitch types)
By pressing the UP or DOWN buttons, the table will move up or down to the desired position. Once the
desired position is reached, let go of the UP or DOWN button. The table legs will stop once they reach
the lower or upper height limits.

12 | OV1024
User Guide: OV1024
TROUBLESHOOTING
TROUBLESHOOTING
UNIT
ERROR CODE SOURCE SOLUTION
Table does not
move
No power supply Plug in the power cord or check the connection
on the control box
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box
No connection or a loose
connection to the handswitch
Verify the plug connections of the motor cable
to the control box
Max lifting capacity
is exceeded
Reduce the weight or load on the desktop
Replace the handswitch
Max time limit is exceeded Control is activated automatically after approx. 9 minutes
Defective drive Contact customer service
Defective control box Contact customer service
Defective handswitch
Contact customer service
Defective drive
Table moves
down at a
slow rate
Control box expects
new reset Reset control box. (See page 11)
During operation,
tables moves at
a slow rate
Max lifting capacity
is exceeded Reduce weight
Table moves
on one side only
briefly and then
stops
No connection or a loose
connection to the drives
Verify the plug connections of the motor cable
to the control box and reset the control box
If it is not possible to resolve an error as described, disconnect the power cord, wait a few minutes and
reset the table again. If the error still occurs, remove the table from the power source and contact
customer service. (Error Code list is valid from rmware 1.7.5 and higher)

OV1024 | 13

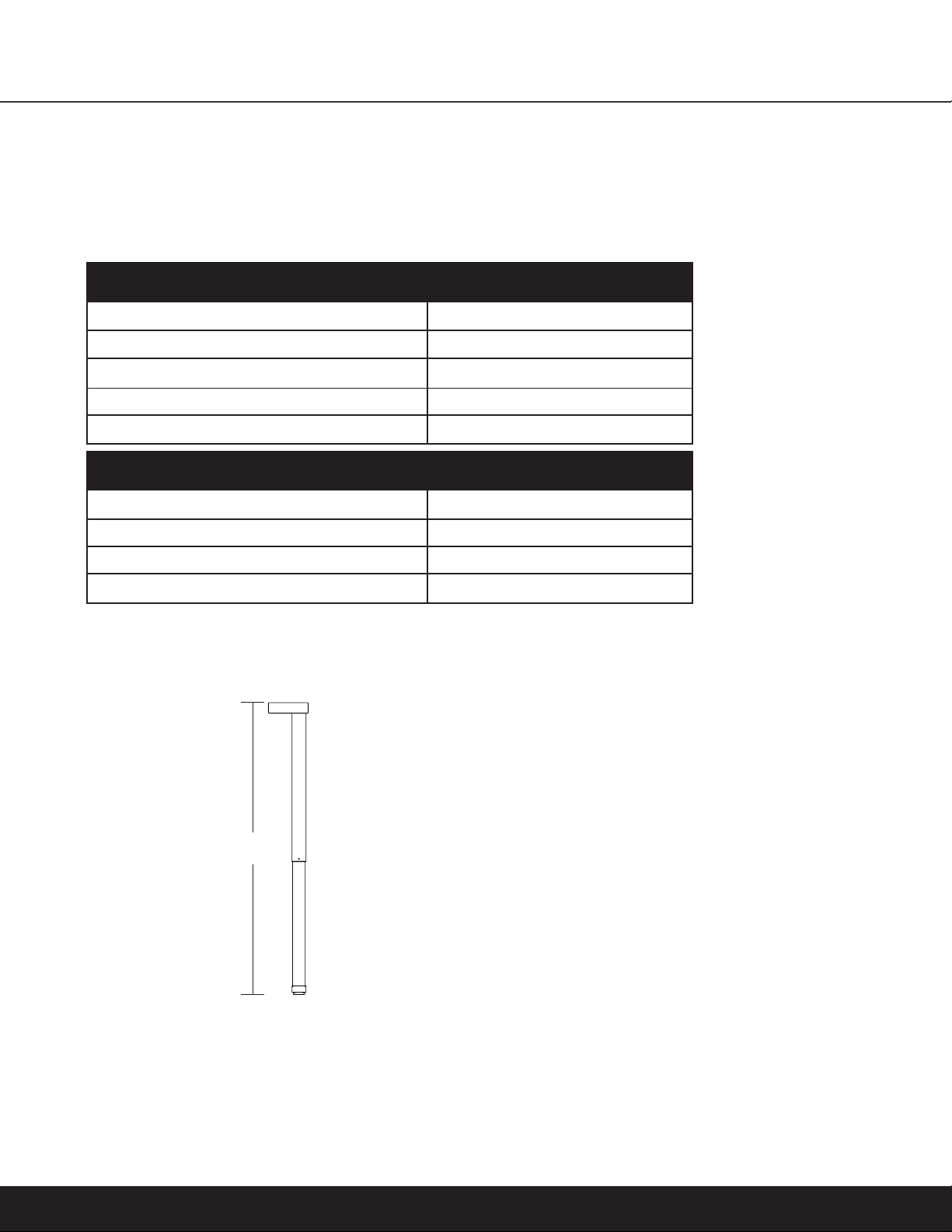

User Guide: OV1024 TECHNICAL DATA
TROUBLESHOOTING TECHNICAL DATA
ILLUSTRATION B SINGLE STAGE
GENERAL CONTROL BOX
Power supply 120 VAC ±10% / 60 Hz
Standby power consumption, primarily <0.3 W
Operating temperature 0-35°C
Protection class IP 20
Maximum power output 240VA/24V
Maximum input current 5 A
Maximum duty cycle 30 sec. on / 9 min. off
TWO-COLUMN FRAME WITH CONTROL BOX
Maximum lift capacity 150 lb (≈ 68 kg / 667N)
Adj. range, depending on version View Illustration B
stroke
length
19"

14 | OV1024
User Guide: OV1024
WARRANTY
CONTACT YOUR SALES REPRESENTATIVE FOR WARRANTY INFORMATION
WARRANT Y
End of life cycle: Once product is disassembled, all steel components can be recycled at your local metal collector.

OV1024
USER GUIDE
Part No. 122524
RevA | 051320
