One Stop Gardens 66437 User manual

INSTRUCTIONS AND PRECAUTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
SAVE THESE INSTRUCTIONS. READ ALL
PRECAUTIONS AND INSTRUCTIONS.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this document or any artwork contained
herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this document may not be drawn proportionally. Due to continuing improvements, actual product
may differ slightly from the product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
SPECIFICATIONS
Max. Hose Length 115 ft.
Overall Dimensions 19” L x 15” W x 16” H
UNPACKING
When unpacking, make sure that the item
is intact and undamaged. If any parts are missing
or broken, please call Harbor Freight Tools at the
number shown on the cover of this document as
soon as possible.
HOSE REEL/STORAGE BOX
66437

SKU 66437 For technical questions, please call 1-800-444-3353. Page 2
IMPORTANT SAFETY
INFORMATION
DO NOT SIT OR STAND ON BOX.1.
WARNING!2. The brass components of this
product contain lead, a chemical known to
the State of California to cause birth defects
(or other reproductive harm). (California
Health & Safety code § 25249.5, et seq.)
Do not use with hose longer than 115 ft.3.
Wear ANSI-approved safety goggles and4.
heavy-duty work gloves during assembly.
This product is not a toy. Do not allow chil-5.
dren to play with or near this item.
Use as intended only. Use for clear water6.
only.
Inspect before every use; do not use if parts7.
loose or damaged.
Maintain product labels and nameplates.8.
These carry important safety information.
If unreadable or missing, contact Harbor
Freight Tools for a replacement.

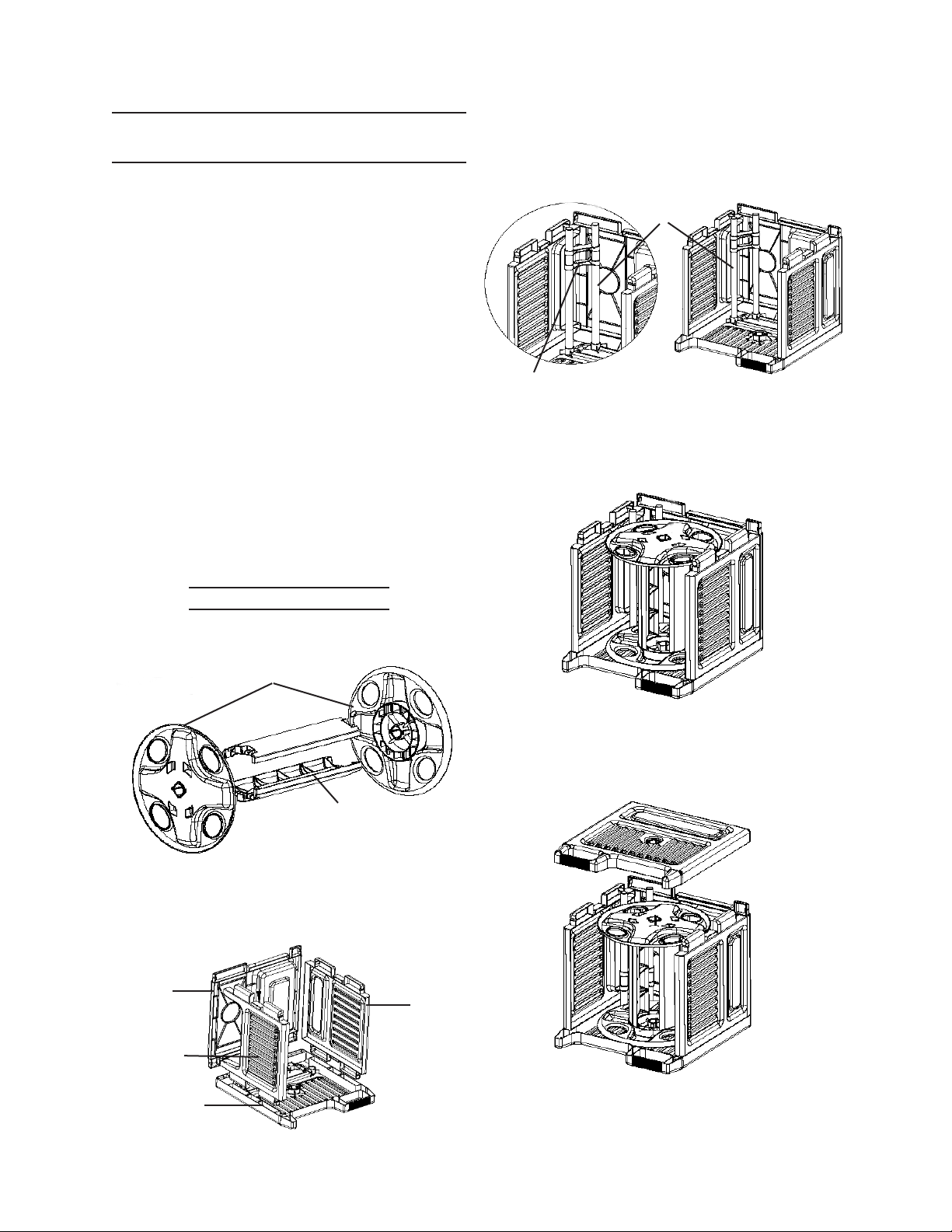

Assembly Instructions
Attach the two Hose Reels (6) to ends of the1.
Reel Cross Bar (5). See Figure A, below.
Set one Side Panel (4) at on the assembly 2.
area and then fasten the Front Panel (2),
Back Panel (3), and Top Cover (1) to the
Side Panel. See Figure B, below.
Insert each of the PVC Tubes (10) into the3.
Hose Frame (9). Then insert the connected
tubes into the slots on the inside of the Side
Panel. See Figure C, below.
Slide the assembled Hose Reels and Reel4.
Cross Bar into the box and attach to slot in
the center of the Side Panel. See Figure D,
below.
Attach second Side Panel to Front Panel,5.
Back Panel and Top Cover, snapping it into
place. See Figure E, below.
Hose Reel (6)
Reel Cross Bar (5)
Figure A
Figure B
Side Panel (4)
Front
Panel (2)
Top
Cover (1) Back
Panel (3)
Figure C
Hose Frame (9)
PVC
Tubes (10)
Figure D
Figure E

SKU 66437 For technical questions, please call 1-800-444-3353. Page 3
Once the Storage Box is assembled, set it6.
upright. Then thread the Elbow Connector
(7) onto the inner left hose opening inside the
Box. See Figure F, below.
Insert the Hand Crank (8) to the right side of7.
the Storage Box. See Figure G, below.
Thread one end of Leader Hose (11) onto
water source and the other onto the connec-
tor on the left side of the Storage Box. See
Figure H, below.
Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this document including
all text under subheadings therein
before set up or use of this product.
Insert hose (not included) through opening1.
in the Front Panel and thread onto the Hose
Reel.
Turn the Hand Crank clockwise to roll up2.
hose.
PARTS LIST & ASSEMBLY
DIAGRAM
Part Description Qty.
1 Top Cover 1
2 Front Panel 1
3 Back Panel 1
4 Side Panel 2
5 Reel Cross Bar 2
6 Hose Reel 2
7 Elbow Connector 1
8 Hand Crank 1
9 Hose Frame 1
10 PVC Tube 2
11 Leader Hose 1
Record Serial Number Here:
Note: If product has no serial number, record
month and year of purchase instead.
Note: Some parts are listed and shown for illustra-
tion purposes only, and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING
CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS
PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY
KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED
TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT
HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF
THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS
AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT
BY THE BUYER. THE BUYER ASSUMES ALL RISK AND
LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO,
OR ARISING OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTS THERETO.
Figure F
Elbow
Connector (7)
Figure G
Hand Crank (8)
Figure H
Leader Hose (11
