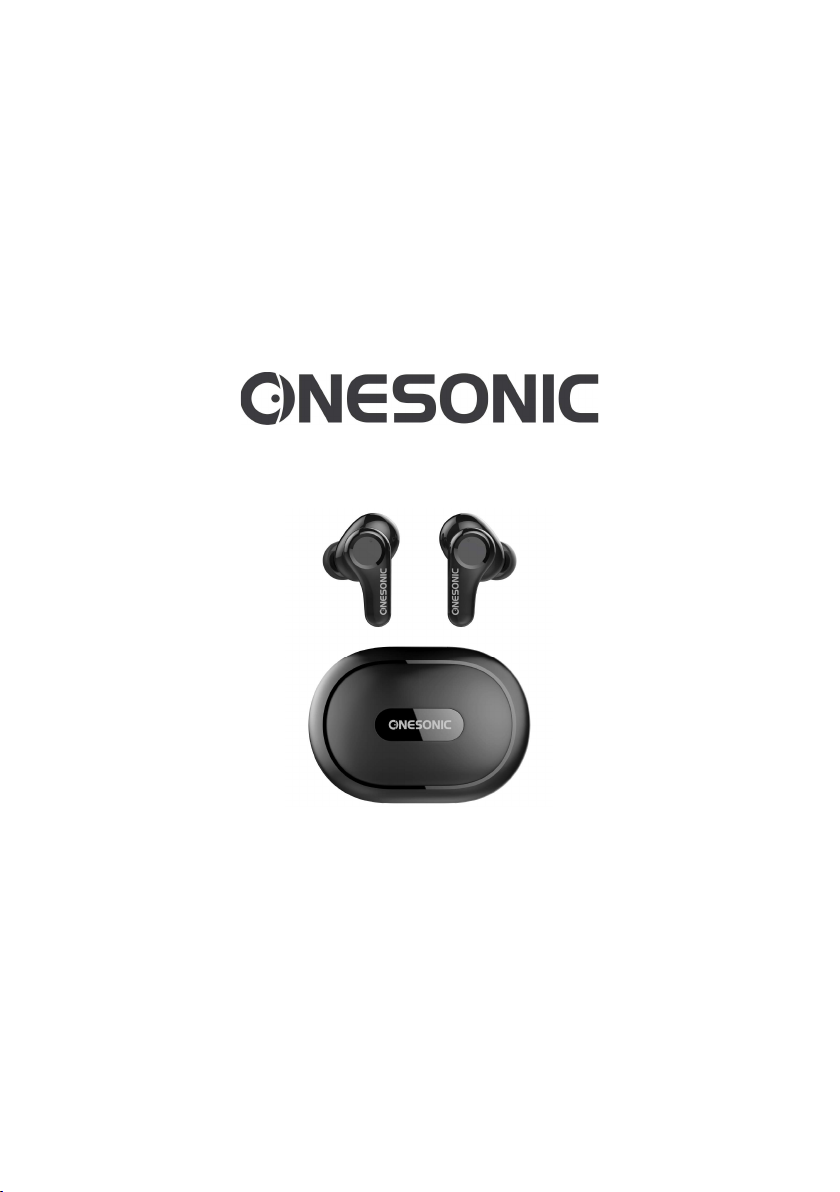

ONESONIC MXS-HD1 User manual

MXS-HD1
User Guide

1 x MXS-HD1 Earbuds.
1 x USB Type C Cable.
1 x Charging Case.
S, M & L Silicon Eartips
1 x User Guide.
Packing List
In cases where any defects occur within 12 months
from the date of purchase, ONESONIC or their
service partners will replace the unit with a fully
operational unit of the same type, or will provide
a repair service after inspection without charge
for labour or parts. This excludes any artificial
damage. The earbuds and packaging must be kept
intact and free of scratches.
Warranty
2

1. Touch Control
2. Noise Cancelling Microphone
3. LED Indicator Light
4. Voice Microphone
Product Functions
3
3
2
4
1

Low Battery A voice prompt alerts you that the
battery level is low. LED Indicator
flashes white every three seconds.
Charging Mode When charging, the LED Indicator
is solid WHITE. The LED Indicator
turns OFF when fully charged.
Bluetooth Pairing
Mode
The LED Indicator of the earbuds
flashes white and blue alternately.
Bluetooth
Connected
The LED Indicator of the earbuds
flashes blue slowly.
LED Indicator (Earbuds)
4
LED Indicator (Charging Case)
LED is flashing Red Charging
LED is solid White 100% Charged
LED is solid White for 5s 50% to 100% Charge
LED is solid Red for 5s 25% to 50% Charge
LED is flashing Red for 5s Below 25% Charge

Product Name ONESONIC MXS-HD1
Compatible Operating
Systems
Android/iOS
Chipset BES2300ZP
Bluetooth Version BT5.0 with support
for HFP1.7, A2DP1.3,
AVRCP1.6, SPP1.2
Li-Battery Capability Earbud: 40mAh
Charging Case: 500mAh
Operating Time 5-6 Hours
Charging Time 1 Hour (Earbuds)
1 Hour (Charging Case)
Charging Mode USB Type C 5V - 430mA
Fast Charge Enabled
Bluetooth
Transmission Range
≤10m
Speaker Impedance 32 Ohms ± 15% @ 1kHz
Speaker Sensitivity (SPL) 104dB ± 2.7dB @ 1kHz
Ambient Noise Cancelling 23 - 25dB
Product Specifications
5

Pairing Procedure
Ensure Bluetooth is switched on and activated
on the device you wish to pair with. Remove the
earbuds from the charging case. They are automat-
ically powered on when removed. A voice prompt
alerts you that power is on and the LED Indicators
flash blue and white. Alternatively, the earbuds can
be turned on manually by touching and holding the
right and left Touch Control panels. A voice prompt
alerts you that power is turned on. The LED Indica-
tors flash blue and white.
Ensure Bluetooth is activated on the device you
wish to pair with. Open the Bluetooth devices
list on your device and select ‘ONESONIC MXS-
HD1’. Click connect to start pairing procedure. If
necessary, enter the default pin code, ‘0000’. A
voice prompt alerts you upon a successful con-
nection. Once connected, the blue LED Indicator
will flash slowly.
Note: auto power on/off does not work when the
charging case is out of power. Earbuds will turn
off if they do not find a Bluetooth device after
5 minutes.
6

Charging Procedure
A voice prompt alerts you that the battery level is
low. The earbuds turn off automatically when pow-
er runs out. Insert the earbuds into the charging
case. Close the lid and the earbuds recharge au-
tomatically. If the LED Indicator on the charging
case flashes RED, it needs to be charged. To charge
the charging case, plug the USB-C cable into the
charging port of the charging case and connect
the other end of the USB-C cable to a USB pow-
er source. Alternatively, the charging case can be
charged wirelessly via a wireless charging platform.
The LED indicator light on the charging case will
flash RED when charging, and will change to solid
WHITE when fullly charged.
7
To reset/re-connect the left and right earbud:
Ensure earbuds are fully charged. Open the case
and Press and Hold the reset button for approx.
10seconds. Release the button when the LED
on both earbuds shows a continuous BLUE and
WHITE light for approx. 1second.
NOTE: It is recommended to refresh the list of
bluetooth paired devices on your audio source,
or Unpair/Forget the ‘ONESONIC MXS-HD1’ prior
to repairing.
Resetting Your Earbuds

8
Operating Instructions
Power On (Auto) Automatic power on once re-
moved from charging case.
Power On
(Manual)
Press and hold Touch Control for
2 seconds.
Power Off Auto power off when inserted
into charging case and closed, or
within 5 minutes of no bluetooth
connection.
Single Tap (Left) Decrease Volume
Single Tap (Right) Increase Volume
Double Tap (Left
or Right)
Answer/End Call
Double Tap (Left
or Right)
Play/Pause
Triple Tap (Left) Previous Track
Triple Tap (Right) Next Track
Hold (2 secs) Left
or Right
Reject Call
Hold (2 secs) Left Turn on Voice Assist (Siri/Google)
Hold (2 secs) Right Switch between;
• ANC ON - “Dum” down
• Ambient Sound - “Swish” up
• ANC OFF - “Dum” up

Safety Information
Do not use the earbuds at a high volume for extended periods
as hearing loss may occur. Check the volume of the earbuds
on your paired device before playing any audio.
Do not use the earbuds while driving or operating heavy
machinery. The use of earbuds while operating a vehicle may
be illegal in some areas. Check and obey the applicable laws
and regulations regarding the use of earbuds while operating
a vehicle. Stop listening to your audio device if you find it
distracting while driving or operating any type of vehicle.
Do not use this device if you find it disruptive to any activity
that requires your full attention to ensure personal safety.
Do not use the earbuds while walking in dangerous areas
where full hearing capability is required for personal safety.
Example areas include but are not limited to: construction
sites, while crossing the road, at railway intersections etc.
The earbuds and accessories may present a choking hazard
or cause other injury to small children and infants. Ensure
that these devices are stored carefully in an area away from
small children.
With regular usage, earbuds may lead to ear infections or skin
irritation. Clean the earbuds regularly using a soft, lint-free
cloth. Do not get moisture in any of the openings or clean the
product using aerosols, solvents or abrasives. If skin irritation
occurs, discontinue use. If the problem persists, seek help
from a qualified medical professional.
