Model: INV18ELE7

Dear customer

Congratulation on buying ONIDA Air Conditioner.

Your Air Conditioner comes with ONIDA Guarantee of Quality

as detailed in the manual.

ONIDA takes great pride in providing its customers with state-

of-the-art products that adheres to international quality

standards.

ONIDA is committed to following quality policy laid by our

chairman and managing director Mr. G. L. Mirchandani.

“We are committed to quality and strive for continuous

improvement through innovation and human development to

give customer better value for money always”

ONIDA stands committed to provide the ultimate customer

satisfaction, as nothing brings us greater joy than having

satisfied customers of ONIDA.

At ONIDA, feedback and suggestions based on your product

usage experience is greatly appreciated.

Please contact to us at r[email protected]

G. Sundar

Chief Executive Officer

IMPORTANT :

Please read this owner’s manual carefully and thoroughly

before installing and operating your room air conditioners.

Please retain this owner’s manual for future reference after

reading it thoroughly.

CONTENTS

Salient Features 1

Inside Overview 2

Indoor Unit Display 3

Remote Overview 4

Operations 8

Notices for installation 12

General Instructions for Installation 13

Installation Sketch 16

Installation 17

Take care of your Air Conditioner 20

Precautions to be taken 23

Trouble Shooting Chart 24

Installation and Satisfaction Report 25

Warranty Terms & Conditions 27

Preventive Maintenance Service Coupon 29

Warranty Card(Customer Copy)

Warranty Card(service Center Copy)

SALIENT FEATURES

Model Code :

• Aesthetics:-

a) Unique Elegant Model with High EER

b) Sleek Indoor Unit

• Performance:-

a) Imported High BTU Tropicalised Compressor

b) Trapezoidal Inner Grooved Tube

c) Large L - Shaped Condenser Coil

d) High RPM Fan Motor with High Static

• Features:-

a) Clean Air

b) Multi-Step Air Swing for Customized Cooling

c) Surround Air

d) Turbo

• Safety & Reliability:-

a) Hydrophilic Fins

b) Full Function LCD Remote

c) Special Insulation on the Air Vent

d) 5-Stage Epoxy Polyester Painting

INV18ELE7

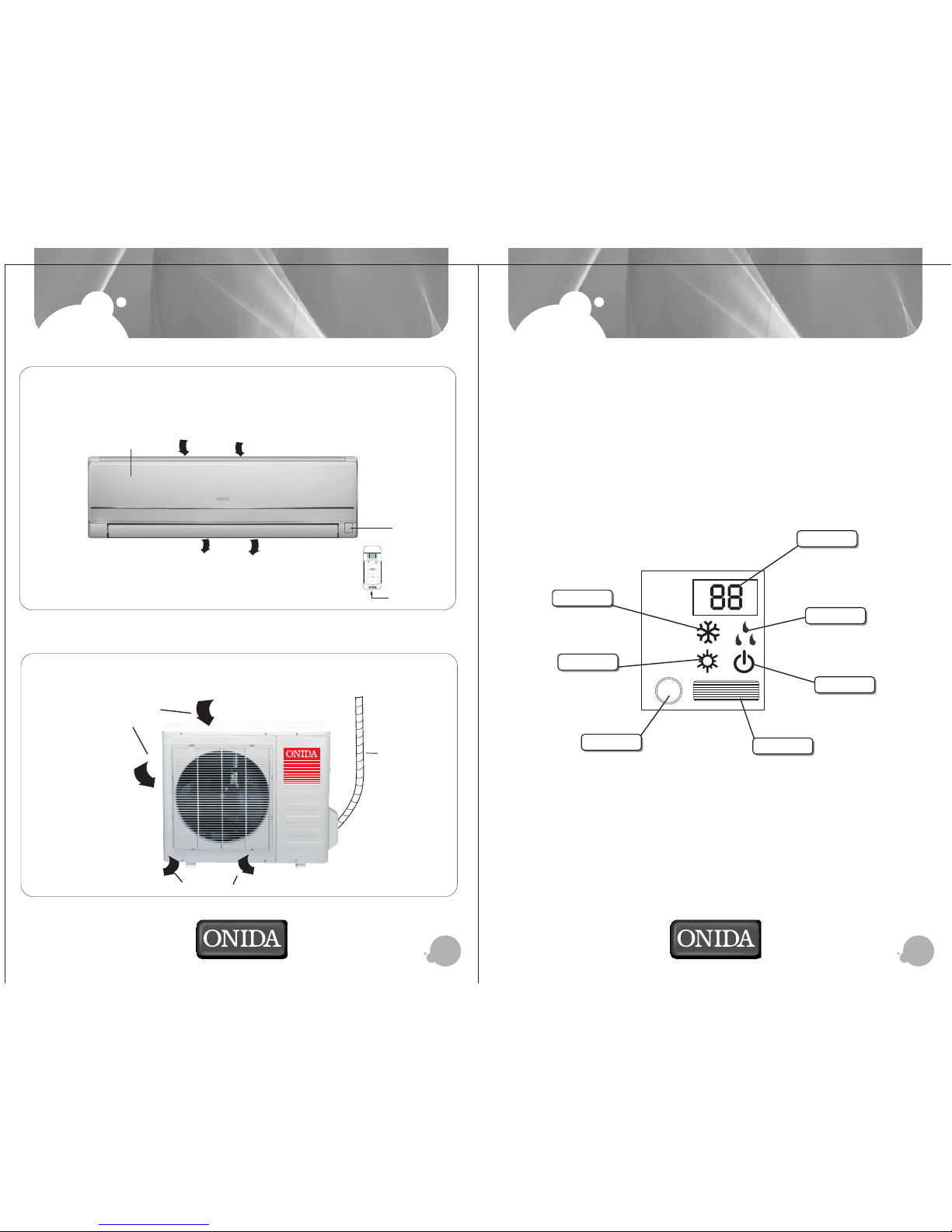

INSIDE OVERVIEW INDOOR UNIT DISPLAY

nOUTDOOR UNIT

Air in

Exhaust Air

Connection

pipe and

connecting wire

nINDOOR UNIT

Conditioned Air out

Front panel

Return warm Air in

Remote controller

Display on the indoor unit.

For the icon of LED windows, only relevant icons will light up with their displays on.

TEMP

AUTO

COOL

DRY

FAN

TURBO

HIGH

MED

LOW

MODE

FAN

SWING

TIMERON/OFF

ENERGY

SAVER

ON/OFF

SLEEP/

DISPLAY

RESET LOCK

SETTEMPERATURE( C)

SELF

CLEAN

i-Cooli-Cool

CLEAN

AIR

CLEAN

AIR

TURBOTURBO

Display

SET TEMP

HEAT

DRY

COOL

POWER

ON/OFF RECEIVER

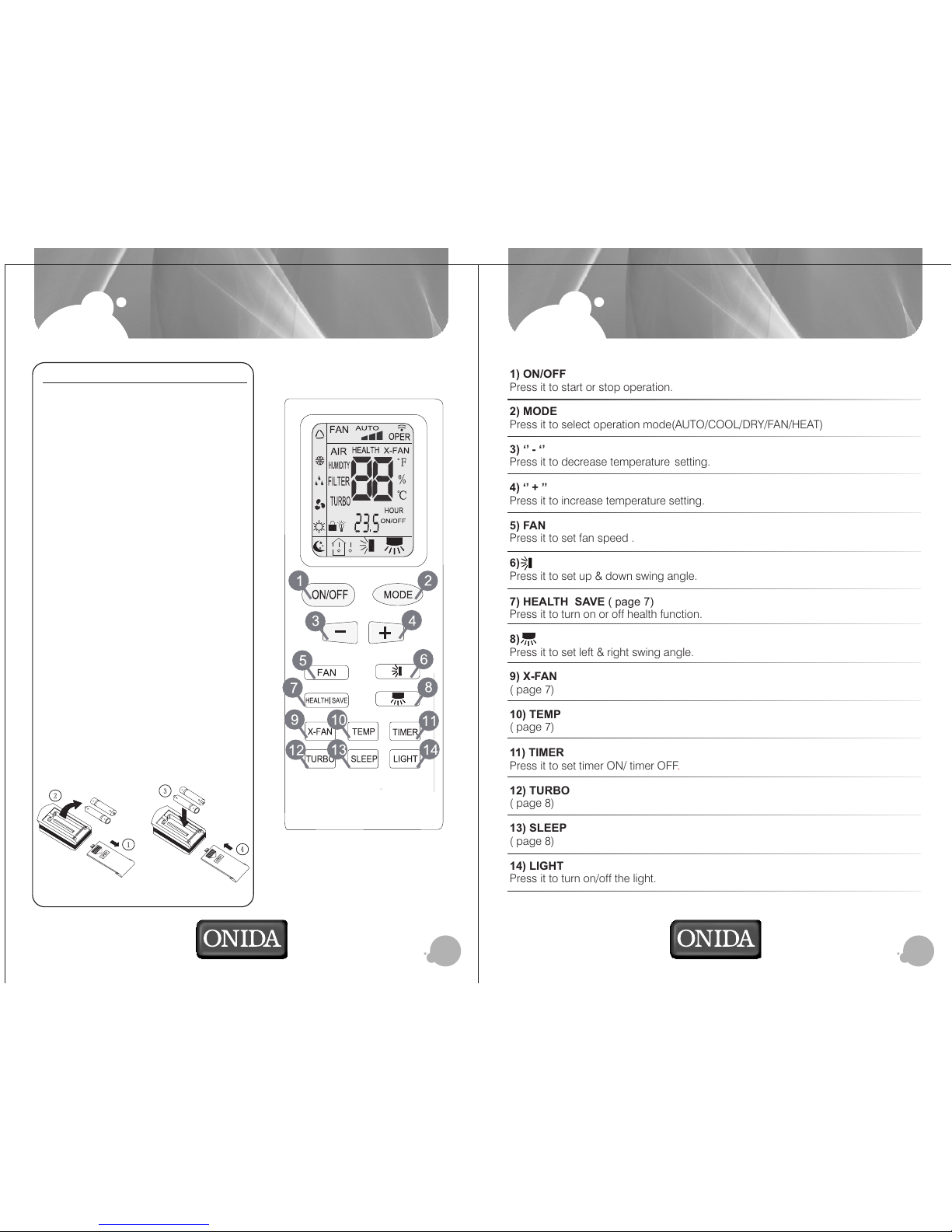

REMOTE OVERVIEW REMOTE OVERVIEW

1) ON/OFF

Press it to start or stop operation.

2) MODE

Press it to select operation mode(AUTO/COOL/DRY/FAN/HEAT)

3) ‘’ - ‘’

Press it to decrease temperature setting.

4) ‘’ + ’’

Press it to increase temperature setting.

5) FAN

Press it to set fan speed .

Press it to set up & down swing angle.

7) HEALTH SAVE ( page 7)

Press it to turn on or off health function.

Press it to set left & right swing angle.

9) X-FAN

( page 7)

10) TEMP

( page 7)

11) TIMER

Press it to set timer ON/ timer OFF

12) TURBO

( page 8)

13) SLEEP

( page 8)

14) LIGHT

Press it to turn on/off the light.

Replacement of Batteries

1) Remove the battery cover plate from the

rear of the remote controller. (As shown in

the figure)

2) Take out the old batteries.

3) Insert two new AAA1.5V dry batteries,

and pay attention to the polarity .

4) Reinstall the battery cover plate.

Notes:

ŸWhen replacing the batteries, do not

use old or different batteries, otherwise,

it may cause malfunction.

ŸIf the wireless remote controller will not

be used for a long time, please remove

batteries to prevent damage from

leaking batteries.

ŸThe operation should be performed in

its receiving range.

ŸIt should be kept 1m away from the TV

set or stereo sound sets.

ŸIf the wireless remote controller does

not operate normally, please take

Ÿthe batteries out and reinsert them after

30 seconds. If it still can't operate

properly, replace the batteries.

OPERATIONS OPERATIONS

20) Up & down swing icon:

is displayed when pressing the up & down swing button. Press this button again to

clear the display.

21) Left & right swing icon:

is displayed when pressing the left & right swing button. Press this button again to

clear the display.

22)SET TIME display:

After pressing TIMER button, ON or OFF will blink. This area will show the set time.

23) DIGITAL display:

This area will show the set tempe-rature. In SAVE mode,"SE" will be displayed. During

defrosting opera-tion, “H1” will be displayed.

24) FAN SPEED display:

Press FAN button to select the desired fan speed setting(AUTO-Low-Med-High).Your

selection will be displayed in the LCD windows, except the AUTO fan speed.

15) MODE icon:

If MODE button is pressed, current operation mode icon (AUTO), ( COOL),

(DRY), (FAN) or (HEAT only for heat pump models) will show.

16) LOCK icon:

is displayed by pressing "+" and “-” buttons simultaneously. Press them again to clear

the display.

17) LIGHT icon:

is displayed by pressing the LIGHT button. Press LIGHT button again to clear the

display.

18) SLEEP icon :

is displayed by pressing the SLEEP button. Press this button again to clear the

display.

19) TEMP icon:

Pressing TEMP button, (set temperature), (indoor ambient temperature) (outdoor

ambient temperature) and blank is displayed circularly.

OPERATIONS OPERATIONS

1) ON/OFF

Press this button to turn on the unit. Press this button again to turn off the unit.

2) MODE

Each time you press this button,a mode is selected in a sequence that goes from

AUTO, COOL, DRY, FAN , and HEAT *, as the following:

*Note: Only for models with heating function.

After energization , AUTO mode is defaulted. In AUTO mode, the set temperature

will not be displayed on the LCD, and the unit will automatically select the suitable

operation mode in accordance with the room temperature to make indoor room

comfortable.

3) “ ”

Press this button to decrease set temperature. Hold it down for above 2 seconds to

rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.

4)“ ”

Press this button to increase set temperature. Hold it down for above 2 seconds to

rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.

5) FAN

This button is used for setting fan speed in the sequence that goes from AUTO

, to then back to Auto.

Low speed Medium speed High speed

ŸPress button to start or stop up & down swing function. The remote controller

defaults to simple swing condition.

ŸPress + button and button at the same time at unit OFF to switch between

simple swing and static swing blinks for 2 seconds.

ŸIn static swing condition, pressing button, the swing angle of up & down

louver changes as.

ŸIf the unit is turned off during swing operation , the louver will stop at present

position.

7)HEALTH SAVE

Press HEALTH part of this button to turn on or off HEALTH function. Pressing SAVE

part of this button, is displayed and the unit goes into SAVE operation mode.

Press SAVE part of the button again to cancel SAVE function. During SAVE

operation, the temperature and fan speed is not adjustable

ŸPress button to start or stop left & right swing function.The remote controller

defaults to simple swing condition.

ŸPress + button and button at the same time at unit OFF to switch between

simple swing and static swing; blinks for 2 seconds.

ŸIn static swing condition, pressing button, the swing angle of left & right

louver changes as below:

Ÿ If the unit is turned off during swing operation, the louver will stop at present

position.

9) X-FAN

Pressing X-FAN button in COOL or DRY mode,the icon "X-FAN" is displayed and the

indoor fan will continue operation for 10 minutes in order to dry the indoor unit even

though you have turned off the unit.

After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO, FAN

and HEAT mode.

Note: X-FAN is the alternative expression of BLOW for the purpose of under standing.

10) TEMP

Press this button, could select displaying the indoor setting temperature or indoor

ambient temperature.When the indoor unit firstly power on it will display the setting

temperature, if the temperature's displaying status is changed from other status

Auto

1110

OPERATIONS OPERATIONS

Special selection button: for those users who do not want light at night.

ŸLight on: press “light” button when the light is off, the indoor indicator light will

be on.

Ÿ Light off: press “light” button when the light is on, the indoor indicator light will

be off.

Notice: when there’s no display of indoor indicator, please check the setting status

for light function of wireless remote controller.

If the wireless remote control is lost or broken, please use the manual switch button.

At this time, the unit will run at the Auto mode, but the temperature and fan speed

cannot be changed. The operation was shown as below: To open the panel, the

manual switch is on the displayer box.

ŸTurn on the unit: At unit turned off, press the button, the unit will run at Auto

mode immediately. The microcomputer will accord to the indoor temperature to

select (Cooling, Heating, Fan) and obtain the comfortable effect.

ŸTurn off the unit: At unit turned on, press the button, the unit will stop working.

Displayer indicator light control of indoor unit

Emergency operation

Manual switch

to" ",displays the ambient temperature, 5s later or within 5s, it receives other remote

control signal that will return to display the setting temperature. if the users haven't

set up the temperature displaying status, that will display the setting temperature.

11) TIMER

Press TIMER button at unit ON to set TIMER OFF; HOUR OFF blinks. Press TIMER

button at unit OFF to set TIMER ON; HOUR ON blinks. In this case, pressing + or -

button changes time setting. Holding down either button rapidly changes time

setting (time setting range 0.5-24hours). Press TIMER button again to confirm

setting; HOUR ON/OFF stops blinking. If there is not any operation of button within 5

seconds during HOUR ON/OFF blinking, TIMER setting will be cancelled.

12) TURBO

Press this button to activate / deactivate the Turbo function which enables the unit to

reach the preset temperature in shortest time. In COOL mode, the unit will blow

strong cooling air at super high fan speed. In HEAT mode, the unit will blow strong

heating air at super high fan speed. (This function is not applicable for some

models).

13) SLEEP

Press this button to go into the SLEEP operation mode. Press it again to cancel this

function. This function is available in COOL , HEAT (Only for models with heating

function) or DRY mode to maintain the most comfortable temperature for you.

14) LIGHT

Press LIGHT button to turn on the display's light and press this button again to turn

off the display's light. If the light is turned on , is displayed. If the light is turned off,

disappears.

15) Combination of " + " and " - " buttons About lock

Press "+" and "-" buttons simultaneously to lock or unlock the keypad. If the remote

controller is locked, is displayed. In this case, pressing any button,

blinks three times.

16) Combination2 of "MODE " and " - " buttons

About switch between Fahrenheit and Centigrade.

At unit OFF, press "+" MODE and "-" buttons simultaneously to switch between

°C and .°F

1312

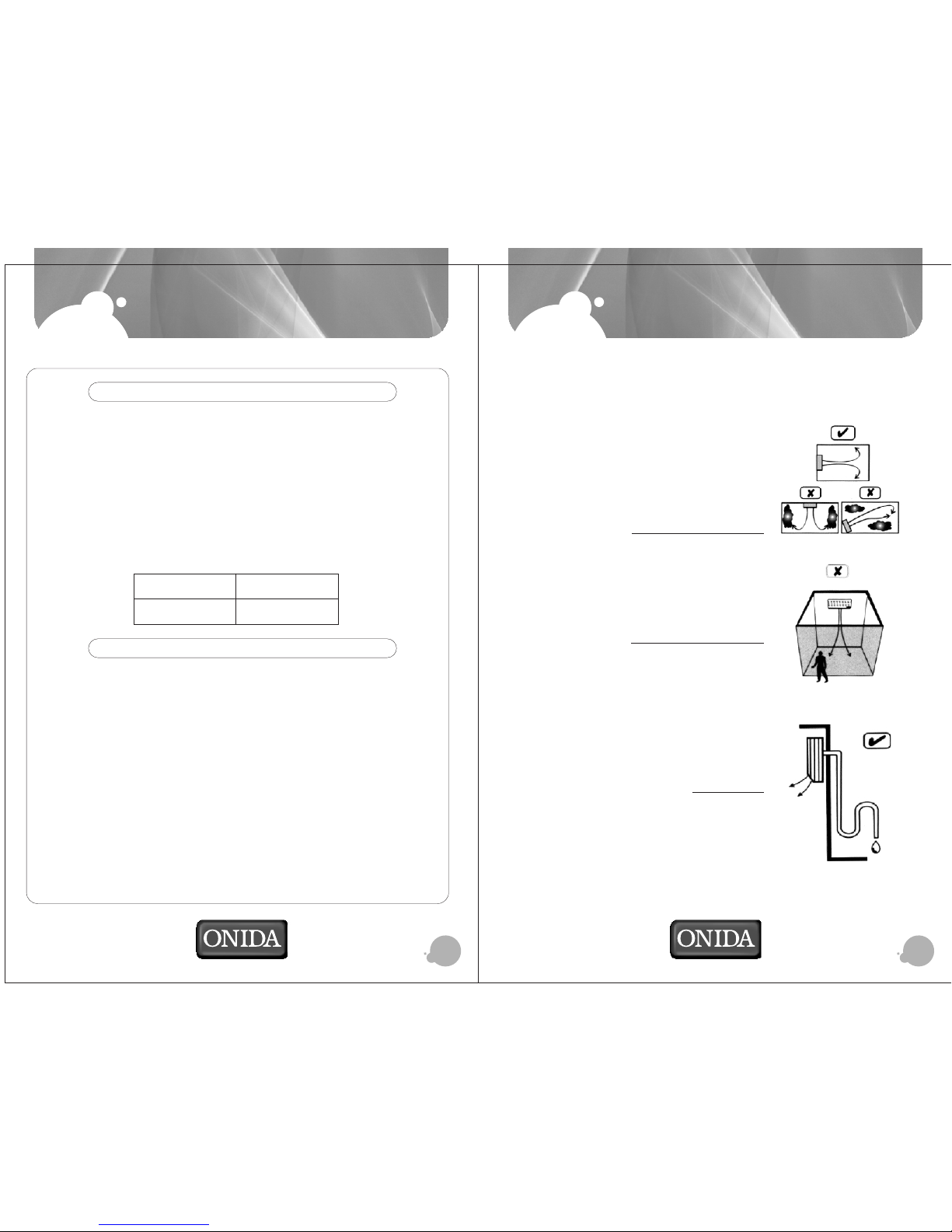

Locating the indoor and outdoor units

properly will help optimise the performance of

your airconditioner. While your Onida /

Dealer's Technician will be happy to guide you

on the best location for your airconditioner,

here are a few helpful hints.

Locating the Indoor Unit

• Locate the IDU for the best cool air

circulation. Preferably, there should be

no obstructions nearby, as shown in the

adjacent figure.

• Do not locate the unit directly opposite a

door which is opened frequently. The

cold air will go out of the room each time

the door is opened, as shown in the

adjacent figure.

• All indoor units will form condensate water.

Please ensure that the condensate can

be drained out of the room to a toilet /

pantry, etc. The installation engineer will

make sure that a "U" bend is provided in

the drain to prevent insects from coming

into the room through the drain tube, as

shown in the adjacent figure.

1. The power supply should be used the rated voltage and AC exclusive circuit,

the power cable diameter should be satisfied.

2. Don't drag the power cable emphatically.

3. It should be reliably earthed, and it should be connected to the special earth device,

the installation work should be operated by the professional.

The air switch must have the functions of magnetic tripping and heat tripping, in order

to protect the short circuit and overloading.

4. The min. distance from the unit and combustive surface is 1.5m.

5. The appliance shall be installed in accordance with national wiring regulations.

6. An all-pole disconnection switch having a contact separation of at least 3mm in all

poles should be connected in fixed wiring. For models with a power plug, make sure

the plug is within reach after installation.

Safety Requirements For Electric Appliances

Air-conditioner (Btu/h) Air switch capacity

18,24K 25A

Earthing requirements

1.Air conditioner is type I electric appliance, thus please do conduct reliable earthing

measure.

2. The yellow-green two-color wire in air conditioner is earthing wire and cannot be used

for other propose. It cannot be cut off and be fix it by screw, otherwise it would cause

electric shock.

3. The earth resistance should accord to the National Criterion.

4. The user power must offer the reliable earthing terminal. Please don't connect the

earthing wire with the following place:

A. Tap water pipe.

B. Gas pipe.

C. Contamination pipe.

D. Other places that professional personnel consider them unreliable.

5. Including an air switch with suitable capacity, please note the following table. Air switch

PCB board.should be included magnet buckle and heating buckle function, it can protect

the circuit-short and overload. (Caution: please do not use the fuse only for protect

NOTICES FOR INSTALLATION GENERAL INSTRUCTIONS FOR

INSTALLATION

1514

GENERAL INSTRUCTIONS FOR

INSTALLATION

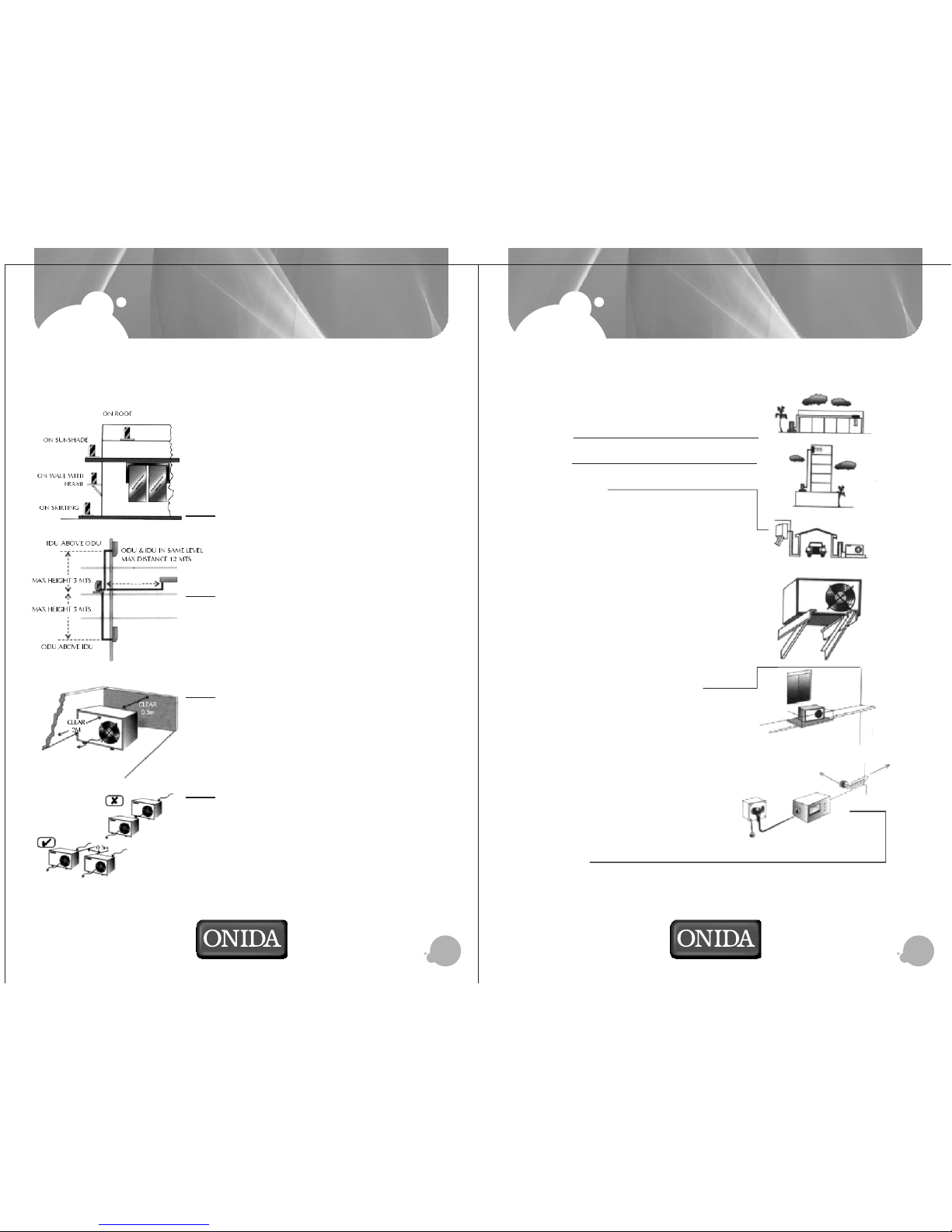

Locating the Outdoor Unit

The outdoor unit houses the compressor,

condenser fan and electrical components.

The heat removed from the room is expelled

to the atmosphere through the outdoor unit.

Once again, the Onida / dealer's Technician

will ensure optimal installation of the ODU for

you. However, the following information will

be of interest to you.

• The Outdoor Unit can be mounted on a

wall, sunshade or skirting.

• Ideally, the ODU should not be too

far a w a y f r o m t h e I D U ; t h e

recommended distances are

marked in the adjacent figure.

• Ensure that air can pass freely through

the unit. Please allow at least 2 meters

free space on the air outlet side, and 0.3

meters on the air inlet side.

• If more than one ODU is to be installed,

they must be properly separated, so that

the warm air from the outlet of one does

not enter the inlet of the other.

• Avoid long and complicated routing

between the IDU and ODU, as

shown in the three adjacent figures.

• Too long

• Too high

• Too many bends

• The ODU must be placed on strong

frame or support. If mounted on a

wall, please ensure that the wall is

thick enough and that the frame is

supported adequately.

• Finally, it is most important for the

ODU to be easily accessible to the

service engineer. It is advisable to

discuss the same with the engineer

before deciding upon the location of

the unit.

If the ODU is to be located on a high

ledge, adequate space must be

provided for the service engineer to

service the unit. It is a good idea to

provide a catwalk (a platform)

around the unit and access door /

window to the Unit.

Electrical outlet

After the location of the outdoor unit and

indoor unit is finalised, you must provide

a suitable electrical outlet near the

indoor unit.

MCB

o ODU

STABILISER

To ODU

GENERAL INSTRUCTIONS FOR

INSTALLATION

1716

Number

Name of Accessories

Installation Plate

Clip Anchor

Self-tapping Screw A ST3.9X25

Seal

Drain Joint

Liquid Side

Gas Side

Liquid Side

Gas Side

6.35(12000Btu/h)

12.7(12000Btu/h)

9.53(18000Btu/h)

16.0(18000Btu/h)

Remote Controller

Self-tapping Screw B ST3.9X10

Remote Controller Holder

Q’ty

Connecting

Pipe

Assembly

Parts You

Must

Purchase

Mounting screw B

ST2.9x10-C-H

Remote controller

holder

Remote Controller

ADJUST

AUTO

COOL

DRY

HEAT

HEALTH

HIGH

MED

LOW

MODE

FANSPEED

SWING

TIMERON

SLEEP

ON/OFF

TIMEROFF

AUTO

CLEAN

RESETLOCK

SETTEMPERATURE( C)

ME LED

DISPLAY

CLEAR

AIR

TURBO

15cm right

15cm left

15cm above

Loop the

connective

cable.

60cmabove

60cm above

30cmabove

Air FilterAir Filter

Air Outlet

30cmabove

Wrapping

tape

200cmabove

Additional

drain pipe

nDrill on the wall

Confirm the position of holes and drill holes of diameter 65 mm on the wall

nINDOOR UNIT

1. Fitment of mounting plate

The mounting plate should be fitted on the structural part of wall on which indoor unit

is to be installed.

2. Drill two holes at a distance of 450 mm between them for the expansion bolts.

nConnecting of cables

1. Open the front panel

2. Dismantle the electric box cover

and fastener

3. Connect the cable

4. Reassemble the fastener and electric box

cover.

150mm or more to ceiling

Indoor unit outline Installation plate

293

Right rear side

refrigerant

pipe hole 65

Left rear side

refrigerant

pipe hole 65

120mm or more

to wall

120mm or more

to wall

995

Blue

Terminal board

Power connection wire

Black

Yellow-green

Center of Hole(Ø65mm)

Insert Ruler

180mm

Align Ruler with straight line

INSTALLATION SKETCH INSTALLATION

1918

INSTALLATION

External connection

electric wire

Liquid side piping

Liquid side

piping insulation

Water

drainage

pipe

Finally wrap it

with tape

Gas side

piping insulation

Gas side piping

air proof with putty

Mounting Board

Fixing Hook

nInstallation of indoor unit

After putting the pipe assembly through

the wall, attach the indoor unit to the

mounting plate on the wall as shown in

the figure.

nInstallation of outdoor unit

• The connecting cables must be clipped together.

• Special cable to be used to connect indoor unit and outdoor unit.

• The electric box cover must be mounted on its position on outdoor unit.

nConnecting of pipes

nSealing the wall hole and clamping the pipe

• Use putty to seal the wall hole.

• Use pipe fastener to clamp the pipe on wall

Pipe Diameter of pipe Torque (N • m)

Liquid pipe 6.35 mm 13.7--17.6

Gas pipe 12.7 mm 49.0--56.4

Liquid pipe 9.52 mm 13.7--17.6

Gas pipe 16 mm 49.0--56.4

1 2(N) 3 4

12(N)

nDischarge the air of the units:

It can used as vaccum pump.

Remove screw cap of closing valve and

gas charging hole; Open the closing valve

with Allen wrench(turn 90 clockwise),

then push the gas hole for about 10 seconds,

(When a gas like fog appears, it indicates

that the air of unit has been discharged)

put back the screw cap of gas charging hole.

Do the leak test with leak detector or soap water.

nAdd refrigerant

• If the connecting pipe is longer than 7 meters, add refrigerant as needed. Add

amount A= (Lm-7m) 15g/m.

(A: add refrigerant amount, L: the length of connecting pipe)

• Add refrigerant with the spring balance, as specified above.

the length of connecting pipe (m) 7 8 9 10

add amount (g) 0 15 30 45

nTest

• Proceed leak test (with leak detector or soap water.) and inspect connecting

cables before test operation.

Test procedure: (Control by emergency operation switch or remote

controller) For detailed operation, see OPERATION OF AIR CONDITIONER

in the manual.

Indoor unit Liquid pipe

Gas pipe Gas charging hole

Closing valve

connecting pipe

Bottle of storage refrigerant

Bottle’s valve of storage refrigerant

Outdoor unit

Gas

Charging

Hole

Screw Cap

Gas connecting

pipe

Liquid connecting pipe Cap

Liquid closing valve

Gas closing

valve

Allen Wrench

INSTALLATION

2120

INSTALLATION INSTALLATION

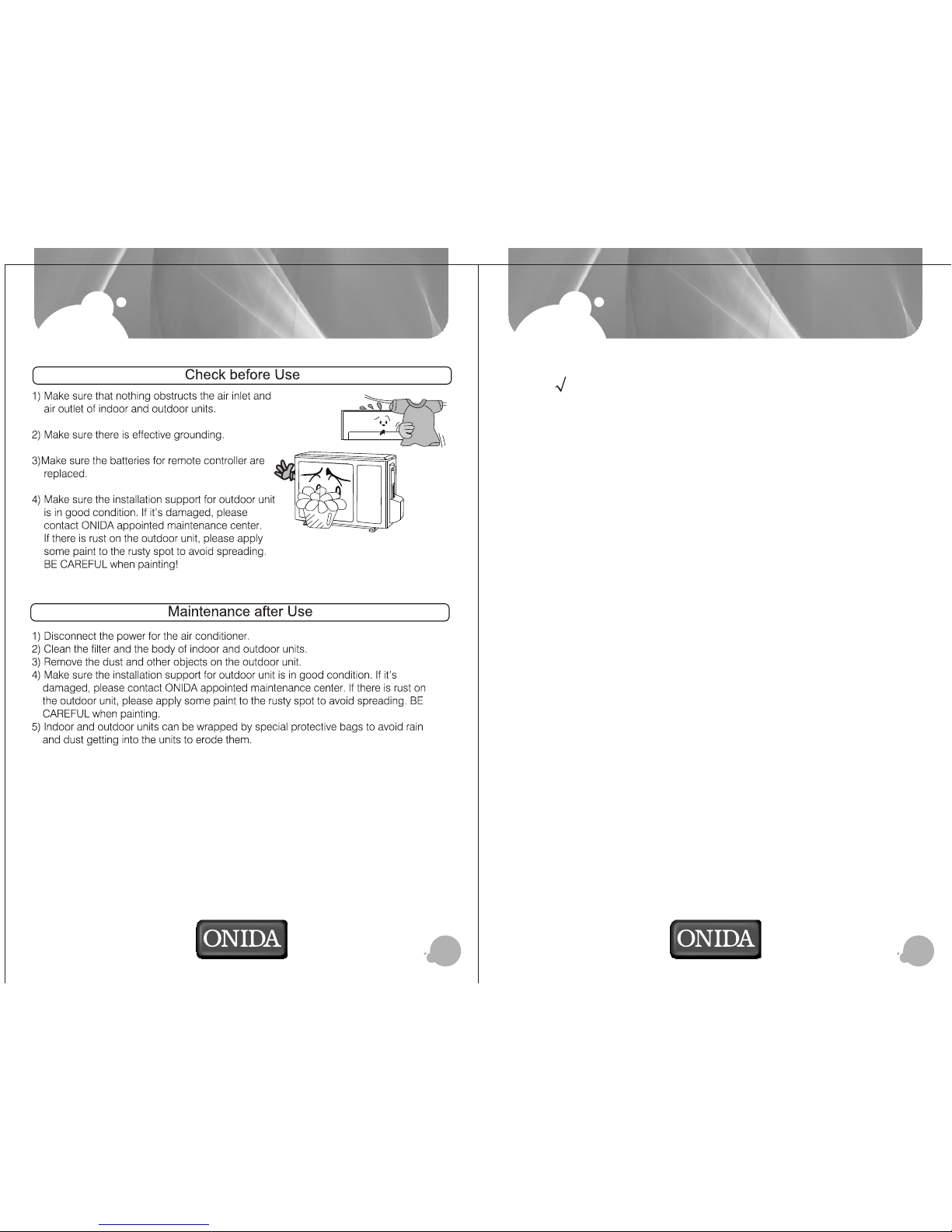

TAKE CARE OF YOUR

AIR CONDITIONER

PRECAUTIONS TO BE TAKEN

Do's ( )

• Seal all air gaps in the room

• Choose the right temperature to avoid over cooling

• Ventilate the room regularly.

• Switch off the power supply if not in use for long.

• Unplug the unit while cleaning.

Don't's ( )

• Don't leave the doors and windows open when the air conditioner is on.

• Don't use hot water to clean your front grill

• Don't use scouring powder, harsh soaps, wax or polish on the grill.

• Don't switch on the air conditioner immediately after switching it off.

Wait for 2 minutes.

• Don't operate with a clogged filter

• Don't block air intake & outlet vents

• Don't change setting unnecessarily.

2524

Customer Name :

Address

Phone[O] [R]

Unit Model Unit Serial Number Dealer Name

Invoice Number Date of Purchase Date of Installation

MCB Rating Current (Amps.)

Cable Size Ambient Temp. ( C)

Earthing Room Temp. ( C)

Stabiliser Grill Temp. ( C)

Input Voltage Remote Operation

Customer's Response : To be filled up by the Customer

1. Installation completed within:

12hrs( ), 24 hrs( ) , 36 hrs ( ), more than 36 hrs ( )

2. How did you find the behavior of the Engineer :

Excellent ( J ), Good ( K ), Not satisfied ( L )

3. Overall rating of the service:

Excellent ( J ), Good ( K ), Not satisfied ( L )

4. Suggestion if any:

Job Number Engineer's Signature Customer's Signature

INSTALLATION & SATISFACTION

REPORT

TROUBLE SHOOTING CHART

Phenomenon Troubleshooting

Indoor unit cannot deliver air. ŸIn HEAT mode, when the temperature of

indoor heat exchanger is very low, that will

stop deliver air in order to prevent cool air.

(Within 2min)

Ÿ In HEAT mode, when the outdoor

temperature is low or high humidity, there

are much frost be formed on the outdoor

heat exchanger, that the unit will

automatically defrost, indoor unit stop

blowing air for 3-12min. During the

defrosting, there is water flowing out or

vapor be produced.

ŸIn dehumidifying mode, sometimes indoor

fan will stop, in order to avoid condensing

water be vapo-rized again, restrain

temperature rising.

Moisture on air outlet vent. ŸIf unit is running under the high humidity for

a long time, the moisture will be condensed

on the air outlet grill and drip off.

H1: Defrosting ŸIt is normal.

Immediately stop all operations and plug out,

contact the dealer in following situations.

There is harsh sound during operation.

The terrible odors emitted during

operation. Water is leaking in the room.

Air switch or protection switch often

breaks. Carelessy splash water or

something into unit. There is an

abnormal heat in power supply cord and

power plug.

Stop running and pull out of the plug.

2726

M/S. MIRC ELECTRONICS LTD, WARRANTS THIS ONIDA AIR CONDITIONER[(except the front grill,

knobs, remote unit and add-on plastic parts) TO THE ORIGINAL PURCHASER TO BE FREE FROM

DEFECTS IN MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE

AS PROVIDED IN THE WARRANTY REGISTERATION CARD.

WARRANTY FOR COMPRESSOR:

MIRC ELCTRONICS LTD, HEREAFTER WARRANTS TO THE PURCHASER OF THIS ONIDA AIR

CONDITIONER THAT FOR A PERIOD OF 12 MONTHS FROM THE DATE OF INVOICE .

WE WILL REPAIR/REPLACE THE COMPRESSOR WHICH PROVES UPON INSPECTION BY US OR ANY

OF OUR AUTHORISED SALES DEALERS TO HAVE BEEN DEFECTIVE DUE TO MANUFACTURING

DEFECT.

This warranty is subject to terms and conditions as mentioned below:

1. This warranty shall be valid only for the said period of 12 months as specified above, irrespective of

whether the said unit has been in use or not for any reason whatsoever, or the unit is moved from one

location to another. Warranty does not cover accessories external to the equipment.

2. The warranty period specified above shall include time taken for repairs, replacements, break-downs,

transit time etc. No notice of expiry period of warranty will be given by the company.

3. This warranty shall stand automatically terminated in the event of the said unit being serviced,

repaired, installed, de-installed, re-installed or otherwise attended to by any person or organization or

agency or by the said purchaser himself other than the authorized representative of the company.

4. Parts of the unit replaced or repaired under the terms of this warranty are warranted only for the

remaining period of the original warranty period.

5. For attending any service call under this warranty beyond the municipal limits of the locality in which

the authorized representative/dealer is situated (outstation locations), all to and fro travelling and

other incidental expenses as prevailing from time to time incurred in connection with the visit of the

service personnel, technicians, etc shall be borne by the said purchaser and shall be payable in

advance. Additionally, all expenses incurred by the authorized representative /dealer in collecting the

said unit or any part thereof from such outstation locations and its return to the original location shall

be borne by the said purchaser.

6. Any loss of refrigerant caused due to sabotage, improper handling or treatment , carelessness,

accident, fire, flood earthquake or any natural calamity any corrosive action on the original refrigerant

pipes, fittings, valves etc for whatever reasons, shall not be covered under this warranty.

7. In the event of any change in the location of the unit during the warranty period, this warranty shall

become null and void unless the fact of the proposed change is communicated in writing to the

authorized dealer at least seven (7) days prior to the said change. On receipt of such information the

authorized dealer or any of its counterparts shall arrange for de-installation of the said unit on

chargeable basis. However, in the event of any damage occuring to the unit or to any of its parts during

the course of its transit by the said purchaser, repair or replacement, the said unit or any part thereof

damaged shall not be covered by this warranty.

WARRANTY TERMS

AND CONDITIONS

2928

8. It shall be the absolute discretion of the company to a) effect the repairs or replacement of parts

whether at the site of installation or at any service centre, and b) have the job attended to either by the

Company's service personnel or its authorised dealer

9. This warranty is in the nature of and for the purpose of set forth herein above and in particular the

Company shall not in any event be liable for direct, indirect, incidental or consequential loss or

damages to either the said purchaser and /or his property or any other third party.

10. The AC is designed to operate at a range (230V +/- 10%). Any failure due to operation of the machine

beyond these limits will not be covered by the above warranty.

Customer shall ensure that a stabilizer is installed in those areas where voltage is not available within

the warranty range (230V +/- 10%). The stabilizer should be of any reputed manufacturer, tested and

recommended by the Company.

11. The purchaser should preserve the original invoice for necessary verification and produce, as and

when required.

12. Warranty null and void if:

i. The Air Conditioner is not purchased from the authorized dealers of the company.

ii. The Service Centre copy of warranty card is not received within 10days of date of purchase at the

nearest Authorised Service Centre.

iii. Any damage is caused by accident, mishandling, tampering with installation, or negligence in

following instructions of the user manual issued by Company.

iv. Any damage is caused by improper electrical circuit outside the unit or by any defective electrical

supply

v. At any time, during the warranty period if any part of the unit is tampered with, altered, repaired or

serviced by any unauthorized person, not being the authorized representative of the company or

its authorized dealers

vi. The serail number of the unit or any part thereof is damaged , defaced, altered, obliterated , or

tampered with or removal for any reason whatsoever

viii. The unit is unauthorisedly moved from its original place of installation or re-installation

13. None of the employees and /or Authorized Dealers of the Company have any authority whatsoever to

vary the terms and conditions of this warranty.

14. This warranty shall be deemed to have been issued at Mumbai, state of Maharashtra and courts at

Mumbai shall have exclusive jurisdiction on matters covered by or following from this warranty, and

the original purchaser alone shall have cause of action arising out of the transaction.

Preventive Maintenance Service 1 Date: ________

Customer Identification Number: ___________________________________________

Name of the customer: ____________________________________________________

Installation address: ______________________________________________________

________________________________________________________________________

Phone: _________________ Mobile: __________________ Fax: ________________

E-mail: _________________________________________________________________

Unit model: ____________________________ Serial Number: __________________

Service report number: ___________________________________________________

Customer's Signature: _______________________ Name: _______________________

Preventive Maintenance Service

Customer Identification

Number:

______________________

Unit Model: ___________

Sr. No: _______________

Name of Serviceman:

______________________

Date: ______ Time: _____

Sign. of Serviceman

Preventive Maintenance Service 2 Date: ________
